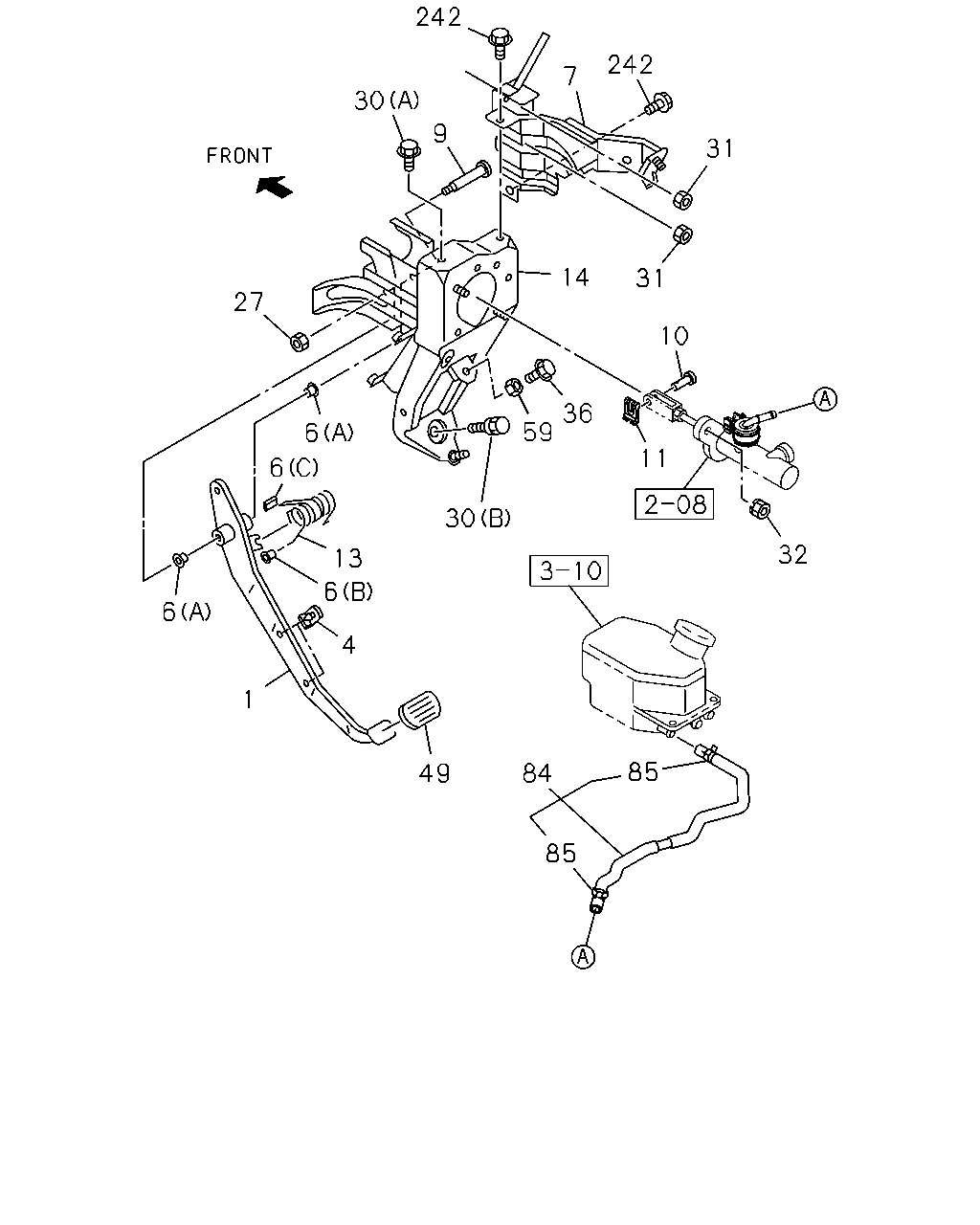

2-03 — CLUTCH PEDAL AND CONTROL (#130833) — 102 parça

242 30 7 242 31 31 14 10 32 30 59 36 6 27 6 13 6 4 6 1 49 84 85 85 11 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PEDAL; CLU POWER ASSIST CLUTCH(S2T)	8-98002-484-0	01	1	1311-1412	●
1	PEDAL; CLU POWER ASSIST CLUTCH(S2T)	8-98002-484-0	01	1	1501-	●	●
1	PEDAL; CLU EXC. POWER ASSIST CLUTCH(S2T)	8-98034-754-0	01	1	1311-1412	●
1	PEDAL; CLU EXC. POWER ASSIST CLUTCH(S2T)	8-98034-754-0	01	1	1501-	●	●
4	STOPPER; CLU PEDAL MAL	8-97853-534-1	02	1	1311-1412	●
4	STOPPER; CLU PEDAL MAL	8-97853-534-1	02	1	1501-	●	●
6	BUSHING; CLU PEDAL EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97853-619-0	02	1	1311-1412	●
6	BUSHING; CLU PEDAL EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97853-619-0	02	1	1501-	●	●
6	BUSHING; CLU PEDAL EXC. POWER ASSIST CLUTCH(S2T) (C)	8-97853-620-0	01	1	1311-1412	●
6	BUSHING; CLU PEDAL EXC. POWER ASSIST CLUTCH(S2T) (C)	8-97853-620-0	01	1	1501-	●	●
6	BUSHING; CLU PEDAL (A)	8-94238-596-0	02	1	1311-1412	●
6	BUSHING; CLU PEDAL (A)	8-94238-596-0	02	1	1501-	●	●
7	BRACKET; CLU PEDAL	8-98029-186-4	01	1	1311-1412	●
7	BRACKET; CLU PEDAL	8-98029-186-4	01	1	1501-	●	●
9	PIN; CLU PEDAL	8-97866-667-0	01	1	1311-1412	●
9	PIN; CLU PEDAL	8-97866-667-0	01	1	1501-	●	●
10	PIN; CLU PEDAL	8-98147-657-0	01	1	1311-1412	●
10	PIN; CLU PEDAL	8-98147-657-0	01	1	1501-	●	●
11	PIN; SNAP,PUSH ROD TO PEDAL	8-98007-161-0	01	1	1311-1412	●
11	PIN; SNAP,PUSH ROD TO PEDAL	8-98007-161-0	01	1	1501-	●	●
13	SPRING; ASSIST,CLU PEDAL POWER ASSIST CLUTCH(S2T)	8-98023-621-1	01	1	1311-1412	●
13	SPRING; ASSIST,CLU PEDAL POWER ASSIST CLUTCH(S2T)	8-98023-621-1	01	1	1501-	●	●
13	SPRING; ASSIST,CLU PEDAL EXC. POWER ASSIST CLUTCH(S2T)	8-98034-014-0	01	1	1311-1412	●
13	SPRING; ASSIST,CLU PEDAL EXC. POWER ASSIST CLUTCH(S2T)	8-98034-014-0	01	1	1501-	●	●
14	BRACKET ASM; CLU PEDAL MTG POWER ASSIST CLUTCH(S2T)	8-98002-482-4	01	1	1311-1412	●
14	BRACKET ASM; CLU PEDAL MTG POWER ASSIST CLUTCH(S2T)	8-98002-482-4	01	1	1501-	●	●
14	BRACKET ASM; CLU PEDAL MTG EXC. POWER ASSIST CLUTCH(S2T)	8-98034-750-0	01	1	1311-1412	●
14	BRACKET ASM; CLU PEDAL MTG EXC. POWER ASSIST CLUTCH(S2T)	8-98034-750-0	01	1	1501-	●	●
27	NUT; FULCRUM PIN M10 LOCK NUT FLANGE	0-91380-010-0	01	1	1311-1412	●
27	NUT; FULCRUM PIN M10 LOCK NUT FLANGE	0-91380-010-0	01	1	1501-	●	●
30	BOLT; CLU MTG BRKT (A) M10X25 FLANGE MAL	0-28661-025-0	01	1	1311-1412	●
30	BOLT; CLU MTG BRKT (A) M10X25 FLANGE MAL	0-28661-025-0	01	1	1501-	●	●
30	BOLT; CLU MTG BRKT (B) M10X22 W/PL WASHER MAL	8-97313-188-0	01	1	1311-1412	●
30	BOLT; CLU MTG BRKT (B) M10X22 W/PL WASHER MAL	8-97313-188-0	01	1	1501-	●	●
31	NUT; MTG BRKT TO BODY M8 W/LK WASHER	8-94279-050-0	02	1	1311-1412	●
31	NUT; MTG BRKT TO BODY M8 W/LK WASHER	8-94279-050-0	02	1	1501-	●	●
32	NUT; BRKT TO CLU M/CYL M8 W/LK WASHER	8-94279-050-0	02	1	1311-1412	●
32	NUT; BRKT TO CLU M/CYL M8 W/LK WASHER	8-94279-050-0	02	1	1501-	●	●
36	BOLT; STOPPER,CLU PEDAL EXC. EXHAUST BRAKE<NF8> M10X35	0-20851-035-0	01	1	1510-	●
49	RUBBER; PAD,CLU PEDAL MAL	8-97853-413-2	01	1	1311-1412	●
49	RUBBER; PAD,CLU PEDAL MAL	8-97853-413-2	01	1	1501-	●	●
59	NUT; CLU PEDAL ADJ EXC. EXHAUST BRAKE<NF8> M10 MAL	0-91110-510-0	01	1	1510-	●
84	HOSE; RUBBER,CLU LINE POWER ASSIST CLUTCH(S2T)	8-98218-205-1	01	1	1311-1412	●
84	HOSE; RUBBER,CLU LINE POWER ASSIST CLUTCH(S2T)	8-98218-205-1	01	1	1501-	●	●
84	HOSE; RUBBER,CLU LINE EXC. POWER ASSIST CLUTCH(S2T)	8-98218-207-1	01	1	1311-1412	●
84	HOSE; RUBBER,CLU LINE EXC. POWER ASSIST CLUTCH(S2T)	8-98218-207-1	01	1	1501-	●	●
85	CLIP; HOSE TO M/CYL MAL	8-98168-080-0	02	1	1311-1412	●
85	CLIP; HOSE TO M/CYL MAL	8-98168-080-0	02	1	1501-	●	●
242	BOLT; BRKT,CLUTCH M8X16 FLANGE	0-28450-816-0	02	1	1311-1412	●
242	BOLT; BRKT,CLUTCH M8X16 FLANGE	0-28450-816-0	02	1	1501-	●	●

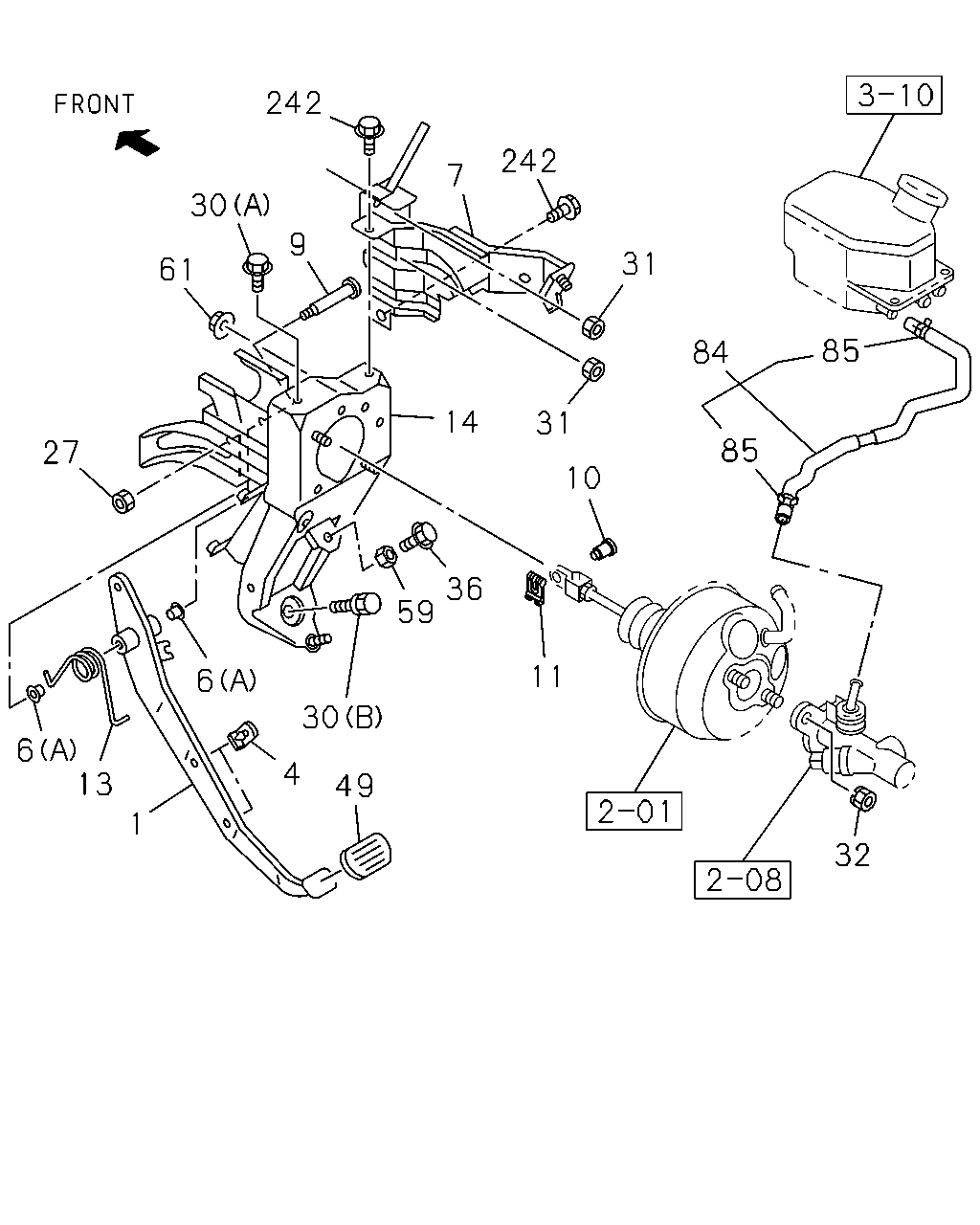

242 30 61 27 6 13 1 6 4 49 30 11 32 85 84 85 31 31 14 10 36 59 7 242 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PEDAL; CLU POWER ASSIST CLUTCH(S2T)	8-98002-484-0	01	1	1311-1412	●
1	PEDAL; CLU POWER ASSIST CLUTCH(S2T)	8-98002-484-0	01	1	1501-	●	●
1	PEDAL; CLU EXC. POWER ASSIST CLUTCH(S2T)	8-98034-754-0	01	1	1311-1412	●
1	PEDAL; CLU EXC. POWER ASSIST CLUTCH(S2T)	8-98034-754-0	01	1	1501-	●	●
4	STOPPER; CLU PEDAL MAL	8-97853-534-1	02	1	1311-1412	●
4	STOPPER; CLU PEDAL MAL	8-97853-534-1	02	1	1501-	●	●
6	BUSHING; CLU PEDAL EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97853-619-0	02	1	1311-1412	●
6	BUSHING; CLU PEDAL EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97853-619-0	02	1	1501-	●	●
6	BUSHING; CLU PEDAL EXC. POWER ASSIST CLUTCH(S2T) (C)	8-97853-620-0	01	1	1311-1412	●
6	BUSHING; CLU PEDAL EXC. POWER ASSIST CLUTCH(S2T) (C)	8-97853-620-0	01	1	1501-	●	●
6	BUSHING; CLU PEDAL (A)	8-94238-596-0	02	1	1311-1412	●
6	BUSHING; CLU PEDAL (A)	8-94238-596-0	02	1	1501-	●	●
7	BRACKET; CLU PEDAL	8-98029-186-4	01	1	1311-1412	●
7	BRACKET; CLU PEDAL	8-98029-186-4	01	1	1501-	●	●
9	PIN; CLU PEDAL	8-97866-667-0	01	1	1311-1412	●
9	PIN; CLU PEDAL	8-97866-667-0	01	1	1501-	●	●
10	PIN; CLU PEDAL	8-98147-657-0	01	1	1311-1412	●
10	PIN; CLU PEDAL	8-98147-657-0	01	1	1501-	●	●
11	PIN; SNAP,PUSH ROD TO PEDAL	8-98007-161-0	01	1	1311-1412	●
11	PIN; SNAP,PUSH ROD TO PEDAL	8-98007-161-0	01	1	1501-	●	●
13	SPRING; ASSIST,CLU PEDAL POWER ASSIST CLUTCH(S2T)	8-98023-621-1	01	1	1311-1412	●
13	SPRING; ASSIST,CLU PEDAL POWER ASSIST CLUTCH(S2T)	8-98023-621-1	01	1	1501-	●	●
13	SPRING; ASSIST,CLU PEDAL EXC. POWER ASSIST CLUTCH(S2T)	8-98034-014-0	01	1	1311-1412	●
13	SPRING; ASSIST,CLU PEDAL EXC. POWER ASSIST CLUTCH(S2T)	8-98034-014-0	01	1	1501-	●	●
14	BRACKET ASM; CLU PEDAL MTG POWER ASSIST CLUTCH(S2T)	8-98002-482-4	01	1	1311-1412	●
14	BRACKET ASM; CLU PEDAL MTG POWER ASSIST CLUTCH(S2T)	8-98002-482-4	01	1	1501-	●	●
14	BRACKET ASM; CLU PEDAL MTG EXC. POWER ASSIST CLUTCH(S2T)	8-98034-750-0	01	1	1311-1412	●
14	BRACKET ASM; CLU PEDAL MTG EXC. POWER ASSIST CLUTCH(S2T)	8-98034-750-0	01	1	1501-	●	●
27	NUT; FULCRUM PIN M10 LOCK NUT FLANGE	0-91380-010-0	01	1	1311-1412	●
27	NUT; FULCRUM PIN M10 LOCK NUT FLANGE	0-91380-010-0	01	1	1501-	●	●
30	BOLT; CLU MTG BRKT (A) M10X25 FLANGE MAL	0-28661-025-0	01	1	1311-1412	●
30	BOLT; CLU MTG BRKT (A) M10X25 FLANGE MAL	0-28661-025-0	01	1	1501-	●	●
30	BOLT; CLU MTG BRKT (B) M10X22 W/PL WASHER MAL	8-97313-188-0	01	1	1311-1412	●
30	BOLT; CLU MTG BRKT (B) M10X22 W/PL WASHER MAL	8-97313-188-0	01	1	1501-	●	●
31	NUT; MTG BRKT TO BODY M8 W/LK WASHER	8-94279-050-0	02	1	1311-1412	●
31	NUT; MTG BRKT TO BODY M8 W/LK WASHER	8-94279-050-0	02	1	1501-	●	●
32	NUT; BRKT TO CLU M/CYL M8 W/LK WASHER	8-94279-050-0	02	1	1311-1412	●
32	NUT; BRKT TO CLU M/CYL M8 W/LK WASHER	8-94279-050-0	02	1	1501-	●	●
36	BOLT; STOPPER,CLU PEDAL EXC. EXHAUST BRAKE<NF8> M10X35	0-20851-035-0	01	1	1510-	●
49	RUBBER; PAD,CLU PEDAL MAL	8-97853-413-2	01	1	1311-1412	●
49	RUBBER; PAD,CLU PEDAL MAL	8-97853-413-2	01	1	1501-	●	●
59	NUT; CLU PEDAL ADJ EXC. EXHAUST BRAKE<NF8> M10 MAL	0-91110-510-0	01	1	1510-	●
61	NUT; BOOSTER TO BRKT POWER ASSIST CLUTCH(S2T) M8 W/LK WASHER	8-94279-050-0	04	1	1311-1412	●
61	NUT; BOOSTER TO BRKT POWER ASSIST CLUTCH(S2T) M8 W/LK WASHER	8-94279-050-0	04	1	1501-	●	●
84	HOSE; RUBBER,CLU LINE POWER ASSIST CLUTCH(S2T)	8-98218-205-1	01	1	1311-1412	●
84	HOSE; RUBBER,CLU LINE POWER ASSIST CLUTCH(S2T)	8-98218-205-1	01	1	1501-	●	●
84	HOSE; RUBBER,CLU LINE EXC. POWER ASSIST CLUTCH(S2T)	8-98218-207-1	01	1	1311-1412	●
84	HOSE; RUBBER,CLU LINE EXC. POWER ASSIST CLUTCH(S2T)	8-98218-207-1	01	1	1501-	●	●
85	CLIP; HOSE TO M/CYL MAL	8-98168-080-0	02	1	1311-1412	●
85	CLIP; HOSE TO M/CYL MAL	8-98168-080-0	02	1	1501-	●	●
242	BOLT; BRKT,CLUTCH M8X16 FLANGE	0-28450-816-0	02	1	1311-1412	●
242	BOLT; BRKT,CLUTCH M8X16 FLANGE	0-28450-816-0	02	1	1501-	●	●
