◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51501 - NPR(MALAYSIA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-01 - CLUTCH ▶
2-01 — CLUTCH (#130832) — 27 parça

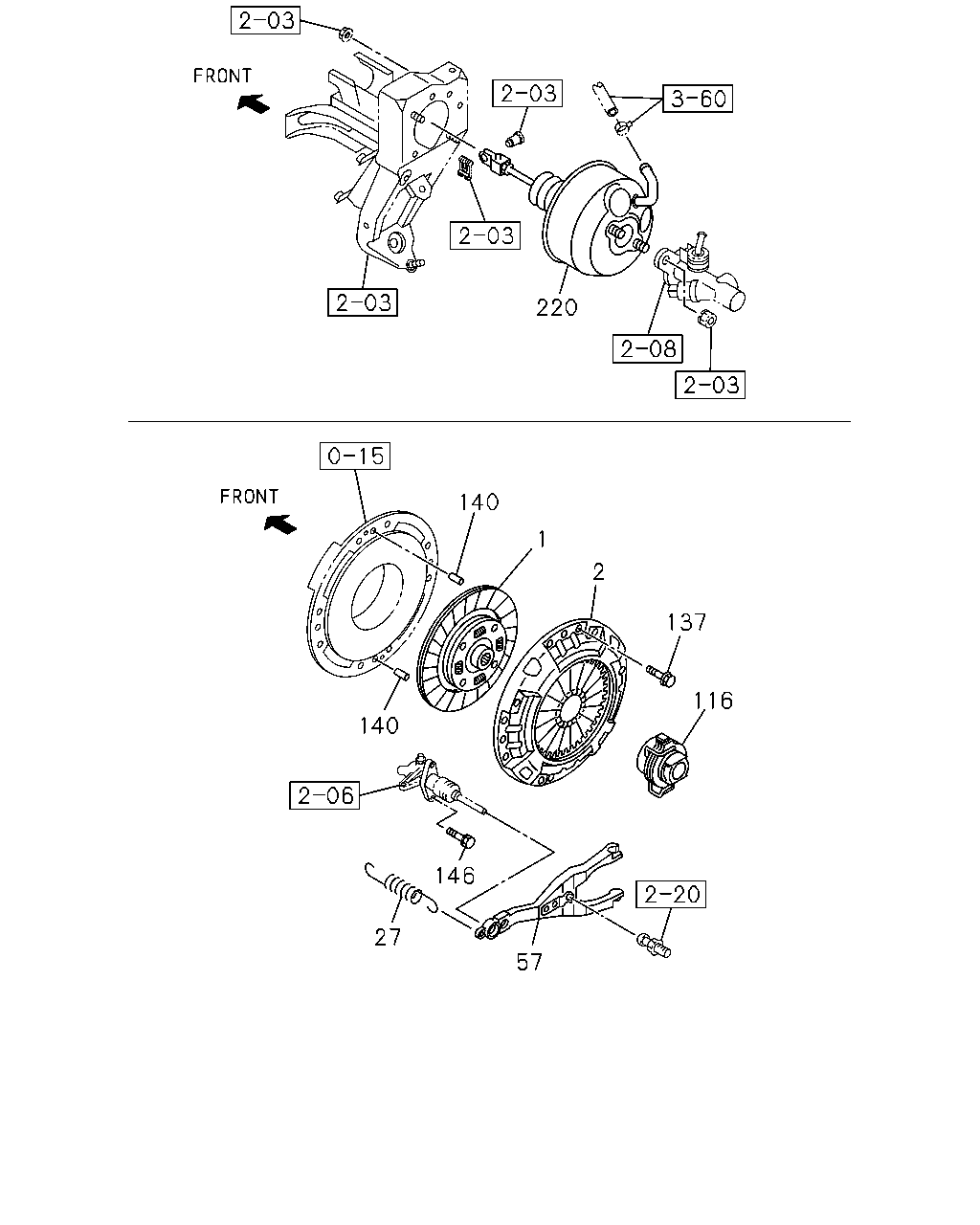

çizim 385407
140 2 1 137 116 146 27 140 220 57
BalonParca AdiParca NoAdetTipApplied Date A B
1 DISC; CLUTCH 8-97377-149-0 01 1 1311-1402 ●
1 DISC; CLUTCH 8-98255-959-1 01 1 1403- ●
1 DISC; CLUTCH 8-97362-235-1 01 1 1312-1402 ●
1 DISC; CLUTCH 8-98255-140-1 01 1 1403- ●
1 DISC; CLUTCH
BEST VALUE PARTS 		5-87610-049-2 01 1 1311- ●
1 DISC; CLUTCH
BEST VALUE PARTS 		5-87610-080-1 01 1 1312- ●
2 PLATE ASM; PRESSURE,CLU 8-97310-796-0 01 1 1311- ●
2 PLATE ASM; PRESSURE,CLU 8-97351-794-0 01 1 1312-1405 ●
2 PLATE ASM; PRESSURE,CLU 8-97038-831-2 01 1 1406- ●
2 PLATE ASM; PRESSURE,CLU
BEST VALUE PARTS 		5-87610-050-1 01 1 1311- ●
2 PLATE ASM; PRESSURE,CLU
BEST VALUE PARTS 		5-87610-081-0 01 1 1312-1405 ●
2 PLATE ASM; PRESSURE,CLU
BEST VALUE PARTS 		5-87610-104-0 01 1 1406- ●
27 SPRING; RETURN,SHIFT FORK
MAL 		8-98025-313-0 01 1 1311-1311 ●
27 SPRING; RETURN,SHIFT FORK
MAL 		8-98025-313-0 01 1 1312- ● ●
57 FORK; SHIFT,CLU 8-97255-303-0 01 1 1311-1311 ●
57 FORK; SHIFT,CLU 8-97255-303-0 01 1 1312- ● ●
116 BLOCK; SHIFT,CLU 8-97255-313-0 01 1 1311-1311 ●
116 BLOCK; SHIFT,CLU 8-97255-313-0 01 1 1312- ● ●
116 BLOCK; SHIFT,CLU
BEST VALUE PARTS 		5-87610-110-0 01 1 1311-1311 ●
116 BLOCK; SHIFT,CLU
BEST VALUE PARTS 		5-87610-110-0 01 1 1312- ● ●
137 BOLT; CLU COVER
M10X16 FLANGE 		0-28051-016-0 10 1 1311-1311 ●
137 BOLT; CLU COVER
M10X16 FLANGE 		0-28051-016-0 10 1 1312- ● ●
140 PIN; STRAIGHT
L=25 		8-94410-361-0 02 1 1311-1311 ●
140 PIN; STRAIGHT
L=25 		8-94410-361-0 02 1 1312- ● ●
146 BOLT; SLAVE CYL TO TRANS CASE
M8X30 FLANGE 		0-28650-830-0 02 1 1311- ● ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. POWER ASSIST CLUTCH(S2T) 		8-98043-208-0 01 1 1311- ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. POWER ASSIST CLUTCH(S2T) 		8-98033-837-0 01 1 1312- ●
