Sayfa 1-50 - Isuzu EPC

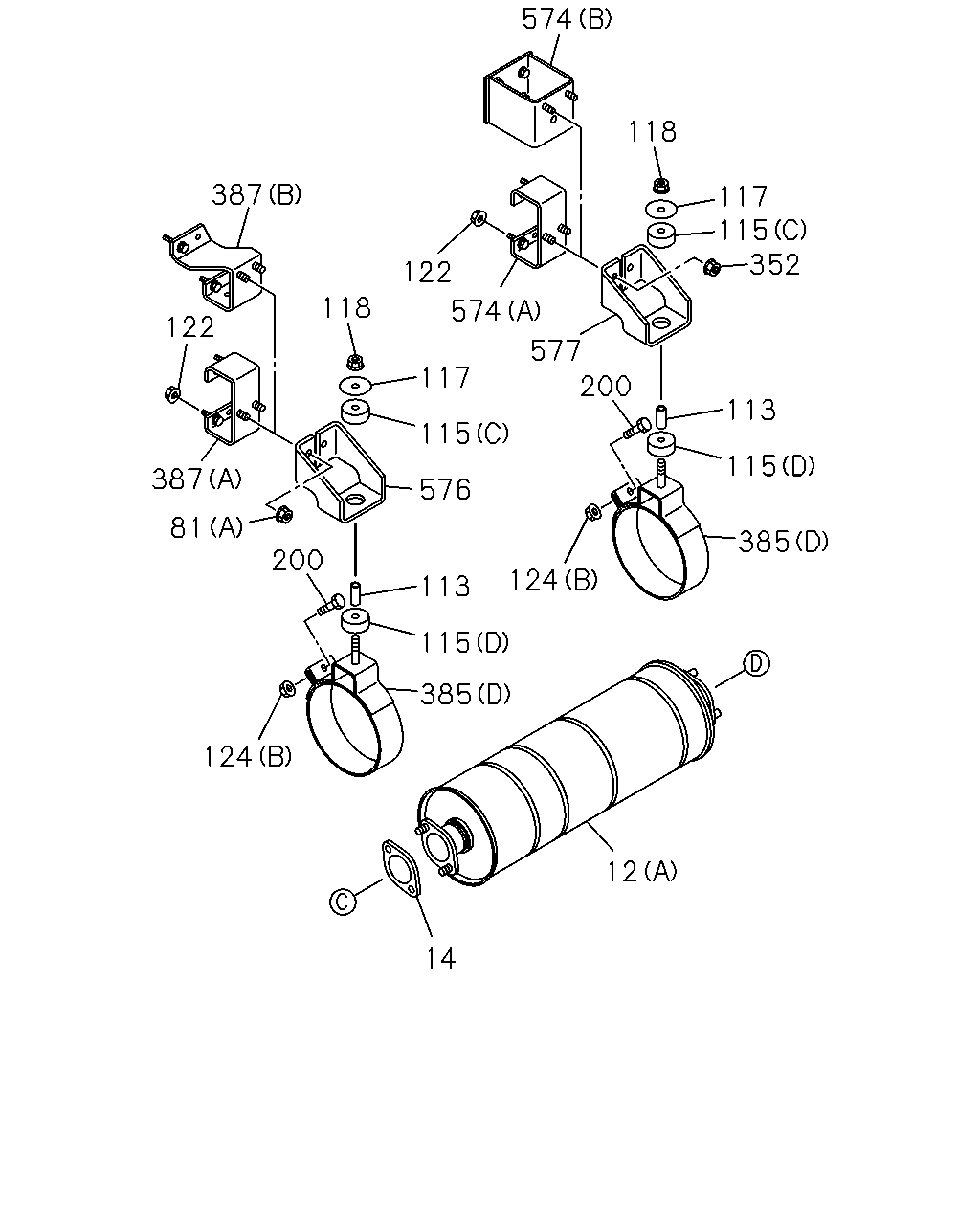

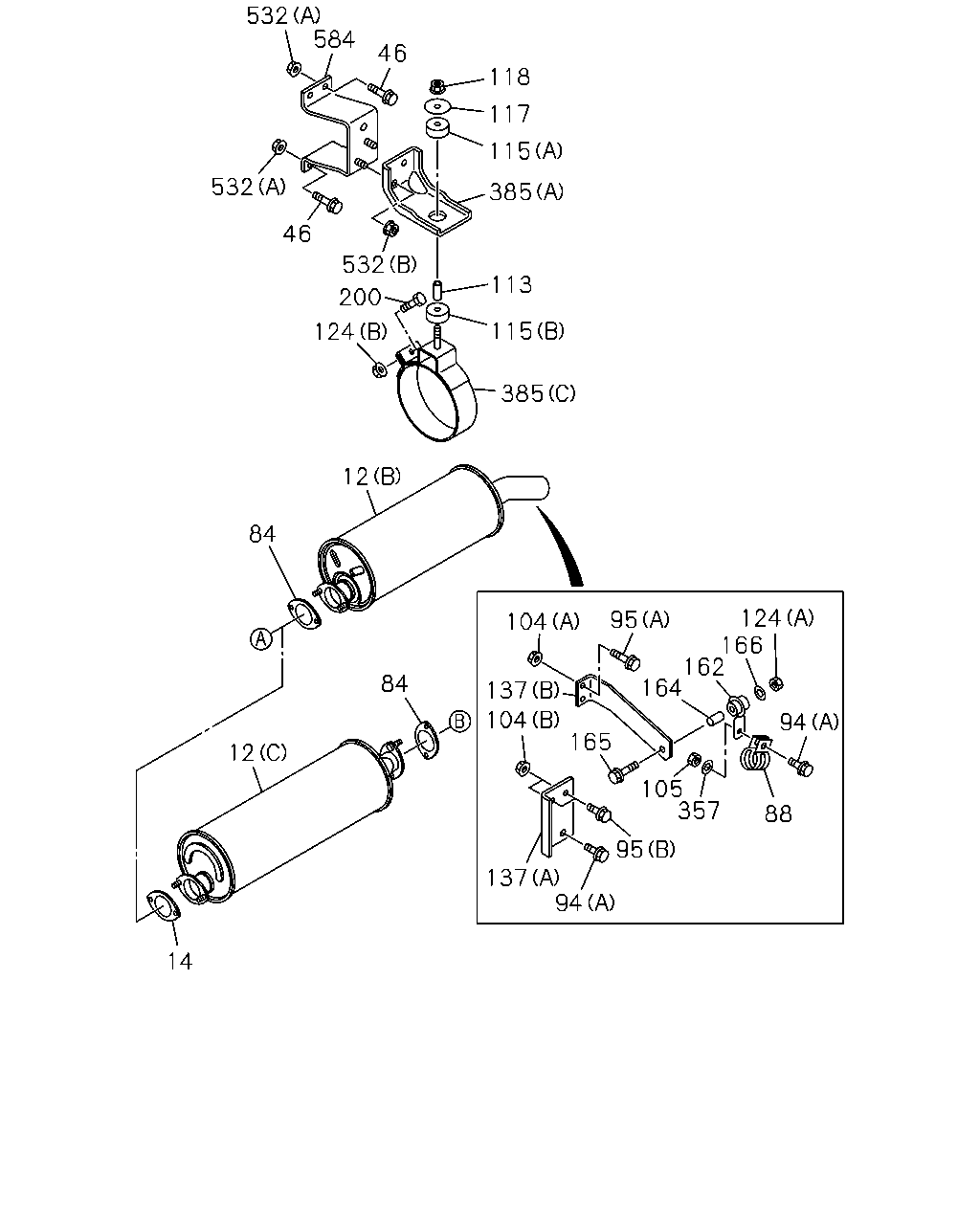

1-50 — EXHAUST PIPE AND SILENCER (#130829) — 713 parça

25 329 143 172 532 385 562 1 2 36 44 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH 4HG1-T ENG(RDP) (B) MAL	8-97187-143-1	01	1	1311-	●
1	PIPE; EXH 4HK1-TCN ENG(RDQ) (A) MAL	8-98074-108-1	01	1	1312-1412	●
1	PIPE; EXH 4HK1-TCN ENG(RDQ) (A) MAL	8-98074-108-1	01	1	1501-	●	●
2	GASKET; PIPE TO MANIF MAL	8-97381-455-0	01	1	1311-1412	●
2	GASKET; PIPE TO MANIF MAL	8-97381-455-0	01	1	1501-	●	●
8	BRACKET; EXH PIPE 4HG1-T ENG(RDP) (B) MAL	8-97238-728-0	01	1	1311-	●
8	BRACKET; EXH PIPE 4HK1-TCN ENG(RDQ) (A)	8-97365-228-0	01	1	1312-1412	●
8	BRACKET; EXH PIPE 4HK1-TCN ENG(RDQ) (A)	8-97365-228-0	01	1	1501-	●	●
25	PIPE; EXH,BRK VLV TO SILENCER 4HG1-T ENG(RDP) (B) MAL	8-97361-724-0	01	1	1311-	●
25	PIPE; EXH,BRK VLV TO SILENCER 4HK1-TCN ENG(RDQ) (A) MAL	8-98074-109-0	01	1	1312-1412	●
25	PIPE; EXH,BRK VLV TO SILENCER 4HK1-TCN ENG(RDQ) (A) MAL	8-98074-109-0	01	1	1501-	●	●
36	NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1311-1412	●
36	NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1501-	●	●
36	NUT; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) (B) M10 FLANGE MAL	0-91180-110-0	02	1	1312-1401	●
36	NUT; EXH PIPE WHEEL BASE 3800MM(38W) (B) M10 FLANGE MAL	0-91180-110-0	02	1	1402-1412	●
36	NUT; EXH PIPE WHEEL BASE 3800MM(38W) (B) M10 FLANGE MAL	0-91180-110-0	02	1	1501-	●
36	NUT; EXH PIPE (B) M10 FLANGE MAL	0-91180-110-0	02	1	1501-		●
44	BOLT; BRKT 4HG1-T ENG(RDP) (B) M8X45 W/LK WASHER	0-50540-845-0	01	1	1311-	●
44	BOLT; BRKT 4HK1-TCN ENG(RDQ) (A) M10X40 FLANGE	0-28051-040-0	01	1	1312-1412	●
44	BOLT; BRKT 4HK1-TCN ENG(RDQ) (A) M10X40 FLANGE	0-28051-040-0	01	1	1501-	●	●
143	RUBBER; SUPPORT 4HG1-T ENG(RDP) (A) MAL	8-97166-498-1	01	1	1311-	●
143	RUBBER; SUPPORT 4HK1-TCN ENG(RDQ) (C)	8-97080-694-0	01	1	1312-1412	●
143	RUBBER; SUPPORT 4HK1-TCN ENG(RDQ) (C)	8-97080-694-0	01	1	1501-	●	●
143	RUBBER; SUPPORT 4HK1-TCN ENG(RDQ) (B)	8-98034-767-0	01	1	1312-1401	●
143	RUBBER; SUPPORT (B)	8-98034-767-0	01	1	1402-1412	●
143	RUBBER; SUPPORT (B)	8-98034-767-0	01	1	1501-	●	●
172	BOLT M10X35 FLANGE MAL	0-28651-035-0	02	1	1311-1412	●
172	BOLT M10X35 FLANGE MAL	0-28651-035-0	02	1	1501-	●	●
329	NUT; EXH PIPE TO PIPE M10 FLANGE MAL	0-91180-110-0	02	1	1311-1412	●
329	NUT; EXH PIPE TO PIPE M10 FLANGE MAL	0-91180-110-0	02	1	1501-	●	●
385	BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) (E)	8-98101-911-0	01	1	1501-		●
385	BRACKET; SILENCER MTG 4HG1-T ENG(RDP) (A)	8-97041-227-0	01	1	1311-	●
385	BRACKET; SILENCER MTG 4HG1-T ENG(RDP) (C) MAL	8-97076-020-0	01	1	1311-	●
385	BRACKET; SILENCER MTG 4HG1-T ENG(RDP) (B)	8-98173-128-0	01	1	1311-	●
385	BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) (D)	8-97207-224-0	02	1	1312-1412	●
385	BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) (D)	8-97207-224-0	02	1	1501-	●	●
385	BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) (E)	8-98074-495-1	01	1	1312-	●
532	NUT 4HG1-T ENG(RDP) (B) M8 FLANGE MAL	0-91180-108-0	02	1	1311-	●
532	NUT (A) M10 FLANGE MAL	0-91180-110-0	02	1	1311-1412	●
532	NUT (A) M10 FLANGE MAL	0-91180-110-0	02	1	1311-1412	●
532	NUT (A) M10 FLANGE MAL	0-91180-110-0	02	1	1501-	●	●
532	NUT (A) M10 FLANGE MAL	0-91180-110-0	02	1	1501-	●	●
562	PLATE; STUD,BOLT M8X70	0-10855-870-0	04	1	1311-1412	●
562	PLATE; STUD,BOLT M8X70	0-10855-870-0	04	1	1501-	●	●

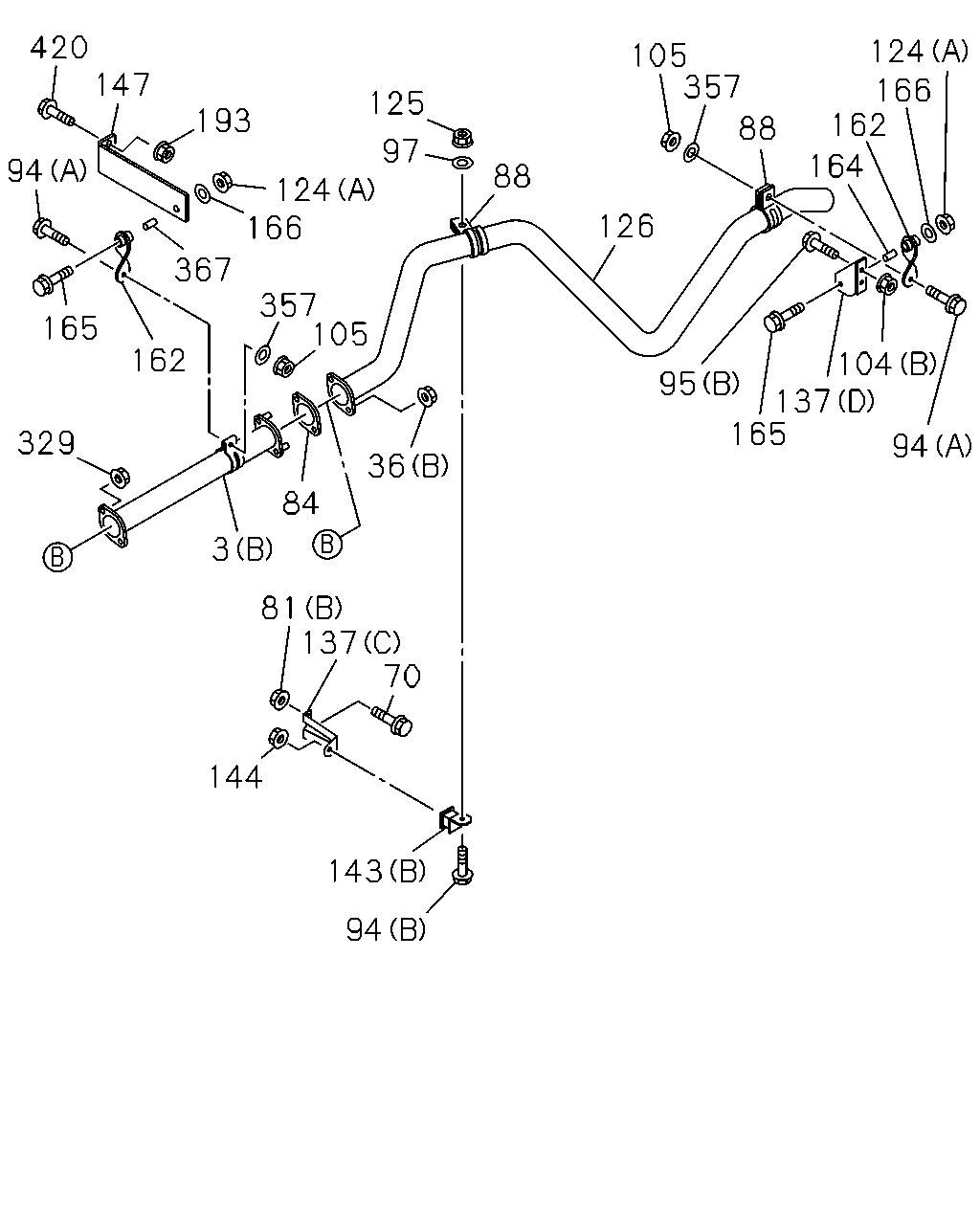

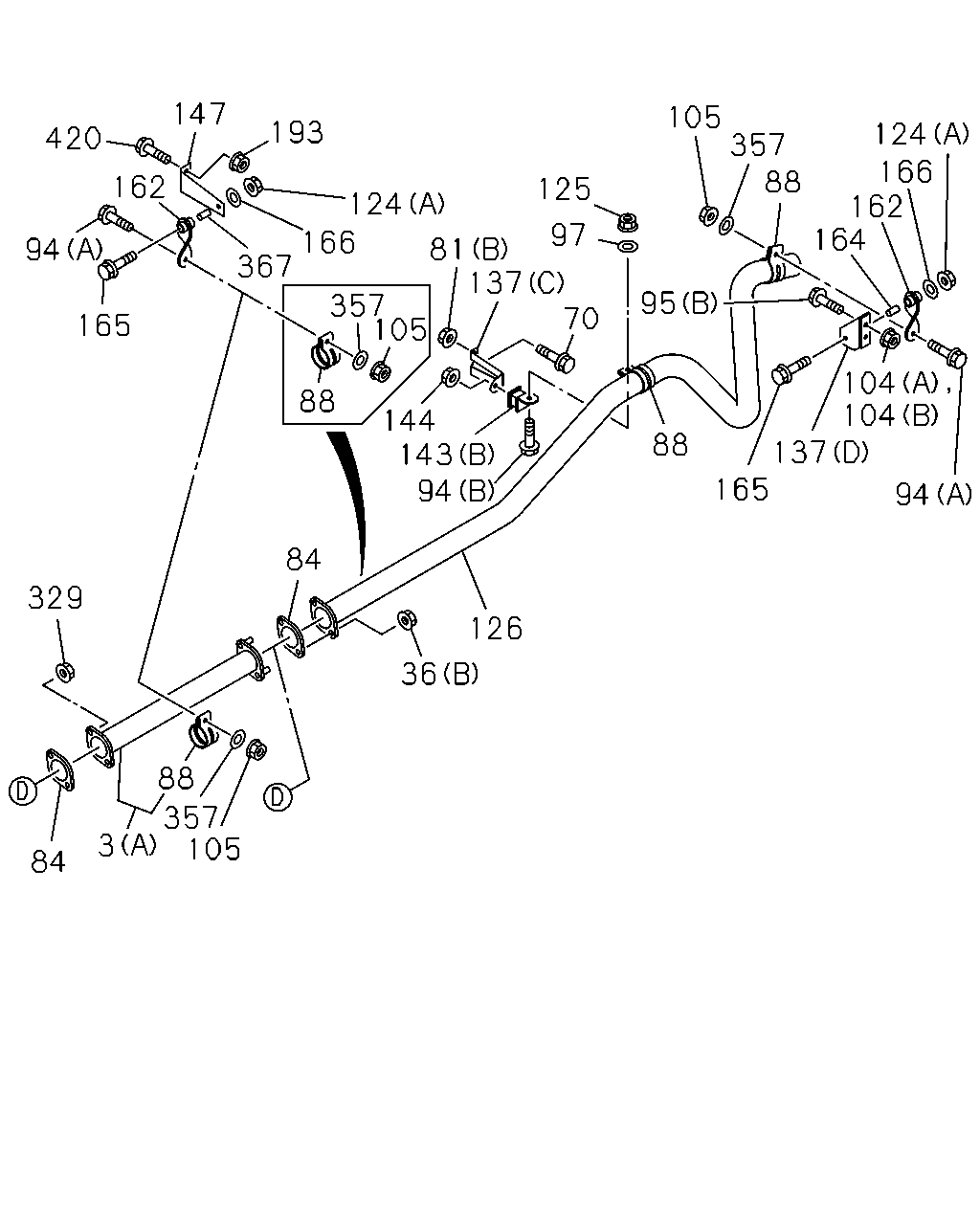

420 193 147 94 165 329 3 162 367 166 124 125 97 357 36 105 84 81 137 70 144 143 94 88 126 105 88 357 124 162 166 164 95 104 137 165 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	PIPE; EXH,CENTER 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) (B) MAL	8-98270-186-0	01	1	1402-	●
3	PIPE; EXH,CENTER 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) (A) MAL	8-98134-199-0	01	1	1312-1412	●
3	PIPE; EXH,CENTER 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) (A) MAL	8-98134-199-0	01	1	1501-	●
3	PIPE; EXH,CENTER (A) MAL	8-98134-199-0	01	1	1501-		●
36	NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1311-1412	●
36	NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1501-	●	●
36	NUT; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) (B) M10 FLANGE MAL	0-91180-110-0	02	1	1312-1401	●
36	NUT; EXH PIPE WHEEL BASE 3800MM(38W) (B) M10 FLANGE MAL	0-91180-110-0	02	1	1402-1412	●
36	NUT; EXH PIPE WHEEL BASE 3800MM(38W) (B) M10 FLANGE MAL	0-91180-110-0	02	1	1501-	●
36	NUT; EXH PIPE (B) M10 FLANGE MAL	0-91180-110-0	02	1	1501-		●
70	BOLT; BRKT 4HG1-T ENG(RDP) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M8X25 FLANGE MAL	0-28650-825-0	02	1	1312-1401	●
70	BOLT; BRKT 4HK1-TCN ENG(RDQ) M8X25 FLANGE MAL	0-28650-825-0	02	1	1312-1401	●
70	BOLT; BRKT M8X25 FLANGE MAL	0-28650-825-0	02	1	1402-1412	●
70	BOLT; BRKT M8X25 FLANGE MAL	0-28650-825-0	02	1	1501-	●	●
81	NUT; BRKT 4HG1-T ENG(RDP) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M8 FLANGE MAL	0-91180-108-0	02	1	1312-1401	●
81	NUT; BRKT 4HK1-TCN ENG(RDQ) (B) M8 FLANGE MAL	0-91180-108-0	02	1	1312-1401	●
81	NUT; BRKT (B) M8 FLANGE MAL	0-91180-108-0	02	1	1402-1412	●
81	NUT; BRKT (B) M8 FLANGE MAL	0-91180-108-0	02	1	1501-	●	●
81	NUT; BRKT 4HK1-TCN ENG(RDQ) (A) M10 FLANGE MAL	0-91180-110-0	02	1	1312-1412	●
81	NUT; BRKT 4HK1-TCN ENG(RDQ) (A) M10 FLANGE MAL	0-91180-110-0	02	1	1501-	●	●
84	GASKET; EXH PIPE ID=64.7 MAL	8-94328-352-0	01	1	1311-1311	●
84	GASKET; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) ID=64.7 MAL	8-94328-352-0	01	1	1312-1401	●
84	GASKET; EXH PIPE ID=64.7 MAL	8-94328-352-0	01	1	1312-1401	●
84	GASKET; EXH PIPE ID=64.7 MAL	8-94328-352-0	01	1	1402-1412	●
84	GASKET; EXH PIPE WHEEL BASE 3800MM(38W) ID=64.7 MAL	8-94328-352-0	01	1	1402-1412	●
84	GASKET; EXH PIPE ID=64.7 MAL	8-94328-352-0	01	1	1501-	●	●
84	GASKET; EXH PIPE WHEEL BASE 3800MM(38W) ID=64.7 MAL	8-94328-352-0	01	1	1501-	●
84	GASKET; EXH PIPE ID=64.7 MAL	8-94328-352-0	01	1	1501-		●
88	CLAMP; EXH PIPE MAL	8-97373-158-0	01	1	1311-1311	●
88	CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ) MAL	8-97373-158-0	01	1	1312-1401	●
88	CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ) MAL	8-97373-158-0	01	1	1312-1401	●
88	CLAMP; EXH PIPE 4HG1-T ENG(RDP) TAILPIPE SINGLE SHORT TYPE<8JJ> MAL	8-97373-158-0	01	1	1312-1401	●
88	CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ) MAL	8-97373-158-0	01	1	1312-1401	●
88	CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) MAL	8-97373-158-0	01	1	1312-1401	●
88	CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) MAL	8-97373-158-0	01	1	1402-1412	●
88	CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ) MAL	8-97373-158-0	01	1	1402-1412	●
88	CLAMP; EXH PIPE MAL	8-97373-158-0	01	1	1402-1412	●
88	CLAMP; EXH PIPE MAL	8-97373-158-0	01	1	1402-1412	●
88	CLAMP; EXH PIPE MAL	8-97373-158-0	01	1	1501-	●	●
88	CLAMP; EXH PIPE MAL	8-97373-158-0	01	1	1501-	●	●
88	CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ) MAL	8-97373-158-0	01	1	1501-	●
88	CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) MAL	8-97373-158-0	01	1	1501-	●
88	CLAMP; EXH PIPE MAL	8-97373-158-0	01	1	1501-		●
94	BOLT; CLAMP (A) M10X45 FLANGE MAL	0-28051-045-0	01	1	1311-1311	●
94	BOLT; CLAMP 4HK1-TCN ENG(RDQ) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10X45 FLANGE MAL	0-28051-045-0	01	1	1312-1401	●
94	BOLT; CLAMP (A) M10X45 FLANGE MAL	0-28051-045-0	01	1	1312-1401	●
94	BOLT; CLAMP 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) (A) M10X45 FLANGE MAL	0-28051-045-0	01	1	1402-1412	●
94	BOLT; CLAMP 4HK1-TCN ENG(RDQ) (A) M10X45 FLANGE MAL	0-28051-045-0	01	1	1402-1412	●
94	BOLT; CLAMP (A) M10X45 FLANGE MAL	0-28051-045-0	01	1	1402-1412	●
94	BOLT; CLAMP 4HK1-TCN ENG(RDQ) (A) M10X45 FLANGE MAL	0-28051-045-0	01	1	1501-	●	●
94	BOLT; CLAMP 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) (A) M10X45 FLANGE MAL	0-28051-045-0	01	1	1501-	●
94	BOLT; CLAMP (A) M10X45 FLANGE MAL	0-28051-045-0	01	1	1501-	●
94	BOLT; CLAMP 4HK1-TCN ENG(RDQ) (A) M10X45 FLANGE MAL	0-28051-045-0	01	1	1501-		●
94	BOLT; CLAMP 4HK1-TCN ENG(RDQ) (B) M10X50 FLANGE	8-97301-165-0	01	1	1312-1401	●
94	BOLT; CLAMP (B) M10X50 FLANGE	8-97301-165-0	01	1	1402-1412	●
94	BOLT; CLAMP (B) M10X50 FLANGE	8-97301-165-0	01	1	1501-	●	●
95	BOLT; BRKT 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) (B) M8X25 FLANGE MAL	0-28650-825-0	02	1	1311-1311	●
95	BOLT; BRKT 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) (B) M8X25 FLANGE MAL	0-28650-825-0	02	1	1312-1401	●
95	BOLT; BRKT 4HK1-TCN ENG(RDQ) (B) M8X25 FLANGE MAL	0-28650-825-0	02	1	1312-1401	●
95	BOLT; BRKT 4HK1-TCN ENG(RDQ) (B) M8X25 FLANGE MAL	0-28650-825-0	02	1	1402-1412	●
95	BOLT; BRKT 4HG1-T ENG(RDP) (B) M8X25 FLANGE MAL	0-28650-825-0	02	1	1402-1412	●
95	BOLT; BRKT 4HK1-TCN ENG(RDQ) (B) M8X25 FLANGE MAL	0-28650-825-0	02	1	1501-	●	●
95	BOLT; BRKT 4HG1-T ENG(RDP) (B) M8X25 FLANGE MAL	0-28650-825-0	02	1	1501-	●
95	BOLT; BRKT 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) (A) M10X30 FLANGE	0-28651-030-0	02	1	1311-1311	●
95	BOLT; BRKT 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10X30 FLANGE	0-28651-030-0	02	1	1312-1401	●
97	WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ) ID=10.5 OD=22	0-91614-610-0	01	1	1312-1401	●
97	WASHER; PL,CLAMP ID=10.5 OD=22	0-91614-610-0	01	1	1402-1412	●
97	WASHER; PL,CLAMP ID=10.5 OD=22	0-91614-610-0	01	1	1501-	●	●
104	NUT; BRKT 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) (B) M8 FLANGE MAL	0-91180-108-0	02	1	1311-1311	●
104	NUT; BRKT 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) (B) M8 FLANGE MAL	0-91180-108-0	02	1	1312-1401	●
104	NUT; BRKT 4HK1-TCN ENG(RDQ) (B) M8 FLANGE MAL	0-91180-108-0	02	1	1312-1401	●
104	NUT; BRKT 4HK1-TCN ENG(RDQ) (B) M8 FLANGE MAL	0-91180-108-0	02	1	1402-1412	●
104	NUT; BRKT 4HG1-T ENG(RDP) (B) M8 FLANGE MAL	0-91180-108-0	02	1	1402-1412	●
104	NUT; BRKT 4HK1-TCN ENG(RDQ) (B) M8 FLANGE MAL	0-91180-108-0	02	1	1501-	●	●
104	NUT; BRKT 4HG1-T ENG(RDP) (B) M8 FLANGE MAL	0-91180-108-0	02	1	1501-	●
104	NUT; BRKT 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) (A) M10 FLANGE MAL	0-91180-110-0	02	1	1311-1311	●
104	NUT; BRKT 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE MAL	0-91180-110-0	02	1	1312-1401	●
105	NUT; CLAMP M10 MAL	0-91110-510-0	01	1	1311-1311	●
105	NUT; CLAMP 4HK1-TCN ENG(RDQ) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10 MAL	0-91110-510-0	01	1	1312-1401	●
105	NUT; CLAMP M10 MAL	0-91110-510-0	01	1	1312-1401	●
105	NUT; CLAMP 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) M10 MAL	0-91110-510-0	01	1	1402-1412	●
105	NUT; CLAMP 4HK1-TCN ENG(RDQ) M10 MAL	0-91110-510-0	01	1	1402-1412	●
105	NUT; CLAMP M10 MAL	0-91110-510-0	01	1	1402-1412	●
105	NUT; CLAMP 4HK1-TCN ENG(RDQ) M10 MAL	0-91110-510-0	01	1	1501-	●	●
105	NUT; CLAMP 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) M10 MAL	0-91110-510-0	01	1	1501-	●
105	NUT; CLAMP M10 MAL	0-91110-510-0	01	1	1501-	●
105	NUT; CLAMP 4HK1-TCN ENG(RDQ) M10 MAL	0-91110-510-0	01	1	1501-		●
124	NUT; SUPPORT RUBBER 4HG1-T ENG(RDP) (B) M8	0-91110-508-0	01	1	1311-1412	●
124	NUT; SUPPORT RUBBER (B) M8	0-91110-508-0	01	1	1501-	●
124	NUT; SUPPORT RUBBER (A) M10 FLANGE MAL	0-91180-110-0	01	1	1311-1311	●
124	NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE MAL	0-91180-110-0	01	1	1312-1401	●
124	NUT; SUPPORT RUBBER (A) M10 FLANGE MAL	0-91180-110-0	01	1	1312-1401	●
124	NUT; SUPPORT RUBBER 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) (A) M10 FLANGE MAL	0-91180-110-0	01	1	1402-1412	●
124	NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) (A) M10 FLANGE MAL	0-91180-110-0	01	1	1402-1412	●
124	NUT; SUPPORT RUBBER (A) M10 FLANGE MAL	0-91180-110-0	01	1	1402-1412	●
124	NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) (A) M10 FLANGE MAL	0-91180-110-0	01	1	1501-	●	●
124	NUT; SUPPORT RUBBER 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) (A) M10 FLANGE MAL	0-91180-110-0	01	1	1501-	●
124	NUT; SUPPORT RUBBER (A) M10 FLANGE MAL	0-91180-110-0	01	1	1501-	●
124	NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) (A) M10 FLANGE MAL	0-91180-110-0	01	1	1501-		●
124	NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) (B) M8	0-91110-508-0	02	1	1312-1412	●
124	NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) (B) M8	0-91110-508-0	02	1	1501-	●	●
125	NUT; CLAMP 4HK1-TCN ENG(RDQ) M10 MAL	0-91110-510-0	01	1	1312-1401	●
125	NUT; CLAMP M10 MAL	0-91110-510-0	01	1	1402-1412	●
125	NUT; CLAMP M10 MAL	0-91110-510-0	01	1	1501-	●	●
126	PIPE; EXH,RR 4HG1-T ENG(RDP) MAL	8-98270-187-0	01	1	1402-	●
126	PIPE; EXH,RR 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W)	8-98090-128-1	01	1	1312-	●
126	PIPE; EXH,RR 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) MAL	8-98134-798-0	01	1	1312-1412	●
126	PIPE; EXH,RR 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) MAL	8-98134-798-0	01	1	1501-	●
126	PIPE; EXH,RR MAL	8-98134-798-0	01	1	1501-		●
137	BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) (A)	8-98173-138-0	01	1	1311-1311	●
137	BRACKET; TAIL PIPE 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) TAILPIPE SINGLE SHORT TYPE<8JJ> (A)	8-98173-138-0	01	1	1312-1401	●
137	BRACKET; TAIL PIPE WHEEL BASE 3800MM(38W) (B)	8-98173-203-0	01	1	1311-1311	●
137	BRACKET; TAIL PIPE 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98173-203-0	01	1	1312-1401	●
137	BRACKET; TAIL PIPE 4HG1-T ENG(RDP) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (C)	8-97096-651-0	01	1	1312-1401	●
137	BRACKET; TAIL PIPE 4HK1-TCN ENG(RDQ) (C)	8-97096-651-0	01	1	1312-1401	●
137	BRACKET; TAIL PIPE (C)	8-97096-651-0	01	1	1402-1412	●
137	BRACKET; TAIL PIPE (C)	8-97096-651-0	01	1	1501-	●	●
137	BRACKET; TAIL PIPE 4HG1-T ENG(RDP) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (D)	8-97116-588-2	01	1	1312-1401	●
137	BRACKET; TAIL PIPE 4HK1-TCN ENG(RDQ) (D)	8-97116-588-2	01	1	1312-1401	●
137	BRACKET; TAIL PIPE (D)	8-97116-588-2	01	1	1402-1412	●
137	BRACKET; TAIL PIPE (D)	8-97116-588-2	01	1	1501-	●	●
143	RUBBER; SUPPORT 4HG1-T ENG(RDP) (A) MAL	8-97166-498-1	01	1	1311-	●
143	RUBBER; SUPPORT 4HK1-TCN ENG(RDQ) (C)	8-97080-694-0	01	1	1312-1412	●
143	RUBBER; SUPPORT 4HK1-TCN ENG(RDQ) (C)	8-97080-694-0	01	1	1501-	●	●
143	RUBBER; SUPPORT 4HK1-TCN ENG(RDQ) (B)	8-98034-767-0	01	1	1312-1401	●
143	RUBBER; SUPPORT (B)	8-98034-767-0	01	1	1402-1412	●
143	RUBBER; SUPPORT (B)	8-98034-767-0	01	1	1501-	●	●
144	NUT; MTG RUBBER 4HK1-TCN ENG(RDQ) M8 FLANGE MAL	0-91180-108-0	01	1	1312-1401	●
144	NUT; MTG RUBBER M8 FLANGE MAL	0-91180-108-0	01	1	1402-1412	●
144	NUT; MTG RUBBER M8 FLANGE MAL	0-91180-108-0	01	1	1501-	●	●
147	BRACKET; VERTICAL PIPE 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) MAL	8-98270-189-0	01	1	1402-	●
147	BRACKET; VERTICAL PIPE 4HK1-TCN ENG(RDQ)	8-98117-604-0	01	1	1312-1412	●
147	BRACKET; VERTICAL PIPE 4HK1-TCN ENG(RDQ)	8-98117-604-0	01	1	1501-	●	●
162	RUBBER; SUPPORT,TAIL PIPE L=115	8-98034-765-0	01	1	1311-1311	●
162	RUBBER; SUPPORT,TAIL PIPE 4HK1-TCN ENG(RDQ) L=115	8-98034-765-0	01	1	1312-1401	●
162	RUBBER; SUPPORT,TAIL PIPE L=115	8-98034-765-0	01	1	1312-1401	●
162	RUBBER; SUPPORT,TAIL PIPE 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) L=115	8-98034-765-0	01	1	1402-1412	●
162	RUBBER; SUPPORT,TAIL PIPE 4HK1-TCN ENG(RDQ) L=115	8-98034-765-0	01	1	1402-1412	●
162	RUBBER; SUPPORT,TAIL PIPE L=115	8-98034-765-0	01	1	1402-1412	●
162	RUBBER; SUPPORT,TAIL PIPE L=115	8-98034-765-0	01	1	1501-	●	●
162	RUBBER; SUPPORT,TAIL PIPE 4HK1-TCN ENG(RDQ) L=115	8-98034-765-0	01	1	1501-	●
162	RUBBER; SUPPORT,TAIL PIPE 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) L=115	8-98034-765-0	01	1	1501-	●
162	RUBBER; SUPPORT,TAIL PIPE L=115	8-98034-765-0	01	1	1501-		●
164	COLLAR; DIST,TAIL PIPE L=37.5	9-22151-217-0	01	1	1311-1412	●
164	COLLAR; DIST,TAIL PIPE L=37.5	9-22151-217-0	01	1	1501-	●	●
165	BOLT; SUPPORT RUBBER M10X70 FLANGE MAL	0-28051-070-0	01	1	1311-1311	●
165	BOLT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) M10X70 FLANGE MAL	0-28051-070-0	01	1	1312-1401	●
165	BOLT; SUPPORT RUBBER M10X70 FLANGE MAL	0-28051-070-0	01	1	1312-1401	●
165	BOLT; SUPPORT RUBBER 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) M10X70 FLANGE MAL	0-28051-070-0	01	1	1402-1412	●
165	BOLT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) M10X70 FLANGE MAL	0-28051-070-0	01	1	1402-1412	●
165	BOLT; SUPPORT RUBBER M10X70 FLANGE MAL	0-28051-070-0	01	1	1402-1412	●
165	BOLT; SUPPORT RUBBER M10X70 FLANGE MAL	0-28051-070-0	01	1	1501-	●	●
165	BOLT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) M10X70 FLANGE MAL	0-28051-070-0	01	1	1501-	●
165	BOLT; SUPPORT RUBBER 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) M10X70 FLANGE MAL	0-28051-070-0	01	1	1501-	●
165	BOLT; SUPPORT RUBBER M10X70 FLANGE MAL	0-28051-070-0	01	1	1501-		●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE ID=10.5 OD=32 MAL	0-91614-810-0	01	1	1311-1311	●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE 4HK1-TCN ENG(RDQ) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> ID=10.5 OD=32 MAL	0-91614-810-0	01	1	1312-1401	●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE ID=10.5 OD=32 MAL	0-91614-810-0	01	1	1312-1401	●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) ID=10.5 OD=32 MAL	0-91614-810-0	01	1	1402-1412	●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE 4HK1-TCN ENG(RDQ) ID=10.5 OD=32 MAL	0-91614-810-0	01	1	1402-1412	●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE ID=10.5 OD=32 MAL	0-91614-810-0	01	1	1402-1412	●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE 4HK1-TCN ENG(RDQ) ID=10.5 OD=32 MAL	0-91614-810-0	01	1	1501-	●	●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) ID=10.5 OD=32 MAL	0-91614-810-0	01	1	1501-	●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE ID=10.5 OD=32 MAL	0-91614-810-0	01	1	1501-	●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE 4HK1-TCN ENG(RDQ) ID=10.5 OD=32 MAL	0-91614-810-0	01	1	1501-		●
193	NUT; BRKT,VERTICAL PIPE 4HK1-TCN ENG(RDQ) M10 FLANGE MAL	0-91180-110-0	02	1	1312-1401	●
193	NUT; BRKT,VERTICAL PIPE 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) M10 FLANGE MAL	0-91180-110-0	02	1	1402-1412	●
193	NUT; BRKT,VERTICAL PIPE 4HK1-TCN ENG(RDQ) M10 FLANGE MAL	0-91180-110-0	02	1	1402-1412	●
193	NUT; BRKT,VERTICAL PIPE 4HK1-TCN ENG(RDQ) M10 FLANGE MAL	0-91180-110-0	02	1	1501-	●	●
193	NUT; BRKT,VERTICAL PIPE 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) M10 FLANGE MAL	0-91180-110-0	02	1	1501-	●
329	NUT; EXH PIPE TO PIPE M10 FLANGE MAL	0-91180-110-0	02	1	1311-1412	●
329	NUT; EXH PIPE TO PIPE M10 FLANGE MAL	0-91180-110-0	02	1	1501-	●	●
357	WASHER; PL,CLAMP ID=10.5 OD=22	0-91614-610-0	01	1	1311-1311	●
357	WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> ID=10.5 OD=22	0-91614-610-0	01	1	1312-1401	●
357	WASHER; PL,CLAMP ID=10.5 OD=22	0-91614-610-0	01	1	1312-1401	●
357	WASHER; PL,CLAMP 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) ID=10.5 OD=22	0-91614-610-0	01	1	1402-1412	●
357	WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ) ID=10.5 OD=22	0-91614-610-0	01	1	1402-1412	●
357	WASHER; PL,CLAMP ID=10.5 OD=22	0-91614-610-0	01	1	1402-1412	●
357	WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ) ID=10.5 OD=22	0-91614-610-0	01	1	1501-	●	●
357	WASHER; PL,CLAMP 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) ID=10.5 OD=22	0-91614-610-0	01	1	1501-	●
357	WASHER; PL,CLAMP ID=10.5 OD=22	0-91614-610-0	01	1	1501-	●
357	WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ) ID=10.5 OD=22	0-91614-610-0	01	1	1501-		●
367	COLLAR; DIST,SUPPORT RUBBER 4HK1-TCN ENG(RDQ) L=37.5	9-22151-217-0	01	1	1312-1401	●
367	COLLAR; DIST,SUPPORT RUBBER 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) L=37.5	9-22151-217-0	01	1	1402-1412	●
367	COLLAR; DIST,SUPPORT RUBBER 4HK1-TCN ENG(RDQ) L=37.5	9-22151-217-0	01	1	1402-1412	●
367	COLLAR; DIST,SUPPORT RUBBER 4HK1-TCN ENG(RDQ) L=37.5	9-22151-217-0	01	1	1501-	●	●
367	COLLAR; DIST,SUPPORT RUBBER 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) L=37.5	9-22151-217-0	01	1	1501-	●
420	BOLT; BRKT,VERTICAL PIPE 4HK1-TCN ENG(RDQ) M10X30 FLANGE	0-28651-030-0	02	1	1312-1401	●
420	BOLT; BRKT,VERTICAL PIPE 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) M10X30 FLANGE	0-28651-030-0	02	1	1402-1412	●
420	BOLT; BRKT,VERTICAL PIPE 4HK1-TCN ENG(RDQ) M10X30 FLANGE	0-28651-030-0	02	1	1402-1412	●
420	BOLT; BRKT,VERTICAL PIPE 4HK1-TCN ENG(RDQ) M10X30 FLANGE	0-28651-030-0	02	1	1501-	●	●
420	BOLT; BRKT,VERTICAL PIPE 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) M10X30 FLANGE	0-28651-030-0	02	1	1501-	●

562 25 38 532 172 385 143 44 2 36 8 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH 4HG1-T ENG(RDP) (B) MAL	8-97187-143-1	01	1	1311-	●
1	PIPE; EXH 4HK1-TCN ENG(RDQ) (A) MAL	8-98074-108-1	01	1	1312-1412	●
1	PIPE; EXH 4HK1-TCN ENG(RDQ) (A) MAL	8-98074-108-1	01	1	1501-	●	●
2	GASKET; PIPE TO MANIF MAL	8-97381-455-0	01	1	1311-1412	●
2	GASKET; PIPE TO MANIF MAL	8-97381-455-0	01	1	1501-	●	●
8	BRACKET; EXH PIPE 4HG1-T ENG(RDP) (B) MAL	8-97238-728-0	01	1	1311-	●
8	BRACKET; EXH PIPE 4HK1-TCN ENG(RDQ) (A)	8-97365-228-0	01	1	1312-1412	●
8	BRACKET; EXH PIPE 4HK1-TCN ENG(RDQ) (A)	8-97365-228-0	01	1	1501-	●	●
25	PIPE; EXH,BRK VLV TO SILENCER 4HG1-T ENG(RDP) (B) MAL	8-97361-724-0	01	1	1311-	●
25	PIPE; EXH,BRK VLV TO SILENCER 4HK1-TCN ENG(RDQ) (A) MAL	8-98074-109-0	01	1	1312-1412	●
25	PIPE; EXH,BRK VLV TO SILENCER 4HK1-TCN ENG(RDQ) (A) MAL	8-98074-109-0	01	1	1501-	●	●
36	NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1311-1412	●
36	NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1501-	●	●
36	NUT; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) (B) M10 FLANGE MAL	0-91180-110-0	02	1	1312-1401	●
36	NUT; EXH PIPE WHEEL BASE 3800MM(38W) (B) M10 FLANGE MAL	0-91180-110-0	02	1	1402-1412	●
36	NUT; EXH PIPE WHEEL BASE 3800MM(38W) (B) M10 FLANGE MAL	0-91180-110-0	02	1	1501-	●
36	NUT; EXH PIPE (B) M10 FLANGE MAL	0-91180-110-0	02	1	1501-		●
38	NUT; SILENCER 4HG1-T ENG(RDP) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10 FLANGE MAL	0-91180-110-0	02	1	1312-1401	●
38	NUT; SILENCER 4HK1-TCN ENG(RDQ) M10 FLANGE MAL	0-91180-110-0	02	1	1312-1401	●
38	NUT; SILENCER M10 FLANGE MAL	0-91180-110-0	02	1	1402-1412	●
38	NUT; SILENCER M10 FLANGE MAL	0-91180-110-0	02	1	1501-	●	●
44	BOLT; BRKT 4HG1-T ENG(RDP) (B) M8X45 W/LK WASHER	0-50540-845-0	01	1	1311-	●
44	BOLT; BRKT 4HK1-TCN ENG(RDQ) (A) M10X40 FLANGE	0-28051-040-0	01	1	1312-1412	●
44	BOLT; BRKT 4HK1-TCN ENG(RDQ) (A) M10X40 FLANGE	0-28051-040-0	01	1	1501-	●	●
143	RUBBER; SUPPORT 4HG1-T ENG(RDP) (A) MAL	8-97166-498-1	01	1	1311-	●
143	RUBBER; SUPPORT 4HK1-TCN ENG(RDQ) (C)	8-97080-694-0	01	1	1312-1412	●
143	RUBBER; SUPPORT 4HK1-TCN ENG(RDQ) (C)	8-97080-694-0	01	1	1501-	●	●
143	RUBBER; SUPPORT 4HK1-TCN ENG(RDQ) (B)	8-98034-767-0	01	1	1312-1401	●
143	RUBBER; SUPPORT (B)	8-98034-767-0	01	1	1402-1412	●
143	RUBBER; SUPPORT (B)	8-98034-767-0	01	1	1501-	●	●
172	BOLT M10X35 FLANGE MAL	0-28651-035-0	02	1	1311-1412	●
172	BOLT M10X35 FLANGE MAL	0-28651-035-0	02	1	1501-	●	●
385	BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) (E)	8-98101-911-0	01	1	1501-		●
385	BRACKET; SILENCER MTG 4HG1-T ENG(RDP) (A)	8-97041-227-0	01	1	1311-	●
385	BRACKET; SILENCER MTG 4HG1-T ENG(RDP) (C) MAL	8-97076-020-0	01	1	1311-	●
385	BRACKET; SILENCER MTG 4HG1-T ENG(RDP) (B)	8-98173-128-0	01	1	1311-	●
385	BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) (D)	8-97207-224-0	02	1	1312-1412	●
385	BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) (D)	8-97207-224-0	02	1	1501-	●	●
385	BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) (E)	8-98074-495-1	01	1	1312-	●
532	NUT 4HG1-T ENG(RDP) (B) M8 FLANGE MAL	0-91180-108-0	02	1	1311-	●
532	NUT (A) M10 FLANGE MAL	0-91180-110-0	02	1	1311-1412	●
532	NUT (A) M10 FLANGE MAL	0-91180-110-0	02	1	1311-1412	●
532	NUT (A) M10 FLANGE MAL	0-91180-110-0	02	1	1501-	●	●
532	NUT (A) M10 FLANGE MAL	0-91180-110-0	02	1	1501-	●	●
562	PLATE; STUD,BOLT M8X70	0-10855-870-0	04	1	1311-1412	●
562	PLATE; STUD,BOLT M8X70	0-10855-870-0	04	1	1501-	●	●

117 118 574 122 118 117 576 113 115 385 124 81 387 122 200 115 124 14 12 385 115 113 200 577 574 352 115 387

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	SILENCER ASM; EXH 4HG1-T ENG(RDP) (B)	8-98173-127-0	01	1	1311-1311	●
12	SILENCER ASM; EXH 4HG1-T ENG(RDP) TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98173-127-0	01	1	1312-1401	●
12	SILENCER ASM; EXH 4HG1-T ENG(RDP) (C)	8-98172-395-0	01	1	1402-	●
12	SILENCER ASM; EXH 4HK1-TCN ENG(RDQ) (A)	8-98090-839-0	01	1	1312-1412	●
12	SILENCER ASM; EXH 4HK1-TCN ENG(RDQ) (A)	8-98090-839-0	01	1	1501-	●	●
14	GASKET; SILENCER TO EXH PIPE 4HG1-T ENG(RDP) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> ID=64.7 MAL	8-94328-352-0	01	1	1312-1401	●
14	GASKET; SILENCER TO EXH PIPE 4HK1-TCN ENG(RDQ) ID=64.7 MAL	8-94328-352-0	01	1	1312-1401	●
14	GASKET; SILENCER TO EXH PIPE ID=64.7 MAL	8-94328-352-0	01	1	1402-1412	●
14	GASKET; SILENCER TO EXH PIPE ID=64.7 MAL	8-94328-352-0	01	1	1501-	●	●
81	NUT; BRKT 4HG1-T ENG(RDP) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M8 FLANGE MAL	0-91180-108-0	02	1	1312-1401	●
81	NUT; BRKT 4HK1-TCN ENG(RDQ) (B) M8 FLANGE MAL	0-91180-108-0	02	1	1312-1401	●
81	NUT; BRKT (B) M8 FLANGE MAL	0-91180-108-0	02	1	1402-1412	●
81	NUT; BRKT (B) M8 FLANGE MAL	0-91180-108-0	02	1	1501-	●	●
81	NUT; BRKT 4HK1-TCN ENG(RDQ) (A) M10 FLANGE MAL	0-91180-110-0	02	1	1312-1412	●
81	NUT; BRKT 4HK1-TCN ENG(RDQ) (A) M10 FLANGE MAL	0-91180-110-0	02	1	1501-	●	●
113	COLLAR; DIST,MTG BRKT 4HG1-T ENG(RDP) L=37.5	9-22151-217-0	01	1	1311-	●
113	COLLAR; DIST,MTG BRKT 4HK1-TCN ENG(RDQ) L=37.5	9-22151-217-0	02	1	1312-1412	●
113	COLLAR; DIST,MTG BRKT 4HK1-TCN ENG(RDQ) L=37.5	9-22151-217-0	02	1	1501-	●	●
115	RUBBER; MTG,SILENCER 4HG1-T ENG(RDP) (B) MAL	8-94457-277-1	01	1	1311-	●
115	RUBBER; MTG,SILENCER 4HG1-T ENG(RDP) (A) MAL	8-94457-278-1	01	1	1311-	●
115	RUBBER; MTG,SILENCER 4HK1-TCN ENG(RDQ) (D)	8-97379-882-0	02	1	1312-1412	●
115	RUBBER; MTG,SILENCER 4HK1-TCN ENG(RDQ) (D)	8-97379-882-0	02	1	1501-	●	●
115	RUBBER; MTG,SILENCER 4HK1-TCN ENG(RDQ) (C)	8-97379-927-0	02	1	1312-1412	●
115	RUBBER; MTG,SILENCER 4HK1-TCN ENG(RDQ) (C)	8-97379-927-0	02	1	1501-	●	●
117	WASHER; PL,SILENCER MTG BRKT 4HG1-T ENG(RDP) OD=55	9-09852-169-0	01	1	1311-	●
117	WASHER; PL,SILENCER MTG BRKT 4HK1-TCN ENG(RDQ) OD=55	9-09852-169-0	02	1	1312-1412	●
117	WASHER; PL,SILENCER MTG BRKT 4HK1-TCN ENG(RDQ) OD=55	9-09852-169-0	02	1	1501-	●	●
118	NUT; SILENCER MTG BRKT 4HG1-T ENG(RDP) M10 FLANGE	5-09440-006-0	01	1	1311-	●
118	NUT; SILENCER MTG BRKT 4HK1-TCN ENG(RDQ) M10 FLANGE	5-09440-006-0	02	1	1312-1412	●
118	NUT; SILENCER MTG BRKT 4HK1-TCN ENG(RDQ) M10 FLANGE	5-09440-006-0	02	1	1501-	●	●
122	NUT; HANGER BRKT 4HK1-TCN ENG(RDQ) M10 FLANGE MAL	0-91180-110-0	02	1	1312-1412	●
122	NUT; HANGER BRKT 4HK1-TCN ENG(RDQ) M10 FLANGE MAL	0-91180-110-0	02	1	1501-	●	●
124	NUT; SUPPORT RUBBER 4HG1-T ENG(RDP) (B) M8	0-91110-508-0	01	1	1311-1412	●
124	NUT; SUPPORT RUBBER (B) M8	0-91110-508-0	01	1	1501-	●
124	NUT; SUPPORT RUBBER (A) M10 FLANGE MAL	0-91180-110-0	01	1	1311-1311	●
124	NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE MAL	0-91180-110-0	01	1	1312-1401	●
124	NUT; SUPPORT RUBBER (A) M10 FLANGE MAL	0-91180-110-0	01	1	1312-1401	●
124	NUT; SUPPORT RUBBER 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) (A) M10 FLANGE MAL	0-91180-110-0	01	1	1402-1412	●
124	NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) (A) M10 FLANGE MAL	0-91180-110-0	01	1	1402-1412	●
124	NUT; SUPPORT RUBBER (A) M10 FLANGE MAL	0-91180-110-0	01	1	1402-1412	●
124	NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) (A) M10 FLANGE MAL	0-91180-110-0	01	1	1501-	●	●
124	NUT; SUPPORT RUBBER 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) (A) M10 FLANGE MAL	0-91180-110-0	01	1	1501-	●
124	NUT; SUPPORT RUBBER (A) M10 FLANGE MAL	0-91180-110-0	01	1	1501-	●
124	NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) (A) M10 FLANGE MAL	0-91180-110-0	01	1	1501-		●
124	NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) (B) M8	0-91110-508-0	02	1	1312-1412	●
124	NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) (B) M8	0-91110-508-0	02	1	1501-	●	●
200	BOLT; SUPPORT RUBBER 4HG1-T ENG(RDP) M8X45 W/LK WASHER	0-50540-845-0	01	1	1311-	●
200	BOLT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) M8X45 W/LK WASHER	0-50540-845-0	02	1	1312-1412	●
200	BOLT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) M8X45 W/LK WASHER	0-50540-845-0	02	1	1501-	●	●
352	NUT; BRKT 4HK1-TCN ENG(RDQ) M10 FLANGE MAL	0-91180-110-0	02	1	1312-1412	●
352	NUT; BRKT 4HK1-TCN ENG(RDQ) M10 FLANGE MAL	0-91180-110-0	02	1	1501-	●	●
385	BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) (E)	8-98101-911-0	01	1	1501-		●
385	BRACKET; SILENCER MTG 4HG1-T ENG(RDP) (A)	8-97041-227-0	01	1	1311-	●
385	BRACKET; SILENCER MTG 4HG1-T ENG(RDP) (C) MAL	8-97076-020-0	01	1	1311-	●
385	BRACKET; SILENCER MTG 4HG1-T ENG(RDP) (B)	8-98173-128-0	01	1	1311-	●
385	BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) (D)	8-97207-224-0	02	1	1312-1412	●
385	BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) (D)	8-97207-224-0	02	1	1501-	●	●
385	BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) (E)	8-98074-495-1	01	1	1312-	●
387	SPACER; BRKT 4HK1-TCN ENG(RDQ) (B)	8-98050-196-2	01	1	1501-		●
387	SPACER; BRKT 4HK1-TCN ENG(RDQ) (A)	8-98044-774-0	01	1	1312-	●
574	SPACER; DPD 4HK1-TCN ENG(RDQ) (B)	8-98050-196-2	01	1	1501-		●
574	SPACER; DPD 4HK1-TCN ENG(RDQ) (A)	8-98044-774-0	01	1	1312-	●
576	BRACKET; DPD FRT TO FRAME 4HK1-TCN ENG(RDQ)	8-98074-124-1	01	1	1312-1412	●
576	BRACKET; DPD FRT TO FRAME 4HK1-TCN ENG(RDQ)	8-98074-124-1	01	1	1501-	●	●
577	BRACKET; DPD RR TO FRAME 4HK1-TCN ENG(RDQ)	8-98074-124-1	01	1	1312-1412	●
577	BRACKET; DPD RR TO FRAME 4HK1-TCN ENG(RDQ)	8-98074-124-1	01	1	1501-	●	●

532 46 584 118 115 117 385 113 115 385 124 200 532 46 532 12 84 12 14 84 104 95 124 166 164 137 104 165 105 357 94 137 95 88 94 162

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	SILENCER ASM; EXH 4HG1-T ENG(RDP) (B)	8-98173-127-0	01	1	1311-1311	●
12	SILENCER ASM; EXH 4HG1-T ENG(RDP) TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98173-127-0	01	1	1312-1401	●
12	SILENCER ASM; EXH 4HG1-T ENG(RDP) (C)	8-98172-395-0	01	1	1402-	●
12	SILENCER ASM; EXH 4HK1-TCN ENG(RDQ) (A)	8-98090-839-0	01	1	1312-1412	●
12	SILENCER ASM; EXH 4HK1-TCN ENG(RDQ) (A)	8-98090-839-0	01	1	1501-	●	●
14	GASKET; SILENCER TO EXH PIPE 4HG1-T ENG(RDP) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> ID=64.7 MAL	8-94328-352-0	01	1	1312-1401	●
14	GASKET; SILENCER TO EXH PIPE 4HK1-TCN ENG(RDQ) ID=64.7 MAL	8-94328-352-0	01	1	1312-1401	●
14	GASKET; SILENCER TO EXH PIPE ID=64.7 MAL	8-94328-352-0	01	1	1402-1412	●
14	GASKET; SILENCER TO EXH PIPE ID=64.7 MAL	8-94328-352-0	01	1	1501-	●	●
46	BOLT; BRKT,EXH PIPE 4HG1-T ENG(RDP) M10X30 FLANGE	0-28651-030-0	02	1	1311-	●
84	GASKET; EXH PIPE ID=64.7 MAL	8-94328-352-0	01	1	1311-1311	●
84	GASKET; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) ID=64.7 MAL	8-94328-352-0	01	1	1312-1401	●
84	GASKET; EXH PIPE ID=64.7 MAL	8-94328-352-0	01	1	1312-1401	●
84	GASKET; EXH PIPE ID=64.7 MAL	8-94328-352-0	01	1	1402-1412	●
84	GASKET; EXH PIPE WHEEL BASE 3800MM(38W) ID=64.7 MAL	8-94328-352-0	01	1	1402-1412	●
84	GASKET; EXH PIPE ID=64.7 MAL	8-94328-352-0	01	1	1501-	●	●
84	GASKET; EXH PIPE WHEEL BASE 3800MM(38W) ID=64.7 MAL	8-94328-352-0	01	1	1501-	●
84	GASKET; EXH PIPE ID=64.7 MAL	8-94328-352-0	01	1	1501-		●
88	CLAMP; EXH PIPE MAL	8-97373-158-0	01	1	1311-1311	●
88	CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ) MAL	8-97373-158-0	01	1	1312-1401	●
88	CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ) MAL	8-97373-158-0	01	1	1312-1401	●
88	CLAMP; EXH PIPE 4HG1-T ENG(RDP) TAILPIPE SINGLE SHORT TYPE<8JJ> MAL	8-97373-158-0	01	1	1312-1401	●
88	CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ) MAL	8-97373-158-0	01	1	1312-1401	●
88	CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) MAL	8-97373-158-0	01	1	1312-1401	●
88	CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) MAL	8-97373-158-0	01	1	1402-1412	●
88	CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ) MAL	8-97373-158-0	01	1	1402-1412	●
88	CLAMP; EXH PIPE MAL	8-97373-158-0	01	1	1402-1412	●
88	CLAMP; EXH PIPE MAL	8-97373-158-0	01	1	1402-1412	●
88	CLAMP; EXH PIPE MAL	8-97373-158-0	01	1	1501-	●	●
88	CLAMP; EXH PIPE MAL	8-97373-158-0	01	1	1501-	●	●
88	CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ) MAL	8-97373-158-0	01	1	1501-	●
88	CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) MAL	8-97373-158-0	01	1	1501-	●
88	CLAMP; EXH PIPE MAL	8-97373-158-0	01	1	1501-		●
94	BOLT; CLAMP (A) M10X45 FLANGE MAL	0-28051-045-0	01	1	1311-1311	●
94	BOLT; CLAMP 4HK1-TCN ENG(RDQ) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10X45 FLANGE MAL	0-28051-045-0	01	1	1312-1401	●
94	BOLT; CLAMP (A) M10X45 FLANGE MAL	0-28051-045-0	01	1	1312-1401	●
94	BOLT; CLAMP 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) (A) M10X45 FLANGE MAL	0-28051-045-0	01	1	1402-1412	●
94	BOLT; CLAMP 4HK1-TCN ENG(RDQ) (A) M10X45 FLANGE MAL	0-28051-045-0	01	1	1402-1412	●
94	BOLT; CLAMP (A) M10X45 FLANGE MAL	0-28051-045-0	01	1	1402-1412	●
94	BOLT; CLAMP 4HK1-TCN ENG(RDQ) (A) M10X45 FLANGE MAL	0-28051-045-0	01	1	1501-	●	●
94	BOLT; CLAMP 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) (A) M10X45 FLANGE MAL	0-28051-045-0	01	1	1501-	●
94	BOLT; CLAMP (A) M10X45 FLANGE MAL	0-28051-045-0	01	1	1501-	●
94	BOLT; CLAMP 4HK1-TCN ENG(RDQ) (A) M10X45 FLANGE MAL	0-28051-045-0	01	1	1501-		●
94	BOLT; CLAMP 4HK1-TCN ENG(RDQ) (B) M10X50 FLANGE	8-97301-165-0	01	1	1312-1401	●
94	BOLT; CLAMP (B) M10X50 FLANGE	8-97301-165-0	01	1	1402-1412	●
94	BOLT; CLAMP (B) M10X50 FLANGE	8-97301-165-0	01	1	1501-	●	●
95	BOLT; BRKT 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) (B) M8X25 FLANGE MAL	0-28650-825-0	02	1	1311-1311	●
95	BOLT; BRKT 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) (B) M8X25 FLANGE MAL	0-28650-825-0	02	1	1312-1401	●
95	BOLT; BRKT 4HK1-TCN ENG(RDQ) (B) M8X25 FLANGE MAL	0-28650-825-0	02	1	1312-1401	●
95	BOLT; BRKT 4HK1-TCN ENG(RDQ) (B) M8X25 FLANGE MAL	0-28650-825-0	02	1	1402-1412	●
95	BOLT; BRKT 4HG1-T ENG(RDP) (B) M8X25 FLANGE MAL	0-28650-825-0	02	1	1402-1412	●
95	BOLT; BRKT 4HK1-TCN ENG(RDQ) (B) M8X25 FLANGE MAL	0-28650-825-0	02	1	1501-	●	●
95	BOLT; BRKT 4HG1-T ENG(RDP) (B) M8X25 FLANGE MAL	0-28650-825-0	02	1	1501-	●
95	BOLT; BRKT 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) (A) M10X30 FLANGE	0-28651-030-0	02	1	1311-1311	●
95	BOLT; BRKT 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10X30 FLANGE	0-28651-030-0	02	1	1312-1401	●
104	NUT; BRKT 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) (B) M8 FLANGE MAL	0-91180-108-0	02	1	1311-1311	●
104	NUT; BRKT 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) (B) M8 FLANGE MAL	0-91180-108-0	02	1	1312-1401	●
104	NUT; BRKT 4HK1-TCN ENG(RDQ) (B) M8 FLANGE MAL	0-91180-108-0	02	1	1312-1401	●
104	NUT; BRKT 4HK1-TCN ENG(RDQ) (B) M8 FLANGE MAL	0-91180-108-0	02	1	1402-1412	●
104	NUT; BRKT 4HG1-T ENG(RDP) (B) M8 FLANGE MAL	0-91180-108-0	02	1	1402-1412	●
104	NUT; BRKT 4HK1-TCN ENG(RDQ) (B) M8 FLANGE MAL	0-91180-108-0	02	1	1501-	●	●
104	NUT; BRKT 4HG1-T ENG(RDP) (B) M8 FLANGE MAL	0-91180-108-0	02	1	1501-	●
104	NUT; BRKT 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) (A) M10 FLANGE MAL	0-91180-110-0	02	1	1311-1311	●
104	NUT; BRKT 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE MAL	0-91180-110-0	02	1	1312-1401	●
105	NUT; CLAMP M10 MAL	0-91110-510-0	01	1	1311-1311	●
105	NUT; CLAMP 4HK1-TCN ENG(RDQ) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10 MAL	0-91110-510-0	01	1	1312-1401	●
105	NUT; CLAMP M10 MAL	0-91110-510-0	01	1	1312-1401	●
105	NUT; CLAMP 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) M10 MAL	0-91110-510-0	01	1	1402-1412	●
105	NUT; CLAMP 4HK1-TCN ENG(RDQ) M10 MAL	0-91110-510-0	01	1	1402-1412	●
105	NUT; CLAMP M10 MAL	0-91110-510-0	01	1	1402-1412	●
105	NUT; CLAMP 4HK1-TCN ENG(RDQ) M10 MAL	0-91110-510-0	01	1	1501-	●	●
105	NUT; CLAMP 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) M10 MAL	0-91110-510-0	01	1	1501-	●
105	NUT; CLAMP M10 MAL	0-91110-510-0	01	1	1501-	●
105	NUT; CLAMP 4HK1-TCN ENG(RDQ) M10 MAL	0-91110-510-0	01	1	1501-		●
113	COLLAR; DIST,MTG BRKT 4HG1-T ENG(RDP) L=37.5	9-22151-217-0	01	1	1311-	●
113	COLLAR; DIST,MTG BRKT 4HK1-TCN ENG(RDQ) L=37.5	9-22151-217-0	02	1	1312-1412	●
113	COLLAR; DIST,MTG BRKT 4HK1-TCN ENG(RDQ) L=37.5	9-22151-217-0	02	1	1501-	●	●
115	RUBBER; MTG,SILENCER 4HG1-T ENG(RDP) (B) MAL	8-94457-277-1	01	1	1311-	●
115	RUBBER; MTG,SILENCER 4HG1-T ENG(RDP) (A) MAL	8-94457-278-1	01	1	1311-	●
115	RUBBER; MTG,SILENCER 4HK1-TCN ENG(RDQ) (D)	8-97379-882-0	02	1	1312-1412	●
115	RUBBER; MTG,SILENCER 4HK1-TCN ENG(RDQ) (D)	8-97379-882-0	02	1	1501-	●	●
115	RUBBER; MTG,SILENCER 4HK1-TCN ENG(RDQ) (C)	8-97379-927-0	02	1	1312-1412	●
115	RUBBER; MTG,SILENCER 4HK1-TCN ENG(RDQ) (C)	8-97379-927-0	02	1	1501-	●	●
117	WASHER; PL,SILENCER MTG BRKT 4HG1-T ENG(RDP) OD=55	9-09852-169-0	01	1	1311-	●
117	WASHER; PL,SILENCER MTG BRKT 4HK1-TCN ENG(RDQ) OD=55	9-09852-169-0	02	1	1312-1412	●
117	WASHER; PL,SILENCER MTG BRKT 4HK1-TCN ENG(RDQ) OD=55	9-09852-169-0	02	1	1501-	●	●
118	NUT; SILENCER MTG BRKT 4HG1-T ENG(RDP) M10 FLANGE	5-09440-006-0	01	1	1311-	●
118	NUT; SILENCER MTG BRKT 4HK1-TCN ENG(RDQ) M10 FLANGE	5-09440-006-0	02	1	1312-1412	●
118	NUT; SILENCER MTG BRKT 4HK1-TCN ENG(RDQ) M10 FLANGE	5-09440-006-0	02	1	1501-	●	●
124	NUT; SUPPORT RUBBER 4HG1-T ENG(RDP) (B) M8	0-91110-508-0	01	1	1311-1412	●
124	NUT; SUPPORT RUBBER (B) M8	0-91110-508-0	01	1	1501-	●
124	NUT; SUPPORT RUBBER (A) M10 FLANGE MAL	0-91180-110-0	01	1	1311-1311	●
124	NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE MAL	0-91180-110-0	01	1	1312-1401	●
124	NUT; SUPPORT RUBBER (A) M10 FLANGE MAL	0-91180-110-0	01	1	1312-1401	●
124	NUT; SUPPORT RUBBER 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) (A) M10 FLANGE MAL	0-91180-110-0	01	1	1402-1412	●
124	NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) (A) M10 FLANGE MAL	0-91180-110-0	01	1	1402-1412	●
124	NUT; SUPPORT RUBBER (A) M10 FLANGE MAL	0-91180-110-0	01	1	1402-1412	●
124	NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) (A) M10 FLANGE MAL	0-91180-110-0	01	1	1501-	●	●
124	NUT; SUPPORT RUBBER 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) (A) M10 FLANGE MAL	0-91180-110-0	01	1	1501-	●
124	NUT; SUPPORT RUBBER (A) M10 FLANGE MAL	0-91180-110-0	01	1	1501-	●
124	NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) (A) M10 FLANGE MAL	0-91180-110-0	01	1	1501-		●
124	NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) (B) M8	0-91110-508-0	02	1	1312-1412	●
124	NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) (B) M8	0-91110-508-0	02	1	1501-	●	●
137	BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) (A)	8-98173-138-0	01	1	1311-1311	●
137	BRACKET; TAIL PIPE 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) TAILPIPE SINGLE SHORT TYPE<8JJ> (A)	8-98173-138-0	01	1	1312-1401	●
137	BRACKET; TAIL PIPE WHEEL BASE 3800MM(38W) (B)	8-98173-203-0	01	1	1311-1311	●
137	BRACKET; TAIL PIPE 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98173-203-0	01	1	1312-1401	●
137	BRACKET; TAIL PIPE 4HG1-T ENG(RDP) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (C)	8-97096-651-0	01	1	1312-1401	●
137	BRACKET; TAIL PIPE 4HK1-TCN ENG(RDQ) (C)	8-97096-651-0	01	1	1312-1401	●
137	BRACKET; TAIL PIPE (C)	8-97096-651-0	01	1	1402-1412	●
137	BRACKET; TAIL PIPE (C)	8-97096-651-0	01	1	1501-	●	●
137	BRACKET; TAIL PIPE 4HG1-T ENG(RDP) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (D)	8-97116-588-2	01	1	1312-1401	●
137	BRACKET; TAIL PIPE 4HK1-TCN ENG(RDQ) (D)	8-97116-588-2	01	1	1312-1401	●
137	BRACKET; TAIL PIPE (D)	8-97116-588-2	01	1	1402-1412	●
137	BRACKET; TAIL PIPE (D)	8-97116-588-2	01	1	1501-	●	●
162	RUBBER; SUPPORT,TAIL PIPE L=115	8-98034-765-0	01	1	1311-1311	●
162	RUBBER; SUPPORT,TAIL PIPE 4HK1-TCN ENG(RDQ) L=115	8-98034-765-0	01	1	1312-1401	●
162	RUBBER; SUPPORT,TAIL PIPE L=115	8-98034-765-0	01	1	1312-1401	●
162	RUBBER; SUPPORT,TAIL PIPE 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) L=115	8-98034-765-0	01	1	1402-1412	●
162	RUBBER; SUPPORT,TAIL PIPE 4HK1-TCN ENG(RDQ) L=115	8-98034-765-0	01	1	1402-1412	●
162	RUBBER; SUPPORT,TAIL PIPE L=115	8-98034-765-0	01	1	1402-1412	●
162	RUBBER; SUPPORT,TAIL PIPE L=115	8-98034-765-0	01	1	1501-	●	●
162	RUBBER; SUPPORT,TAIL PIPE 4HK1-TCN ENG(RDQ) L=115	8-98034-765-0	01	1	1501-	●
162	RUBBER; SUPPORT,TAIL PIPE 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) L=115	8-98034-765-0	01	1	1501-	●
162	RUBBER; SUPPORT,TAIL PIPE L=115	8-98034-765-0	01	1	1501-		●
164	COLLAR; DIST,TAIL PIPE L=37.5	9-22151-217-0	01	1	1311-1412	●
164	COLLAR; DIST,TAIL PIPE L=37.5	9-22151-217-0	01	1	1501-	●	●
165	BOLT; SUPPORT RUBBER M10X70 FLANGE MAL	0-28051-070-0	01	1	1311-1311	●
165	BOLT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) M10X70 FLANGE MAL	0-28051-070-0	01	1	1312-1401	●
165	BOLT; SUPPORT RUBBER M10X70 FLANGE MAL	0-28051-070-0	01	1	1312-1401	●
165	BOLT; SUPPORT RUBBER 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) M10X70 FLANGE MAL	0-28051-070-0	01	1	1402-1412	●
165	BOLT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) M10X70 FLANGE MAL	0-28051-070-0	01	1	1402-1412	●
165	BOLT; SUPPORT RUBBER M10X70 FLANGE MAL	0-28051-070-0	01	1	1402-1412	●
165	BOLT; SUPPORT RUBBER M10X70 FLANGE MAL	0-28051-070-0	01	1	1501-	●	●
165	BOLT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) M10X70 FLANGE MAL	0-28051-070-0	01	1	1501-	●
165	BOLT; SUPPORT RUBBER 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) M10X70 FLANGE MAL	0-28051-070-0	01	1	1501-	●
165	BOLT; SUPPORT RUBBER M10X70 FLANGE MAL	0-28051-070-0	01	1	1501-		●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE ID=10.5 OD=32 MAL	0-91614-810-0	01	1	1311-1311	●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE 4HK1-TCN ENG(RDQ) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> ID=10.5 OD=32 MAL	0-91614-810-0	01	1	1312-1401	●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE ID=10.5 OD=32 MAL	0-91614-810-0	01	1	1312-1401	●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) ID=10.5 OD=32 MAL	0-91614-810-0	01	1	1402-1412	●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE 4HK1-TCN ENG(RDQ) ID=10.5 OD=32 MAL	0-91614-810-0	01	1	1402-1412	●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE ID=10.5 OD=32 MAL	0-91614-810-0	01	1	1402-1412	●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE 4HK1-TCN ENG(RDQ) ID=10.5 OD=32 MAL	0-91614-810-0	01	1	1501-	●	●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) ID=10.5 OD=32 MAL	0-91614-810-0	01	1	1501-	●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE ID=10.5 OD=32 MAL	0-91614-810-0	01	1	1501-	●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE 4HK1-TCN ENG(RDQ) ID=10.5 OD=32 MAL	0-91614-810-0	01	1	1501-		●
200	BOLT; SUPPORT RUBBER 4HG1-T ENG(RDP) M8X45 W/LK WASHER	0-50540-845-0	01	1	1311-	●
200	BOLT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) M8X45 W/LK WASHER	0-50540-845-0	02	1	1312-1412	●
200	BOLT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) M8X45 W/LK WASHER	0-50540-845-0	02	1	1501-	●	●
357	WASHER; PL,CLAMP ID=10.5 OD=22	0-91614-610-0	01	1	1311-1311	●
357	WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> ID=10.5 OD=22	0-91614-610-0	01	1	1312-1401	●
357	WASHER; PL,CLAMP ID=10.5 OD=22	0-91614-610-0	01	1	1312-1401	●
357	WASHER; PL,CLAMP 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) ID=10.5 OD=22	0-91614-610-0	01	1	1402-1412	●
357	WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ) ID=10.5 OD=22	0-91614-610-0	01	1	1402-1412	●
357	WASHER; PL,CLAMP ID=10.5 OD=22	0-91614-610-0	01	1	1402-1412	●
357	WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ) ID=10.5 OD=22	0-91614-610-0	01	1	1501-	●	●
357	WASHER; PL,CLAMP 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) ID=10.5 OD=22	0-91614-610-0	01	1	1501-	●
357	WASHER; PL,CLAMP ID=10.5 OD=22	0-91614-610-0	01	1	1501-	●
357	WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ) ID=10.5 OD=22	0-91614-610-0	01	1	1501-		●
385	BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) (E)	8-98101-911-0	01	1	1501-		●
385	BRACKET; SILENCER MTG 4HG1-T ENG(RDP) (A)	8-97041-227-0	01	1	1311-	●
385	BRACKET; SILENCER MTG 4HG1-T ENG(RDP) (C) MAL	8-97076-020-0	01	1	1311-	●
385	BRACKET; SILENCER MTG 4HG1-T ENG(RDP) (B)	8-98173-128-0	01	1	1311-	●
385	BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) (D)	8-97207-224-0	02	1	1312-1412	●
385	BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) (D)	8-97207-224-0	02	1	1501-	●	●
385	BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) (E)	8-98074-495-1	01	1	1312-	●
532	NUT 4HG1-T ENG(RDP) (B) M8 FLANGE MAL	0-91180-108-0	02	1	1311-	●
532	NUT (A) M10 FLANGE MAL	0-91180-110-0	02	1	1311-1412	●
532	NUT (A) M10 FLANGE MAL	0-91180-110-0	02	1	1311-1412	●
532	NUT (A) M10 FLANGE MAL	0-91180-110-0	02	1	1501-	●	●
532	NUT (A) M10 FLANGE MAL	0-91180-110-0	02	1	1501-	●	●
584	SPACER; EXH SILENCER 4HG1-T ENG(RDP)	8-98173-132-0	01	1	1311-	●

165 137 104 104 94 162 164 166 124 357 105 88 95 70 125 81 97 137 105 357 88 94 143 144 126 36 84 88 357 105 3 84 329 165 94 162 420 147 367 193 166 124 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	PIPE; EXH,CENTER 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) (B) MAL	8-98270-186-0	01	1	1402-	●
3	PIPE; EXH,CENTER 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) (A) MAL	8-98134-199-0	01	1	1312-1412	●
3	PIPE; EXH,CENTER 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) (A) MAL	8-98134-199-0	01	1	1501-	●
3	PIPE; EXH,CENTER (A) MAL	8-98134-199-0	01	1	1501-		●
36	NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1311-1412	●
36	NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1501-	●	●
36	NUT; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) (B) M10 FLANGE MAL	0-91180-110-0	02	1	1312-1401	●
36	NUT; EXH PIPE WHEEL BASE 3800MM(38W) (B) M10 FLANGE MAL	0-91180-110-0	02	1	1402-1412	●
36	NUT; EXH PIPE WHEEL BASE 3800MM(38W) (B) M10 FLANGE MAL	0-91180-110-0	02	1	1501-	●
36	NUT; EXH PIPE (B) M10 FLANGE MAL	0-91180-110-0	02	1	1501-		●
70	BOLT; BRKT 4HG1-T ENG(RDP) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M8X25 FLANGE MAL	0-28650-825-0	02	1	1312-1401	●
70	BOLT; BRKT 4HK1-TCN ENG(RDQ) M8X25 FLANGE MAL	0-28650-825-0	02	1	1312-1401	●
70	BOLT; BRKT M8X25 FLANGE MAL	0-28650-825-0	02	1	1402-1412	●
70	BOLT; BRKT M8X25 FLANGE MAL	0-28650-825-0	02	1	1501-	●	●
81	NUT; BRKT 4HG1-T ENG(RDP) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M8 FLANGE MAL	0-91180-108-0	02	1	1312-1401	●
81	NUT; BRKT 4HK1-TCN ENG(RDQ) (B) M8 FLANGE MAL	0-91180-108-0	02	1	1312-1401	●
81	NUT; BRKT (B) M8 FLANGE MAL	0-91180-108-0	02	1	1402-1412	●
81	NUT; BRKT (B) M8 FLANGE MAL	0-91180-108-0	02	1	1501-	●	●
81	NUT; BRKT 4HK1-TCN ENG(RDQ) (A) M10 FLANGE MAL	0-91180-110-0	02	1	1312-1412	●
81	NUT; BRKT 4HK1-TCN ENG(RDQ) (A) M10 FLANGE MAL	0-91180-110-0	02	1	1501-	●	●
84	GASKET; EXH PIPE ID=64.7 MAL	8-94328-352-0	01	1	1311-1311	●
84	GASKET; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) ID=64.7 MAL	8-94328-352-0	01	1	1312-1401	●
84	GASKET; EXH PIPE ID=64.7 MAL	8-94328-352-0	01	1	1312-1401	●
84	GASKET; EXH PIPE ID=64.7 MAL	8-94328-352-0	01	1	1402-1412	●
84	GASKET; EXH PIPE WHEEL BASE 3800MM(38W) ID=64.7 MAL	8-94328-352-0	01	1	1402-1412	●
84	GASKET; EXH PIPE ID=64.7 MAL	8-94328-352-0	01	1	1501-	●	●
84	GASKET; EXH PIPE WHEEL BASE 3800MM(38W) ID=64.7 MAL	8-94328-352-0	01	1	1501-	●
84	GASKET; EXH PIPE ID=64.7 MAL	8-94328-352-0	01	1	1501-		●
88	CLAMP; EXH PIPE MAL	8-97373-158-0	01	1	1311-1311	●
88	CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ) MAL	8-97373-158-0	01	1	1312-1401	●
88	CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ) MAL	8-97373-158-0	01	1	1312-1401	●
88	CLAMP; EXH PIPE 4HG1-T ENG(RDP) TAILPIPE SINGLE SHORT TYPE<8JJ> MAL	8-97373-158-0	01	1	1312-1401	●
88	CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ) MAL	8-97373-158-0	01	1	1312-1401	●
88	CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) MAL	8-97373-158-0	01	1	1312-1401	●
88	CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) MAL	8-97373-158-0	01	1	1402-1412	●
88	CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ) MAL	8-97373-158-0	01	1	1402-1412	●
88	CLAMP; EXH PIPE MAL	8-97373-158-0	01	1	1402-1412	●
88	CLAMP; EXH PIPE MAL	8-97373-158-0	01	1	1402-1412	●
88	CLAMP; EXH PIPE MAL	8-97373-158-0	01	1	1501-	●	●
88	CLAMP; EXH PIPE MAL	8-97373-158-0	01	1	1501-	●	●
88	CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ) MAL	8-97373-158-0	01	1	1501-	●
88	CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) MAL	8-97373-158-0	01	1	1501-	●
88	CLAMP; EXH PIPE MAL	8-97373-158-0	01	1	1501-		●
94	BOLT; CLAMP (A) M10X45 FLANGE MAL	0-28051-045-0	01	1	1311-1311	●
94	BOLT; CLAMP 4HK1-TCN ENG(RDQ) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10X45 FLANGE MAL	0-28051-045-0	01	1	1312-1401	●
94	BOLT; CLAMP (A) M10X45 FLANGE MAL	0-28051-045-0	01	1	1312-1401	●
94	BOLT; CLAMP 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) (A) M10X45 FLANGE MAL	0-28051-045-0	01	1	1402-1412	●
94	BOLT; CLAMP 4HK1-TCN ENG(RDQ) (A) M10X45 FLANGE MAL	0-28051-045-0	01	1	1402-1412	●
94	BOLT; CLAMP (A) M10X45 FLANGE MAL	0-28051-045-0	01	1	1402-1412	●
94	BOLT; CLAMP 4HK1-TCN ENG(RDQ) (A) M10X45 FLANGE MAL	0-28051-045-0	01	1	1501-	●	●
94	BOLT; CLAMP 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) (A) M10X45 FLANGE MAL	0-28051-045-0	01	1	1501-	●
94	BOLT; CLAMP (A) M10X45 FLANGE MAL	0-28051-045-0	01	1	1501-	●
94	BOLT; CLAMP 4HK1-TCN ENG(RDQ) (A) M10X45 FLANGE MAL	0-28051-045-0	01	1	1501-		●
94	BOLT; CLAMP 4HK1-TCN ENG(RDQ) (B) M10X50 FLANGE	8-97301-165-0	01	1	1312-1401	●
94	BOLT; CLAMP (B) M10X50 FLANGE	8-97301-165-0	01	1	1402-1412	●
94	BOLT; CLAMP (B) M10X50 FLANGE	8-97301-165-0	01	1	1501-	●	●
95	BOLT; BRKT 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) (B) M8X25 FLANGE MAL	0-28650-825-0	02	1	1311-1311	●
95	BOLT; BRKT 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) (B) M8X25 FLANGE MAL	0-28650-825-0	02	1	1312-1401	●
95	BOLT; BRKT 4HK1-TCN ENG(RDQ) (B) M8X25 FLANGE MAL	0-28650-825-0	02	1	1312-1401	●
95	BOLT; BRKT 4HK1-TCN ENG(RDQ) (B) M8X25 FLANGE MAL	0-28650-825-0	02	1	1402-1412	●
95	BOLT; BRKT 4HG1-T ENG(RDP) (B) M8X25 FLANGE MAL	0-28650-825-0	02	1	1402-1412	●
95	BOLT; BRKT 4HK1-TCN ENG(RDQ) (B) M8X25 FLANGE MAL	0-28650-825-0	02	1	1501-	●	●
95	BOLT; BRKT 4HG1-T ENG(RDP) (B) M8X25 FLANGE MAL	0-28650-825-0	02	1	1501-	●
95	BOLT; BRKT 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) (A) M10X30 FLANGE	0-28651-030-0	02	1	1311-1311	●
95	BOLT; BRKT 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10X30 FLANGE	0-28651-030-0	02	1	1312-1401	●
97	WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ) ID=10.5 OD=22	0-91614-610-0	01	1	1312-1401	●
97	WASHER; PL,CLAMP ID=10.5 OD=22	0-91614-610-0	01	1	1402-1412	●
97	WASHER; PL,CLAMP ID=10.5 OD=22	0-91614-610-0	01	1	1501-	●	●
104	NUT; BRKT 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) (B) M8 FLANGE MAL	0-91180-108-0	02	1	1311-1311	●
104	NUT; BRKT 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) (B) M8 FLANGE MAL	0-91180-108-0	02	1	1312-1401	●
104	NUT; BRKT 4HK1-TCN ENG(RDQ) (B) M8 FLANGE MAL	0-91180-108-0	02	1	1312-1401	●
104	NUT; BRKT 4HK1-TCN ENG(RDQ) (B) M8 FLANGE MAL	0-91180-108-0	02	1	1402-1412	●
104	NUT; BRKT 4HG1-T ENG(RDP) (B) M8 FLANGE MAL	0-91180-108-0	02	1	1402-1412	●
104	NUT; BRKT 4HK1-TCN ENG(RDQ) (B) M8 FLANGE MAL	0-91180-108-0	02	1	1501-	●	●
104	NUT; BRKT 4HG1-T ENG(RDP) (B) M8 FLANGE MAL	0-91180-108-0	02	1	1501-	●
104	NUT; BRKT 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) (A) M10 FLANGE MAL	0-91180-110-0	02	1	1311-1311	●
104	NUT; BRKT 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE MAL	0-91180-110-0	02	1	1312-1401	●
105	NUT; CLAMP M10 MAL	0-91110-510-0	01	1	1311-1311	●
105	NUT; CLAMP 4HK1-TCN ENG(RDQ) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10 MAL	0-91110-510-0	01	1	1312-1401	●
105	NUT; CLAMP M10 MAL	0-91110-510-0	01	1	1312-1401	●
105	NUT; CLAMP 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) M10 MAL	0-91110-510-0	01	1	1402-1412	●
105	NUT; CLAMP 4HK1-TCN ENG(RDQ) M10 MAL	0-91110-510-0	01	1	1402-1412	●
105	NUT; CLAMP M10 MAL	0-91110-510-0	01	1	1402-1412	●
105	NUT; CLAMP 4HK1-TCN ENG(RDQ) M10 MAL	0-91110-510-0	01	1	1501-	●	●
105	NUT; CLAMP 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) M10 MAL	0-91110-510-0	01	1	1501-	●
105	NUT; CLAMP M10 MAL	0-91110-510-0	01	1	1501-	●
105	NUT; CLAMP 4HK1-TCN ENG(RDQ) M10 MAL	0-91110-510-0	01	1	1501-		●
124	NUT; SUPPORT RUBBER 4HG1-T ENG(RDP) (B) M8	0-91110-508-0	01	1	1311-1412	●
124	NUT; SUPPORT RUBBER (B) M8	0-91110-508-0	01	1	1501-	●
124	NUT; SUPPORT RUBBER (A) M10 FLANGE MAL	0-91180-110-0	01	1	1311-1311	●
124	NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE MAL	0-91180-110-0	01	1	1312-1401	●
124	NUT; SUPPORT RUBBER (A) M10 FLANGE MAL	0-91180-110-0	01	1	1312-1401	●
124	NUT; SUPPORT RUBBER 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) (A) M10 FLANGE MAL	0-91180-110-0	01	1	1402-1412	●
124	NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) (A) M10 FLANGE MAL	0-91180-110-0	01	1	1402-1412	●
124	NUT; SUPPORT RUBBER (A) M10 FLANGE MAL	0-91180-110-0	01	1	1402-1412	●
124	NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) (A) M10 FLANGE MAL	0-91180-110-0	01	1	1501-	●	●
124	NUT; SUPPORT RUBBER 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) (A) M10 FLANGE MAL	0-91180-110-0	01	1	1501-	●
124	NUT; SUPPORT RUBBER (A) M10 FLANGE MAL	0-91180-110-0	01	1	1501-	●
124	NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) (A) M10 FLANGE MAL	0-91180-110-0	01	1	1501-		●
124	NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) (B) M8	0-91110-508-0	02	1	1312-1412	●
124	NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) (B) M8	0-91110-508-0	02	1	1501-	●	●
125	NUT; CLAMP 4HK1-TCN ENG(RDQ) M10 MAL	0-91110-510-0	01	1	1312-1401	●
125	NUT; CLAMP M10 MAL	0-91110-510-0	01	1	1402-1412	●
125	NUT; CLAMP M10 MAL	0-91110-510-0	01	1	1501-	●	●
126	PIPE; EXH,RR 4HG1-T ENG(RDP) MAL	8-98270-187-0	01	1	1402-	●
126	PIPE; EXH,RR 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W)	8-98090-128-1	01	1	1312-	●
126	PIPE; EXH,RR 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) MAL	8-98134-798-0	01	1	1312-1412	●
126	PIPE; EXH,RR 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) MAL	8-98134-798-0	01	1	1501-	●
126	PIPE; EXH,RR MAL	8-98134-798-0	01	1	1501-		●
137	BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) (A)	8-98173-138-0	01	1	1311-1311	●
137	BRACKET; TAIL PIPE 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) TAILPIPE SINGLE SHORT TYPE<8JJ> (A)	8-98173-138-0	01	1	1312-1401	●
137	BRACKET; TAIL PIPE WHEEL BASE 3800MM(38W) (B)	8-98173-203-0	01	1	1311-1311	●
137	BRACKET; TAIL PIPE 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98173-203-0	01	1	1312-1401	●
137	BRACKET; TAIL PIPE 4HG1-T ENG(RDP) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (C)	8-97096-651-0	01	1	1312-1401	●
137	BRACKET; TAIL PIPE 4HK1-TCN ENG(RDQ) (C)	8-97096-651-0	01	1	1312-1401	●
137	BRACKET; TAIL PIPE (C)	8-97096-651-0	01	1	1402-1412	●
137	BRACKET; TAIL PIPE (C)	8-97096-651-0	01	1	1501-	●	●
137	BRACKET; TAIL PIPE 4HG1-T ENG(RDP) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (D)	8-97116-588-2	01	1	1312-1401	●
137	BRACKET; TAIL PIPE 4HK1-TCN ENG(RDQ) (D)	8-97116-588-2	01	1	1312-1401	●
137	BRACKET; TAIL PIPE (D)	8-97116-588-2	01	1	1402-1412	●
137	BRACKET; TAIL PIPE (D)	8-97116-588-2	01	1	1501-	●	●
143	RUBBER; SUPPORT 4HG1-T ENG(RDP) (A) MAL	8-97166-498-1	01	1	1311-	●
143	RUBBER; SUPPORT 4HK1-TCN ENG(RDQ) (C)	8-97080-694-0	01	1	1312-1412	●
143	RUBBER; SUPPORT 4HK1-TCN ENG(RDQ) (C)	8-97080-694-0	01	1	1501-	●	●
143	RUBBER; SUPPORT 4HK1-TCN ENG(RDQ) (B)	8-98034-767-0	01	1	1312-1401	●
143	RUBBER; SUPPORT (B)	8-98034-767-0	01	1	1402-1412	●
143	RUBBER; SUPPORT (B)	8-98034-767-0	01	1	1501-	●	●
144	NUT; MTG RUBBER 4HK1-TCN ENG(RDQ) M8 FLANGE MAL	0-91180-108-0	01	1	1312-1401	●
144	NUT; MTG RUBBER M8 FLANGE MAL	0-91180-108-0	01	1	1402-1412	●
144	NUT; MTG RUBBER M8 FLANGE MAL	0-91180-108-0	01	1	1501-	●	●
147	BRACKET; VERTICAL PIPE 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) MAL	8-98270-189-0	01	1	1402-	●
147	BRACKET; VERTICAL PIPE 4HK1-TCN ENG(RDQ)	8-98117-604-0	01	1	1312-1412	●
147	BRACKET; VERTICAL PIPE 4HK1-TCN ENG(RDQ)	8-98117-604-0	01	1	1501-	●	●
162	RUBBER; SUPPORT,TAIL PIPE L=115	8-98034-765-0	01	1	1311-1311	●
162	RUBBER; SUPPORT,TAIL PIPE 4HK1-TCN ENG(RDQ) L=115	8-98034-765-0	01	1	1312-1401	●
162	RUBBER; SUPPORT,TAIL PIPE L=115	8-98034-765-0	01	1	1312-1401	●
162	RUBBER; SUPPORT,TAIL PIPE 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) L=115	8-98034-765-0	01	1	1402-1412	●
162	RUBBER; SUPPORT,TAIL PIPE 4HK1-TCN ENG(RDQ) L=115	8-98034-765-0	01	1	1402-1412	●
162	RUBBER; SUPPORT,TAIL PIPE L=115	8-98034-765-0	01	1	1402-1412	●
162	RUBBER; SUPPORT,TAIL PIPE L=115	8-98034-765-0	01	1	1501-	●	●
162	RUBBER; SUPPORT,TAIL PIPE 4HK1-TCN ENG(RDQ) L=115	8-98034-765-0	01	1	1501-	●
162	RUBBER; SUPPORT,TAIL PIPE 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) L=115	8-98034-765-0	01	1	1501-	●
162	RUBBER; SUPPORT,TAIL PIPE L=115	8-98034-765-0	01	1	1501-		●
164	COLLAR; DIST,TAIL PIPE L=37.5	9-22151-217-0	01	1	1311-1412	●
164	COLLAR; DIST,TAIL PIPE L=37.5	9-22151-217-0	01	1	1501-	●	●
165	BOLT; SUPPORT RUBBER M10X70 FLANGE MAL	0-28051-070-0	01	1	1311-1311	●
165	BOLT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) M10X70 FLANGE MAL	0-28051-070-0	01	1	1312-1401	●
165	BOLT; SUPPORT RUBBER M10X70 FLANGE MAL	0-28051-070-0	01	1	1312-1401	●
165	BOLT; SUPPORT RUBBER 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) M10X70 FLANGE MAL	0-28051-070-0	01	1	1402-1412	●
165	BOLT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) M10X70 FLANGE MAL	0-28051-070-0	01	1	1402-1412	●
165	BOLT; SUPPORT RUBBER M10X70 FLANGE MAL	0-28051-070-0	01	1	1402-1412	●
165	BOLT; SUPPORT RUBBER M10X70 FLANGE MAL	0-28051-070-0	01	1	1501-	●	●
165	BOLT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) M10X70 FLANGE MAL	0-28051-070-0	01	1	1501-	●
165	BOLT; SUPPORT RUBBER 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) M10X70 FLANGE MAL	0-28051-070-0	01	1	1501-	●
165	BOLT; SUPPORT RUBBER M10X70 FLANGE MAL	0-28051-070-0	01	1	1501-		●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE ID=10.5 OD=32 MAL	0-91614-810-0	01	1	1311-1311	●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE 4HK1-TCN ENG(RDQ) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> ID=10.5 OD=32 MAL	0-91614-810-0	01	1	1312-1401	●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE ID=10.5 OD=32 MAL	0-91614-810-0	01	1	1312-1401	●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) ID=10.5 OD=32 MAL	0-91614-810-0	01	1	1402-1412	●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE 4HK1-TCN ENG(RDQ) ID=10.5 OD=32 MAL	0-91614-810-0	01	1	1402-1412	●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE ID=10.5 OD=32 MAL	0-91614-810-0	01	1	1402-1412	●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE 4HK1-TCN ENG(RDQ) ID=10.5 OD=32 MAL	0-91614-810-0	01	1	1501-	●	●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) ID=10.5 OD=32 MAL	0-91614-810-0	01	1	1501-	●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE ID=10.5 OD=32 MAL	0-91614-810-0	01	1	1501-	●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE 4HK1-TCN ENG(RDQ) ID=10.5 OD=32 MAL	0-91614-810-0	01	1	1501-		●
193	NUT; BRKT,VERTICAL PIPE 4HK1-TCN ENG(RDQ) M10 FLANGE MAL	0-91180-110-0	02	1	1312-1401	●
193	NUT; BRKT,VERTICAL PIPE 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) M10 FLANGE MAL	0-91180-110-0	02	1	1402-1412	●
193	NUT; BRKT,VERTICAL PIPE 4HK1-TCN ENG(RDQ) M10 FLANGE MAL	0-91180-110-0	02	1	1402-1412	●
193	NUT; BRKT,VERTICAL PIPE 4HK1-TCN ENG(RDQ) M10 FLANGE MAL	0-91180-110-0	02	1	1501-	●	●
193	NUT; BRKT,VERTICAL PIPE 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) M10 FLANGE MAL	0-91180-110-0	02	1	1501-	●
329	NUT; EXH PIPE TO PIPE M10 FLANGE MAL	0-91180-110-0	02	1	1311-1412	●
329	NUT; EXH PIPE TO PIPE M10 FLANGE MAL	0-91180-110-0	02	1	1501-	●	●
357	WASHER; PL,CLAMP ID=10.5 OD=22	0-91614-610-0	01	1	1311-1311	●
357	WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> ID=10.5 OD=22	0-91614-610-0	01	1	1312-1401	●
357	WASHER; PL,CLAMP ID=10.5 OD=22	0-91614-610-0	01	1	1312-1401	●
357	WASHER; PL,CLAMP 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) ID=10.5 OD=22	0-91614-610-0	01	1	1402-1412	●
357	WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ) ID=10.5 OD=22	0-91614-610-0	01	1	1402-1412	●
357	WASHER; PL,CLAMP ID=10.5 OD=22	0-91614-610-0	01	1	1402-1412	●
357	WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ) ID=10.5 OD=22	0-91614-610-0	01	1	1501-	●	●
357	WASHER; PL,CLAMP 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) ID=10.5 OD=22	0-91614-610-0	01	1	1501-	●
357	WASHER; PL,CLAMP ID=10.5 OD=22	0-91614-610-0	01	1	1501-	●
357	WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ) ID=10.5 OD=22	0-91614-610-0	01	1	1501-		●
367	COLLAR; DIST,SUPPORT RUBBER 4HK1-TCN ENG(RDQ) L=37.5	9-22151-217-0	01	1	1312-1401	●
367	COLLAR; DIST,SUPPORT RUBBER 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) L=37.5	9-22151-217-0	01	1	1402-1412	●
367	COLLAR; DIST,SUPPORT RUBBER 4HK1-TCN ENG(RDQ) L=37.5	9-22151-217-0	01	1	1402-1412	●
367	COLLAR; DIST,SUPPORT RUBBER 4HK1-TCN ENG(RDQ) L=37.5	9-22151-217-0	01	1	1501-	●	●
367	COLLAR; DIST,SUPPORT RUBBER 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) L=37.5	9-22151-217-0	01	1	1501-	●
420	BOLT; BRKT,VERTICAL PIPE 4HK1-TCN ENG(RDQ) M10X30 FLANGE	0-28651-030-0	02	1	1312-1401	●
420	BOLT; BRKT,VERTICAL PIPE 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) M10X30 FLANGE	0-28651-030-0	02	1	1402-1412	●
420	BOLT; BRKT,VERTICAL PIPE 4HK1-TCN ENG(RDQ) M10X30 FLANGE	0-28651-030-0	02	1	1402-1412	●
420	BOLT; BRKT,VERTICAL PIPE 4HK1-TCN ENG(RDQ) M10X30 FLANGE	0-28651-030-0	02	1	1501-	●	●
420	BOLT; BRKT,VERTICAL PIPE 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) M10X30 FLANGE	0-28651-030-0	02	1	1501-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
