Sayfa 1-40 - Isuzu EPC

1-40 — FUEL TANK (#130826) — 153 parça

452 3 19 1 6 14 158 159 8 11 25 411 411 411 411 411

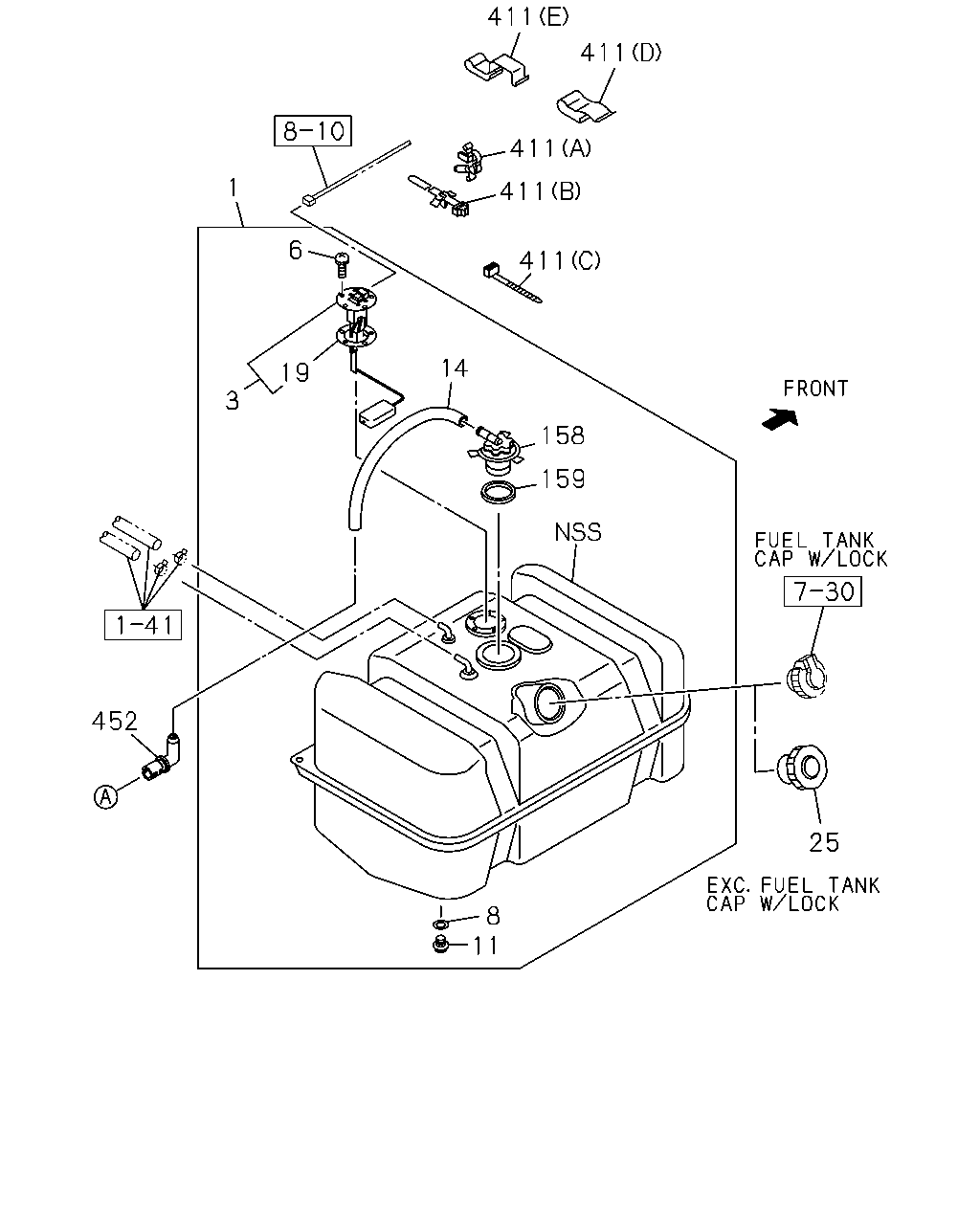

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL 756X482X376 100L	8-98062-738-4	01	1	1311-1412	●
1	TANK; FUEL 756X482X376 100L	8-98062-738-4	01	1	1501-	●	●
3	UNIT; FUEL TANK,SUB	8-98056-705-0	01	1	1311-1412	●
3	UNIT; FUEL TANK,SUB	8-98056-705-0	01	1	1501-	●	●
6	SCREW; TANK UNIT TO SUB FUEL TANK M5X12 W/LK WASHER	0-36220-512-0	05	1	1311-1412	●
6	SCREW; TANK UNIT TO SUB FUEL TANK M5X12 W/LK WASHER	0-36220-512-0	05	1	1501-	●	●
8	GASKET; DRAIN PLUG,FUEL TANK ID=14.2 OD=23.0	9-09572-014-0	01	1	1311-1412	●
8	GASKET; DRAIN PLUG,FUEL TANK ID=14.2 OD=23.0	9-09572-014-0	01	1	1501-	●	●
11	PLUG; DRAIN,FUEL TANK M14X14 MAL	9-09862-156-0	01	1	1311-1412	●
11	PLUG; DRAIN,FUEL TANK M14X14 MAL	9-09862-156-0	01	1	1501-	●	●
14	HOSE; BREATHER,OUTLET L=420	8-98157-809-0	01	1	1311-1412	●
14	HOSE; BREATHER,OUTLET L=420	8-98157-809-0	01	1	1501-	●	●
19	GASKET; FUEL TANK UNIT	8-98051-797-0	01	1	1311-1412	●
19	GASKET; FUEL TANK UNIT	8-98051-797-0	01	1	1501-	●	●
25	CAP; FILLER,FUEL TANK EXC. FUEL TANK CAP W/LOCK<N05>	8-97387-179-0	01	1	1311-1412	●
25	CAP; FILLER,FUEL TANK EXC. FUEL TANK CAP W/LOCK<N05>	8-97387-179-0	01	1	1501-	●	●
158	VALVE; ROLL OVER & FLOAT	8-97179-645-0	01	1	1311-1412	●
158	VALVE; ROLL OVER & FLOAT	8-97179-645-0	01	1	1501-	●	●
159	SEAL; ROLL OVER & FLOAT VALVE	8-97326-488-0	01	1	1311-1412	●
159	SEAL; ROLL OVER & FLOAT VALVE	8-97326-488-0	01	1	1501-	●	●
411	CLIP; FUEL TANK UNIT HARNESS 4HK1-TCN ENG(RDQ) (D) T=10.5	8-97371-950-0	03	1	1501-		●
411	CLIP; FUEL TANK UNIT HARNESS (A) ID=5-12 L=18	1-09709-287-0	01	1	1311-1412	●
411	CLIP; FUEL TANK UNIT HARNESS (A) ID=5-12 L=18	1-09709-287-0	01	1	1501-1501	●	●
411	CLIP; FUEL TANK UNIT HARNESS FRAME STRAIGHT TYPE<7KJ> (A) ID=5-12 L=18	1-09709-287-0	01	1	1501-	●
411	CLIP; FUEL TANK UNIT HARNESS (A) ID=5-12 L=18	1-09709-287-0	01	1	1501-		●
411	CLIP; FUEL TANK UNIT HARNESS (C) L=140 MAL	5-09707-031-1	01	1	1311-1412	●
411	CLIP; FUEL TANK UNIT HARNESS (C) L=140 MAL	5-09707-031-1	01	1	1501-	●	●
411	CLIP; FUEL TANK UNIT HARNESS 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) (E) T=4.5 & 9	8-97371-947-0	02	1	1311-1311	●
411	CLIP; FUEL TANK UNIT HARNESS 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9	8-97371-947-0	02	1	1312-1402	●
411	CLIP; FUEL TANK UNIT HARNESS 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9	8-97371-947-0	02	1	1312-1402	●
411	CLIP; FUEL TANK UNIT HARNESS 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9	8-97371-947-0	02	1	1403-1412	●
411	CLIP; FUEL TANK UNIT HARNESS 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9	8-97371-947-0	02	1	1403-1412	●
411	CLIP; FUEL TANK UNIT HARNESS 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9	8-97371-947-0	02	1	1501-	●
411	CLIP; FUEL TANK UNIT HARNESS 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9	8-97371-947-0	02	1	1501-	●
411	CLIP; FUEL TANK UNIT HARNESS 4HK1-TCN ENG(RDQ) (E) T=4.5 & 9	8-97371-947-0	02	1	1501-		●
411	CLIP; FUEL TANK UNIT HARNESS 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) (D) T=5.5	8-97371-951-0	04	1	1311-1311	●
411	CLIP; FUEL TANK UNIT HARNESS 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5	8-97371-951-0	04	1	1312-1402	●
411	CLIP; FUEL TANK UNIT HARNESS 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> (D) T=5.5	8-97371-951-0	04	1	1403-	●
411	CLIP; FUEL TANK UNIT HARNESS 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) (E) T=4.5 & 9	8-97371-947-0	03	1	1311-1311	●
411	CLIP; FUEL TANK UNIT HARNESS 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9	8-97371-947-0	03	1	1312-1402	●
411	CLIP; FUEL TANK UNIT HARNESS 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9	8-97371-947-0	03	1	1312-1402	●
411	CLIP; FUEL TANK UNIT HARNESS 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9	8-97371-947-0	03	1	1403-	●
411	CLIP; FUEL TANK UNIT HARNESS 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED<RS6> (E) T=4.5 & 9	8-97371-947-0	03	1	1403-	●
411	CLIP; FUEL TANK UNIT HARNESS 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9	8-97371-947-0	03	1	1403-	●
411	CLIP; FUEL TANK UNIT HARNESS 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) (D) T=5.5	8-97371-951-0	02	1	1311-1311	●
411	CLIP; FUEL TANK UNIT HARNESS 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5	8-97371-951-0	02	1	1312-1412	●
411	CLIP; FUEL TANK UNIT HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5	8-97371-951-0	02	1	1312-1412	●
411	CLIP; FUEL TANK UNIT HARNESS 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5	8-97371-951-0	02	1	1501-1501	●
411	CLIP; FUEL TANK UNIT HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5	8-97371-951-0	02	1	1501-1501	●
411	CLIP; FUEL TANK UNIT HARNESS 4HK1-TCN ENG(RDQ) (D) T=5.5	8-97371-951-0	02	1	1501-1501		●
411	CLIP; FUEL TANK UNIT HARNESS 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5	8-97371-951-0	02	1	1501-	●
411	CLIP; FUEL TANK UNIT HARNESS 4HK1-TCN ENG(RDQ) (D) T=5.5	8-97371-951-0	02	1	1501-		●
411	CLIP; FUEL TANK UNIT HARNESS 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5	8-97371-951-0	03	1	1312-	●
411	CLIP; FUEL TANK UNIT HARNESS 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5	8-97371-951-0	05	1	1312-	●
411	CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) T=5.5	8-97371-951-0	01	1	1312-1402	●
411	CLIP; FUEL TANK UNIT HARNESS 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED<RS6> (B) T=5.5	8-97371-951-0	01	1	1403-1412	●
411	CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) T=5.5	8-97371-951-0	01	1	1403-1412	●
411	CLIP; FUEL TANK UNIT HARNESS 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED<RS6> (B) T=5.5	8-97371-951-0	01	1	1501-	●
411	CLIP; FUEL TANK UNIT HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=170.3	1-09987-182-0	01	1	1312-1412	●
411	CLIP; FUEL TANK UNIT HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5	8-97371-951-0	06	1	1312-	●
452	BREATHER; FUEL TANK	8-97357-261-0	01	1	1311-1412	●
452	BREATHER; FUEL TANK	8-97357-261-0	01	1	1501-	●	●

322 322 43 49 49 42 2 44 44 43 1

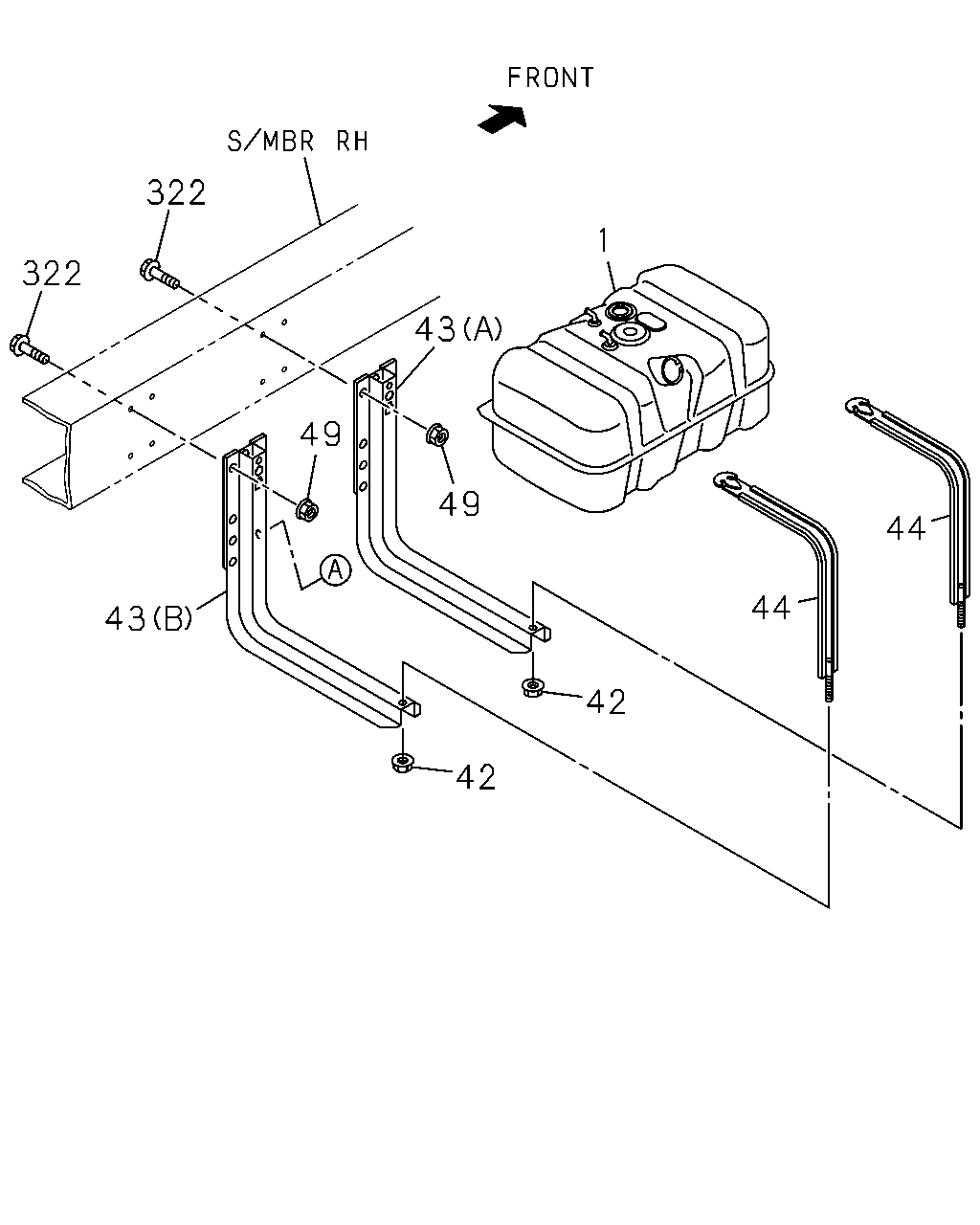

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL 756X482X376 100L	8-98062-738-4	01	1	1311-1412	●
1	TANK; FUEL 756X482X376 100L	8-98062-738-4	01	1	1501-	●	●
42	NUT; SUPPORT BELT M8 FLANGE	9-09130-408-0	02	1	1311-1412	●
42	NUT; SUPPORT BELT M8 FLANGE	9-09130-408-0	02	1	1501-	●	●
43	BRACKET; FUEL TANK (A)	8-97384-060-5	01	1	1311-1412	●
43	BRACKET; FUEL TANK (A)	8-97384-060-5	01	1	1501-	●	●
43	BRACKET; FUEL TANK (B)	8-97384-062-6	01	1	1311-1412	●
43	BRACKET; FUEL TANK (B)	8-97384-062-6	01	1	1501-	●	●
44	BAND; FUEL TANK L=795	8-97384-080-2	02	1	1311-1412	●
44	BAND; FUEL TANK L=795	8-97384-080-2	02	1	1501-	●	●
49	NUT; BRKT M10 FLANGE MAL	0-91180-210-0	08	1	1311-1311	●
49	NUT; BRKT FRAME STRAIGHT TYPE<7KJ> M10 FLANGE MAL	0-91180-210-0	08	1	1312-1412	●
49	NUT; BRKT FRAME STRAIGHT TYPE<7KJ> M10 FLANGE MAL	0-91180-210-0	08	1	1501-	●
49	NUT; BRKT M10 FLANGE MAL	0-91180-210-0	08	1	1501-		●
49	NUT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> M10 FLANGE MAL	0-91180-210-0	09	1	1312-	●
322	BOLT; BRKT FIX M10X40 FLANGE	0-28661-040-0	08	1	1311-1412	●
322	BOLT; BRKT FIX M10X40 FLANGE	0-28661-040-0	08	1	1501-	●	●

485 485

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

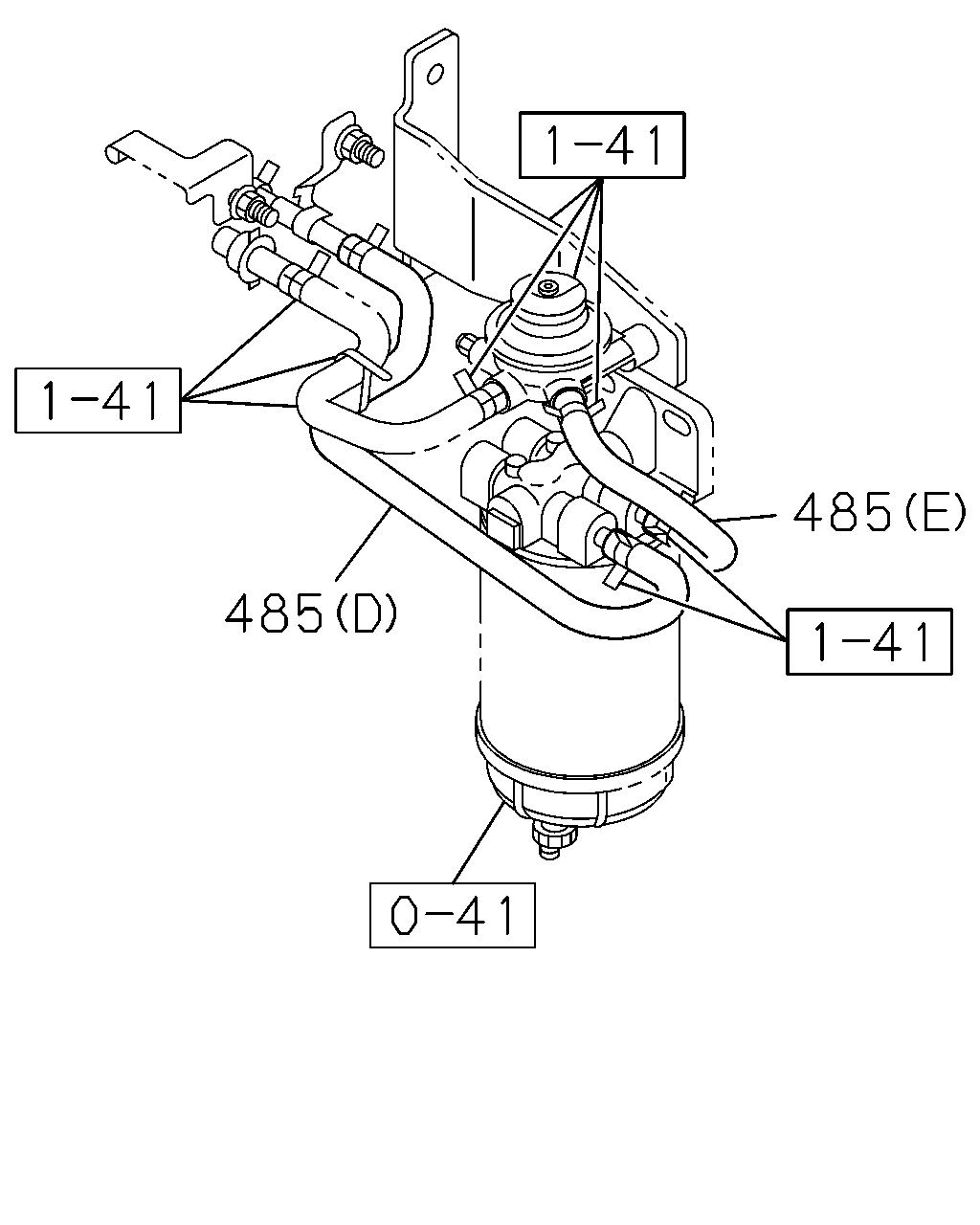

485	HOSE; FUEL 4HG1-T ENG(RDP) FUEL FILTER DUAL(S6B) FRAME STRAIGHT TYPE<7KJ> BIO DIESEL FUEL B10<8NV> (D) SERVICED BY L=3000	0-01859-300-0	01	1	1512-	●
485	HOSE; FUEL 4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> BIO DIESEL FUEL B10<8NV> (E) L=360 SERVICED BY L=3000	0-01859-300-0	01	1	1512-	●
485	HOSE; FUEL 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> BIO DIESEL FUEL B10<8NV> (C)	8-98138-300-0	01	1	1512-	●
485	HOSE; FUEL 4HK1-TCN ENG(RDQ) BIO DIESEL FUEL B10<8NV> (C)	8-98138-300-0	01	1	1512-		●
485	HOSE; FUEL 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> BIO DIESEL FUEL B10<8NV> (B)	8-98139-112-1	01	1	1512-	●
485	HOSE; FUEL 4HK1-TCN ENG(RDQ) BIO DIESEL FUEL B10<8NV> (B)	8-98139-112-1	01	1	1512-		●
485	HOSE; FUEL (E) L=360 SERVICED BY L=3000	0-01259-300-0	01	1	1311-1311	●
485	HOSE; FUEL 4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> (E) L=360 SERVICED BY L=3000	0-01259-300-0	01	1	1312-1511	●
485	HOSE; FUEL 4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> EXC. BIO DIESEL FUEL B10<8NV> (E) L=360 SERVICED BY L=3000	0-01259-300-0	01	1	1512-	●
485	HOSE; FUEL 4HG1-T ENG(RDP) FUEL FILTER DUAL(S6B) (D) L=250 SERVICED BY L=3000	0-01259-300-0	01	1	1311-1311	●
485	HOSE; FUEL 4HG1-T ENG(RDP) FUEL FILTER DUAL(S6B) FRAME STRAIGHT TYPE<7KJ> (D) L=250 SERVICED BY L=3000	0-01259-300-0	01	1	1312-1511	●
485	HOSE; FUEL 4HG1-T ENG(RDP) FUEL FILTER DUAL(S6B) FRAME STRAIGHT TYPE<7KJ> EXC. BIO DIESEL FUEL B10<8NV> (D) L=250 SERVICED BY L=3000	0-01259-300-0	01	1	1512-	●
485	HOSE; FUEL 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (B)	8-98099-503-0	01	1	1312-1412	●
485	HOSE; FUEL 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (B)	8-98099-503-0	01	1	1501-1511	●
485	HOSE; FUEL 4HK1-TCN ENG(RDQ) (B)	8-98099-503-0	01	1	1501-1511		●
485	HOSE; FUEL 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> EXC. BIO DIESEL FUEL B10<8NV> (B)	8-98099-503-0	01	1	1512-	●
485	HOSE; FUEL 4HK1-TCN ENG(RDQ) EXC. BIO DIESEL FUEL B10<8NV> (B)	8-98099-503-0	01	1	1512-		●
485	HOSE; FUEL 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (C)	8-98105-710-0	01	1	1312-1412	●
485	HOSE; FUEL 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (C)	8-98105-710-0	01	1	1501-1511	●
485	HOSE; FUEL 4HK1-TCN ENG(RDQ) (C)	8-98105-710-0	01	1	1501-1511		●
485	HOSE; FUEL 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> EXC. BIO DIESEL FUEL B10<8NV> (C)	8-98105-710-0	01	1	1512-	●
485	HOSE; FUEL 4HK1-TCN ENG(RDQ) EXC. BIO DIESEL FUEL B10<8NV> (C)	8-98105-710-0	01	1	1512-		●
485	HOSE; FUEL 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL(KF0) (A)	8-98041-728-0	01	1	1312-	●

300 299 301 299 301 301 633 634

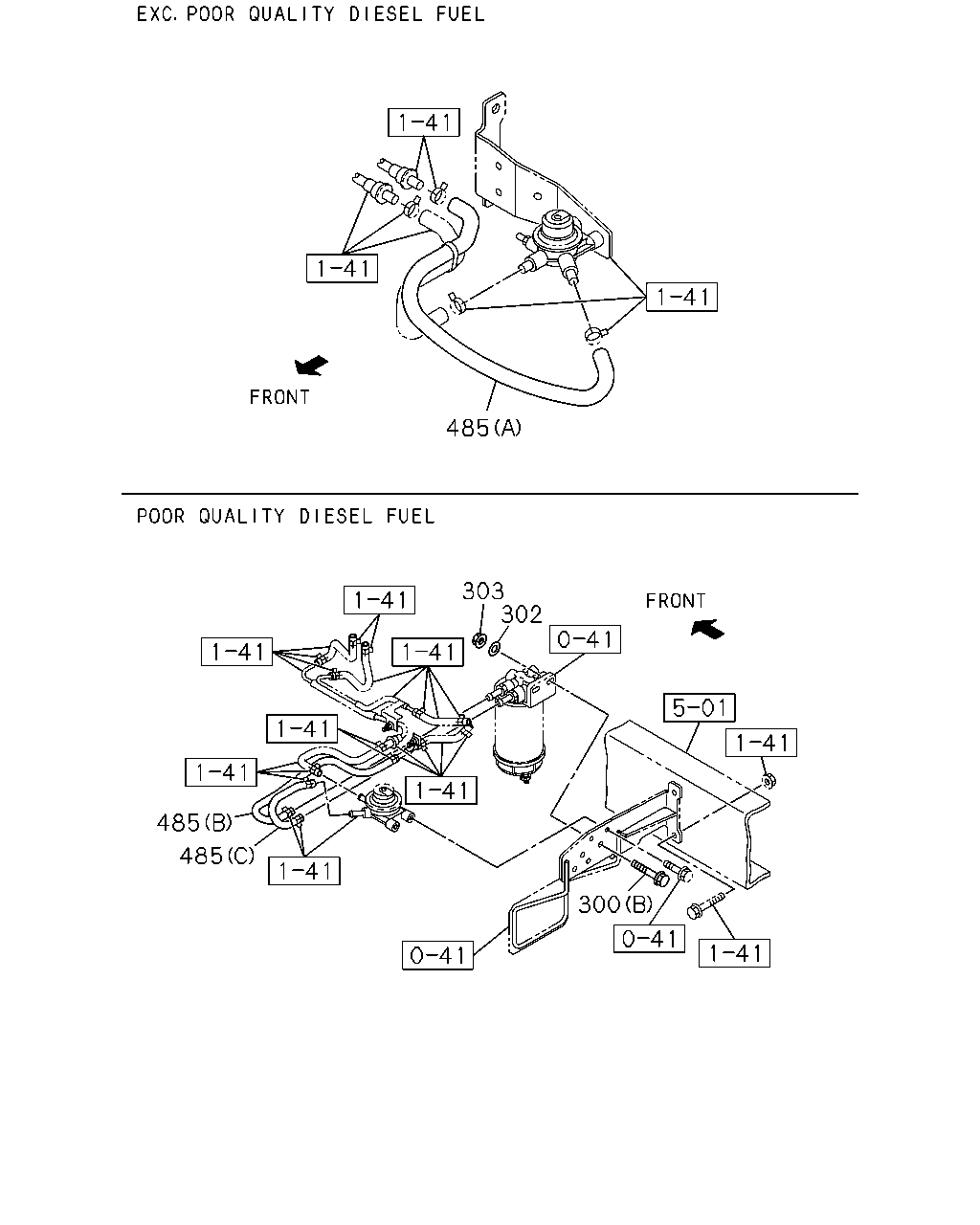

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
299	BRACKET; FUEL FILTER 4HK1-TCN ENG(RDQ) (A)	8-98023-175-3	01	1	1312-1501	●
299	BRACKET; FUEL FILTER 4HK1-TCN ENG(RDQ) (A)	8-98023-175-3	01	1	1502-	●	●
299	BRACKET; FUEL FILTER 4HK1-TCN ENG(RDQ) (B)	8-98074-132-1	01	1	1312-1501	●
299	BRACKET; FUEL FILTER 4HK1-TCN ENG(RDQ) (B)	8-98074-132-1	01	1	1502-	●	●
300	BOLT; BRKT TO BODY 4HG1-T ENG(RDP) (A) M8X20 FLANGE MAL	0-28650-820-0	02	1	1311-	●
300	BOLT; BRKT TO BODY 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) (B) M10X40 FLANGE MAL	0-28651-040-0	02	1	1312-1412	●
300	BOLT; BRKT TO BODY 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) (B) M10X40 FLANGE MAL	0-28651-040-0	02	1	1501-	●
300	BOLT; BRKT TO BODY 4HK1-TCN ENG(RDQ) (B) M10X40 FLANGE MAL	0-28651-040-0	02	1	1501-		●
301	BOLT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ) (A) M12X100 FLANGE	0-28151-200-0	01	1	1312-1501	●
301	BOLT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ) (A) M12X100 FLANGE	0-28151-200-0	01	1	1502-	●	●
301	BOLT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ) (B) M12X50 FLANGE	0-28151-250-0	01	1	1312-1501	●
301	BOLT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ) (B) M12X50 FLANGE	0-28151-250-0	01	1	1502-	●	●
301	BOLT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ) (C) M12X80	0-28151-280-0	01	1	1312-1501	●
301	BOLT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ) (C) M12X80	0-28151-280-0	01	1	1502-	●	●
633	STUD; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ) M8X25 L=37	0-41010-825-0	02	1	1312-1501	●
633	STUD; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ) M8X25 L=37	0-41010-825-0	02	1	1502-	●	●
634	NUT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ) M8 FLANGE MAL	0-91180-108-0	02	1	1312-1501	●
634	NUT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ) M8 FLANGE MAL	0-91180-108-0	02	1	1502-	●	●

303 302 485 485 485 300

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
300	BOLT; BRKT TO BODY 4HG1-T ENG(RDP) (A) M8X20 FLANGE MAL	0-28650-820-0	02	1	1311-	●
300	BOLT; BRKT TO BODY 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) (B) M10X40 FLANGE MAL	0-28651-040-0	02	1	1312-1412	●
300	BOLT; BRKT TO BODY 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) (B) M10X40 FLANGE MAL	0-28651-040-0	02	1	1501-	●
300	BOLT; BRKT TO BODY 4HK1-TCN ENG(RDQ) (B) M10X40 FLANGE MAL	0-28651-040-0	02	1	1501-		●
302	WASHER; PL,SEDIMENTER 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) ID=10.5 OD=26	0-91614-710-0	02	1	1312-1412	●
302	WASHER; PL,SEDIMENTER 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) ID=10.5 OD=26	0-91614-710-0	02	1	1501-	●
302	WASHER; PL,SEDIMENTER 4HK1-TCN ENG(RDQ) ID=10.5 OD=26	0-91614-710-0	02	1	1501-		●
303	NUT; SEDIMENTER BRKT 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) M10 FLANGE MAL	0-91180-110-0	02	1	1312-1412	●
303	NUT; SEDIMENTER BRKT 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) M10 FLANGE MAL	0-91180-110-0	02	1	1501-	●
303	NUT; SEDIMENTER BRKT 4HK1-TCN ENG(RDQ) M10 FLANGE MAL	0-91180-110-0	02	1	1501-		●
485	HOSE; FUEL 4HG1-T ENG(RDP) FUEL FILTER DUAL(S6B) FRAME STRAIGHT TYPE<7KJ> BIO DIESEL FUEL B10<8NV> (D) SERVICED BY L=3000	0-01859-300-0	01	1	1512-	●
485	HOSE; FUEL 4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> BIO DIESEL FUEL B10<8NV> (E) L=360 SERVICED BY L=3000	0-01859-300-0	01	1	1512-	●
485	HOSE; FUEL 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> BIO DIESEL FUEL B10<8NV> (C)	8-98138-300-0	01	1	1512-	●
485	HOSE; FUEL 4HK1-TCN ENG(RDQ) BIO DIESEL FUEL B10<8NV> (C)	8-98138-300-0	01	1	1512-		●
485	HOSE; FUEL 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> BIO DIESEL FUEL B10<8NV> (B)	8-98139-112-1	01	1	1512-	●
485	HOSE; FUEL 4HK1-TCN ENG(RDQ) BIO DIESEL FUEL B10<8NV> (B)	8-98139-112-1	01	1	1512-		●
485	HOSE; FUEL (E) L=360 SERVICED BY L=3000	0-01259-300-0	01	1	1311-1311	●
485	HOSE; FUEL 4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> (E) L=360 SERVICED BY L=3000	0-01259-300-0	01	1	1312-1511	●
485	HOSE; FUEL 4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> EXC. BIO DIESEL FUEL B10<8NV> (E) L=360 SERVICED BY L=3000	0-01259-300-0	01	1	1512-	●
485	HOSE; FUEL 4HG1-T ENG(RDP) FUEL FILTER DUAL(S6B) (D) L=250 SERVICED BY L=3000	0-01259-300-0	01	1	1311-1311	●
485	HOSE; FUEL 4HG1-T ENG(RDP) FUEL FILTER DUAL(S6B) FRAME STRAIGHT TYPE<7KJ> (D) L=250 SERVICED BY L=3000	0-01259-300-0	01	1	1312-1511	●
485	HOSE; FUEL 4HG1-T ENG(RDP) FUEL FILTER DUAL(S6B) FRAME STRAIGHT TYPE<7KJ> EXC. BIO DIESEL FUEL B10<8NV> (D) L=250 SERVICED BY L=3000	0-01259-300-0	01	1	1512-	●
485	HOSE; FUEL 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (B)	8-98099-503-0	01	1	1312-1412	●
485	HOSE; FUEL 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (B)	8-98099-503-0	01	1	1501-1511	●
485	HOSE; FUEL 4HK1-TCN ENG(RDQ) (B)	8-98099-503-0	01	1	1501-1511		●
485	HOSE; FUEL 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> EXC. BIO DIESEL FUEL B10<8NV> (B)	8-98099-503-0	01	1	1512-	●
485	HOSE; FUEL 4HK1-TCN ENG(RDQ) EXC. BIO DIESEL FUEL B10<8NV> (B)	8-98099-503-0	01	1	1512-		●
485	HOSE; FUEL 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (C)	8-98105-710-0	01	1	1312-1412	●
485	HOSE; FUEL 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (C)	8-98105-710-0	01	1	1501-1511	●
485	HOSE; FUEL 4HK1-TCN ENG(RDQ) (C)	8-98105-710-0	01	1	1501-1511		●
485	HOSE; FUEL 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> EXC. BIO DIESEL FUEL B10<8NV> (C)	8-98105-710-0	01	1	1512-	●
485	HOSE; FUEL 4HK1-TCN ENG(RDQ) EXC. BIO DIESEL FUEL B10<8NV> (C)	8-98105-710-0	01	1	1512-		●
485	HOSE; FUEL 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL(KF0) (A)	8-98041-728-0	01	1	1312-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
