◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51501 - NPR(MALAYSIA) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-31 - AIR DUCT ▶
1-31 — AIR DUCT (#130824) — 300 parça

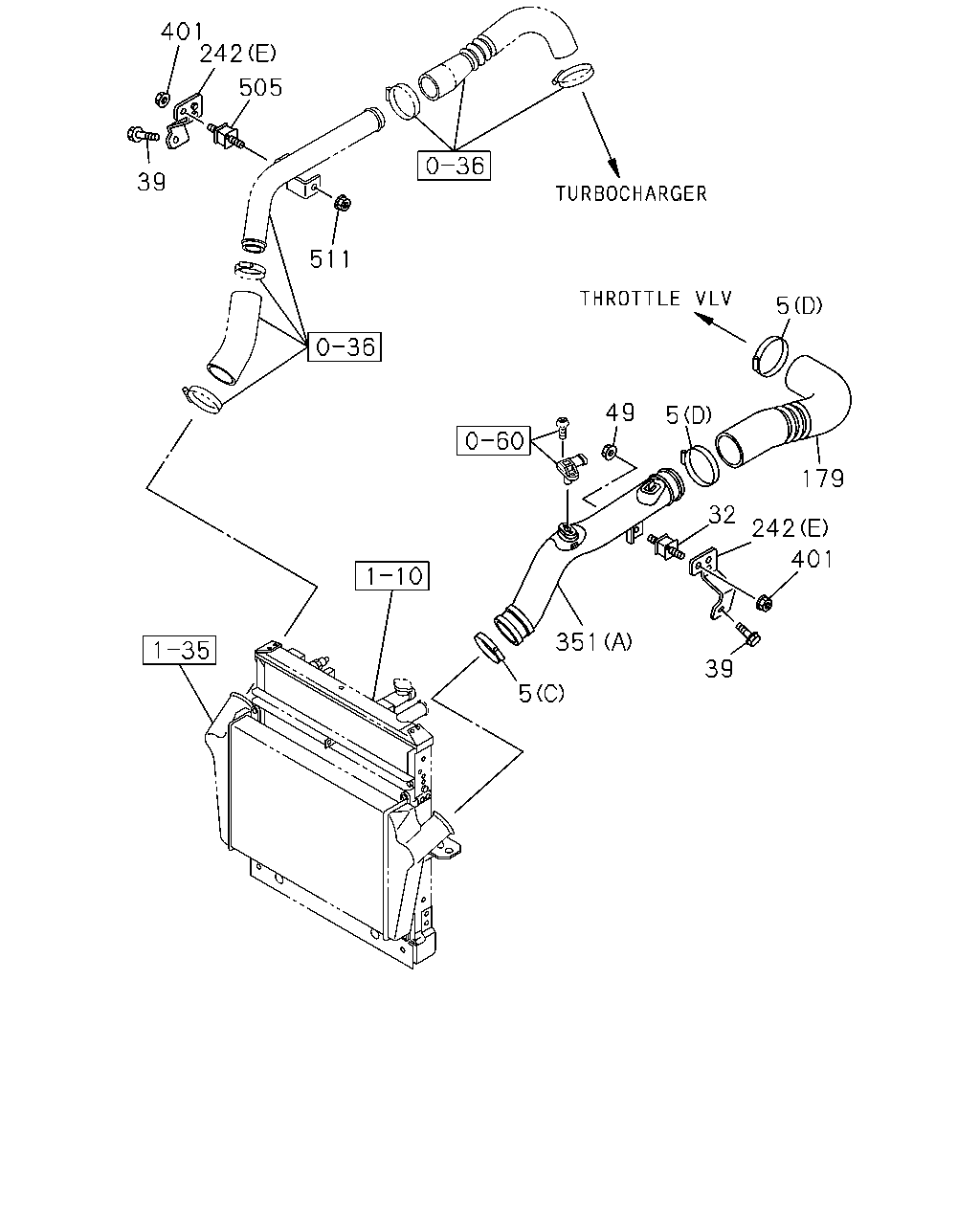

çizim 385342
401 39 505 242 511 49 5 5 179 32 39 242 401 5 351
BalonParca AdiParca NoAdetTipApplied Date A B
5 CLIP; AIR DUCT
(E) ID=55-75 		8-98133-349-0 01 1 1501- ●
5 CLIP; AIR DUCT
(B) ID=65-85 		8-98133-350-0 02 1 1501- ●
5 CLIP; AIR DUCT
(F) ID=112 		9-09915-074-1 01 1 1501- ●
5 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 1311-1412 ●
5 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 1501- ● ●
5 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 1311-1412 ●
5 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 1501- ● ●
5 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (B) ID=65-85 		8-98133-350-0 01 1 1312-1412 ●
5 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (B) ID=65-85 		8-98133-350-0 01 1 1501- ●
5 CLIP; AIR DUCT
(B) ID=65-85 		8-98133-350-0 01 1 1501- ●
5 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (D) ID=75-95 		8-98133-357-0 02 1 1312-1412 ●
5 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (D) ID=75-95 		8-98133-357-0 02 1 1501- ●
5 CLIP; AIR DUCT
(D) ID=75-95 		8-98133-357-0 02 1 1501- ●
32 RUBBER; AIR DUCT MTG
4HK1-TCN ENG(RDQ) MAL 		8-97081-886-0 01 1 1312-1412 ●
32 RUBBER; AIR DUCT MTG
4HK1-TCN ENG(RDQ) MAL 		8-97081-886-0 01 1 1501- ●
32 RUBBER; AIR DUCT MTG
MAL 		8-97081-886-0 01 1 1501- ●
39 BOLT; BRKT
4HK1-TCN ENG(RDQ) M8X25 FLANGE MAL 		0-28650-825-0 02 1 1312-1412 ●
39 BOLT; BRKT
4HK1-TCN ENG(RDQ) M8X25 FLANGE MAL 		0-28650-825-0 02 1 1501- ●
39 BOLT; BRKT
M8X25 FLANGE MAL 		0-28650-825-0 02 1 1501- ●
49 NUT; AIR DUCT
4HK1-TCN ENG(RDQ) M8 FLANGE MAL 		0-91180-108-0 01 1 1312-1412 ●
49 NUT; AIR DUCT
4HK1-TCN ENG(RDQ) M8 FLANGE MAL 		0-91180-108-0 01 1 1501- ●
49 NUT; AIR DUCT
M8 FLANGE MAL 		0-91180-108-0 01 1 1501- ●
179 HOSE; AIR INT
4HK1-TCN ENG(RDQ) 		8-98114-719-0 01 1 1312-1412 ●
179 HOSE; AIR INT
4HK1-TCN ENG(RDQ) 		8-98114-719-0 01 1 1501- ●
179 HOSE; AIR INT 8-98114-719-0 01 1 1501- ●
242 BRACKET; AIR DUCT
(I) 		8-98049-012-1 01 1 1501- ●
242 BRACKET; AIR DUCT
(F) 		8-98055-243-1 01 1 1501- ●
242 BRACKET; AIR DUCT
(G) 		8-98055-246-2 01 1 1501- ●
242 BRACKET; AIR DUCT
(H) 		8-98055-247-1 01 1 1501- ●
242 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 1311- ●
242 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 1311- ●
242 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 1311- ●
242 BRACKET; AIR DUCT
(A) 		8-98145-112-1 01 1 1311- ●
242 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ) (B) 		8-98032-142-1 01 1 1312-1412 ●
242 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ) (B) 		8-98032-142-1 01 1 1501- ●
242 BRACKET; AIR DUCT
(B) 		8-98032-142-1 01 1 1501- ●
242 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ) (B) 		8-98032-143-1 01 1 1312-1412 ●
242 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ) (B) 		8-98032-143-1 01 1 1501- ●
242 BRACKET; AIR DUCT
(B) 		8-98032-143-1 01 1 1501- ●
351 DUCT; AIR
(C) 		8-98070-850-0 01 1 1501- ●
351 DUCT; AIR
(B) 		8-98070-863-1 01 1 1501- ●
351 DUCT; AIR
4HK1-TCN ENG(RDQ) (A) 		8-98105-722-1 01 1 1312-1412 ●
351 DUCT; AIR
4HK1-TCN ENG(RDQ) (A) 		8-98105-722-1 01 1 1501- ●
351 DUCT; AIR
(A) 		8-98105-722-1 01 1 1501- ●
401 NUT; BRKT,AIR INT
4HK1-TCN ENG(RDQ) M8 FLANGE MAL 		0-91180-108-0 01 1 1312-1412 ●
401 NUT; BRKT,AIR INT
4HK1-TCN ENG(RDQ) M8 FLANGE MAL 		0-91180-108-0 01 1 1312-1412 ●
401 NUT; BRKT,AIR INT
4HK1-TCN ENG(RDQ) M8 FLANGE MAL 		0-91180-108-0 01 1 1501- ● ●
401 NUT; BRKT,AIR INT
4HK1-TCN ENG(RDQ) M8 FLANGE MAL 		0-91180-108-0 01 1 1501- ● ●
505 RUBBER; MTG
4HK1-TCN ENG(RDQ) MAL 		8-97081-886-0 01 1 1312-1412 ●
505 RUBBER; MTG
4HK1-TCN ENG(RDQ) MAL 		8-97081-886-0 01 1 1501- ●
505 RUBBER; MTG
MAL 		8-97081-886-0 01 1 1501- ●
511 NUT; PIPE
4HK1-TCN ENG(RDQ) M8 FLANGE MAL 		0-91180-108-0 01 1 1312-1412 ●
511 NUT; PIPE
4HK1-TCN ENG(RDQ) M8 FLANGE MAL 		0-91180-108-0 01 1 1501- ●
511 NUT; PIPE
M8 FLANGE MAL 		0-91180-108-0 01 1 1501- ●

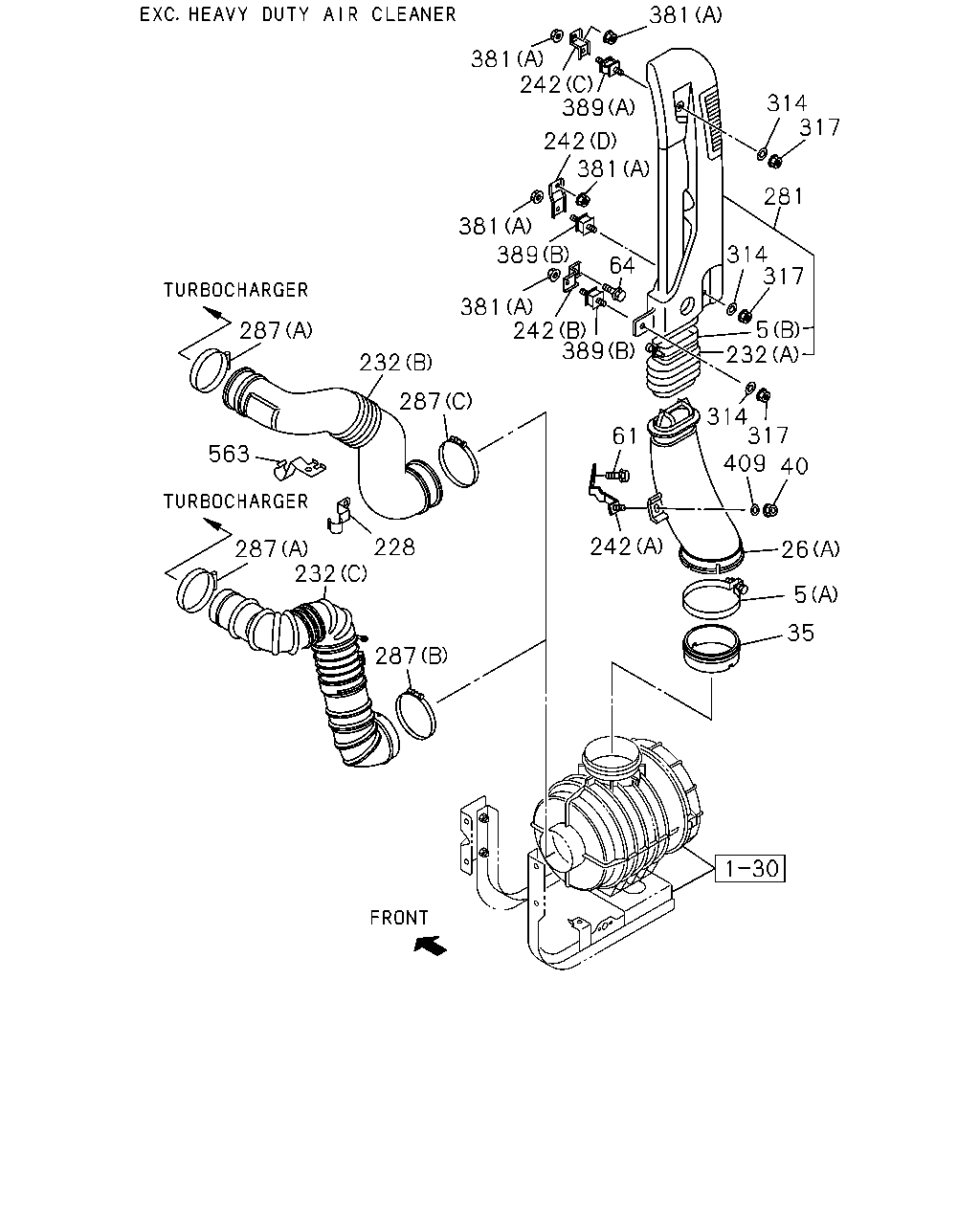

çizim 386166
228 287 232 287 563 287 232 287 381 242 389 242 381 381 389 381 242 389 64 61 242 35 5 26 40 409 317 314 232 5 317 314 281 317 314 381
BalonParca AdiParca NoAdetTipApplied Date A B
5 CLIP; AIR DUCT
(E) ID=55-75 		8-98133-349-0 01 1 1501- ●
5 CLIP; AIR DUCT
(B) ID=65-85 		8-98133-350-0 02 1 1501- ●
5 CLIP; AIR DUCT
(F) ID=112 		9-09915-074-1 01 1 1501- ●
5 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 1311-1412 ●
5 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 1501- ● ●
5 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 1311-1412 ●
5 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 1501- ● ●
5 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (B) ID=65-85 		8-98133-350-0 01 1 1312-1412 ●
5 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (B) ID=65-85 		8-98133-350-0 01 1 1501- ●
5 CLIP; AIR DUCT
(B) ID=65-85 		8-98133-350-0 01 1 1501- ●
5 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (D) ID=75-95 		8-98133-357-0 02 1 1312-1412 ●
5 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (D) ID=75-95 		8-98133-357-0 02 1 1501- ●
5 CLIP; AIR DUCT
(D) ID=75-95 		8-98133-357-0 02 1 1501- ●
26 DUCT; AIR INT
(B) 		8-98025-627-0 01 1 1501- ●
26 DUCT; AIR INT
(A) 		8-98025-626-0 01 1 1311- ●
35 SEAL; DUCT,INT 8-98029-332-0 01 1 1311-1412 ●
35 SEAL; DUCT,INT 8-98029-332-0 01 1 1501- ● ●
40 NUT; AIR INT DUCT
M10 FLANGE MAL 		0-91180-110-0 01 1 1311-1412 ●
40 NUT; AIR INT DUCT
M10 FLANGE MAL 		0-91180-110-0 01 1 1501- ● ●
61 BOLT; BRKT,AIR DUCT
M10X35 FLANGE MAL 		0-28651-035-0 01 1 1501- ●
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE MAL 		0-28650-825-0 01 1 1311- ●
64 BOLT; BRKT,AIR DUCT
M8X16 		0-52000-816-0 01 1 1311- ●
228 CLIP; PCV HOSE
4HG1-T ENG(RDP) 		8-97369-959-0 01 1 1311- ●
232 HOSE; CONN
(D) 		8-98094-582-2 01 1 1501- ●
232 HOSE; CONN
4HG1-T ENG(RDP) (C) 		8-98166-943-0 01 1 1311-1412 ●
232 HOSE; CONN
(C) 		8-98166-943-0 01 1 1501- ●
232 HOSE; CONN
(A) 		8-98231-785-0 01 1 1311-1412 ●
232 HOSE; CONN
(A) 		8-98231-785-0 01 1 1501- ● ●
232 HOSE; CONN
4HK1-TCN ENG(RDQ) HEAVY DUTY AIR CLEANER<K46> (B) 		8-98070-857-1 01 1 1312- ●
232 HOSE; CONN
4HK1-TCN ENG(RDQ) EXC. HEAVY DUTY AIR CLEANER<K46> (B) 		8-98095-507-1 01 1 1312- ●
242 BRACKET; AIR DUCT
(I) 		8-98049-012-1 01 1 1501- ●
242 BRACKET; AIR DUCT
(F) 		8-98055-243-1 01 1 1501- ●
242 BRACKET; AIR DUCT
(G) 		8-98055-246-2 01 1 1501- ●
242 BRACKET; AIR DUCT
(H) 		8-98055-247-1 01 1 1501- ●
242 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 1311- ●
242 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 1311- ●
242 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 1311- ●
242 BRACKET; AIR DUCT
(A) 		8-98145-112-1 01 1 1311- ●
242 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ) (B) 		8-98032-142-1 01 1 1312-1412 ●
242 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ) (B) 		8-98032-142-1 01 1 1501- ●
242 BRACKET; AIR DUCT
(B) 		8-98032-142-1 01 1 1501- ●
242 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ) (B) 		8-98032-143-1 01 1 1312-1412 ●
242 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ) (B) 		8-98032-143-1 01 1 1501- ●
242 BRACKET; AIR DUCT
(B) 		8-98032-143-1 01 1 1501- ●
281 DUCT; AIR,VERTICAL INT
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98061-757-2 01 1 1501- ●
281 DUCT; AIR,VERTICAL INT
4HG1-T ENG(RDP) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98080-929-2 01 1 1311- ●
281 DUCT; AIR,VERTICAL INT
HEAVY DUTY AIR CLEANER<K46> 		8-98101-995-5 01 1 1311-1412 ●
281 DUCT; AIR,VERTICAL INT
HEAVY DUTY AIR CLEANER<K46> 		8-98101-995-5 01 1 1501- ● ●
281 DUCT; AIR,VERTICAL INT
4HK1-TCN ENG(RDQ) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98000-230-5 01 1 1312- ●
287 CLIP; AIR DUCT
4HG1-T ENG(RDP) (B) ID=117 		9-09915-075-1 01 1 1311-1412 ●
287 CLIP; AIR DUCT
(B) ID=117 		9-09915-075-1 01 1 1501- ●
287 CLIP; AIR DUCT
(A) ID=55-75 		8-98133-349-0 01 1 1311- ●
287 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (C) ID=112 		9-09915-074-1 01 1 1312- ●
314 WASHER; PL,AIR INT DUCT
ID=10.5 OD=32 MAL 		0-91614-810-0 03 1 1311-1412 ●
314 WASHER; PL,AIR INT DUCT
ID=10.5 OD=32 MAL 		0-91614-810-0 03 1 1501- ● ●
317 NUT; CUSHION RUBBER
M8 W/LK WASHER MAL 		8-97581-234-0 03 1 1311-1412 ●
317 NUT; CUSHION RUBBER
M8 W/LK WASHER MAL 		8-97581-234-0 03 1 1501- ● ●
381 NUT; BRKT,AIR DUCT
(B) M10 FLANGE MAL 		0-91180-110-0 01 1 1501- ●
381 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER MAL 		8-97581-234-0 02 1 1311- ●
381 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER MAL 		8-97581-234-0 03 1 1311-1412 ●
381 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER MAL 		8-97581-234-0 03 1 1501- ● ●
381 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER MAL 		8-97581-234-0 03 1 1501- ●
389 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 1311-1412 ●
389 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 1501- ● ●
389 RUBBER; SUPPORT,AIR INT UPR
(B) 		8-98036-826-0 02 1 1311-1412 ●
389 RUBBER; SUPPORT,AIR INT UPR
(B) 		8-98036-826-0 02 1 1501- ● ●
409 WASHER; PL,BRKT
ID=10.5 OD=32 MAL 		0-91614-810-0 01 1 1311-1412 ●
409 WASHER; PL,BRKT
ID=10.5 OD=32 MAL 		0-91614-810-0 01 1 1501- ● ●
563 BRACKET; CLIP
4HK1-TCN ENG(RDQ) 		8-98090-587-0 01 1 1312-1412 ●
563 BRACKET; CLIP
4HK1-TCN ENG(RDQ) 		8-98090-587-0 01 1 1501- ●
563 BRACKET; CLIP 8-98090-587-0 01 1 1501- ●

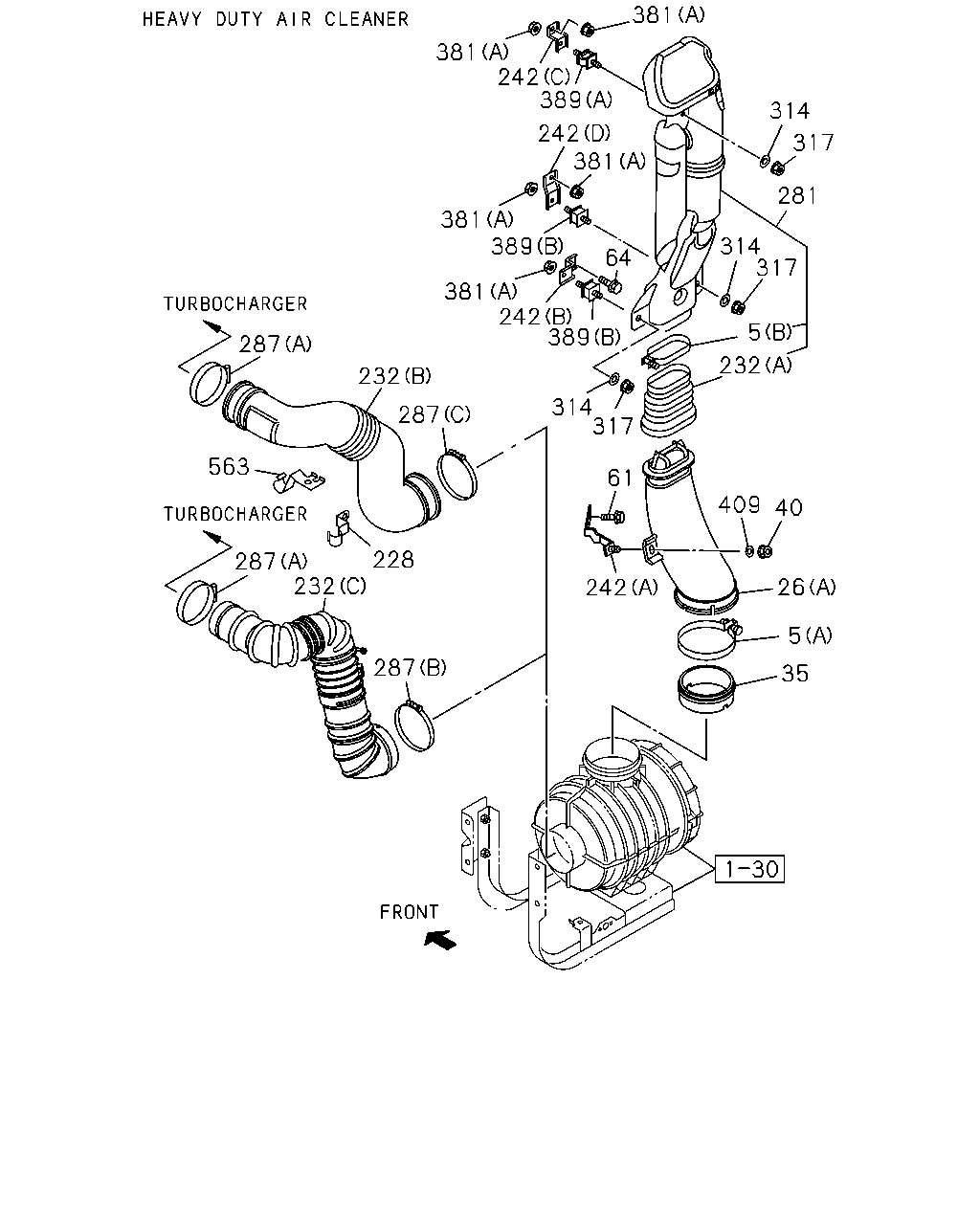

çizim 386186
314 381 242 381 381 242 389 317 281 314 5 232 317 389 242 381 381 64 389 40 409 61 317 314 287 232 287 563 228 232 287 35 26 5 242 287
BalonParca AdiParca NoAdetTipApplied Date A B
5 CLIP; AIR DUCT
(E) ID=55-75 		8-98133-349-0 01 1 1501- ●
5 CLIP; AIR DUCT
(B) ID=65-85 		8-98133-350-0 02 1 1501- ●
5 CLIP; AIR DUCT
(F) ID=112 		9-09915-074-1 01 1 1501- ●
5 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 1311-1412 ●
5 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 1501- ● ●
5 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 1311-1412 ●
5 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 1501- ● ●
5 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (B) ID=65-85 		8-98133-350-0 01 1 1312-1412 ●
5 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (B) ID=65-85 		8-98133-350-0 01 1 1501- ●
5 CLIP; AIR DUCT
(B) ID=65-85 		8-98133-350-0 01 1 1501- ●
5 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (D) ID=75-95 		8-98133-357-0 02 1 1312-1412 ●
5 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (D) ID=75-95 		8-98133-357-0 02 1 1501- ●
5 CLIP; AIR DUCT
(D) ID=75-95 		8-98133-357-0 02 1 1501- ●
26 DUCT; AIR INT
(B) 		8-98025-627-0 01 1 1501- ●
26 DUCT; AIR INT
(A) 		8-98025-626-0 01 1 1311- ●
35 SEAL; DUCT,INT 8-98029-332-0 01 1 1311-1412 ●
35 SEAL; DUCT,INT 8-98029-332-0 01 1 1501- ● ●
40 NUT; AIR INT DUCT
M10 FLANGE MAL 		0-91180-110-0 01 1 1311-1412 ●
40 NUT; AIR INT DUCT
M10 FLANGE MAL 		0-91180-110-0 01 1 1501- ● ●
61 BOLT; BRKT,AIR DUCT
M10X35 FLANGE MAL 		0-28651-035-0 01 1 1501- ●
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE MAL 		0-28650-825-0 01 1 1311- ●
64 BOLT; BRKT,AIR DUCT
M8X16 		0-52000-816-0 01 1 1311- ●
228 CLIP; PCV HOSE
4HG1-T ENG(RDP) 		8-97369-959-0 01 1 1311- ●
232 HOSE; CONN
(D) 		8-98094-582-2 01 1 1501- ●
232 HOSE; CONN
4HG1-T ENG(RDP) (C) 		8-98166-943-0 01 1 1311-1412 ●
232 HOSE; CONN
(C) 		8-98166-943-0 01 1 1501- ●
232 HOSE; CONN
(A) 		8-98231-785-0 01 1 1311-1412 ●
232 HOSE; CONN
(A) 		8-98231-785-0 01 1 1501- ● ●
232 HOSE; CONN
4HK1-TCN ENG(RDQ) HEAVY DUTY AIR CLEANER<K46> (B) 		8-98070-857-1 01 1 1312- ●
232 HOSE; CONN
4HK1-TCN ENG(RDQ) EXC. HEAVY DUTY AIR CLEANER<K46> (B) 		8-98095-507-1 01 1 1312- ●
242 BRACKET; AIR DUCT
(I) 		8-98049-012-1 01 1 1501- ●
242 BRACKET; AIR DUCT
(F) 		8-98055-243-1 01 1 1501- ●
242 BRACKET; AIR DUCT
(G) 		8-98055-246-2 01 1 1501- ●
242 BRACKET; AIR DUCT
(H) 		8-98055-247-1 01 1 1501- ●
242 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 1311- ●
242 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 1311- ●
242 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 1311- ●
242 BRACKET; AIR DUCT
(A) 		8-98145-112-1 01 1 1311- ●
242 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ) (B) 		8-98032-142-1 01 1 1312-1412 ●
242 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ) (B) 		8-98032-142-1 01 1 1501- ●
242 BRACKET; AIR DUCT
(B) 		8-98032-142-1 01 1 1501- ●
242 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ) (B) 		8-98032-143-1 01 1 1312-1412 ●
242 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ) (B) 		8-98032-143-1 01 1 1501- ●
242 BRACKET; AIR DUCT
(B) 		8-98032-143-1 01 1 1501- ●
281 DUCT; AIR,VERTICAL INT
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98061-757-2 01 1 1501- ●
281 DUCT; AIR,VERTICAL INT
4HG1-T ENG(RDP) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98080-929-2 01 1 1311- ●
281 DUCT; AIR,VERTICAL INT
HEAVY DUTY AIR CLEANER<K46> 		8-98101-995-5 01 1 1311-1412 ●
281 DUCT; AIR,VERTICAL INT
HEAVY DUTY AIR CLEANER<K46> 		8-98101-995-5 01 1 1501- ● ●
281 DUCT; AIR,VERTICAL INT
4HK1-TCN ENG(RDQ) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98000-230-5 01 1 1312- ●
287 CLIP; AIR DUCT
4HG1-T ENG(RDP) (B) ID=117 		9-09915-075-1 01 1 1311-1412 ●
287 CLIP; AIR DUCT
(B) ID=117 		9-09915-075-1 01 1 1501- ●
287 CLIP; AIR DUCT
(A) ID=55-75 		8-98133-349-0 01 1 1311- ●
287 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (C) ID=112 		9-09915-074-1 01 1 1312- ●
314 WASHER; PL,AIR INT DUCT
ID=10.5 OD=32 MAL 		0-91614-810-0 03 1 1311-1412 ●
314 WASHER; PL,AIR INT DUCT
ID=10.5 OD=32 MAL 		0-91614-810-0 03 1 1501- ● ●
317 NUT; CUSHION RUBBER
M8 W/LK WASHER MAL 		8-97581-234-0 03 1 1311-1412 ●
317 NUT; CUSHION RUBBER
M8 W/LK WASHER MAL 		8-97581-234-0 03 1 1501- ● ●
381 NUT; BRKT,AIR DUCT
(B) M10 FLANGE MAL 		0-91180-110-0 01 1 1501- ●
381 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER MAL 		8-97581-234-0 02 1 1311- ●
381 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER MAL 		8-97581-234-0 03 1 1311-1412 ●
381 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER MAL 		8-97581-234-0 03 1 1501- ● ●
381 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER MAL 		8-97581-234-0 03 1 1501- ●
389 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 1311-1412 ●
389 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 1501- ● ●
389 RUBBER; SUPPORT,AIR INT UPR
(B) 		8-98036-826-0 02 1 1311-1412 ●
389 RUBBER; SUPPORT,AIR INT UPR
(B) 		8-98036-826-0 02 1 1501- ● ●
409 WASHER; PL,BRKT
ID=10.5 OD=32 MAL 		0-91614-810-0 01 1 1311-1412 ●
409 WASHER; PL,BRKT
ID=10.5 OD=32 MAL 		0-91614-810-0 01 1 1501- ● ●
563 BRACKET; CLIP
4HK1-TCN ENG(RDQ) 		8-98090-587-0 01 1 1312-1412 ●
563 BRACKET; CLIP
4HK1-TCN ENG(RDQ) 		8-98090-587-0 01 1 1501- ●
563 BRACKET; CLIP 8-98090-587-0 01 1 1501- ●
çizim 512396
232 5 351 5 48 5 381
BalonParca AdiParca NoAdetTipApplied Date A B
5 CLIP; AIR DUCT
(E) ID=55-75 		8-98133-349-0 01 1 1501- ●
5 CLIP; AIR DUCT
(B) ID=65-85 		8-98133-350-0 02 1 1501- ●
5 CLIP; AIR DUCT
(F) ID=112 		9-09915-074-1 01 1 1501- ●
5 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 1311-1412 ●
5 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 1501- ● ●
5 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 1311-1412 ●
5 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 1501- ● ●
5 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (B) ID=65-85 		8-98133-350-0 01 1 1312-1412 ●
5 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (B) ID=65-85 		8-98133-350-0 01 1 1501- ●
5 CLIP; AIR DUCT
(B) ID=65-85 		8-98133-350-0 01 1 1501- ●
5 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (D) ID=75-95 		8-98133-357-0 02 1 1312-1412 ●
5 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (D) ID=75-95 		8-98133-357-0 02 1 1501- ●
5 CLIP; AIR DUCT
(D) ID=75-95 		8-98133-357-0 02 1 1501- ●
48 BOLT; AIR DUCT
M10X30 FLANGE 		0-28651-030-0 02 1 1501- ●
48 BOLT; AIR DUCT
M10X35 FLANGE MAL 		0-28651-035-0 01 1 1501- ●
232 HOSE; CONN
(D) 		8-98094-582-2 01 1 1501- ●
232 HOSE; CONN
4HG1-T ENG(RDP) (C) 		8-98166-943-0 01 1 1311-1412 ●
232 HOSE; CONN
(C) 		8-98166-943-0 01 1 1501- ●
232 HOSE; CONN
(A) 		8-98231-785-0 01 1 1311-1412 ●
232 HOSE; CONN
(A) 		8-98231-785-0 01 1 1501- ● ●
232 HOSE; CONN
4HK1-TCN ENG(RDQ) HEAVY DUTY AIR CLEANER<K46> (B) 		8-98070-857-1 01 1 1312- ●
232 HOSE; CONN
4HK1-TCN ENG(RDQ) EXC. HEAVY DUTY AIR CLEANER<K46> (B) 		8-98095-507-1 01 1 1312- ●
351 DUCT; AIR
(C) 		8-98070-850-0 01 1 1501- ●
351 DUCT; AIR
(B) 		8-98070-863-1 01 1 1501- ●
351 DUCT; AIR
4HK1-TCN ENG(RDQ) (A) 		8-98105-722-1 01 1 1312-1412 ●
351 DUCT; AIR
4HK1-TCN ENG(RDQ) (A) 		8-98105-722-1 01 1 1501- ●
351 DUCT; AIR
(A) 		8-98105-722-1 01 1 1501- ●
381 NUT; BRKT,AIR DUCT
(B) M10 FLANGE MAL 		0-91180-110-0 01 1 1501- ●
381 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER MAL 		8-97581-234-0 02 1 1311- ●
381 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER MAL 		8-97581-234-0 03 1 1311-1412 ●
381 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER MAL 		8-97581-234-0 03 1 1501- ● ●
381 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER MAL 		8-97581-234-0 03 1 1501- ●

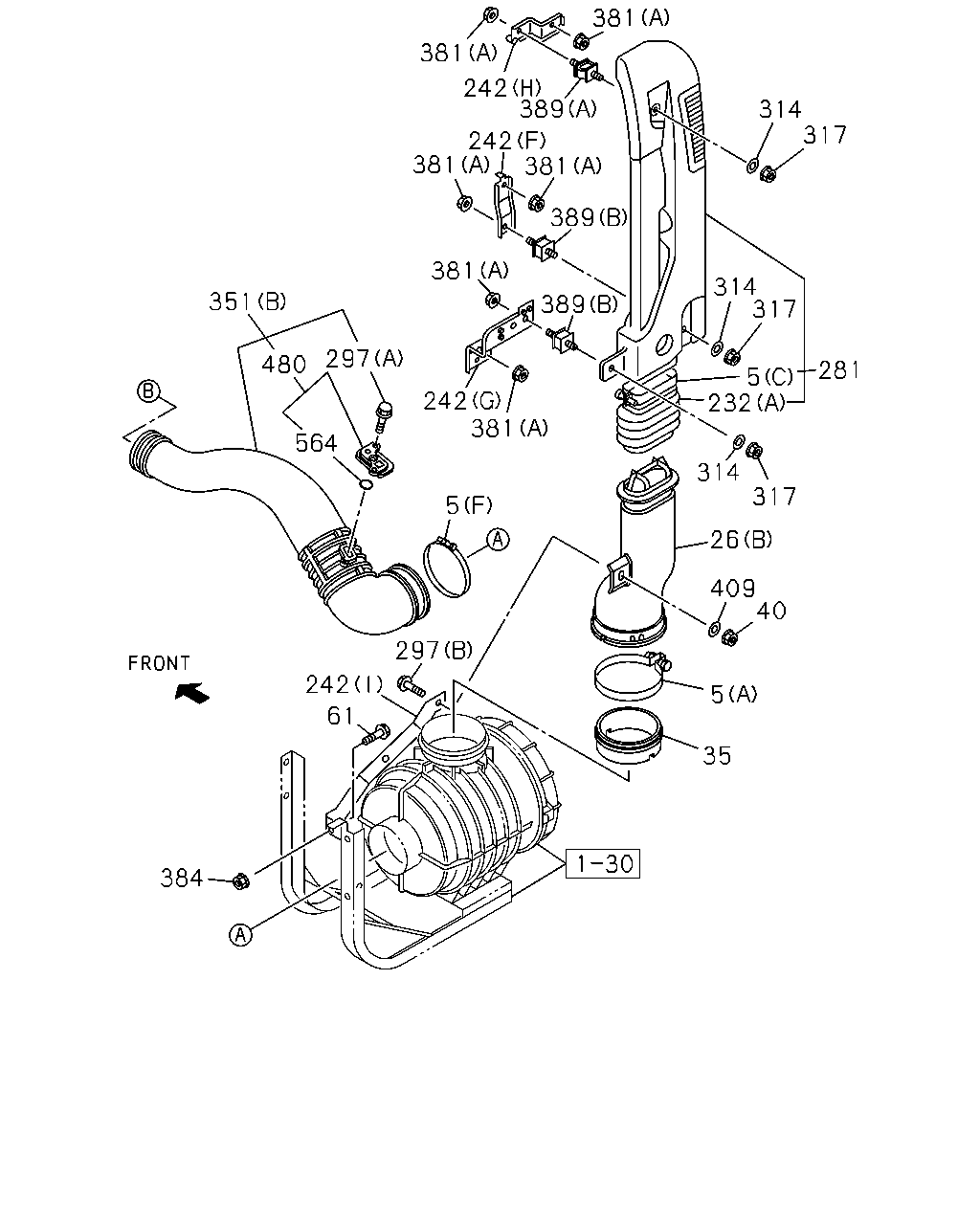

çizim 514001
317 314 381 389 242 381 381 242 381 381 389 314 281 5 232 314 26 317 409 40 5 35 297 242 61 384 242 297 480 351 564 5 381 389 317
BalonParca AdiParca NoAdetTipApplied Date A B
5 CLIP; AIR DUCT
(E) ID=55-75 		8-98133-349-0 01 1 1501- ●
5 CLIP; AIR DUCT
(B) ID=65-85 		8-98133-350-0 02 1 1501- ●
5 CLIP; AIR DUCT
(F) ID=112 		9-09915-074-1 01 1 1501- ●
5 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 1311-1412 ●
5 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 1501- ● ●
5 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 1311-1412 ●
5 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 1501- ● ●
5 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (B) ID=65-85 		8-98133-350-0 01 1 1312-1412 ●
5 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (B) ID=65-85 		8-98133-350-0 01 1 1501- ●
5 CLIP; AIR DUCT
(B) ID=65-85 		8-98133-350-0 01 1 1501- ●
5 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (D) ID=75-95 		8-98133-357-0 02 1 1312-1412 ●
5 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (D) ID=75-95 		8-98133-357-0 02 1 1501- ●
5 CLIP; AIR DUCT
(D) ID=75-95 		8-98133-357-0 02 1 1501- ●
26 DUCT; AIR INT
(B) 		8-98025-627-0 01 1 1501- ●
26 DUCT; AIR INT
(A) 		8-98025-626-0 01 1 1311- ●
35 SEAL; DUCT,INT 8-98029-332-0 01 1 1311-1412 ●
35 SEAL; DUCT,INT 8-98029-332-0 01 1 1501- ● ●
40 NUT; AIR INT DUCT
M10 FLANGE MAL 		0-91180-110-0 01 1 1311-1412 ●
40 NUT; AIR INT DUCT
M10 FLANGE MAL 		0-91180-110-0 01 1 1501- ● ●
61 BOLT; BRKT,AIR DUCT
M10X35 FLANGE MAL 		0-28651-035-0 01 1 1501- ●
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE MAL 		0-28650-825-0 01 1 1311- ●
232 HOSE; CONN
(D) 		8-98094-582-2 01 1 1501- ●
232 HOSE; CONN
4HG1-T ENG(RDP) (C) 		8-98166-943-0 01 1 1311-1412 ●
232 HOSE; CONN
(C) 		8-98166-943-0 01 1 1501- ●
232 HOSE; CONN
(A) 		8-98231-785-0 01 1 1311-1412 ●
232 HOSE; CONN
(A) 		8-98231-785-0 01 1 1501- ● ●
232 HOSE; CONN
4HK1-TCN ENG(RDQ) HEAVY DUTY AIR CLEANER<K46> (B) 		8-98070-857-1 01 1 1312- ●
232 HOSE; CONN
4HK1-TCN ENG(RDQ) EXC. HEAVY DUTY AIR CLEANER<K46> (B) 		8-98095-507-1 01 1 1312- ●
242 BRACKET; AIR DUCT
(I) 		8-98049-012-1 01 1 1501- ●
242 BRACKET; AIR DUCT
(F) 		8-98055-243-1 01 1 1501- ●
242 BRACKET; AIR DUCT
(G) 		8-98055-246-2 01 1 1501- ●
242 BRACKET; AIR DUCT
(H) 		8-98055-247-1 01 1 1501- ●
242 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 1311- ●
242 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 1311- ●
242 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 1311- ●
242 BRACKET; AIR DUCT
(A) 		8-98145-112-1 01 1 1311- ●
242 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ) (B) 		8-98032-142-1 01 1 1312-1412 ●
242 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ) (B) 		8-98032-142-1 01 1 1501- ●
242 BRACKET; AIR DUCT
(B) 		8-98032-142-1 01 1 1501- ●
242 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ) (B) 		8-98032-143-1 01 1 1312-1412 ●
242 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ) (B) 		8-98032-143-1 01 1 1501- ●
242 BRACKET; AIR DUCT
(B) 		8-98032-143-1 01 1 1501- ●
281 DUCT; AIR,VERTICAL INT
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98061-757-2 01 1 1501- ●
281 DUCT; AIR,VERTICAL INT
4HG1-T ENG(RDP) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98080-929-2 01 1 1311- ●
281 DUCT; AIR,VERTICAL INT
HEAVY DUTY AIR CLEANER<K46> 		8-98101-995-5 01 1 1311-1412 ●
281 DUCT; AIR,VERTICAL INT
HEAVY DUTY AIR CLEANER<K46> 		8-98101-995-5 01 1 1501- ● ●
281 DUCT; AIR,VERTICAL INT
4HK1-TCN ENG(RDQ) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98000-230-5 01 1 1312- ●
297 BOLT; DUCT
(B) M10X35 FLANGE MAL 		0-28651-035-0 01 1 1501- ●
297 BOLT; DUCT
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1501- ●
314 WASHER; PL,AIR INT DUCT
ID=10.5 OD=32 MAL 		0-91614-810-0 03 1 1311-1412 ●
314 WASHER; PL,AIR INT DUCT
ID=10.5 OD=32 MAL 		0-91614-810-0 03 1 1501- ● ●
317 NUT; CUSHION RUBBER
M8 W/LK WASHER MAL 		8-97581-234-0 03 1 1311-1412 ●
317 NUT; CUSHION RUBBER
M8 W/LK WASHER MAL 		8-97581-234-0 03 1 1501- ● ●
351 DUCT; AIR
(C) 		8-98070-850-0 01 1 1501- ●
351 DUCT; AIR
(B) 		8-98070-863-1 01 1 1501- ●
351 DUCT; AIR
4HK1-TCN ENG(RDQ) (A) 		8-98105-722-1 01 1 1312-1412 ●
351 DUCT; AIR
4HK1-TCN ENG(RDQ) (A) 		8-98105-722-1 01 1 1501- ●
351 DUCT; AIR
(A) 		8-98105-722-1 01 1 1501- ●
381 NUT; BRKT,AIR DUCT
(B) M10 FLANGE MAL 		0-91180-110-0 01 1 1501- ●
381 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER MAL 		8-97581-234-0 02 1 1311- ●
381 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER MAL 		8-97581-234-0 03 1 1311-1412 ●
381 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER MAL 		8-97581-234-0 03 1 1501- ● ●
381 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER MAL 		8-97581-234-0 03 1 1501- ●
384 NUT; AIR INT DUCT BRKT
M10 FLANGE MAL 		0-91180-110-0 01 1 1501- ●
389 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 1311-1412 ●
389 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 1501- ● ●
389 RUBBER; SUPPORT,AIR INT UPR
(B) 		8-98036-826-0 02 1 1311-1412 ●
389 RUBBER; SUPPORT,AIR INT UPR
(B) 		8-98036-826-0 02 1 1501- ● ●
409 WASHER; PL,BRKT
ID=10.5 OD=32 MAL 		0-91614-810-0 01 1 1311-1412 ●
409 WASHER; PL,BRKT
ID=10.5 OD=32 MAL 		0-91614-810-0 01 1 1501- ● ●
480 ADAPTER 8-98086-417-0 01 1 1501- ●
564 GASKET; ADAPTER 8-98071-416-0 01 1 1501- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
