Isuzu WW
▶
TRUCKS
▶
NPR
▶
51501 - NPR(MALAYSIA)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-30 - AIR CLEANER
▶

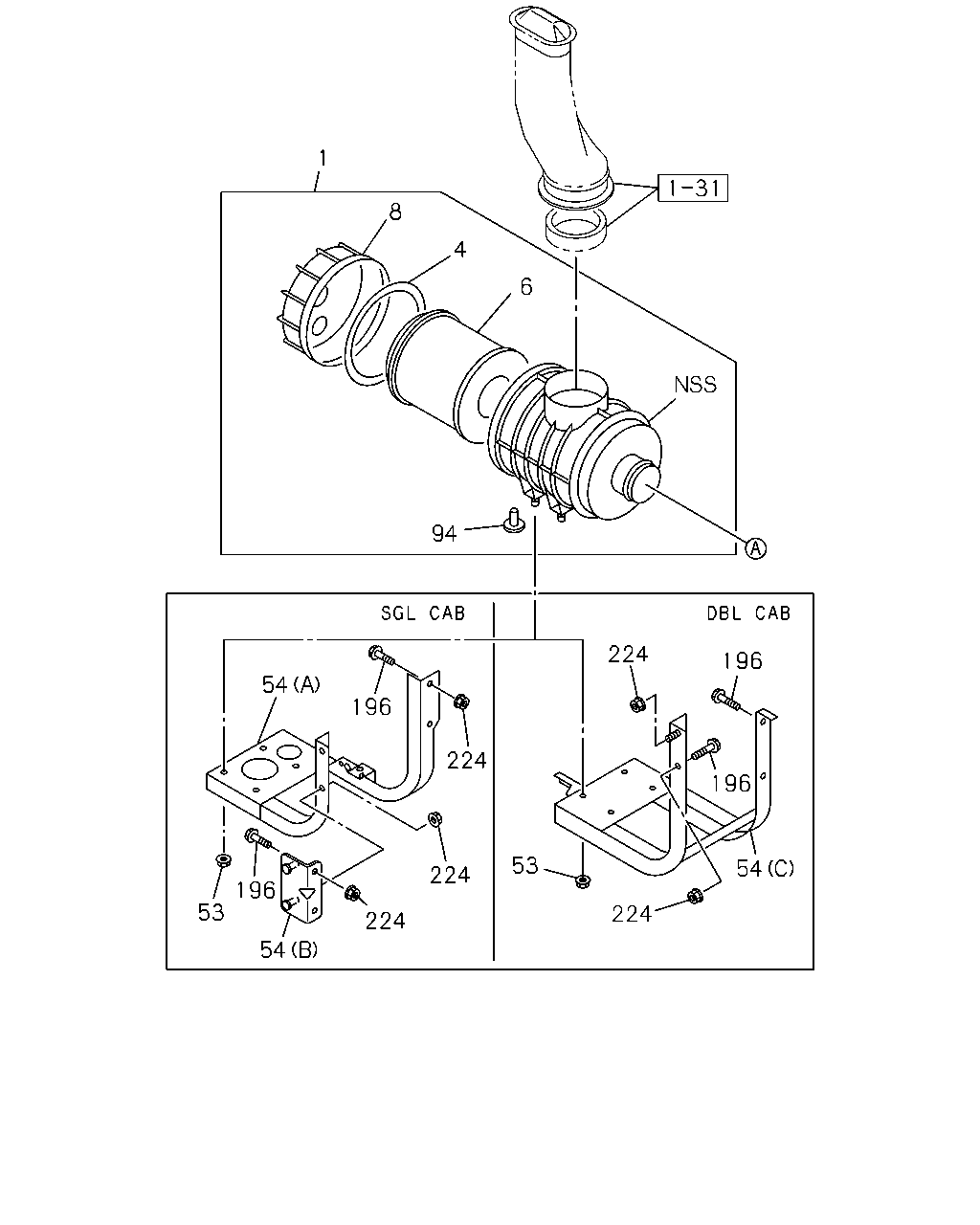

1-30 — AIR CLEANER
(#130823) — 26 parça
Tümü
A - NPR5SN
B - NPR5WN
1
8
6
4
94
196
224
196
54
224
53
224
224
196
54
196
53
54
224
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CLEANER ASM; AIR
8-98050-415-2
01
1
1311-1412
●
1
CLEANER ASM; AIR
8-98050-415-2
01
1
1501-
●
●
4
GASKET; COVER TO BODY
8-97352-113-0
01
1
1311-1412
●
4
GASKET; COVER TO BODY
8-97352-113-0
01
1
1501-
●
●
6
FILTER; ACL
8-97062-294-0
01
1
1311-1412
●
6
FILTER; ACL
8-97062-294-0
01
1
1501-
●
●
6
FILTER; ACL
BEST VALUE PARTS
5-87610-020-0
01
1
1311-1412
●
6
FILTER; ACL
BEST VALUE PARTS
5-87610-020-0
01
1
1501-
●
●
8
COVER ASM; ACL
8-98050-434-1
01
1
1311-1412
●
8
COVER ASM; ACL
8-98050-434-1
01
1
1501-
●
●
53
NUT; ACL
M8 FLANGE MAL
0-91180-108-0
04
1
1311-1412
●
53
NUT; ACL
M8 FLANGE MAL
0-91180-108-0
04
1
1501-
●
●
54
BRACKET; ACL
(C)
8-98023-879-3
01
1
1501-
●
54
BRACKET; ACL
(B)
8-98032-125-1
01
1
1311-1311
●
54
BRACKET; ACL
FRAME STRAIGHT TYPE<7KJ> (B)
8-98032-125-1
01
1
1312-
●
54
BRACKET; ACL
(A)
8-98047-140-3
01
1
1311-1311
●
54
BRACKET; ACL
FRAME STRAIGHT TYPE<7KJ> (A)
8-98047-140-3
01
1
1312-1312
●
54
BRACKET; ACL
FRAME STRAIGHT TYPE<7KJ> (A)
8-98251-988-0
01
1
1401-
●
94
VALVE; VACUATOR
8-97093-694-0
01
1
1311-1412
●
94
VALVE; VACUATOR
8-97093-694-0
01
1
1501-
●
●
196
BOLT; BRKT,ACL
4HK1-TCN ENG(RDQ) M10X35 FLANGE MAL
0-28651-035-0
03
1
1501-
●
196
BOLT; BRKT,ACL
M10X30 FLANGE
0-28651-030-0
02
1
1311-
●
196
BOLT; BRKT,ACL
M10X35 FLANGE MAL
0-28651-035-0
02
1
1311-
●
224
NUT; BRKT
4HK1-TCN ENG(RDQ) M10 FLANGE MAL
0-91180-110-0
02
1
1501-
●
224
NUT; BRKT
M10 FLANGE MAL
0-91180-110-0
05
1
1311-1311
●
224
NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> M10 FLANGE MAL
0-91180-110-0
05
1
1312-
●
