1-11 — RADIATOR HOSE AND SUB TANK (#130822) — 65 parça

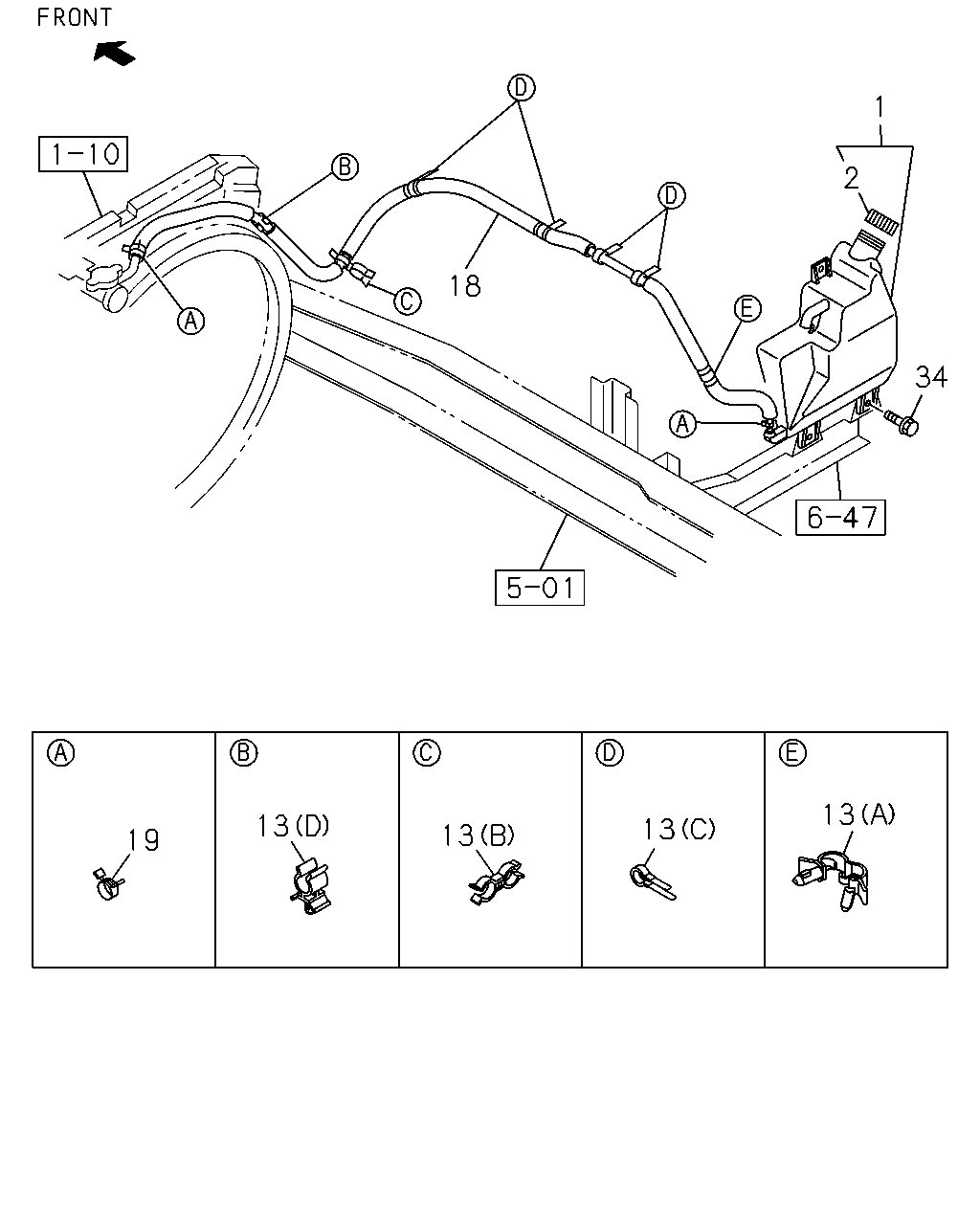

18 1 2 34 13 13 13 13 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; SURGE,RAD	8-98001-240-1	01	1	1501-	●
1	TANK; SURGE,RAD	8-98178-179-0	01	1	1311-1412		●
1	TANK; SURGE,RAD	8-98178-179-0	01	1	1501-		●
2	CAP; SURGE TANK	8-97130-964-0	01	1	1501-	●
2	CAP; SURGE TANK MAL	8-98178-074-0	01	1	1311-1412		●
2	CAP; SURGE TANK MAL	8-98178-074-0	01	1	1501-		●
13	CLIP; HOSE,SURGE TANK (A) ID=13-18 L=14.5	1-09709-290-0	01	1	1311-1412		●
13	CLIP; HOSE,SURGE TANK (A) ID=13-18 L=14.5	1-09709-290-0	01	1	1501-	●	●
13	CLIP; HOSE,SURGE TANK 4HK1-TCN ENG(RDQ) (A) ID=13-18 L=14.5	1-09709-290-0	01	1	1501-	●
13	CLIP; HOSE,SURGE TANK (C) ID=14 L=47 MAL	5-09700-319-0	04	1	1311-1412		●
13	CLIP; HOSE,SURGE TANK (C) ID=14 L=47 MAL	5-09700-319-0	04	1	1501-	●	●
13	CLIP; HOSE,SURGE TANK (B) ID=10 & 11	8-94438-996-0	01	1	1311-1412		●
13	CLIP; HOSE,SURGE TANK (B) ID=10 & 11	8-94438-996-0	01	1	1501-	●	●
13	CLIP; HOSE,SURGE TANK 4HK1-TCN ENG(RDQ) (D) ID=12	8-98029-256-0	01	1	1312-1412		●
13	CLIP; HOSE,SURGE TANK 4HK1-TCN ENG(RDQ) (D) ID=12	8-98029-256-0	01	1	1501-	●	●
18	HOSE; RAD TO SURGE TANK 4HK1-TCN ENG(RDQ) L=1840	8-98006-528-0	01	1	1501-1506	●
18	HOSE; RAD TO SURGE TANK 4HK1-TCN ENG(RDQ) L=1840	8-98316-125-0	01	1	1507-	●
18	HOSE; RAD TO SURGE TANK 4HG1-T ENG(RDP) L=1660	8-98095-672-0	01	1	1311-		●
18	HOSE; RAD TO SURGE TANK 4HK1-TCN ENG(RDQ) L=1690	8-98006-525-0	01	1	1312-1506		●
18	HOSE; RAD TO SURGE TANK 4HK1-TCN ENG(RDQ) L=1690	8-98316-124-0	01	1	1507-		●
19	CLIP; HOSE,SURGE TANK ID=12	8-98150-358-0	02	1	1311-1412		●
19	CLIP; HOSE,SURGE TANK ID=12	8-98150-358-0	02	1	1501-	●	●
34	BOLT; RESERVE TANK M8X22 W/LK&PL WASHER	1-09030-042-0	03	1	1311-1412		●
34	BOLT; RESERVE TANK M8X22 W/LK&PL WASHER	1-09030-042-0	03	1	1501-	●	●

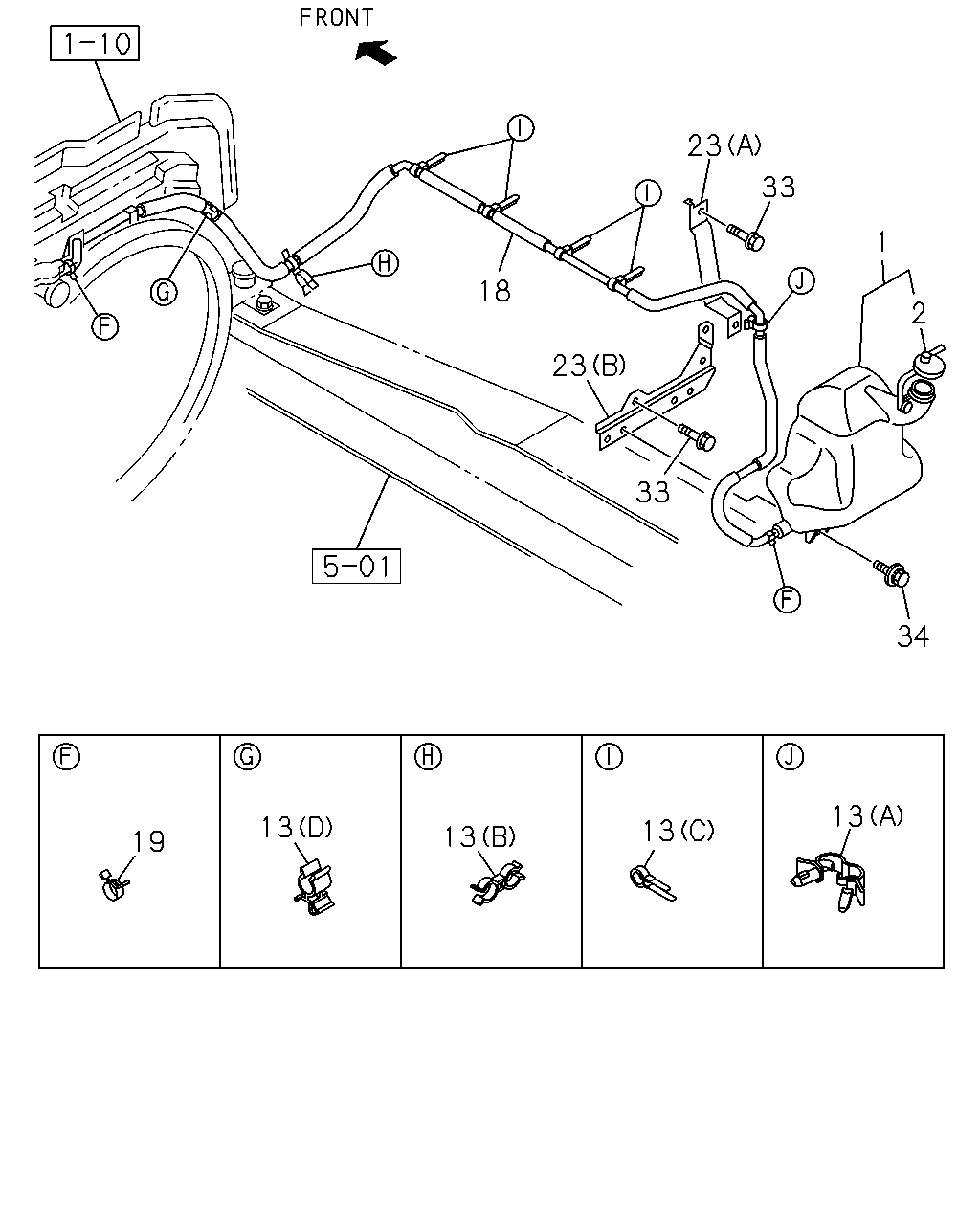

23 33 2 34 33 23 18 19 13 13 13 13 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; SURGE,RAD	8-98001-240-1	01	1	1501-	●
1	TANK; SURGE,RAD	8-98178-179-0	01	1	1311-1412		●
1	TANK; SURGE,RAD	8-98178-179-0	01	1	1501-		●
2	CAP; SURGE TANK	8-97130-964-0	01	1	1501-	●
2	CAP; SURGE TANK MAL	8-98178-074-0	01	1	1311-1412		●
2	CAP; SURGE TANK MAL	8-98178-074-0	01	1	1501-		●
13	CLIP; HOSE,SURGE TANK (A) ID=13-18 L=14.5	1-09709-290-0	01	1	1311-1412		●
13	CLIP; HOSE,SURGE TANK (A) ID=13-18 L=14.5	1-09709-290-0	01	1	1501-	●	●
13	CLIP; HOSE,SURGE TANK 4HK1-TCN ENG(RDQ) (A) ID=13-18 L=14.5	1-09709-290-0	01	1	1501-	●
13	CLIP; HOSE,SURGE TANK (C) ID=14 L=47 MAL	5-09700-319-0	04	1	1311-1412		●
13	CLIP; HOSE,SURGE TANK (C) ID=14 L=47 MAL	5-09700-319-0	04	1	1501-	●	●
13	CLIP; HOSE,SURGE TANK (B) ID=10 & 11	8-94438-996-0	01	1	1311-1412		●
13	CLIP; HOSE,SURGE TANK (B) ID=10 & 11	8-94438-996-0	01	1	1501-	●	●
13	CLIP; HOSE,SURGE TANK 4HK1-TCN ENG(RDQ) (D) ID=12	8-98029-256-0	01	1	1312-1412		●
13	CLIP; HOSE,SURGE TANK 4HK1-TCN ENG(RDQ) (D) ID=12	8-98029-256-0	01	1	1501-	●	●
18	HOSE; RAD TO SURGE TANK 4HK1-TCN ENG(RDQ) L=1840	8-98006-528-0	01	1	1501-1506	●
18	HOSE; RAD TO SURGE TANK 4HK1-TCN ENG(RDQ) L=1840	8-98316-125-0	01	1	1507-	●
18	HOSE; RAD TO SURGE TANK 4HG1-T ENG(RDP) L=1660	8-98095-672-0	01	1	1311-		●
18	HOSE; RAD TO SURGE TANK 4HK1-TCN ENG(RDQ) L=1690	8-98006-525-0	01	1	1312-1506		●
18	HOSE; RAD TO SURGE TANK 4HK1-TCN ENG(RDQ) L=1690	8-98316-124-0	01	1	1507-		●
19	CLIP; HOSE,SURGE TANK ID=12	8-98150-358-0	02	1	1311-1412		●
19	CLIP; HOSE,SURGE TANK ID=12	8-98150-358-0	02	1	1501-	●	●
23	BRACKET; RESERVE TANK (A)	8-98001-252-0	01	1	1501-	●
23	BRACKET; RESERVE TANK (B)	8-98010-502-1	01	1	1501-	●
33	BOLT; BRKT M8X16 FLANGE MAL	0-28050-816-0	03	1	1501-	●
34	BOLT; RESERVE TANK M8X22 W/LK&PL WASHER	1-09030-042-0	03	1	1311-1412		●
34	BOLT; RESERVE TANK M8X22 W/LK&PL WASHER	1-09030-042-0	03	1	1501-	●	●

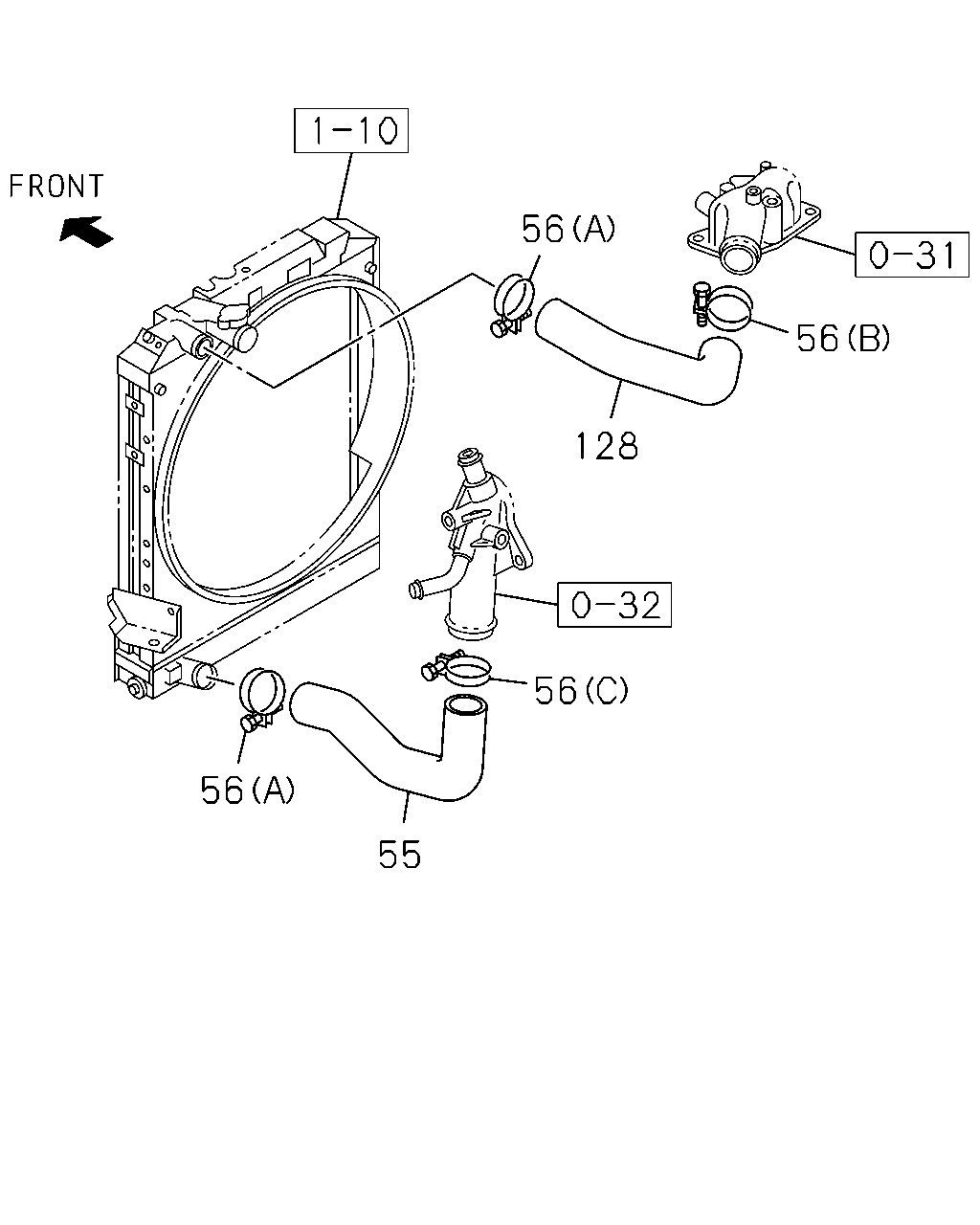

56 128 56 56 55 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
55	HOSE; WATER,RAD OUTLET 4HG1-T ENG(RDP) MAL	8-98095-579-0	01	1	1311-		●
55	HOSE; WATER,RAD OUTLET 4HK1-TCN ENG(RDQ) MAL	8-98006-453-0	01	1	1312-1412		●
55	HOSE; WATER,RAD OUTLET 4HK1-TCN ENG(RDQ) MAL	8-98006-453-0	01	1	1501-		●
55	HOSE; WATER,RAD OUTLET MAL	8-98006-453-0	01	1	1501-	●
56	CLIP; WATER HOSE,RAD (A) ID=48	8-98133-956-0	02	1	1311-1412		●
56	CLIP; WATER HOSE,RAD (A) ID=48	8-98133-956-0	02	1	1501-	●	●
56	CLIP; WATER HOSE,RAD (B) ID=52	1-09704-057-0	01	1	1311-1412		●
56	CLIP; WATER HOSE,RAD (B) ID=52	1-09704-057-0	01	1	1501-	●	●
56	CLIP; WATER HOSE,RAD (C) ID=62	8-98133-957-0	01	1	1311-1412		●
56	CLIP; WATER HOSE,RAD (C) ID=62	8-98133-957-0	01	1	1501-	●	●
128	HOSE; WATER,RAD INL 4HG1-T ENG(RDP)	8-98095-578-0	01	1	1311-		●
128	HOSE; WATER,RAD INL 4HK1-TCN ENG(RDQ)	8-98006-452-0	01	1	1312-1412		●
128	HOSE; WATER,RAD INL 4HK1-TCN ENG(RDQ)	8-98006-452-0	01	1	1501-		●
128	HOSE; WATER,RAD INL	8-98006-452-0	01	1	1501-	●
