Isuzu WW
▶
TRUCKS
▶
NPR
▶
51501 - NPR(MALAYSIA)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-10 - RADIATOR
▶
1-10 — RADIATOR
(#130821) — 104 parça
Tümü
A - NPR5SN
B - NPR5WN
◀
[110A] 4HG1 (42 parça)
[110A] 4HK1(NO.2) (34 parça)
[110A] 4HK1(NO.1) (28 parça)
▶

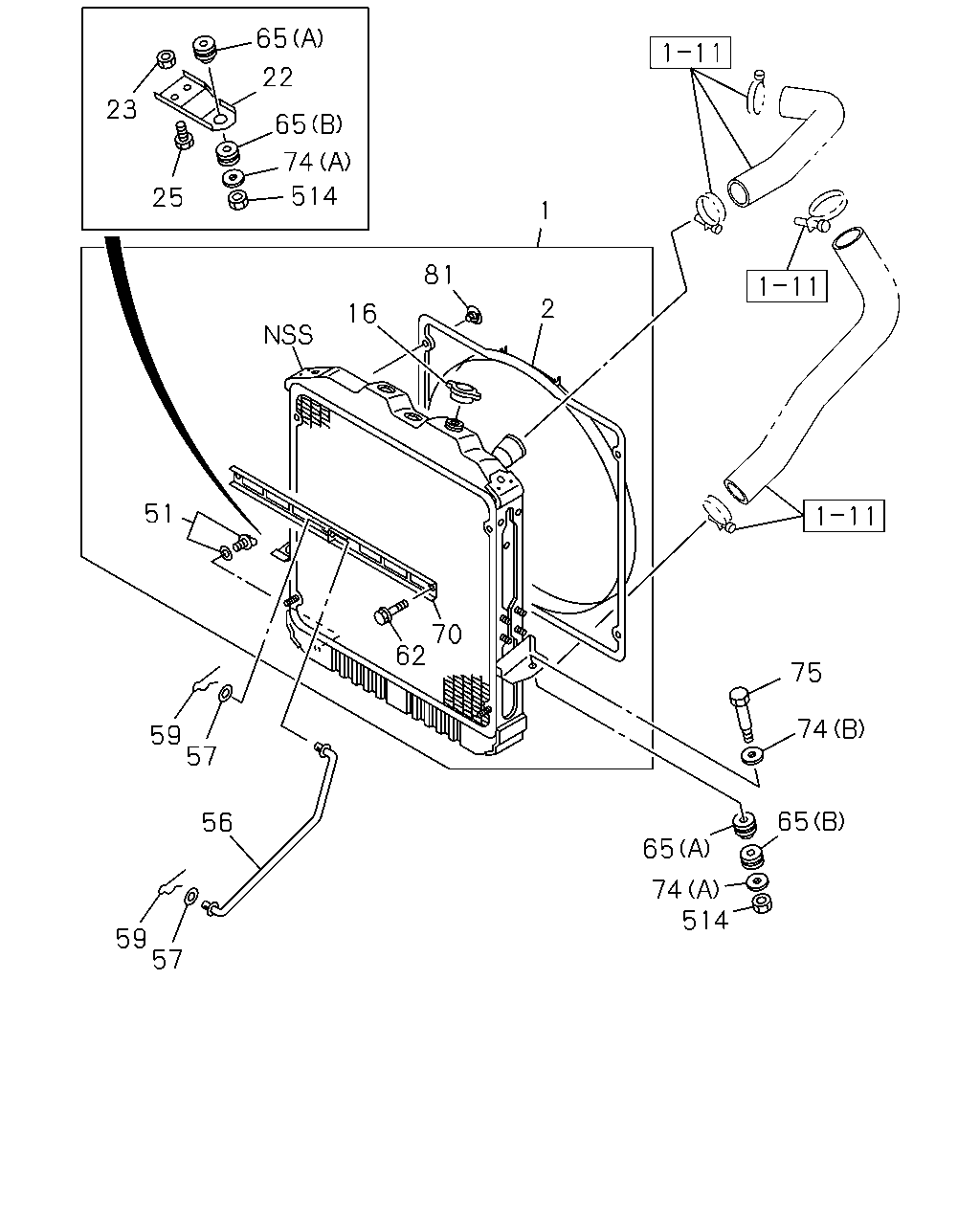

23
25
65
65
22
74
51
514
16
81
1
2
59
57
56
59
57
62
75
70
35
74
514
65
74
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
RADIATOR ASM
4HG1-T ENG(RDP)
8-98095-587-2
01
1
1311-
●
1
RADIATOR ASM
4HK1-TCN ENG(RDQ)
8-98174-420-0
01
1
1312-1412
●
1
RADIATOR ASM
4HK1-TCN ENG(RDQ)
8-98174-420-0
01
1
1501-
●
1
RADIATOR ASM
8-98174-420-0
01
1
1501-
●
2
GUIDE; FAN
4HG1-T ENG(RDP)
8-98095-606-0
01
1
1311-
●
16
CAP; RAD
8-98096-226-0
01
1
1311-1412
●
16
CAP; RAD
8-98096-226-0
01
1
1501-
●
●
22
BRACKET; RAD MTG
4HG1-T ENG(RDP)
8-97074-093-0
01
1
1311-
●
22
BRACKET; RAD MTG
4HK1-TCN ENG(RDQ)
8-97330-527-1
02
1
1312-1412
●
22
BRACKET; RAD MTG
4HK1-TCN ENG(RDQ)
8-97330-527-1
02
1
1501-
●
22
BRACKET; RAD MTG
8-97330-527-1
02
1
1501-
●
23
NUT; RAD MTG
4HG1-T ENG(RDP) M10 FLANGE MAL
0-91180-110-0
02
1
1311-
●
23
NUT; RAD MTG
4HK1-TCN ENG(RDQ) M8 FLANGE MAL
0-91180-108-0
02
1
1312-1412
●
23
NUT; RAD MTG
4HK1-TCN ENG(RDQ) M8 FLANGE MAL
0-91180-108-0
02
1
1501-
●
23
NUT; RAD MTG
M8 FLANGE MAL
0-91180-108-0
02
1
1501-
●
25
BOLT; BRKT
4HG1-T ENG(RDP) M10X30 FLANGE
0-28651-030-0
02
1
1311-
●
51
PLUG; DRAIN
W/GASKET
8-97171-437-0
01
1
1311-1412
●
51
PLUG; DRAIN
W/GASKET
8-97171-437-0
01
1
1501-
●
●
56
STAY; RAD
4HG1-T ENG(RDP)
8-98058-497-0
01
1
1311-
●
56
STAY; RAD
4HK1-TCN ENG(RDQ)
8-98006-490-2
01
1
1312-1412
●
56
STAY; RAD
4HK1-TCN ENG(RDQ)
8-98006-490-2
01
1
1501-
●
●
57
WASHER; PL,STAY
ID=10.5
0-91610-510-0
02
1
1311-1412
●
57
WASHER; PL,STAY
ID=10.5
0-91610-510-0
02
1
1501-
●
●
59
PIN; SNAP,STAY
L=32.6
8-97359-052-0
02
1
1311-1412
●
59
PIN; SNAP,STAY
L=32.6
8-97359-052-0
02
1
1501-
●
●
62
BOLT; STAY
M8X12 FLANGE
0-28050-812-0
02
1
1311-1412
●
62
BOLT; STAY
M8X12 FLANGE
0-28050-812-0
02
1
1501-
●
●
65
INSULATOR; RAD
(A) MAL
8-94249-346-0
02
1
1311-1412
●
65
INSULATOR; RAD
(A) MAL
8-94249-346-0
02
1
1501-
●
●
65
INSULATOR; RAD
(B) MAL
8-94249-347-0
02
1
1311-1412
●
65
INSULATOR; RAD
(B) MAL
8-94249-347-0
02
1
1501-
●
●
70
STAY; RAD
4HG1-T ENG(RDP)
8-98034-644-0
01
1
1311-
●
70
STAY; RAD
4HK1-TCN ENG(RDQ)
8-98018-941-0
01
1
1312-1412
●
70
STAY; RAD
4HK1-TCN ENG(RDQ)
8-98018-941-0
01
1
1501-
●
70
STAY; RAD
8-98018-941-0
01
1
1501-
●
74
WASHER; PL,CUSHION RUBBER
4HG1-T ENG(RDP) (B) ID=10.5
0-91610-710-0
01
1
1311-
●
74
WASHER; PL,CUSHION RUBBER
(A) ID=8.5 OD=36
8-97359-049-1
02
1
1311-1412
●
74
WASHER; PL,CUSHION RUBBER
(A) ID=8.5 OD=36
8-97359-049-1
02
1
1501-
●
●
75
BOLT; CUSHION RUBBER,RAD MTG
4HG1-T ENG(RDP) M8X63
8-94249-446-0
01
1
1311-
●
81
SCREW; FAN GUIDE,RAD
4HG1-T ENG(RDP) MAL
8-97088-810-0
02
1
1311-
●
514
NUT; RAD
M8 FLANGE MAL
0-91180-108-0
02
1
1311-1412
●
514
NUT; RAD
M8 FLANGE MAL
0-91180-108-0
02
1
1501-
●
●

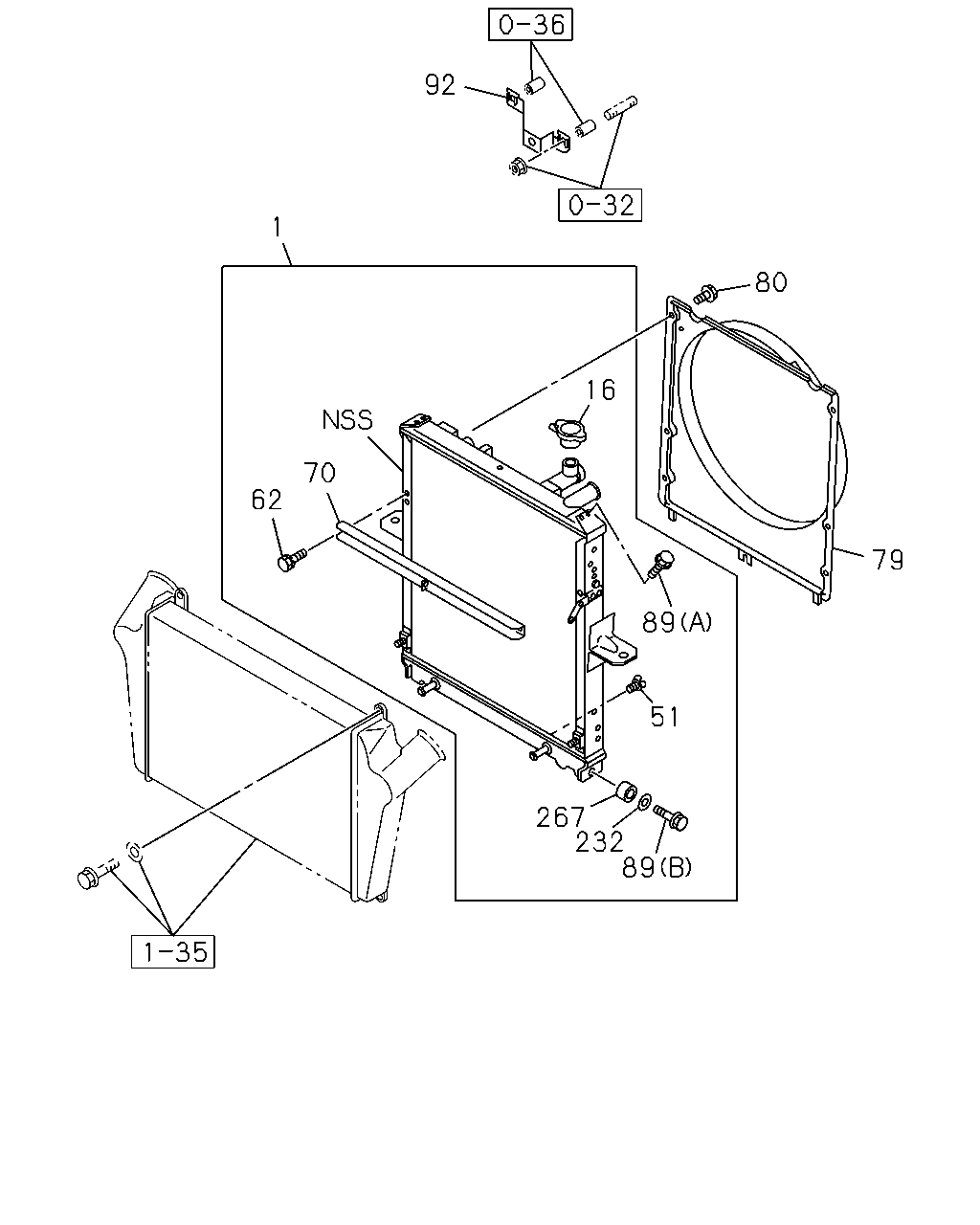

1
92
80
79
89
51
267
232
89
16
70
62
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
RADIATOR ASM
4HG1-T ENG(RDP)
8-98095-587-2
01
1
1311-
●
1
RADIATOR ASM
4HK1-TCN ENG(RDQ)
8-98174-420-0
01
1
1312-1412
●
1
RADIATOR ASM
4HK1-TCN ENG(RDQ)
8-98174-420-0
01
1
1501-
●
1
RADIATOR ASM
8-98174-420-0
01
1
1501-
●
16
CAP; RAD
8-98096-226-0
01
1
1311-1412
●
16
CAP; RAD
8-98096-226-0
01
1
1501-
●
●
51
PLUG; DRAIN
W/GASKET
8-97171-437-0
01
1
1311-1412
●
51
PLUG; DRAIN
W/GASKET
8-97171-437-0
01
1
1501-
●
●
62
BOLT; STAY
M8X12 FLANGE
0-28050-812-0
02
1
1311-1412
●
62
BOLT; STAY
M8X12 FLANGE
0-28050-812-0
02
1
1501-
●
●
70
STAY; RAD
4HG1-T ENG(RDP)
8-98034-644-0
01
1
1311-
●
70
STAY; RAD
4HK1-TCN ENG(RDQ)
8-98018-941-0
01
1
1312-1412
●
70
STAY; RAD
4HK1-TCN ENG(RDQ)
8-98018-941-0
01
1
1501-
●
70
STAY; RAD
8-98018-941-0
01
1
1501-
●
79
GUIDE; FAN,RAD
4HK1-TCN ENG(RDQ)
8-98172-924-0
01
1
1312-1412
●
79
GUIDE; FAN,RAD
4HK1-TCN ENG(RDQ)
8-98172-924-0
01
1
1501-
●
79
GUIDE; FAN,RAD
8-98172-924-0
01
1
1501-
●
80
BOLT; FAN GUIDE
4HK1-TCN ENG(RDQ) M6X16
1-21559-481-0
04
1
1312-1412
●
80
BOLT; FAN GUIDE
4HK1-TCN ENG(RDQ) M6X16
1-21559-481-0
04
1
1501-
●
80
BOLT; FAN GUIDE
M6X16
1-21559-481-0
04
1
1501-
●
89
BOLT
4HK1-TCN ENG(RDQ) (A) M8X12 FLANGE
0-28050-812-0
02
1
1312-1412
●
89
BOLT
4HK1-TCN ENG(RDQ) (A) M8X12 FLANGE
0-28050-812-0
02
1
1501-
●
89
BOLT
(A) M8X12 FLANGE
0-28050-812-0
02
1
1501-
●
89
BOLT
4HK1-TCN ENG(RDQ) (B) M8X25 W/PL WASHER
1-21469-153-0
02
1
1312-1412
●
89
BOLT
4HK1-TCN ENG(RDQ) (B) M8X25 W/PL WASHER
1-21469-153-0
02
1
1501-
●
89
BOLT
(B) M8X25 W/PL WASHER
1-21469-153-0
02
1
1501-
●
92
BRACKET; FAN GUIDE
4HK1-TCN ENG(RDQ)
8-97382-827-2
01
1
1312-1501
●
92
BRACKET; FAN GUIDE
4HK1-TCN ENG(RDQ)
8-97382-827-2
01
1
1502-
●
●
232
COLLAR; DIST,CUSHION RUBBER
4HK1-TCN ENG(RDQ)
1-87410-723-0
02
1
1312-1412
●
232
COLLAR; DIST,CUSHION RUBBER
4HK1-TCN ENG(RDQ)
1-87410-723-0
02
1
1501-
●
232
COLLAR; DIST,CUSHION RUBBER
1-87410-723-0
02
1
1501-
●
267
RUBBER; CUSHION
4HK1-TCN ENG(RDQ)
1-21467-023-0
02
1
1312-1412
●
267
RUBBER; CUSHION
4HK1-TCN ENG(RDQ)
1-21467-023-0
02
1
1501-
●
267
RUBBER; CUSHION
1-21467-023-0
02
1
1501-
●

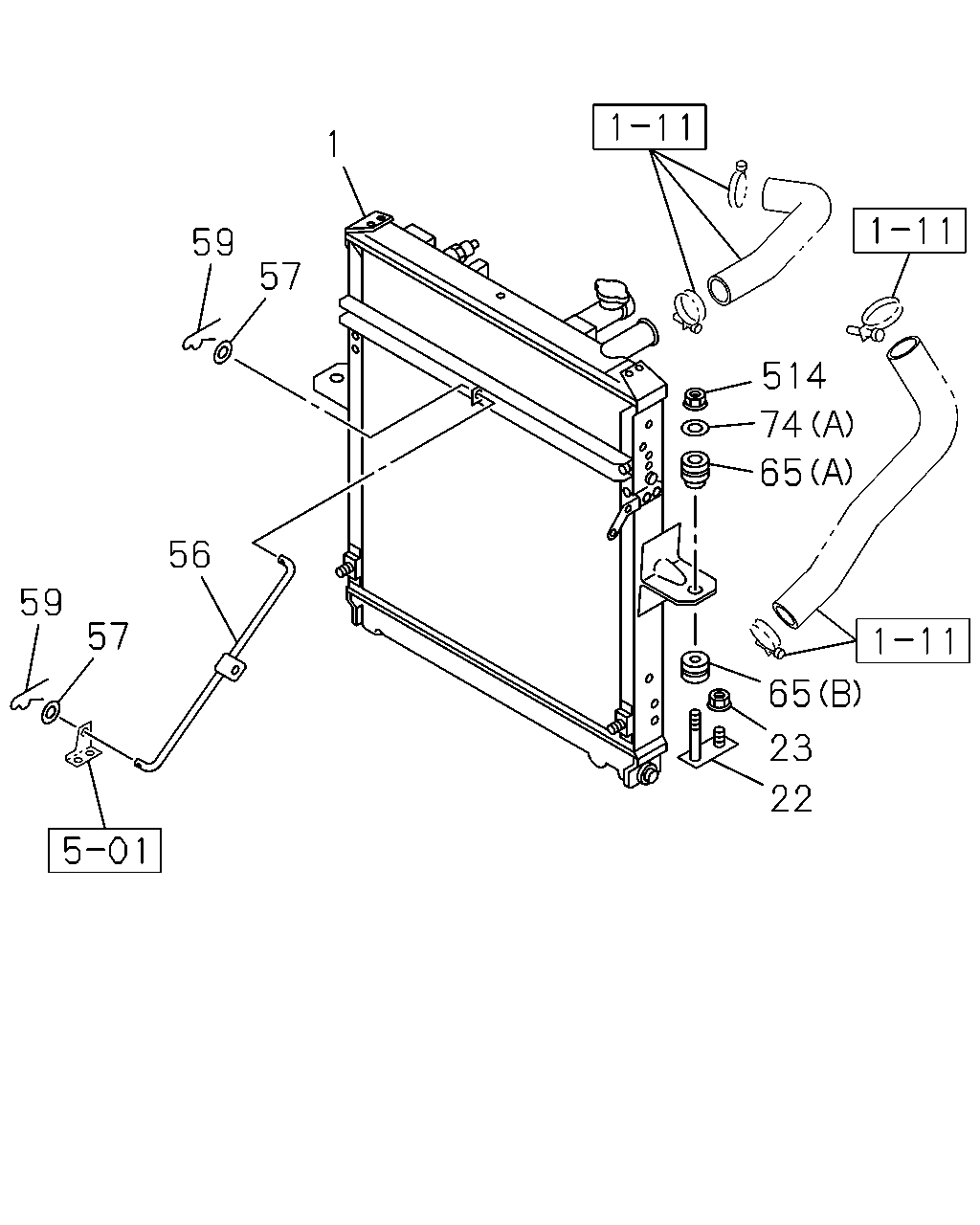

22
65
23
65
74
514
1
57
59
56
57
59
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
RADIATOR ASM
4HG1-T ENG(RDP)
8-98095-587-2
01
1
1311-
●
1
RADIATOR ASM
4HK1-TCN ENG(RDQ)
8-98174-420-0
01
1
1312-1412
●
1
RADIATOR ASM
4HK1-TCN ENG(RDQ)
8-98174-420-0
01
1
1501-
●
1
RADIATOR ASM
8-98174-420-0
01
1
1501-
●
22
BRACKET; RAD MTG
4HG1-T ENG(RDP)
8-97074-093-0
01
1
1311-
●
22
BRACKET; RAD MTG
4HK1-TCN ENG(RDQ)
8-97330-527-1
02
1
1312-1412
●
22
BRACKET; RAD MTG
4HK1-TCN ENG(RDQ)
8-97330-527-1
02
1
1501-
●
22
BRACKET; RAD MTG
8-97330-527-1
02
1
1501-
●
23
NUT; RAD MTG
4HG1-T ENG(RDP) M10 FLANGE MAL
0-91180-110-0
02
1
1311-
●
23
NUT; RAD MTG
4HK1-TCN ENG(RDQ) M8 FLANGE MAL
0-91180-108-0
02
1
1312-1412
●
23
NUT; RAD MTG
4HK1-TCN ENG(RDQ) M8 FLANGE MAL
0-91180-108-0
02
1
1501-
●
23
NUT; RAD MTG
M8 FLANGE MAL
0-91180-108-0
02
1
1501-
●
56
STAY; RAD
4HG1-T ENG(RDP)
8-98058-497-0
01
1
1311-
●
56
STAY; RAD
4HK1-TCN ENG(RDQ)
8-98006-490-2
01
1
1312-1412
●
56
STAY; RAD
4HK1-TCN ENG(RDQ)
8-98006-490-2
01
1
1501-
●
●
57
WASHER; PL,STAY
ID=10.5
0-91610-510-0
02
1
1311-1412
●
57
WASHER; PL,STAY
ID=10.5
0-91610-510-0
02
1
1501-
●
●
59
PIN; SNAP,STAY
L=32.6
8-97359-052-0
02
1
1311-1412
●
59
PIN; SNAP,STAY
L=32.6
8-97359-052-0
02
1
1501-
●
●
65
INSULATOR; RAD
(A) MAL
8-94249-346-0
02
1
1311-1412
●
65
INSULATOR; RAD
(A) MAL
8-94249-346-0
02
1
1501-
●
●
65
INSULATOR; RAD
(B) MAL
8-94249-347-0
02
1
1311-1412
●
65
INSULATOR; RAD
(B) MAL
8-94249-347-0
02
1
1501-
●
●
74
WASHER; PL,CUSHION RUBBER
4HG1-T ENG(RDP) (B) ID=10.5
0-91610-710-0
01
1
1311-
●
74
WASHER; PL,CUSHION RUBBER
(A) ID=8.5 OD=36
8-97359-049-1
02
1
1311-1412
●
74
WASHER; PL,CUSHION RUBBER
(A) ID=8.5 OD=36
8-97359-049-1
02
1
1501-
●
●
514
NUT; RAD
M8 FLANGE MAL
0-91180-108-0
02
1
1311-1412
●
514
NUT; RAD
M8 FLANGE MAL
0-91180-108-0
02
1
1501-
●
●
