1-01 — ACCELERATOR PEDAL AND CONTROL (#130820) — 116 parça

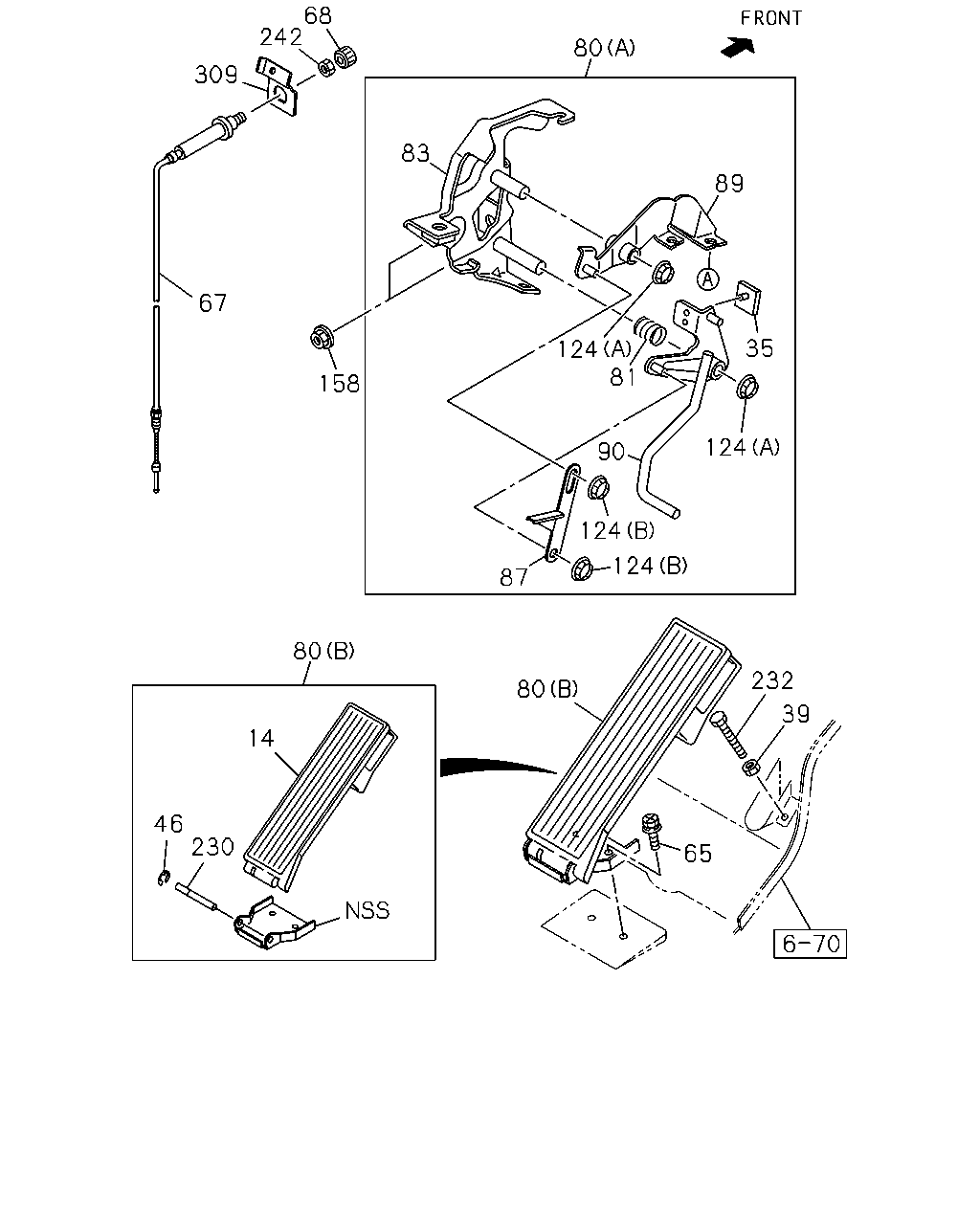

80 83 158 87 124 124 90 81 124 124 35 89 65 39 232 80 80 14 230 46 67 309 242 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	PAD; PEDAL,ACCEL MAL	8-97853-062-2	01	1	1311-1412	●
14	PAD; PEDAL,ACCEL MAL	8-97853-062-2	01	1	1501-	●	●
35	STOPPER; ACCEL PEDAL 4HG1-T ENG(RDP)	8-97302-305-0	01	1	1311-	●
39	NUT; ACCEL PEDAL STOPPER M8	0-91110-508-0	01	1	1311-1412	●
39	NUT; ACCEL PEDAL STOPPER M8	0-91110-508-0	01	1	1501-	●	●
46	RING; SNAP,ACCEL CONT PEDAL ID=4 MAL	0-91805-504-0	01	1	1311-1412	●
46	RING; SNAP,ACCEL CONT PEDAL ID=4 MAL	0-91805-504-0	01	1	1501-	●	●
65	BOLT M8X16 W/LK&PL WASHER MAL	8-94310-730-0	02	1	1311-1412	●
65	BOLT M8X16 W/LK&PL WASHER MAL	8-94310-730-0	02	1	1501-	●	●
67	CABLE ASM; IDLE CONT 4HG1-T ENG(RDP)	8-98124-108-3	01	1	1311-	●
68	KNOB; IDLE CONT 4HG1-T ENG(RDP)	8-97853-765-1	01	1	1311-	●
80	LINK ASM; ENG CONT 4HG1-T ENG(RDP) PTO MANUAL CONTROL(6WC) (A)	8-98124-928-1	01	1	1311-	●
80	LINK ASM; ENG CONT 4HG1-T ENG(RDP) EXC. PTO MANUAL CONTROL(6WC) (A)	8-98038-416-1	01	1	1311-	●
80	LINK ASM; ENG CONT (B) MAL	8-97853-061-2	01	1	1311-1412	●
80	LINK ASM; ENG CONT (B) MAL	8-97853-061-2	01	1	1501-	●	●
80	LINK ASM; ENG CONT 4HK1-TCN ENG(RDQ) (C)	8-97387-358-3	01	1	1312-1412	●
80	LINK ASM; ENG CONT 4HK1-TCN ENG(RDQ) (C)	8-97387-358-3	01	1	1501-	●
80	LINK ASM; ENG CONT (C)	8-97387-358-3	01	1	1501-		●
81	SPRING; RETURN,ENG CONT LEVER 4HG1-T ENG(RDP)	8-98031-665-0	01	1	1311-	●
83	BRACKET; CONT LINK 4HG1-T ENG(RDP) PTO MANUAL CONTROL(6WC)	8-98124-931-1	01	1	1311-	●
83	BRACKET; CONT LINK 4HG1-T ENG(RDP) EXC. PTO MANUAL CONTROL(6WC)	8-98093-900-0	01	1	1311-	●
83	BRACKET; CONT LINK 4HK1-TCN ENG(RDQ)	8-98023-885-2	01	1	1312-1412	●
83	BRACKET; CONT LINK 4HK1-TCN ENG(RDQ)	8-98023-885-2	01	1	1501-	●
83	BRACKET; CONT LINK	8-98023-885-2	01	1	1501-		●
87	LINK; ENG CONT 4HG1-T ENG(RDP)	8-97853-204-1	01	1	1311-	●
89	LEVER; RELAY 4HG1-T ENG(RDP) PTO MANUAL CONTROL(6WC)	8-98124-932-0	01	1	1311-	●
89	LEVER; RELAY 4HG1-T ENG(RDP) EXC. PTO MANUAL CONTROL(6WC)	8-97868-042-0	01	1	1311-	●
90	LEVER; RELAY,ENG CONT 4HG1-T ENG(RDP)	8-98059-513-0	01	1	1311-	●
124	NUT; LEVER 4HG1-T ENG(RDP) (B) ID=4.9 PUSH NUT	8-94279-042-0	02	1	1311-	●
124	NUT; LEVER 4HG1-T ENG(RDP) (A) ID=9.9 PUSH NUT	8-97012-098-0	02	1	1311-	●
124	NUT; LEVER 4HK1-TCN ENG(RDQ) (C) ID=7.9 PUSH NUT	8-94368-617-0	01	1	1312-1412	●
124	NUT; LEVER 4HK1-TCN ENG(RDQ) (C) ID=7.9 PUSH NUT	8-94368-617-0	01	1	1501-	●
124	NUT; LEVER (C) ID=7.9 PUSH NUT	8-94368-617-0	01	1	1501-		●
158	NUT; BRKT M8 FLANGE	8-94279-060-0	02	1	1311-1412	●
158	NUT; BRKT M8 FLANGE	8-94279-060-0	02	1	1501-	●	●
230	PIN; JOINT,ACCEL PEDAL TO BRKT MAL	8-97853-064-0	01	1	1311-1412	●
230	PIN; JOINT,ACCEL PEDAL TO BRKT MAL	8-97853-064-0	01	1	1501-	●	●
232	BOLT; STOPPER,ACCEL PEDAL M8X45 MAL	8-97378-461-0	01	1	1311-1412	●
232	BOLT; STOPPER,ACCEL PEDAL M8X45 MAL	8-97378-461-0	01	1	1501-	●	●
242	NUT; ACCEL PEDAL 4HG1-T ENG(RDP) M18	8-97853-233-0	01	1	1311-	●
309	BRACKET; IDLE CONT CABLE 4HG1-T ENG(RDP)	8-98124-981-1	01	1	1311-	●

392 54 385 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
54	CABLE; ENG CONT 4HG1-T ENG(RDP) (B) L=293	8-97115-730-0	01	1	1311-	●
54	CABLE; ENG CONT 4HG1-T ENG(RDP) (A) L=2883	8-98099-702-3	01	1	1311-	●
385	NUT; CLIP 4HG1-T ENG(RDP) M6 FLANGE MAL	0-91180-106-0	02	1	1311-	●
392	CLIP; ACCEL CONT CABLE 4HG1-T ENG(RDP) L=250	5-09707-030-1	01	1	1311-	●

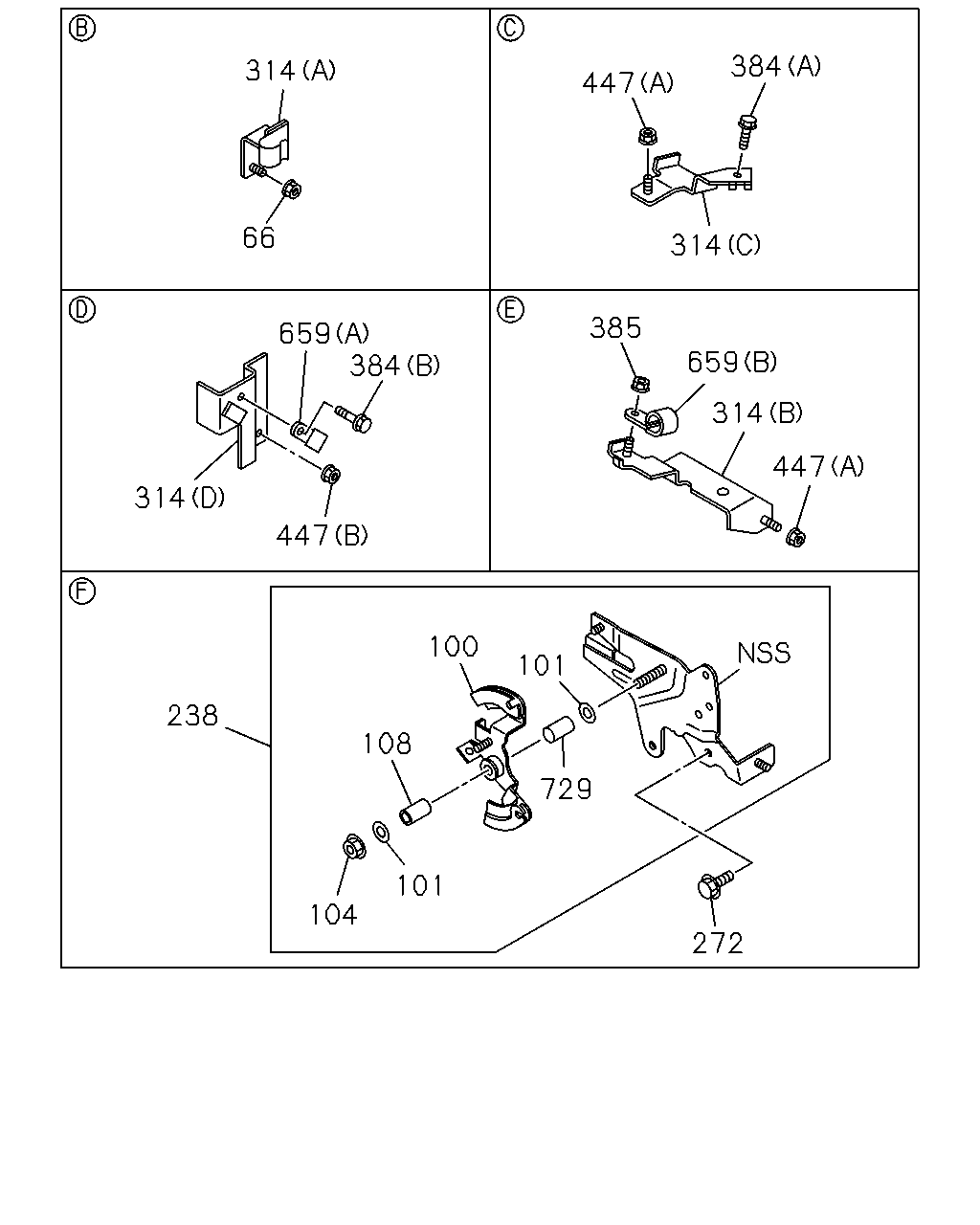

314 66 314 447 659 238 384 447 384 314 385 314 659 447 100 108 104 101 101 729 272

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
66	NUT; BRKT 4HG1-T ENG(RDP) M8 FLANGE MAL	0-91180-108-0	01	1	1311-	●
100	SHAFT ASM; ENG CONT 4HG1-T ENG(RDP)	8-97118-737-0	01	1	1311-	●
101	WASHER; ENG CONT 4HG1-T ENG(RDP)	8-94142-117-0	02	1	1311-	●
104	NUT; ENG CONT 4HG1-T ENG(RDP) M8 FLANGE MAL	0-91180-108-0	01	1	1311-	●
108	BUSHING; ENG CONT 4HG1-T ENG(RDP)	8-97120-004-0	01	1	1311-	●
238	LEVER; ACCEL CONT 4HG1-T ENG(RDP)	8-97118-729-0	01	1	1311-	●
272	BOLT; LEVER 4HG1-T ENG(RDP) M8X16 FLANGE MAL	0-28050-816-0	03	1	1311-	●
314	BRACKET; ACCEL CABLE 4HG1-T ENG(RDP) (A)	8-98094-801-1	01	1	1311-	●
314	BRACKET; ACCEL CABLE 4HG1-T ENG(RDP) (D)	8-98100-387-1	01	1	1311-	●
314	BRACKET; ACCEL CABLE 4HG1-T ENG(RDP) (B)	8-98120-569-1	01	1	1311-	●
314	BRACKET; ACCEL CABLE 4HG1-T ENG(RDP) (C)	8-98120-570-0	01	1	1311-	●
384	BOLT; CLIP,CONT CABLE 4HG1-T ENG(RDP) (B) M6X12 FLANGE MAL	0-28050-612-0	01	1	1311-	●
384	BOLT; CLIP,CONT CABLE 4HG1-T ENG(RDP) (A) M8X25 FLANGE MAL	0-28650-825-0	02	1	1311-	●
385	NUT; CLIP 4HG1-T ENG(RDP) M6 FLANGE MAL	0-91180-106-0	02	1	1311-	●
447	NUT; BRKT,CONT WIRE 4HG1-T ENG(RDP) (B) M6 FLANGE MAL	0-91180-106-0	01	1	1311-	●
447	NUT; BRKT,CONT WIRE 4HG1-T ENG(RDP) (A) M8 FLANGE MAL	0-91180-108-0	02	1	1311-	●
659	CLIP; ACCEL CONT CABLE 4HG1-T ENG(RDP) (B) ID=16 L=20	0-95235-532-0	01	1	1311-	●
659	CLIP; ACCEL CONT CABLE 4HG1-T ENG(RDP) (A) ID=16 L=28	0-95235-552-0	01	1	1311-	●
729	COLLAR; JOINT 4HG1-T ENG(RDP)	8-97118-760-0	01	1	1311-	●

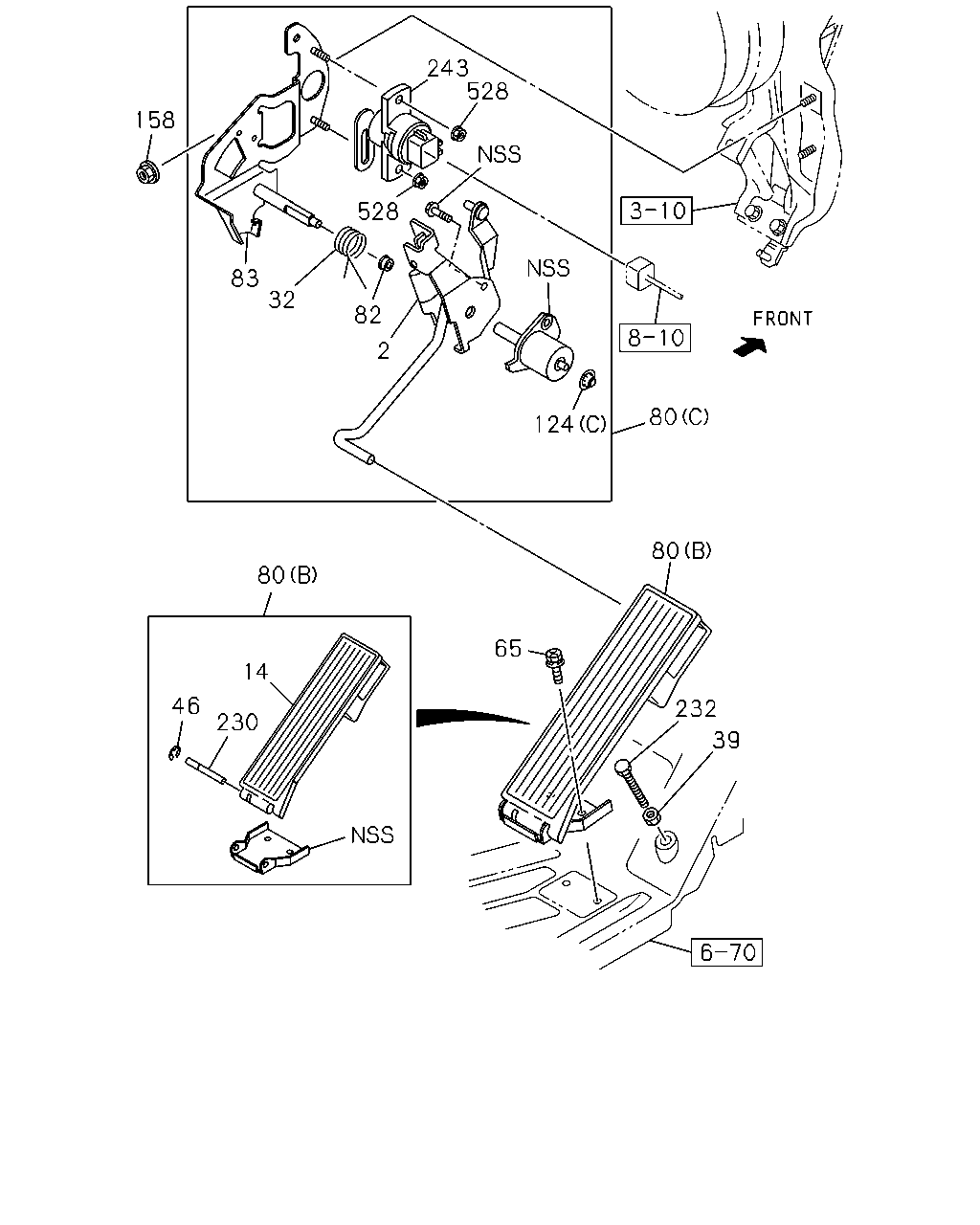

158 83 243 32 528 528 82 124 2 80 14 46 230 65 80 80 232 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	LEVER; ENG CONT 4HK1-TCN ENG(RDQ)	8-98002-158-2	01	1	1312-1412	●
2	LEVER; ENG CONT 4HK1-TCN ENG(RDQ)	8-98002-158-2	01	1	1501-	●
2	LEVER; ENG CONT	8-98002-158-2	01	1	1501-		●
14	PAD; PEDAL,ACCEL MAL	8-97853-062-2	01	1	1311-1412	●
14	PAD; PEDAL,ACCEL MAL	8-97853-062-2	01	1	1501-	●	●
32	SPRING; RETURN,ACCEL PEDAL 4HK1-TCN ENG(RDQ)	8-98031-665-0	01	1	1312-1412	●
32	SPRING; RETURN,ACCEL PEDAL 4HK1-TCN ENG(RDQ)	8-98031-665-0	01	1	1501-	●
32	SPRING; RETURN,ACCEL PEDAL	8-98031-665-0	01	1	1501-		●
39	NUT; ACCEL PEDAL STOPPER M8	0-91110-508-0	01	1	1311-1412	●
39	NUT; ACCEL PEDAL STOPPER M8	0-91110-508-0	01	1	1501-	●	●
46	RING; SNAP,ACCEL CONT PEDAL ID=4 MAL	0-91805-504-0	01	1	1311-1412	●
46	RING; SNAP,ACCEL CONT PEDAL ID=4 MAL	0-91805-504-0	01	1	1501-	●	●
65	BOLT M8X16 W/LK&PL WASHER MAL	8-94310-730-0	02	1	1311-1412	●
65	BOLT M8X16 W/LK&PL WASHER MAL	8-94310-730-0	02	1	1501-	●	●
80	LINK ASM; ENG CONT 4HG1-T ENG(RDP) PTO MANUAL CONTROL(6WC) (A)	8-98124-928-1	01	1	1311-	●
80	LINK ASM; ENG CONT 4HG1-T ENG(RDP) EXC. PTO MANUAL CONTROL(6WC) (A)	8-98038-416-1	01	1	1311-	●
80	LINK ASM; ENG CONT (B) MAL	8-97853-061-2	01	1	1311-1412	●
80	LINK ASM; ENG CONT (B) MAL	8-97853-061-2	01	1	1501-	●	●
80	LINK ASM; ENG CONT 4HK1-TCN ENG(RDQ) (C)	8-97387-358-3	01	1	1312-1412	●
80	LINK ASM; ENG CONT 4HK1-TCN ENG(RDQ) (C)	8-97387-358-3	01	1	1501-	●
80	LINK ASM; ENG CONT (C)	8-97387-358-3	01	1	1501-		●
82	BUSHING; ENG CONT LVR 4HK1-TCN ENG(RDQ)	8-97581-053-0	01	1	1312-1412	●
82	BUSHING; ENG CONT LVR 4HK1-TCN ENG(RDQ)	8-97581-053-0	01	1	1501-	●
82	BUSHING; ENG CONT LVR	8-97581-053-0	01	1	1501-		●
83	BRACKET; CONT LINK 4HG1-T ENG(RDP) PTO MANUAL CONTROL(6WC)	8-98124-931-1	01	1	1311-	●
83	BRACKET; CONT LINK 4HG1-T ENG(RDP) EXC. PTO MANUAL CONTROL(6WC)	8-98093-900-0	01	1	1311-	●
83	BRACKET; CONT LINK 4HK1-TCN ENG(RDQ)	8-98023-885-2	01	1	1312-1412	●
83	BRACKET; CONT LINK 4HK1-TCN ENG(RDQ)	8-98023-885-2	01	1	1501-	●
83	BRACKET; CONT LINK	8-98023-885-2	01	1	1501-		●
124	NUT; LEVER 4HG1-T ENG(RDP) (B) ID=4.9 PUSH NUT	8-94279-042-0	02	1	1311-	●
124	NUT; LEVER 4HG1-T ENG(RDP) (A) ID=9.9 PUSH NUT	8-97012-098-0	02	1	1311-	●
124	NUT; LEVER 4HK1-TCN ENG(RDQ) (C) ID=7.9 PUSH NUT	8-94368-617-0	01	1	1312-1412	●
124	NUT; LEVER 4HK1-TCN ENG(RDQ) (C) ID=7.9 PUSH NUT	8-94368-617-0	01	1	1501-	●
124	NUT; LEVER (C) ID=7.9 PUSH NUT	8-94368-617-0	01	1	1501-		●
158	NUT; BRKT M8 FLANGE	8-94279-060-0	02	1	1311-1412	●
158	NUT; BRKT M8 FLANGE	8-94279-060-0	02	1	1501-	●	●
230	PIN; JOINT,ACCEL PEDAL TO BRKT MAL	8-97853-064-0	01	1	1311-1412	●
230	PIN; JOINT,ACCEL PEDAL TO BRKT MAL	8-97853-064-0	01	1	1501-	●	●
232	BOLT; STOPPER,ACCEL PEDAL M8X45 MAL	8-97378-461-0	01	1	1311-1412	●
232	BOLT; STOPPER,ACCEL PEDAL M8X45 MAL	8-97378-461-0	01	1	1501-	●	●
243	SENSOR; ACCEL 4HK1-TCN ENG(RDQ)	8-98131-263-0	01	1	1312-1412	●
243	SENSOR; ACCEL 4HK1-TCN ENG(RDQ)	8-98131-263-0	01	1	1501-	●
243	SENSOR; ACCEL	8-98131-263-0	01	1	1501-		●
528	NUT; ACCEL SENSOR 4HK1-TCN ENG(RDQ) M5	8-94169-022-0	02	1	1312-1412	●
528	NUT; ACCEL SENSOR 4HK1-TCN ENG(RDQ) M5	8-94169-022-0	02	1	1501-	●
528	NUT; ACCEL SENSOR M5	8-94169-022-0	02	1	1501-		●

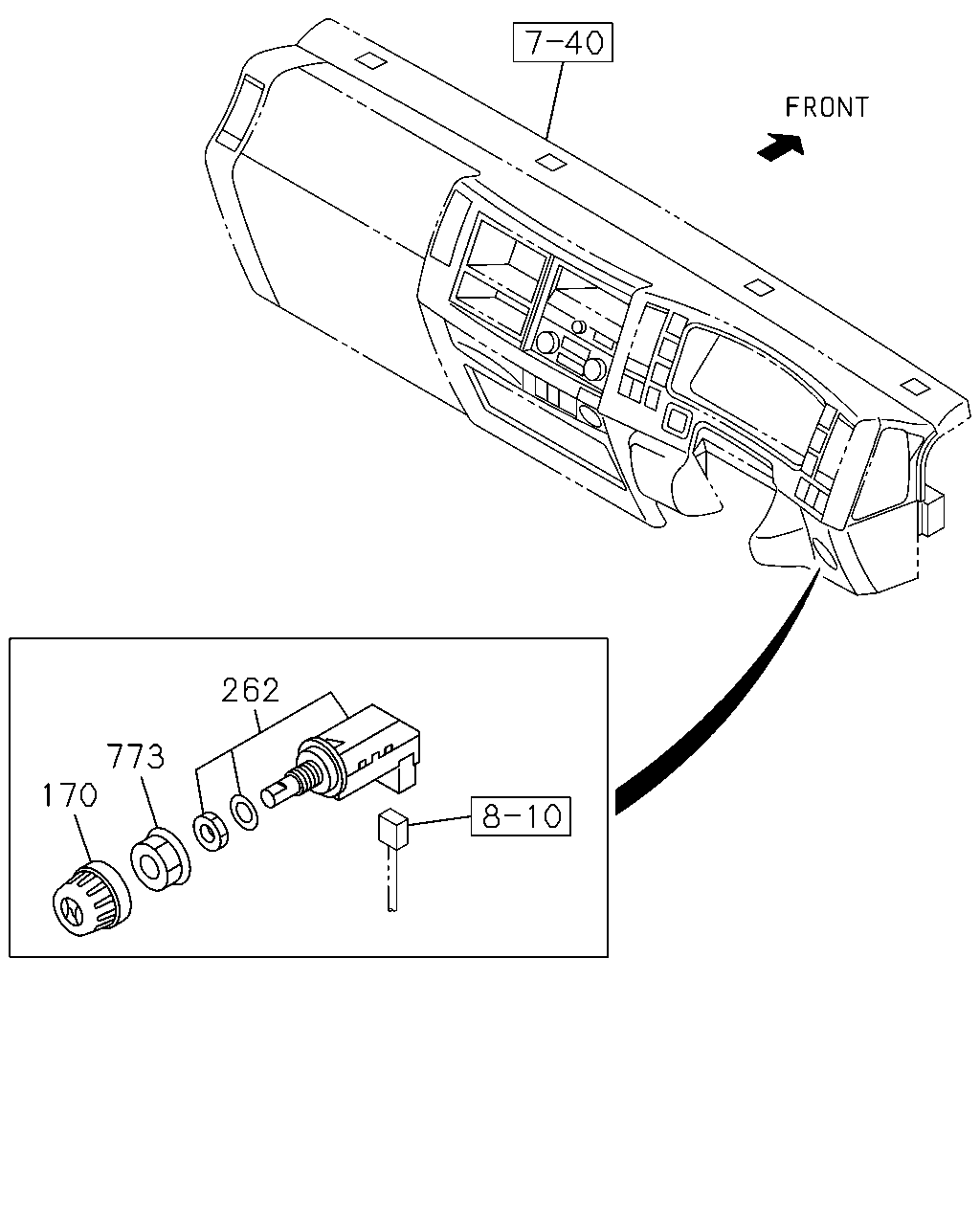

170 262 773

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
170	KNOB 4HK1-TCN ENG(RDQ)	8-98013-420-0	01	1	1312-1412	●
170	KNOB 4HK1-TCN ENG(RDQ)	8-98013-420-0	01	1	1501-	●	●
262	SWITCH; ACCEL,IDLE 4HK1-TCN ENG(RDQ)	8-98013-418-0	01	1	1312-1412	●
262	SWITCH; ACCEL,IDLE 4HK1-TCN ENG(RDQ)	8-98013-418-0	01	1	1501-	●	●
773	HOLDER; ACCEL PEDAL 4HK1-TCN ENG(RDQ)	8-97352-127-0	01	1	1312-1412	●
773	HOLDER; ACCEL PEDAL 4HK1-TCN ENG(RDQ)	8-97352-127-0	01	1	1501-	●	●
