Sayfa 0-81 - Isuzu EPC

0-81 — GOVERNOR; INJECTION PUMP (#130814) — 201 parça

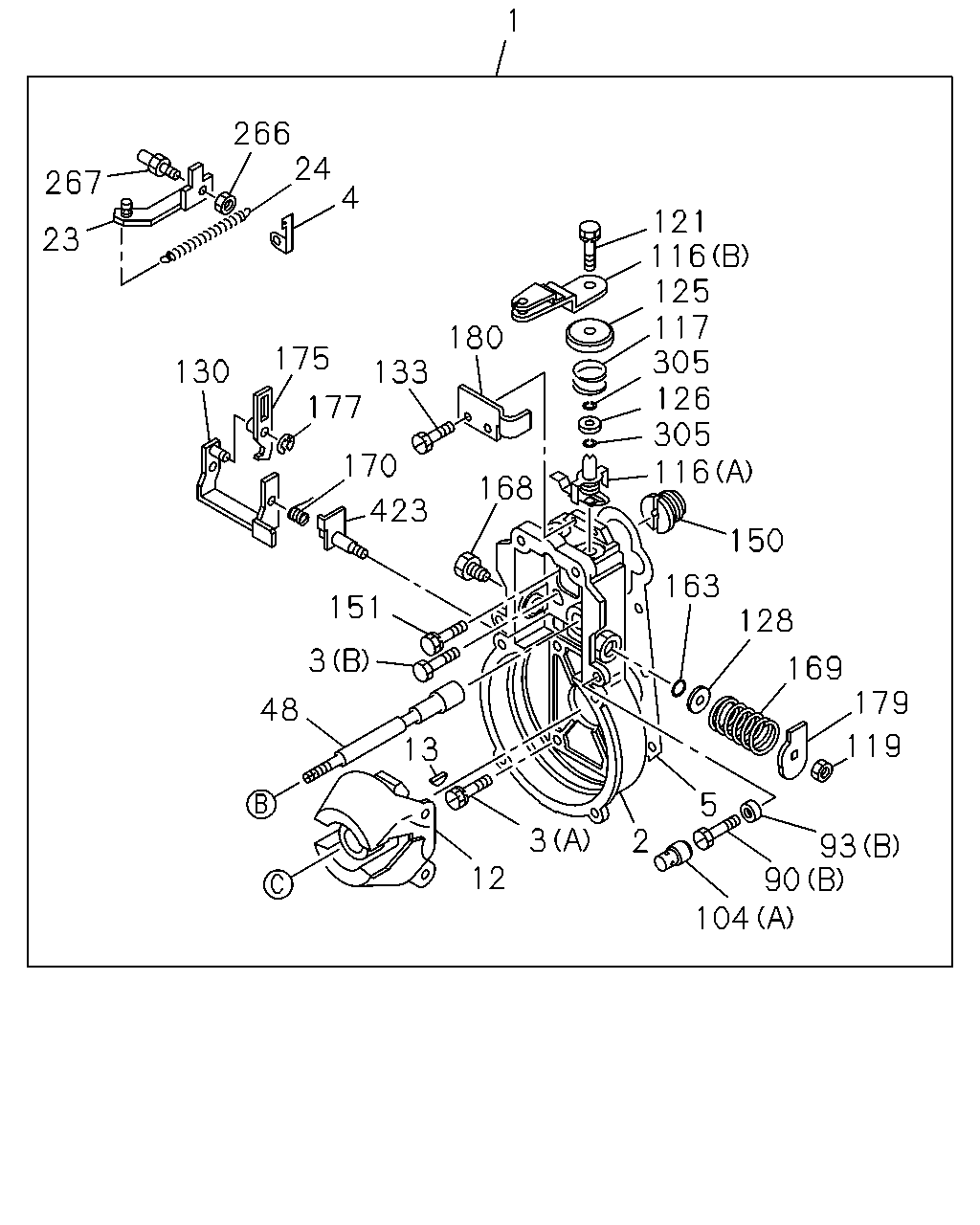

1 121 125 116 117 305 305 126 116 150 163 128 169 179 119 93 90 104 2 3 5 12 13 3 48 151 423 168 180 133 177 18 4 24 266 267 23 130 170

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GOVERNOR ASM; INJ PUMP ASM PART: A = 8-97178-485-5	8-97214-531-3	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: B = 8-97215-704-2	8-97225-684-0	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: C = 8-98268-832-0, E = 8-98317-243-0	8-98272-998-0	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: D = 8-98285-612-0	8-98304-430-0	01	1	-
2	HOUSING; GOV,INJ PUMP ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15721-265-0	01	1	-
3	BOLT; GOV HSG,INJ PUMP (A), M6X15 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	5-15729-027-0	05	1	-
3	BOLT; GOV HSG,INJ PUMP (B), M6X16 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	5-15729-071-0	01	1	-
4	PLATE; START SPRING,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15779-591-0	01	1	-
5	GASKET; GOV TO INJ PUMP HSG ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15779-106-0	01	1	-
12	FLYWEIGHT ASM; GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	5-15722-017-0	01	1	-
13	KEY; FLYWEIGHT,GOV 16MM ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	5-19619-049-0	01	1	-
18	SLEEVE; GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	5-15729-372-0	01	1	-
23	LINK; LEVER TO CONT RACK,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, D = 8-98285-612-0	1-15725-928-0	01	1	-
24	SPRING; START,GOV,INJ PUMP ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	5-15723-035-0	01	1	-
48	SHAFT; GOV,INJ PUMP ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-94171-146-1	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X62 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-642-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (C), M8X65 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-761-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X33 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, E = 8-98317-243-0	1-15729-799-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X33 ASM PART: D = 8-98285-612-0	1-15729-799-0	AR	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X34 ASM PART: D = 8-98285-612-0	1-15729-800-0	AR	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X34 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, E = 8-98317-243-0	1-15729-800-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X35 ASM PART: D = 8-98285-612-0	1-15729-801-0	AR	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X35 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, E = 8-98317-243-0	1-15729-801-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X36 ASM PART: D = 8-98285-612-0	1-15729-802-0	AR	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X36 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, E = 8-98317-243-0	1-15729-802-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X37 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, E = 8-98317-243-0	1-15729-803-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X37 ASM PART: D = 8-98285-612-0	1-15729-803-0	AR	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X31 ASM PART: D = 8-98285-612-0	1-15729-842-0	AR	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X31 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, E = 8-98317-243-0	1-15729-842-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X32 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, E = 8-98317-243-0	1-15729-843-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X32 ASM PART: D = 8-98285-612-0	1-15729-843-0	AR	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (A) ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-643-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (B) ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-807-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (C) ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-97026-924-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (A) ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-97085-021-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (B) ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-97085-022-0	01	1	-
116	LEVER; ENG STOP,GOV (A) ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-97121-631-0	01	1	-
116	LEVER; ENG STOP,GOV (B) ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-97121-632-0	01	1	-
117	SPRING; STOP LEVER,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-94336-925-0	01	1	-
119	NUT; ENG STOP LEVER,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-236-0	01	1	-
121	BOLT; ENG STOP LEVER,GOV M6X12 W/LK WASHER ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	9-01910-612-0	01	1	-
125	CAP; STOP LEVER SPRING,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-94171-168-0	01	1	-
126	GASKET; STOP LEVER,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-853-0	01	1	-
128	SHIM; CONT SHAFT,GOV T=0.60 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-897-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.80 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-898-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.90 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-899-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.50 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	9-81325-556-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.30 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	9-81325-557-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.40 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	9-81325-558-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.25 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	9-81325-559-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.35 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	9-81325-560-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.20 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	9-88410-421-0	AR	1	-
130	LEVER; CONT,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	1-15725-496-0	01	1	-
130	LEVER; CONT,GOV ASM PART: C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15725-527-0	01	1	-
133	BOLT; BRKT FIX,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-834-0	02	1	-
150	ADAPTER; GOV HSG,INJ PUMP ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	9-81315-065-0	01	1	-
151	BOLT; ADAPTER,GOV HSG,INJ PUMP M8X18 W/LK WASHER ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	9-01900-818-0	01	1	-
163	GASKET; CONT SHAFT,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15629-859-0	01	1	-
168	PLUG; CONT SHAFT,GOV HSG ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-796-0	01	1	-
169	SPRING; LEVER SET,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	5-15723-032-0	01	1	-
170	SPRING; LEVER TO LEVER,GOV ASM PART: A = 8-97178-485-5, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	5-15723-033-0	01	1	-
170	SPRING; LEVER TO LEVER,GOV ASM PART: B = 8-97215-704-2	8-97225-865-0	01	1	-
175	LEVER; GOV,INJ PUMP ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-97176-488-0	01	1	-
177	RING; SNAP,GOV LEVER,INJ PUMP ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	9-81325-445-0	01	1	-
179	LEVER; SPD ADJ,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-94171-132-0	01	1	-
180	PLATE; GOV COVER ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-97121-643-0	01	1	-
266	NUT; PIN TO LINK,CONT RACK,GOV M5 ASM PART: D = 8-98285-612-0	1-15729-050-0	01	1	-
266	NUT; PIN TO LINK,CONT RACK,GOV M5 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	9-99110-405-0	01	1	-
267	BOLT; CONN,CONT RACK,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, D = 8-98285-612-0	1-15729-858-0	01	1	-
305	SHIM; STOP LEVER,GOV T=0.20 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-97089-308-0	AR	1	-
305	SHIM; STOP LEVER,GOV T=0.30 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-97089-309-0	AR	1	-
305	SHIM; STOP LEVER,GOV T=0.40 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-97089-310-0	AR	1	-
305	SHIM; STOP LEVER,GOV T=0.60 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-97089-311-0	AR	1	-
305	SHIM; STOP LEVER,GOV T=0.80 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-97089-312-0	AR	1	-
305	SHIM; STOP LEVER,GOV T=1.00 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	9-81325-553-0	01	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-820-0	01	1	-

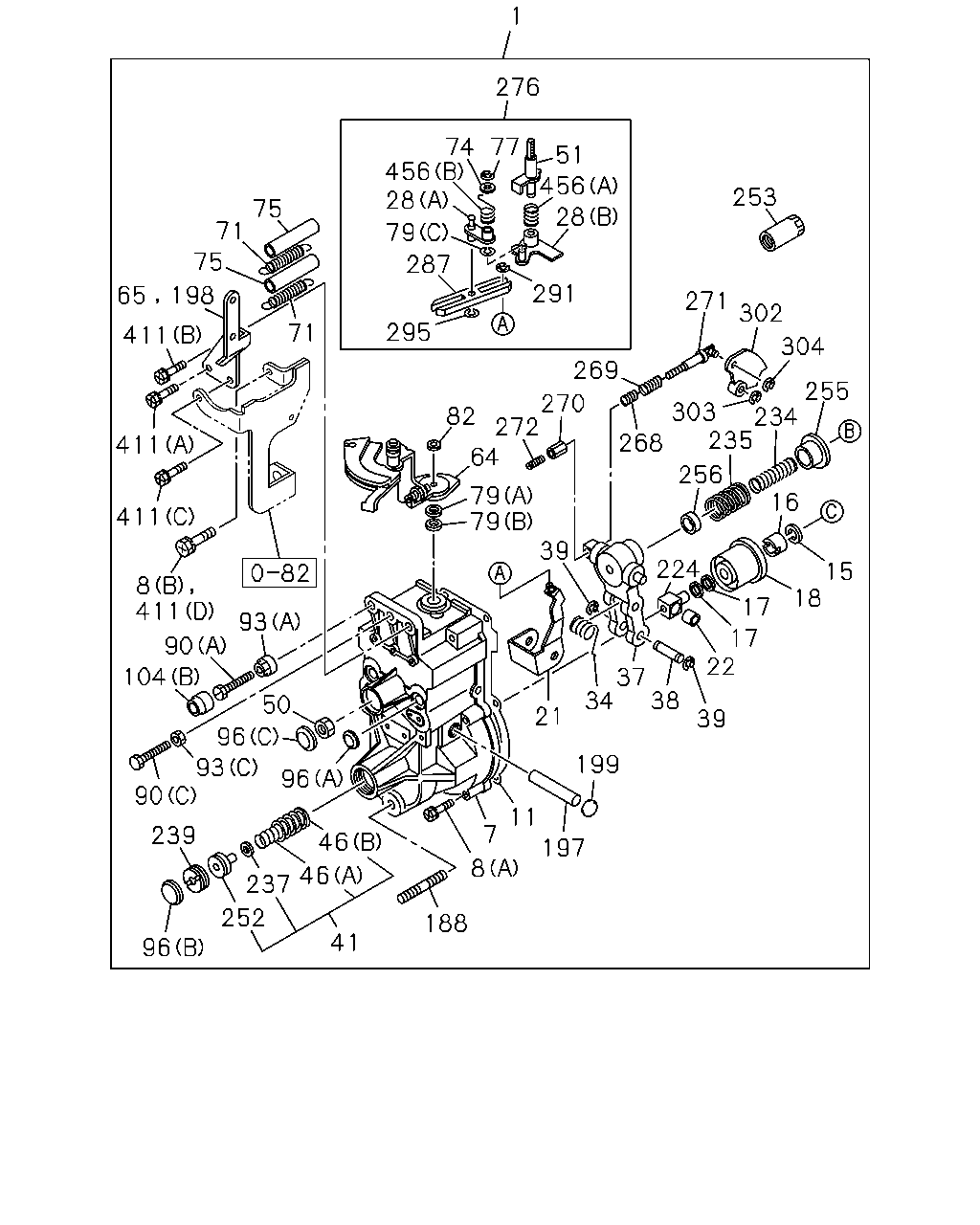

253 302 255 304 234 235 16 18 17 17 22 39 15 303 256 271 268 224 38 37 34 21 199 11 7 8 188 197 41 46 237 252 96 46 239 90 96 93 50 96 93 90 104 411 8 269 270 272 79 79 64 82 39 411 411 411 198 75 75 71 71 65 1 51 28 291 295 287 74 77 276 456 79 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GOVERNOR ASM; INJ PUMP ASM PART: A = 8-97178-485-5	8-97214-531-3	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: B = 8-97215-704-2	8-97225-684-0	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: C = 8-98268-832-0, E = 8-98317-243-0	8-98272-998-0	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: D = 8-98285-612-0	8-98304-430-0	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-97142-961-0	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	8-97142-962-0	01	1	-
8	BOLT; GOV COVER,INJ PUMP (B) ASM PART: D = 8-98285-612-0	1-15719-005-0	01	1	-
8	BOLT; GOV COVER,INJ PUMP (B) ASM PART: A = 8-97178-485-5	1-15729-535-0	02	1	-
8	BOLT; GOV COVER,INJ PUMP (A) ASM PART: B = 8-97215-704-2, C = 8-98268-832-0, E = 8-98317-243-0	5-15729-033-0	07	1	-
8	BOLT; GOV COVER,INJ PUMP (A) ASM PART: D = 8-98285-612-0	5-15729-033-0	06	1	-
8	BOLT; GOV COVER,INJ PUMP (A) ASM PART: A = 8-97178-485-5	5-15729-033-0	05	1	-
11	GASKET; COVER TO HSG,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15779-107-0	01	1	-
15	WASHER; LK,FLYWEIGHT FIX,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	5-15729-034-0	01	1	-
16	NUT; FLYWEIGHT FIX,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	9-81325-086-0	01	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=2.00 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-891-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=3.00 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-892-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=4.00 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-893-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.50 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	5-15729-286-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.50 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	5-15729-287-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.20 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	9-81325-088-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.30 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	9-81325-551-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.40 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	9-81325-552-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.00 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	9-81325-553-0	AR	1	-
18	SLEEVE; GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	5-15729-372-0	01	1	-
21	LEVER ASM; GUIDE,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-97223-398-0	01	1	-
22	COLLAR; LEVER,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-94368-298-1	01	1	-
28	LEVER; SUPPORTING,GOV (A) ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15725-472-0	01	1	-
28	LEVER; SUPPORTING,GOV (B) ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15725-485-0	01	1	-
34	SPRING; SPD CONT LEVER,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-94171-140-1	01	1	-
37	LEVER ASM; TENSION,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-97214-455-0	01	1	-
38	PIN; TENSION LEVER,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-370-0	01	1	-
39	RING; SNAP,LEVER PIN,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	9-88410-201-0	02	1	-
41	SPRING CAPSULE; IDLE CONT,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-97085-009-0	01	1	-
46	SPRING; GOV,INJ PUMP (A) ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-97115-982-0	01	1	-
46	SPRING; GOV,INJ PUMP (B) ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-97115-983-0	01	1	-
50	NUT; GOV SHAFT,INJ PUMP ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-94171-147-0	01	1	-
51	SHAFT; LOAD CONT LEVER,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-876-0	01	1	-
64	LEVER; LOAD CONT,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-97026-934-1	01	1	-
65	BRACKET; RETURN SPRING,GOV ASM PART: D = 8-98285-612-0	8-97026-928-0	01	1	-
71	SPRING; CONT LEVER,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-97026-929-0	02	1	-
74	WASHER; LEVER SPR ID=6.4 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	9-09160-506-0	01	1	-
75	TUBE; RETURN SPRING,STOPPER LEVER,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-963-0	02	1	-
77	RING; SNAP,CONT LEVER,GOV ASM PART: C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-94244-599-0	01	1	-
77	RING; SNAP,CONT LEVER,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	9-88410-201-0	01	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.95 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-076-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.20 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-077-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.25 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-078-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.30 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-079-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.35 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-080-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.40 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-081-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.50 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-082-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (C) ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-517-0	01	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.70 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-617-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.90 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-618-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.80 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-619-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.60 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-896-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (A) ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-97066-844-0	01	1	-
82	NUT; CONT LEVER FIX,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-236-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X62 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-642-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (C), M8X65 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-761-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X33 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, E = 8-98317-243-0	1-15729-799-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X33 ASM PART: D = 8-98285-612-0	1-15729-799-0	AR	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X34 ASM PART: D = 8-98285-612-0	1-15729-800-0	AR	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X34 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, E = 8-98317-243-0	1-15729-800-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X35 ASM PART: D = 8-98285-612-0	1-15729-801-0	AR	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X35 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, E = 8-98317-243-0	1-15729-801-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X36 ASM PART: D = 8-98285-612-0	1-15729-802-0	AR	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X36 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, E = 8-98317-243-0	1-15729-802-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X37 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, E = 8-98317-243-0	1-15729-803-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X37 ASM PART: D = 8-98285-612-0	1-15729-803-0	AR	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X31 ASM PART: D = 8-98285-612-0	1-15729-842-0	AR	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X31 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, E = 8-98317-243-0	1-15729-842-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X32 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, E = 8-98317-243-0	1-15729-843-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X32 ASM PART: D = 8-98285-612-0	1-15729-843-0	AR	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (A) ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-643-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (B) ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-807-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (C) ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-97026-924-0	01	1	-
96	PLUG; LEVER SHAFT,GOV (A) ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	5-15729-076-0	01	1	-
96	PLUG; LEVER SHAFT,GOV (B) ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-94171-145-0	01	1	-
96	PLUG; LEVER SHAFT,GOV (C) ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-94171-148-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (A) ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-97085-021-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (B) ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-97085-022-0	01	1	-
175	LEVER; GOV,INJ PUMP ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-97176-488-0	01	1	-
188	STUD; COVER ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-790-0	01	1	-
197	SHAFT; LEVER,GOV COVER ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	5-15725-008-0	01	1	-
198	BRACKET; COVER ASM PART: C = 8-98268-832-0, E = 8-98317-243-0	8-97026-928-0	01	1	-
198	BRACKET; COVER ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	8-97085-014-0	01	1	-
199	PLUG; LEVER SHAFT,GOV COVER ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	5-15729-076-0	02	1	-
224	SHIFTER; TENSION LEVER,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-94171-142-0	01	1	-
234	SPRING; INNER,GOV,INJ PUMP ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-97214-457-0	01	1	-
235	SPRING; OUTER,GOV,INJ PUMP ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-97214-456-0	01	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.30 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-966-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.50 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-967-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.80 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-968-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.10 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-94472-268-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.20 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-94472-269-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.25 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-94472-270-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=1.00 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-94472-271-0	AR	1	-
239	SCREW; GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-94171-144-0	01	1	-
252	SCREW; GUIDE ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15779-003-1	01	1	-
253	LIMITTER; GOV CONT ASM PART: C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-94167-792-0	01	1	-
255	SEAT; GOV SPRING,INJ PUMP ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-94171-173-0	01	1	-
256	SEAT; GOV SPRING ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15779-214-0	01	1	-
268	SPRING; ROD INNER,TORQUE CAM,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	5-15723-056-0	01	1	-
269	SPRING; ROD OUTER,TORQUE CAM,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	5-15723-070-1	01	1	-
270	NUT; TORQUE ROD LK,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	5-15729-051-0	01	1	-
271	ROD; TORQUE CAM,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	5-15725-009-1	01	1	-
272	SCREW; ADJ,TORQUE CAM ROD,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-94171-138-0	01	1	-
276	LEVER ASM; LOAD CONT,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15725-534-0	01	1	-
287	LEVER; GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15725-542-0	01	1	-
291	RING; SNAP,CONT SHAFT,GOV ASM PART: C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	5-15729-023-0	01	1	-
291	RING; SNAP,CONT SHAFT,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	9-81325-445-0	01	1	-
295	RING; SNAP ASM PART: C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	5-15729-023-0	01	1	-
295	RING; SNAP ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	9-81325-445-0	01	1	-
302	PLATE; CAM,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	8-97214-458-0	01	1	-
302	PLATE; CAM,GOV ASM PART: C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-98283-545-0	01	1	-
303	RING; SNAP,CAM PLATE,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	5-15729-023-0	01	1	-
304	RING; SNAP,LINK TO CAM PLATE,GOV ID=4 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	9-09185-404-0	01	1	-
411	BOLT; BRKT (C) ASM PART: D = 8-98285-612-0	1-15619-187-0	01	1	-
411	BOLT; BRKT (A) ASM PART: C = 8-98268-832-0, E = 8-98317-243-0	1-15719-005-0	02	1	-
411	BOLT; BRKT (A) ASM PART: D = 8-98285-612-0	1-15719-005-0	01	1	-
411	BOLT; BRKT (D) ASM PART: D = 8-98285-612-0	1-15729-535-0	01	1	-
411	BOLT; BRKT (B) ASM PART: C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	5-15729-304-0	01	1	-
456	SPRING; LEVER,GOV (B) ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15723-295-0	01	1	-
456	SPRING; LEVER,GOV (A) ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-94413-728-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
