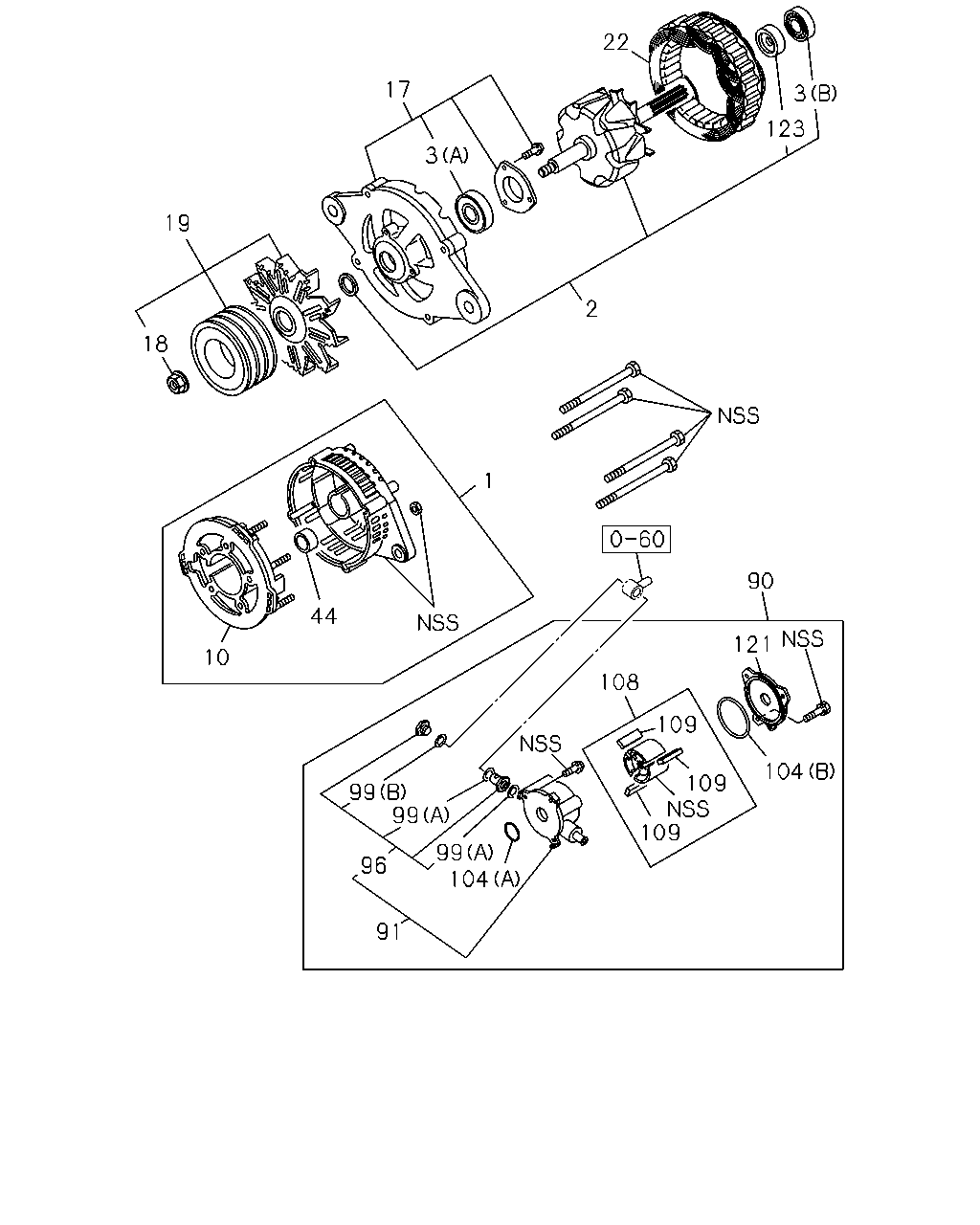

0-66 — GENERATOR (#130812) — 84 parça

90 121 104 109 109 108 109 99 99 99 104 96 91 1 2 3 17 19 18 10 44 22 123 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN ASM PART: E = 8-98075-026-0	8-98230-316-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: D = 8-98029-892-2	8-98230-317-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: A = 8-97351-572-1	8-98230-320-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: B = 8-97351-573-0	8-98230-321-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: C = 8-97351-574-1	8-98230-322-0	01	1	-
2	ROTOR; GEN ASM PART: C = 8-97351-574-1	8-97249-330-1	01	1	-
2	ROTOR; GEN ASM PART: B = 8-97351-573-0	8-97302-700-0	01	1	-
2	ROTOR; GEN MAL ASM PART: A = 8-97351-572-1	8-97351-705-0	01	1	-
2	ROTOR; GEN ASM PART: E = 8-98075-026-0	8-98038-914-0	01	1	-
2	ROTOR; GEN ASM PART: D = 8-98029-892-2	8-98038-916-1	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: A = 8-97351-572-1, B = 8-97351-573-0, C = 8-97351-574-1, D = 8-98029-892-2, E = 8-98075-026-0	8-97062-744-0	01	1	-
3	BEARING; ROTOR,GEN (C) ASM PART: D = 8-98029-892-2, E = 8-98075-026-0	8-97161-473-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: B = 8-97351-573-0, C = 8-97351-574-1	8-98146-442-0	01	1	-
3	BEARING; ROTOR,GEN (A), MAL ASM PART: A = 8-97351-572-1	8-98159-457-0	01	1	-
10	RECTIFIER; GEN ASM PART: E = 8-98075-026-0	8-98230-326-0	01	1	-
10	RECTIFIER; GEN ASM PART: D = 8-98029-892-2	8-98230-327-0	01	1	-
10	RECTIFIER; GEN ASM PART: A = 8-97351-572-1	8-98230-330-0	01	1	-
10	RECTIFIER; GEN ASM PART: B = 8-97351-573-0, C = 8-97351-574-1	8-98230-331-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: C = 8-97351-574-1	8-97249-334-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: B = 8-97351-573-0	8-97302-703-0	01	1	-
17	COVER ASM; FRT,GEN MAL ASM PART: A = 8-97351-572-1	8-97351-706-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: D = 8-98029-892-2	8-98038-924-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: E = 8-98075-026-0	8-98076-329-0	01	1	-
18	NUT; PULLEY,GEN ASM PART: B = 8-97351-573-0	8-97083-293-0	01	1	-
19	PULLEY; GEN ASM PART: B = 8-97351-573-0	8-97083-292-0	01	1	-
19	PULLEY; GEN MAL ASM PART: A = 8-97351-572-1	8-97148-113-0	01	1	-
19	PULLEY; GEN ASM PART: C = 8-97351-574-1	8-97249-335-0	01	1	-
19	PULLEY; GEN ASM PART: E = 8-98075-026-0	8-98038-926-1	01	1	-
19	PULLEY; GEN ASM PART: D = 8-98029-892-2	8-98040-133-0	01	1	-
22	STATOR; GEN MAL ASM PART: A = 8-97351-572-1, E = 8-98075-026-0	8-97192-850-0	01	1	-
22	STATOR; GEN ASM PART: C = 8-97351-574-1, D = 8-98029-892-2	8-97249-331-1	01	1	-
22	STATOR; GEN ASM PART: B = 8-97351-573-0	8-97302-701-0	01	1	-
44	SEAL; RR COVER,GEN MAL ASM PART: A = 8-97351-572-1, B = 8-97351-573-0, C = 8-97351-574-1	8-94156-589-0	01	1	-
90	PUMP ASM; VAC,GEN MAL ASM PART: A = 8-97351-572-1, B = 8-97351-573-0, C = 8-97351-574-1	8-97351-707-0	01	1	-
91	BODY; VAC PUMP MAL ASM PART: A = 8-97351-572-1, B = 8-97351-573-0, C = 8-97351-574-1	8-97148-117-0	01	1	-
96	VALVE ASM; VAC PUMP MAL ASM PART: A = 8-97351-572-1, B = 8-97351-573-0, C = 8-97351-574-1	8-97148-118-0	01	1	-
99	GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: A = 8-97351-572-1, B = 8-97351-573-0, C = 8-97351-574-1	5-19679-002-0	02	1	-
99	GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: A = 8-97351-572-1, B = 8-97351-573-0, C = 8-97351-574-1	5-19679-003-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (A), MAL ASM PART: A = 8-97351-572-1, B = 8-97351-573-0, C = 8-97351-574-1	8-94156-608-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (B), MAL ASM PART: A = 8-97351-572-1, B = 8-97351-573-0, C = 8-97351-574-1	8-97083-304-0	01	1	-
108	ROTOR; VAC PUMP MAL ASM PART: A = 8-97351-572-1, B = 8-97351-573-0, C = 8-97351-574-1	8-97148-115-1	01	1	-
109	VANE; VAC PUMP MAL ASM PART: A = 8-97351-572-1, B = 8-97351-573-0, C = 8-97351-574-1	8-97083-298-0	03	1	-
121	COVER; RR,VAC PUMP MAL ASM PART: A = 8-97351-572-1, B = 8-97351-573-0, C = 8-97351-574-1	8-97148-116-0	01	1	-
123	GUIDE; BRUSH MAL ASM PART: A = 8-97351-572-1, B = 8-97351-573-0, C = 8-97351-574-1, D = 8-98029-892-2, E = 8-98075-026-0	8-97062-644-0	01	1	-

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	SCREW; RECTIFIER,GEN MAL ASM PART: A = 8-97351-572-1, B = 8-97351-573-0	8-97131-532-0	01	1	-
24	SCREW; RECTIFIER,GEN ASM PART: C = 8-97351-574-1	8-97249-336-0	01	1	-
24	SCREW; RECTIFIER,GEN ASM PART: E = 8-98075-026-0	8-98038-927-0	01	1	-
24	SCREW; RECTIFIER,GEN ASM PART: D = 8-98029-892-2	8-98038-928-0	01	1	-

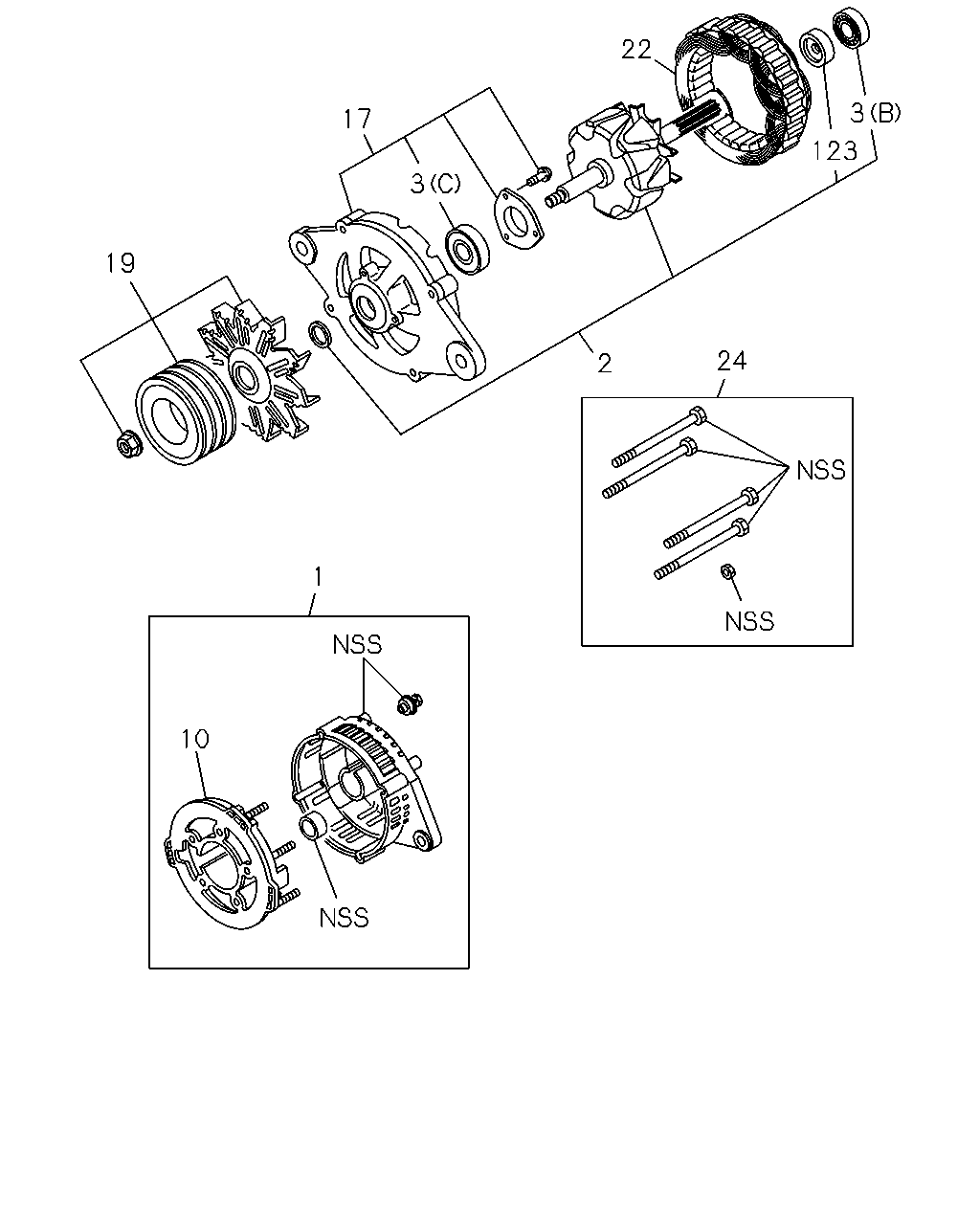

3 123 22 17 3 19 1 10 2 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN ASM PART: E = 8-98075-026-0	8-98230-316-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: D = 8-98029-892-2	8-98230-317-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: A = 8-97351-572-1	8-98230-320-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: B = 8-97351-573-0	8-98230-321-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: C = 8-97351-574-1	8-98230-322-0	01	1	-
2	ROTOR; GEN ASM PART: C = 8-97351-574-1	8-97249-330-1	01	1	-
2	ROTOR; GEN ASM PART: B = 8-97351-573-0	8-97302-700-0	01	1	-
2	ROTOR; GEN MAL ASM PART: A = 8-97351-572-1	8-97351-705-0	01	1	-
2	ROTOR; GEN ASM PART: E = 8-98075-026-0	8-98038-914-0	01	1	-
2	ROTOR; GEN ASM PART: D = 8-98029-892-2	8-98038-916-1	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: A = 8-97351-572-1, B = 8-97351-573-0, C = 8-97351-574-1, D = 8-98029-892-2, E = 8-98075-026-0	8-97062-744-0	01	1	-
3	BEARING; ROTOR,GEN (C) ASM PART: D = 8-98029-892-2, E = 8-98075-026-0	8-97161-473-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: B = 8-97351-573-0, C = 8-97351-574-1	8-98146-442-0	01	1	-
3	BEARING; ROTOR,GEN (A), MAL ASM PART: A = 8-97351-572-1	8-98159-457-0	01	1	-
10	RECTIFIER; GEN ASM PART: E = 8-98075-026-0	8-98230-326-0	01	1	-
10	RECTIFIER; GEN ASM PART: D = 8-98029-892-2	8-98230-327-0	01	1	-
10	RECTIFIER; GEN ASM PART: A = 8-97351-572-1	8-98230-330-0	01	1	-
10	RECTIFIER; GEN ASM PART: B = 8-97351-573-0, C = 8-97351-574-1	8-98230-331-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: C = 8-97351-574-1	8-97249-334-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: B = 8-97351-573-0	8-97302-703-0	01	1	-
17	COVER ASM; FRT,GEN MAL ASM PART: A = 8-97351-572-1	8-97351-706-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: D = 8-98029-892-2	8-98038-924-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: E = 8-98075-026-0	8-98076-329-0	01	1	-
19	PULLEY; GEN ASM PART: B = 8-97351-573-0	8-97083-292-0	01	1	-
19	PULLEY; GEN MAL ASM PART: A = 8-97351-572-1	8-97148-113-0	01	1	-
19	PULLEY; GEN ASM PART: C = 8-97351-574-1	8-97249-335-0	01	1	-
19	PULLEY; GEN ASM PART: E = 8-98075-026-0	8-98038-926-1	01	1	-
19	PULLEY; GEN ASM PART: D = 8-98029-892-2	8-98040-133-0	01	1	-
22	STATOR; GEN MAL ASM PART: A = 8-97351-572-1, E = 8-98075-026-0	8-97192-850-0	01	1	-
22	STATOR; GEN ASM PART: C = 8-97351-574-1, D = 8-98029-892-2	8-97249-331-1	01	1	-
22	STATOR; GEN ASM PART: B = 8-97351-573-0	8-97302-701-0	01	1	-
24	SCREW; RECTIFIER,GEN MAL ASM PART: A = 8-97351-572-1, B = 8-97351-573-0	8-97131-532-0	01	1	-
24	SCREW; RECTIFIER,GEN ASM PART: C = 8-97351-574-1	8-97249-336-0	01	1	-
24	SCREW; RECTIFIER,GEN ASM PART: E = 8-98075-026-0	8-98038-927-0	01	1	-
24	SCREW; RECTIFIER,GEN ASM PART: D = 8-98029-892-2	8-98038-928-0	01	1	-
123	GUIDE; BRUSH MAL ASM PART: A = 8-97351-572-1, B = 8-97351-573-0, C = 8-97351-574-1, D = 8-98029-892-2, E = 8-98075-026-0	8-97062-644-0	01	1	-
