◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51501 - NPR(MALAYSIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-61 - BATTERY AND ENGINE ELECTRICAL PARTS ▶
0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#130810) — 69 parça

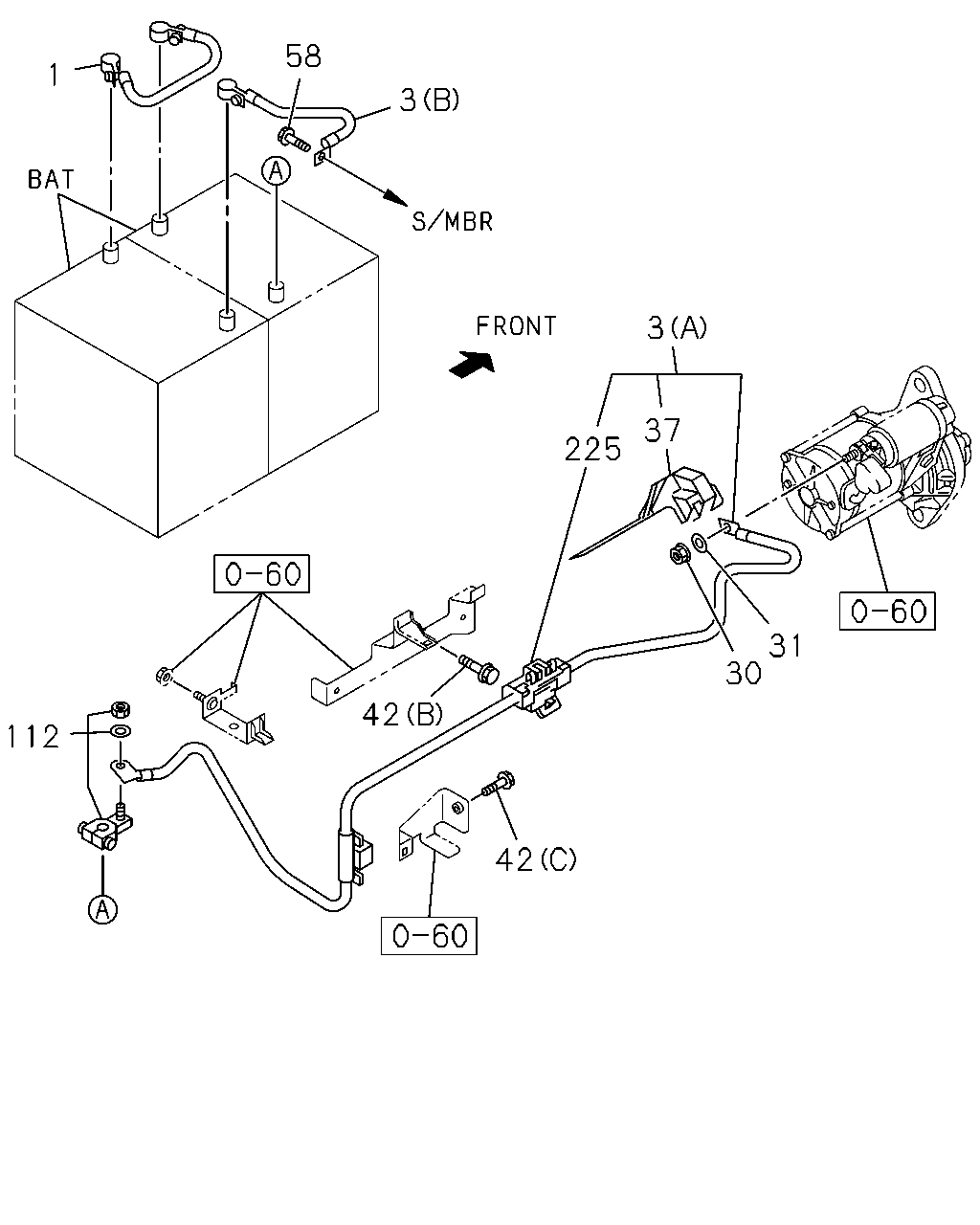

çizim 385271
1 58 225 3 37 31 30 42 42 112 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; BATTERY
L=280 MAL 		8-98025-412-3 01 1 1311- ● ●
3 HARNESS; CABLE,BATTERY TO STARTER
DBL CAB(NP**W*) M/T MYY6S(RST) BATTERY 115E41L<8MA> (C) 		8-98294-733-0 01 1 1501- ●
3 HARNESS; CABLE,BATTERY TO STARTER
DBL CAB(NP**W*) M/T MYY6S(RST) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-722-0 01 1 1501- ●
3 HARNESS; CABLE,BATTERY TO STARTER
DBL CAB(NP**W*) BATTERY 115E41L<8MA> (D) L=450 		8-98072-275-1 01 1 1501- ●
3 HARNESS; CABLE,BATTERY TO STARTER
DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> (B) L=250 		8-98056-338-1 01 1 1501- ●
3 HARNESS; CABLE,BATTERY TO STARTER
SGL CAB(NP**S*) (B) L=200 MAL 		8-98056-337-1 01 1 1311-1311 ●
3 HARNESS; CABLE,BATTERY TO STARTER
SGL CAB(NP**S*) EXC. BATTERY 115E41L<8MA> (B) L=200 MAL 		8-98056-337-1 01 1 1312- ● ●
3 HARNESS; CABLE,BATTERY TO STARTER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) MAL 		8-98067-966-4 01 1 1311-1311 ●
3 HARNESS; CABLE,BATTERY TO STARTER
(A) MAL 		8-98067-966-4 01 1 1311-1311 ●
3 HARNESS; CABLE,BATTERY TO STARTER
SGL CAB(NP**S*) EXC. BATTERY 115E41L<8MA> (A) MAL 		8-98067-966-4 01 1 1312-1409 ● ●
3 HARNESS; CABLE,BATTERY TO STARTER
SGL CAB(NP**S*) EXC. BATTERY 115E41L<8MA> (A) MAL 		8-98294-718-0 01 1 1410- ● ●
3 HARNESS; CABLE,BATTERY TO STARTER
SGL CAB(NP**S*) BATTERY 115E41L<8MA> (C) MAL 		8-98070-230-2 01 1 1312-1409 ● ●
3 HARNESS; CABLE,BATTERY TO STARTER
SGL CAB(NP**S*) BATTERY 115E41L<8MA> (C) MAL 		8-98294-721-0 01 1 1410- ● ●
3 HARNESS; CABLE,BATTERY TO STARTER
SGL CAB(NP**S*) BATTERY 115E41L<8MA> (D) L=400 MAL 		8-98201-105-0 01 1 1312- ● ●
30 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 1311-1311 ●
30 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 1312- ● ●
31 WASHER; LK,CABLE,STARTER TO BATTERY
ID=8.2 		0-91510-808-0 01 1 1311-1311 ●
31 WASHER; LK,CABLE,STARTER TO BATTERY
ID=8.2 		0-91510-808-0 01 1 1312- ● ●
37 CAP; TERMINAL,BATTERY CABLE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98042-507-0 01 1 1311-1311 ●
37 CAP; TERMINAL,BATTERY CABLE
MAL 		8-98042-507-0 01 1 1311-1311 ●
37 CAP; TERMINAL,BATTERY CABLE
SGL CAB(NP**S*) MAL 		8-98042-507-0 01 1 1312-1412 ● ●
37 CAP; TERMINAL,BATTERY CABLE
MAL 		8-98042-507-0 01 1 1501- ● ●
42 BOLT; BRKT,BATTERY CABLE
DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> (C) M6X25 FLANGE MAL 		0-28650-625-0 01 1 1501- ●
42 BOLT; BRKT,BATTERY CABLE
(B) M6X16 FLANGE 		8-97329-599-0 01 1 1311- ● ●
42 BOLT; BRKT,BATTERY CABLE
SGL CAB(NP**S*) BATTERY 115E41L<8MA> (A) M8X25 FLANGE MAL 		0-28650-825-0 01 1 1312- ● ●
58 BOLT; CABLE,BATTERY
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1311-1311 ●
58 BOLT; CABLE,BATTERY
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1312- ● ●
112 TERMINAL; BATTERY
<+> MAL 		8-97365-771-0 01 1 1311- ● ●
225 BLOCK; TERMINAL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98029-689-0 01 1 1311-1311 ●
225 BLOCK; TERMINAL
MAL 		8-98029-689-0 01 1 1311-1311 ●
225 BLOCK; TERMINAL
SGL CAB(NP**S*) MAL 		8-98029-689-0 01 1 1312-1409 ● ●
225 BLOCK; TERMINAL
SGL CAB(NP**S*) MAL 		8-98294-524-0 01 1 1410-1412 ● ●
225 BLOCK; TERMINAL
MAL 		8-98294-524-0 01 1 1501- ● ●

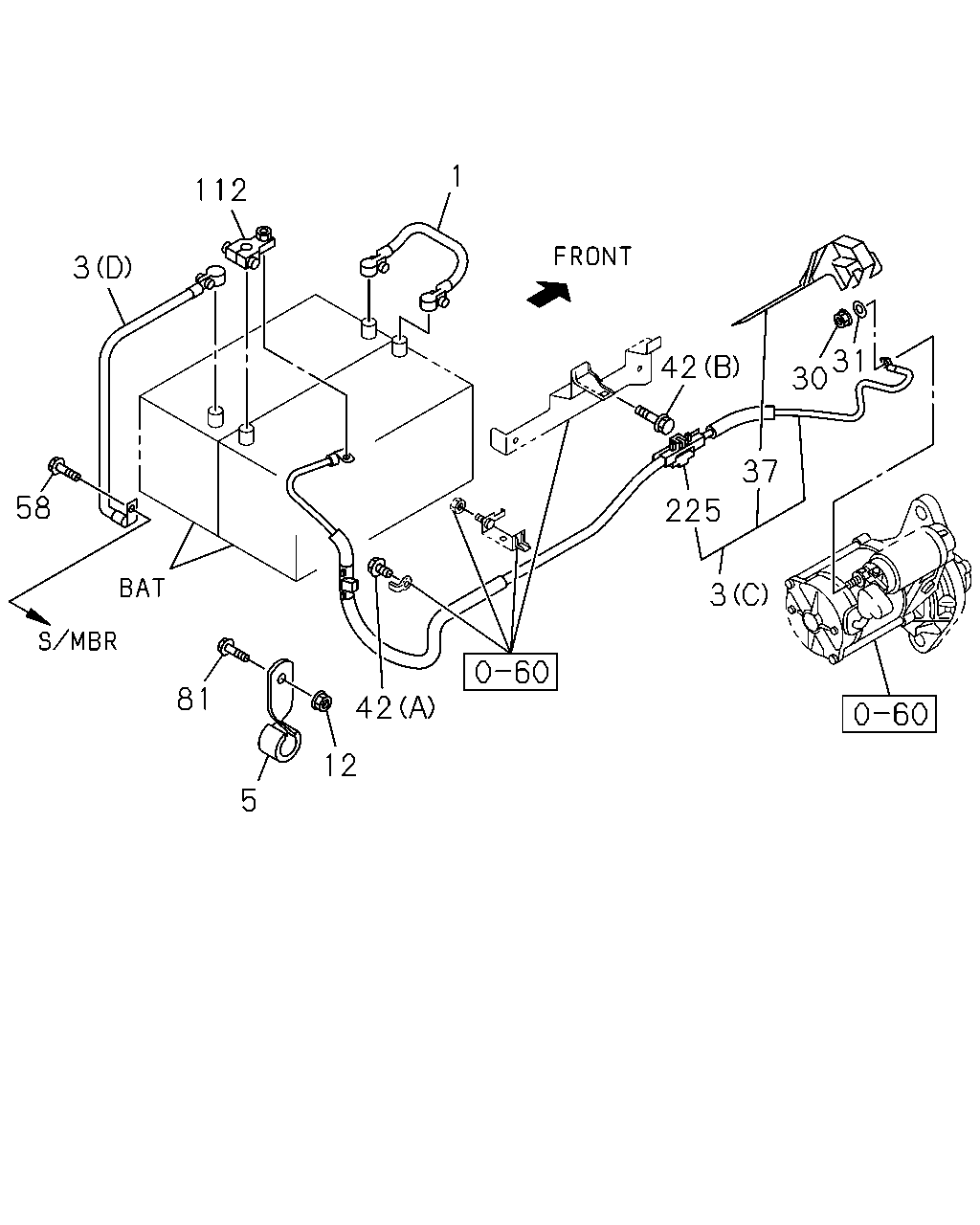

çizim 385276
1 112 3 58 81 5 42 12 225 37 31 30 42 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; BATTERY
L=280 MAL 		8-98025-412-3 01 1 1311- ● ●
3 HARNESS; CABLE,BATTERY TO STARTER
DBL CAB(NP**W*) M/T MYY6S(RST) BATTERY 115E41L<8MA> (C) 		8-98294-733-0 01 1 1501- ●
3 HARNESS; CABLE,BATTERY TO STARTER
DBL CAB(NP**W*) M/T MYY6S(RST) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-722-0 01 1 1501- ●
3 HARNESS; CABLE,BATTERY TO STARTER
DBL CAB(NP**W*) BATTERY 115E41L<8MA> (D) L=450 		8-98072-275-1 01 1 1501- ●
3 HARNESS; CABLE,BATTERY TO STARTER
DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> (B) L=250 		8-98056-338-1 01 1 1501- ●
3 HARNESS; CABLE,BATTERY TO STARTER
SGL CAB(NP**S*) (B) L=200 MAL 		8-98056-337-1 01 1 1311-1311 ●
3 HARNESS; CABLE,BATTERY TO STARTER
SGL CAB(NP**S*) EXC. BATTERY 115E41L<8MA> (B) L=200 MAL 		8-98056-337-1 01 1 1312- ● ●
3 HARNESS; CABLE,BATTERY TO STARTER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) MAL 		8-98067-966-4 01 1 1311-1311 ●
3 HARNESS; CABLE,BATTERY TO STARTER
(A) MAL 		8-98067-966-4 01 1 1311-1311 ●
3 HARNESS; CABLE,BATTERY TO STARTER
SGL CAB(NP**S*) EXC. BATTERY 115E41L<8MA> (A) MAL 		8-98067-966-4 01 1 1312-1409 ● ●
3 HARNESS; CABLE,BATTERY TO STARTER
SGL CAB(NP**S*) EXC. BATTERY 115E41L<8MA> (A) MAL 		8-98294-718-0 01 1 1410- ● ●
3 HARNESS; CABLE,BATTERY TO STARTER
SGL CAB(NP**S*) BATTERY 115E41L<8MA> (C) MAL 		8-98070-230-2 01 1 1312-1409 ● ●
3 HARNESS; CABLE,BATTERY TO STARTER
SGL CAB(NP**S*) BATTERY 115E41L<8MA> (C) MAL 		8-98294-721-0 01 1 1410- ● ●
3 HARNESS; CABLE,BATTERY TO STARTER
SGL CAB(NP**S*) BATTERY 115E41L<8MA> (D) L=400 MAL 		8-98201-105-0 01 1 1312- ● ●
5 CLIP; BATTERY CABLE TO BODY
DBL CAB(NP**W*) BATTERY 115E41L<8MA> ID=19 L=58 		1-09700-733-1 01 1 1501- ●
12 NUT; BATTERY CABLE CLIP
DBL CAB(NP**W*) BATTERY 115E41L<8MA> M8 FLANGE MAL 		0-91180-108-0 01 1 1501- ●
30 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 1311-1311 ●
30 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 1312- ● ●
31 WASHER; LK,CABLE,STARTER TO BATTERY
ID=8.2 		0-91510-808-0 01 1 1311-1311 ●
31 WASHER; LK,CABLE,STARTER TO BATTERY
ID=8.2 		0-91510-808-0 01 1 1312- ● ●
37 CAP; TERMINAL,BATTERY CABLE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98042-507-0 01 1 1311-1311 ●
37 CAP; TERMINAL,BATTERY CABLE
MAL 		8-98042-507-0 01 1 1311-1311 ●
37 CAP; TERMINAL,BATTERY CABLE
SGL CAB(NP**S*) MAL 		8-98042-507-0 01 1 1312-1412 ● ●
37 CAP; TERMINAL,BATTERY CABLE
MAL 		8-98042-507-0 01 1 1501- ● ●
42 BOLT; BRKT,BATTERY CABLE
DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> (C) M6X25 FLANGE MAL 		0-28650-625-0 01 1 1501- ●
42 BOLT; BRKT,BATTERY CABLE
(B) M6X16 FLANGE 		8-97329-599-0 01 1 1311- ● ●
42 BOLT; BRKT,BATTERY CABLE
SGL CAB(NP**S*) BATTERY 115E41L<8MA> (A) M8X25 FLANGE MAL 		0-28650-825-0 01 1 1312- ● ●
58 BOLT; CABLE,BATTERY
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1311-1311 ●
58 BOLT; CABLE,BATTERY
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1312- ● ●
81 BOLT; BATTERY CABLE
DBL CAB(NP**W*) BATTERY 115E41L<8MA> M8X25 FLANGE MAL 		0-28650-825-0 01 1 1501- ●
112 TERMINAL; BATTERY
<+> MAL 		8-97365-771-0 01 1 1311- ● ●
225 BLOCK; TERMINAL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98029-689-0 01 1 1311-1311 ●
225 BLOCK; TERMINAL
MAL 		8-98029-689-0 01 1 1311-1311 ●
225 BLOCK; TERMINAL
SGL CAB(NP**S*) MAL 		8-98029-689-0 01 1 1312-1409 ● ●
225 BLOCK; TERMINAL
SGL CAB(NP**S*) MAL 		8-98294-524-0 01 1 1410-1412 ● ●
225 BLOCK; TERMINAL
MAL 		8-98294-524-0 01 1 1501- ● ●
