0-57 — EMISSION PIPING (#130808) — 90 parça

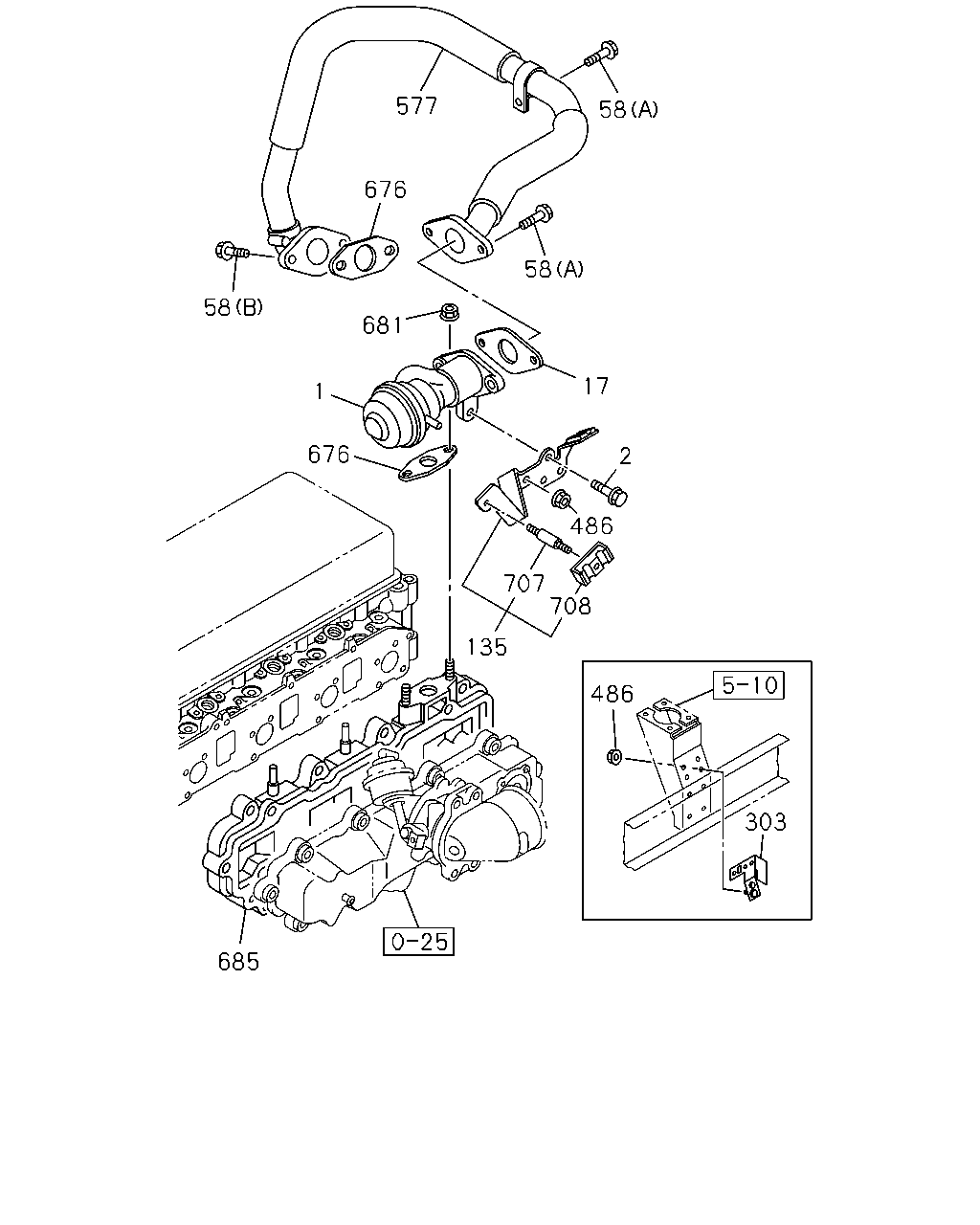

58 577 676 681 58 1 58 676 17 2 486 708 707 135 486 303 685

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE; EGR	8-97115-533-3	01	1	1311-1406	●
1	VALVE; EGR EXC. VIN MODEL YEAR 2015<VZF>	8-97115-533-3	01	1	1407-	●
2	BOLT; EGR VLV M8X20 FLANGE MAL	0-28650-820-0	01	1	1311-1406	●
2	BOLT; EGR VLV EXC. VIN MODEL YEAR 2015<VZF> M8X20 FLANGE MAL	0-28650-820-0	01	1	1407-	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97113-023-0	01	1	1311-1406	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIN MODEL YEAR 2015<VZF>	8-97113-023-0	01	1	1407-	●
58	BOLT; PIPE (A) M8X20 FLANGE MAL	0-28650-820-0	03	1	1311-1406	●
58	BOLT; PIPE EXC. VIN MODEL YEAR 2015<VZF> (A) M8X20 FLANGE MAL	0-28650-820-0	03	1	1407-	●
58	BOLT; PIPE (B) M8X23 FLANGE	8-97378-077-0	02	1	1311-1406	●
58	BOLT; PIPE EXC. VIN MODEL YEAR 2015<VZF> (B) M8X23 FLANGE	8-97378-077-0	02	1	1407-	●
135	BRACKET; EGR	8-97221-358-1	01	1	1311-	●
303	BRACKET; VAC SW	8-98122-539-0	01	1	1311-	●
303	BRACKET; VAC SW	8-98097-124-0	01	1	1312-		●
486	NUT; BRKT M8 FLANGE MAL	0-91180-108-0	02	1	1311-	●
486	NUT; BRKT M8 FLANGE MAL	0-91180-108-0	01	1	1311-1311	●
486	NUT; BRKT M8 FLANGE MAL	0-91180-108-0	01	1	1312-	●	●
577	PIPE; AIR,EGR	8-97200-643-2	01	1	1311-1406	●
577	PIPE; AIR,EGR EXC. VIN MODEL YEAR 2015<VZF>	8-97200-643-2	01	1	1407-	●
676	GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97146-683-0	02	1	1311-1406	●
676	GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIN MODEL YEAR 2015<VZF>	8-97146-683-0	02	1	1407-	●
681	NUT; EGR PIPE M8 FLANGE MAL	0-91180-108-0	02	1	1311-1406	●
681	NUT; EGR PIPE EXC. VIN MODEL YEAR 2015<VZF> M8 FLANGE MAL	0-91180-108-0	02	1	1407-	●
681	NUT; EGR PIPE M8 FLANGE	0-91180-208-0	02	1	1312-		●
685	CASE; INLET,EGR VIN MODEL YEAR 2015<VZF>	8-97146-873-1	01	1	1407-	●
685	CASE; INLET,EGR	8-97146-872-1	01	1	1311-1406	●
685	CASE; INLET,EGR EXC. VIN MODEL YEAR 2015<VZF>	8-97146-872-1	01	1	1407-	●
707	STUD; CLIP,INJ PIPE M6X25 L=36	8-97214-234-1	01	1	1311-	●
708	CLIP; PIPE,INJ	8-97213-481-0	01	1	1311-	●

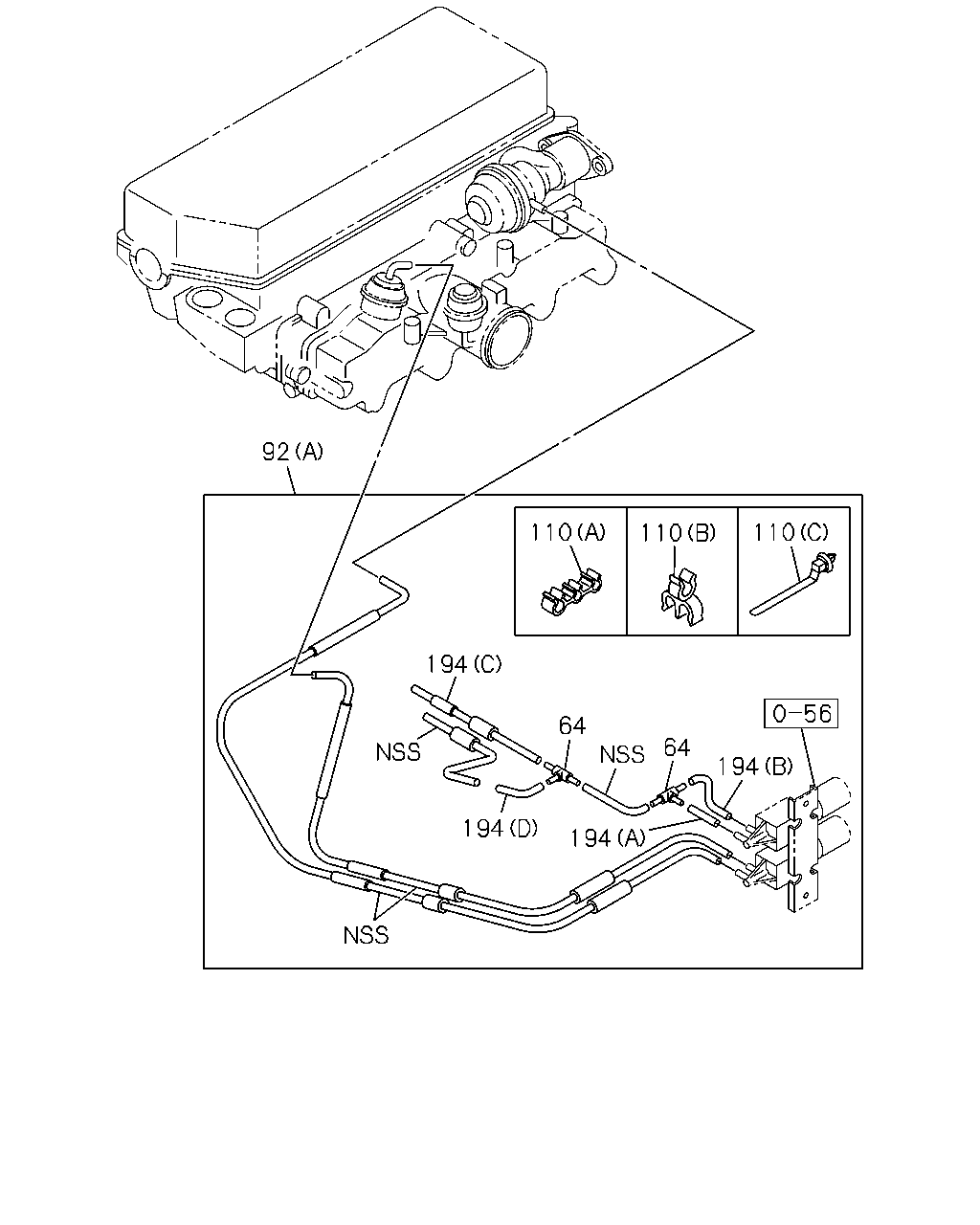

92 110 110 110 194 65 64 194 194 194

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
64	JOINT; 3 WAY,VAC AIR CONDITIONER MANUAL CONT(C60) VIN MODEL YEAR 2015<VZF> 3WAY	8-94208-695-0	01	1	1506-	●
64	JOINT; 3 WAY,VAC 3WAY	8-94208-695-0	02	1	1311-1406	●
64	JOINT; 3 WAY,VAC EXC. VIN MODEL YEAR 2015<VZF> 3WAY	8-94208-695-0	02	1	1407-	●
92	HOSE; VAC,THROTTLE BODY AIR CONDITIONER MANUAL CONT(C60) VIN MODEL YEAR 2015<VZF> (B)	8-98269-803-0	01	1	1407-	●
92	HOSE; VAC,THROTTLE BODY VIN MODEL YEAR 2015<VZF> EXC. AIR CONDITIONER MANUAL CONT(C60) (B)	8-98269-804-0	01	1	1407-	●
92	HOSE; VAC,THROTTLE BODY (A)	8-98169-777-1	01	1	1311-1406	●
92	HOSE; VAC,THROTTLE BODY EXC. VIN MODEL YEAR 2015<VZF> (A)	8-98169-777-1	01	1	1407-	●
110	CLIP; VAC HOSE VIN MODEL YEAR 2015<VZF> (A) ID=6.8 & 6.8 & 6.8	8-94208-734-0	01	1	1506-	●
110	CLIP; VAC HOSE (B) ID=6.8 & 6.8	8-94208-733-0	01	1	1311-1406	●
110	CLIP; VAC HOSE EXC. VIN MODEL YEAR 2015<VZF> (B) ID=6.8 & 6.8	8-94208-733-0	01	1	1407-1505	●
110	CLIP; VAC HOSE (B) ID=6.8 & 6.8	8-94208-733-0	01	1	1506-	●
110	CLIP; VAC HOSE (A) ID=6.8 & 6.8 & 6.8	8-94208-734-0	03	1	1311-1406	●
110	CLIP; VAC HOSE EXC. VIN MODEL YEAR 2015<VZF> (A) ID=6.8 & 6.8 & 6.8	8-94208-734-0	03	1	1407-	●
110	CLIP; VAC HOSE (C) L=109.5	8-97807-385-0	03	1	1311-1406	●
110	CLIP; VAC HOSE EXC. VIN MODEL YEAR 2015<VZF> (C) L=109.5	8-97807-385-0	03	1	1407-1505	●
110	CLIP; VAC HOSE (C) L=109.5	8-97807-385-0	03	1	1506-	●
110	CLIP; VAC HOSE (D) ID=13.2 & 14.5	8-94475-649-0	01	1	1312-		●
194	HOSE; VAC (A) L=30 SERVICED BY L=3000	0-04730-300-0	01	1	1311-1406	●
194	HOSE; VAC EXC. VIN MODEL YEAR 2015<VZF> (A) L=30 SERVICED BY L=3000	0-04730-300-0	01	1	1407-	●
194	HOSE; VAC (B) L=50 SERVICED BY L=3000	0-04730-300-0	01	1	1311-1406	●
194	HOSE; VAC EXC. VIN MODEL YEAR 2015<VZF> (B) L=50 SERVICED BY L=3000	0-04730-300-0	01	1	1407-	●
194	HOSE; VAC (D) L=90 SERVICED BY L=3000	0-04730-300-0	01	1	1311-1406	●
194	HOSE; VAC EXC. VIN MODEL YEAR 2015<VZF> (D) L=90 SERVICED BY L=3000	0-04730-300-0	01	1	1407-1505	●
194	HOSE; VAC EXC. VIN MODEL YEAR 2015<VZF> (D) L=90 SERVICED BY L=3000	0-04730-300-0	01	1	1506-	●
194	HOSE; VAC AIR CONDITIONER MANUAL CONT(C60) VIN MODEL YEAR 2015<VZF> (D) L=90 SERVICED BY L=3000	0-04730-300-0	01	1	1506-	●
194	HOSE; VAC (C) L=290 SERVICED BY L=3000	0-04730-300-0	01	1	1311-1406	●
194	HOSE; VAC EXC. VIN MODEL YEAR 2015<VZF> (C) L=290 SERVICED BY L=3000	0-04730-300-0	01	1	1407-1505	●
194	HOSE; VAC EXC. VIN MODEL YEAR 2015<VZF> (C) L=290 SERVICED BY L=3000	0-04730-300-0	01	1	1506-	●
194	HOSE; VAC AIR CONDITIONER MANUAL CONT(C60) VIN MODEL YEAR 2015<VZF> (C) L=290 SERVICED BY L=3000	0-04730-300-0	01	1	1506-	●

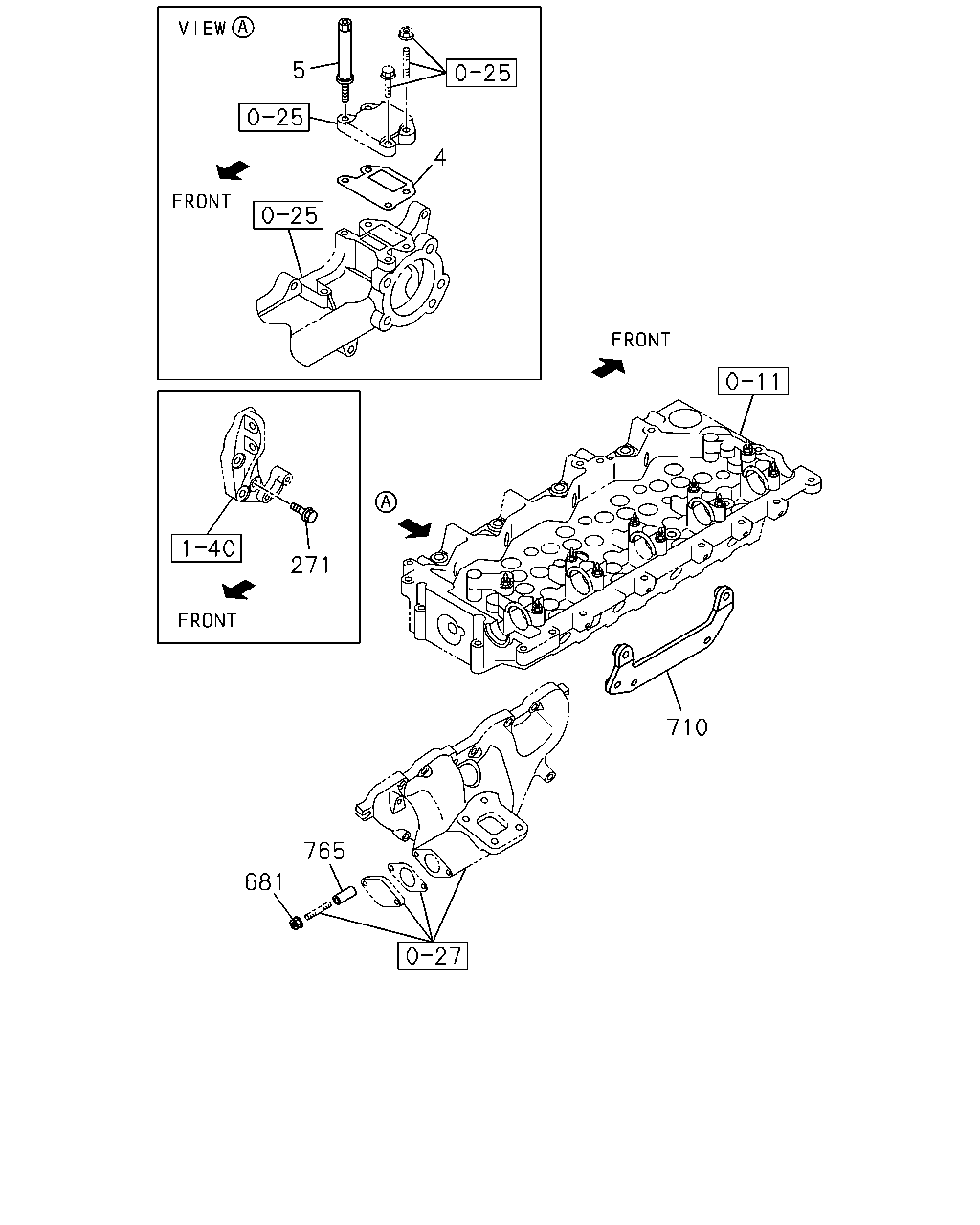

5 4 271 710 765 681

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97306-040-0	01	1	1312-		●
5	ADAPTER ASM	8-97377-804-0	01	1	1312-		●
271	BOLT; BRKT M12X50 FLANGE	0-28151-250-0	02	1	1312-		●
681	NUT; EGR PIPE M8 FLANGE MAL	0-91180-108-0	02	1	1311-1406	●
681	NUT; EGR PIPE EXC. VIN MODEL YEAR 2015<VZF> M8 FLANGE MAL	0-91180-108-0	02	1	1407-	●
681	NUT; EGR PIPE M8 FLANGE	0-91180-208-0	02	1	1312-		●
710	BRACKET; EGR COOLER	8-98079-255-1	01	1	1312-		●
765	SPACER; EGR PIPE	8-94225-562-0	02	1	1312-		●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
92	HOSE; VAC,THROTTLE BODY AIR CONDITIONER MANUAL CONT(C60) VIN MODEL YEAR 2015<VZF> (B)	8-98269-803-0	01	1	1407-	●
92	HOSE; VAC,THROTTLE BODY VIN MODEL YEAR 2015<VZF> EXC. AIR CONDITIONER MANUAL CONT(C60) (B)	8-98269-804-0	01	1	1407-	●
92	HOSE; VAC,THROTTLE BODY (A)	8-98169-777-1	01	1	1311-1406	●
92	HOSE; VAC,THROTTLE BODY EXC. VIN MODEL YEAR 2015<VZF> (A)	8-98169-777-1	01	1	1407-	●

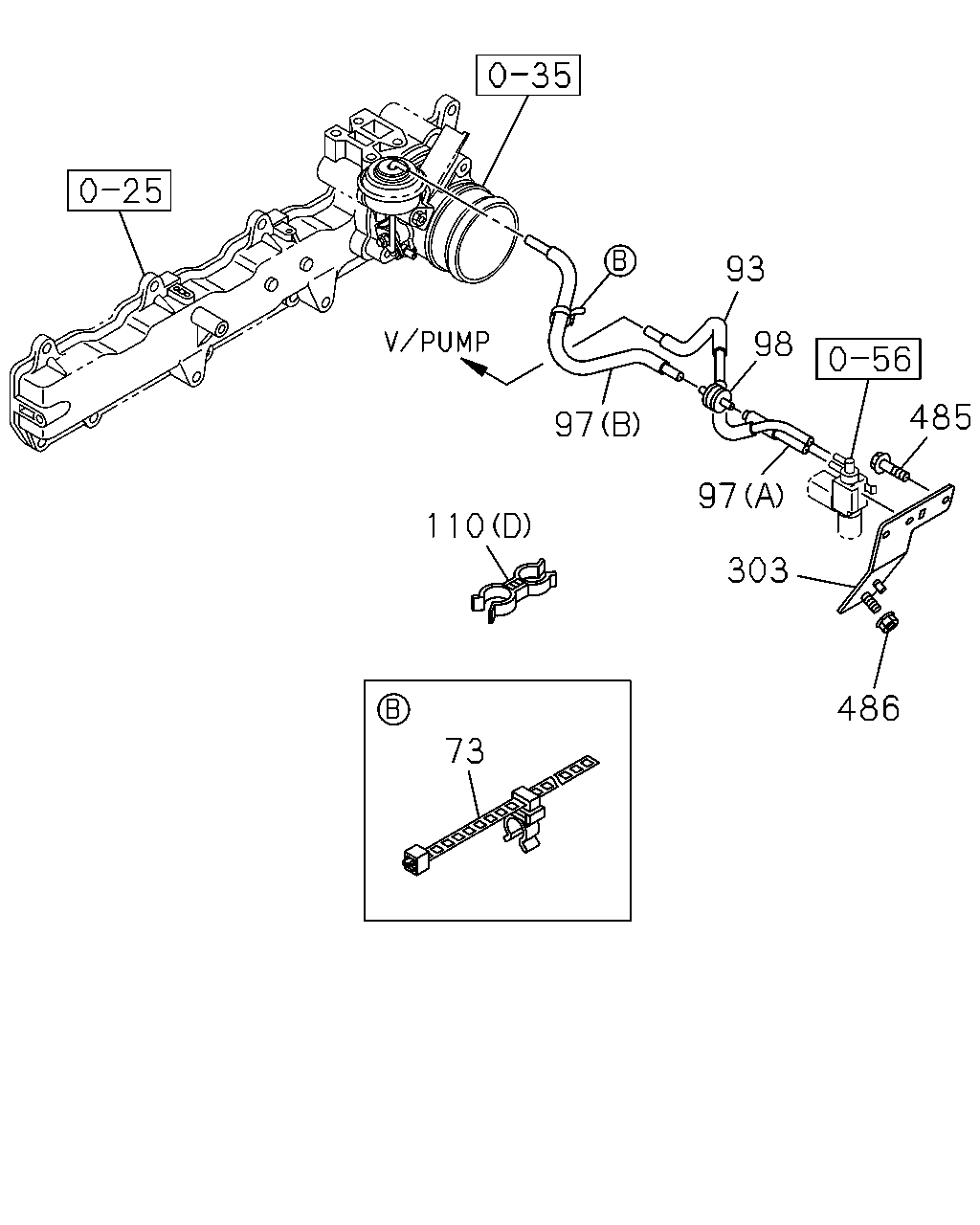

93 98 97 485 97 110 303 486 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
73	CLIP; VAC HOSE L=350	8-97373-487-0	02	1	1312-		●
93	HOSE ASM	8-98105-295-1	01	1	1312-		●
97	HOSE; RUBBER (B)	8-98113-964-0	01	1	1312-		●
97	HOSE; RUBBER (A)	8-98113-965-0	01	1	1312-		●
98	VALVE; DELAY	8-94110-978-0	01	1	1312-		●
110	CLIP; VAC HOSE VIN MODEL YEAR 2015<VZF> (A) ID=6.8 & 6.8 & 6.8	8-94208-734-0	01	1	1506-	●
110	CLIP; VAC HOSE (B) ID=6.8 & 6.8	8-94208-733-0	01	1	1311-1406	●
110	CLIP; VAC HOSE EXC. VIN MODEL YEAR 2015<VZF> (B) ID=6.8 & 6.8	8-94208-733-0	01	1	1407-1505	●
110	CLIP; VAC HOSE (B) ID=6.8 & 6.8	8-94208-733-0	01	1	1506-	●
110	CLIP; VAC HOSE (A) ID=6.8 & 6.8 & 6.8	8-94208-734-0	03	1	1311-1406	●
110	CLIP; VAC HOSE EXC. VIN MODEL YEAR 2015<VZF> (A) ID=6.8 & 6.8 & 6.8	8-94208-734-0	03	1	1407-	●
110	CLIP; VAC HOSE (C) L=109.5	8-97807-385-0	03	1	1311-1406	●
110	CLIP; VAC HOSE EXC. VIN MODEL YEAR 2015<VZF> (C) L=109.5	8-97807-385-0	03	1	1407-1505	●
110	CLIP; VAC HOSE (C) L=109.5	8-97807-385-0	03	1	1506-	●
110	CLIP; VAC HOSE (D) ID=13.2 & 14.5	8-94475-649-0	01	1	1312-		●
303	BRACKET; VAC SW	8-98122-539-0	01	1	1311-	●
303	BRACKET; VAC SW	8-98097-124-0	01	1	1312-		●
485	BOLT; VSV M5X10 W/LK+PL WASHER MAL	0-36230-510-0	01	1	1312-		●
486	NUT; BRKT M8 FLANGE MAL	0-91180-108-0	02	1	1311-	●
486	NUT; BRKT M8 FLANGE MAL	0-91180-108-0	01	1	1311-1311	●
486	NUT; BRKT M8 FLANGE MAL	0-91180-108-0	01	1	1312-	●	●
