◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51501 - NPR(MALAYSIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-56 - EMISSION SYSTEM ▶
0-56 — EMISSION SYSTEM (#130807) — 13 parça

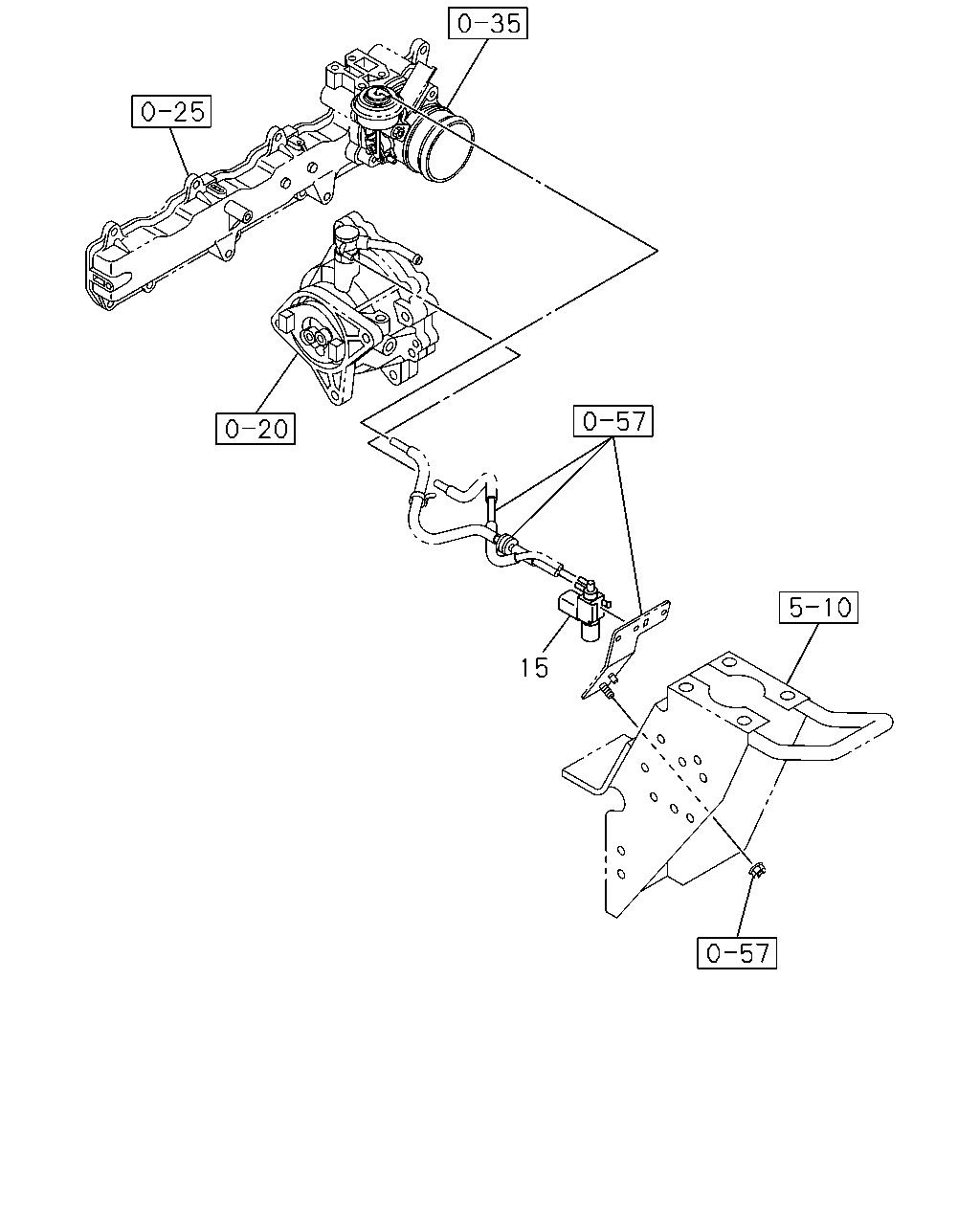

çizim 386025
15
BalonParca AdiParca NoAdetTipApplied Date A B
15 VALVE; VAC SW 8-97352-151-0 01 1 1311- ●
15 VALVE; VAC SW 8-97037-165-2 01 1 1312- ●

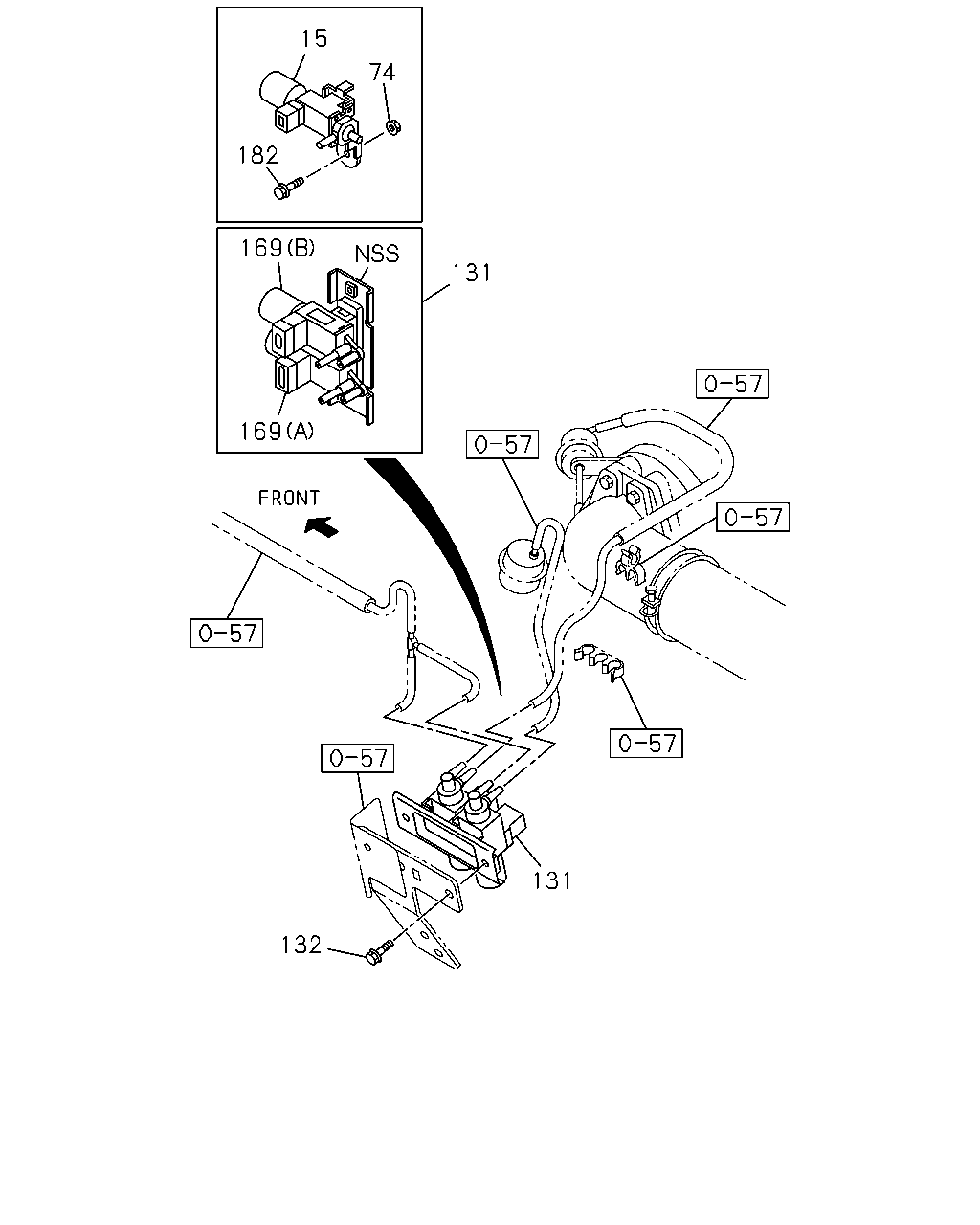

çizim 386080
131 15 182 74 169 169 131 132
BalonParca AdiParca NoAdetTipApplied Date A B
15 VALVE; VAC SW 8-97352-151-0 01 1 1311- ●
15 VALVE; VAC SW 8-97037-165-2 01 1 1312- ●
74 NUT; VSV
M8 W/DISHED WASHER MAL 		8-97329-625-0 01 1 1311- ●
131 VALVE; VAC SWITCHING
VIN MODEL YEAR 2015<VZF> 		8-97116-759-0 01 1 1407- ●
131 VALVE; VAC SWITCHING 8-97030-324-1 01 1 1311-1406 ●
131 VALVE; VAC SWITCHING
EXC. VIN MODEL YEAR 2015<VZF> 		8-97030-324-1 01 1 1407- ●
132 BOLT; VSV BRKT
M6X25 FLANGE MAL 		0-28650-625-0 02 1 1311- ●
169 VALVE; VAC SWITCHING
(A) 		8-97012-878-0 01 1 1311-1406 ●
169 VALVE; VAC SWITCHING
EXC. VIN MODEL YEAR 2015<VZF> (A) 		8-97012-878-0 01 1 1407- ●
169 VALVE; VAC SWITCHING
(B) 		8-97021-705-1 01 1 1311- ●
182 BOLT; VLV
M8X12 FLANGE 		0-28050-812-0 01 1 1311- ●
