0-52 — OIL AND VACUUM PIPING; ENGINE (#130806) — 101 parça

86 89 89 340 202 202 46 46 202 202 83 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	BOLT; OIL PIPE FIX M8X16 FLANGE MAL	0-28050-816-0	01	1	1311-	●
27	BOLT; OIL PIPE FIX M8X16 FLANGE MAL	0-28050-816-0	02	1	1312-		●
46	BOLT; JOINT,OIL FEED PIPE,VAC PUMP (B) M14X27 FLANGE	1-09675-086-0	01	1	1311-	●
46	BOLT; JOINT,OIL FEED PIPE,VAC PUMP (A) M10X21 FLANGE	8-97372-239-0	01	1	1311-	●
83	PIPE; OIL,C/BL TO VAC PUMP	8-97228-671-0	01	1	1311-	●
86	PIPE; OIL,VAC PUMP RETURN	8-94455-311-1	01	1	1311-	●
89	CLIP; VAC HOSE ID=17.1	8-94122-679-0	01	1	1311-	●
89	CLIP; VAC HOSE ID=17.1	8-94122-679-0	01	1	1311-	●
202	GASKET; OIL PIPE (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	1311-	●
202	GASKET; OIL PIPE (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	1311-1312	●
202	GASKET; OIL PIPE (B) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
340	HOSE; VAC PUMP,RETURN MAL	8-94339-073-3	01	1	1311-	●

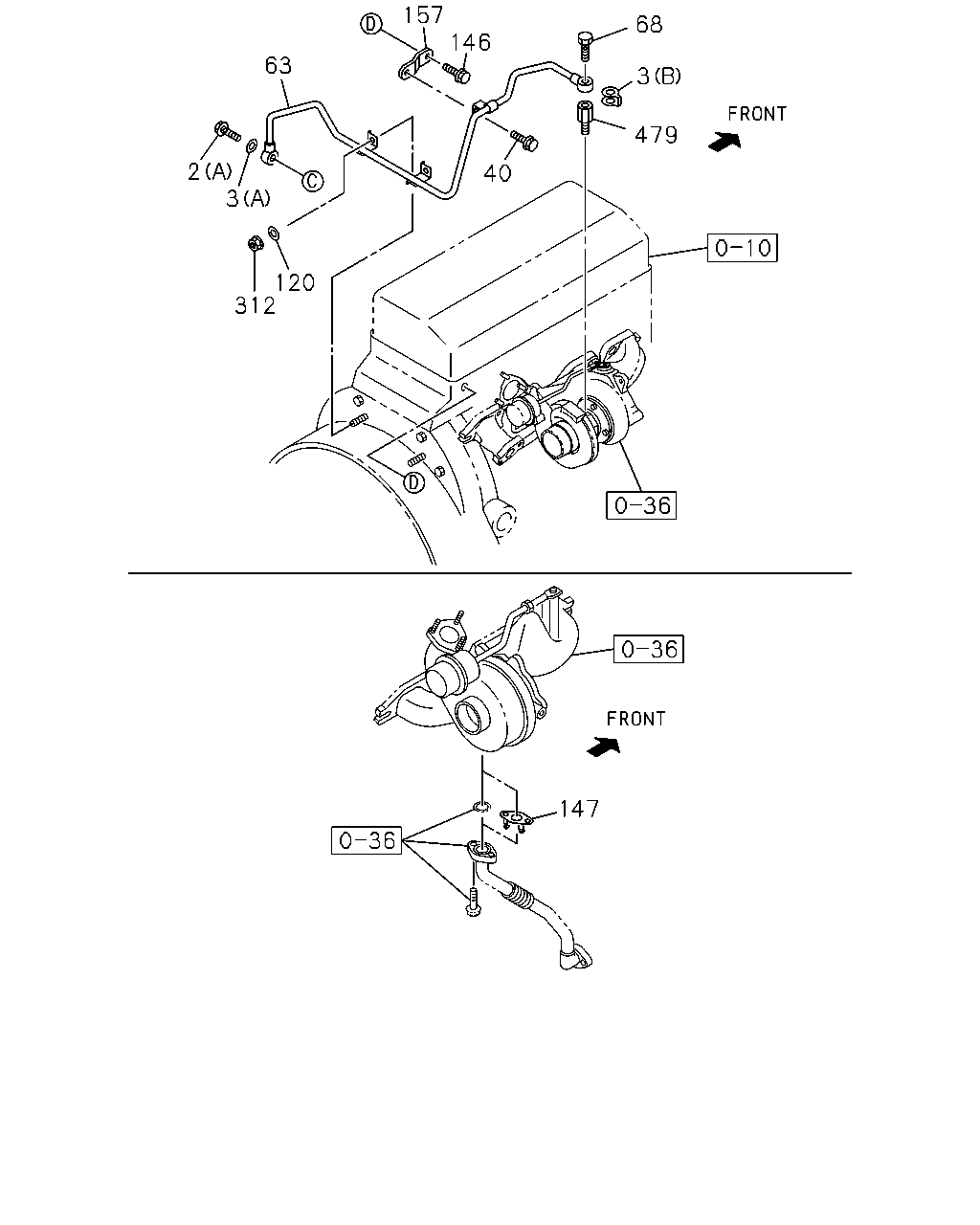

68 3 479 40 120 312 3 2 63 157 146 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	BOLT; EYE,OIL PIPE (A) M10X40 FLANGE	8-97182-847-0	01	1	1311-	●
2	BOLT; EYE,OIL PIPE (B) M10X24	9-09906-205-1	01	1	1311-	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). VIN MODEL YEAR 2015<VZF> (B) ID=10.2	8-98158-135-0	04	1	1407-1409	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). VIN MODEL YEAR 2015<VZF> (B) ID=10.2	8-98158-135-0	02	1	1410-	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). VIN MODEL YEAR 2015<VZF> (A) ID=10.2 OD=15.2	1-09630-083-0	03	1	1410-	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	05	1	1311-1406	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIN MODEL YEAR 2015<VZF> (A) ID=10.2 OD=15.2	1-09630-083-0	05	1	1407-	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.6	8-97331-137-1	01	1	1311-1311	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.6	8-97331-137-1	01	1	1312-1406	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIN MODEL YEAR 2015<VZF>. (B) ID=12.6	8-97331-137-1	01	1	1407-	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.6	8-97331-137-1	01	1	1407-		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=10.2 OD=15.2	1-09630-083-0	01	1	1312-		●
40	BOLT; OIL PIPE VIN MODEL YEAR 2015<VZF> M10X26	8-98037-825-0	01	1	1407-1409	●
40	BOLT; OIL PIPE M8X12 FLANGE	0-28050-812-0	01	1	1311-1311	●
40	BOLT; OIL PIPE M8X12 FLANGE	0-28050-812-0	01	1	1312-1406	●	●
40	BOLT; OIL PIPE EXC. VIN MODEL YEAR 2015<VZF> M8X12 FLANGE	0-28050-812-0	01	1	1407-1409	●
40	BOLT; OIL PIPE M8X12 FLANGE	0-28050-812-0	01	1	1407-1409		●
40	BOLT; OIL PIPE M8X12 FLANGE	0-28050-812-0	01	1	1410-	●	●
63	PIPE; OIL,TURBOCHARGER FEED VIN MODEL YEAR 2015<VZF>	8-98261-644-0	01	1	1407-	●
63	PIPE; OIL,TURBOCHARGER FEED	8-97372-936-2	01	1	1311-1406	●
63	PIPE; OIL,TURBOCHARGER FEED EXC. VIN MODEL YEAR 2015<VZF>	8-97372-936-2	01	1	1407-	●
63	PIPE; OIL,TURBOCHARGER FEED	8-98092-070-0	01	1	1312-		●
68	BOLT; EYE,OIL PIPE,TURBOCHARGER SIDE VIN MODEL YEAR 2015<VZF> M10X26	8-98037-825-0	01	1	1407-	●
68	BOLT; EYE,OIL PIPE,TURBOCHARGER SIDE M12X28 FLANGE	8-97166-518-1	01	1	1311-1311	●
68	BOLT; EYE,OIL PIPE,TURBOCHARGER SIDE M12X28 FLANGE	8-97166-518-1	01	1	1312-1406	●	●
68	BOLT; EYE,OIL PIPE,TURBOCHARGER SIDE EXC. VIN MODEL YEAR 2015<VZF> M12X28 FLANGE	8-97166-518-1	01	1	1407-	●
68	BOLT; EYE,OIL PIPE,TURBOCHARGER SIDE M12X28 FLANGE	8-97166-518-1	01	1	1407-		●
120	WASHER; PL,PIPE FIX SGL CAB(NP*S) ID=8.4 OD=26	0-91614-808-0	02	1	1311-	●
146	BOLT; BRKT M8X12 FLANGE	0-28050-812-0	01	1	1311-	●
147	GASKET; OIL PIPE TO TURBOCHARGER VIN MODEL YEAR 2015<VZF> ID=16	8-98029-475-0	01	1	1407-	●
157	BRACKET; OIL PIPE	8-97181-586-0	01	1	1311-	●
157	BRACKET; OIL PIPE	8-98077-403-0	01	1	1312-		●
312	NUT; PIPE FIX SGL CAB(NP*S) M8 FLANGE MAL	0-91180-108-0	02	1	1311-	●
479	ADAPTER	8-94436-891-0	01	1	1311-1311	●
479	ADAPTER	8-94436-891-0	01	1	1312-1406	●	●
479	ADAPTER EXC. VIN MODEL YEAR 2015<VZF>	8-94436-891-0	01	1	1407-	●
479	ADAPTER	8-94436-891-0	01	1	1407-		●

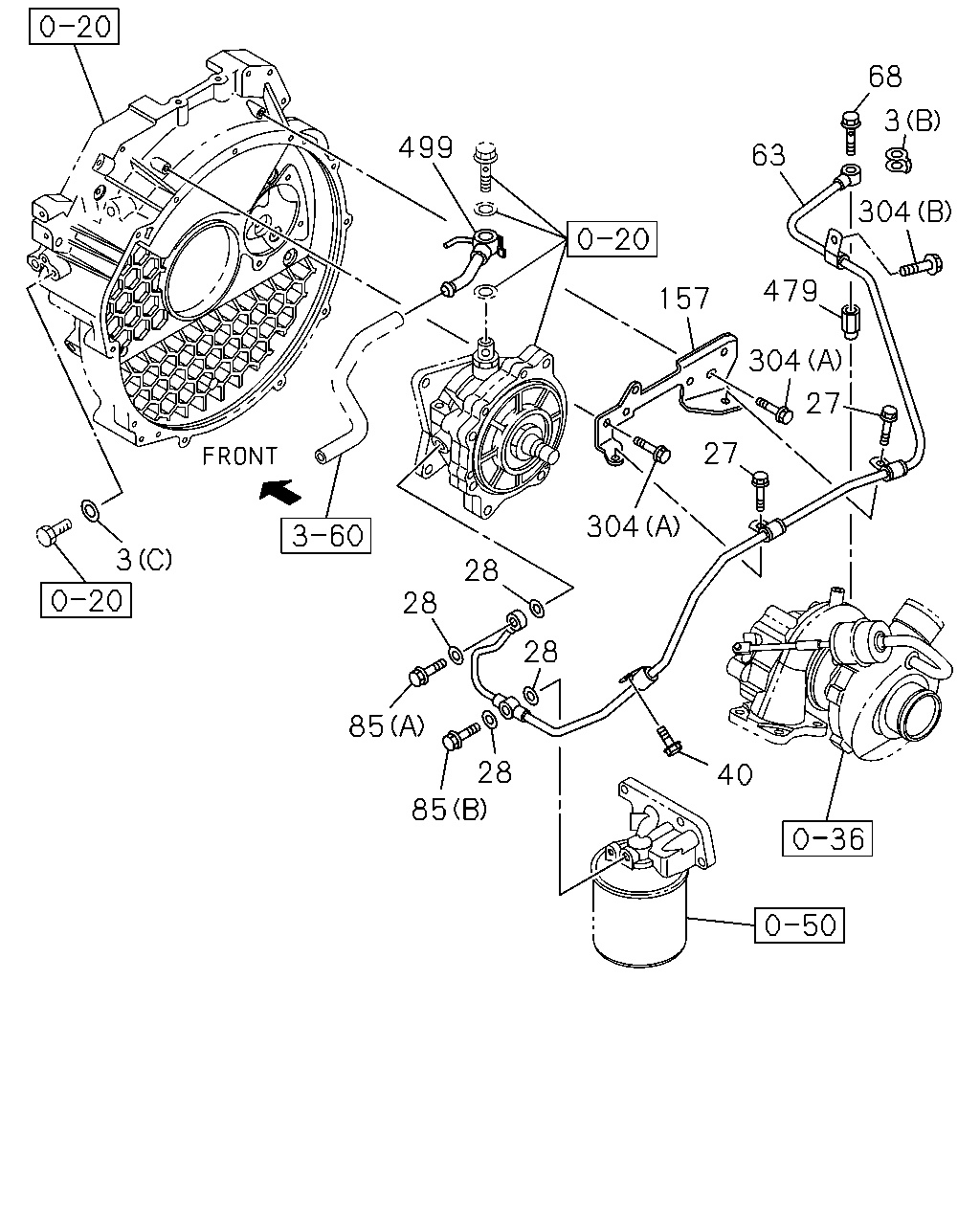

3 499 28 28 85 85 28 40 304 27 27 304 304 3 68 63 479 157 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). VIN MODEL YEAR 2015<VZF> (B) ID=10.2	8-98158-135-0	04	1	1407-1409	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). VIN MODEL YEAR 2015<VZF> (B) ID=10.2	8-98158-135-0	02	1	1410-	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). VIN MODEL YEAR 2015<VZF> (A) ID=10.2 OD=15.2	1-09630-083-0	03	1	1410-	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	05	1	1311-1406	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIN MODEL YEAR 2015<VZF> (A) ID=10.2 OD=15.2	1-09630-083-0	05	1	1407-	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.6	8-97331-137-1	01	1	1311-1311	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.6	8-97331-137-1	01	1	1312-1406	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIN MODEL YEAR 2015<VZF>. (B) ID=12.6	8-97331-137-1	01	1	1407-	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.6	8-97331-137-1	01	1	1407-		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=10.2 OD=15.2	1-09630-083-0	01	1	1312-		●
27	BOLT; OIL PIPE FIX M8X16 FLANGE MAL	0-28050-816-0	01	1	1311-	●
27	BOLT; OIL PIPE FIX M8X16 FLANGE MAL	0-28050-816-0	02	1	1312-		●
28	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	04	1	1312-		●
40	BOLT; OIL PIPE VIN MODEL YEAR 2015<VZF> M10X26	8-98037-825-0	01	1	1407-1409	●
40	BOLT; OIL PIPE M8X12 FLANGE	0-28050-812-0	01	1	1311-1311	●
40	BOLT; OIL PIPE M8X12 FLANGE	0-28050-812-0	01	1	1312-1406	●	●
40	BOLT; OIL PIPE EXC. VIN MODEL YEAR 2015<VZF> M8X12 FLANGE	0-28050-812-0	01	1	1407-1409	●
40	BOLT; OIL PIPE M8X12 FLANGE	0-28050-812-0	01	1	1407-1409		●
40	BOLT; OIL PIPE M8X12 FLANGE	0-28050-812-0	01	1	1410-	●	●
63	PIPE; OIL,TURBOCHARGER FEED VIN MODEL YEAR 2015<VZF>	8-98261-644-0	01	1	1407-	●
63	PIPE; OIL,TURBOCHARGER FEED	8-97372-936-2	01	1	1311-1406	●
63	PIPE; OIL,TURBOCHARGER FEED EXC. VIN MODEL YEAR 2015<VZF>	8-97372-936-2	01	1	1407-	●
63	PIPE; OIL,TURBOCHARGER FEED	8-98092-070-0	01	1	1312-		●
68	BOLT; EYE,OIL PIPE,TURBOCHARGER SIDE VIN MODEL YEAR 2015<VZF> M10X26	8-98037-825-0	01	1	1407-	●
68	BOLT; EYE,OIL PIPE,TURBOCHARGER SIDE M12X28 FLANGE	8-97166-518-1	01	1	1311-1311	●
68	BOLT; EYE,OIL PIPE,TURBOCHARGER SIDE M12X28 FLANGE	8-97166-518-1	01	1	1312-1406	●	●
68	BOLT; EYE,OIL PIPE,TURBOCHARGER SIDE EXC. VIN MODEL YEAR 2015<VZF> M12X28 FLANGE	8-97166-518-1	01	1	1407-	●
68	BOLT; EYE,OIL PIPE,TURBOCHARGER SIDE M12X28 FLANGE	8-97166-518-1	01	1	1407-		●
85	BOLT; EYE,OIL PIPE FIX (A) M10X22	1-09675-028-0	01	1	1312-		●
85	BOLT; EYE,OIL PIPE FIX (B) M10X28	8-98037-823-0	01	1	1312-		●
157	BRACKET; OIL PIPE	8-97181-586-0	01	1	1311-	●
157	BRACKET; OIL PIPE	8-98077-403-0	01	1	1312-		●
304	BOLT; BRKT,OIL PIPE (A) M10X16 FLANGE	0-28151-016-0	02	1	1312-		●
304	BOLT; BRKT,OIL PIPE (B) M8X20 FLANGE MAL	0-28650-820-0	01	1	1312-		●
479	ADAPTER	8-94436-891-0	01	1	1311-1311	●
479	ADAPTER	8-94436-891-0	01	1	1312-1406	●	●
479	ADAPTER EXC. VIN MODEL YEAR 2015<VZF>	8-94436-891-0	01	1	1407-	●
479	ADAPTER	8-94436-891-0	01	1	1407-		●
499	PIPE; VACUUM	8-98075-832-0	01	1	1312-		●

3 3 3 1 3 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; OIL,INJ PUMP TO C/BL	8-97200-615-4	01	1	1311-	●
2	BOLT; EYE,OIL PIPE (A) M10X40 FLANGE	8-97182-847-0	01	1	1311-	●
2	BOLT; EYE,OIL PIPE (B) M10X24	9-09906-205-1	01	1	1311-	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). VIN MODEL YEAR 2015<VZF> (B) ID=10.2	8-98158-135-0	04	1	1407-1409	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). VIN MODEL YEAR 2015<VZF> (B) ID=10.2	8-98158-135-0	02	1	1410-	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). VIN MODEL YEAR 2015<VZF> (A) ID=10.2 OD=15.2	1-09630-083-0	03	1	1410-	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	05	1	1311-1406	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIN MODEL YEAR 2015<VZF> (A) ID=10.2 OD=15.2	1-09630-083-0	05	1	1407-	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.6	8-97331-137-1	01	1	1311-1311	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.6	8-97331-137-1	01	1	1312-1406	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIN MODEL YEAR 2015<VZF>. (B) ID=12.6	8-97331-137-1	01	1	1407-	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.6	8-97331-137-1	01	1	1407-		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=10.2 OD=15.2	1-09630-083-0	01	1	1312-		●
