0-42 — FUEL PUMP AND PIPE (#130803) — 43 parça

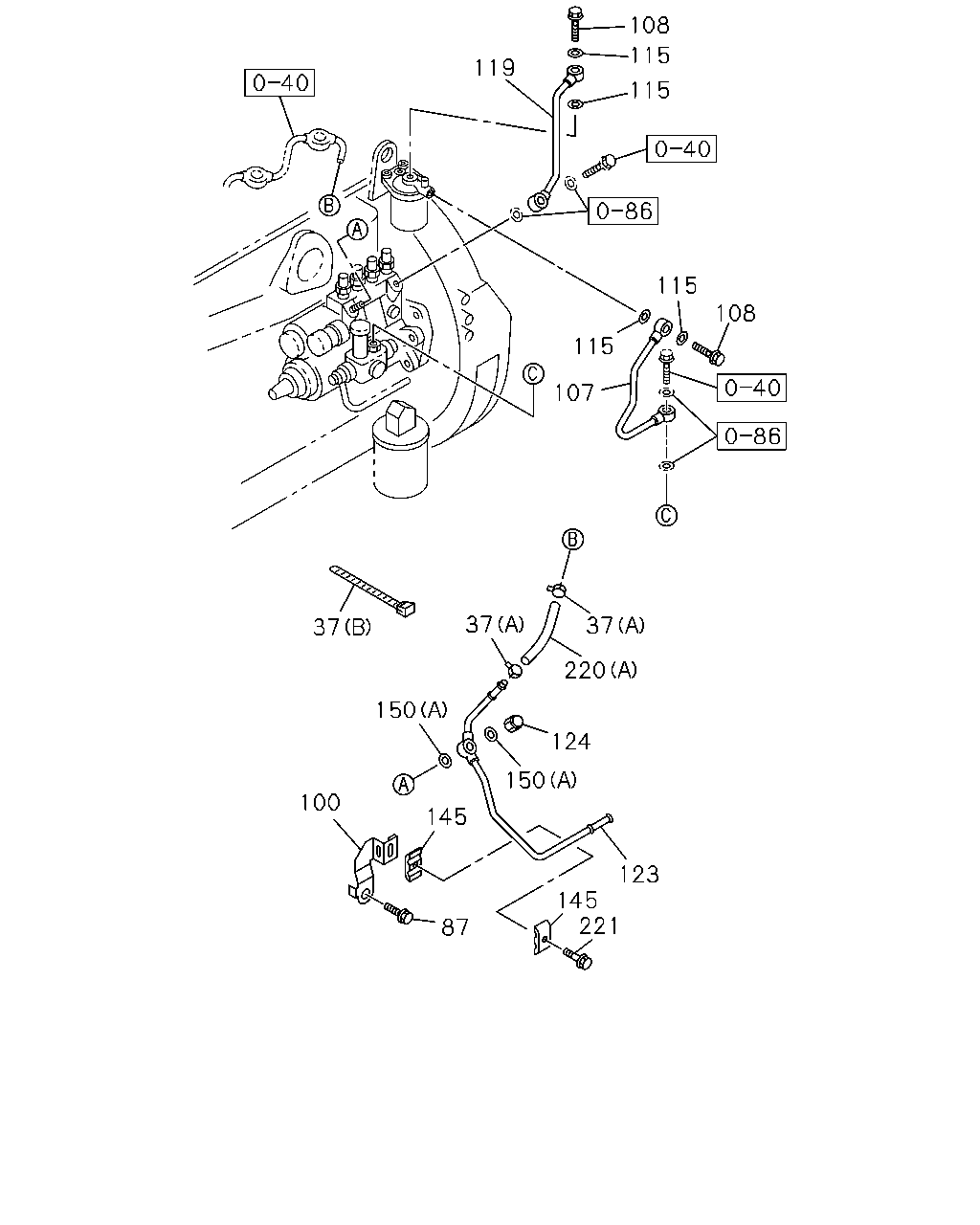

108 115 115 119 115 108 115 107 37 37 37 220 150 100 87 145 124 150 123 145 221

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
37	CLIP; FUEL HOSE (B) L=140 MAL	5-09707-031-1	01	1	1311-	●
37	CLIP; FUEL HOSE (A) ID=12	8-94238-610-0	02	1	1311-	●
87	BOLT; STAY,FUEL PIPE M8X12 FLANGE	0-28050-812-0	01	1	1311-	●
100	CLIP; "B",FUEL PIPE	8-97108-315-0	01	1	1311-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-97210-721-1	01	1	1311-	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	02	1	1311-	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=23.0	9-09572-014-0	04	1	1311-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-97211-323-1	01	1	1311-	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	8-97223-179-0	01	1	1311-	●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	1311-	●
145	CLIP; FUEL PIPE ID=6.1 & 9.6	8-97016-323-1	02	1	1311-	●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=23.0	9-09572-014-0	02	1	1311-	●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.2 OD=15.2	1-09630-083-0	02	1	1312-		●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=10.2 OD=17	8-98079-755-0	01	1	1312-		●
220	HOSE; FUEL BIO DIESEL FUEL B10<8NV> EXC. VIN MODEL YEAR 2015<VZF> (A)	8-98293-110-0	01	1	1512-	●
220	HOSE; FUEL (A)	8-97208-874-0	01	1	1311-1509	●
220	HOSE; FUEL EXC. VIN MODEL YEAR 2015<VZF>,BIO DIESEL FUEL B10<8NV> (A)	8-97208-874-0	01	1	1510-	●
220	HOSE; FUEL (C)	8-98036-180-3	01	1	1312-		●
220	HOSE; FUEL (D)	8-98036-181-2	01	1	1312-		●
220	HOSE; FUEL (E)	8-98076-056-1	01	1	1312-		●
220	HOSE; FUEL (B)	8-98076-057-1	01	1	1312-		●
221	BOLT; FUEL PIPE M6X40 FLANGE	0-28650-640-0	01	1	1311-	●
221	BOLT; FUEL PIPE M10X21 FLANGE	8-94396-711-0	02	1	1312-		●

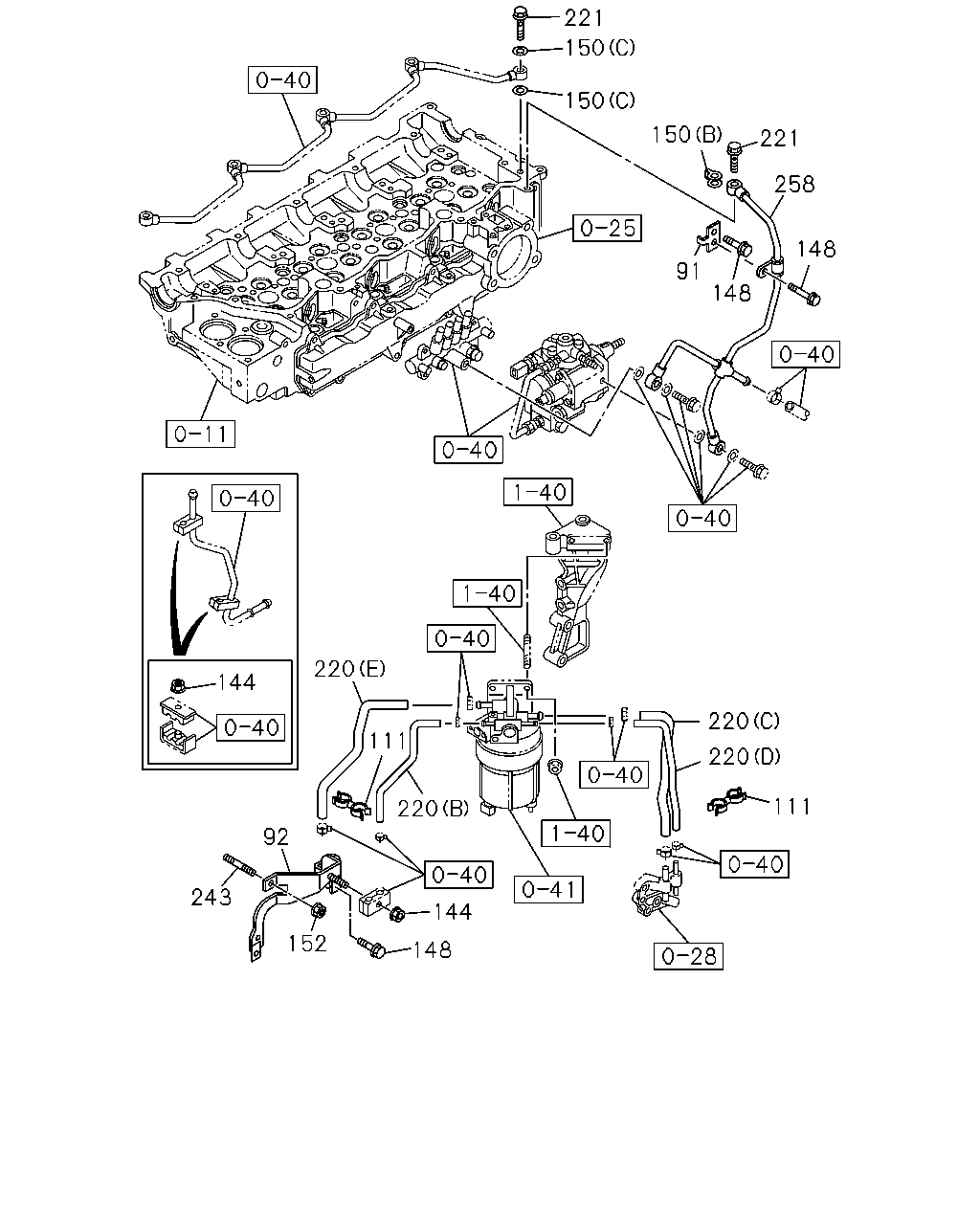

221 150 150 150 221 258 148 91 148 144 220 243 92 152 111 220 144 148 220 220 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
91	BRACKET; FUEL PIPE TO INL MANIF	8-98033-979-0	01	1	1312-		●
92	BRACKET; FUEL PIPE	8-98051-532-1	01	1	1312-		●
111	CLIP; FUEL PIPE ID=13 & 16.5	8-94169-028-0	03	1	1312-		●
144	NUT; CLIP M6 FLANGE MAL	0-91180-106-0	03	1	1312-		●
148	BOLT; BRKT M6X12 FLANGE MAL	0-28050-612-0	03	1	1312-		●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=23.0	9-09572-014-0	02	1	1311-	●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.2 OD=15.2	1-09630-083-0	02	1	1312-		●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=10.2 OD=17	8-98079-755-0	01	1	1312-		●
152	NUT; BRKT M8 FLANGE MAL	0-91180-108-0	01	1	1312-		●
220	HOSE; FUEL BIO DIESEL FUEL B10<8NV> EXC. VIN MODEL YEAR 2015<VZF> (A)	8-98293-110-0	01	1	1512-	●
220	HOSE; FUEL (A)	8-97208-874-0	01	1	1311-1509	●
220	HOSE; FUEL EXC. VIN MODEL YEAR 2015<VZF>,BIO DIESEL FUEL B10<8NV> (A)	8-97208-874-0	01	1	1510-	●
220	HOSE; FUEL (C)	8-98036-180-3	01	1	1312-		●
220	HOSE; FUEL (D)	8-98036-181-2	01	1	1312-		●
220	HOSE; FUEL (E)	8-98076-056-1	01	1	1312-		●
220	HOSE; FUEL (B)	8-98076-057-1	01	1	1312-		●
221	BOLT; FUEL PIPE M6X40 FLANGE	0-28650-640-0	01	1	1311-	●
221	BOLT; FUEL PIPE M10X21 FLANGE	8-94396-711-0	02	1	1312-		●
243	STUD; BRKT M8X15,M8X17 L=40	8-98009-913-0	01	1	1312-		●
258	PIPE ASM; FUEL,LEAK OFF	8-98033-718-0	01	1	1312-		●
