0-40 — FUEL INJECTION SYSTEM (#130801) — 227 parça

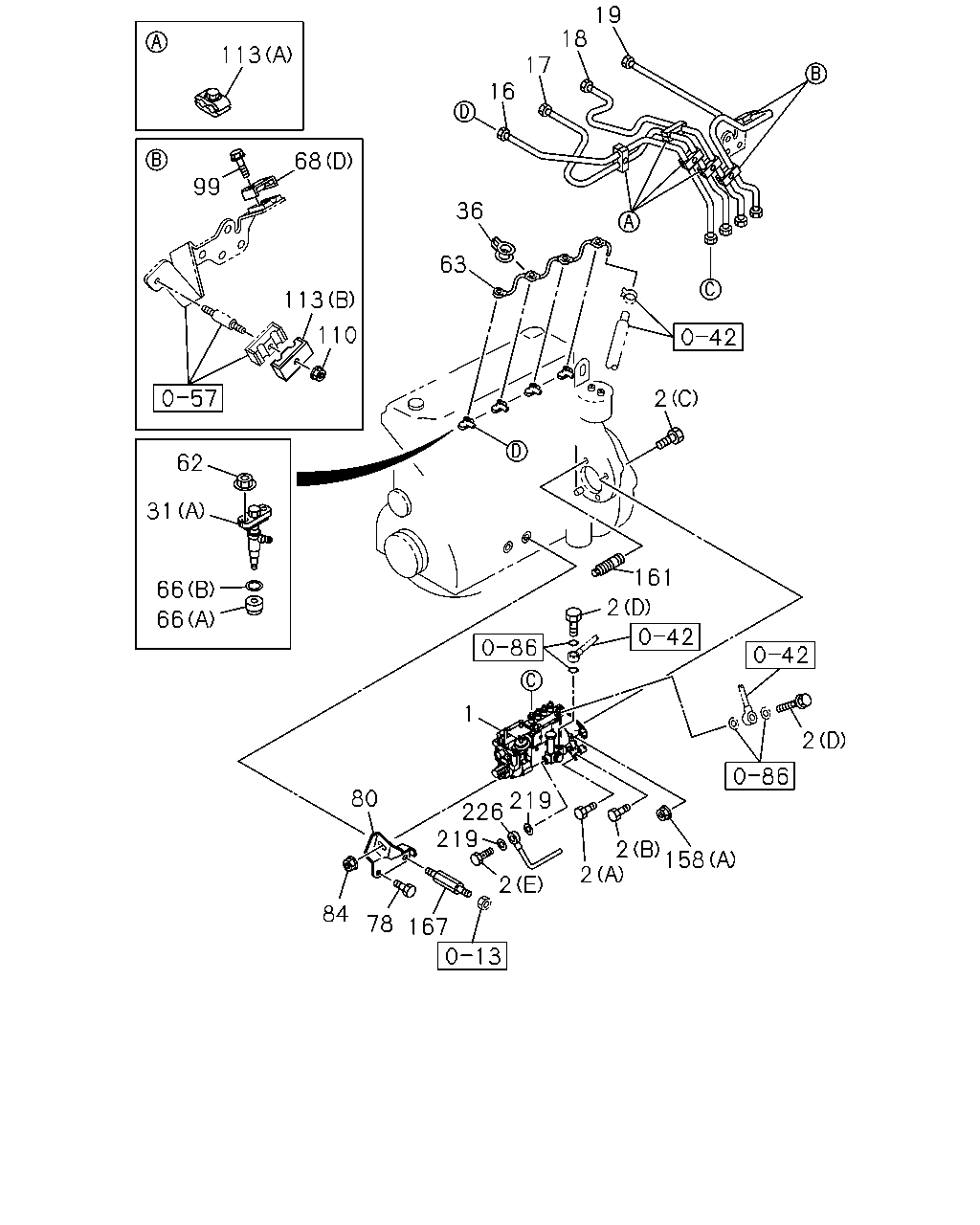

çizim 385176
113 68 113 62 31 66 66 63 36 16 17 18 19 2 161 2 1 80 2 219 226 158 2 2 2 219 84 78 167 110 99
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; INJ
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) VIN MODEL YEAR 2015<VZF> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-98285-612-0 01 1 1407- ●
1 PUMP ASM; INJ
VIN MODEL YEAR 2015<VZF> EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-98317-243-0 01 1 1407- ●
1 PUMP ASM; INJ
VIN MODEL YEAR 2015<VZF> EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-98268-832-0 01 1 1407-1506 ●
1 PUMP ASM; INJ
HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97215-704-2 01 1 1406-1406 ●
1 PUMP ASM; INJ
HIGH ALTITUDE COMPENSATOR(EE2) EXC. VIN MODEL YEAR 2015<VZF> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97215-704-2 01 1 1407- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97178-485-5 01 1 1311-1405 ●
1 PUMP ASM; INJ
EXC. HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97178-485-5 01 1 1406-1406 ●
1 PUMP ASM; INJ
EXC. HIGH ALTITUDE COMPENSATOR(EE2),VIN MODEL YEAR2015<VZF> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97178-485-5 01 1 1407- ●
1 PUMP ASM; INJ 8-97386-557-5 01 1 1312- ●
2 BOLT; INJ PUMP
(C) M12X90 FLANGE 		0-28151-290-0 01 1 1311- ●
2 BOLT; INJ PUMP
(D) M14X27 FLANGE 		1-09675-086-0 02 1 1311- ●
2 BOLT; INJ PUMP
(E) M14X30 		8-97203-957-0 01 1 1311- ●
2 BOLT; INJ PUMP
(A) M10X70 FLANGE 		0-28151-070-0 01 1 1311-1311 ●
2 BOLT; INJ PUMP
(A) M10X70 FLANGE 		0-28151-070-0 01 1 1312- ● ●
2 BOLT; INJ PUMP
(B) M12X70 FLANGE 		0-28151-270-0 01 1 1311-1311 ●
2 BOLT; INJ PUMP
(B) M12X70 FLANGE 		0-28151-270-0 01 1 1312- ● ●
2 BOLT; INJ PUMP
(F) M10X60 FLANGE 		0-28051-060-0 03 1 1312- ●
2 BOLT; INJ PUMP
(G) M12X95 FLANGE 		8-94396-485-1 01 1 1312- ●
16 PIPE; INJ NO.1 8-97209-493-1 01 1 1311- ●
16 PIPE; INJ NO.1 8-98185-344-0 01 1 1312-1404 ●
16 PIPE; INJ NO.1 8-98271-202-0 01 1 1405-1501 ●
16 PIPE; INJ NO.1 8-98298-606-0 01 1 1502- ●
17 PIPE; INJ NO.2 8-97209-494-1 01 1 1311- ●
17 PIPE; INJ NO.2 8-98185-345-0 01 1 1312-1404 ●
17 PIPE; INJ NO.2 8-98271-203-0 01 1 1405-1501 ●
17 PIPE; INJ NO.2 8-98298-607-0 01 1 1502- ●
18 PIPE; INJ NO.3 8-97209-495-1 01 1 1311- ●
18 PIPE; INJ NO.3 8-98185-346-0 01 1 1312-1404 ●
18 PIPE; INJ NO.3 8-98271-204-0 01 1 1405-1501 ●
18 PIPE; INJ NO.3 8-98298-608-0 01 1 1502- ●
19 PIPE; INJ NO.4 8-97209-496-1 01 1 1311- ●
19 PIPE; INJ NO.4 8-98185-347-0 01 1 1312-1404 ●
19 PIPE; INJ NO.4 8-98271-205-0 01 1 1405-1501 ●
19 PIPE; INJ NO.4 8-98298-609-0 01 1 1502- ●
31 NOZZLE ASM; INJ
(A) 		8-97200-570-3 04 1 1311- ●
31 NOZZLE ASM; INJ
(B) 		8-97609-788-6 04 1 1312- ●
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6 		8-94395-214-0 04 1 1311-1312 ●
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6 		8-98246-930-0 04 1 1401- ●
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3 OD=15.0 		8-98065-992-0 04 1 1312- ●
62 NUT; NOZZLE HOLDER
M8 FLANGE MAL 		0-91180-108-0 08 1 1311- ●
63 PIPE; FUEL,NOZZLE LEAK OFF 8-97148-969-2 01 1 1311- ●
63 PIPE; FUEL,NOZZLE LEAK OFF 8-97306-081-0 01 1 1312- ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) 		8-94326-439-0 04 1 1311- ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) 		8-97171-332-0 04 1 1311- ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=23.3 		8-94173-412-0 04 1 1312- ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=9.2 T=8.1 		8-98079-248-0 04 1 1312- ●
68 CLIP; INJ PIPE
(D) 		1-09701-091-0 01 1 1311- ●
68 CLIP; INJ PIPE
(A) 		1-09701-195-3 01 1 1312- ●
68 CLIP; INJ PIPE
(B) 		1-09701-196-2 01 1 1312- ●
68 CLIP; INJ PIPE
(C) ID=11 & 11 L=19 		8-98039-293-0 06 1 1312-1405 ●
68 CLIP; INJ PIPE
(C) ID=11 & 11 L=19 		8-98148-996-2 06 1 1406- ●
78 BOLT; BRKT TO C/BL
M10X20 FLANGE 		0-28751-020-0 01 1 1311- ●
80 BRACKET; PUMP 8-97136-677-0 01 1 1311- ●
80 BRACKET; PUMP 8-98061-699-0 01 1 1312- ●
84 NUT; BRKT TO BRKT
M10 FLANGE MAL 		0-91180-210-0 01 1 1311- ●
99 BOLT; CLIP,INJ,PIPE
M6X25 FLANGE MAL 		0-28650-625-0 01 1 1311- ●
110 NUT; CLIP
M6 FLANGE MAL 		0-91180-106-0 01 1 1311- ●
110 NUT; CLIP
M6 FLANGE MAL 		0-91180-106-0 04 1 1312- ●
113 CLIP; INJ PIPE
(A) 		8-97213-050-0 04 1 1311- ●
113 CLIP; INJ PIPE
(B) 		8-97213-481-0 01 1 1311- ●
158 NUT; INJ PUMP
(A) M10 FLANGE MAL 		0-91180-110-0 02 1 1311-1311 ●
158 NUT; INJ PUMP
(A) M10 FLANGE MAL 		0-91180-110-0 02 1 1312- ● ●
158 NUT; INJ PUMP
(B) M14 FLANGE 		0-91180-114-0 01 1 1312- ●
161 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97066-386-1 02 1 1311-1311 ●
161 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97066-386-1 02 1 1312- ● ●
167 SPACER; GUIDE TUBE 8-97065-515-2 01 1 1311- ●
219 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 		1-09630-085-0 02 1 1311-1312 ●
219 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ●
226 PIPE; FUEL 8-97203-567-0 01 1 1311- ●
çizim 385185
31 32 34 58 140 44 43 47 272 35 140 43 45 138
BalonParca AdiParca NoAdetTipApplied Date A B
31 NOZZLE ASM; INJ
(A) 		8-97200-570-3 04 1 1311- ●
31 NOZZLE ASM; INJ
(B) 		8-97609-788-6 04 1 1312- ●
32 HOLDER ASM; NOZZLE 8-97078-783-1 04 1 1311- ●
34 BOLT; EYE,NOZZLE HOLDER
M8X18 EYE-BOLT 		1-09675-037-1 04 1 1311- ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 1-15349-041-0 04 1 1311- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(A) 		8-97223-339-0 04 1 1311- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) 		8-97349-452-0 04 1 1311- ●
44 SPRING; NOZZLE,NOZZLE HOLDER 1-15343-003-0 04 1 1311- ●
45 ROD; PUSH,NOZZLE HOLDER 1-15341-008-0 04 1 1311- ●
47 SPACER; NOZZLE SPRING,NOZZLE HOLDER 8-97223-340-0 04 1 1311- ●
58 FLANGE; INJ,NOZZLE HOLDER 8-97065-713-0 04 1 1311- ●
138 SPRING; NOZZLE LWR,NOZZLE HOLDER 1-15343-004-0 04 1 1311- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=1.20 		1-15349-004-0 04 1 1311- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.40 		1-15349-042-0 AR 1 1311- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.50 		1-15349-043-0 AR 1 1311- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.52 		1-15349-044-0 AR 1 1311- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.54 		1-15349-045-0 AR 1 1311- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.56 		1-15349-046-0 AR 1 1311- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.58 		1-15349-047-0 AR 1 1311- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.60 		1-15349-048-0 AR 1 1311- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.70 		1-15349-049-0 AR 1 1311- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.10 		8-97116-029-0 AR 1 1311- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.20 		8-97116-032-0 AR 1 1311- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.30 		8-97116-033-0 AR 1 1311- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.40 		8-97116-034-0 AR 1 1311- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.50 		8-97116-035-0 AR 1 1311- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.51 		8-97116-036-0 AR 1 1311- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.52 		8-97116-037-0 AR 1 1311- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.53 		8-97116-038-0 AR 1 1311- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.54 		8-97116-039-0 AR 1 1311- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.55 		8-97116-040-0 AR 1 1311- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.56 		8-97116-041-0 AR 1 1311- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.57 		8-97116-042-0 AR 1 1311- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.58 		8-97116-043-0 AR 1 1311- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.59 		8-97116-044-0 AR 1 1311- ●
272 NOZZLE KIT; INJ 8-97352-267-0 04 1 1311- ●

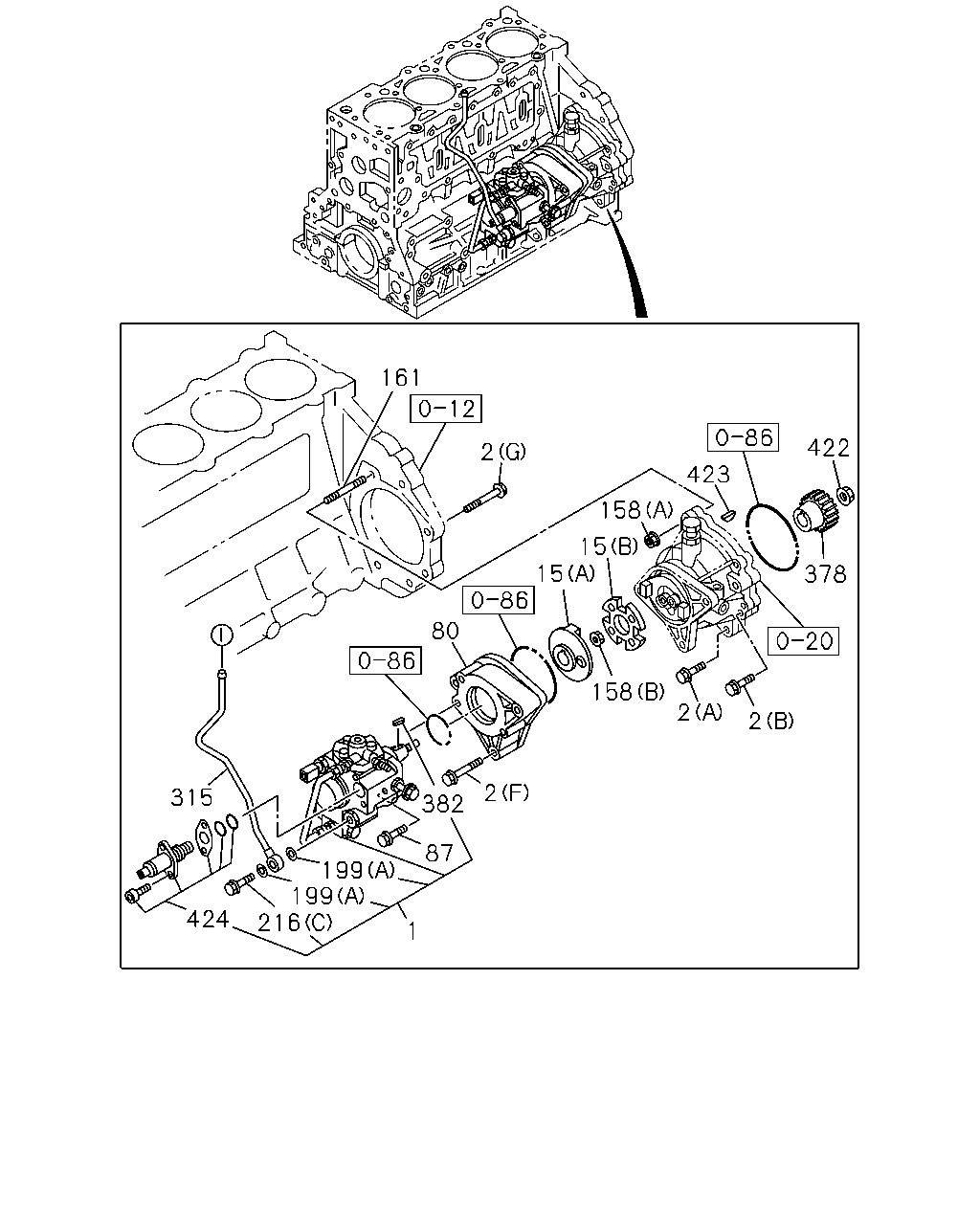

çizim 385197
161 2 422 423 158 15 15 315 424 216 199 199 87 382 2 158 2 2 378 80 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; INJ
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) VIN MODEL YEAR 2015<VZF> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-98285-612-0 01 1 1407- ●
1 PUMP ASM; INJ
VIN MODEL YEAR 2015<VZF> EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-98317-243-0 01 1 1407- ●
1 PUMP ASM; INJ
VIN MODEL YEAR 2015<VZF> EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-98268-832-0 01 1 1407-1506 ●
1 PUMP ASM; INJ
HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97215-704-2 01 1 1406-1406 ●
1 PUMP ASM; INJ
HIGH ALTITUDE COMPENSATOR(EE2) EXC. VIN MODEL YEAR 2015<VZF> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97215-704-2 01 1 1407- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97178-485-5 01 1 1311-1405 ●
1 PUMP ASM; INJ
EXC. HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97178-485-5 01 1 1406-1406 ●
1 PUMP ASM; INJ
EXC. HIGH ALTITUDE COMPENSATOR(EE2),VIN MODEL YEAR2015<VZF> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97178-485-5 01 1 1407- ●
1 PUMP ASM; INJ 8-97386-557-5 01 1 1312- ●
2 BOLT; INJ PUMP
(C) M12X90 FLANGE 		0-28151-290-0 01 1 1311- ●
2 BOLT; INJ PUMP
(D) M14X27 FLANGE 		1-09675-086-0 02 1 1311- ●
2 BOLT; INJ PUMP
(E) M14X30 		8-97203-957-0 01 1 1311- ●
2 BOLT; INJ PUMP
(A) M10X70 FLANGE 		0-28151-070-0 01 1 1311-1311 ●
2 BOLT; INJ PUMP
(A) M10X70 FLANGE 		0-28151-070-0 01 1 1312- ● ●
2 BOLT; INJ PUMP
(B) M12X70 FLANGE 		0-28151-270-0 01 1 1311-1311 ●
2 BOLT; INJ PUMP
(B) M12X70 FLANGE 		0-28151-270-0 01 1 1312- ● ●
2 BOLT; INJ PUMP
(F) M10X60 FLANGE 		0-28051-060-0 03 1 1312- ●
2 BOLT; INJ PUMP
(G) M12X95 FLANGE 		8-94396-485-1 01 1 1312- ●
15 COUPLING ASM; INJ PUMP
(A) 		8-97306-054-0 01 1 1312- ●
15 COUPLING ASM; INJ PUMP
(B) SEE FIG-NO 0-87 FOR COMPONENT. 		8-97306-059-1 01 1 1312- ●
80 BRACKET; PUMP 8-97136-677-0 01 1 1311- ●
80 BRACKET; PUMP 8-98061-699-0 01 1 1312- ●
87 BOLT; PUMP
M8X30 FLANGE 		0-28650-830-0 03 1 1312- ●
158 NUT; INJ PUMP
(A) M10 FLANGE MAL 		0-91180-110-0 02 1 1311-1311 ●
158 NUT; INJ PUMP
(A) M10 FLANGE MAL 		0-91180-110-0 02 1 1312- ● ●
158 NUT; INJ PUMP
(B) M14 FLANGE 		0-91180-114-0 01 1 1312- ●
161 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97066-386-1 02 1 1311-1311 ●
161 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97066-386-1 02 1 1312- ● ●
199 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 1312- ●
199 GASKET; EYE BOLT
(B) 		8-97602-218-0 04 1 1312- ●
216 BOLT; EYE
(C) 		5-15759-003-0 01 1 1312- ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1312- ●
216 BOLT; EYE
(A) 		8-98043-033-0 01 1 1312- ●
315 PIPE; FUEL,SUCTION 8-98126-333-0 01 1 1312- ●
378 GEAR; PUMP
Z=35 		8-98017-915-0 01 1 1312- ●
382 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1312- ●
422 NUT; GEAR
M18 		8-97141-154-0 01 1 1312- ●
423 KEY; GEAR 9-08055-519-0 01 1 1312- ●
424 OVERHAUL KIT; SUPPLY PUMP 8-98145-501-1 01 1 1312- ●

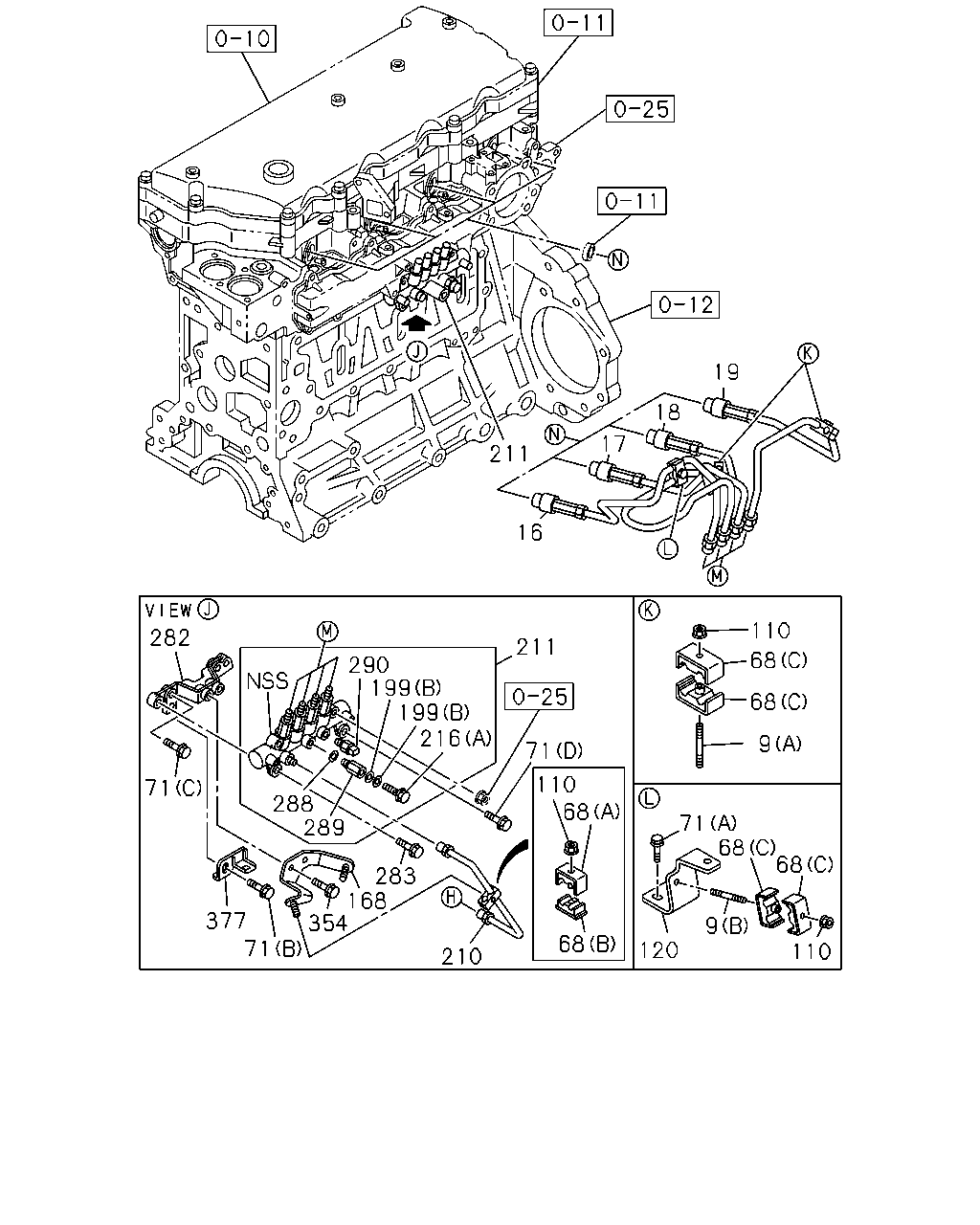

çizim 386217
211 16 17 18 19 282 71 377 71 354 168 283 289 288 290 199 199 216 210 211 71 110 68 68 110 68 68 9 71 68 68 110 9 120
BalonParca AdiParca NoAdetTipApplied Date A B
9 STUD; CLIP
(A) M6X30 L=38 		0-41010-630-0 02 1 1312- ●
9 STUD; CLIP
(B) M6X35 L=43 		8-97203-278-0 01 1 1312- ●
16 PIPE; INJ NO.1 8-97209-493-1 01 1 1311- ●
16 PIPE; INJ NO.1 8-98185-344-0 01 1 1312-1404 ●
16 PIPE; INJ NO.1 8-98271-202-0 01 1 1405-1501 ●
16 PIPE; INJ NO.1 8-98298-606-0 01 1 1502- ●
17 PIPE; INJ NO.2 8-97209-494-1 01 1 1311- ●
17 PIPE; INJ NO.2 8-98185-345-0 01 1 1312-1404 ●
17 PIPE; INJ NO.2 8-98271-203-0 01 1 1405-1501 ●
17 PIPE; INJ NO.2 8-98298-607-0 01 1 1502- ●
18 PIPE; INJ NO.3 8-97209-495-1 01 1 1311- ●
18 PIPE; INJ NO.3 8-98185-346-0 01 1 1312-1404 ●
18 PIPE; INJ NO.3 8-98271-204-0 01 1 1405-1501 ●
18 PIPE; INJ NO.3 8-98298-608-0 01 1 1502- ●
19 PIPE; INJ NO.4 8-97209-496-1 01 1 1311- ●
19 PIPE; INJ NO.4 8-98185-347-0 01 1 1312-1404 ●
19 PIPE; INJ NO.4 8-98271-205-0 01 1 1405-1501 ●
19 PIPE; INJ NO.4 8-98298-609-0 01 1 1502- ●
68 CLIP; INJ PIPE
(D) 		1-09701-091-0 01 1 1311- ●
68 CLIP; INJ PIPE
(A) 		1-09701-195-3 01 1 1312- ●
68 CLIP; INJ PIPE
(B) 		1-09701-196-2 01 1 1312- ●
68 CLIP; INJ PIPE
(C) ID=11 & 11 L=19 		8-98039-293-0 06 1 1312-1405 ●
68 CLIP; INJ PIPE
(C) ID=11 & 11 L=19 		8-98148-996-2 06 1 1406- ●
71 BOLT; BRKT
(B) M6X10 FLANGE 		0-28050-610-0 01 1 1312- ●
71 BOLT; BRKT
(A) M8X16 FLANGE MAL 		0-28050-816-0 01 1 1312- ●
71 BOLT; BRKT
(C) M8X40 FLANGE 		0-28050-840-0 01 1 1312- ●
71 BOLT; BRKT
(D) M8X50 FLANGE 		0-28050-850-0 01 1 1312- ●
110 NUT; CLIP
M6 FLANGE MAL 		0-91180-106-0 01 1 1311- ●
110 NUT; CLIP
M6 FLANGE MAL 		0-91180-106-0 04 1 1312- ●
120 BRACKET; INJ PIPE 8-98041-601-0 01 1 1312- ●
168 BRACKET; FUEL PIPE 8-98036-175-1 01 1 1312- ●
199 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 1312- ●
199 GASKET; EYE BOLT
(B) 		8-97602-218-0 04 1 1312- ●
210 PIPE; INJ,C/R 8-98036-176-1 01 1 1312- ●
211 RAIL ASM; COMMON 8-98011-888-2 01 1 1312- ●
216 BOLT; EYE
(C) 		5-15759-003-0 01 1 1312- ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1312- ●
216 BOLT; EYE
(A) 		8-98043-033-0 01 1 1312- ●
282 BRACKET; COMMON RAIL 8-98157-115-0 01 1 1312- ●
283 BOLT; COMMON RAIL
M8X25 FLANGE 		0-28050-825-0 01 1 1312- ●
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 1312- ●
289 LIMITER; FUEL PRESS 8-98032-549-0 01 1 1312- ●
290 SENSOR; PRESS 8-98119-790-0 01 1 1312- ●
354 BOLT; FUEL PIPE
M8X16 FLANGE MAL 		0-28050-816-0 02 1 1312- ●
377 BRACKET; HARNESS 8-97310-438-1 01 1 1312- ●

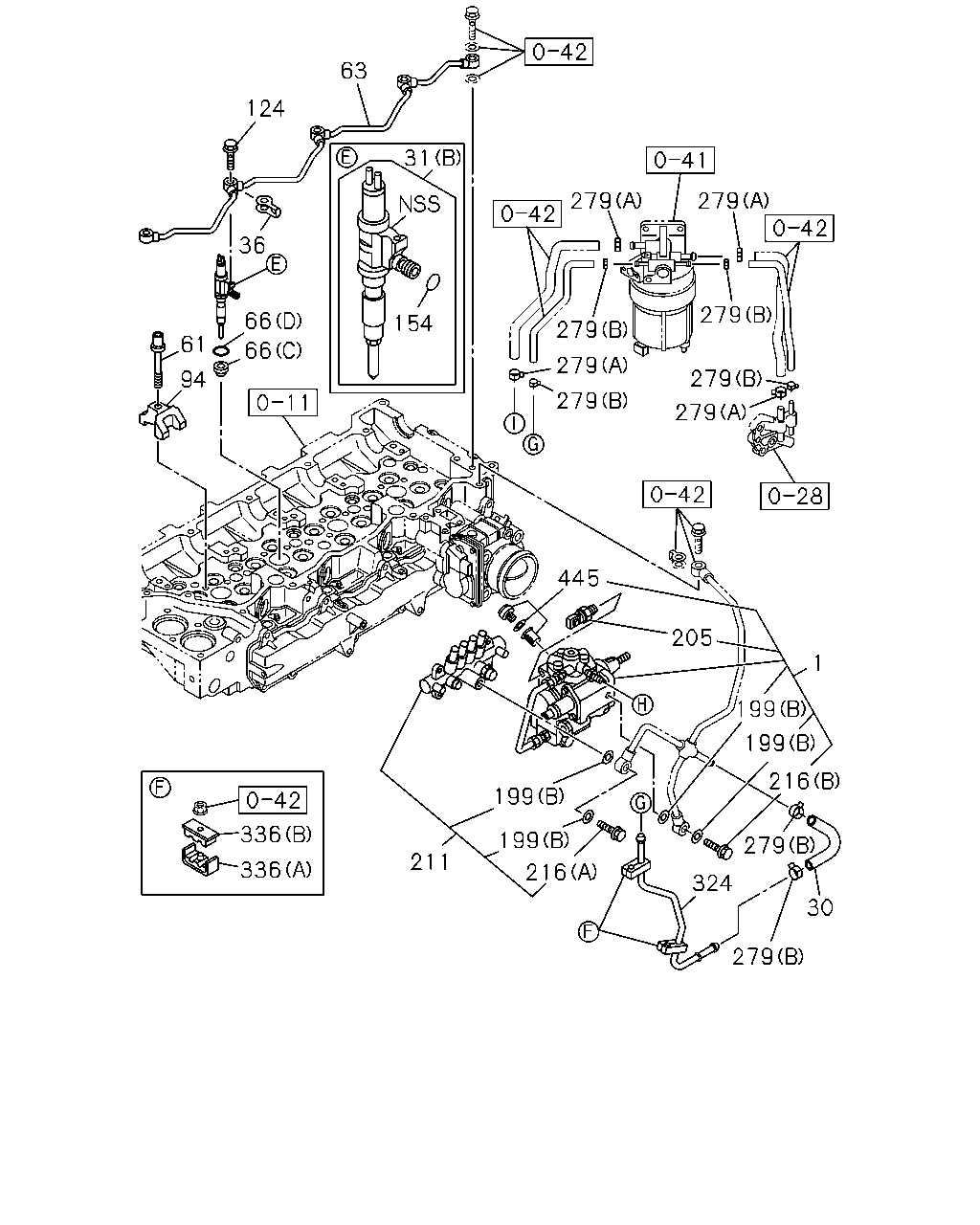

çizim 386933
124 63 31 36 61 94 66 66 279 279 279 279 279 279 279 279 445 205 199 199 216 279 30 279 216 211 199 199 324 336 336 154 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; INJ
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) VIN MODEL YEAR 2015<VZF> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-98285-612-0 01 1 1407- ●
1 PUMP ASM; INJ
VIN MODEL YEAR 2015<VZF> EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-98317-243-0 01 1 1407- ●
1 PUMP ASM; INJ
VIN MODEL YEAR 2015<VZF> EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-98268-832-0 01 1 1407-1506 ●
1 PUMP ASM; INJ
HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97215-704-2 01 1 1406-1406 ●
1 PUMP ASM; INJ
HIGH ALTITUDE COMPENSATOR(EE2) EXC. VIN MODEL YEAR 2015<VZF> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97215-704-2 01 1 1407- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97178-485-5 01 1 1311-1405 ●
1 PUMP ASM; INJ
EXC. HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97178-485-5 01 1 1406-1406 ●
1 PUMP ASM; INJ
EXC. HIGH ALTITUDE COMPENSATOR(EE2),VIN MODEL YEAR2015<VZF> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97178-485-5 01 1 1407- ●
1 PUMP ASM; INJ 8-97386-557-5 01 1 1312- ●
30 HOSE; RUBBER,FUEL LEAK 8-98036-320-2 01 1 1312- ●
31 NOZZLE ASM; INJ
(A) 		8-97200-570-3 04 1 1311- ●
31 NOZZLE ASM; INJ
(B) 		8-97609-788-6 04 1 1312- ●
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6 		8-94395-214-0 04 1 1311-1312 ●
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6 		8-98246-930-0 04 1 1401- ●
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3 OD=15.0 		8-98065-992-0 04 1 1312- ●
61 BOLT; CLAMP NOZZLE HOLDER
M8X54 		8-98008-895-0 04 1 1312- ●
63 PIPE; FUEL,NOZZLE LEAK OFF 8-97148-969-2 01 1 1311- ●
63 PIPE; FUEL,NOZZLE LEAK OFF 8-97306-081-0 01 1 1312- ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) 		8-94326-439-0 04 1 1311- ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) 		8-97171-332-0 04 1 1311- ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=23.3 		8-94173-412-0 04 1 1312- ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=9.2 T=8.1 		8-98079-248-0 04 1 1312- ●
94 BRACKET; INJ NOZZLE 8-98028-999-1 04 1 1312- ●
124 BOLT; EYE LEAK OFF PIPE
M8X18 EYE-BOLT 		1-09675-037-1 04 1 1312- ●
154 GASKET; CONNECTOR
ID=11.0 		0-95690-111-0 04 1 1312- ●
199 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 1312- ●
199 GASKET; EYE BOLT
(B) 		8-97602-218-0 04 1 1312- ●
205 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1312- ●
211 RAIL ASM; COMMON 8-98011-888-2 01 1 1312- ●
216 BOLT; EYE
(C) 		5-15759-003-0 01 1 1312- ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1312- ●
216 BOLT; EYE
(A) 		8-98043-033-0 01 1 1312- ●
279 CLIP; FUEL HOSE
(A) ID=16 		8-97329-628-0 04 1 1312- ●
279 CLIP; FUEL HOSE
(B) ID=11.5 		8-97375-638-0 06 1 1312- ●
324 PIPE; FUEL RETURN 8-98036-173-0 01 1 1312- ●
336 CLIP; FUEL PIPE
(A) ID=8 & 9 L=25 		8-97603-522-0 02 1 1312- ●
336 CLIP; FUEL PIPE
(B) ID=8 & 9 L=25 		8-97603-523-0 02 1 1312- ●
445 SCREW; FILTER,INLET 8-98204-986-0 01 1 1312- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
