0-37 — TURBOCHARGER (#130800) — 13 parça

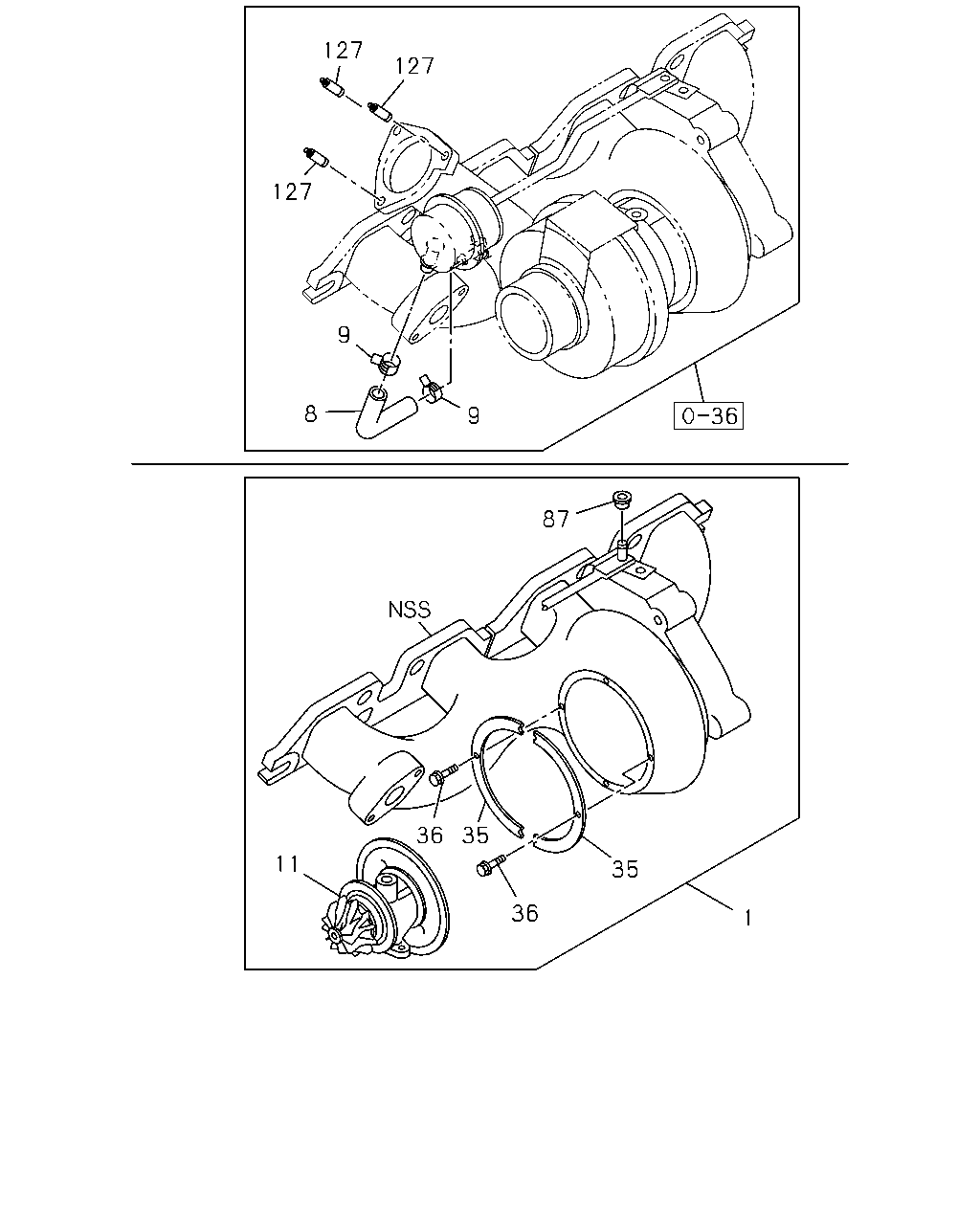

çizim 385165

9 8 9 127 127 127 87 35 36 35 36 11 1

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	1	HOUSING; TURBINE,TURBOCHARGER ASM PART: A = 8-97326-752-1	8-97223-905-0	01	1	-
	8	HOSE; ACTUATOR TO BLOWER HSG,TC ASM PART: A = 8-97326-752-1	8-97213-591-0	01	1	-
	8	HOSE; ACTUATOR TO BLOWER HSG,TC ASM PART: B = 8-98079-569-2	8-97215-553-0	01	1	-
	9	CLIP; ACTUATOR HOSE,TURBOCHARGER ASM PART: A = 8-97326-752-1, B = 8-98079-569-2	8-97213-592-0	02	1	-
	11	HOUSING ASM; TURBOCHARGER ASM PART: A = 8-97326-752-1	8-97326-280-0	01	1	-
	35	CLAMP; TURBINE HSG,TURBOCHARGER ASM PART: A = 8-97326-752-1	8-97213-590-0	02	1	-
	36	BOLT; LK PLATE,TURBINE HSG,TURBOCHARGE ASM PART: A = 8-97326-752-1	8-97213-579-0	04	1	-
	87	RING; ACTUATOR,TURBOCHARGER ASM PART: A = 8-97326-752-1	8-97213-588-0	01	1	-
	127	STUD; TURBOCHARGER ASM PART: A = 8-97326-752-1	8-97213-578-0	03	1	-

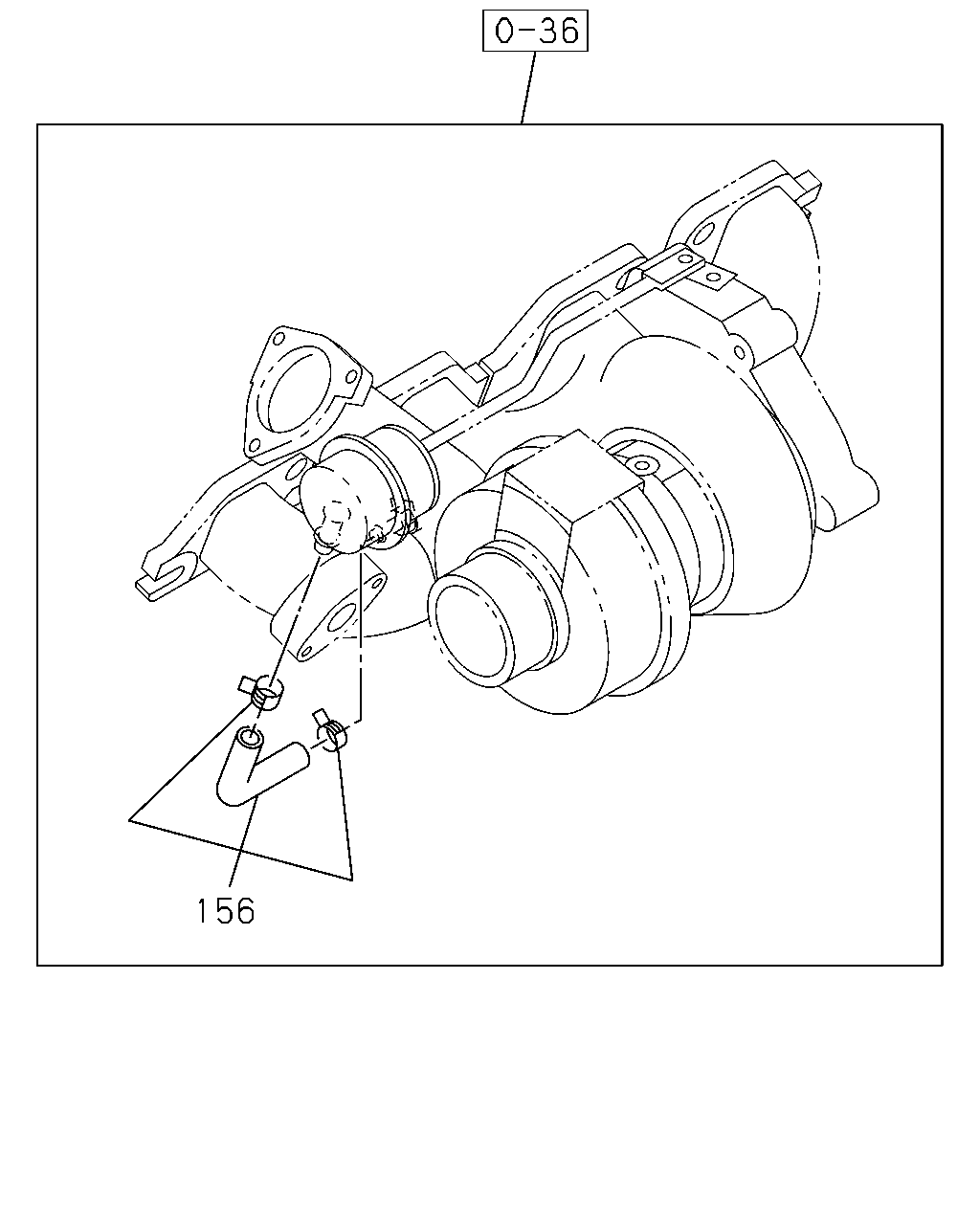

çizim 385953

156

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	156	HOSE KIT; TURBOCHARGER ASM PART: C = 8-98254-714-0	8-98334-586-0	01	1	-

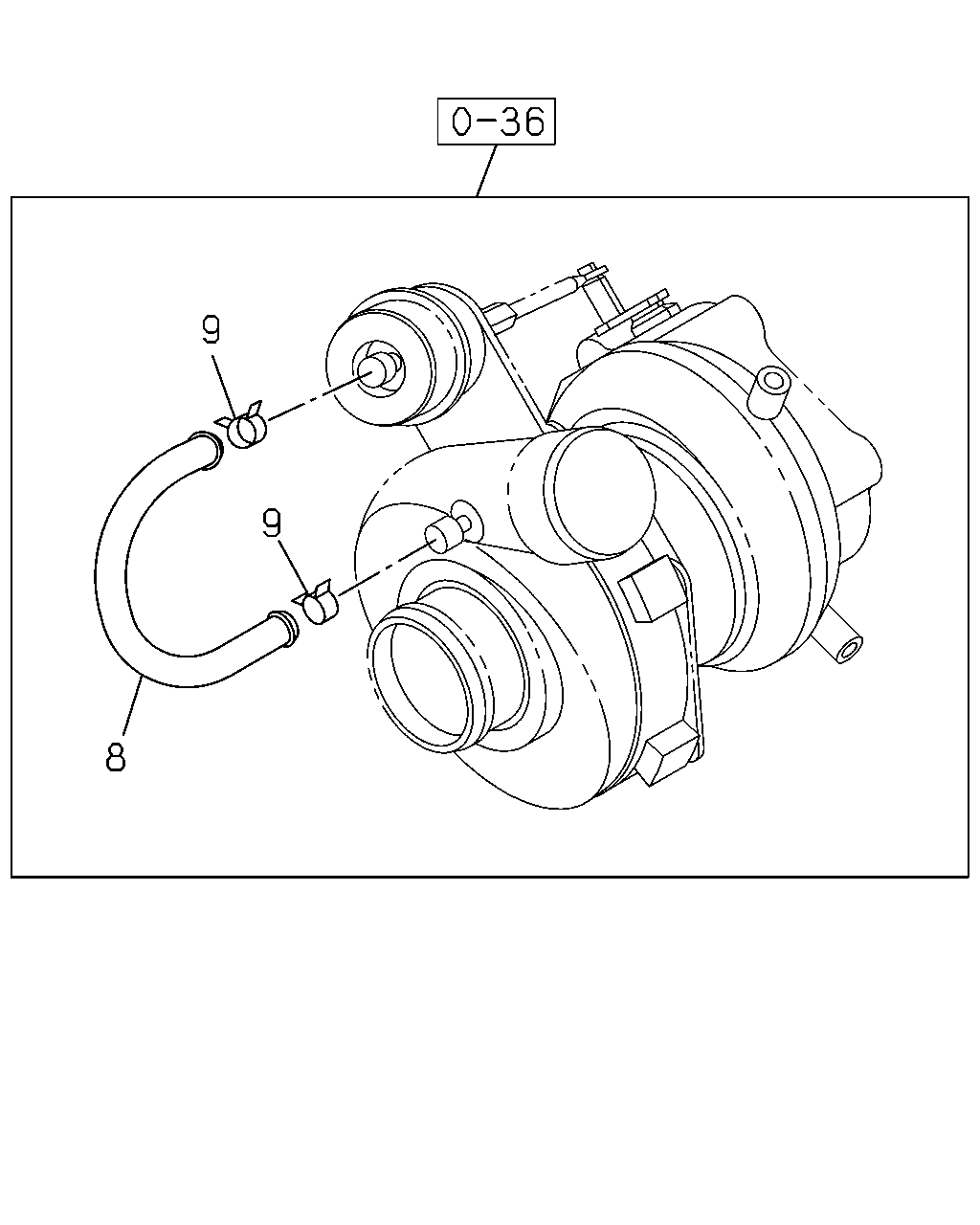

çizim 513755

9 8 9

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	8	HOSE; ACTUATOR TO BLOWER HSG,TC ASM PART: A = 8-97326-752-1	8-97213-591-0	01	1	-
	8	HOSE; ACTUATOR TO BLOWER HSG,TC ASM PART: B = 8-98079-569-2	8-97215-553-0	01	1	-
	9	CLIP; ACTUATOR HOSE,TURBOCHARGER ASM PART: A = 8-97326-752-1, B = 8-98079-569-2	8-97213-592-0	02	1	-
