Sayfa 0-36 - Isuzu EPC

0-36 — TURBOCHARGER SYSTEM (#130799) — 173 parça

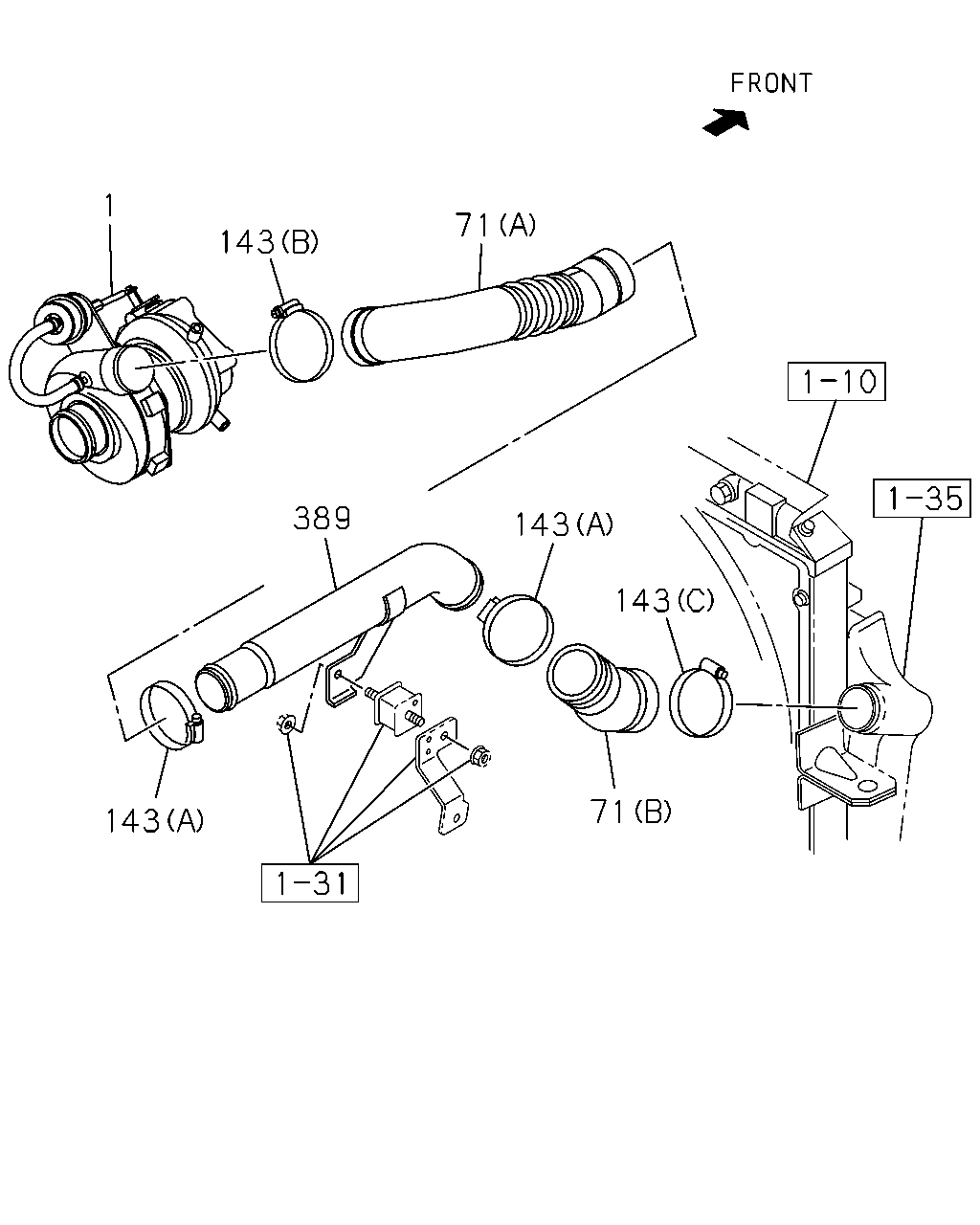

1 143 71 389 143 143 71 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. VIN MODEL YEAR 2015<VZF>	8-98254-714-0	01	1	1407-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97326-752-1	01	1	1311-1406	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. VIN MODEL YEAR 2015<VZF>	8-97326-752-1	01	1	1407-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-98079-569-2	01	1	1312-		●
71	HOSE; INLET PIPE TO TURBOCHARGER (A)	8-98059-964-1	01	1	1312-		●
71	HOSE; INLET PIPE TO TURBOCHARGER (B)	8-98107-509-1	01	1	1312-		●
143	CLIP; HOSE,TURBOCHARGER OUTLET (B) ID=60-65	8-98096-418-0	01	1	1312-		●
143	CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=45-65	8-98133-348-0	02	1	1312-		●
143	CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=65-85	8-98133-350-0	01	1	1312-		●
389	PIPE; INL,TURBOCHARGER TO CAC	8-98042-688-1	01	1	1312-		●

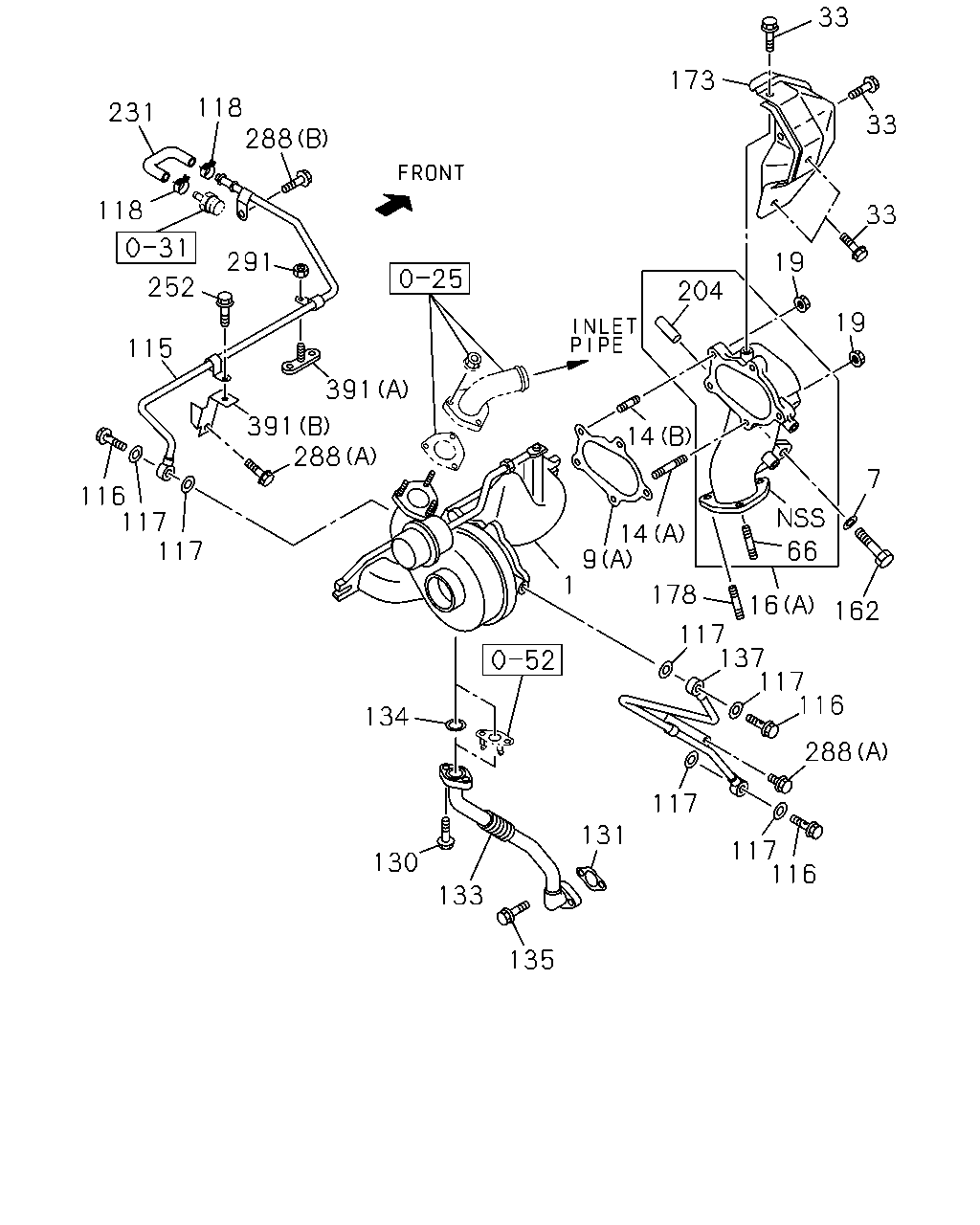

117 117 116 288 391 391 115 252 291 118 118 288 173 33 33 33 19 19 204 14 7 66 14 9 1 178 16 162 117 137 117 116 288 116 117 117 131 135 133 130 134 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. VIN MODEL YEAR 2015<VZF>	8-98254-714-0	01	1	1407-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97326-752-1	01	1	1311-1406	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. VIN MODEL YEAR 2015<VZF>	8-97326-752-1	01	1	1407-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-98079-569-2	01	1	1312-		●
7	WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	1311-1311	●
7	WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	1312-	●	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97039-777-1	01	1	1311-1311	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97039-777-1	01	1	1312-	●	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-97374-412-0	01	1	1312-		●
14	STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	1311-1311	●
14	STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	1312-	●	●
14	STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	1311-1311	●
14	STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	1312-	●	●
16	ADAPTER; EXH PIPE (A)	8-97178-487-3	01	1	1311-	●
16	ADAPTER; EXH PIPE (B)	8-97039-749-2	01	1	1312-		●
19	NUT; EXH PIPE,TURBOCHARGER M8 FLANGE	8-94170-486-0	05	1	1311-1311	●
19	NUT; EXH PIPE,TURBOCHARGER M8 FLANGE	8-94170-486-0	05	1	1312-	●	●
33	BOLT; HEAT PROTECTOR M6X12 FLANGE	8-97108-669-0	04	1	1311-	●
66	STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	1311-1311	●
66	STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	1312-	●	●
115	PIPE; WATER,TURBOCHARGER OUT VIN MODEL YEAR 2015<VZF>	8-98261-645-0	01	1	1407-	●
115	PIPE; WATER,TURBOCHARGER OUT	8-97210-077-2	01	1	1311-1406	●
115	PIPE; WATER,TURBOCHARGER OUT EXC. VIN MODEL YEAR 2015<VZF>	8-97210-077-2	01	1	1407-	●
115	PIPE; WATER,TURBOCHARGER OUT	8-98096-928-0	01	1	1312-		●
116	BOLT; WATER PIPE EXC. VIN MODEL YEAR 2015<VZF> M14X30 EYE-BOLT	8-94455-144-0	03	1	1407-	●
116	BOLT; WATER PIPE M14X30 EYE-BOLT	8-94455-144-0	03	1	1407-		●
116	BOLT; WATER PIPE VIN MODEL YEAR 2015<VZF> M14X31 EYE-BOLT	8-98037-067-0	01	1	1407-1409	●
116	BOLT; WATER PIPE VIN MODEL YEAR 2015<VZF> M14X31 EYE-BOLT	8-98037-067-0	02	1	1410-	●
116	BOLT; WATER PIPE M14X30 EYE-BOLT	8-94455-144-0	03	1	1311-1311	●
116	BOLT; WATER PIPE M14X30 EYE-BOLT	8-94455-144-0	03	1	1312-1406	●	●
116	BOLT; WATER PIPE VIN MODEL YEAR 2015<VZF> M14X30 EYE-BOLT	8-94455-144-0	02	1	1407-1409	●
116	BOLT; WATER PIPE VIN MODEL YEAR 2015<VZF> M14X30 EYE-BOLT	8-94455-144-0	01	1	1410-	●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). VIN MODEL YEAR 2015<VZF> ID=14.2 OD=20.0	9-09571-414-0	06	1	1407-	●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	04	1	1311-1312	●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-1406	●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIN MODEL YEAR 2015<VZF> ID=14.2 OD=19.2	8-98251-345-0	04	1	1407-	●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=20.0	9-09571-414-0	02	1	1311-1406	●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIN MODEL YEAR 2015<VZF> ID=14.2 OD=20.0	9-09571-414-0	02	1	1407-	●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=20.0	9-09571-414-0	04	1	1312-		●
118	CLIP; WATER HOSE ID=15.5	8-94221-519-0	02	1	1311-1311	●
118	CLIP; WATER HOSE ID=15.5	8-94221-519-0	02	1	1312-	●	●
130	BOLT; OIL PIPE TO TURBOCHARGER DRAIN VIN MODEL YEAR 2015<VZF> M6X16 HEX SOCKET	0-58330-616-0	02	1	1407-1410	●
130	BOLT; OIL PIPE TO TURBOCHARGER DRAIN VIN MODEL YEAR 2015<VZF> M6X16 W/LK WASHER	0-50540-616-0	02	1	1411-	●
130	BOLT; OIL PIPE TO TURBOCHARGER DRAIN M6X20 W/LK WASHER	0-50540-620-0	02	1	1311-1311	●
130	BOLT; OIL PIPE TO TURBOCHARGER DRAIN M6X20 W/LK WASHER	0-50540-620-0	02	1	1312-1406	●	●
130	BOLT; OIL PIPE TO TURBOCHARGER DRAIN EXC. VIN MODEL YEAR 2015<VZF> M6X20 W/LK WASHER	0-50540-620-0	02	1	1407-	●
130	BOLT; OIL PIPE TO TURBOCHARGER DRAIN M6X20 W/LK WASHER	0-50540-620-0	02	1	1407-		●
131	GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	1311-1311	●
131	GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	1312-	●	●
133	PIPE; OIL DRAIN,TURBOCHARGER VIN MODEL YEAR 2015<VZF>	8-98261-657-0	01	1	1407-	●
133	PIPE; OIL DRAIN,TURBOCHARGER	8-98172-659-0	01	1	1311-1406	●
133	PIPE; OIL DRAIN,TURBOCHARGER EXC. VIN MODEL YEAR 2015<VZF>	8-98172-659-0	01	1	1407-	●
133	PIPE; OIL DRAIN,TURBOCHARGER	8-98172-658-0	01	1	1312-		●
134	GASKET; OIL PIPE,TURBOCHARGER DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	1311-1311	●
134	GASKET; OIL PIPE,TURBOCHARGER DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	1312-1406	●	●
134	GASKET; OIL PIPE,TURBOCHARGER DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIN MODEL YEAR 2015<VZF>. ID=22.8	1-09623-462-0	01	1	1407-	●
134	GASKET; OIL PIPE,TURBOCHARGER DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	1407-		●
135	BOLT; OIL PIPE TO C/BL M8X20 FLANGE MAL	0-28050-820-0	02	1	1311-1311	●
135	BOLT; OIL PIPE TO C/BL M8X20 FLANGE MAL	0-28050-820-0	02	1	1312-	●	●
137	PIPE; WATER,TURBOCHARGER IN VIN MODEL YEAR 2015<VZF>	8-98213-680-0	01	1	1407-	●
137	PIPE; WATER,TURBOCHARGER IN	8-97229-036-0	01	1	1311-1406	●
137	PIPE; WATER,TURBOCHARGER IN EXC. VIN MODEL YEAR 2015<VZF>	8-97229-036-0	01	1	1407-	●
137	PIPE; WATER,TURBOCHARGER IN	8-98063-840-0	01	1	1312-		●
162	BOLT; ADAPTER M8X57	5-09000-275-0	01	1	1311-1311	●
162	BOLT; ADAPTER M8X57	5-09000-275-0	01	1	1312-	●	●
173	PROTECTOR; HEAT,FUEL PIPE	8-97178-497-2	01	1	1311-	●
178	STUD; DUCT VIN MODEL YEAR 2015<VZF> M6X25 L=34	0-41010-625-0	04	1	1407-	●
204	COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	1311-1311	●
204	COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	1312-	●	●
231	HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	1311-1311	●
231	HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	1312-	●	●
252	BOLT; BRKT M8X12 FLANGE	0-28050-812-0	01	1	1311-	●
288	BOLT; WATER PIPE CLIP (A) M8X12 FLANGE	0-28050-812-0	02	1	1311-	●
288	BOLT; WATER PIPE CLIP (B) M10X16 FLANGE	0-28151-016-0	01	1	1311-	●
288	BOLT; WATER PIPE CLIP (A) M8X12 FLANGE	0-28050-812-0	03	1	1312-		●
291	NUT; PIPE TO BRKT M8 FLANGE MAL	0-91180-108-0	01	1	1311-	●
391	BRACKET; WATER PIPE (A)	8-97210-078-0	01	1	1311-	●
391	BRACKET; WATER PIPE (B)	8-97221-061-0	01	1	1311-	●
391	BRACKET; WATER PIPE (C)	8-97371-730-0	01	1	1312-		●

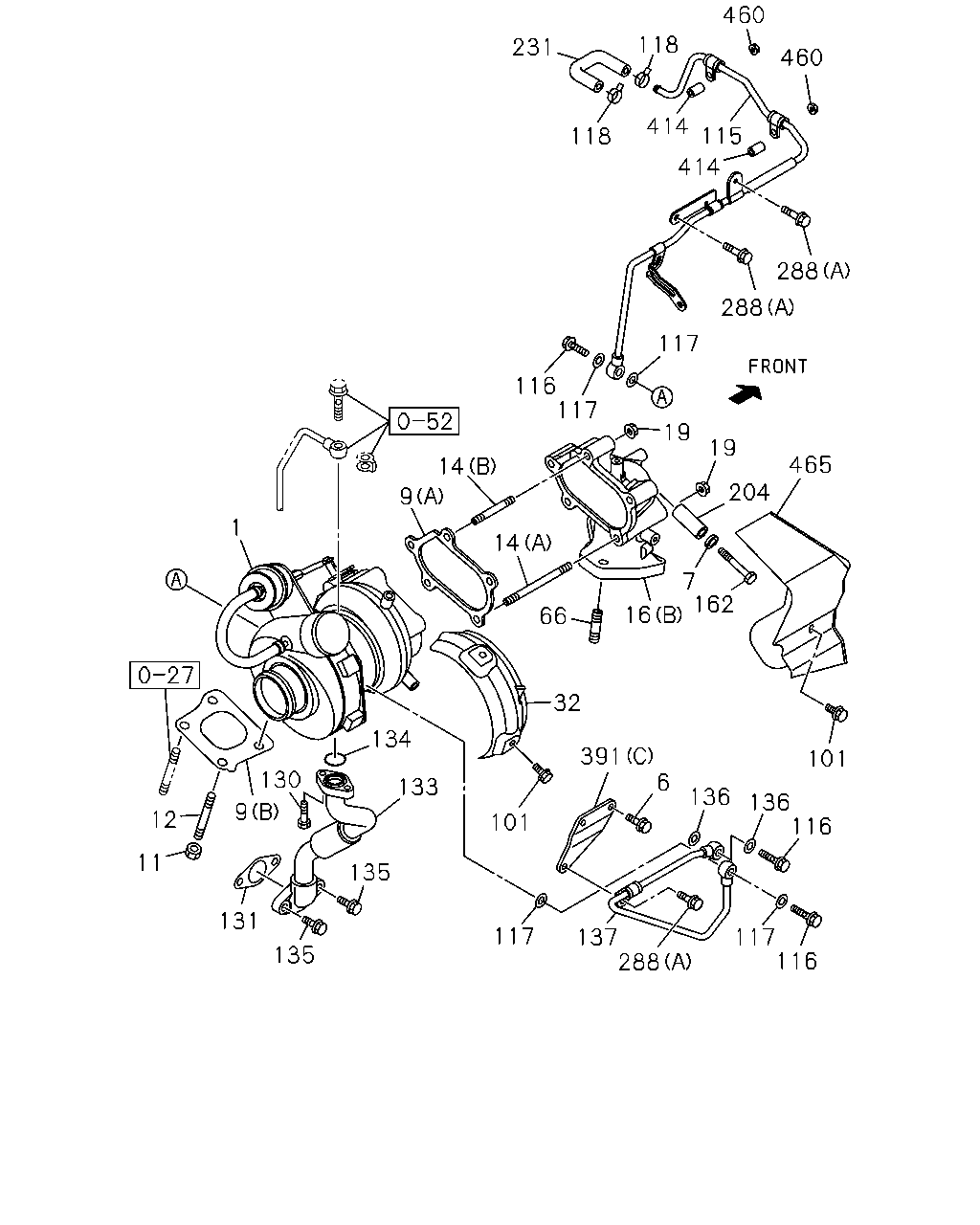

231 118 460 460 118 418 115 414 288 288 117 116 117 19 19 465 204 14 9 14 7 162 16 66 1 130 134 12 9 133 11 131 135 135 101 32 391 6 136 136 101 116 117 137 288 117 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. VIN MODEL YEAR 2015<VZF>	8-98254-714-0	01	1	1407-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97326-752-1	01	1	1311-1406	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. VIN MODEL YEAR 2015<VZF>	8-97326-752-1	01	1	1407-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-98079-569-2	01	1	1312-		●
6	BOLT; BRKT TO C/BL M8X16 FLANGE MAL	0-28050-816-0	02	1	1312-		●
7	WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	1311-1311	●
7	WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	1312-	●	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97039-777-1	01	1	1311-1311	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97039-777-1	01	1	1312-	●	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-97374-412-0	01	1	1312-		●
11	NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	1312-		●
12	STUD; TURBOCHARGER M10X28	9-04731-028-0	02	1	1312-		●
14	STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	1311-1311	●
14	STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	1312-	●	●
14	STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	1311-1311	●
14	STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	1312-	●	●
16	ADAPTER; EXH PIPE (A)	8-97178-487-3	01	1	1311-	●
16	ADAPTER; EXH PIPE (B)	8-97039-749-2	01	1	1312-		●
19	NUT; EXH PIPE,TURBOCHARGER M8 FLANGE	8-94170-486-0	05	1	1311-1311	●
19	NUT; EXH PIPE,TURBOCHARGER M8 FLANGE	8-94170-486-0	05	1	1312-	●	●
32	PROTECTOR; HEAT,TURBOCHARGER	8-97351-168-0	01	1	1312-		●
66	STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	1311-1311	●
66	STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	1312-	●	●
101	BOLT; HEAT PROTECTOR M6X12 W/PL WASHER	8-98054-289-0	06	1	1312-		●
115	PIPE; WATER,TURBOCHARGER OUT VIN MODEL YEAR 2015<VZF>	8-98261-645-0	01	1	1407-	●
115	PIPE; WATER,TURBOCHARGER OUT	8-97210-077-2	01	1	1311-1406	●
115	PIPE; WATER,TURBOCHARGER OUT EXC. VIN MODEL YEAR 2015<VZF>	8-97210-077-2	01	1	1407-	●
115	PIPE; WATER,TURBOCHARGER OUT	8-98096-928-0	01	1	1312-		●
116	BOLT; WATER PIPE EXC. VIN MODEL YEAR 2015<VZF> M14X30 EYE-BOLT	8-94455-144-0	03	1	1407-	●
116	BOLT; WATER PIPE M14X30 EYE-BOLT	8-94455-144-0	03	1	1407-		●
116	BOLT; WATER PIPE VIN MODEL YEAR 2015<VZF> M14X31 EYE-BOLT	8-98037-067-0	01	1	1407-1409	●
116	BOLT; WATER PIPE VIN MODEL YEAR 2015<VZF> M14X31 EYE-BOLT	8-98037-067-0	02	1	1410-	●
116	BOLT; WATER PIPE M14X30 EYE-BOLT	8-94455-144-0	03	1	1311-1311	●
116	BOLT; WATER PIPE M14X30 EYE-BOLT	8-94455-144-0	03	1	1312-1406	●	●
116	BOLT; WATER PIPE VIN MODEL YEAR 2015<VZF> M14X30 EYE-BOLT	8-94455-144-0	02	1	1407-1409	●
116	BOLT; WATER PIPE VIN MODEL YEAR 2015<VZF> M14X30 EYE-BOLT	8-94455-144-0	01	1	1410-	●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). VIN MODEL YEAR 2015<VZF> ID=14.2 OD=20.0	9-09571-414-0	06	1	1407-	●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	04	1	1311-1312	●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-1406	●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIN MODEL YEAR 2015<VZF> ID=14.2 OD=19.2	8-98251-345-0	04	1	1407-	●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=20.0	9-09571-414-0	02	1	1311-1406	●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIN MODEL YEAR 2015<VZF> ID=14.2 OD=20.0	9-09571-414-0	02	1	1407-	●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=20.0	9-09571-414-0	04	1	1312-		●
118	CLIP; WATER HOSE ID=15.5	8-94221-519-0	02	1	1311-1311	●
118	CLIP; WATER HOSE ID=15.5	8-94221-519-0	02	1	1312-	●	●
130	BOLT; OIL PIPE TO TURBOCHARGER DRAIN VIN MODEL YEAR 2015<VZF> M6X16 HEX SOCKET	0-58330-616-0	02	1	1407-1410	●
130	BOLT; OIL PIPE TO TURBOCHARGER DRAIN VIN MODEL YEAR 2015<VZF> M6X16 W/LK WASHER	0-50540-616-0	02	1	1411-	●
130	BOLT; OIL PIPE TO TURBOCHARGER DRAIN M6X20 W/LK WASHER	0-50540-620-0	02	1	1311-1311	●
130	BOLT; OIL PIPE TO TURBOCHARGER DRAIN M6X20 W/LK WASHER	0-50540-620-0	02	1	1312-1406	●	●
130	BOLT; OIL PIPE TO TURBOCHARGER DRAIN EXC. VIN MODEL YEAR 2015<VZF> M6X20 W/LK WASHER	0-50540-620-0	02	1	1407-	●
130	BOLT; OIL PIPE TO TURBOCHARGER DRAIN M6X20 W/LK WASHER	0-50540-620-0	02	1	1407-		●
131	GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	1311-1311	●
131	GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	1312-	●	●
133	PIPE; OIL DRAIN,TURBOCHARGER VIN MODEL YEAR 2015<VZF>	8-98261-657-0	01	1	1407-	●
133	PIPE; OIL DRAIN,TURBOCHARGER	8-98172-659-0	01	1	1311-1406	●
133	PIPE; OIL DRAIN,TURBOCHARGER EXC. VIN MODEL YEAR 2015<VZF>	8-98172-659-0	01	1	1407-	●
133	PIPE; OIL DRAIN,TURBOCHARGER	8-98172-658-0	01	1	1312-		●
134	GASKET; OIL PIPE,TURBOCHARGER DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	1311-1311	●
134	GASKET; OIL PIPE,TURBOCHARGER DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	1312-1406	●	●
134	GASKET; OIL PIPE,TURBOCHARGER DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIN MODEL YEAR 2015<VZF>. ID=22.8	1-09623-462-0	01	1	1407-	●
134	GASKET; OIL PIPE,TURBOCHARGER DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	1407-		●
135	BOLT; OIL PIPE TO C/BL M8X20 FLANGE MAL	0-28050-820-0	02	1	1311-1311	●
135	BOLT; OIL PIPE TO C/BL M8X20 FLANGE MAL	0-28050-820-0	02	1	1312-	●	●
136	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	02	1	1312-1312		●
136	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●
137	PIPE; WATER,TURBOCHARGER IN VIN MODEL YEAR 2015<VZF>	8-98213-680-0	01	1	1407-	●
137	PIPE; WATER,TURBOCHARGER IN	8-97229-036-0	01	1	1311-1406	●
137	PIPE; WATER,TURBOCHARGER IN EXC. VIN MODEL YEAR 2015<VZF>	8-97229-036-0	01	1	1407-	●
137	PIPE; WATER,TURBOCHARGER IN	8-98063-840-0	01	1	1312-		●
162	BOLT; ADAPTER M8X57	5-09000-275-0	01	1	1311-1311	●
162	BOLT; ADAPTER M8X57	5-09000-275-0	01	1	1312-	●	●
204	COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	1311-1311	●
204	COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	1312-	●	●
231	HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	1311-1311	●
231	HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	1312-	●	●
288	BOLT; WATER PIPE CLIP (A) M8X12 FLANGE	0-28050-812-0	02	1	1311-	●
288	BOLT; WATER PIPE CLIP (B) M10X16 FLANGE	0-28151-016-0	01	1	1311-	●
288	BOLT; WATER PIPE CLIP (A) M8X12 FLANGE	0-28050-812-0	03	1	1312-		●
391	BRACKET; WATER PIPE (A)	8-97210-078-0	01	1	1311-	●
391	BRACKET; WATER PIPE (B)	8-97221-061-0	01	1	1311-	●
391	BRACKET; WATER PIPE (C)	8-97371-730-0	01	1	1312-		●
414	SPACER M8X10	1-11369-081-0	02	1	1312-		●
460	NUT; PIPE M8 FLANGE MAL	0-91180-108-0	02	1	1312-		●
465	PROTECTOR; HEAT,EXH ADAPTER	8-98176-248-0	01	1	1312-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
