0-32 — WATER PIPING; ENGINE (#130796) — 12 parça

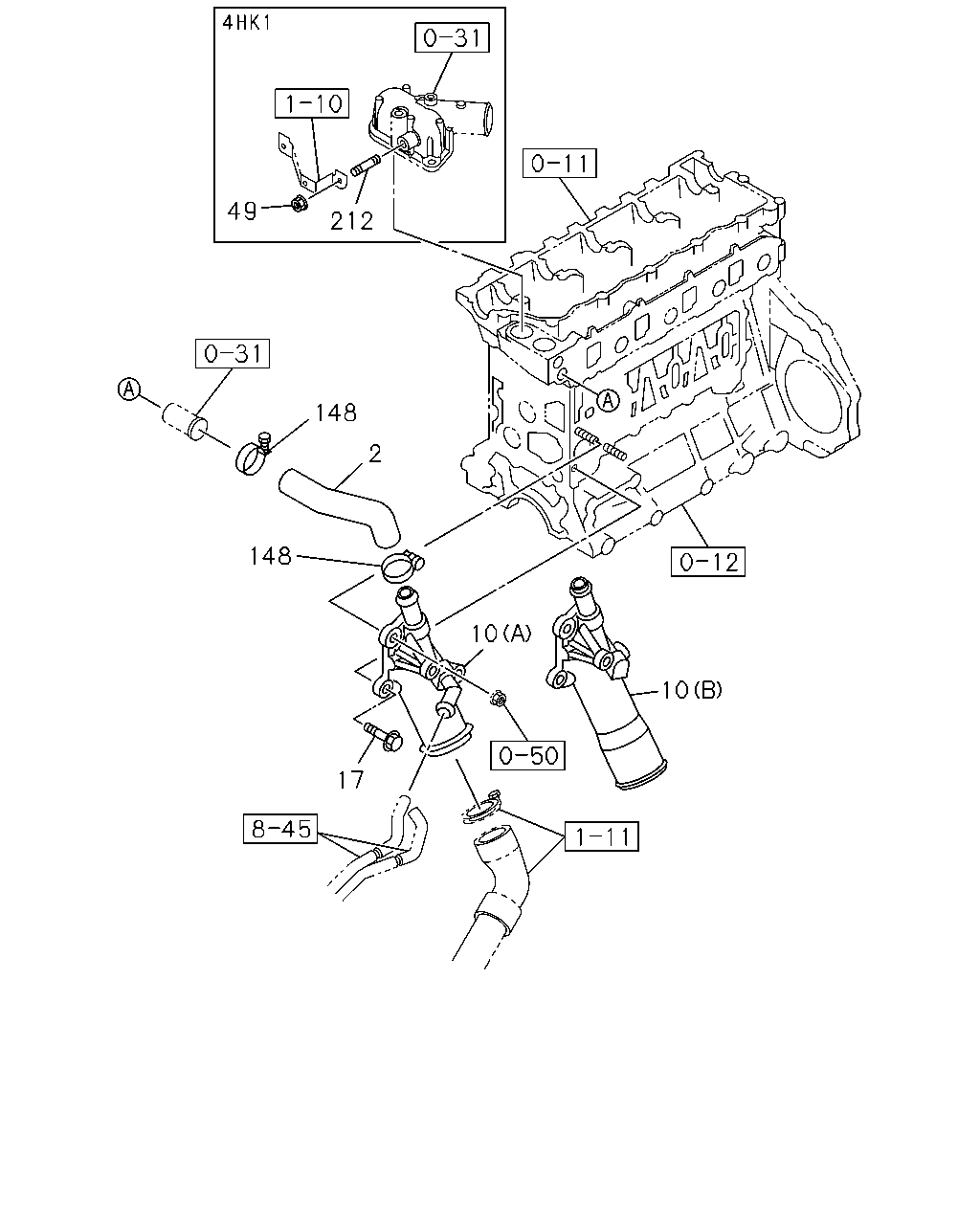

çizim 385123
148 148 2 17 10 10 212 49
BalonParca AdiParca NoAdetTipApplied Date A B
2 HOSE; WATER,BY-PASS 8-97209-948-0 01 1 1311- ●
2 HOSE; WATER,BY-PASS 8-97379-228-1 01 1 1312- ●
10 PIPE; SUCTION
HEATER & DEFROSTER(C41),COOLER WO/HEATER(C65) (A) 		8-98166-992-0 01 1 1311-1405 ●
10 PIPE; SUCTION
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) 		8-98166-992-0 01 1 1406- ●
10 PIPE; SUCTION
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) 		8-98212-009-0 01 1 1311- ●
10 PIPE; SUCTION
(A) 		8-98166-991-0 01 1 1312- ●
17 BOLT; SUCTION PIPE
M8X48 FLANGE 		8-94458-473-1 01 1 1311-1311 ●
17 BOLT; SUCTION PIPE
M8X48 FLANGE 		8-94458-473-1 01 1 1312- ● ●
49 NUT; WATER PIPE
M8 FLANGE MAL 		0-91180-108-0 02 1 1312- ●
148 CLIP; BYPASS HOSE
ID=30 		9-09915-315-1 02 1 1311-1311 ●
148 CLIP; BYPASS HOSE
ID=30 		9-09915-315-1 02 1 1312- ● ●
212 STUD; PIPE
M8X45 L=55 		8-94217-227-0 02 1 1312- ●
