◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51501 - NPR(MALAYSIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-31 - THERMOSTAT AND HOUSING ▶
0-31 — THERMOSTAT AND HOUSING (#130795) — 35 parça

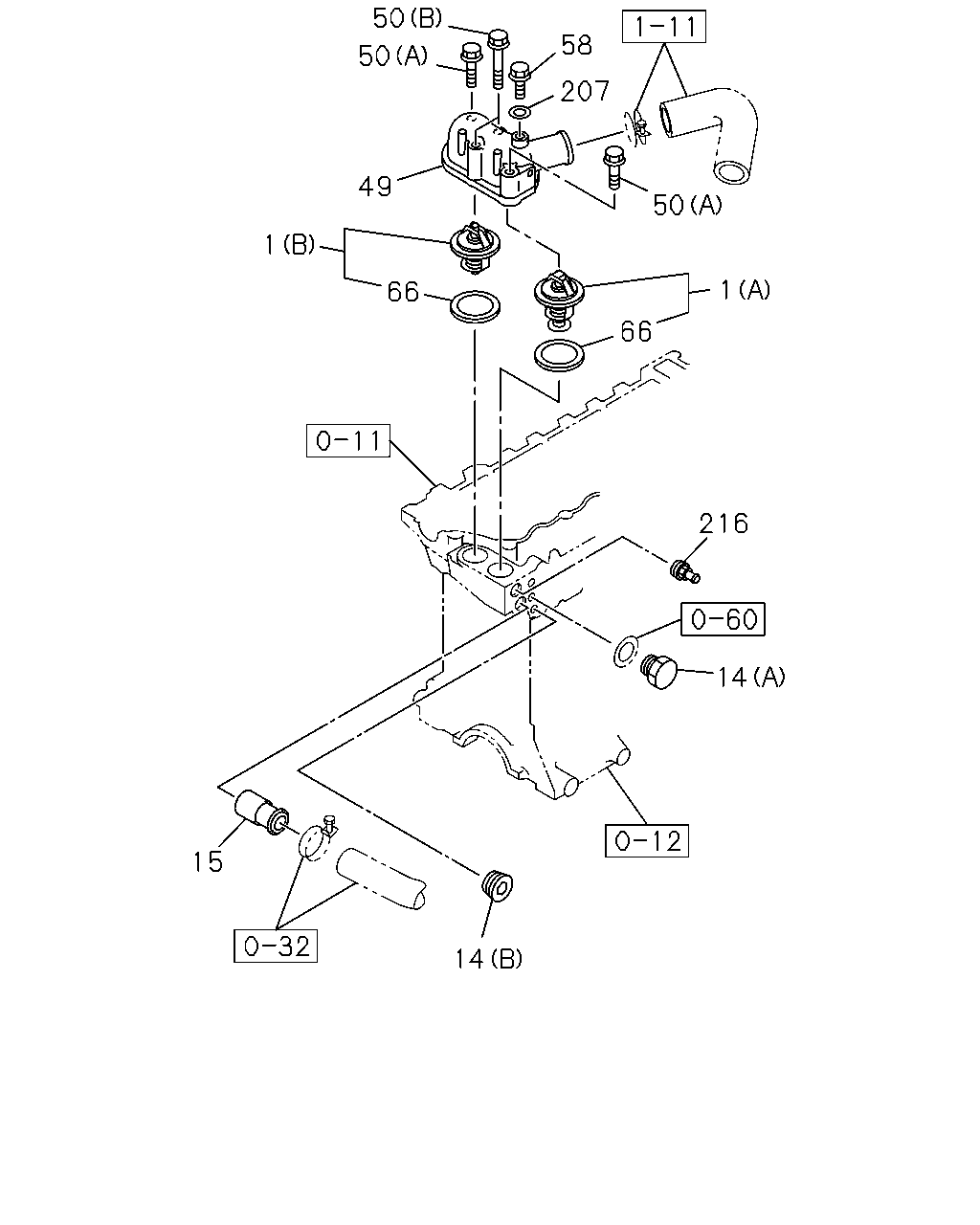

çizim 385116
50 50 58 207 49 50 1 1 66 66 216 14 15 14
BalonParca AdiParca NoAdetTipApplied Date A B
1 THERMOSTAT
(A) 82 CELSIUS 		8-97300-789-3 01 1 1311- ●
1 THERMOSTAT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) 85 CELSIUS 		8-97300-792-2 01 1 1311- ●
1 THERMOSTAT
HEATER & DEFROSTER(C41),COOLER WO/HEATER(C65) (B) 85 CELSIUS 		8-97300-787-2 01 1 1311-1311 ●
1 THERMOSTAT
HEATER & DEFROSTER(C41),COOLER WO/HEATER(C65) (B) 85 CELSIUS 		8-97300-787-2 01 1 1312-1405 ●
1 THERMOSTAT
(B) 85 CELSIUS 		8-97300-787-2 01 1 1312-1405 ●
1 THERMOSTAT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) 85 CELSIUS 		8-97300-787-3 01 1 1406- ●
1 THERMOSTAT
(B) 85 CELSIUS 		8-97300-787-3 01 1 1406- ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-97300-790-3 01 1 1312- ●
14 PLUG; SW
(B) PT3/8 		5-09605-005-0 01 1 1311-1311 ●
14 PLUG; SW
(B) PT3/8 		5-09605-005-0 01 1 1312-1409 ● ●
14 PLUG; SW
EXC. VIN MODEL YEAR 2015<VZF> (B) PT3/8 		5-09605-005-0 01 1 1410- ●
14 PLUG; SW
GLOW SYSTEM DELETE<7RK> VIN MODEL YEAR 2015<VZF> (B) PT3/8 		5-09605-005-0 01 1 1410- ●
14 PLUG; SW
(B) PT3/8 		5-09605-005-0 01 1 1410- ●
14 PLUG; SW
(A) M16X8 PLUG 		9-09661-005-0 01 1 1311-1311 ●
14 PLUG; SW
(A) M16X8 PLUG 		9-09661-005-0 01 1 1312- ● ●
15 PIPE; BYPASS 8-94342-574-0 01 1 1311-1311 ●
15 PIPE; BYPASS 8-94342-574-0 01 1 1312- ● ●
49 PIPE; WATER OUTLET 8-97372-769-1 01 1 1311- ●
49 PIPE; WATER OUTLET 8-97329-914-0 01 1 1312- ●
50 BOLT; OUTLET PIPE
(A) M8X25 FLANGE MAL 		0-28650-825-0 02 1 1311-1311 ●
50 BOLT; OUTLET PIPE
(A) M8X25 FLANGE MAL 		0-28650-825-0 02 1 1312- ● ●
50 BOLT; OUTLET PIPE
(B) M8X65 FLANGE 		1-09044-072-1 02 1 1311-1311 ●
50 BOLT; OUTLET PIPE
(B) M8X65 FLANGE 		1-09044-072-1 02 1 1312- ● ●
58 PLUG; WATER OUTLET PIPE
M8X16 		8-97021-211-1 01 1 1311-1311 ●
58 PLUG; WATER OUTLET PIPE
M8X16 		8-97021-211-1 01 1 1312- ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-97300-793-0 01 1 1311-1501 ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-97300-793-0 01 1 1311-1501 ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-98280-281-0 01 1 1502- ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-98280-281-0 01 1 1502- ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-97300-793-0 02 1 1312-1501 ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-98280-281-0 02 1 1502- ●
207 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=8.2 OD=13.2 		1-09630-082-0 01 1 1311-1311 ●
207 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=8.2 OD=13.2 		1-09630-082-0 01 1 1312- ● ●
216 PIPE ASM; WATER,TURBOCHARGER RETURN 8-97358-699-0 01 1 1311-1311 ●
216 PIPE ASM; WATER,TURBOCHARGER RETURN 8-97358-699-0 01 1 1312- ● ●
