0-25 — INLET MANIFOLD (#130791) — 101 parça

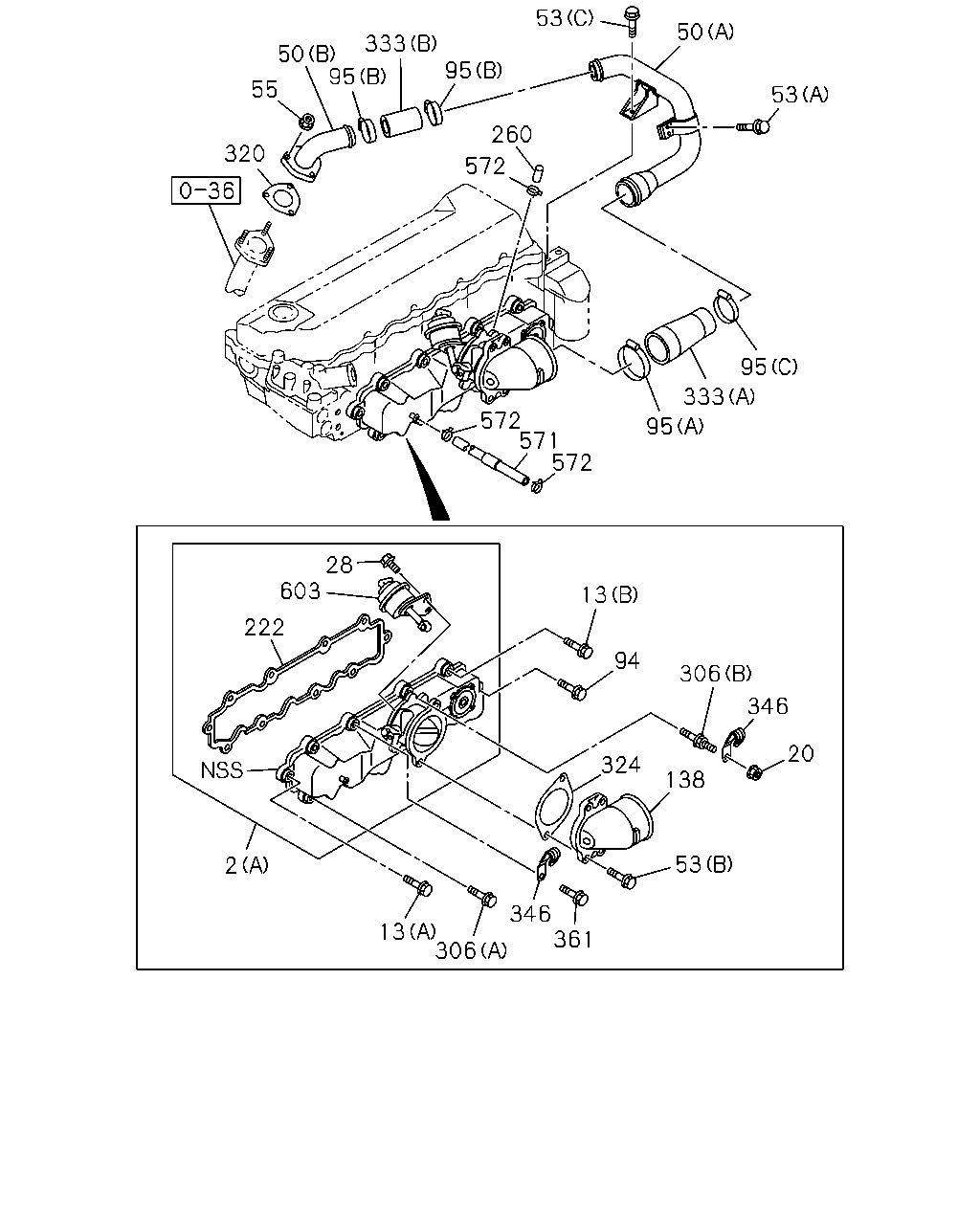

55 50 333 53 50 53 260 572 95 95 320 572 571 572 95 333 95 13 28 603 222 94 306 346 20 138 324 53 361 346 306 13 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	COVER; INL (C)	8-97387-039-0	01	1	1410-	●
2	COVER; INL (A)	8-97212-454-3	01	1	1311-		●
2	COVER; INL (B)	8-97387-038-0	01	1	1312-1409	●
13	BOLT; INL MANIF (A) M8X30 FLANGE	0-28050-830-0	07	1	1311-		●
13	BOLT; INL MANIF (B) M8X52 L=68	8-98048-395-0	01	1	1311-		●
13	BOLT; INL MANIF (C) M8X30 FLANGE	0-28050-830-0	09	1	1312-	●
13	BOLT; INL MANIF (D) M8X80 FLANGE	0-28050-880-0	01	1	1312-	●
20	NUT; INL MANIF M8 FLANGE MAL	0-91180-108-0	02	1	1311-1311		●
20	NUT; INL MANIF M8 FLANGE MAL	0-91180-108-0	02	1	1312-	●	●
28	BOLT; CHAMBER M6X12 FLANGE MAL	0-28050-612-0	02	1	1311-		●
50	PIPE; INL (A)	8-97178-735-5	01	1	1407-		●
50	PIPE; INL (A)	8-97178-735-5	01	1	1311-1406		●
50	PIPE; INL VIN MODEL YEAR 2015<VZF> (B)	8-98261-643-0	01	1	1407-		●
50	PIPE; INL (B)	8-97202-327-2	01	1	1311-1406		●
50	PIPE; INL EXC. VIN MODEL YEAR 2015<VZF> (B)	8-97202-327-2	01	1	1407-		●
53	BOLT; INL PIPE (A) M8X20 FLANGE MAL	0-28650-820-0	02	1	1311-		●
53	BOLT; INL PIPE (B) M8X30 FLANGE	0-28650-830-0	02	1	1311-		●
53	BOLT; INL PIPE (C) M10X25 FLANGE MAL	0-28651-025-0	02	1	1311-		●
53	BOLT; INL PIPE (B) M8X30 FLANGE	0-28650-830-0	03	1	1312-	●
55	NUT; INL PIPE M6 FLANGE MAL	0-91180-206-0	03	1	1311-		●
94	BOLT M8X30 FLANGE	0-28050-830-0	01	1	1311-		●
95	CLIP; RUBBER HOSE (A) ID=77-95	1-09707-114-0	01	1	1311-		●
95	CLIP; RUBBER HOSE (B) ID=50-69	8-94316-991-0	02	1	1311-1405		●
95	CLIP; RUBBER HOSE (B) ID=50-69	8-94316-991-0	01	1	1406-1406		●
95	CLIP; RUBBER HOSE (B) ID=50-69	8-94316-991-0	02	1	1407-		●
95	CLIP; RUBBER HOSE (C) ID=68-85	8-94320-428-0	01	1	1311-		●
138	PIPE; INL	8-97180-566-2	01	1	1311-		●
222	GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97084-938-2	01	1	1311-		●
260	CAP; RUBBER VIN MODEL YEAR 2015<VZF> ID=4	8-94217-809-0	01	1	1410-		●
306	BOLT; VLV (A) M8X45 FLANGE	0-28050-845-0	05	1	1311-		●
306	BOLT; VLV (B) M8X85 L=101	8-98048-394-0	01	1	1311-		●
320	GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=47	8-97202-328-1	01	1	1311-		●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97180-546-1	01	1	1311-		●
333	HOSE; RUBBER,INL PIPE (A)	8-97201-103-2	01	1	1311-		●
333	HOSE; RUBBER,INL PIPE (B)	8-97369-717-3	01	1	1311-		●
346	CLIP; ENG HARNESS ID=12 VINYL CHLORIDE	8-97367-984-1	03	1	1311-		●
346	CLIP; ENG HARNESS ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1312-	●
361	BOLT; CLIP M8X16 FLANGE MAL	0-28050-816-0	01	1	1311-		●
571	HOSE; AIR BOOST L=210 SERVICED BY L=3000	0-04740-300-0	01	1	1311-1406		●
571	HOSE; AIR BOOST EXC. VIN MODEL YEAR 2015<VZF> L=210 SERVICED BY L=3000	0-04740-300-0	01	1	1407-		●
572	CLIP; BOOST HOSE VIN MODEL YEAR 2015<VZF> ID=8	8-94107-762-0	01	1	1410-		●
572	CLIP; BOOST HOSE ID=8	8-94107-762-0	02	1	1311-1406		●
572	CLIP; BOOST HOSE EXC. VIN MODEL YEAR 2015<VZF> ID=8	8-94107-762-0	02	1	1407-		●
603	CHAMBER; THROTTLE	8-97204-780-0	01	1	1311-		●

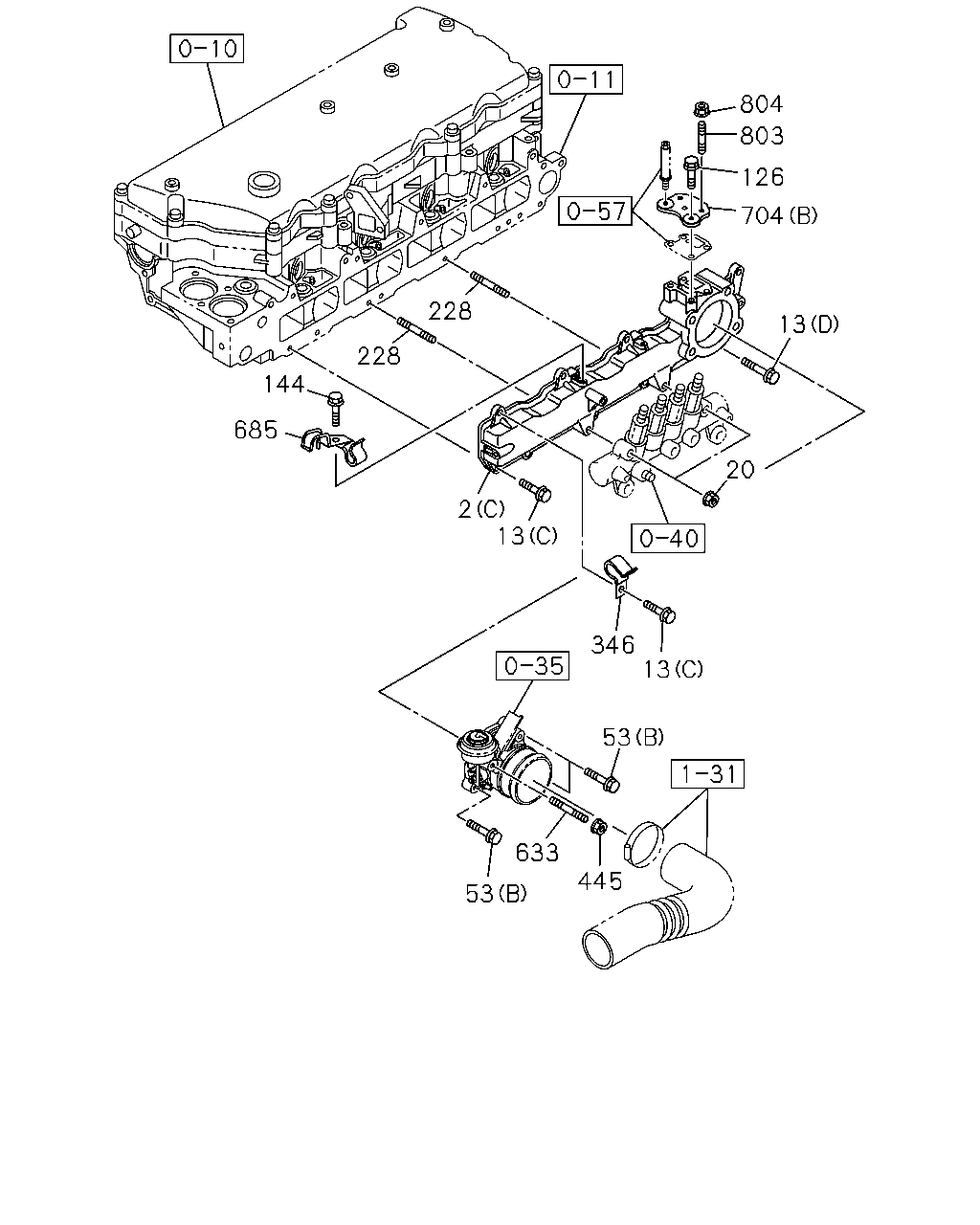

144 685 228 228 804 126 803 704 13 20 2 346 13 13 53 633 53 445

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	COVER; INL (C)	8-97387-039-0	01	1	1410-	●
2	COVER; INL (A)	8-97212-454-3	01	1	1311-		●
2	COVER; INL (B)	8-97387-038-0	01	1	1312-1409	●
13	BOLT; INL MANIF (A) M8X30 FLANGE	0-28050-830-0	07	1	1311-		●
13	BOLT; INL MANIF (B) M8X52 L=68	8-98048-395-0	01	1	1311-		●
13	BOLT; INL MANIF (C) M8X30 FLANGE	0-28050-830-0	09	1	1312-	●
13	BOLT; INL MANIF (D) M8X80 FLANGE	0-28050-880-0	01	1	1312-	●
20	NUT; INL MANIF M8 FLANGE MAL	0-91180-108-0	02	1	1311-1311		●
20	NUT; INL MANIF M8 FLANGE MAL	0-91180-108-0	02	1	1312-	●	●
53	BOLT; INL PIPE (A) M8X20 FLANGE MAL	0-28650-820-0	02	1	1311-		●
53	BOLT; INL PIPE (B) M8X30 FLANGE	0-28650-830-0	02	1	1311-		●
53	BOLT; INL PIPE (C) M10X25 FLANGE MAL	0-28651-025-0	02	1	1311-		●
53	BOLT; INL PIPE (B) M8X30 FLANGE	0-28650-830-0	03	1	1312-	●
126	BOLT; COVER M8X25 FLANGE MAL	0-28650-825-0	01	1	1312-	●
144	BOLT; BRKT FIX M8X12 FLANGE	0-28050-812-0	01	1	1312-	●
228	STUD; INL COVER M8X117 L=128	8-97111-477-0	02	1	1312-	●
346	CLIP; ENG HARNESS ID=12 VINYL CHLORIDE	8-97367-984-1	03	1	1311-		●
346	CLIP; ENG HARNESS ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1312-	●
445	NUT; THROTTLE BODY TO MANIF M8 FLANGE MAL	0-91180-108-0	01	1	1312-	●
633	STUD; THROTTLE BODY M8X71 L=83	9-09830-212-0	01	1	1312-	●
685	BRACKET; HARNESS	8-97331-921-1	01	1	1312-	●
704	COVER (A)	8-98062-651-1	01	1	1312-1408	●
704	COVER (B)	8-98260-138-0	01	1	1409-	●
803	STUD; COVER M8X20 L=32	0-41010-820-0	02	1	1312-	●
804	NUT; COVER M8 FLANGE MAL	0-91180-108-0	02	1	1312-	●

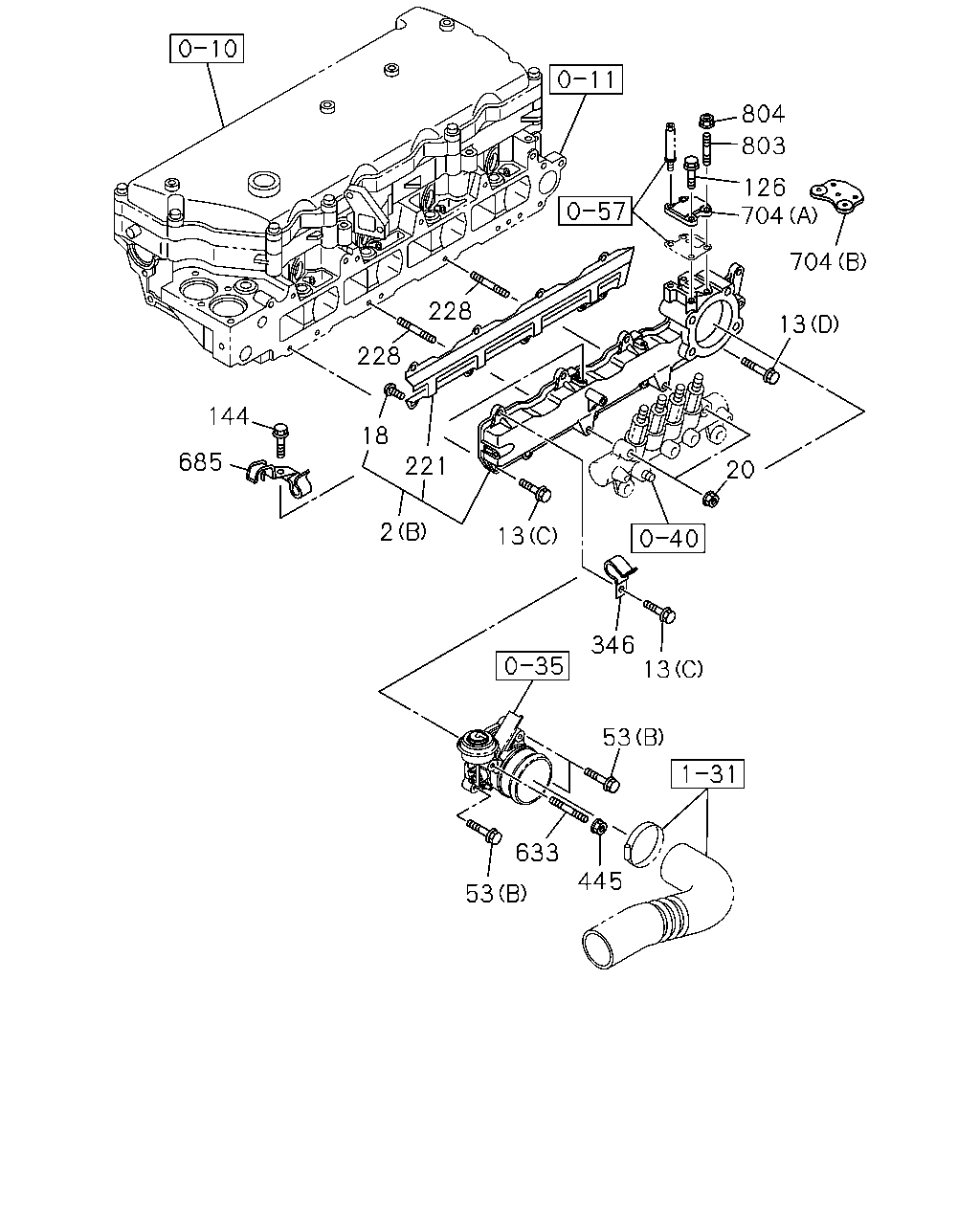

804 803 126 704 704 13 20 346 13 53 633 445 53 2 221 18 228 228 144 685 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	COVER; INL (C)	8-97387-039-0	01	1	1410-	●
2	COVER; INL (A)	8-97212-454-3	01	1	1311-		●
2	COVER; INL (B)	8-97387-038-0	01	1	1312-1409	●
13	BOLT; INL MANIF (A) M8X30 FLANGE	0-28050-830-0	07	1	1311-		●
13	BOLT; INL MANIF (B) M8X52 L=68	8-98048-395-0	01	1	1311-		●
13	BOLT; INL MANIF (C) M8X30 FLANGE	0-28050-830-0	09	1	1312-	●
13	BOLT; INL MANIF (D) M8X80 FLANGE	0-28050-880-0	01	1	1312-	●
18	SCREW; PLATE,INL CVR M6X10	9-03490-610-0	09	1	1312-1409	●
20	NUT; INL MANIF M8 FLANGE MAL	0-91180-108-0	02	1	1311-1311		●
20	NUT; INL MANIF M8 FLANGE MAL	0-91180-108-0	02	1	1312-	●	●
53	BOLT; INL PIPE (A) M8X20 FLANGE MAL	0-28650-820-0	02	1	1311-		●
53	BOLT; INL PIPE (B) M8X30 FLANGE	0-28650-830-0	02	1	1311-		●
53	BOLT; INL PIPE (C) M10X25 FLANGE MAL	0-28651-025-0	02	1	1311-		●
53	BOLT; INL PIPE (B) M8X30 FLANGE	0-28650-830-0	03	1	1312-	●
126	BOLT; COVER M8X25 FLANGE MAL	0-28650-825-0	01	1	1312-	●
144	BOLT; BRKT FIX M8X12 FLANGE	0-28050-812-0	01	1	1312-	●
221	PLATE; INL COVER	8-97379-202-0	01	1	1312-1409	●
228	STUD; INL COVER M8X117 L=128	8-97111-477-0	02	1	1312-	●
346	CLIP; ENG HARNESS ID=12 VINYL CHLORIDE	8-97367-984-1	03	1	1311-		●
346	CLIP; ENG HARNESS ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1312-	●
445	NUT; THROTTLE BODY TO MANIF M8 FLANGE MAL	0-91180-108-0	01	1	1312-	●
633	STUD; THROTTLE BODY M8X71 L=83	9-09830-212-0	01	1	1312-	●
685	BRACKET; HARNESS	8-97331-921-1	01	1	1312-	●
704	COVER (A)	8-98062-651-1	01	1	1312-1408	●
704	COVER (B)	8-98260-138-0	01	1	1409-	●
803	STUD; COVER M8X20 L=32	0-41010-820-0	02	1	1312-	●
804	NUT; COVER M8 FLANGE MAL	0-91180-108-0	02	1	1312-	●

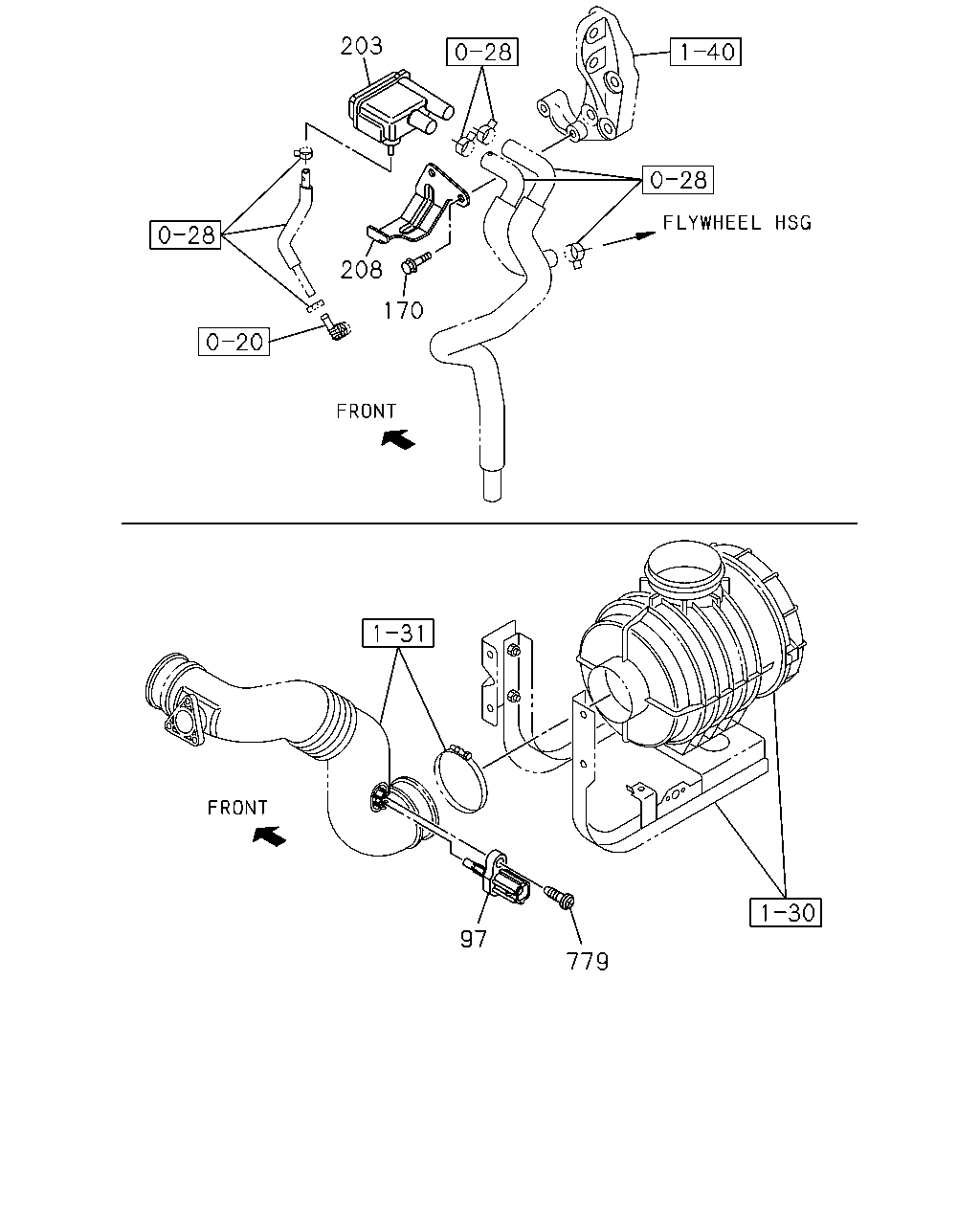

203 208 97 779 170

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
97	SENSOR; INTAKE,AIR TEMPERATURE	8-98065-377-0	01	1	1312-	●
170	BOLT; BRKT M8X16 FLANGE MAL	0-28050-816-0	02	1	1312-	●
203	TANK; CATCH,PRESSURE CONT VLV	8-97088-685-1	01	1	1312-	●
208	BRACKET; CATCH TANK,OIL	8-98074-130-0	01	1	1312-	●
779	BOLT; SENSOR M5X14 W/LK WASHER	0-36220-514-0	01	1	1312-	●
