0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#130789) — 116 parça

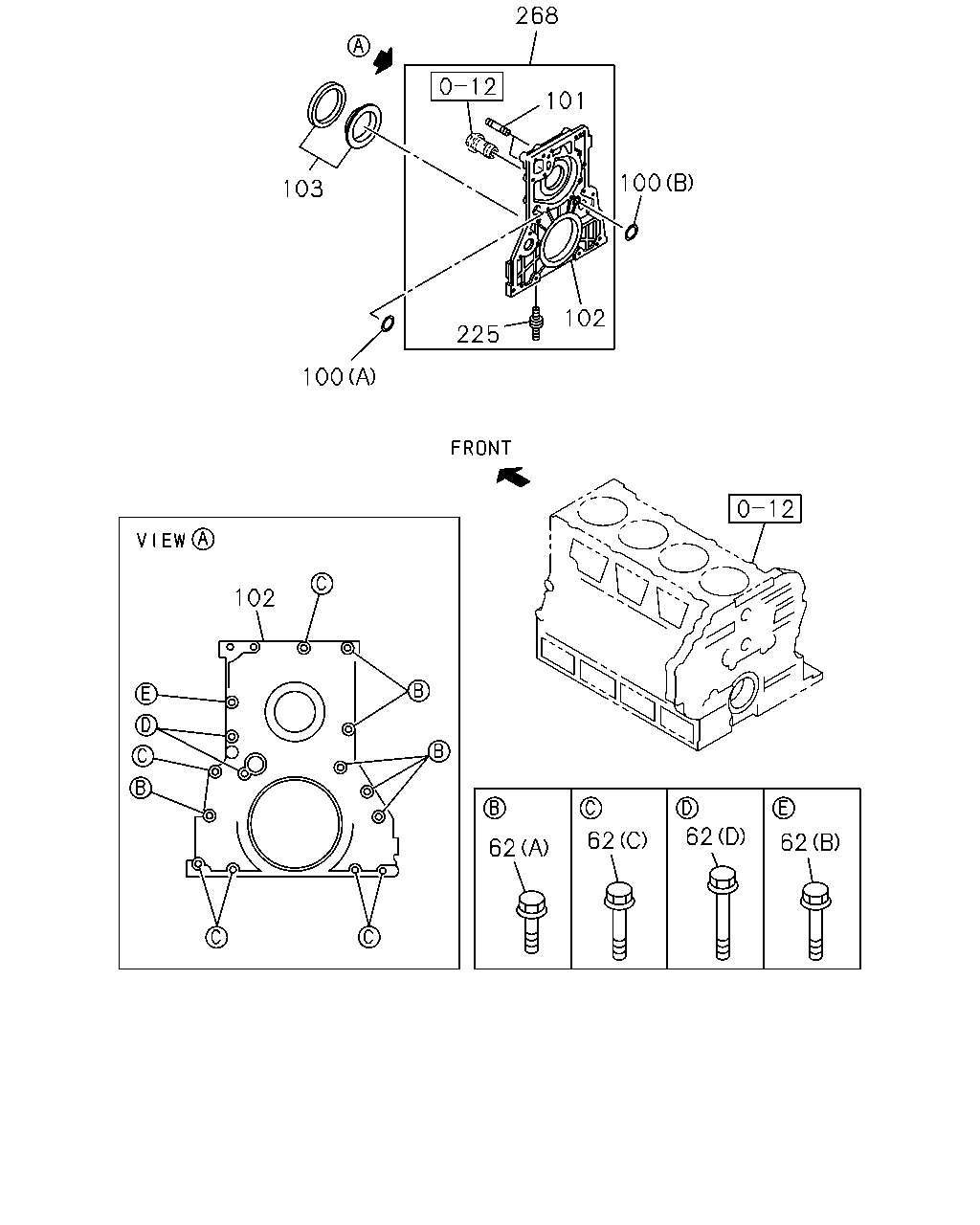

çizim 385063
103 100 225 102 100 101 268 102 62 62 62 62
BalonParca AdiParca NoAdetTipApplied Date A B
62 BOLT; COVER
(A) M8X25 FLANGE MAL 		0-28650-825-0 06 1 1311-1311 ●
62 BOLT; COVER
(A) M8X25 FLANGE MAL 		0-28650-825-0 06 1 1312- ● ●
62 BOLT; COVER
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1311-1311 ●
62 BOLT; COVER
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1312- ● ●
62 BOLT; COVER
(C) M8X35 FLANGE 		0-28650-835-0 06 1 1311-1311 ●
62 BOLT; COVER
(C) M8X35 FLANGE 		0-28650-835-0 06 1 1312- ● ●
62 BOLT; COVER
(D) M8X65 FLANGE 		1-09044-072-1 02 1 1311-1311 ●
62 BOLT; COVER
(D) M8X65 FLANGE 		1-09044-072-1 02 1 1312- ● ●
100 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=35.1 		8-97028-748-1 01 1 1311-1311 ●
100 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=35.1 		8-97028-748-1 01 1 1312- ● ●
100 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=17.8 		9-09561-318-0 01 1 1311-1311 ●
100 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=17.8 		9-09561-318-0 01 1 1312- ● ●
101 STUD; WATER PUMP
UPPER M8X18 L=30 		0-41010-818-0 01 1 1311- ●
101 STUD; WATER PUMP
LOWER M8X18 L=29 		8-97028-541-0 01 1 1311- ●
101 STUD; WATER PUMP
UPPER M8X18 L=30 		0-41010-818-0 01 1 1312- ●
101 STUD; WATER PUMP
LOWER M8X18 L=29 		8-97028-541-0 01 1 1312- ●
102 RETAINER; FRT 8-98039-932-2 01 1 1311- ●
102 RETAINER; FRT 8-98039-932-2 01 1 1312- ●
103 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=109 OD=137 		8-97329-780-0 01 1 1311-1311 ●
103 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=109 OD=137 		8-97329-780-0 01 1 1312- ● ●
225 STUD; OIL PAN
M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 03 1 1311- ●
268 COVER; FRT 8-98039-931-2 01 1 1311- ●
268 COVER; FRT 8-97148-937-3 01 1 1312- ●

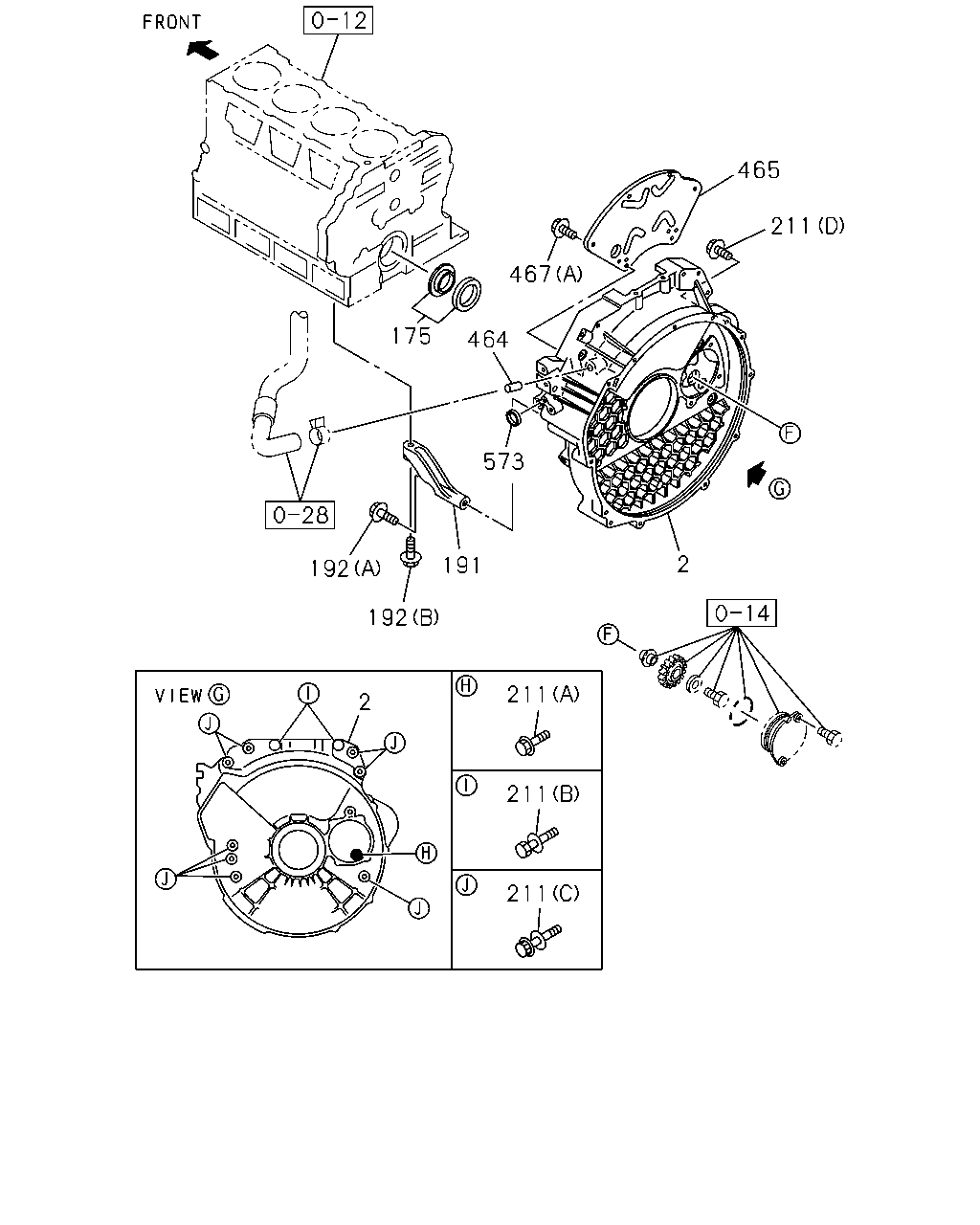

çizim 385068
175 464 573 191 192 192 2 211 465 467 211 2 211 211
BalonParca AdiParca NoAdetTipApplied Date A B
2 HOUSING; FLYWHEEL 8-97364-899-6 01 1 1311- ●
2 HOUSING; FLYWHEEL 8-97364-901-5 01 1 1312- ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139 		8-97602-379-0 01 1 1311-1311 ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139 		8-97602-379-0 01 1 1312- ● ●
191 STAY; FLYWHEEL HSG 8-97167-292-0 01 1 1311-1311 ●
191 STAY; FLYWHEEL HSG
SGL CAB(NP**S*) 		8-97167-292-0 01 1 1312- ● ●
191 STAY; FLYWHEEL HSG 8-97167-291-0 01 1 1312- ●
192 BOLT; STAY TO HSG
(A) M12X50 FLANGE 		0-28151-250-0 01 1 1311- ●
192 BOLT; STAY TO HSG
(B) M12X100 FLANGE 		0-28151-200-0 01 1 1311-1311 ●
192 BOLT; STAY TO HSG
SGL CAB(NP**S*) (B) M12X100 FLANGE 		0-28151-200-0 01 1 1312- ● ●
192 BOLT; STAY TO HSG
(C) M10X40 FLANGE 		0-28151-040-0 02 1 1312- ●
192 BOLT; STAY TO HSG
(A) M12X50 FLANGE 		0-28151-250-0 02 1 1312- ●
211 BOLT; HSG
(A) M12X30 FLANGE 		8-97135-419-0 01 1 1311- ●
211 BOLT; HSG
(B) M8X20,M8X65 L=90 		8-97200-622-1 02 1 1311- ●
211 BOLT; HSG
(C) M12X70 FLANGE, W/PL WASHER 		8-98179-087-1 09 1 1311- ●
211 BOLT; HSG
(D) M10X40 FLANGE 		0-28751-040-0 01 1 1311-1311 ●
211 BOLT; HSG
(D) M10X40 FLANGE 		0-28751-040-0 01 1 1312- ● ●
211 BOLT; HSG
(A) M12X30 FLANGE 		8-97135-419-0 02 1 1312- ●
211 BOLT; HSG
(C) M12X70 FLANGE, W/PL WASHER 		8-98179-087-1 11 1 1312- ●
464 PIPE; PCV,FLYWHEEL HSG 8-94373-246-3 01 1 1311-1311 ●
464 PIPE; PCV,FLYWHEEL HSG 8-94373-246-3 01 1 1312- ● ●
465 PLATE; FLYWHEEL HSG 8-97363-824-1 01 1 1311- ●
465 PLATE; FLYWHEEL HSG 8-97363-823-0 01 1 1312- ●
467 BOLT; PLATE
(A) M6X10 		8-98030-649-0 06 1 1311-1311 ●
467 BOLT; PLATE
(A) M6X10 		8-98030-649-0 06 1 1312- ● ●
467 BOLT; PLATE
(B) 		8-98049-523-0 02 1 1312- ●
573 CUP; SEALING
OD=19 		8-94150-231-0 01 1 1311- ●

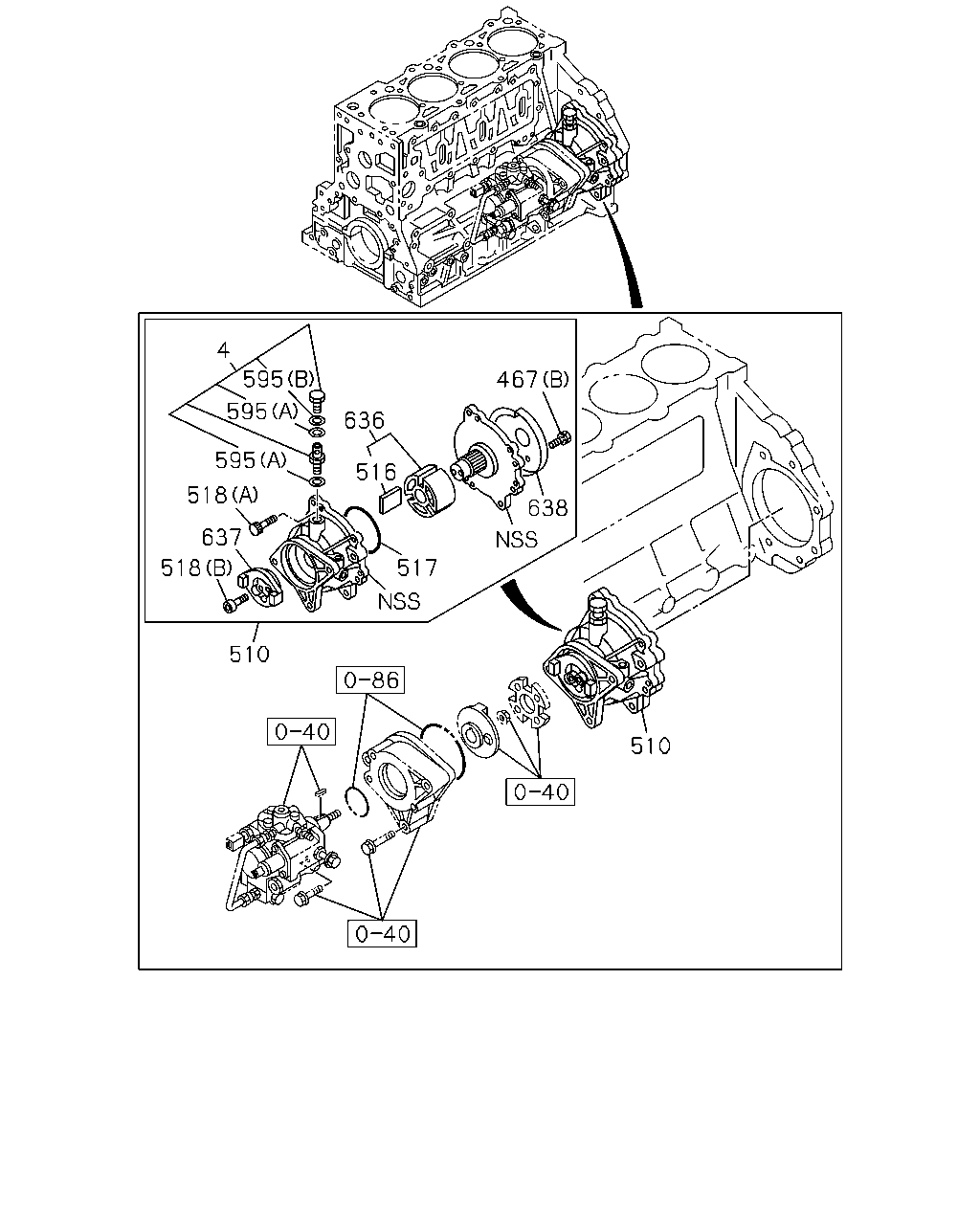

çizim 385074
4 595 595 518 637 518 636 516 517 638 467 510 510 595
BalonParca AdiParca NoAdetTipApplied Date A B
4 VALVE ASM; CHECK 8-98049-521-0 01 1 1312- ●
467 BOLT; PLATE
(A) M6X10 		8-98030-649-0 06 1 1311-1311 ●
467 BOLT; PLATE
(A) M6X10 		8-98030-649-0 06 1 1312- ● ●
467 BOLT; PLATE
(B) 		8-98049-523-0 02 1 1312- ●
510 PUMP ASM; VACUUM 8-97388-589-6 01 1 1312- ●
516 VANE; VAC PUMP 8-98051-279-0 03 1 1312- ●
517 GASKET; VAC PUMP 8-98051-280-0 01 1 1312- ●
518 BOLT; VAC PUMP
(A) M6X25 W/LK&PL WASHER 		0-50640-625-0 03 1 1312- ●
518 BOLT; VAC PUMP
(B) M8X20 		8-98051-277-0 02 1 1312- ●
595 GASKET; VLV
(B) ID=12 		8-98018-518-0 01 1 1312- ●
595 GASKET; VLV
(A) ID=18 		8-98018-519-0 02 1 1312- ●
636 ROTOR & VANE ASM; VAC PUMP 8-98051-281-0 01 1 1312- ●
637 COUPLING; VAC PUMP 8-98051-278-0 01 1 1312- ●
638 PLATE KIT; VAC PUMP 8-98051-276-0 01 1 1312- ●

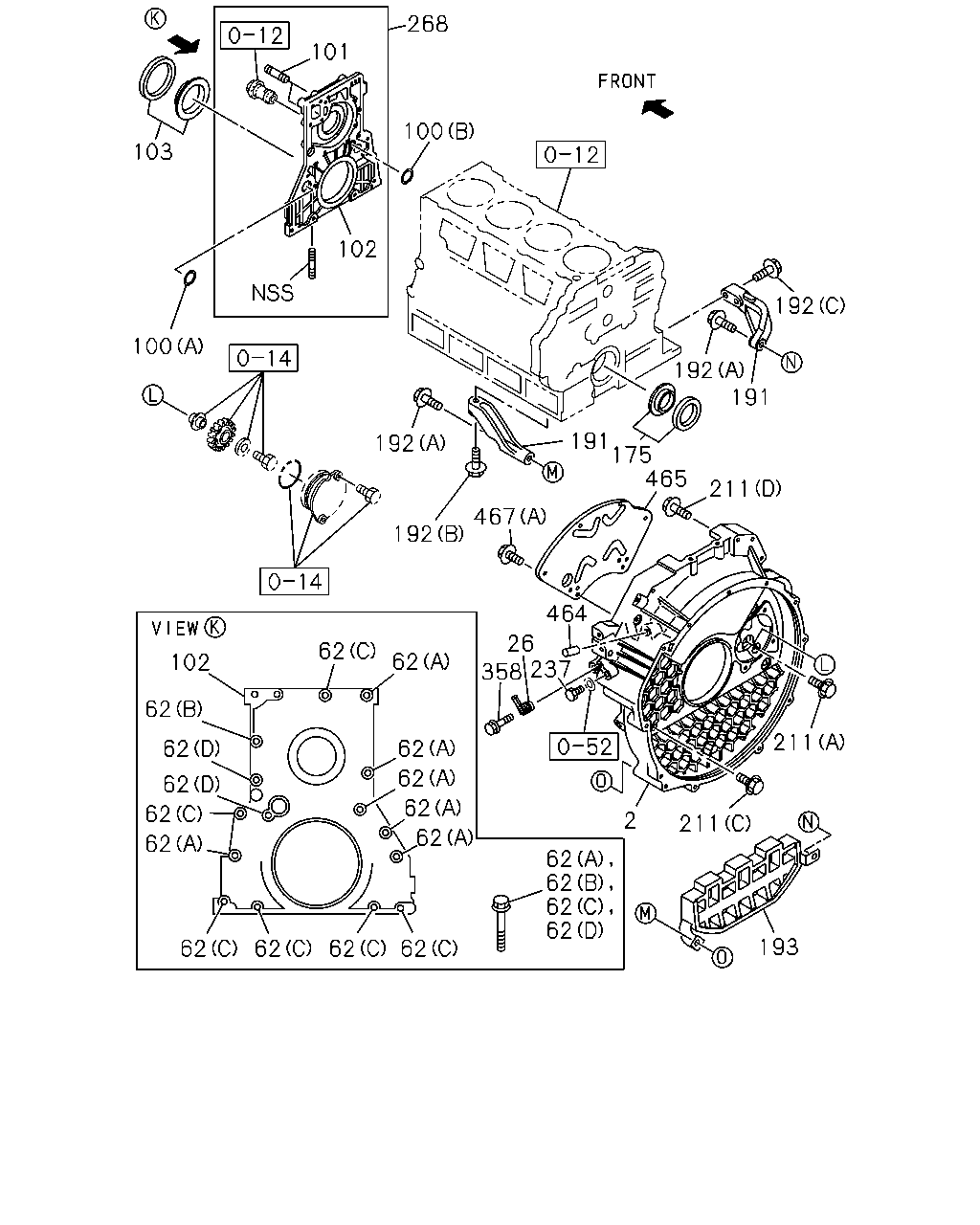

çizim 386270
103 101 268 100 102 192 192 100 467 191 192 175 191 211 465 192 211 211 2 464 26 237 358 62 62 62 62 62 62 102 62 62 62 62 62 62 62 62 62 62 62 62 62 193
BalonParca AdiParca NoAdetTipApplied Date A B
2 HOUSING; FLYWHEEL 8-97364-899-6 01 1 1311- ●
2 HOUSING; FLYWHEEL 8-97364-901-5 01 1 1312- ●
26 ADAPTER 8-97354-819-0 01 1 1312- ●
62 BOLT; COVER
(A) M8X25 FLANGE MAL 		0-28650-825-0 06 1 1311-1311 ●
62 BOLT; COVER
(A) M8X25 FLANGE MAL 		0-28650-825-0 06 1 1312- ● ●
62 BOLT; COVER
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1311-1311 ●
62 BOLT; COVER
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1312- ● ●
62 BOLT; COVER
(C) M8X35 FLANGE 		0-28650-835-0 06 1 1311-1311 ●
62 BOLT; COVER
(C) M8X35 FLANGE 		0-28650-835-0 06 1 1312- ● ●
62 BOLT; COVER
(D) M8X65 FLANGE 		1-09044-072-1 02 1 1311-1311 ●
62 BOLT; COVER
(D) M8X65 FLANGE 		1-09044-072-1 02 1 1312- ● ●
100 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=35.1 		8-97028-748-1 01 1 1311-1311 ●
100 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=35.1 		8-97028-748-1 01 1 1312- ● ●
100 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=17.8 		9-09561-318-0 01 1 1311-1311 ●
100 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=17.8 		9-09561-318-0 01 1 1312- ● ●
101 STUD; WATER PUMP
UPPER M8X18 L=30 		0-41010-818-0 01 1 1311- ●
101 STUD; WATER PUMP
LOWER M8X18 L=29 		8-97028-541-0 01 1 1311- ●
101 STUD; WATER PUMP
UPPER M8X18 L=30 		0-41010-818-0 01 1 1312- ●
101 STUD; WATER PUMP
LOWER M8X18 L=29 		8-97028-541-0 01 1 1312- ●
102 RETAINER; FRT 8-98039-932-2 01 1 1311- ●
102 RETAINER; FRT 8-98039-932-2 01 1 1312- ●
103 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=109 OD=137 		8-97329-780-0 01 1 1311-1311 ●
103 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=109 OD=137 		8-97329-780-0 01 1 1312- ● ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139 		8-97602-379-0 01 1 1311-1311 ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139 		8-97602-379-0 01 1 1312- ● ●
191 STAY; FLYWHEEL HSG 8-97167-292-0 01 1 1311-1311 ●
191 STAY; FLYWHEEL HSG
SGL CAB(NP**S*) 		8-97167-292-0 01 1 1312- ● ●
191 STAY; FLYWHEEL HSG 8-97167-291-0 01 1 1312- ●
192 BOLT; STAY TO HSG
(A) M12X50 FLANGE 		0-28151-250-0 01 1 1311- ●
192 BOLT; STAY TO HSG
(B) M12X100 FLANGE 		0-28151-200-0 01 1 1311-1311 ●
192 BOLT; STAY TO HSG
SGL CAB(NP**S*) (B) M12X100 FLANGE 		0-28151-200-0 01 1 1312- ● ●
192 BOLT; STAY TO HSG
(C) M10X40 FLANGE 		0-28151-040-0 02 1 1312- ●
192 BOLT; STAY TO HSG
(A) M12X50 FLANGE 		0-28151-250-0 02 1 1312- ●
193 SPACER; STAY TO OIL,PAN 8-97259-536-0 01 1 1312- ●
211 BOLT; HSG
(A) M12X30 FLANGE 		8-97135-419-0 01 1 1311- ●
211 BOLT; HSG
(B) M8X20,M8X65 L=90 		8-97200-622-1 02 1 1311- ●
211 BOLT; HSG
(C) M12X70 FLANGE, W/PL WASHER 		8-98179-087-1 09 1 1311- ●
211 BOLT; HSG
(D) M10X40 FLANGE 		0-28751-040-0 01 1 1311-1311 ●
211 BOLT; HSG
(D) M10X40 FLANGE 		0-28751-040-0 01 1 1312- ● ●
211 BOLT; HSG
(A) M12X30 FLANGE 		8-97135-419-0 02 1 1312- ●
211 BOLT; HSG
(C) M12X70 FLANGE, W/PL WASHER 		8-98179-087-1 11 1 1312- ●
237 PLUG; FLYWHEEL HSG
M10X12 FLANGE 		0-28051-012-0 01 1 1312- ●
268 COVER; FRT 8-98039-931-2 01 1 1311- ●
268 COVER; FRT 8-97148-937-3 01 1 1312- ●
358 BOLT; ADAPTER
M6X16 FLANGE MAL 		0-28050-616-0 01 1 1312- ●
464 PIPE; PCV,FLYWHEEL HSG 8-94373-246-3 01 1 1311-1311 ●
464 PIPE; PCV,FLYWHEEL HSG 8-94373-246-3 01 1 1312- ● ●
465 PLATE; FLYWHEEL HSG 8-97363-824-1 01 1 1311- ●
465 PLATE; FLYWHEEL HSG 8-97363-823-0 01 1 1312- ●
467 BOLT; PLATE
(A) M6X10 		8-98030-649-0 06 1 1311-1311 ●
467 BOLT; PLATE
(A) M6X10 		8-98030-649-0 06 1 1312- ● ●
467 BOLT; PLATE
(B) 		8-98049-523-0 02 1 1312- ●
