0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#130788) — 56 parça

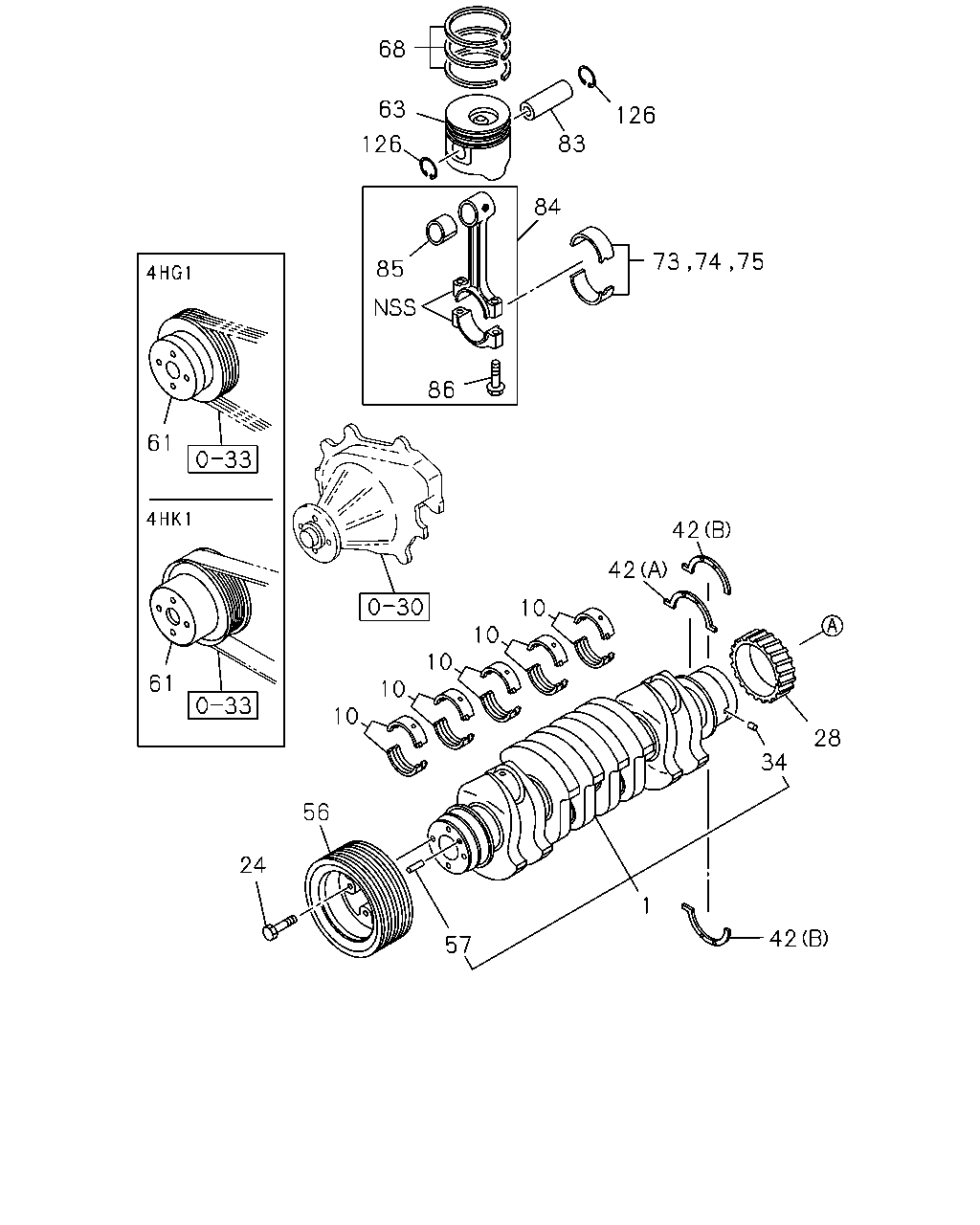

68 63 126 85 86 84 83 126 73 74 75 61 61 24 56 10 10 10 10 10 42 42 57 1 34 28 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CRANKSHAFT	8-97112-981-3	01	1	1311-	●
1	CRANKSHAFT	8-98029-270-0	01	1	1312-		●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	05	1	1311-1311	●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	05	1	1312-	●	●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	05	1	1311-1311	●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	05	1	1312-	●	●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	05	1	1311-1311	●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	05	1	1312-	●	●
24	BOLT; DAMPER M16X42	8-97028-733-0	04	1	1311-1311	●
24	BOLT; DAMPER M16X42	8-97028-733-0	04	1	1312-	●	●
28	GEAR; CR/SHF Z=42	8-97109-626-1	01	1	1311-	●
28	GEAR; CR/SHF Z=42	8-94394-342-4	01	1	1312-		●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	02	1	1311-	●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	1312-		●
42	WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	1311-1311	●
42	WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	1312-	●	●
42	WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	1311-1311	●
42	WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	1312-	●	●
56	PULLEY; CR/SHF DAMPER 4-GROOVE	8-97222-031-3	01	1	1311-	●
56	PULLEY; CR/SHF DAMPER 3-GROOVE	8-98004-024-3	01	1	1312-		●
57	PIN; PULLEY OD=8 L=20	9-08150-820-0	04	1	1311-	●
57	PIN; PULLEY OD=8 L=20	9-08150-820-0	02	1	1312-		●
61	PULLEY; FAN DRIVE 2-GROOVE	8-97174-757-3	01	1	1311-	●
61	PULLEY; FAN DRIVE 1-GROOVE	8-98003-384-1	01	1	1312-		●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98209-745-0	04	1	1311-	●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98041-141-2	04	1	1312-		●
68	RING SET; PISTON,STANDARD	8-97219-054-0	04	1	1311-	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98040-125-0	04	1	1312-		●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97045-800-0	04	1	1311-	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-97045-801-0	04	1	1311-	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-98055-479-0	04	1	1312-		●
73	METAL SET; CONN ROD,STANDARD GREEN	8-98055-480-0	04	1	1312-		●
74	METAL SET; CONN ROD,U/S=0.25	8-97175-127-0	04	1	1311-	●
75	METAL SET; CONN ROD,U/S=0.50	8-97175-128-0	04	1	1311-	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-1	04	1	1311-	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-98018-863-1	04	1	1312-		●
84	ROD ASM; CONN	8-97135-032-6	04	1	1311-	●
84	ROD ASM; CONN	8-98018-425-3	04	1	1312-		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-98121-309-0	04	1	1311-	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-1	04	1	1312-		●
86	BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	08	1	1311-1311	●
86	BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	08	1	1312-	●	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=38.8	8-94318-798-2	08	1	1311-	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=43.7	8-98006-828-0	08	1	1312-		●

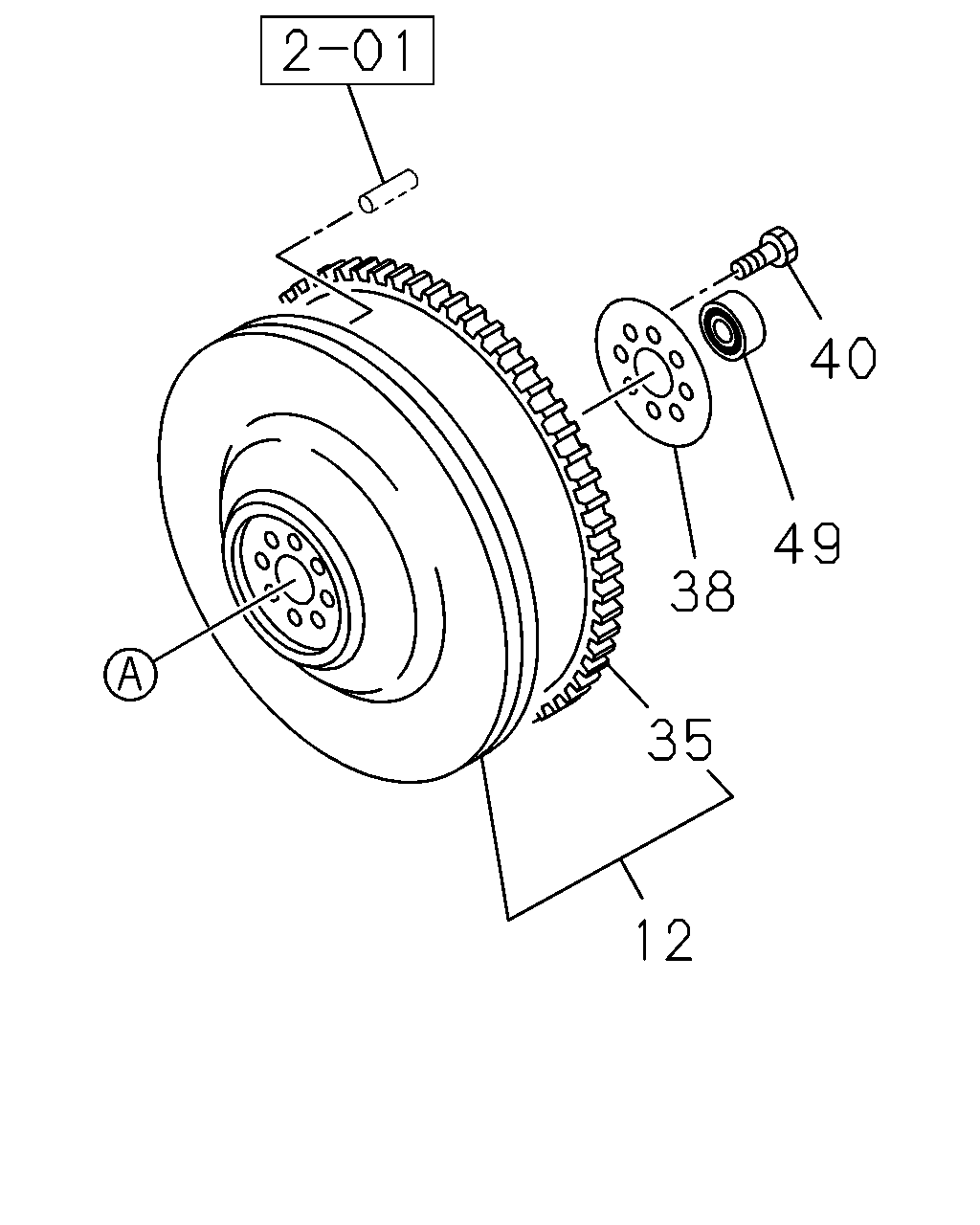

12 35 38 49 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	FLYWHEEL	8-97330-892-1	01	1	1311-	●
12	FLYWHEEL	8-97326-227-2	01	1	1312-		●
35	GEAR; RING Z=138	8-97046-366-1	01	1	1311-1311	●
35	GEAR; RING Z=138	8-97046-366-1	01	1	1312-	●	●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	1311-1311	●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	1312-	●	●
40	BOLT; FLYWHEEL M16X42	8-97178-013-0	08	1	1311-1311	●
40	BOLT; FLYWHEEL M16X42	8-97178-013-0	08	1	1312-	●	●
49	BEARING; PILOT	8-97258-239-0	01	1	1311-1311	●
49	BEARING; PILOT	8-97258-239-0	01	1	1312-	●	●
49	BEARING; PILOT BEST VALUE PARTS	5-87610-164-0	01	1	1311-1311	●
49	BEARING; PILOT BEST VALUE PARTS	5-87610-164-0	01	1	1312-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
