0-14 — CAMSHAFT AND VALVE (#130787) — 149 parça

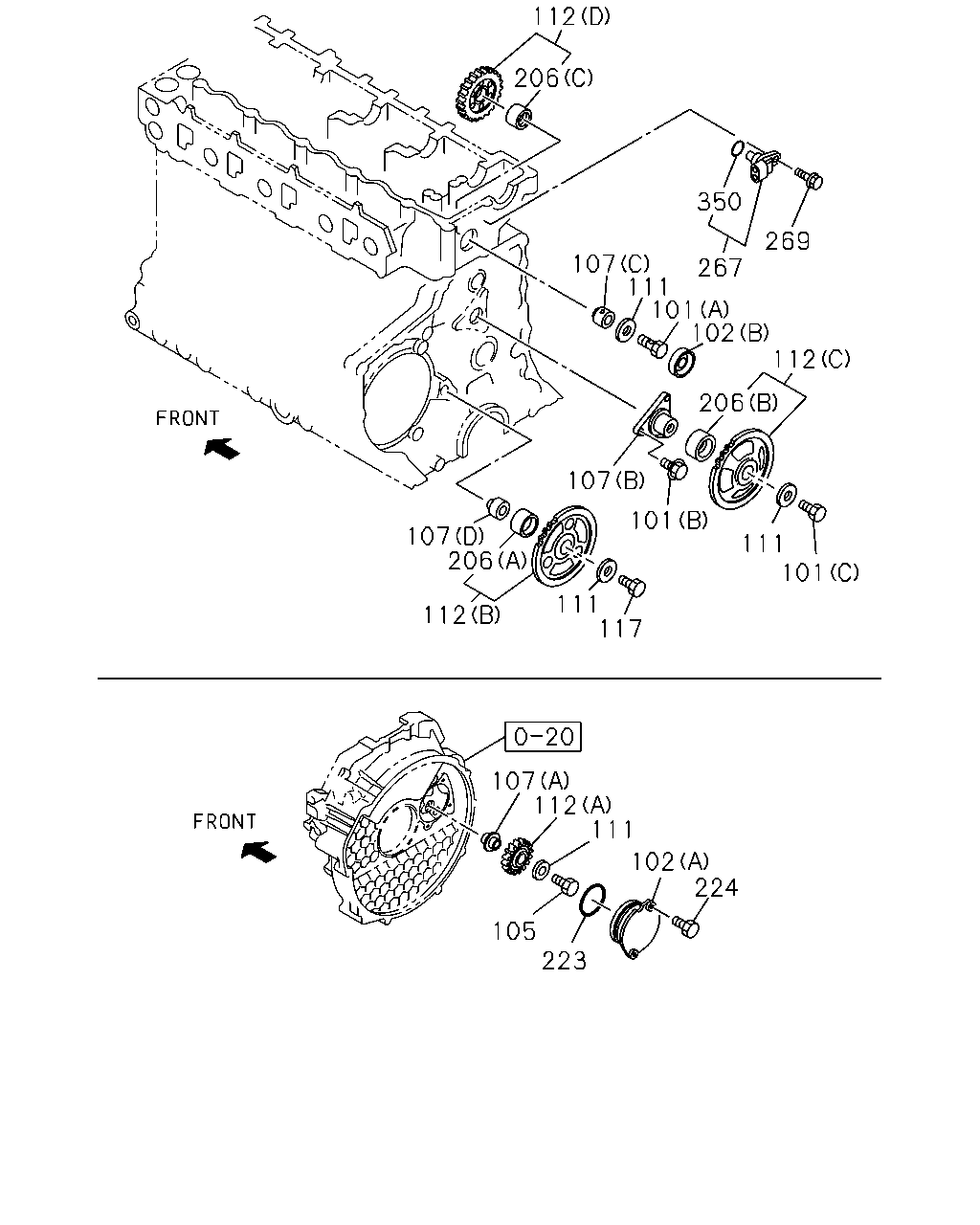

223 105 224 102 111 112 107 112 117 111 206 107 101 111 101 107 206 112 102 101 111 107 267 269 350 206 112

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
101	BOLT; THRUST COLLAR (C) M14X25	9-92361-425-0	01	1	1311-1311	●
101	BOLT; THRUST COLLAR (C) M14X25	0-23951-425-0	01	1	1311-1311	●
101	BOLT; THRUST COLLAR (C) M14X25	0-23951-425-0	01	1	1312-	●	●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	1311-1311	●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	1312-	●	●
101	BOLT; THRUST COLLAR (A) M14X36.5	8-94372-221-1	01	1	1311-1311	●
101	BOLT; THRUST COLLAR (A) M14X36.5	8-94372-221-1	01	1	1312-	●	●
102	COVER; IDLE GEAR (A)	8-94334-681-1	01	1	1311-1311	●
102	COVER; IDLE GEAR (A)	8-94334-681-1	01	1	1312-	●	●
102	COVER; IDLE GEAR (B) OD=51	8-97096-826-0	01	1	1311-1311	●
102	COVER; IDLE GEAR (B) OD=51	8-97096-826-0	01	1	1312-	●	●
105	BOLT; IDLE GEAR SHAFT M14X60	0-16956-460-0	01	1	1311-1311	●
105	BOLT; IDLE GEAR SHAFT M14X60	0-16956-460-0	01	1	1312-	●	●
107	SHAFT; IDLE GEAR (A)	8-94334-682-1	01	1	1311-1311	●
107	SHAFT; IDLE GEAR (A)	8-94334-682-1	01	1	1312-	●	●
107	SHAFT; IDLE GEAR (C)	8-97186-398-1	01	1	1311-1311	●
107	SHAFT; IDLE GEAR (C)	8-97186-398-1	01	1	1312-	●	●
107	SHAFT; IDLE GEAR (B)	8-97350-021-0	01	1	1311-1311	●
107	SHAFT; IDLE GEAR (B)	8-97350-021-0	01	1	1312-	●	●
107	SHAFT; IDLE GEAR (D)	8-98060-780-0	01	1	1311-1311	●
107	SHAFT; IDLE GEAR (D)	8-98060-780-0	01	1	1312-	●	●
111	COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	04	1	1311-1311	●
111	COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	04	1	1312-	●	●
112	GEAR; IDLE (C) Z=61	8-97094-546-2	01	1	1311-	●
112	GEAR; IDLE (D) Z=41	8-97112-607-1	01	1	1311-	●
112	GEAR; IDLE (B) Z=72-30	8-97227-074-0	01	1	1311-	●
112	GEAR; IDLE (A) Z=34	8-97120-005-1	01	1	1311-1311	●
112	GEAR; IDLE (A) Z=34	8-97120-005-1	01	1	1312-	●	●
112	GEAR; IDLE (B) Z=72-60-30	8-97600-586-1	01	1	1312-1402		●
112	GEAR; IDLE (B) Z=72-60-30	8-98254-970-0	01	1	1403-		●
112	GEAR; IDLE (C) Z=61	8-97606-767-0	01	1	1312-		●
112	GEAR; IDLE (D) Z=41	8-97606-929-0	01	1	1312-		●
117	BOLT; FLANGE M14X65 FLANGE	8-97113-167-0	01	1	1311-1311	●
117	BOLT; FLANGE M14X65 FLANGE	8-97113-167-0	01	1	1312-	●	●
206	BUSHING; IDLE GEAR (A) AFTER PRESS FITTING, MACHINE IT.	1-12528-006-0	01	1	1311-	●
206	BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	8-97606-768-0	01	1	1311-1311	●
206	BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	8-97606-768-0	01	1	1312-	●	●
206	BUSHING; IDLE GEAR (C) AFTER PRESS FITTING, MACHINE IT.	8-97606-770-0	01	1	1311-1311	●
206	BUSHING; IDLE GEAR (C) AFTER PRESS FITTING, MACHINE IT.	8-97606-770-0	01	1	1312-	●	●
206	BUSHING; IDLE GEAR (A) AFTER PRESS FITTING, MACHINE IT.	1-12528-028-0	01	1	1312-1402		●
206	BUSHING; IDLE GEAR (A) AFTER PRESS FITTING, MACHINE IT.	8-98255-899-0	01	1	1403-		●
223	GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	1-09623-423-0	01	1	1311-1311	●
223	GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	1-09623-423-0	01	1	1312-	●	●
224	BOLT; COVER M8X16 FLANGE MAL	0-28050-816-0	02	1	1311-1311	●
224	BOLT; COVER M8X16 FLANGE MAL	0-28050-816-0	02	1	1312-	●	●
267	SENSOR; CAM ANGLE	8-98019-024-0	01	1	1312-		●
269	BOLT; SENSOR M6X12 FLANGE MAL	0-28050-612-0	01	1	1312-		●
350	GASKET; SENSOR,CAM ANGLE ID=14.2 OD=18.8	8-97369-404-0	01	1	1312-		●

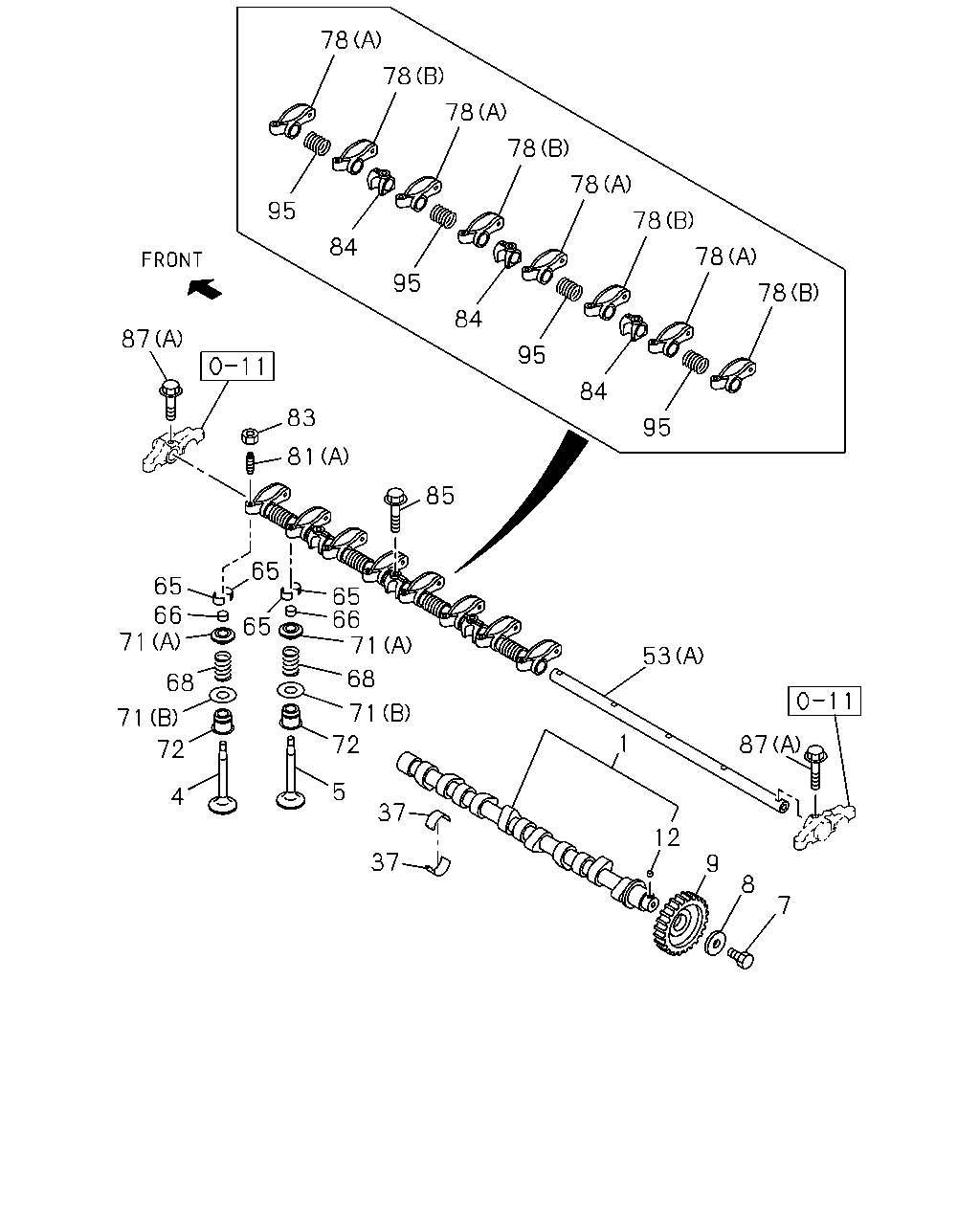

78 78 78 78 78 78 78 78 95 84 95 84 95 84 95 87 83 81 85 65 65 65 66 71 68 71 72 4 5 72 71 68 71 66 53 87 1 12 9 8 7 37 37 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CAMSHAFT	8-97077-829-0	01	1	1311-	●
1	CAMSHAFT	8-97262-166-0	01	1	1312-		●
4	VALVE; INL	8-97171-398-0	04	1	1311-	●
4	VALVE; INL	8-94395-882-2	08	1	1312-		●
5	VALVE; EXH	8-97171-399-0	04	1	1311-	●
5	VALVE; EXH	8-97209-876-4	08	1	1312-		●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	1311-1311	●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	1312-	●	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	1311-1311	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	1312-	●	●
9	GEAR; CM/SHF Z=35	8-97094-440-2	01	1	1311-	●
9	GEAR; CM/SHF Z=35	8-98018-935-3	01	1	1312-		●
12	KEY; CAM GEAR SET OD=7 L=7.5	8-94399-487-0	01	1	1311-	●
12	KEY; CAM GEAR SET OD=7 L=7.5	8-94399-487-0	02	1	1312-		●
37	METAL; CM/SHF B=16	8-97386-189-0	10	1	1311-1311	●
37	METAL; CM/SHF B=16	8-97386-189-0	10	1	1312-	●	●
53	SHAFT; ROCKER ARM (A) JBK	8-97074-617-1	01	1	1311-	●
53	SHAFT; ROCKER ARM (A) KEIHIN SEIMITSU	8-97174-567-0	01	1	1311-	●
53	SHAFT; ROCKER ARM (B)	8-97389-921-0	01	1	1312-		●
65	COLLAR; SPLIT	5-12565-006-0	16	1	1311-	●
65	COLLAR; SPLIT	5-12565-004-0	32	1	1312-		●
66	CAP; VLV STEM END	8-94396-015-2	08	1	1311-	●
68	SPRING; VLV ID=28.5	8-97023-559-0	08	1	1311-	●
68	SPRING; VLV EXHAUST MARK RED	8-97210-682-0	08	1	1312-		●
68	SPRING; VLV INLET MARK BLUE	8-97352-888-0	08	1	1312-		●
71	SEAT; SPR (A) OD=38	8-94385-029-2	08	1	1311-	●
71	SEAT; SPR (B) ID=14.3 OD=40	8-94399-526-1	08	1	1311-	●
71	SEAT; SPR (C) OD=32.8 T=12.75	8-94390-783-2	16	1	1312-		●
71	SEAT; SPR (D) ID=14.3 T=1.0	8-94391-468-0	16	1	1312-		●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-2	08	1	1311-	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97376-720-0	16	1	1312-		●
78	ARM; ROCKER (B) JBK	8-97014-258-2	04	1	1311-	●
78	ARM; ROCKER (A) JBK	8-97074-614-1	04	1	1311-	●
78	ARM; ROCKER (A) KEIHIN SEIMITSU	8-97174-562-0	04	1	1311-	●
78	ARM; ROCKER (B) KEIHIN SEIMITSU	8-97174-565-0	04	1	1311-	●
78	ARM; ROCKER (C) INLET	8-97306-421-3	04	1	1312-		●
78	ARM; ROCKER (C) EXHAUST	8-97306-424-3	04	1	1312-		●
81	SCREW; ADJ,ROCKER ARM (A)	8-94367-526-2	16	1	1311-	●
81	SCREW; ADJ,ROCKER ARM (B) M10 L=32	8-94395-024-0	08	1	1312-		●
83	NUT; ADJ SCREW,LK M10	0-91111-510-0	16	1	1311-	●
83	NUT; ADJ SCREW,LK M10	0-91111-510-0	08	1	1312-		●
84	BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	03	1	1311-	●
84	BRACKET; ROCKER SHAFT,INTER KEIHIN SEIMITSU	8-97174-568-0	03	1	1311-	●
85	BOLT; BRKT M10X62 FLANGE	8-94393-131-0	03	1	1311-	●
85	BOLT; BRKT M10X62 FLANGE	8-97174-650-0	03	1	1311-	●
87	BOLT; ROCKER SHAFT (A) M8X35 FLANGE	0-28050-835-0	04	1	1311-	●
87	BOLT; ROCKER SHAFT (B) M8X40 FLANGE	0-28050-840-0	02	1	1312-		●
95	SPRING; ROCKER SHAFT JBK	8-94397-263-0	04	1	1311-	●
95	SPRING; ROCKER SHAFT KEIHIN SEIMITSU	8-97174-654-0	04	1	1311-	●
95	SPRING; ROCKER SHAFT	8-94392-999-0	04	1	1312-		●

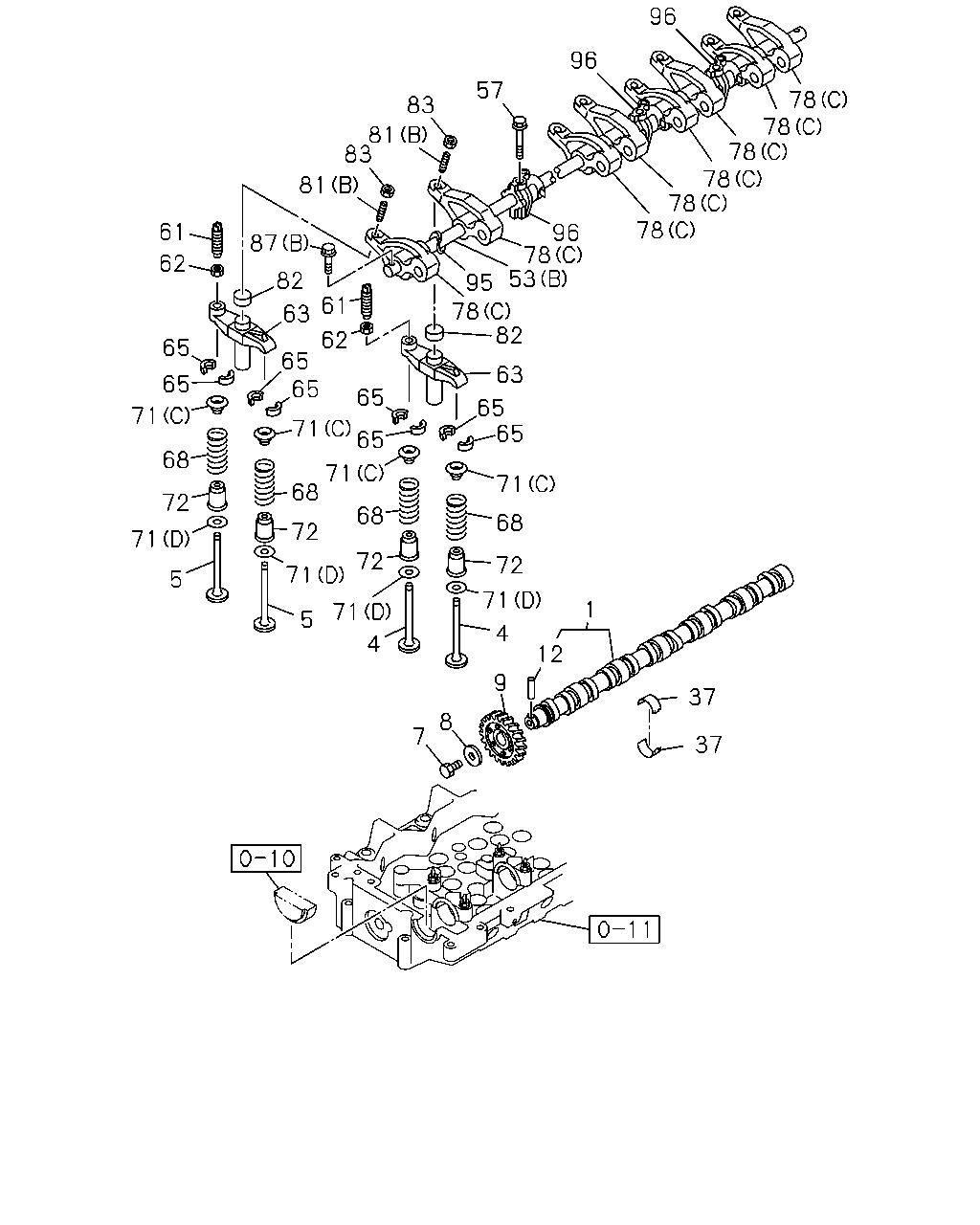

37 37 12 1 9 8 7 4 71 72 68 71 65 65 63 82 78 95 53 78 96 78 78 78 78 78 78 96 96 57 83 81 83 81 87 82 63 61 62 65 65 68 72 71 4 71 72 68 71 71 65 65 5 5 71 72 68 71 65 65 62 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CAMSHAFT	8-97077-829-0	01	1	1311-	●
1	CAMSHAFT	8-97262-166-0	01	1	1312-		●
4	VALVE; INL	8-97171-398-0	04	1	1311-	●
4	VALVE; INL	8-94395-882-2	08	1	1312-		●
5	VALVE; EXH	8-97171-399-0	04	1	1311-	●
5	VALVE; EXH	8-97209-876-4	08	1	1312-		●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	1311-1311	●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	1312-	●	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	1311-1311	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	1312-	●	●
9	GEAR; CM/SHF Z=35	8-97094-440-2	01	1	1311-	●
9	GEAR; CM/SHF Z=35	8-98018-935-3	01	1	1312-		●
12	KEY; CAM GEAR SET OD=7 L=7.5	8-94399-487-0	01	1	1311-	●
12	KEY; CAM GEAR SET OD=7 L=7.5	8-94399-487-0	02	1	1312-		●
37	METAL; CM/SHF B=16	8-97386-189-0	10	1	1311-1311	●
37	METAL; CM/SHF B=16	8-97386-189-0	10	1	1312-	●	●
53	SHAFT; ROCKER ARM (A) JBK	8-97074-617-1	01	1	1311-	●
53	SHAFT; ROCKER ARM (A) KEIHIN SEIMITSU	8-97174-567-0	01	1	1311-	●
53	SHAFT; ROCKER ARM (B)	8-97389-921-0	01	1	1312-		●
57	BOLT; ROCKER ARM BRKT M10X62 FLANGE	8-94393-131-0	03	1	1312-		●
61	SCREW; ADJ,BRIDGE M8X21	8-94394-803-0	08	1	1312-		●
62	NUT; ADJ SCREW LK BRIDGE M8 FLANGE	9-09844-574-0	08	1	1312-		●
63	BRIDGE	8-94392-002-3	08	1	1312-		●
65	COLLAR; SPLIT	5-12565-006-0	16	1	1311-	●
65	COLLAR; SPLIT	5-12565-004-0	32	1	1312-		●
68	SPRING; VLV ID=28.5	8-97023-559-0	08	1	1311-	●
68	SPRING; VLV EXHAUST MARK RED	8-97210-682-0	08	1	1312-		●
68	SPRING; VLV INLET MARK BLUE	8-97352-888-0	08	1	1312-		●
71	SEAT; SPR (A) OD=38	8-94385-029-2	08	1	1311-	●
71	SEAT; SPR (B) ID=14.3 OD=40	8-94399-526-1	08	1	1311-	●
71	SEAT; SPR (C) OD=32.8 T=12.75	8-94390-783-2	16	1	1312-		●
71	SEAT; SPR (D) ID=14.3 T=1.0	8-94391-468-0	16	1	1312-		●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-2	08	1	1311-	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97376-720-0	16	1	1312-		●
78	ARM; ROCKER (B) JBK	8-97014-258-2	04	1	1311-	●
78	ARM; ROCKER (A) JBK	8-97074-614-1	04	1	1311-	●
78	ARM; ROCKER (A) KEIHIN SEIMITSU	8-97174-562-0	04	1	1311-	●
78	ARM; ROCKER (B) KEIHIN SEIMITSU	8-97174-565-0	04	1	1311-	●
78	ARM; ROCKER (C) INLET	8-97306-421-3	04	1	1312-		●
78	ARM; ROCKER (C) EXHAUST	8-97306-424-3	04	1	1312-		●
81	SCREW; ADJ,ROCKER ARM (A)	8-94367-526-2	16	1	1311-	●
81	SCREW; ADJ,ROCKER ARM (B) M10 L=32	8-94395-024-0	08	1	1312-		●
82	CAP; ROCKER SHAFT	8-94396-015-2	08	1	1312-		●
83	NUT; ADJ SCREW,LK M10	0-91111-510-0	16	1	1311-	●
83	NUT; ADJ SCREW,LK M10	0-91111-510-0	08	1	1312-		●
87	BOLT; ROCKER SHAFT (A) M8X35 FLANGE	0-28050-835-0	04	1	1311-	●
87	BOLT; ROCKER SHAFT (B) M8X40 FLANGE	0-28050-840-0	02	1	1312-		●
95	SPRING; ROCKER SHAFT JBK	8-94397-263-0	04	1	1311-	●
95	SPRING; ROCKER SHAFT KEIHIN SEIMITSU	8-97174-654-0	04	1	1311-	●
95	SPRING; ROCKER SHAFT	8-94392-999-0	04	1	1312-		●
96	BRACKET; ROCKER ARM SHAFT	8-97334-414-0	03	1	1312-		●
