0-13 — OIL PAN AND LEVEL GAUGE (#130786) — 47 parça

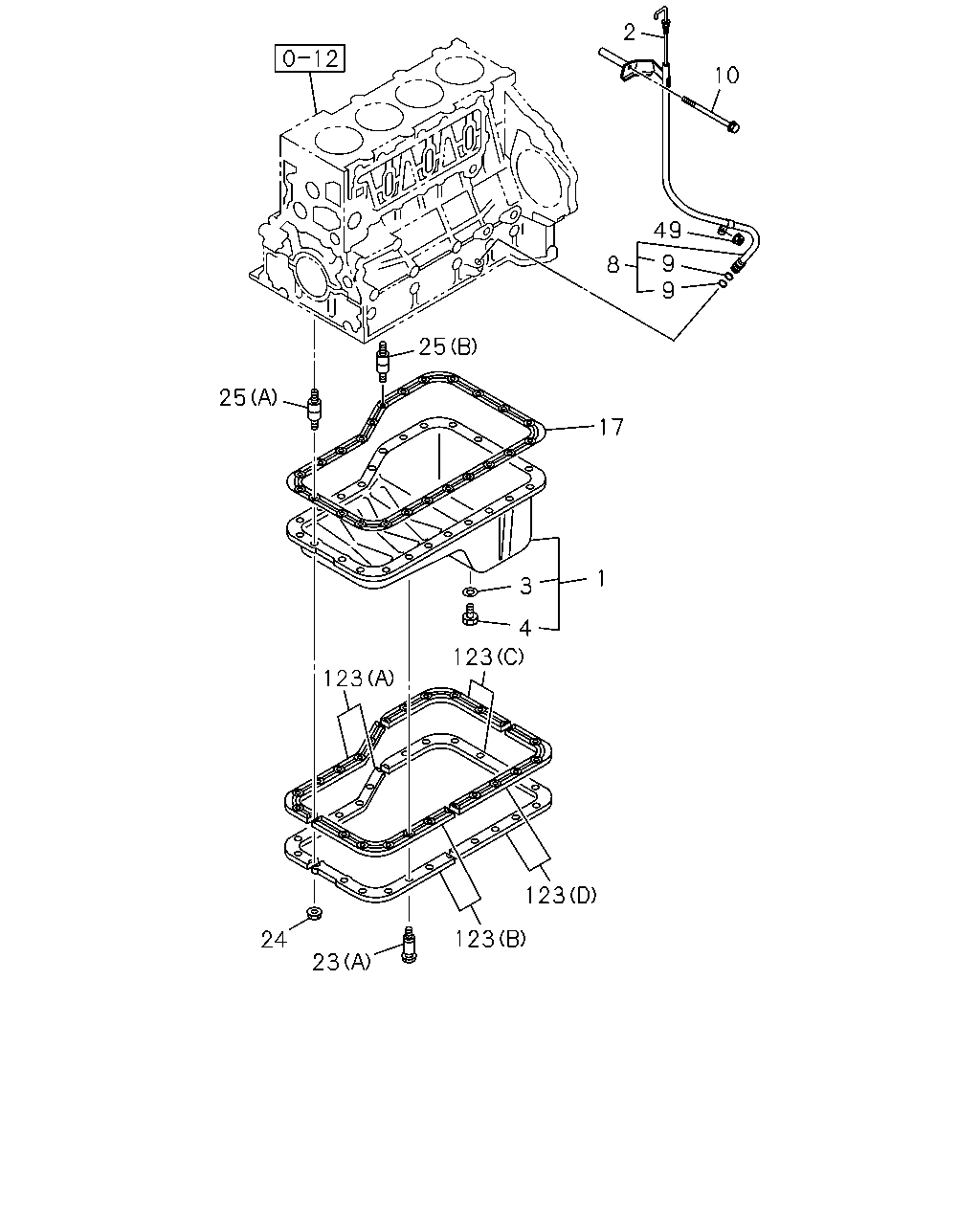

çizim 385038
25 123 25 24 123 2 10 8 49 9 9 17 1 3 4 123 123 23
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAN ASM; OIL 8-98203-596-0 01 1 1311- ●
1 PAN ASM; OIL 8-98191-050-0 01 1 1312- ●
2 GAUGE; OIL LEVEL 8-97094-460-2 01 1 1311- ●
2 GAUGE; OIL LEVEL 8-98183-344-0 01 1 1312- ●
3 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 		8-94158-328-0 01 1 1311-1311 ●
3 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 		8-94158-328-0 01 1 1312- ● ●
4 PLUG; DRAIN,OIL
M14X14 		8-94152-613-0 01 1 1311-1311 ●
4 PLUG; DRAIN,OIL
M14X14 		8-94152-613-0 01 1 1312- ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE 8-97200-567-1 01 1 1311- ●
8 TUBE; GUIDE,OIL LEVEL GAUGE 8-98039-161-0 01 1 1312- ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		5-09623-002-0 02 1 1311- ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		1-09623-469-0 02 1 1312- ●
10 BOLT; GUIDE TUBE
M10X110 FLANGE 		0-28156-011-0 01 1 1311- ●
10 BOLT; GUIDE TUBE
M8X20 FLANGE MAL 		0-28650-820-0 01 1 1312- ●
17 GASKET; OIL PAN
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97364-386-0 01 1 1311- ●
23 BOLT; OIL PAN
(A) M8X12.8 W/PL WASHER,RUBBER TUBE 		8-97190-390-0 13 1 1311- ●
23 BOLT; OIL PAN
(C) M8X14 W/SCOTCH GRIP 		8-97047-004-1 01 1 1312- ●
23 BOLT; OIL PAN
(B) M8X14 		8-97047-005-0 18 1 1312- ●
24 NUT; OIL PAN
M8 FLANGE MAL 		0-91180-108-0 13 1 1311- ●
24 NUT; OIL PAN
M8 W/LK WASHER MAL 		8-97581-234-0 07 1 1312- ●
25 STUD; OIL PAN
(B) M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE 		8-97190-391-0 01 1 1311- ●
25 STUD; OIL PAN
(A) M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 09 1 1311- ●
49 NUT; GUIDE TUBE
M10 FLANGE MAL 		0-91180-110-0 01 1 1311- ●
123 RUBBER; SEAL OIL
(A) 		8-97186-988-0 01 1 1311- ●
123 RUBBER; SEAL OIL
(B) 		8-97186-994-0 01 1 1311- ●
123 RUBBER; SEAL OIL
(C) 		8-97186-998-0 01 1 1311- ●
123 RUBBER; SEAL OIL
(D) 		8-97187-000-0 01 1 1311- ●

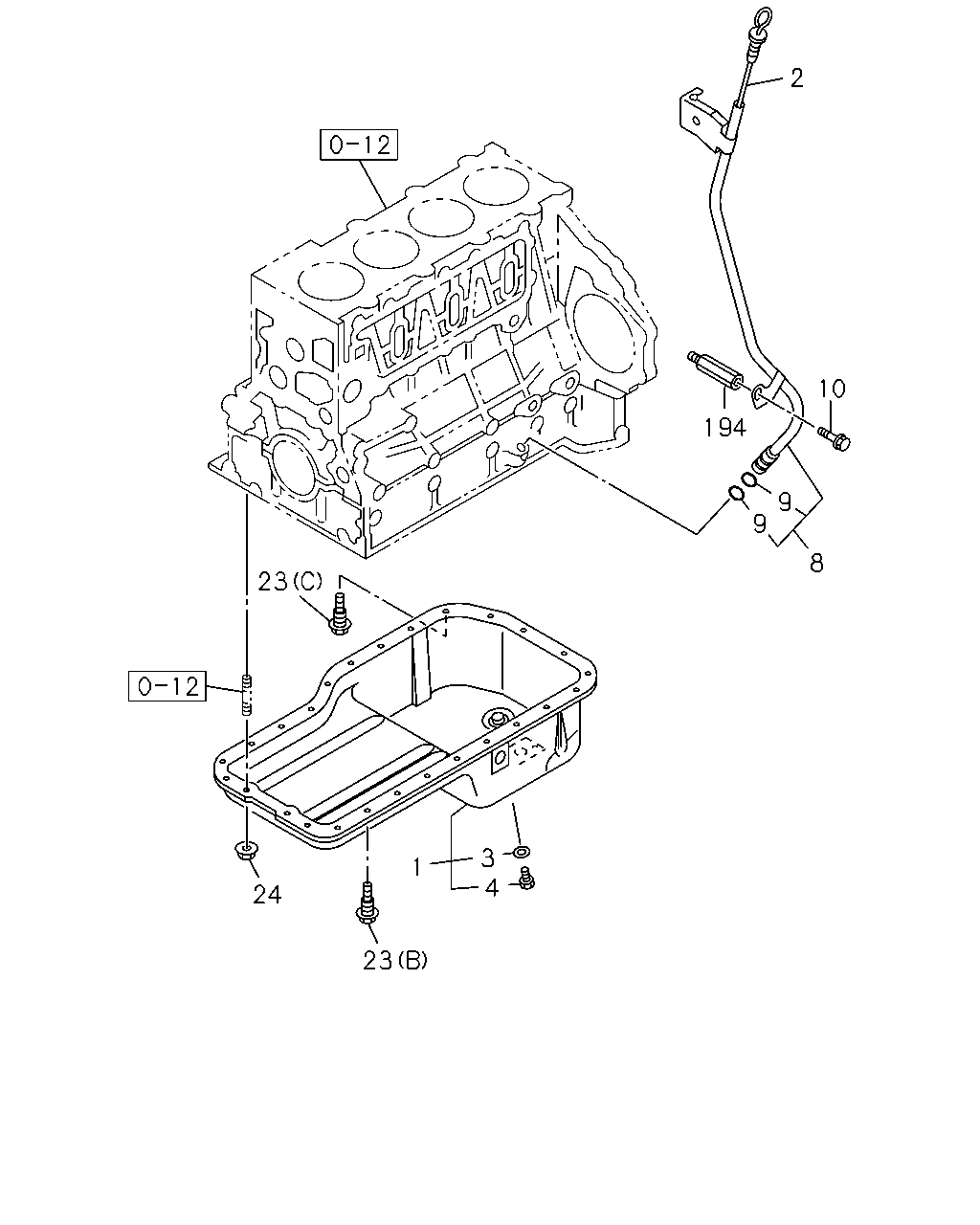

çizim 385041
23 24 1 23 3 4 2 194 9 9 10 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAN ASM; OIL 8-98203-596-0 01 1 1311- ●
1 PAN ASM; OIL 8-98191-050-0 01 1 1312- ●
2 GAUGE; OIL LEVEL 8-97094-460-2 01 1 1311- ●
2 GAUGE; OIL LEVEL 8-98183-344-0 01 1 1312- ●
3 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 		8-94158-328-0 01 1 1311-1311 ●
3 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 		8-94158-328-0 01 1 1312- ● ●
4 PLUG; DRAIN,OIL
M14X14 		8-94152-613-0 01 1 1311-1311 ●
4 PLUG; DRAIN,OIL
M14X14 		8-94152-613-0 01 1 1312- ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE 8-97200-567-1 01 1 1311- ●
8 TUBE; GUIDE,OIL LEVEL GAUGE 8-98039-161-0 01 1 1312- ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		5-09623-002-0 02 1 1311- ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		1-09623-469-0 02 1 1312- ●
10 BOLT; GUIDE TUBE
M10X110 FLANGE 		0-28156-011-0 01 1 1311- ●
10 BOLT; GUIDE TUBE
M8X20 FLANGE MAL 		0-28650-820-0 01 1 1312- ●
23 BOLT; OIL PAN
(A) M8X12.8 W/PL WASHER,RUBBER TUBE 		8-97190-390-0 13 1 1311- ●
23 BOLT; OIL PAN
(C) M8X14 W/SCOTCH GRIP 		8-97047-004-1 01 1 1312- ●
23 BOLT; OIL PAN
(B) M8X14 		8-97047-005-0 18 1 1312- ●
24 NUT; OIL PAN
M8 FLANGE MAL 		0-91180-108-0 13 1 1311- ●
24 NUT; OIL PAN
M8 W/LK WASHER MAL 		8-97581-234-0 07 1 1312- ●
194 SPACER; GUIDE TUBE 8-97101-215-0 01 1 1312- ●
