0-11 — CYLINDER HEAD (#130784) — 135 parça

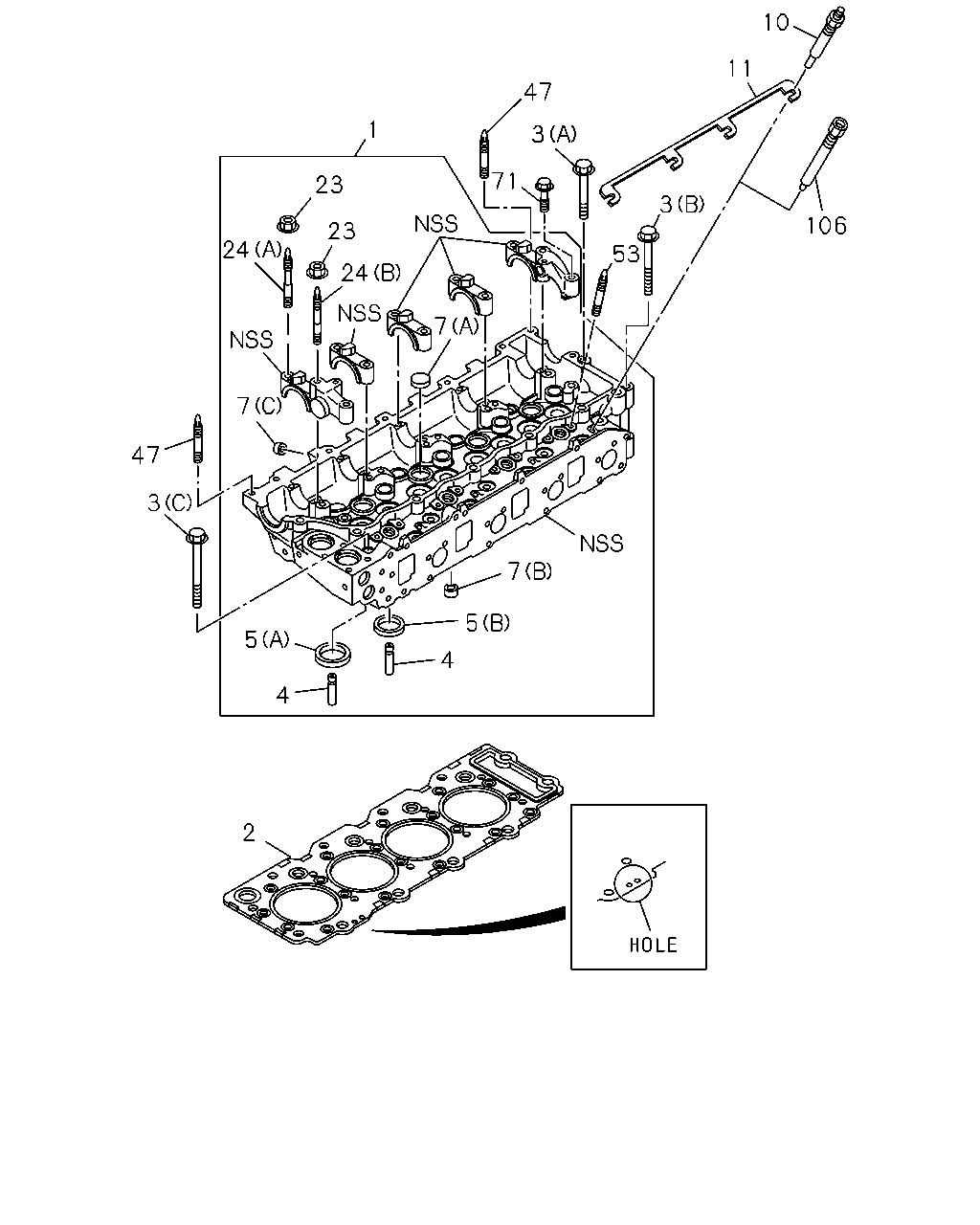

çizim 385011
10 11 106 47 71 3 3 53 1 23 23 24 24 7 47 3 5 4 4 7 5 2 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEAD ASM; CYL 8-97358-368-2 01 1 1311- ●
1 HEAD ASM; CYL 8-98170-619-0 01 1 1312- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE 		8-97349-489-0 01 1 1311- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE 		8-97349-490-0 01 1 1311- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE 		8-97349-491-0 01 1 1311- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE 		8-98055-540-0 01 1 1312-1505 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE 		8-98288-501-0 01 1 1506- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE 		8-98055-541-0 01 1 1312-1505 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE 		8-98288-502-0 01 1 1506- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE 		8-98055-542-0 01 1 1312-1505 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE 		8-98288-503-0 01 1 1506- ●
3 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 1311-1311 ●
3 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 1312- ● ●
3 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 1311-1311 ●
3 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 1312- ● ●
3 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 1311-1311 ●
3 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 1312-1503 ● ●
3 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-98260-005-0 18 1 1504- ● ●
4 GUIDE; VLV 8-94396-598-0 08 1 1311- ●
4 GUIDE; VLV
L=57 		8-97376-719-2 16 1 1312- ●
5 SEAT; VLV INSERT
(A) INLET OD=52 		8-94394-127-0 04 1 1311- ●
5 SEAT; VLV INSERT
(B) EXHAUST OD=43 		8-94396-172-0 04 1 1311- ●
5 SEAT; VLV INSERT
(C) INLET ID=32 OD=38 		8-98028-874-0 08 1 1312- ●
5 SEAT; VLV INSERT
(D) EXHAUST ID=31 OD=38 		8-98028-875-0 08 1 1312- ●
7 CUP; SEALING,CYL HEAD
(B) OD=25 		1-09600-016-0 02 1 1311- ●
7 CUP; SEALING,CYL HEAD
(C) OD=12 		8-97036-335-1 04 1 1311- ●
7 CUP; SEALING,CYL HEAD
(A) OD=32 		8-97096-821-0 12 1 1311- ●
7 CUP; SEALING,CYL HEAD
(B) OD=25 		1-09600-016-0 04 1 1312- ●
7 CUP; SEALING,CYL HEAD
(D) OD=16 		5-11129-006-0 05 1 1312- ●
7 CUP; SEALING,CYL HEAD
(A) OD=32 		8-97096-821-0 05 1 1312- ●
7 CUP; SEALING,CYL HEAD
(C) OD=20 		9-11129-128-0 07 1 1312- ●
10 PLUG; GLOW
FAST GLOW SYSTEM<KM6> BOSCH 		1-82513-044-3 04 1 1311- ●
10 PLUG; GLOW
FAST GLOW SYSTEM<KM6> NGK 		8-97033-761-2 04 1 1311- ●
10 PLUG; GLOW
NGK 		8-94390-777-6 04 1 1312-1501 ●
10 PLUG; GLOW
EXC. FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> NGK 		8-94390-777-6 04 1 1502- ●
11 CONNECTOR; GLOW PLUG
FAST GLOW SYSTEM<KM6> 		8-97136-565-0 01 1 1311- ●
11 CONNECTOR; GLOW PLUG 8-97332-358-2 01 1 1312-1501 ●
11 CONNECTOR; GLOW PLUG
EXC. FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> 		8-97332-358-2 01 1 1502- ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91180-208-0 10 1 1311-1311 ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91180-208-0 10 1 1312- ● ●
24 STUD; CM/SHF BRKT
(B) M8X54 L=79 		8-94322-512-2 02 1 1311-1311 ●
24 STUD; CM/SHF BRKT
(B) M8X54 L=79 		8-94322-512-2 02 1 1312- ● ●
24 STUD; CM/SHF BRKT
(A) M8X41 L=66 		8-94322-513-2 08 1 1311-1311 ●
24 STUD; CM/SHF BRKT
(A) M8X41 L=66 		8-94322-513-2 08 1 1312- ● ●
47 STUD; CYL HD
M8X30 L=41 		8-97016-313-0 03 1 1311- ●
47 STUD; CYL HD
M8X65 L=76 TORQUES 		8-97167-299-1 02 1 1311- ●
47 STUD; CYL HD
M8X60 L=72 		0-49140-860-0 02 1 1312- ●
53 STUD; INJ NOZZLE
M8X64 L=85 		8-97178-608-0 08 1 1311- ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28050-835-0 02 1 1311-1311 ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28050-835-0 02 1 1312- ● ●
106 PLUG; GLOW PLUG HOLE
GLOW SYSTEM DELETE<7RK> 		8-94392-236-0 04 1 1502- ●
106 PLUG; GLOW PLUG HOLE
GLOW SYSTEM DELETE<7RK> 		1-11119-018-0 04 1 1311- ●

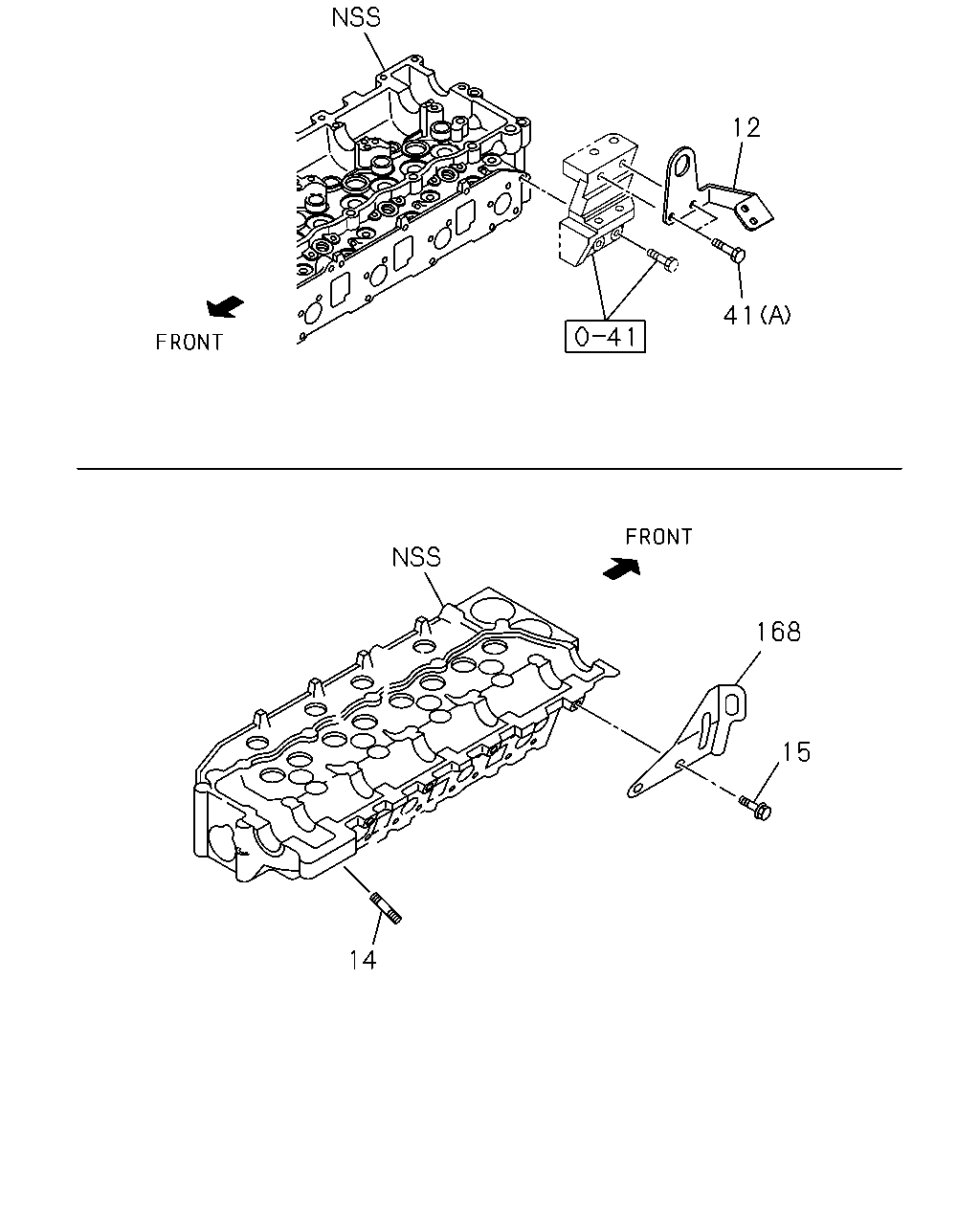

çizim 385016
41 12 168 15 14
BalonParca AdiParca NoAdetTipApplied Date A B
12 HANGER; ENG,RR 8-97210-326-0 01 1 1311- ●
12 HANGER; ENG,RR 8-98074-691-1 01 1 1312- ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 02 1 1311-1311 ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 02 1 1312- ● ●
15 BOLT; HANGER,FRT
M10X20 FLANGE 		0-28751-020-0 02 1 1311- ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28751-020-0 02 1 1311- ●
41 BOLT; ENG HANGER
(B) M12X20 FLANGE 		0-28151-220-0 02 1 1312- ●
41 BOLT; ENG HANGER
(C) M12X80 		0-28151-280-0 01 1 1312- ●
168 HANGER; ENG,FRT 8-97200-618-1 01 1 1311- ●
168 HANGER; ENG,FRT 8-98032-250-1 01 1 1312- ●

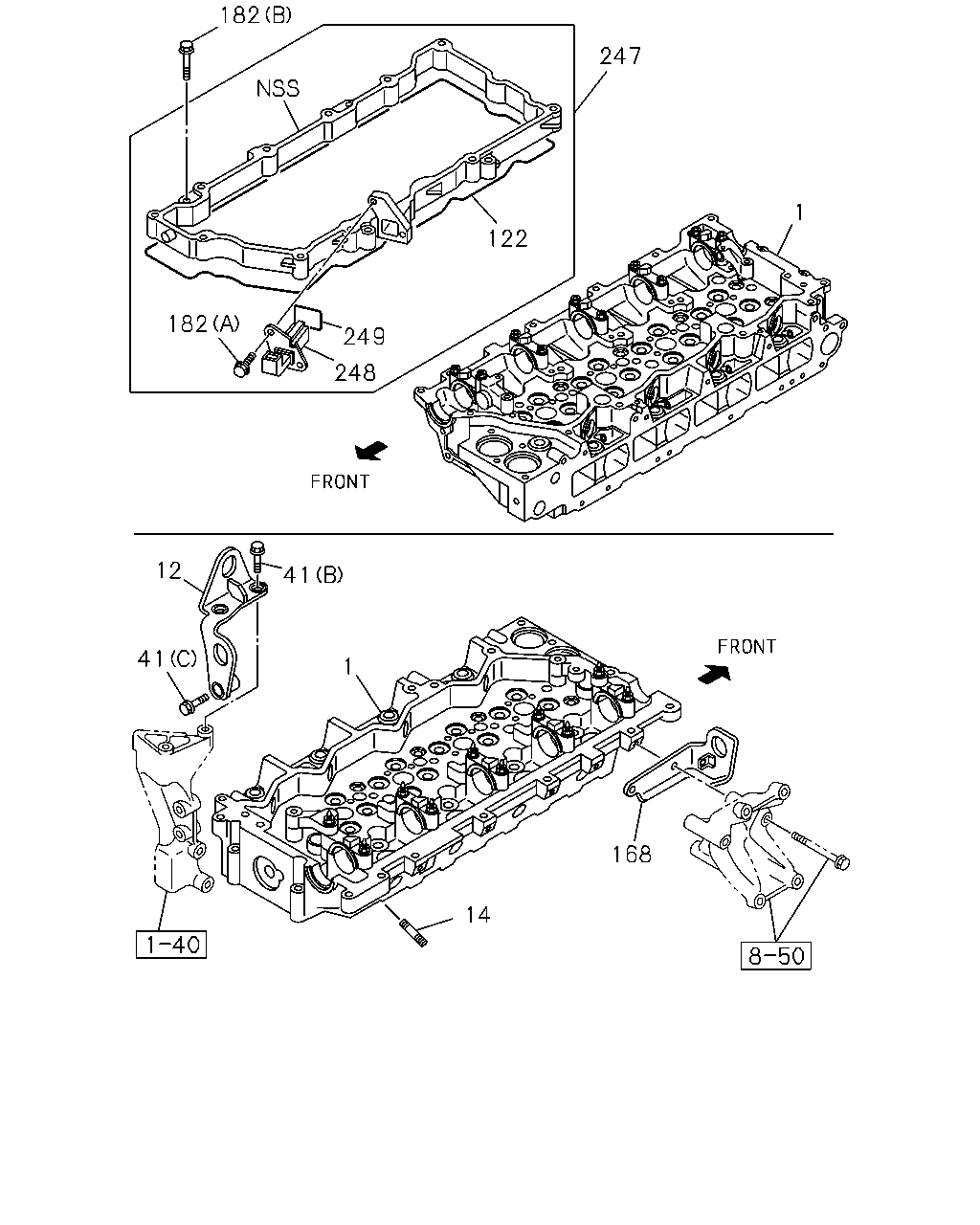

çizim 385019
1 247 122 249 248 182 182 41 12 41 1 14 168
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEAD ASM; CYL 8-97358-368-2 01 1 1311- ●
1 HEAD ASM; CYL 8-98170-619-0 01 1 1312- ●
12 HANGER; ENG,RR 8-97210-326-0 01 1 1311- ●
12 HANGER; ENG,RR 8-98074-691-1 01 1 1312- ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 02 1 1311-1311 ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 02 1 1312- ● ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28751-020-0 02 1 1311- ●
41 BOLT; ENG HANGER
(B) M12X20 FLANGE 		0-28151-220-0 02 1 1312- ●
41 BOLT; ENG HANGER
(C) M12X80 		0-28151-280-0 01 1 1312- ●
122 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97331-360-1 01 1 1312- ●
168 HANGER; ENG,FRT 8-97200-618-1 01 1 1311- ●
168 HANGER; ENG,FRT 8-98032-250-1 01 1 1312- ●
182 BOLT; CASE
(A) M8X12 FLANGE 		0-28050-812-0 02 1 1312- ●
182 BOLT; CASE
(B) M8X45 FLANGE 		0-28050-845-0 04 1 1312- ●
247 CASE; CYL HEAD,C/H COVER 8-97331-362-1 01 1 1312- ●
248 CONNECTOR 8-94390-858-1 01 1 1312- ●
249 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94391-310-0 01 1 1312- ●

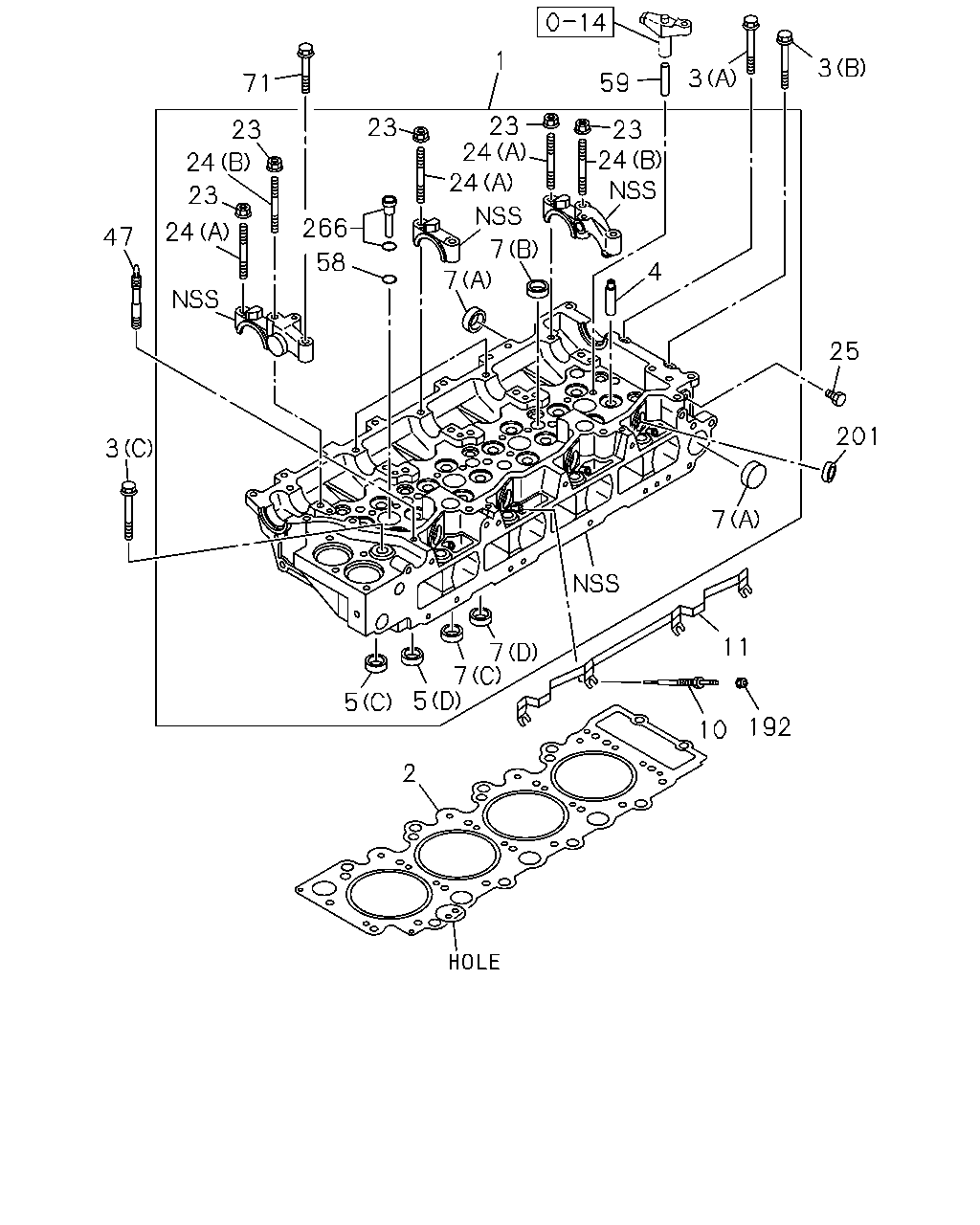

çizim 385861
10 11 192 2 5 5 7 7 25 201 7 4 7 7 24 24 23 23 59 3 3 24 23 3 71 24 23 24 47 266 3 1 58
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEAD ASM; CYL 8-97358-368-2 01 1 1311- ●
1 HEAD ASM; CYL 8-98170-619-0 01 1 1312- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE 		8-97349-489-0 01 1 1311- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE 		8-97349-490-0 01 1 1311- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE 		8-97349-491-0 01 1 1311- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE 		8-98055-540-0 01 1 1312-1505 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE 		8-98288-501-0 01 1 1506- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE 		8-98055-541-0 01 1 1312-1505 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE 		8-98288-502-0 01 1 1506- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE 		8-98055-542-0 01 1 1312-1505 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE 		8-98288-503-0 01 1 1506- ●
3 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 1311-1311 ●
3 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 1312- ● ●
3 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 1311-1311 ●
3 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 1312- ● ●
3 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 1311-1311 ●
3 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 1312-1503 ● ●
3 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-98260-005-0 18 1 1504- ● ●
4 GUIDE; VLV 8-94396-598-0 08 1 1311- ●
4 GUIDE; VLV
L=57 		8-97376-719-2 16 1 1312- ●
5 SEAT; VLV INSERT
(A) INLET OD=52 		8-94394-127-0 04 1 1311- ●
5 SEAT; VLV INSERT
(B) EXHAUST OD=43 		8-94396-172-0 04 1 1311- ●
5 SEAT; VLV INSERT
(C) INLET ID=32 OD=38 		8-98028-874-0 08 1 1312- ●
5 SEAT; VLV INSERT
(D) EXHAUST ID=31 OD=38 		8-98028-875-0 08 1 1312- ●
7 CUP; SEALING,CYL HEAD
(B) OD=25 		1-09600-016-0 02 1 1311- ●
7 CUP; SEALING,CYL HEAD
(C) OD=12 		8-97036-335-1 04 1 1311- ●
7 CUP; SEALING,CYL HEAD
(A) OD=32 		8-97096-821-0 12 1 1311- ●
7 CUP; SEALING,CYL HEAD
(B) OD=25 		1-09600-016-0 04 1 1312- ●
7 CUP; SEALING,CYL HEAD
(D) OD=16 		5-11129-006-0 05 1 1312- ●
7 CUP; SEALING,CYL HEAD
(A) OD=32 		8-97096-821-0 05 1 1312- ●
7 CUP; SEALING,CYL HEAD
(C) OD=20 		9-11129-128-0 07 1 1312- ●
10 PLUG; GLOW
FAST GLOW SYSTEM<KM6> BOSCH 		1-82513-044-3 04 1 1311- ●
10 PLUG; GLOW
FAST GLOW SYSTEM<KM6> NGK 		8-97033-761-2 04 1 1311- ●
10 PLUG; GLOW
NGK 		8-94390-777-6 04 1 1312-1501 ●
10 PLUG; GLOW
EXC. FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> NGK 		8-94390-777-6 04 1 1502- ●
11 CONNECTOR; GLOW PLUG
FAST GLOW SYSTEM<KM6> 		8-97136-565-0 01 1 1311- ●
11 CONNECTOR; GLOW PLUG 8-97332-358-2 01 1 1312-1501 ●
11 CONNECTOR; GLOW PLUG
EXC. FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> 		8-97332-358-2 01 1 1502- ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91180-208-0 10 1 1311-1311 ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91180-208-0 10 1 1312- ● ●
24 STUD; CM/SHF BRKT
(B) M8X54 L=79 		8-94322-512-2 02 1 1311-1311 ●
24 STUD; CM/SHF BRKT
(B) M8X54 L=79 		8-94322-512-2 02 1 1312- ● ●
24 STUD; CM/SHF BRKT
(A) M8X41 L=66 		8-94322-513-2 08 1 1311-1311 ●
24 STUD; CM/SHF BRKT
(A) M8X41 L=66 		8-94322-513-2 08 1 1312- ● ●
25 PLUG; CYL HD
M8X10 		8-98003-416-0 01 1 1312- ●
47 STUD; CYL HD
M8X30 L=41 		8-97016-313-0 03 1 1311- ●
47 STUD; CYL HD
M8X65 L=76 TORQUES 		8-97167-299-1 02 1 1311- ●
47 STUD; CYL HD
M8X60 L=72 		0-49140-860-0 02 1 1312- ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=26.4 		8-97604-916-0 04 1 1312- ●
59 GUIDE; BRIDGE 8-97381-603-1 08 1 1312- ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28050-835-0 02 1 1311-1311 ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28050-835-0 02 1 1312- ● ●
192 NUT; GLOW PLUG
M4 FLANGE 		8-97368-853-0 04 1 1312-1501 ●
192 NUT; GLOW PLUG
EXC. FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> M4 FLANGE 		8-97368-853-0 04 1 1502- ●
201 GASKET; SLEEVE,INJ PUMP
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OD=30 		1-09639-034-0 04 1 1312- ●
266 SLEEVE ASM; NOZZLE HOLDER 8-98018-462-0 04 1 1312- ●
