Isuzu WW
▶
TRUCKS
▶
NPR
▶
51501 - NPR(MALAYSIA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-10 - CYLINDER HEAD COVER
▶
0-10 — CYLINDER HEAD COVER
(#130783) — 29 parça
Tümü
A - 4HG1-T ENG
B - 4HK1-TCN ENG
◀

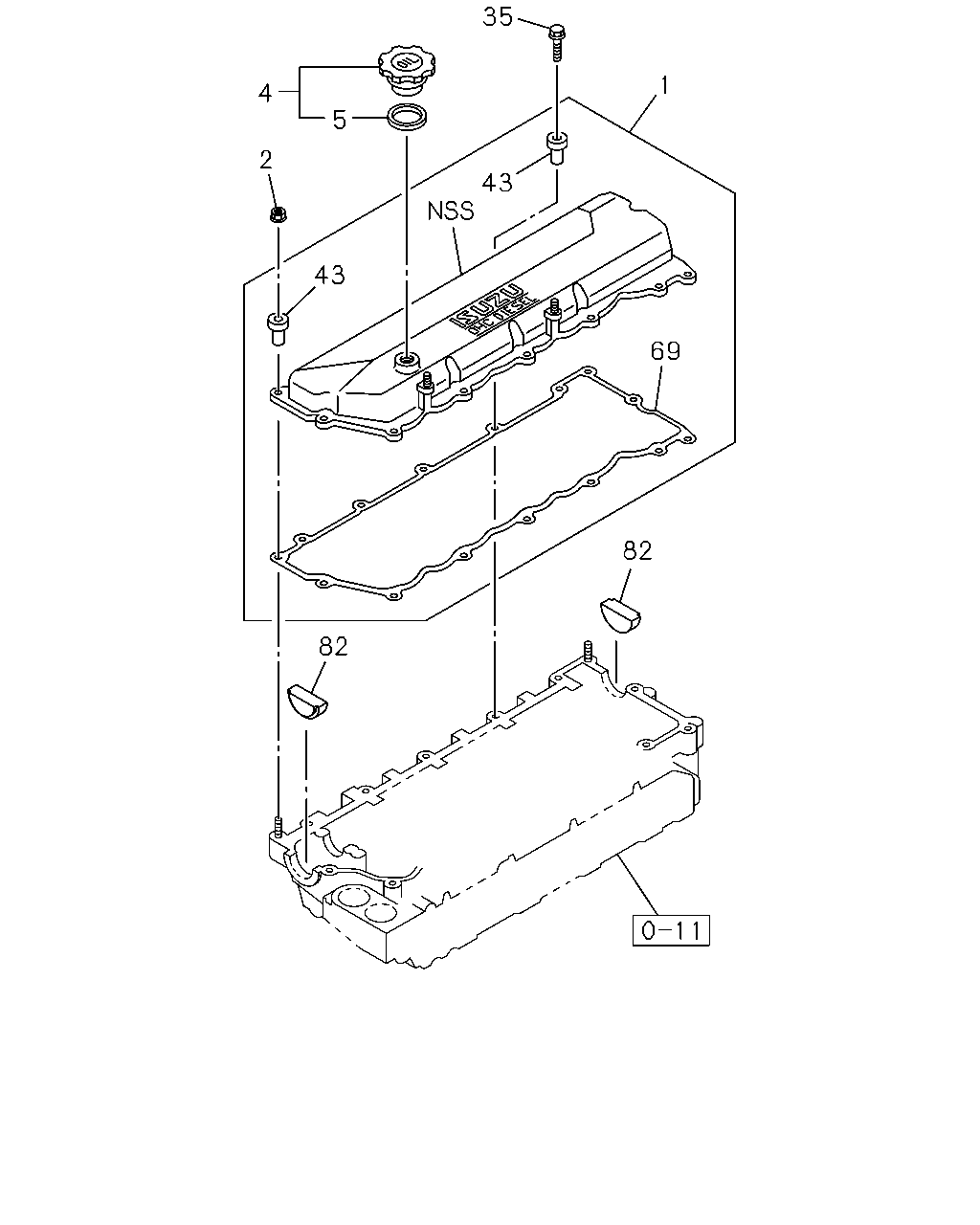

[010A] 4HK1 (15 parça)

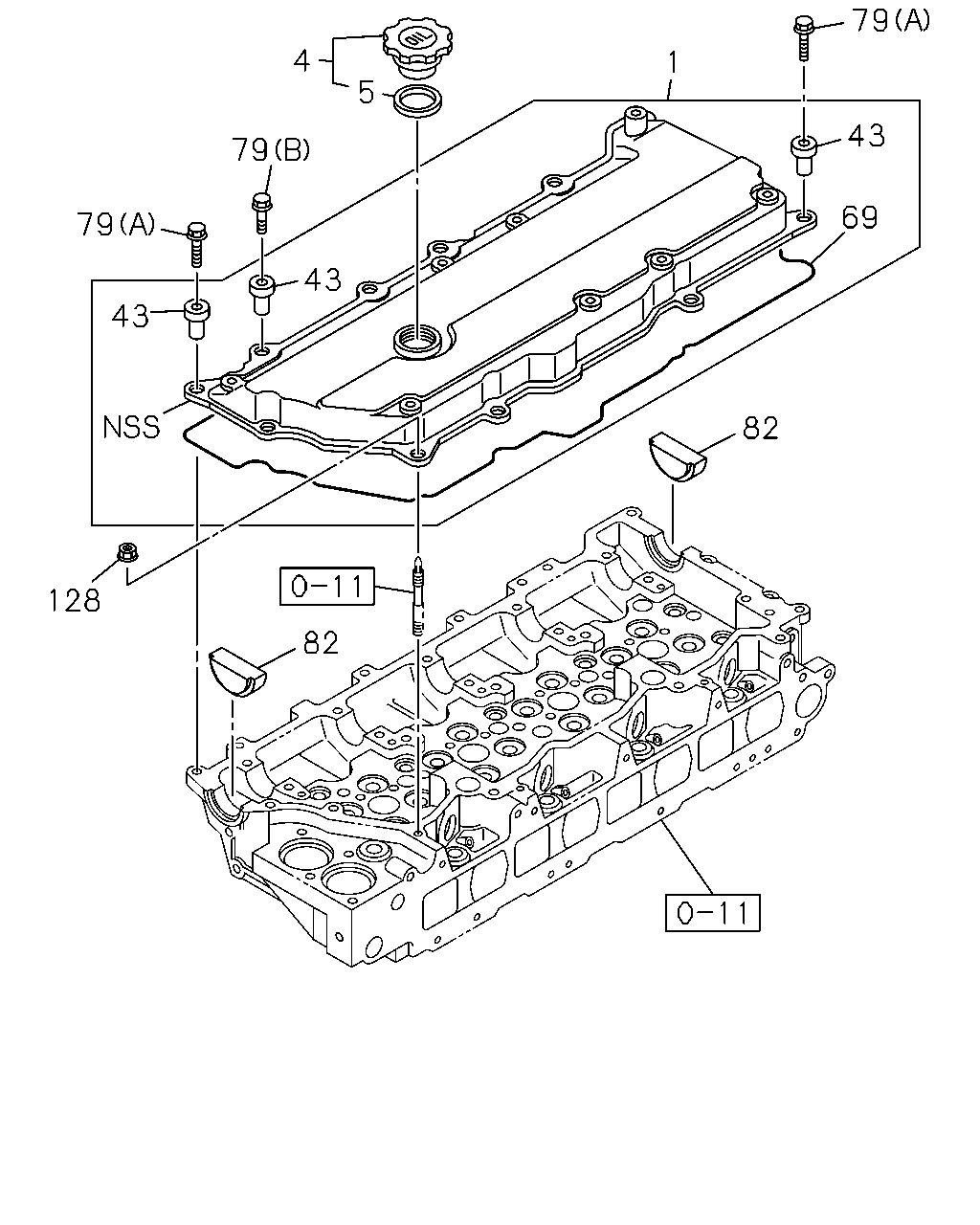

[010A] 4HG1 (14 parça)
▶
1
79
43
82
69
43
79
4
5
79
43
128
82
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
COVER; CYL HD
8-98171-615-0
01
1
1311-
●
1
COVER; CYL HD
8-97331-361-2
01
1
1312-
●
4
CAP; OIL FILLER
8-94133-207-5
01
1
1311-1311
●
4
CAP; OIL FILLER
8-94133-207-5
01
1
1312-
●
●
5
GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=32 OD=40 MAL
8-94123-623-1
01
1
1311-1311
●
5
GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=32 OD=40 MAL
8-94123-623-1
01
1
1312-
●
●
43
RUBBER; MTG,HD COVER,OUTER
OD=23
8-97105-689-6
15
1
1311-
●
43
RUBBER; MTG,HD COVER,OUTER
OD=22
8-94395-684-0
11
1
1312-
●
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97105-690-2
01
1
1311-
●
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97331-359-1
01
1
1312-
●
79
BOLT; COVER
(B) M8X35 FLANGE
0-28650-835-0
02
1
1312-
●
79
BOLT; COVER
(A) M8X65 FLANGE
1-09044-072-1
07
1
1312-
●
82
PLUG; CYL HD COVER
8-98163-813-0
02
1
1311-1311
●
82
PLUG; CYL HD COVER
8-98163-813-0
02
1
1312-
●
●
128
NUT; COVER,CYL HEAD COVER
M8 FLANGE MAL
0-91180-108-0
02
1
1312-
●
1
35
43
5
4
2
43
82
69
82
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
COVER; CYL HD
8-98171-615-0
01
1
1311-
●
1
COVER; CYL HD
8-97331-361-2
01
1
1312-
●
2
NUT; COVER,HD
M8 FLANGE MAL
0-91180-108-0
03
1
1311-
●
4
CAP; OIL FILLER
8-94133-207-5
01
1
1311-1311
●
4
CAP; OIL FILLER
8-94133-207-5
01
1
1312-
●
●
5
GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=32 OD=40 MAL
8-94123-623-1
01
1
1311-1311
●
5
GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=32 OD=40 MAL
8-94123-623-1
01
1
1312-
●
●
35
BOLT; NOISE SHIELD COVER
M8X30 FLANGE
0-28650-830-0
12
1
1311-
●
43
RUBBER; MTG,HD COVER,OUTER
OD=23
8-97105-689-6
15
1
1311-
●
43
RUBBER; MTG,HD COVER,OUTER
OD=22
8-94395-684-0
11
1
1312-
●
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97105-690-2
01
1
1311-
●
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97331-359-1
01
1
1312-
●
82
PLUG; CYL HD COVER
8-98163-813-0
02
1
1311-1311
●
82
PLUG; CYL HD COVER
8-98163-813-0
02
1
1312-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
