◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51501 - NPR(MALAYSIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05 - ENGINE GASKET KIT ▶
0-05 — ENGINE GASKET KIT (#130782) — 72 parça

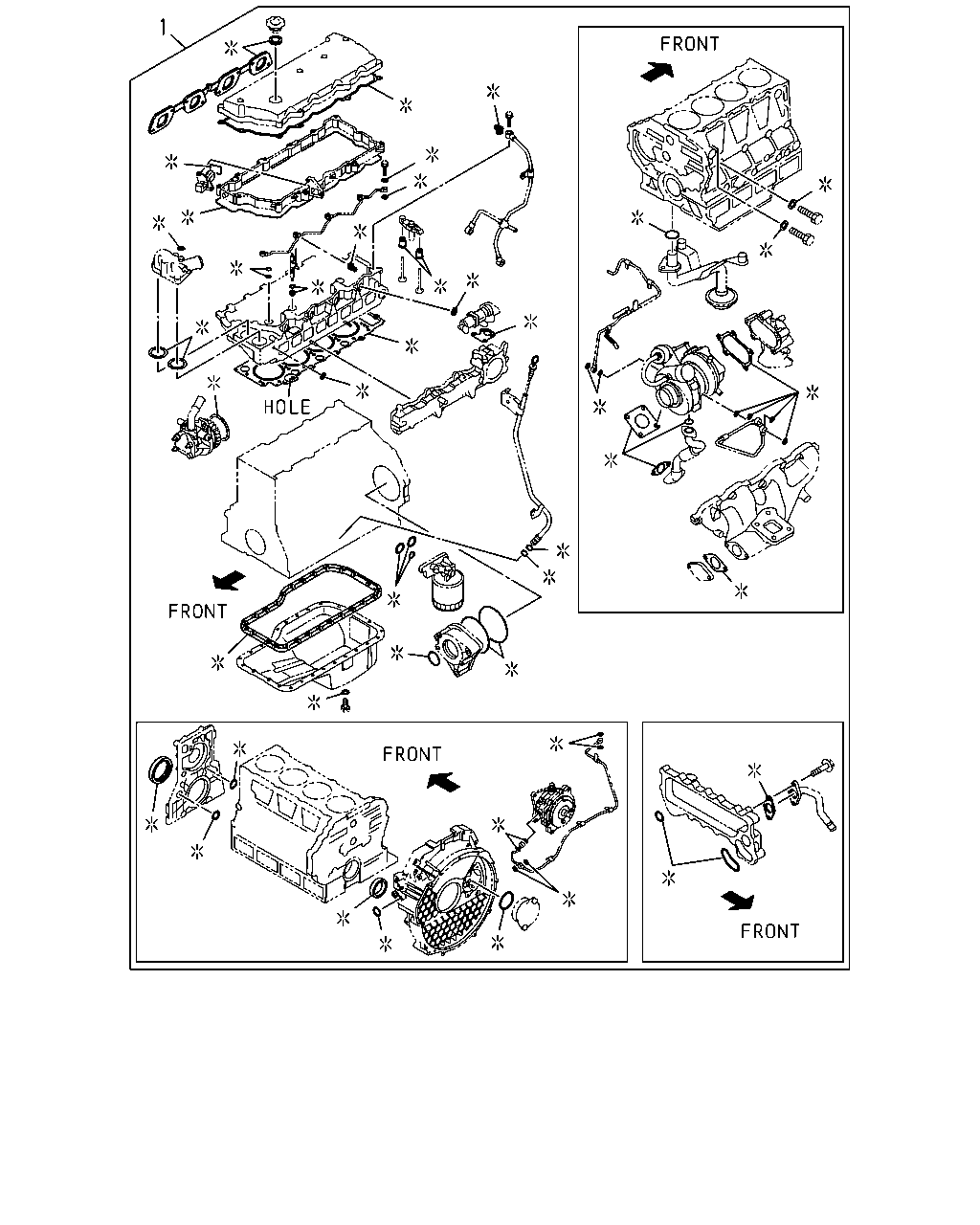

çizim 385916
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 GASKET SET; ENG OVERHAUL
VIN MODEL YEAR 2015<VZF> T=1.475 NON-HOLE 		5-87818-116-0 01 1 1407- ●
1 GASKET SET; ENG OVERHAUL
VIN MODEL YEAR 2015<VZF> T=1.525 1-HOLE 		5-87818-117-0 01 1 1407- ●
1 GASKET SET; ENG OVERHAUL
VIN MODEL YEAR 2015<VZF> T=1.575 2-HOLE 		5-87818-118-0 01 1 1407- ●
1 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-968-1 01 1 1311-1312 ●
1 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87817-032-0 01 1 1401-1406 ●
1 GASKET SET; ENG OVERHAUL
EXC. VIN MODEL YEAR 2015<VZF> T=1.475 NON-HOLE 		5-87817-032-1 01 1 1407- ●
1 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-969-1 01 1 1311-1312 ●
1 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87817-033-0 01 1 1401-1406 ●
1 GASKET SET; ENG OVERHAUL
EXC. VIN MODEL YEAR 2015<VZF> T=1.525 1-HOLE 		5-87817-033-1 01 1 1407- ●
1 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-970-1 01 1 1311-1312 ●
1 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87817-034-0 01 1 1401-1406 ●
1 GASKET SET; ENG OVERHAUL
EXC. VIN MODEL YEAR 2015<VZF> T=1.575 2-HOLE 		5-87817-034-1 01 1 1407- ●
1 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-952-2 01 1 1312-1312 ●
1 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87817-044-0 01 1 1401-1501 ●
1 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87817-762-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87817-957-0 01 1 1506- ●
1 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-953-2 01 1 1312-1312 ●
1 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87817-045-0 01 1 1401-1501 ●
1 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87817-763-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87817-958-0 01 1 1506- ●
1 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-954-2 01 1 1312-1312 ●
1 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87817-046-0 01 1 1401-1501 ●
1 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87817-764-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87817-959-0 01 1 1506- ●

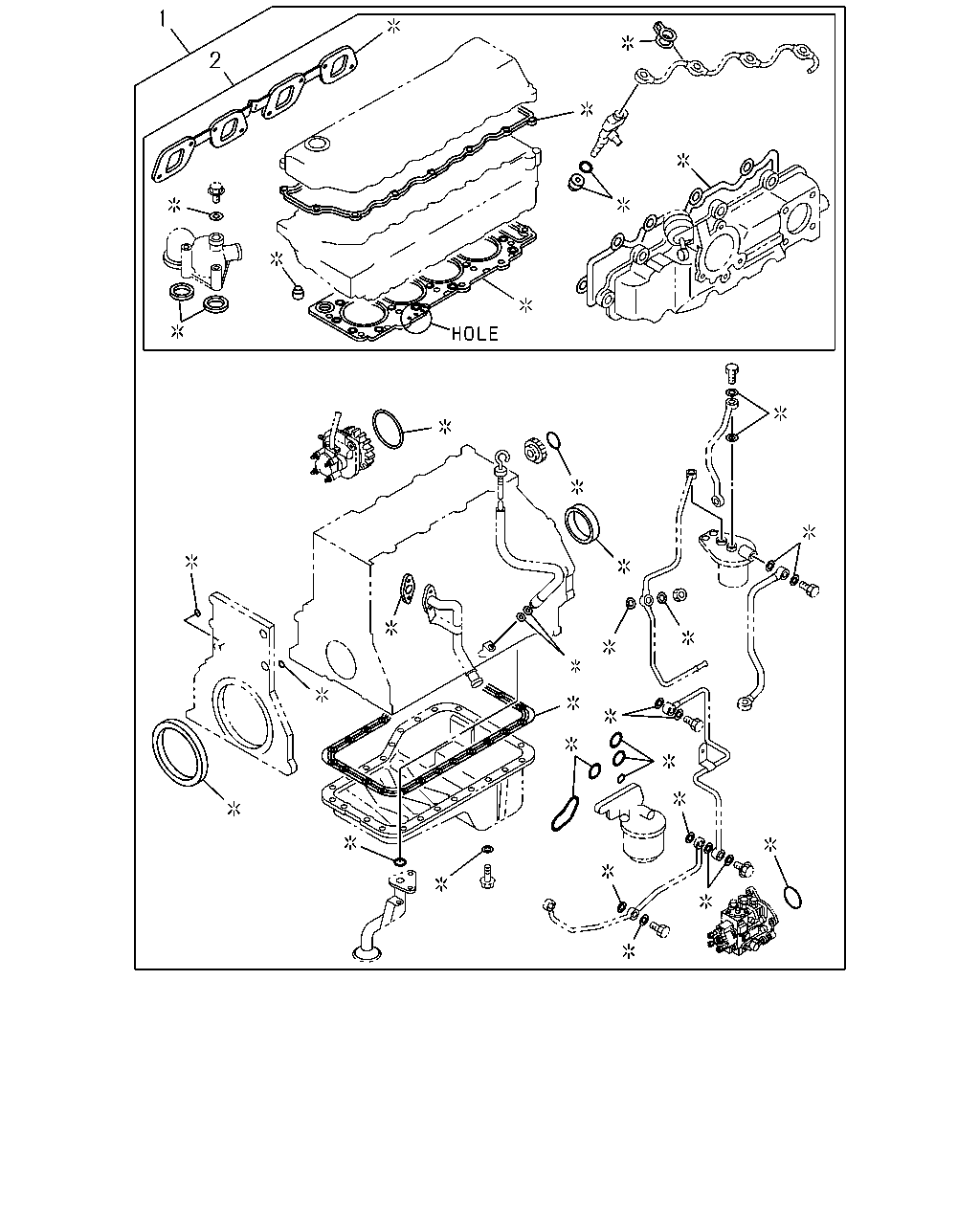

çizim 385943
1 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 GASKET SET; ENG OVERHAUL
VIN MODEL YEAR 2015<VZF> T=1.475 NON-HOLE 		5-87818-116-0 01 1 1407- ●
1 GASKET SET; ENG OVERHAUL
VIN MODEL YEAR 2015<VZF> T=1.525 1-HOLE 		5-87818-117-0 01 1 1407- ●
1 GASKET SET; ENG OVERHAUL
VIN MODEL YEAR 2015<VZF> T=1.575 2-HOLE 		5-87818-118-0 01 1 1407- ●
1 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-968-1 01 1 1311-1312 ●
1 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87817-032-0 01 1 1401-1406 ●
1 GASKET SET; ENG OVERHAUL
EXC. VIN MODEL YEAR 2015<VZF> T=1.475 NON-HOLE 		5-87817-032-1 01 1 1407- ●
1 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-969-1 01 1 1311-1312 ●
1 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87817-033-0 01 1 1401-1406 ●
1 GASKET SET; ENG OVERHAUL
EXC. VIN MODEL YEAR 2015<VZF> T=1.525 1-HOLE 		5-87817-033-1 01 1 1407- ●
1 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-970-1 01 1 1311-1312 ●
1 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87817-034-0 01 1 1401-1406 ●
1 GASKET SET; ENG OVERHAUL
EXC. VIN MODEL YEAR 2015<VZF> T=1.575 2-HOLE 		5-87817-034-1 01 1 1407- ●
1 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-952-2 01 1 1312-1312 ●
1 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87817-044-0 01 1 1401-1501 ●
1 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87817-762-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87817-957-0 01 1 1506- ●
1 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-953-2 01 1 1312-1312 ●
1 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87817-045-0 01 1 1401-1501 ●
1 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87817-763-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87817-958-0 01 1 1506- ●
1 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-954-2 01 1 1312-1312 ●
1 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87817-046-0 01 1 1401-1501 ●
1 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87817-764-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87817-959-0 01 1 1506- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87813-963-4 01 1 1311-1312 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87817-038-1 01 1 1401- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87813-964-4 01 1 1311-1312 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87817-039-1 01 1 1401- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87813-965-4 01 1 1311-1312 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87817-040-1 01 1 1401- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87815-532-3 01 1 1312-1505 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87817-993-0 01 1 1506- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87815-533-3 01 1 1312-1505 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87817-994-0 01 1 1506- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87815-534-3 01 1 1312-1505 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87817-995-0 01 1 1506- ●

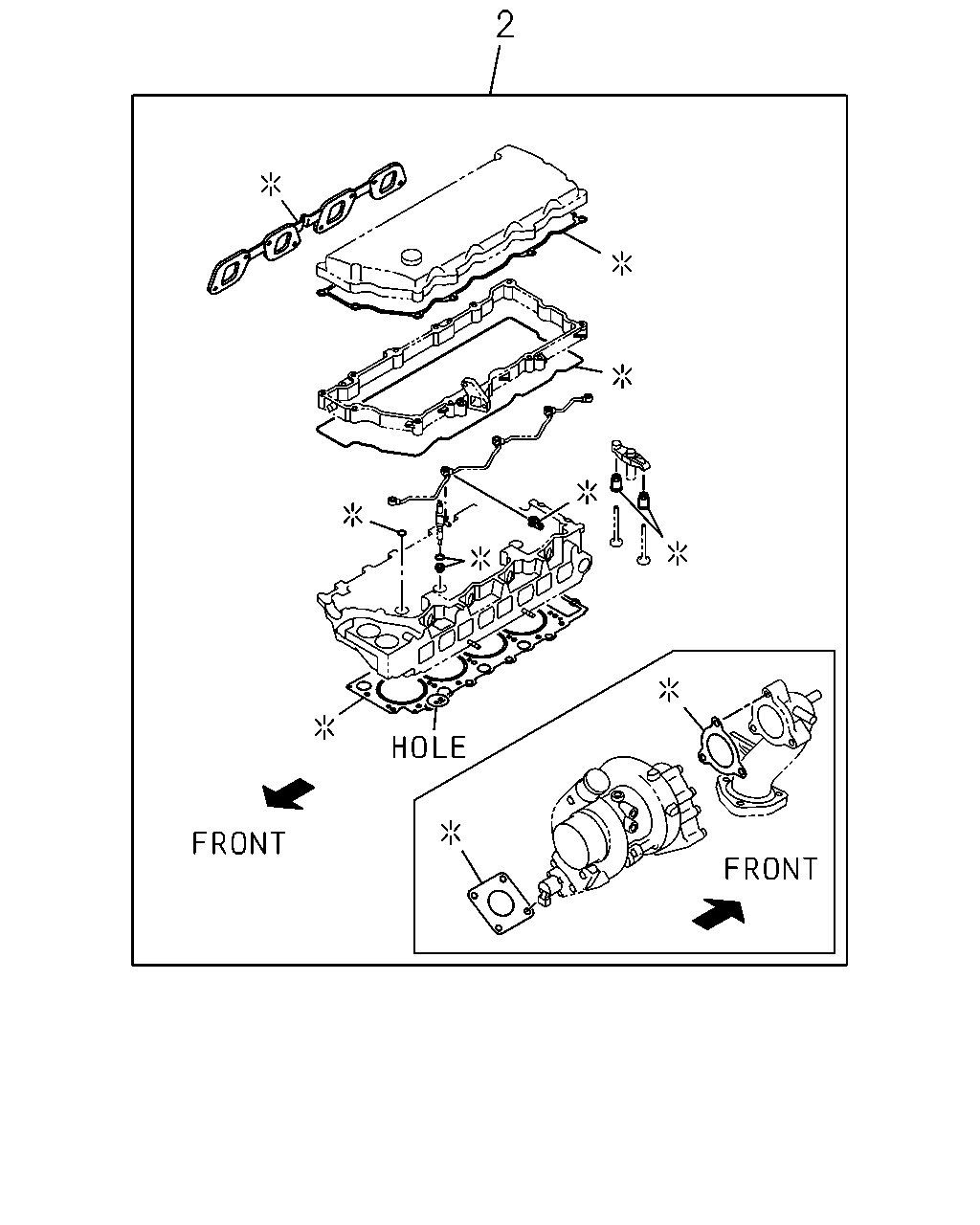

çizim 386366
2
BalonParca AdiParca NoAdetTipApplied Date A B
2 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87813-963-4 01 1 1311-1312 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87817-038-1 01 1 1401- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87813-964-4 01 1 1311-1312 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87817-039-1 01 1 1401- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87813-965-4 01 1 1311-1312 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87817-040-1 01 1 1401- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87815-532-3 01 1 1312-1505 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87817-993-0 01 1 1506- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87815-533-3 01 1 1312-1505 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87817-994-0 01 1 1506- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87815-534-3 01 1 1312-1505 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87817-995-0 01 1 1506- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
