Isuzu WW
▶
TRUCKS
▶
NPR
▶
51495 - NPR(GM EGYPT)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-90 - RADIO AND TV
▶
8-90 — RADIO AND TV
(#130779) — 22 parça
◀

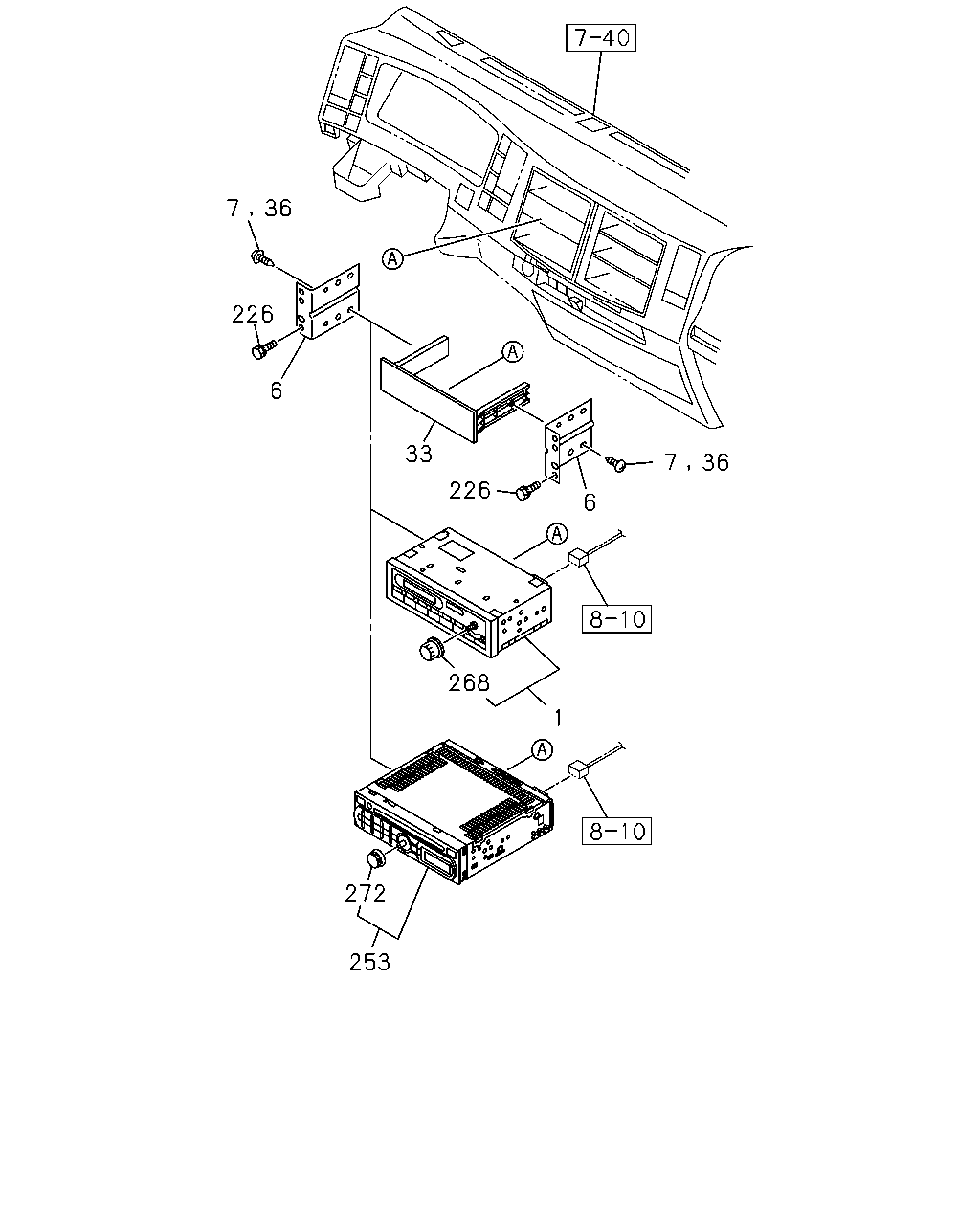

[890A] FIXING;RADIO AND COVER (10 parça)

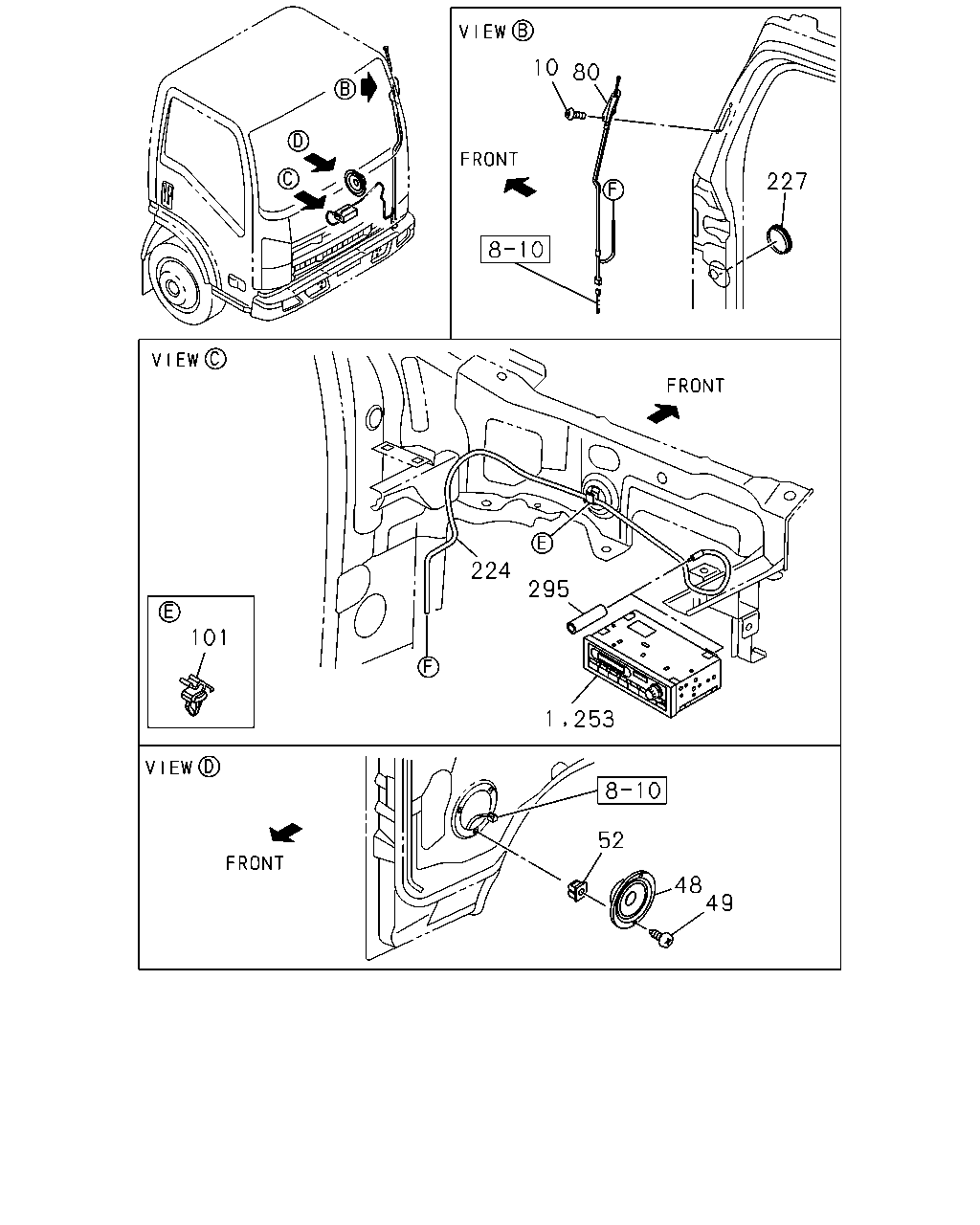

[890A] OTHER PARTS (12 parça)
▶
7
36
226
6
33
226
268
7
36
6
1
272
253
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
09.650 RADIO
AM/FM RADIO(U69)
8-98032-643-0
01
1
1308-
6
09.645 BRACKET; RADIO TO PANEL
EGY
8-97585-617-0
02
1
1308-
7
09.650 SCREW; RADIO
RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3), AM/FMRADIO(U69) M5X7 HEXALOBULAR SOCKET
8-98063-767-0
04
1
1308-
33
09.650 COVER; RADIO
EXC. RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3), AM/FM RADIO(U69) BLACK EGY
8-97407-896-2
01
1
1308-
36
09.779 SCREW; COVER
EXC. RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3), AM/FM RADIO(U69) 16.100 T25 L=10 HEXALOBULAR EGY
8-98058-632-0
02
1
1308-
226
09.647 BOLT; BRKT
M5X20 TAPPING HEXALOBULAR EGY
0-72180-520-0
02
1
1308-
253
09.645 DECK ASM; RADIO & CD
RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) TUNER BAND LATIN AMERICA<7DM>
8-98112-329-0
01
1
1308-
253
09.645 DECK ASM; RADIO & CD
RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) EXC. TUNER BAND LATIN AMERICA<7DM>
8-98017-752-0
01
1
1308-
268
09.649 KNOB; VOL
AM/FM RADIO(U69) CLARION
8-97375-820-0
01
1
1308-
272
09.649 KNOB; AUDIO CONTROL
RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) CLARION
8-98048-329-0
01
1
1308-
10
80
227
295
224
1
253
52
48
49
101
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
09.650 RADIO
AM/FM RADIO(U69)
8-98032-643-0
01
1
1308-
10
09.647 SCREW; ANTENNA CABLE
M5X11 TAPPING W/TORQUES EGY
8-98061-742-0
02
1
1308-
48
09.650 SPEAKER; AUDIO
2-SPEAKER SYSTEM BASE<U95>
8-97317-001-1
02
1
1308-
49
09.655 SCREW; SPEAKER
2-SPEAKER SYSTEM BASE<U95> M5X14 TAPPING W/TORQUES
8-98061-856-0
06
1
1308-
52
09.655 GROMMET; SCREW,SPEAKER
2-SPEAKER SYSTEM BASE<U95> 01.269 D=8.6X7.7 L=7.5 EGY
8-94279-078-0
06
1
1308-
80
09.645 ANTENNA
EGY
8-97387-265-3
01
1
1308-
101
09.649 CLIP; FEEDER TO BRKT
04.342 ID=6.5 EGY
5-09709-117-0
01
1
1308-
224
09.647 CABLE; EXT,FEEDER
8-98029-970-1
01
1
1308-
227
09.647 PROTECTOR; EDGE
EGY
8-98053-117-0
01
1
1308-
253
09.645 DECK ASM; RADIO & CD
RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) TUNER BAND LATIN AMERICA<7DM>
8-98112-329-0
01
1
1308-
253
09.645 DECK ASM; RADIO & CD
RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) EXC. TUNER BAND LATIN AMERICA<7DM>
8-98017-752-0
01
1
1308-
295
09.665 INSULATOR; ANTENNA
EXC. RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3), AM/FM RADIO(U69) EGY
8-98095-617-1
01
1
1308-
