8-65 — CONTROL LEVER; HEATER AND AIR CON (#130776) — 12 parça

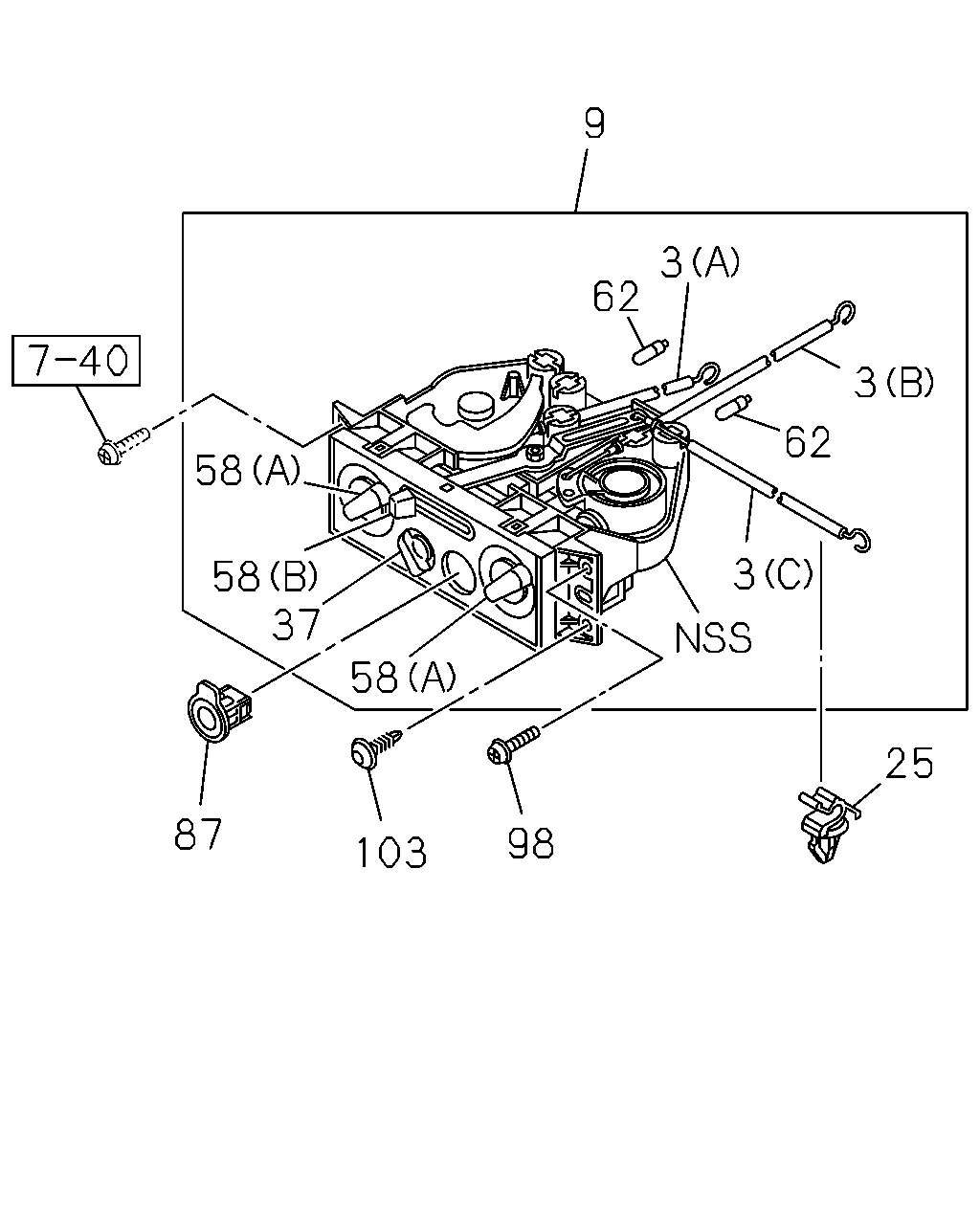

çizim 386627
3 62 3 3 25 98 103 87 37 58 58 58 9 62
BalonParca AdiParca NoAdetTipApplied Date
3 09.787 CABLE; HTR CONT LVR
(A) MODE EGY 		8-98039-254-1 01 1 1308-
3 09.787 CABLE; HTR CONT LVR
(B) MIX EGY 		8-98039-255-1 01 1 1308-
3 09.787 CABLE; HTR CONT LVR
(C) FRESH EGY 		8-98039-256-1 01 1 1308-
9 08.852 LEVER ASM; HTR & A/C CONT
EGY 		8-98067-881-1 01 1 1308-
25 08.854 CLIP; CABLE,CONT LEVER
09.647 ID=4.8 EGY 		8-94128-483-0 01 1 1308-
37 08.852 KNOB; SW,HTR CONT LVR
EGY 		8-98037-368-0 01 1 1308-
58 09.787 KNOB; LVR,HTR CONT LVR
(A) EGY 		8-98037-369-0 02 1 1308-
58 09.787 KNOB; LVR,HTR CONT LVR
(B) EGY 		8-98037-370-0 01 1 1308-
62 08.991 BULB; HTR CONT LVR
24V 1.1W EGY 		8-98037-371-0 02 1 1308-
87 08.849 CAP; A/C SWITCH
EGY 		8-98006-089-0 01 1 1308-
98 08.852 SCREW; CONT PANEL
09.647 M5X20 TAPPING HEXALOBULAR EGY 		0-72180-520-0 01 1 1308-
103 08.854 CLIP
16.742 DARK GRAY EGY 		8-97098-326-0 01 1 1308-
