Isuzu WW
▶
TRUCKS
▶
NPR
▶
51495 - NPR(GM EGYPT)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶

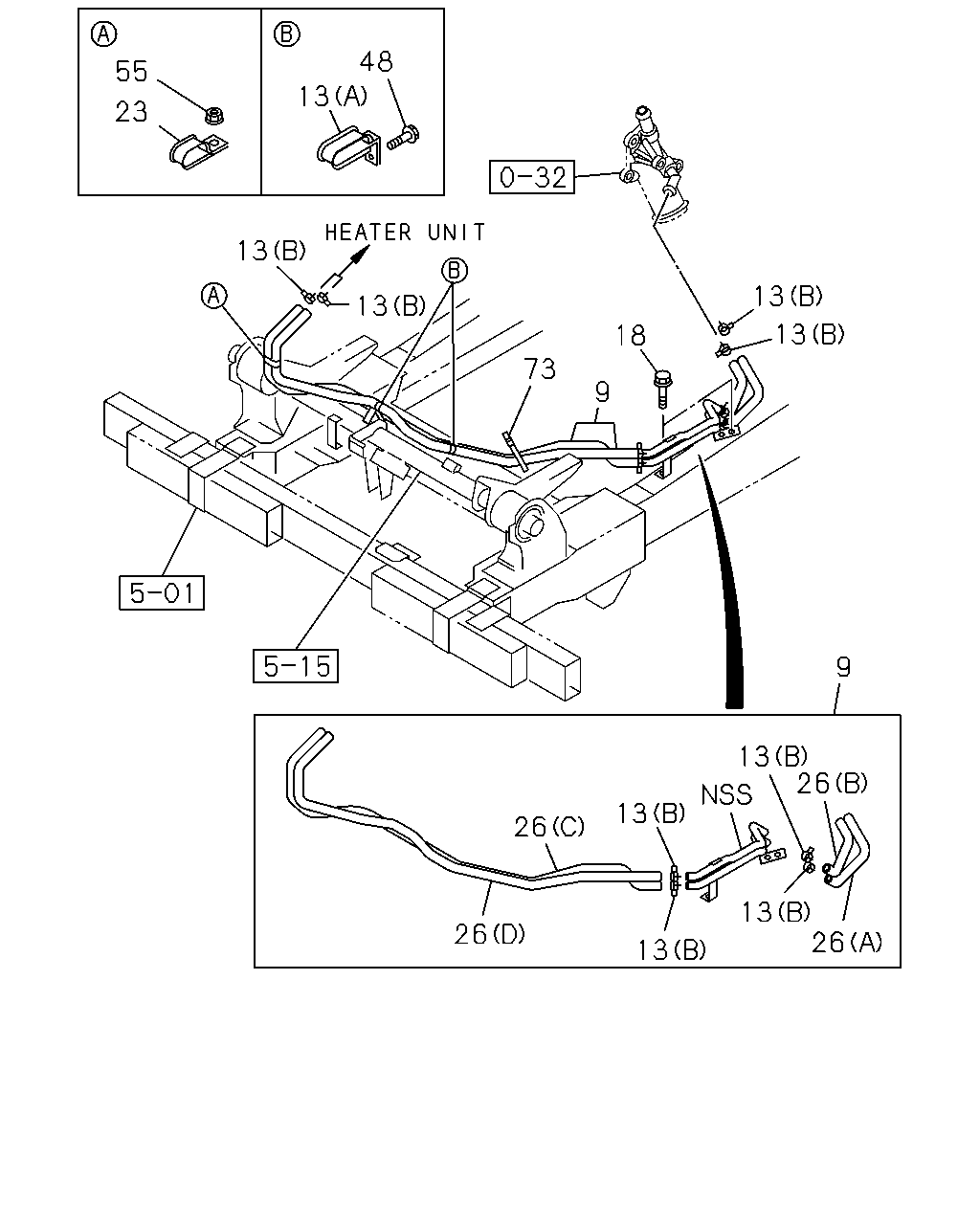

8-45 - HEATER PIPING
▶
8-45 — HEATER PIPING
(#130773) — 13 parça
55
23
13
48
13
73
18
9
13
13
13
26
26
13
13
9
26
13
13
26
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
9
08.846 PIPE; HTR
8-98006-433-1
01
1
1308-
13
08.846 CLIP; HTR HOSE
08.852 (A)
8-98032-129-0
02
1
1308-
13
08.846 CLIP; HTR HOSE
03.278 (B) ID=22
8-97359-141-0
04
1
1308-
13
08.846 CLIP; HTR HOSE
03.278 (B) ID=22
8-97359-141-0
04
1
1308-
18
08.866 BOLT; WATER HOSE
06.216 M8X25 FLANGE EGY
0-28650-825-0
02
1
1308-
23
08.846 CLIP; WATER HOSE,DASH LWR
B=18
8-98166-023-0
01
1
1308-
26
08.846 HOSE; HTR
(A)
8-98050-295-0
01
1
1308-
26
08.846 HOSE; HTR
(B)
8-98050-296-0
01
1
1308-
26
08.846 HOSE; HTR
(C)
8-98059-457-1
01
1
1308-
26
08.846 HOSE; HTR
(D)
8-98059-458-1
01
1
1308-
48
09.262 BOLT; CLIP FIX
03.162 M6X12 FLANGE EGY
0-28050-612-0
02
1
1308-
55
08.845 NUT; CLAMP
01.062 M6 FLANGE EGY
0-91180-106-0
01
1
1308-
73
08.846 CLIP; HTR HOSE
02.559 L=250
5-09707-030-1
01
1
1308-
