8-28 — CHASSIS ELECTRICAL (#130771) — 18 parça
çizim 385900
770 540 8 22
BalonParca AdiParca NoAdetTipApplied Date
8 16.067 RELAY; WIPER
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1308-
22 02.679 RELAY; STOP LAMP
02.510 24V 12.5A PANASONIC EGY 		8-97262-933-0 01 1 1308-
540 16.067 RELAY; WIPER INTERVAL
INTERMITTENT WIPER<C13> (A) 		8-98060-388-0 01 1 1308-1308
540 16.067 RELAY; WIPER INTERVAL
INTERMITTENT WIPER<C13> (A) 		8-98233-976-0 01 1 1309-
540 16.067 RELAY; WIPER INTERVAL
08.852 (B) 24V 10A PANASONIC 		8-97173-035-1 01 1 1308-
770 02.510 RELAY; ENG BRK
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1308-

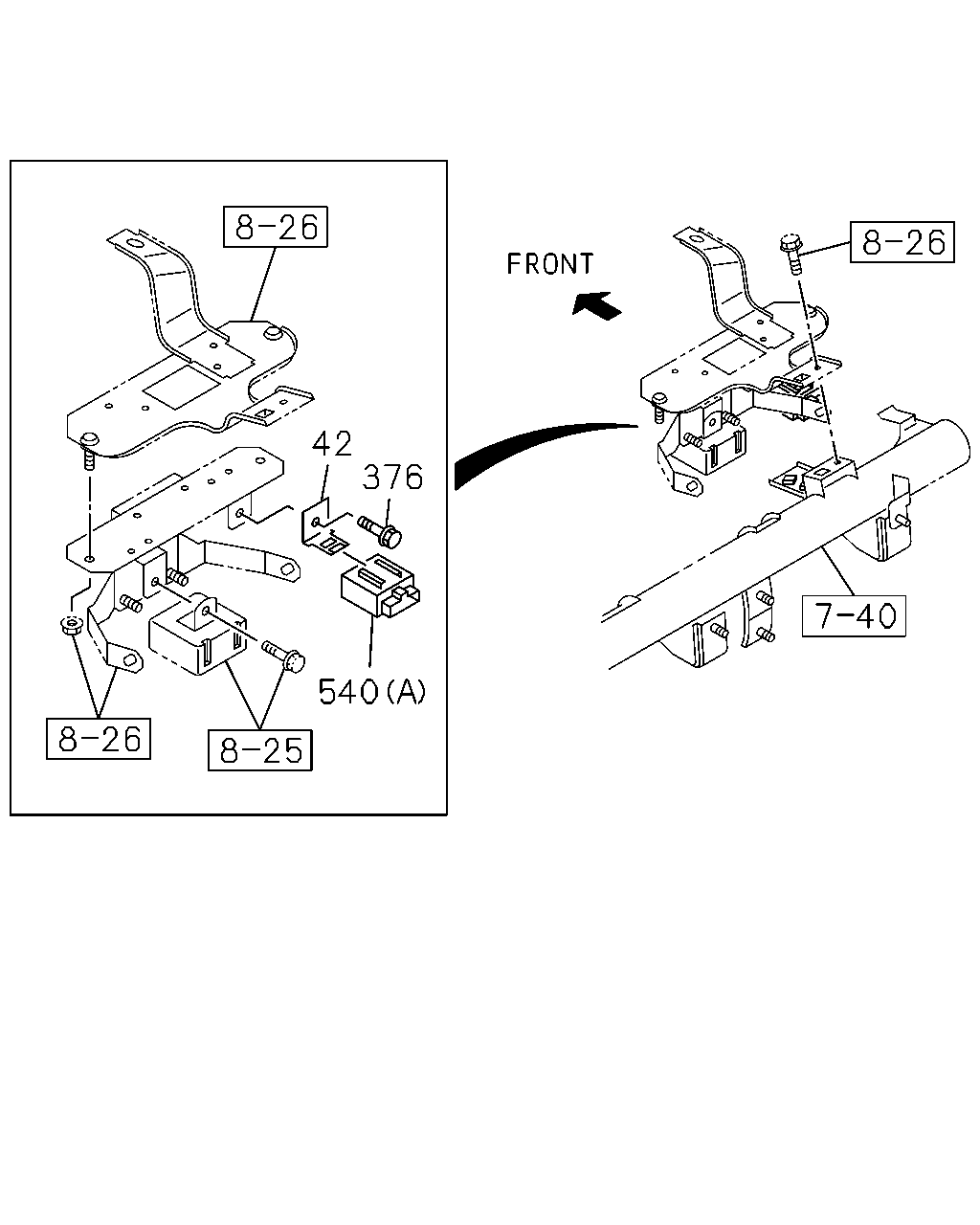

çizim 386726
42 376 540
BalonParca AdiParca NoAdetTipApplied Date
42 09.766 BRACKET; RELAY
INTERMITTENT WIPER<C13> 		8-98094-199-0 01 1 1308-
376 03.342 BOLT; RELAY
INTERMITTENT WIPER<C13> 01.531 M8X20 FLANGE EGY 		0-28650-820-0 01 1 1308-
540 16.067 RELAY; WIPER INTERVAL
INTERMITTENT WIPER<C13> (A) 		8-98060-388-0 01 1 1308-1308
540 16.067 RELAY; WIPER INTERVAL
INTERMITTENT WIPER<C13> (A) 		8-98233-976-0 01 1 1309-
540 16.067 RELAY; WIPER INTERVAL
08.852 (B) 24V 10A PANASONIC 		8-97173-035-1 01 1 1308-
çizim 386778
1 4 189 44 189 45 236
BalonParca AdiParca NoAdetTipApplied Date
1 02.575 UNIT; FLASHER 8-98025-533-1 01 1 1308-
4 02.575 SCREW; FLASHER UNIT
16.090 M5X16 TAPPING HEXALOBULAR EGY 		0-72180-516-0 01 1 1308-
44 02.810 HORN; HIGH NOTE
DUAL HEAVY DUTY HORN(6KK) 		8-98070-080-0 01 1 1308-
45 02.810 HORN; LOW NOTE 8-98022-023-0 01 1 1308-
189 02.812 BOLT; HORN
02.343 M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1308-
189 02.812 BOLT; HORN
DUAL HEAVY DUTY HORN(6KK) 02.343 M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1308-
236 02.485 RELAY; FUEL PUMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1308-
