◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51495 - NPR(GM EGYPT) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#130766) — 45 parça

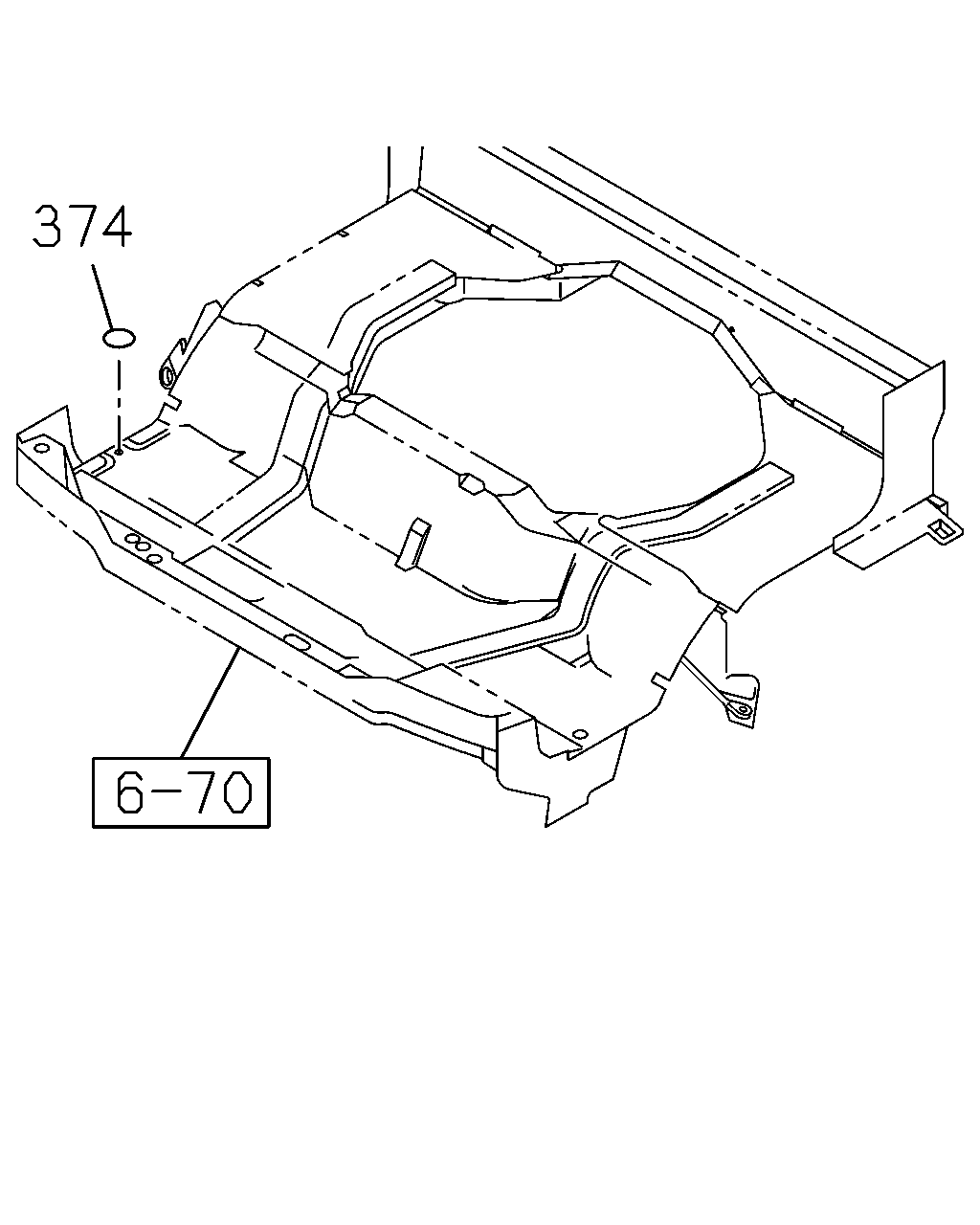

çizim 386133
374
BalonParca AdiParca NoAdetTipApplied Date
374 02.530 PLUG; HARNESS CONNECTOR
16.545 OD=32 BLACK EGY 		8-98031-126-0 01 1 1308-

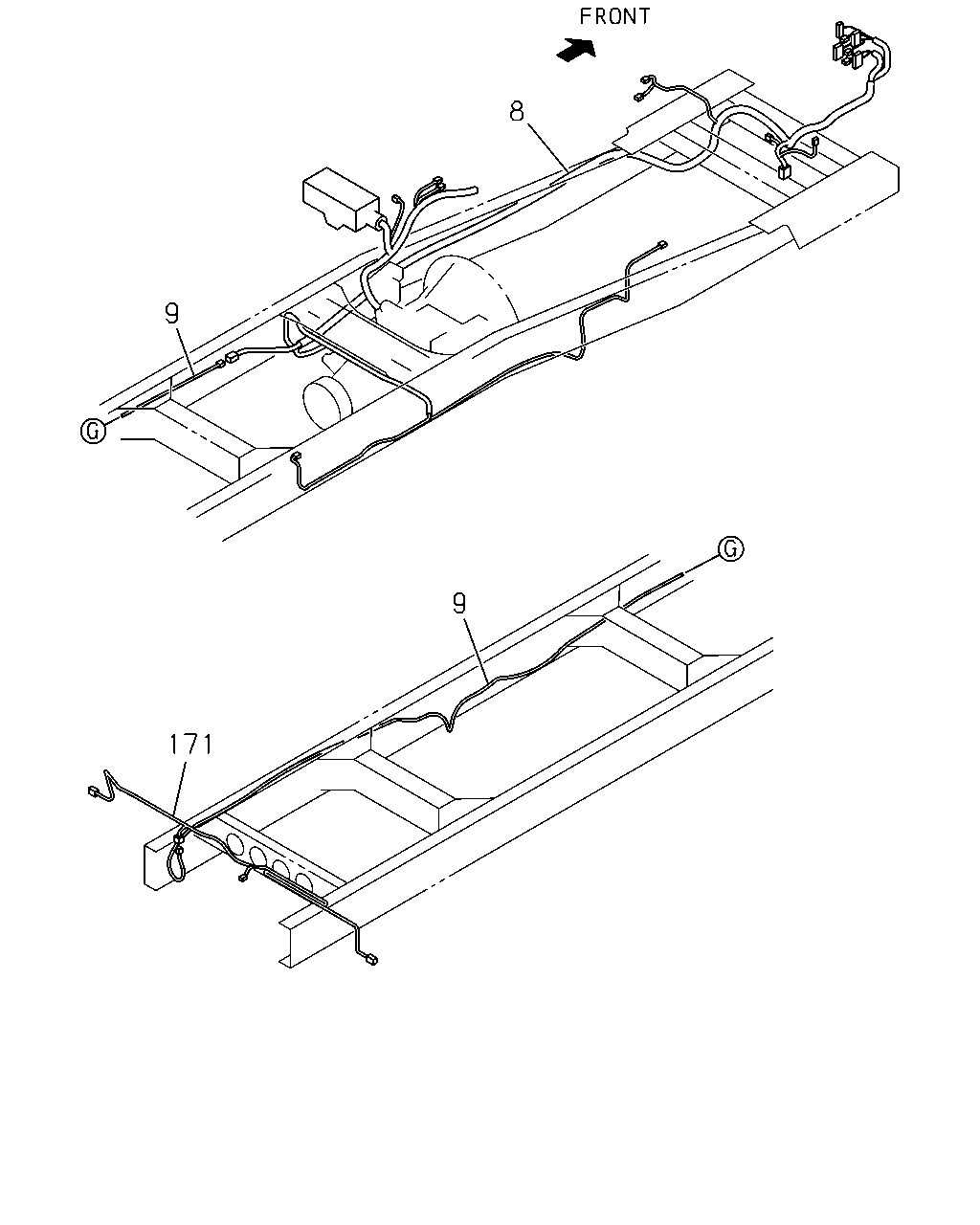

çizim 386192
8 9 9 171
BalonParca AdiParca NoAdetTipApplied Date
8 02.480 HARNESS; FRAME,FRT 8-98199-737-1 01 1 1308-1409
8 02.480 HARNESS; FRAME,FRT 8-98294-419-0 01 1 1410-
9 02.480 HARNESS; FRAME,RR 8-98173-516-0 01 1 1308-
171 02.596 HARNESS; CABLE,TAIL LAMP
EGY 		8-98156-028-0 01 1 1308-

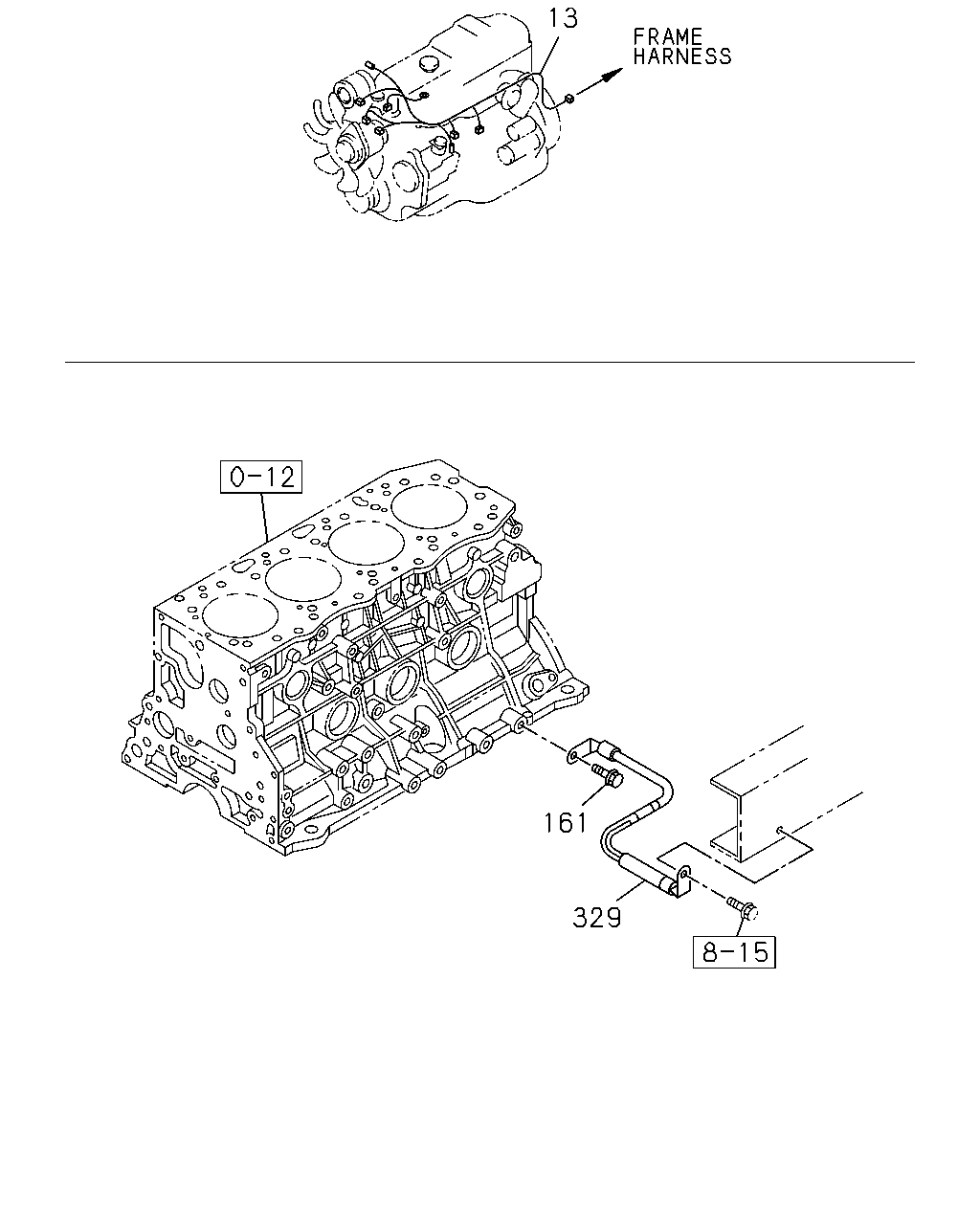

çizim 386224
161 329 13
BalonParca AdiParca NoAdetTipApplied Date
13 02.525 HARNESS; ENG 8-97356-988-1 01 1 1308-
161 02.559 BOLT; GROUND,HARNESS
02.343 M8X16 FLANGE EGY 		0-28050-816-0 01 1 1308-
329 02.480 CABLE; ENG TO FRAME
EGY 		8-98123-064-0 01 1 1308-

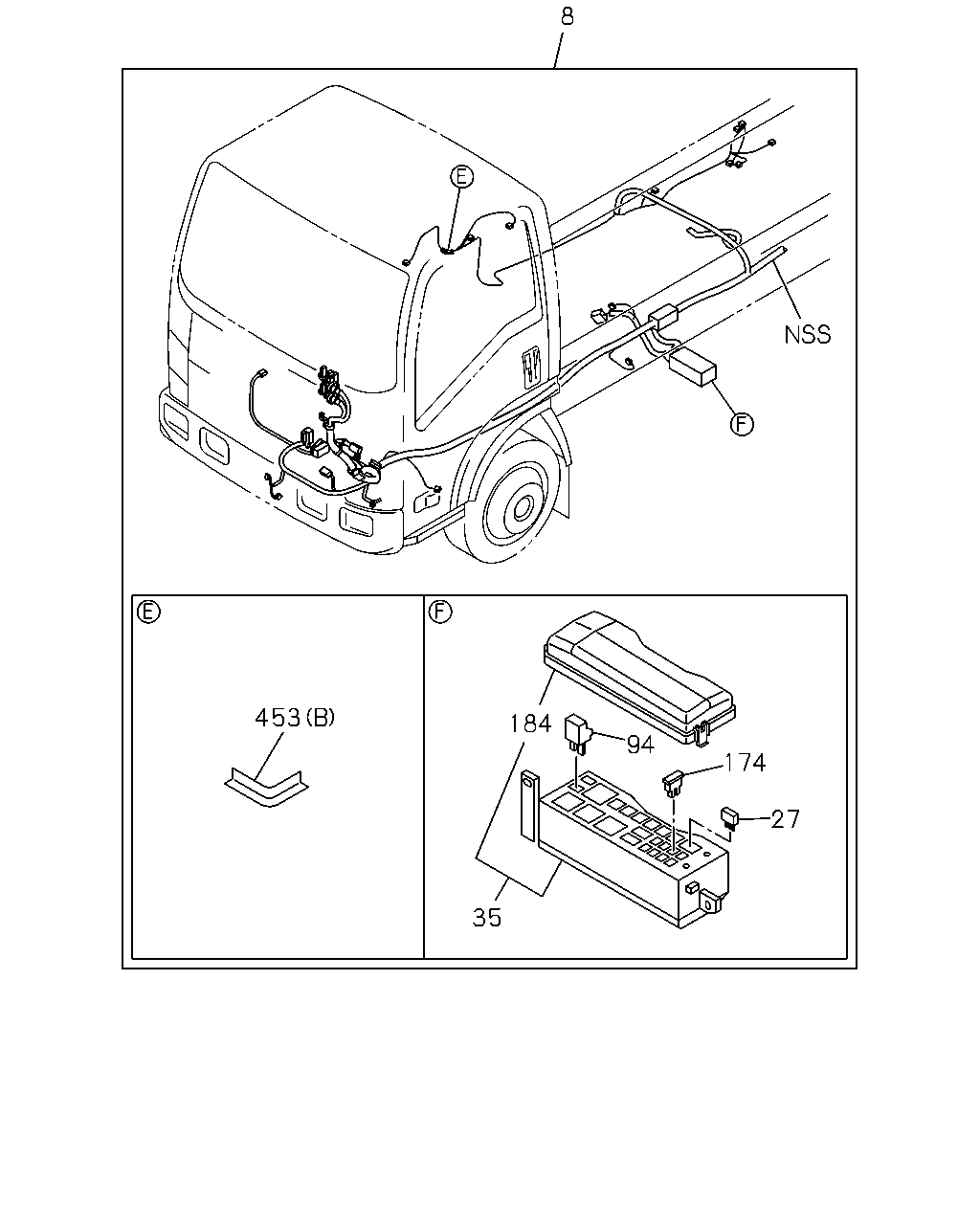

çizim 386666
8 184 174 27 94 35 453
BalonParca AdiParca NoAdetTipApplied Date
8 02.480 HARNESS; FRAME,FRT 8-98199-737-1 01 1 1308-1409
8 02.480 HARNESS; FRAME,FRT 8-98294-419-0 01 1 1410-
27 08.965 FUSE UNIT
10A MINI RED EGY 		8-97062-022-0 AR 1 1308-
35 02.530 BOX; RELAY & FUSE 8-98173-937-0 01 1 1308-
94 02.483 DIODE; FRAME HARNESS
BLACK 2P-1.5A EGY 		8-94422-639-1 AR 1 1308-
174 08.965 FUSE; SLOW BLOW
30A PINK EGY 		8-97183-643-0 AR 1 1308-
174 08.965 FUSE; SLOW BLOW
40A GREEN EGY 		8-97183-644-0 AR 1 1308-
174 08.965 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 AR 1 1308-
184 02.559 COVER; RELAY & FUSE BOX 8-98179-321-0 01 1 1308-
453 02.483 PROTECTOR; HARNESS
(B) 		8-94417-716-0 02 1 1308-
453 02.483 PROTECTOR; HARNESS
(A) 		8-98057-647-0 01 1 1308-

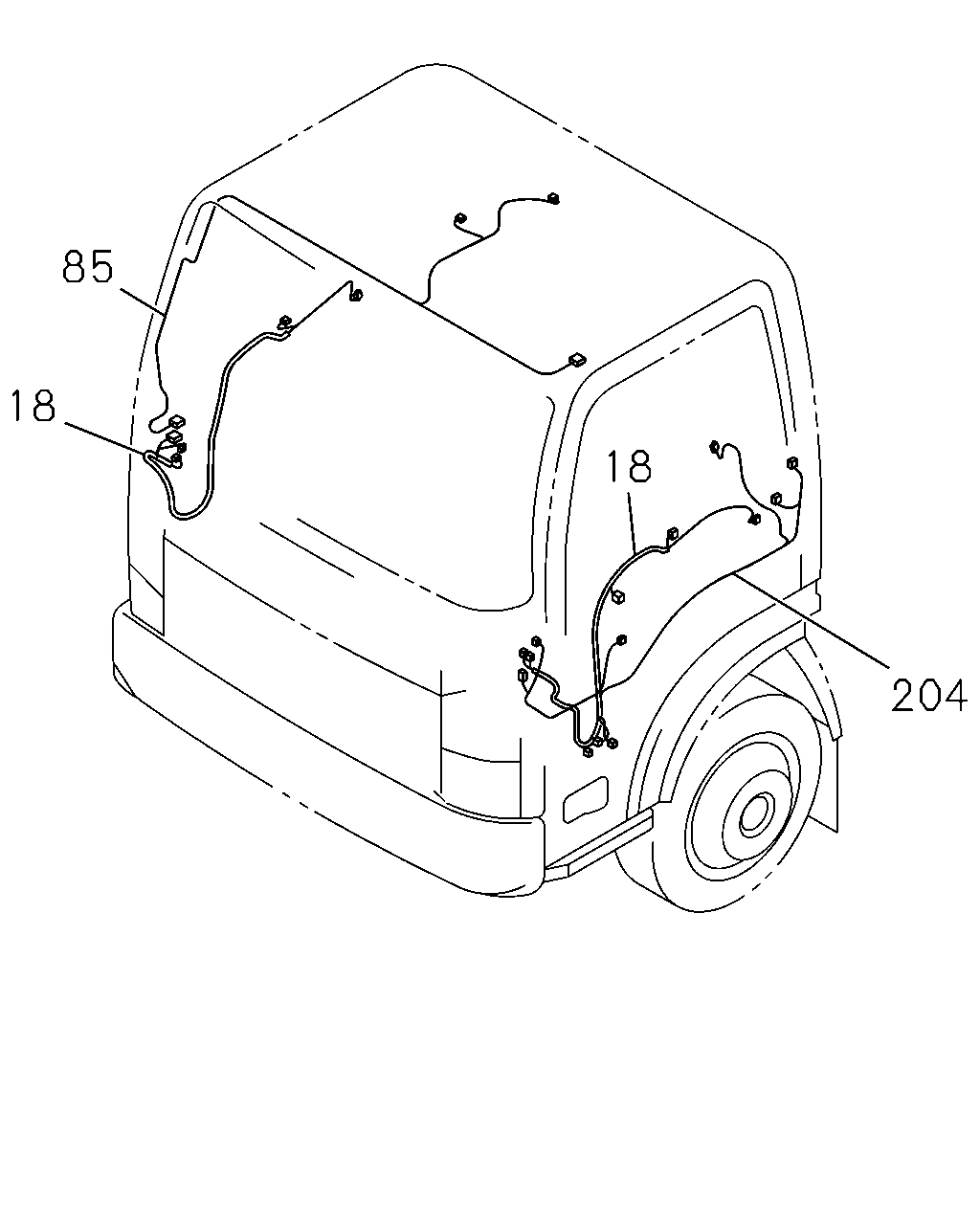

çizim 386700
204 18 85 18
BalonParca AdiParca NoAdetTipApplied Date
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-98077-592-3 01 1 1308-
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-98077-600-3 01 1 1308-
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> EGY 		8-98077-591-2 01 1 1308-
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> EGY 		8-98077-599-2 01 1 1308-
85 06.495 HARNESS; ROOM LAMP
EGY 		8-98050-518-3 01 1 1308-
204 02.559 HARNESS; CABLE,FLOOR
EGY 		8-98070-799-5 01 1 1308-

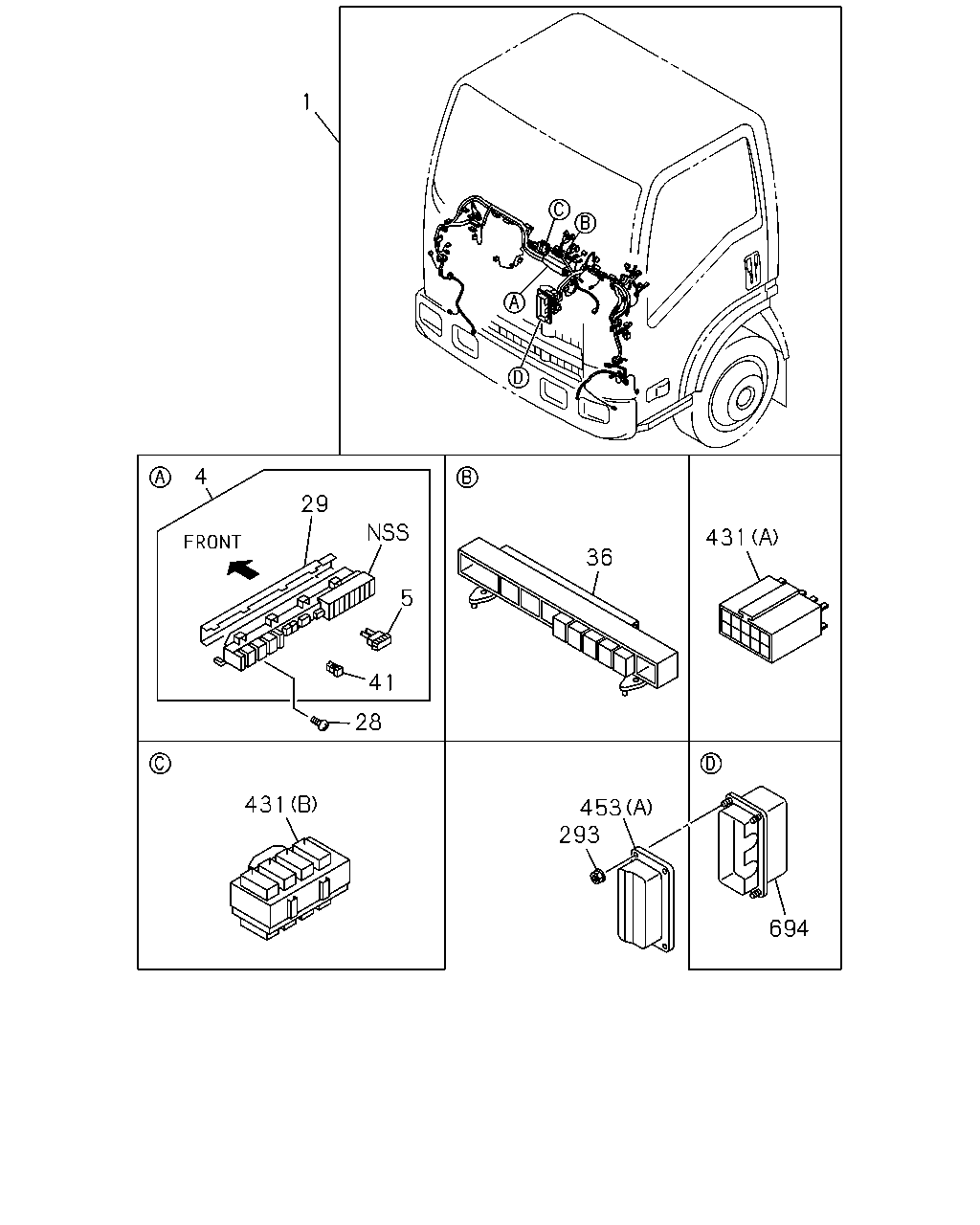

çizim 386915
1 4 29 5 41 28 36 431 431 453 293 694
BalonParca AdiParca NoAdetTipApplied Date
1 02.480 HARNESS; CAB
POWER WINDOW FRT DOOR<A32> EXC. INTERMITTENT WIPER<C13>,FOG LAMP<T96> 		8-98172-123-3 01 1 1308-
1 02.480 HARNESS; CAB
INTERMITTENT WIPER<C13> 		8-98172-123-3 01 1 1308-
1 02.480 HARNESS; CAB
FOG LAMP<T96> EXC. INTERMITTENT WIPER<C13> 		8-98172-123-3 01 1 1308-
1 02.480 HARNESS; CAB
EXC. POWER WINDOW FRT DOOR<A32>, INTERMITTENT WIPER<C13>,FOG LAMP<T96> 		8-98227-713-0 01 1 1308-
4 02.483 BOX ASM; FUSE,HARNESS 8-97187-921-1 01 1 1308-
5 02.485 FUSE; FACIA HARNESS
08.965 10A MINI RED EGY 		8-97062-022-0 AR 1 1308-
5 02.485 FUSE; FACIA HARNESS
08.965 15A MINI BLUE EGY 		8-97062-023-0 AR 1 1308-
5 02.485 FUSE; FACIA HARNESS
08.965 20A MINI YELLOW EGY 		8-97062-024-0 AR 1 1308-
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR EGY 		0-72180-516-0 01 1 1308-
29 02.483 COVER; FUSE BOX 8-97074-955-0 01 1 1308-
36 02.530 BOX; RELAY 8-97187-918-1 01 1 1308-
41 08.821 PULLER; FUSE 8-97103-388-0 01 1 1308-
293 02.559 NUT
01.062 M6 FLANGE EGY 		0-91180-106-0 04 1 1308-
431 02.530 CONNECTOR; JOINT
POWER WINDOW FRT DOOR<A32> EXC. INTERMITTENT WIPER<C13>,FOG LAMP<T96> (A) 10P 		8-97077-943-0 02 1 1308-
431 02.530 CONNECTOR; JOINT
INTERMITTENT WIPER<C13> (A) 10P 		8-97077-943-0 02 1 1308-
431 02.530 CONNECTOR; JOINT
FOG LAMP<T96> EXC. INTERMITTENT WIPER<C13> (A) 10P 		8-97077-943-0 02 1 1308-
431 02.530 CONNECTOR; JOINT
(B) 		8-98046-206-0 01 1 1308-
453 02.483 PROTECTOR; HARNESS
(B) 		8-94417-716-0 02 1 1308-
453 02.483 PROTECTOR; HARNESS
(A) 		8-98057-647-0 01 1 1308-
694 02.483 BOX ASM; CONNECTOR 8-98190-772-0 01 1 1308-
