7-50 — FRONT SEAT (#130761) — 45 parça

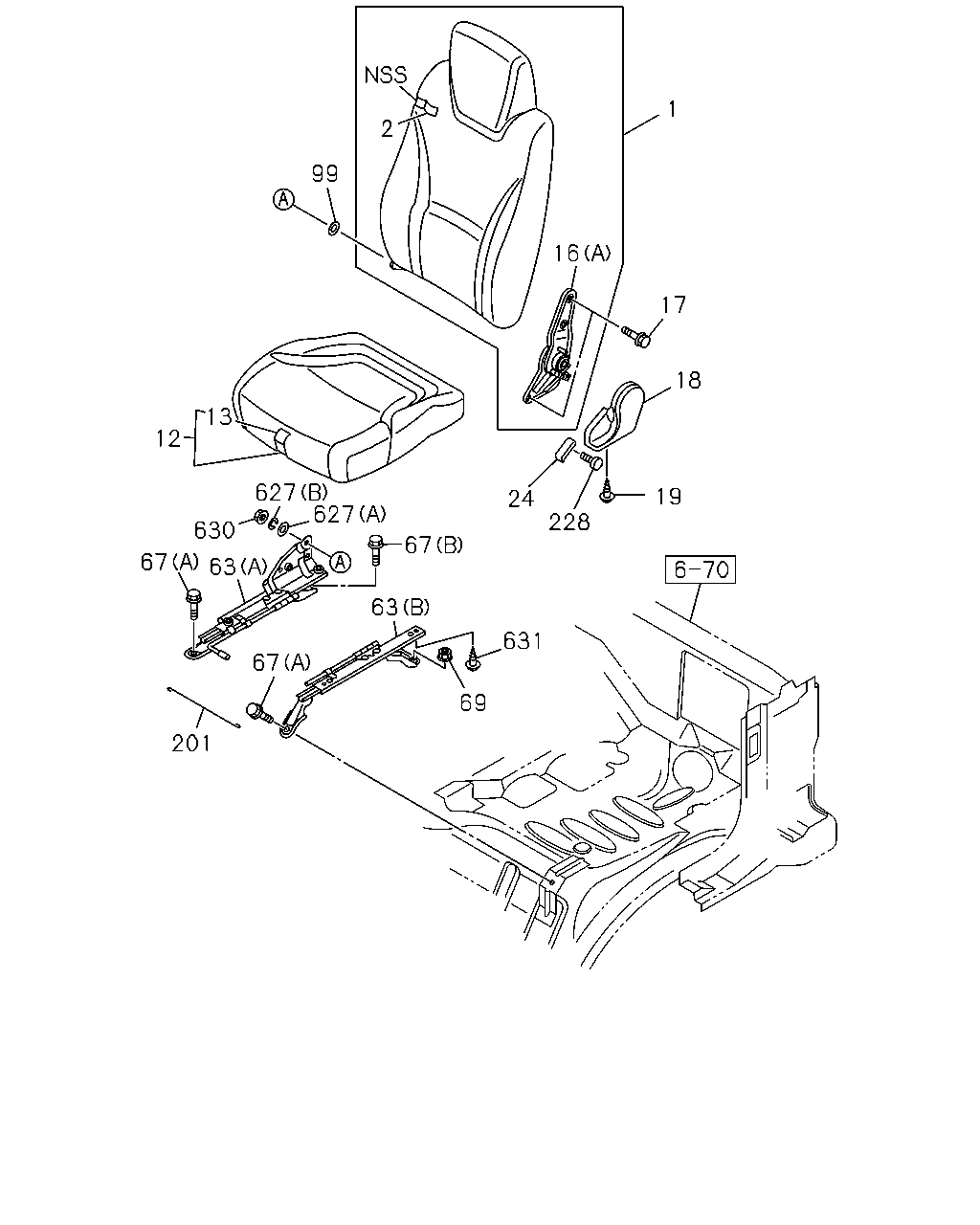

1 16 18 17 19 228 24 99 2 627 12 13 627 63 631 69 67 201 67 63 67 630

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	16.720 BACK ASM; SEAT SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-160-7	01	1	1308-
1	16.720 BACK ASM; SEAT EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY EGY	8-97414-155-5	01	1	1308-
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-038-2	01	1	1308-
2	16.724 COVER; TRIM,FRT SEAT,BACK EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY EGY	8-97414-152-2	01	1	1308-
12	16.670 CUSHION; SEAT,FRT SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-163-3	01	1	1308-
12	16.670 CUSHION; SEAT,FRT EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY EGY	8-97414-153-3	01	1	1308-
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-164-2	01	1	1308-
13	16.717 COVER; TRIM,FRT SEAT,CUSHION EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY EGY	8-97414-154-2	01	1	1308-
16	16.682 ADJUSTER ASM; RECLINING (C) BLACK W/KNOB EGY	8-97859-273-3	01	1	1308-
16	16.682 ADJUSTER ASM; RECLINING (B) BLACK W/KNOB EGY	8-97859-274-3	01	1	1308-
16	16.682 ADJUSTER ASM; RECLINING (A) EGY	8-98005-418-1	01	1	1308-
17	16.682 BOLT; RECLINING M10X20 EGY	8-98062-661-0	04	1	1308-
18	16.682 COVER; RECLINING GRAY EGY	8-97409-361-0	01	1	1308-
19	16.686 SCREW; COVER M5 EGY	8-98062-663-0	01	1	1308-
24	16.682 KNOB; RECLINING,FRT,SEAT GRAY EGY	8-97409-362-0	01	1	1308-
63	16.682 ADJUSTER; SEAT SLIDE (A) INNER EGY	8-98002-907-2	01	1	1308-
63	16.682 ADJUSTER; SEAT SLIDE (B) OUTER EGY	8-98002-908-1	01	1	1308-
67	16.682 BOLT; FRT SEAT TO BODY (A) M10X20 FLANGE EGY	8-98055-941-0	02	1	1308-
67	16.682 BOLT; FRT SEAT TO BODY (B) M10X30 FLANGE EGY	8-98055-942-0	01	1	1308-
69	16.682 NUT; FRT SEAT M10 FLANGE EGY	8-98055-961-0	01	1	1308-
99	16.716 BUSHING; SEAT BACK EGY	8-98112-751-0	01	1	1308-
201	16.682 CABLE; ADJ EGY	8-98003-086-1	01	1	1308-
228	16.714 SCREW; KNOB M4 EGY	8-98062-662-0	01	1	1308-
627	16.682 WASHER; FRT SEAT (A) EGY	8-98063-223-0	01	1	1308-
627	16.682 WASHER; FRT SEAT (B) EGY	8-98063-224-0	01	1	1308-
630	16.682 NUT; CAP M8 EGY	8-98063-225-0	01	1	1308-
631	16.682 BOLT; ADJ,SEAT OUTER M8X25 W/LK WASHER EGY	8-98062-658-0	02	1	1308-
631	16.682 BOLT; ADJ,SEAT INNER M8X32 W/LK WASHER EGY	8-98062-659-0	02	1	1308-

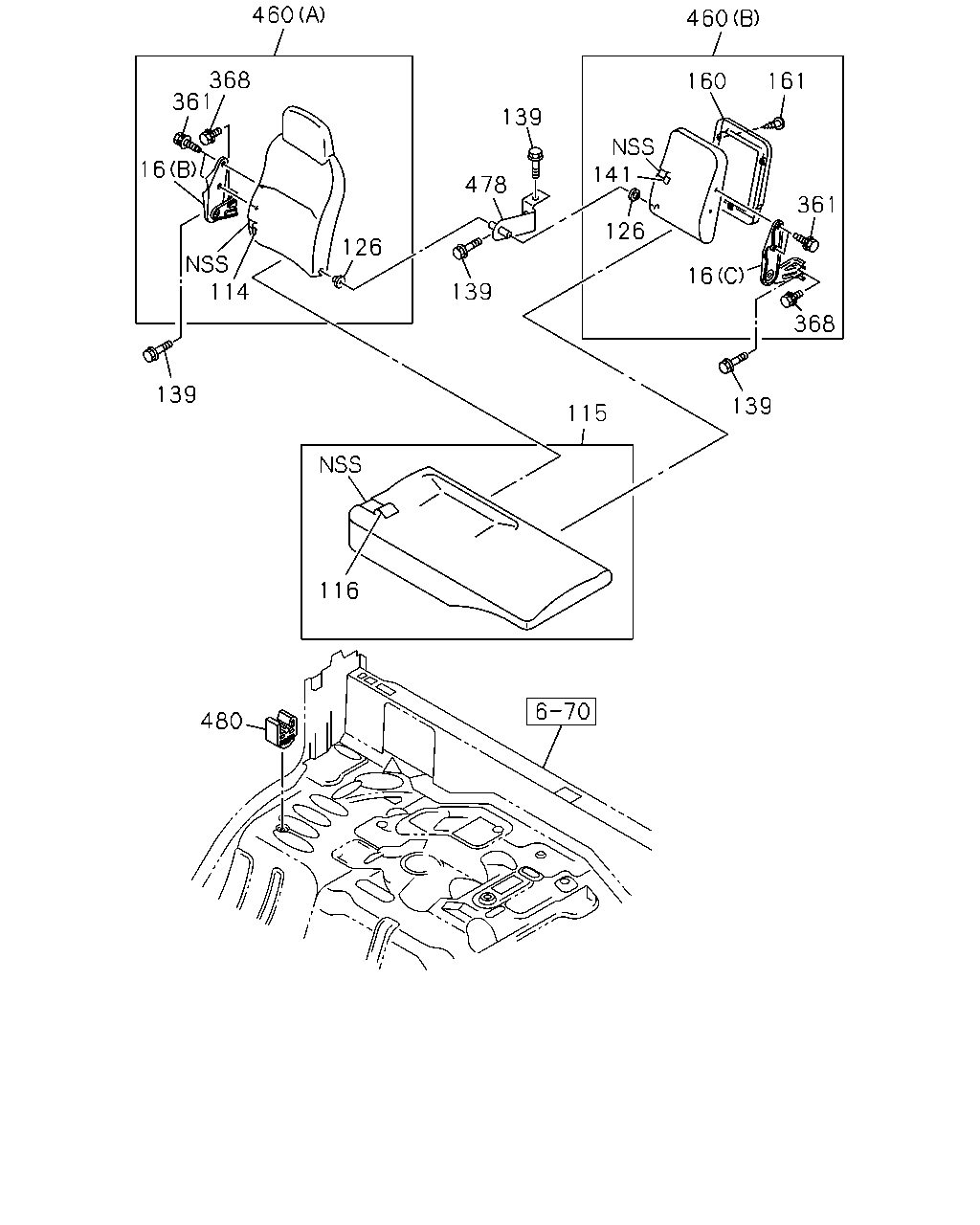

460 460 139 478 139 115 126 368 361 16 114 139 26 160 141 161 361 16 368 139 116 480

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	16.682 ADJUSTER ASM; RECLINING (C) BLACK W/KNOB EGY	8-97859-273-3	01	1	1308-
16	16.682 ADJUSTER ASM; RECLINING (B) BLACK W/KNOB EGY	8-97859-274-3	01	1	1308-
16	16.682 ADJUSTER ASM; RECLINING (A) EGY	8-98005-418-1	01	1	1308-
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK DARK GRAY EGY	8-97418-724-0	01	1	1308-
115	16.720 CUSHION ASM; PASSENGER SEAT DARK GRAY EGY	8-97418-709-2	01	1	1308-
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI DARK GRAY EGY	8-97418-738-1	01	1	1308-
126	16.686 BUSHING; HINGE,RECLINING EGY	8-98069-558-0	02	1	1308-
139	16.679 BOLT; PASSENGER SEAT M8X20 W/PL WASHER EGY	8-98031-841-0	04	1	1308-
141	16.724 COVER; TRIM,BENCH SEAT,BACK DARK GRAY EGY	8-97418-728-0	01	1	1308-
160	16.650 CONSOLE; UPR,BACK CENTER GRAY EGY	8-97405-361-1	01	1	1308-
161	16.650 SCREW; CONSOLE M4X12 EGY	8-94279-351-0	04	1	1308-
361	16.682 BOLT; ADJ,RECLINING M8X18 EGY	8-94279-109-1	04	1	1308-
368	16.682 BOLT; SEAT 16.320 M8X24.5 W/LK&PL WASHER EGY	8-94279-217-0	02	1	1308-
460	16.670 BACK ASM; PASSENGER SEAT (A) DARK GRAY EGY	8-97418-695-0	01	1	1308-
460	16.670 BACK ASM; PASSENGER SEAT 16.770 (B) DARK GRAY EGY	8-97418-699-2	01	1	1308-
478	16.716 BRACKET ASM; HINGE,PASSENGER SEA EGY	8-98002-092-0	01	1	1308-
480	16.716 CLIP; CUSHION EGY	8-94279-977-0	05	1	1308-
