7-43 — SUN VISOR AND ASSIST GRIP (#130759) — 50 parça

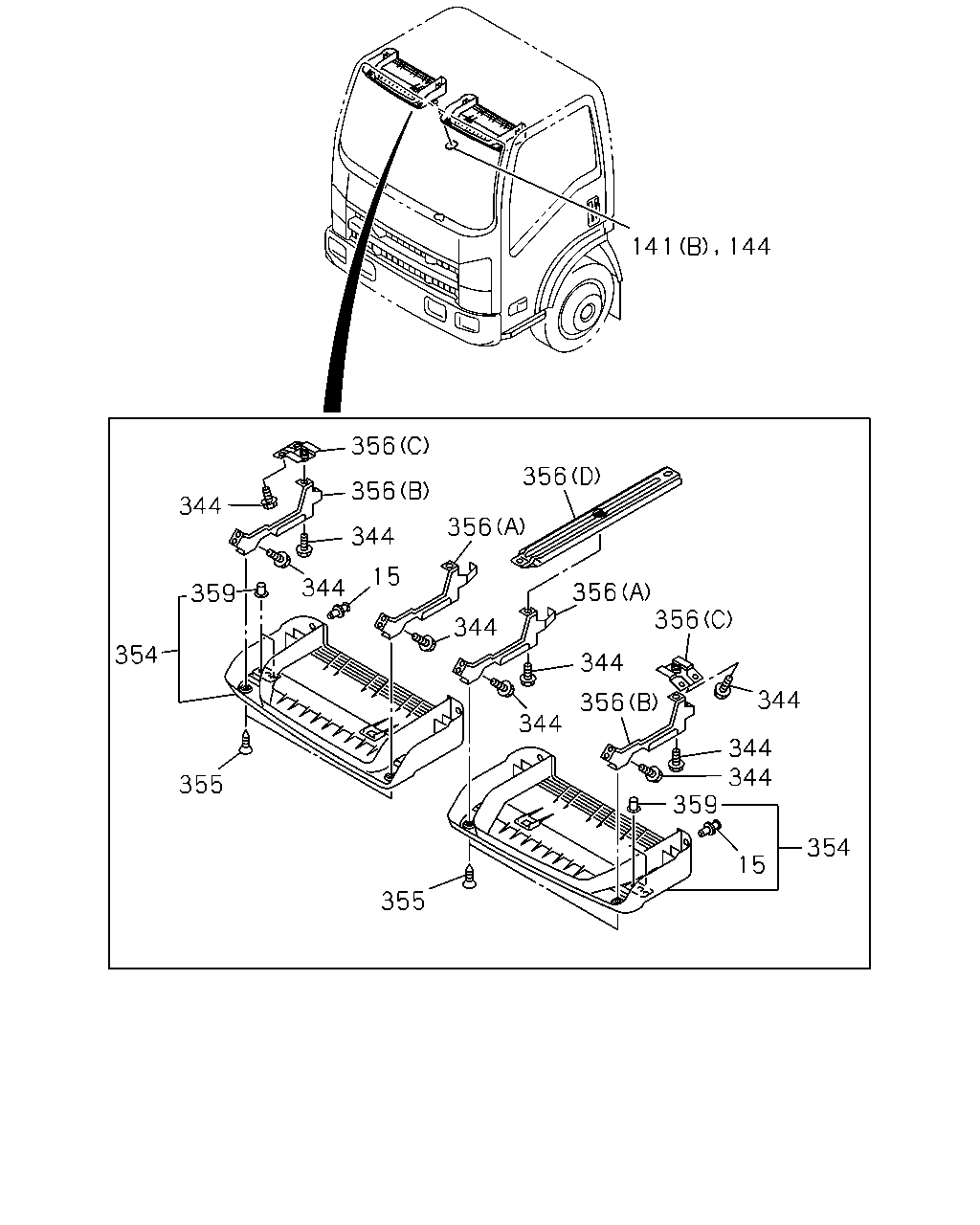

344 356 356 344 344 359 354 355 355 15 356 356 356 356 344 356 344 344 344 344 354 15 359 344 141 144

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	16.742 FASTENER; HEADER SHELF BOARD HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER& PASSENGER<8LY> DARK GRAY	8-97406-299-0	02	1	1308-
15	16.742 FASTENER; HEADER SHELF BOARD HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97406-299-0	02	1	1308-
141	16.070 COVER; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,HEADER TRAY DRIVER & PASSENGER<8LY> (A) L=62 B=25 DARK GRAY EGY	8-97405-173-0	01	1	1308-
141	16.070 COVER; SUN VISOR HEADER TRAY DRIVER & PASSENGER<8LY> (A) L=62 B=25 DARK GRAY EGY	8-97405-173-0	01	1	1308-
141	16.070 COVER; SUN VISOR HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER& PASSENGER<8LY> (A) L=62 B=25 DARK GRAY EGY	8-97405-173-0	01	1	1308-
141	16.070 COVER; SUN VISOR HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (C) L=66 B=30 DARK GRAY	8-97408-029-0	01	1	1308-
141	16.070 COVER; SUN VISOR HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (B) OD=30 T=0.05 DARK GRAY	8-97408-030-0	01	1	1308-
144	16.070 SEAL; LOCATION HOLE EXC. HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE EGY	8-98059-421-0	04	1	1504-
144	16.070 SEAL; LOCATION HOLE EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE EGY	8-98059-421-0	04	1	1504-
144	16.070 SEAL; LOCATION HOLE EXC. HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE EGY	8-98059-421-0	01	1	1308-1503
144	16.070 SEAL; LOCATION HOLE EXC. SUNVISOR PASSENGER SIDE<D20>,HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE EGY	8-98059-421-0	01	1	1308-1503
144	16.070 SEAL; LOCATION HOLE EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE EGY	8-98059-421-0	01	1	1308-1503
144	16.070 SEAL; LOCATION HOLE EXC. SUNVISOR PASSENGER SIDE<D20>,HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE EGY	8-98059-421-0	01	1	1504-
344	16.450 BOLT; BRKT,FRT HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER& PASSENGER<8LY> 03.604 M6X12 FLANGE	8-97108-669-0	08	1	1308-
344	16.450 BOLT; BRKT,FRT HEADER TRAY DRIVER & PASSENGER<8LY> 03.604 M6X12 FLANGE	8-97108-669-0	08	1	1308-
354	16.120 TRAY; HEADER ROOF HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER& PASSENGER<8LY> DARK GRAY	8-97408-065-2	01	1	1308-
354	16.120 TRAY; HEADER ROOF HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97408-064-2	01	1	1308-
355	16.742 SCREW; TRAY HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER& PASSENGER<8LY> 16.570 M5X16 TAPPING HEXALOBULAR EGY	0-72380-516-0	04	1	1308-
355	16.742 SCREW; TRAY HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 M5X16 TAPPING HEXALOBULAR EGY	0-72380-516-0	04	1	1308-
356	16.742 BRACKET; ROOF OUTER HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER& PASSENGER<8LY> (A)	8-98036-023-4	01	1	1308-
356	16.742 BRACKET; ROOF OUTER HEADER TRAY DRIVER & PASSENGER<8LY> (A)	8-98036-022-4	01	1	1308-
356	16.742 BRACKET; ROOF OUTER HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER& PASSENGER<8LY> (C)	8-97386-874-1	01	1	1308-
356	16.742 BRACKET; ROOF OUTER HEADER TRAY DRIVER & PASSENGER<8LY> (C)	8-97386-874-1	01	1	1308-
356	16.742 BRACKET; ROOF OUTER HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER& PASSENGER<8LY> (B)	8-97585-576-4	01	1	1308-
356	16.742 BRACKET; ROOF OUTER HEADER TRAY DRIVER & PASSENGER<8LY> (B)	8-97585-576-4	01	1	1308-
356	16.742 BRACKET; ROOF OUTER HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER& PASSENGER<8LY> (D)	8-97585-577-1	01	1	1308-
356	16.742 BRACKET; ROOF OUTER HEADER TRAY DRIVER & PASSENGER<8LY> (D)	8-97585-577-1	01	1	1308-
359	16.070 HOLDER; HEADER TRAY HEADER TRAY DRIVER & PASSENGER<8LY>	8-98041-754-0	02	1	1308-
359	16.070 HOLDER; HEADER TRAY HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER& PASSENGER<8LY>	8-98041-754-0	02	1	1308-

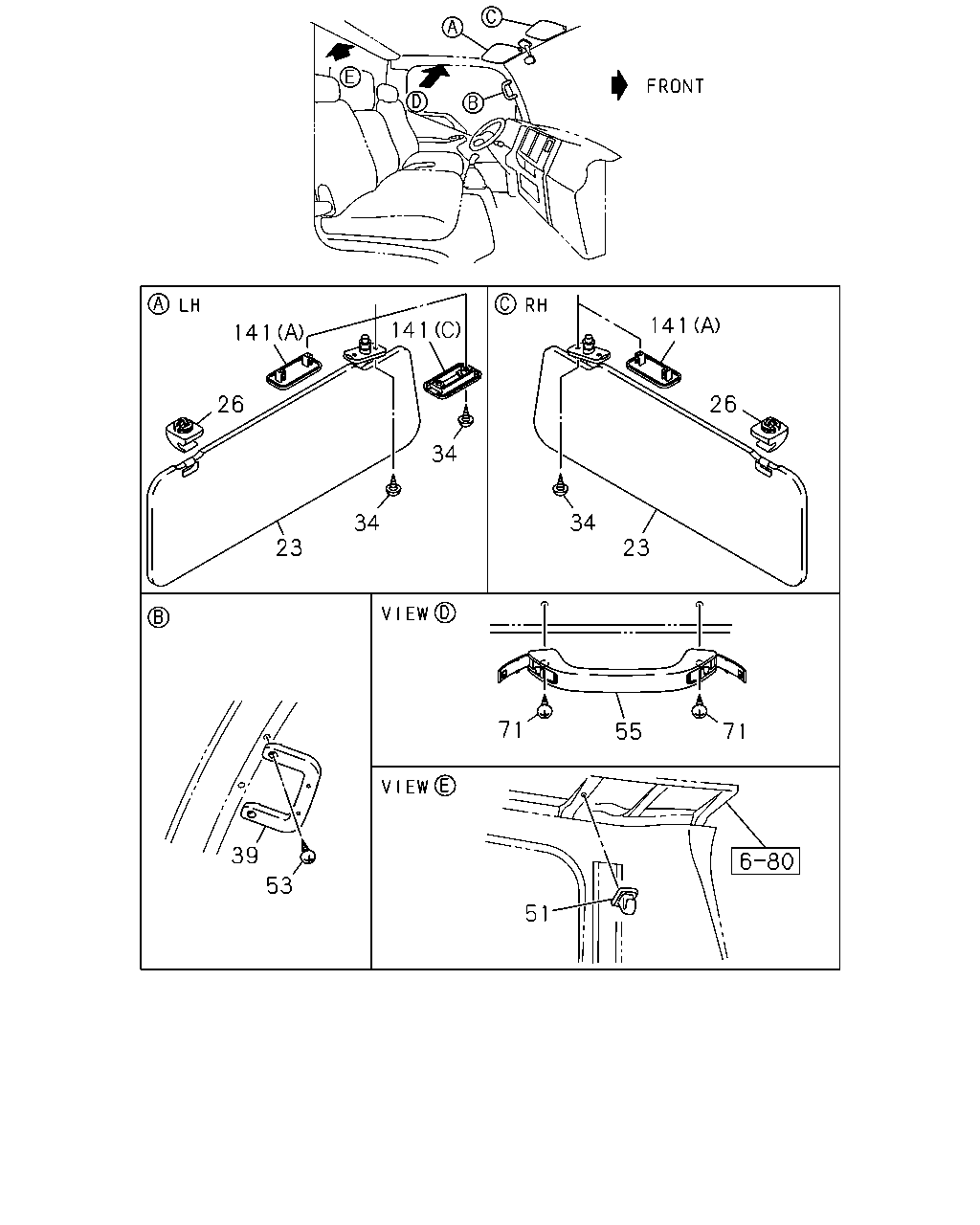

141 141 34 34 23 26 141 26 23 34 71 55 71 51 53 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
23	16.070 SUN VISOR SUNVISOR PASSENGER SIDE<D20> HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97408-059-1	01	1	1308-
23	16.070 SUN VISOR SUNVISOR PASSENGER SIDE<D20> EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97407-895-0	01	1	1308-
23	16.070 SUN VISOR HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER& PASSENGER<8LY> DARK GRAY	8-97405-170-3	01	1	1308-
23	16.070 SUN VISOR EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY EGY	8-97405-169-1	01	1	1308-
26	16.070 HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-171-0	01	1	1308-
26	16.070 HOLDER; SUN VISOR HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER& PASSENGER<8LY> DARK GRAY	8-97405-171-0	01	1	1308-
26	16.070 HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY EGY	8-97406-200-0	01	1	1308-
26	16.070 HOLDER; SUN VISOR EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY EGY	8-97406-200-0	01	1	1308-
34	16.070 SCREW; SUN VISOR M6X26 EGY	8-98033-674-0	02	1	1308-
34	16.070 SCREW; SUN VISOR SUNVISOR PASSENGER SIDE<D20> M6X26 EGY	8-98033-674-0	02	1	1308-
34	16.070 SCREW; SUN VISOR HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> M6X26 EGY	8-98033-674-0	02	1	1308-
39	16.450 HANDLE; ASSIST,A-POST DARK GRAY EGY	8-97405-249-2	02	1	1308-
51	16.570 HOOK; COAT HANGER COAT HOOK<S9M> 16.070 DARK GRAY EGY	8-97406-200-0	01	1	1308-
53	16.450 SCREW; ASSIST HANDLE M6X28 EGY	8-98004-344-0	04	1	1308-
55	16.450 GRIP; ASSIST,CAB SIDE UPR ASSIST GRIP PASSENGER<EG5> DARK GRAY	8-97405-285-2	01	1	1308-
71	16.450 SCREW ASSIST GRIP PASSENGER<EG5> M6X28 EGY	8-98004-344-0	02	1	1308-
141	16.070 COVER; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,HEADER TRAY DRIVER & PASSENGER<8LY> (A) L=62 B=25 DARK GRAY EGY	8-97405-173-0	01	1	1308-
141	16.070 COVER; SUN VISOR HEADER TRAY DRIVER & PASSENGER<8LY> (A) L=62 B=25 DARK GRAY EGY	8-97405-173-0	01	1	1308-
141	16.070 COVER; SUN VISOR HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER& PASSENGER<8LY> (A) L=62 B=25 DARK GRAY EGY	8-97405-173-0	01	1	1308-
141	16.070 COVER; SUN VISOR HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (C) L=66 B=30 DARK GRAY	8-97408-029-0	01	1	1308-
141	16.070 COVER; SUN VISOR HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (B) OD=30 T=0.05 DARK GRAY	8-97408-030-0	01	1	1308-
