Isuzu WW
▶
TRUCKS
▶
NPR
▶
51495 - NPR(GM EGYPT)
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-20 - MIRROR AND MIRROR STAY
▶

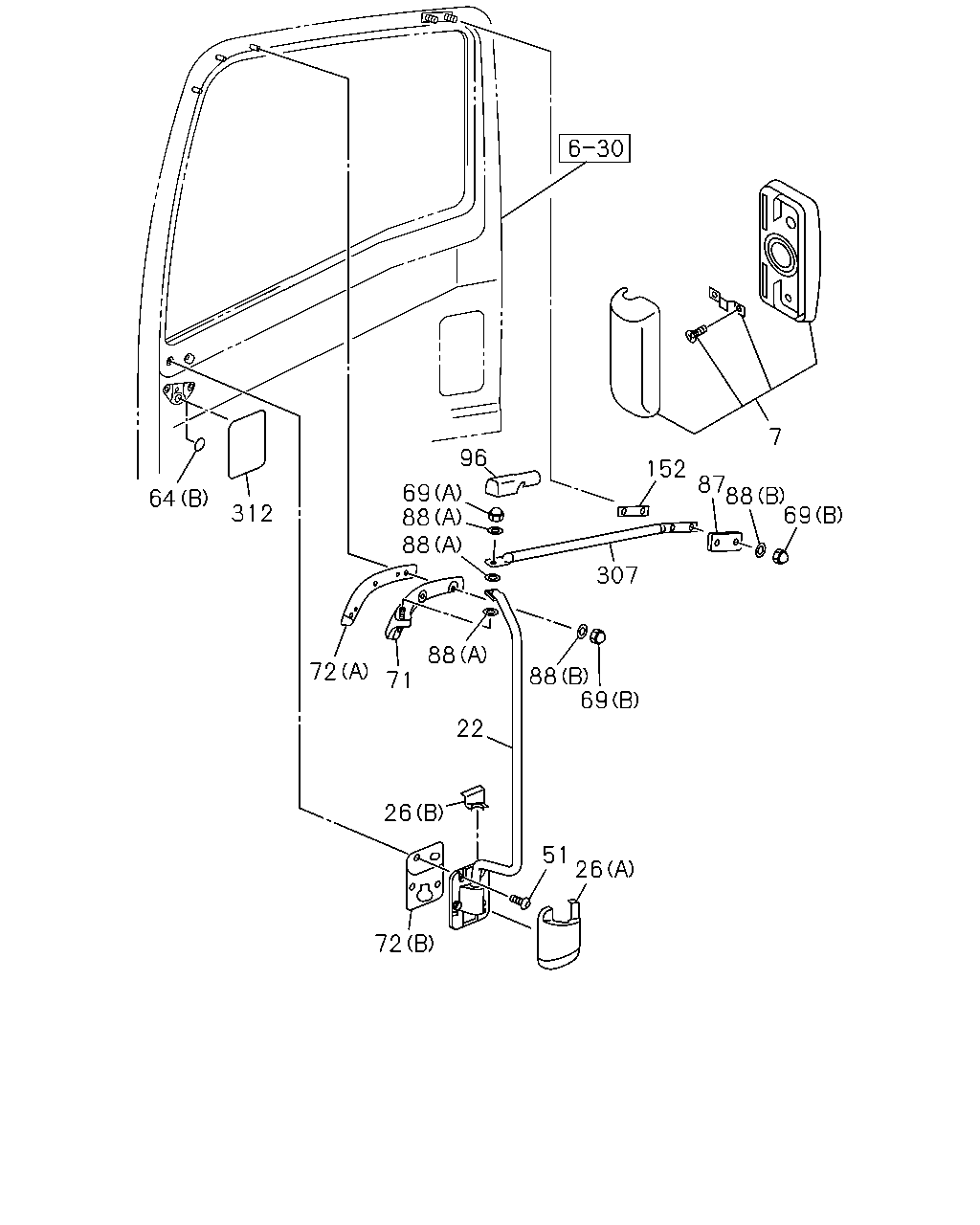

7-20 — MIRROR AND MIRROR STAY
(#130755) — 31 parça
◀
[720A] DOOR MIRROR (27 parça)
[720A] ROOM MIRROR (4 parça)
▶
152
7
88
87
307
69
69
88
88
88
51
26
72
26
22
88
71
72
64
69
96
312
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
7
16.068 MIRROR ASM; DOOR
EGY
8-98043-056-2
01
1
1308-
7
16.068 MIRROR ASM; DOOR
EGY
8-98043-172-2
01
1
1308-
22
16.069 STAY; OUTSIDE MIRROR
EGY
8-98158-846-0
01
1
1308-
22
16.069 STAY; OUTSIDE MIRROR
EGY
8-98158-847-0
01
1
1308-
26
16.069 COVER; OUTSIDE MIRROR
(A) EGY
8-98031-802-2
01
1
1308-
26
16.069 COVER; OUTSIDE MIRROR
(A) EGY
8-98031-803-2
01
1
1308-
26
16.069 COVER; OUTSIDE MIRROR
(B) EGY
8-98031-805-0
01
1
1308-
26
16.069 COVER; OUTSIDE MIRROR
(B) EGY
8-98031-806-0
01
1
1308-
51
16.069 SCREW; MIRROR
16.323 M8X23 EGY
8-97310-216-1
08
1
1308-
64
16.069 SEAL; MIRROR
16.165 (A) OD=25 BLACK EGY
1-76798-019-0
02
1
1308-
64
16.069 SEAL; MIRROR
16.332 (B) OD=52 BLACK EGY
1-76798-041-0
02
1
1308-
69
16.069 NUT; CAP
(A) M10 CAP NUT
8-98059-913-0
02
1
1308-1404
69
16.069 NUT; CAP
(A) M10 CAP NUT EGY
1-09984-134-0
02
1
1405-
69
16.069 NUT; CAP
(B) M8 CAP NUT EGY
8-98059-914-0
10
1
1308-
71
16.069 BRACKET; OUTSIDE MIRROR
EGY
8-98031-793-2
01
1
1308-
71
16.069 BRACKET; OUTSIDE MIRROR
EGY
8-98031-794-2
01
1
1308-
72
16.069 SHEET
(A) EGY
8-98031-796-0
01
1
1308-
72
16.069 SHEET
(A) EGY
8-98031-797-0
01
1
1308-
72
16.069 SHEET
(B) EGY
8-98080-418-0
02
1
1308-
87
16.069 SPACER
EGY
8-98063-789-0
02
1
1308-
88
16.069 WASHER; PL,SUPPORT STAY
(B) ID=8.4 OD=16.0 T=1.6 EGY
1-09985-191-0
10
1
1308-
88
16.069 WASHER; PL,SUPPORT STAY
(A) ID=10.5 OD=26 T=2.6 EGY
1-09985-204-0
06
1
1308-
96
16.069 CAP; MIRROR STAY
EGY
8-98080-173-0
02
1
1308-
152
16.069 SHEET; MIRROR STAY
EGY
8-98063-786-0
02
1
1308-
307
16.069 STAY; MIRROR SUPPORT
EGY
8-98063-784-2
01
1
1308-
307
16.069 STAY; MIRROR SUPPORT
EGY
8-98063-785-2
01
1
1308-
312
16.081 TAPE
EGY
8-98164-812-0
02
1
1308-
64
2
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
16.068 MIRROR; ROOM
DARK GRAY EGY
8-98097-534-1
01
1
1308-
2
16.069 SCREW; MIRROR TO BODY
16.070 M6X26 EGY
8-98033-674-0
02
1
1308-
64
16.069 SEAL; MIRROR
16.165 (A) OD=25 BLACK EGY
1-76798-019-0
02
1
1308-
64
16.069 SEAL; MIRROR
16.332 (B) OD=52 BLACK EGY
1-76798-041-0
02
1
1308-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
