◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51495 - NPR(GM EGYPT) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-84 - BACK TRIM ▶
6-84 — BACK TRIM (#130751) — 10 parça

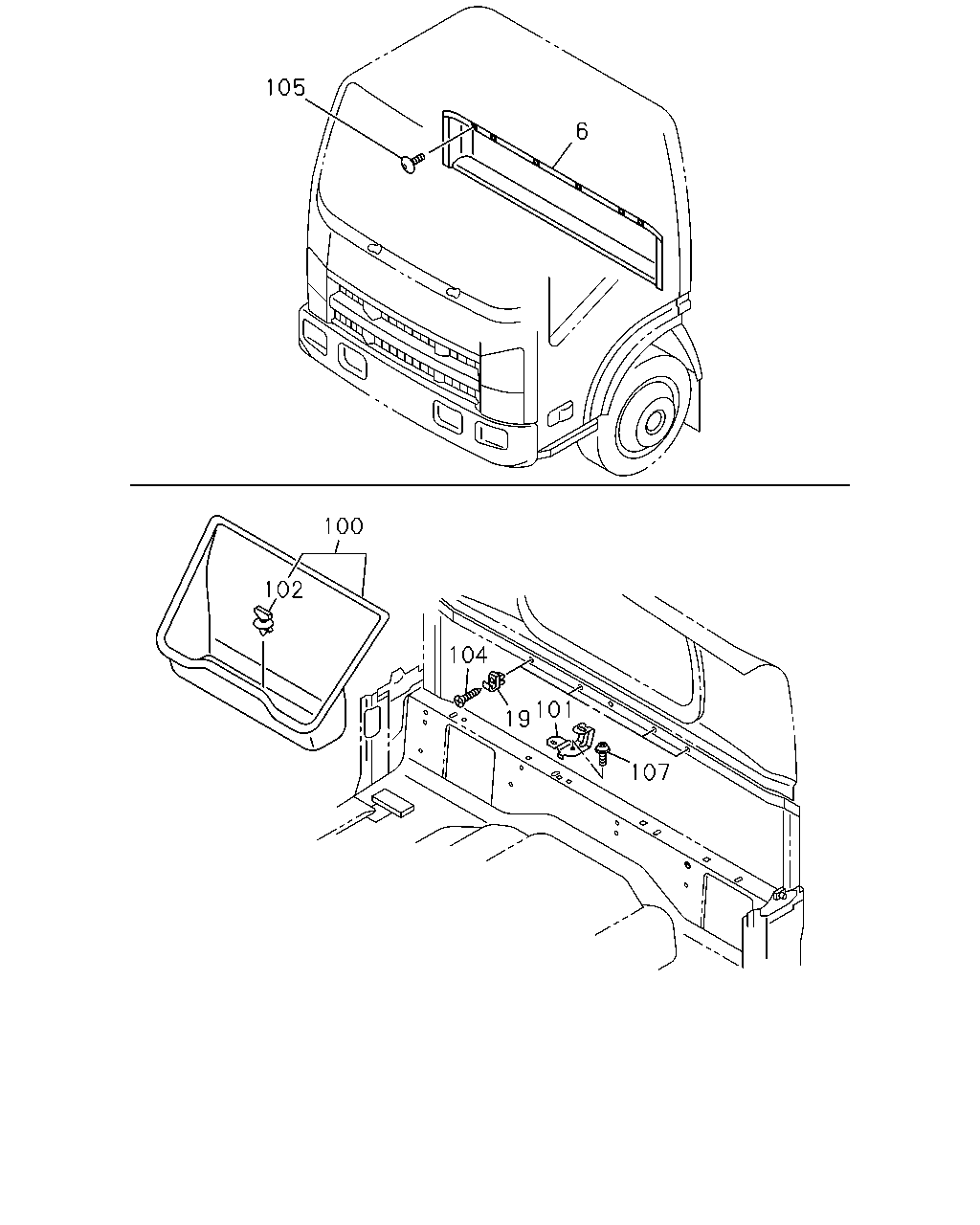

çizim 386530
105 6 100 102 104 19 101 107
BalonParca AdiParca NoAdetTipApplied Date
6 16.592 MAT; SILENCER,CAB BACK
INTERIOR TRIM-SEMI TRIMMING<SEV> GRAY 		8-97405-289-3 01 1 1308-
19 16.165 HOOK; RET
INTERIOR TRIM-SEMI TRIMMING<SEV> VEHICLE LOW COST PACKAGE VARIANT 1(6NX) GRAY EGY 		8-97406-042-0 04 1 1308-
19 16.165 HOOK; RET
EXC. VEHICLE LOW COST PACKAGE VARIANT 1(6NX) GRAY EGY 		8-97406-042-0 04 1 1308-
100 16.587 TRAY; BACK PANEL
EXC. VEHICLE LOW COST PACKAGE VARIANT 1(6NX) GRAY EGY 		8-97405-174-1 01 1 1308-
101 17.225 BRACKET; TRAY,BACK PANEL
EXC. VEHICLE LOW COST PACKAGE VARIANT 1(6NX) EGY 		8-98029-439-1 01 1 1308-
102 16.584 CLIP; TRAY,BACK PANEL
EXC. VEHICLE LOW COST PACKAGE VARIANT 1(6NX) GRAY EGY 		8-97406-996-0 01 1 1308-
104 17.225 SCREW; BACK TRIM
INTERIOR TRIM-SEMI TRIMMING<SEV> VEHICLE LOW COST PACKAGE VARIANT 1(6NX) M4X20 TAPPING OVAL-HEAD EGY 		0-70540-420-0 04 1 1308-
104 17.225 SCREW; BACK TRIM
EXC. VEHICLE LOW COST PACKAGE VARIANT 1(6NX) M4X20 TAPPING OVAL-HEAD EGY 		0-70540-420-0 04 1 1308-
105 16.166 CLIP; BACK TRIM
INTERIOR TRIM-SEMI TRIMMING<SEV> GRAY 		8-97405-295-0 02 1 1308-
107 16.588 SCREW; BRKT
16.570 M6X16 EGY 		0-38050-616-0 01 1 1308-
