◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51495 - NPR(GM EGYPT) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-80 - BACK PANEL ▶
6-80 — BACK PANEL (#130749) — 10 parça

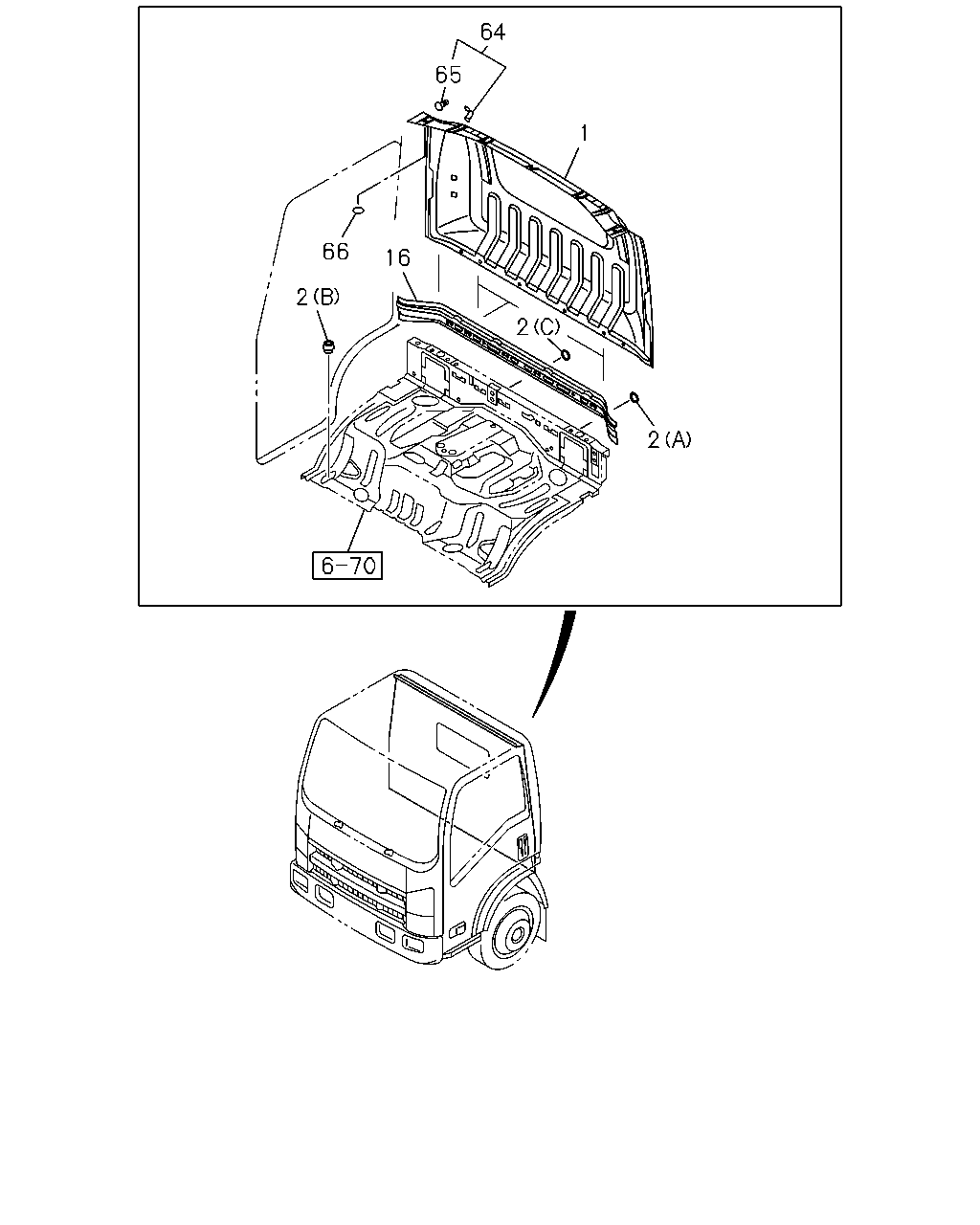

çizim 386505
64 65 66 16 2 2 1 2
BalonParca AdiParca NoAdetTipApplied Date
1 16.587 PANEL; BACK OUTER
EGY 		8-97584-304-3 01 1 1308-
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK EGY 		1-76798-019-0 02 1 1308-
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (B) OD=12.1 EGY 		8-97898-423-0 04 1 1308-
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545 (C) OD=32 BLACK EGY 		8-98031-126-0 02 1 1308-
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545 (C) OD=32 BLACK EGY 		8-98031-126-0 06 1 1308-
16 16.575 REINFORCEMENT; BACK OUTER PNL
EGY 		8-97584-608-2 01 1 1308-
64 16.587 BRACKET; AIR INTAKE DUCT
16.570 EGY 		8-97584-611-1 01 1 1308-
65 17.198 STUD; BACK PANEL
EGY 		8-94389-701-0 01 1 1308-
66 16.587 SEAL; BACK PANEL
COAT HOOK<S9M> 16.570 OD=20 T=0.05 WHITE EGY 		8-98059-421-0 04 1 1308-
66 16.587 SEAL; BACK PANEL
EXC. COAT HOOK<S9M> 16.570 OD=20 T=0.05 WHITE EGY 		8-98059-421-0 05 1 1308-
