Isuzu WW
▶
TRUCKS
▶
NPR
▶
51495 - NPR(GM EGYPT)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-30 - FRONT DOOR AND HINGE
▶

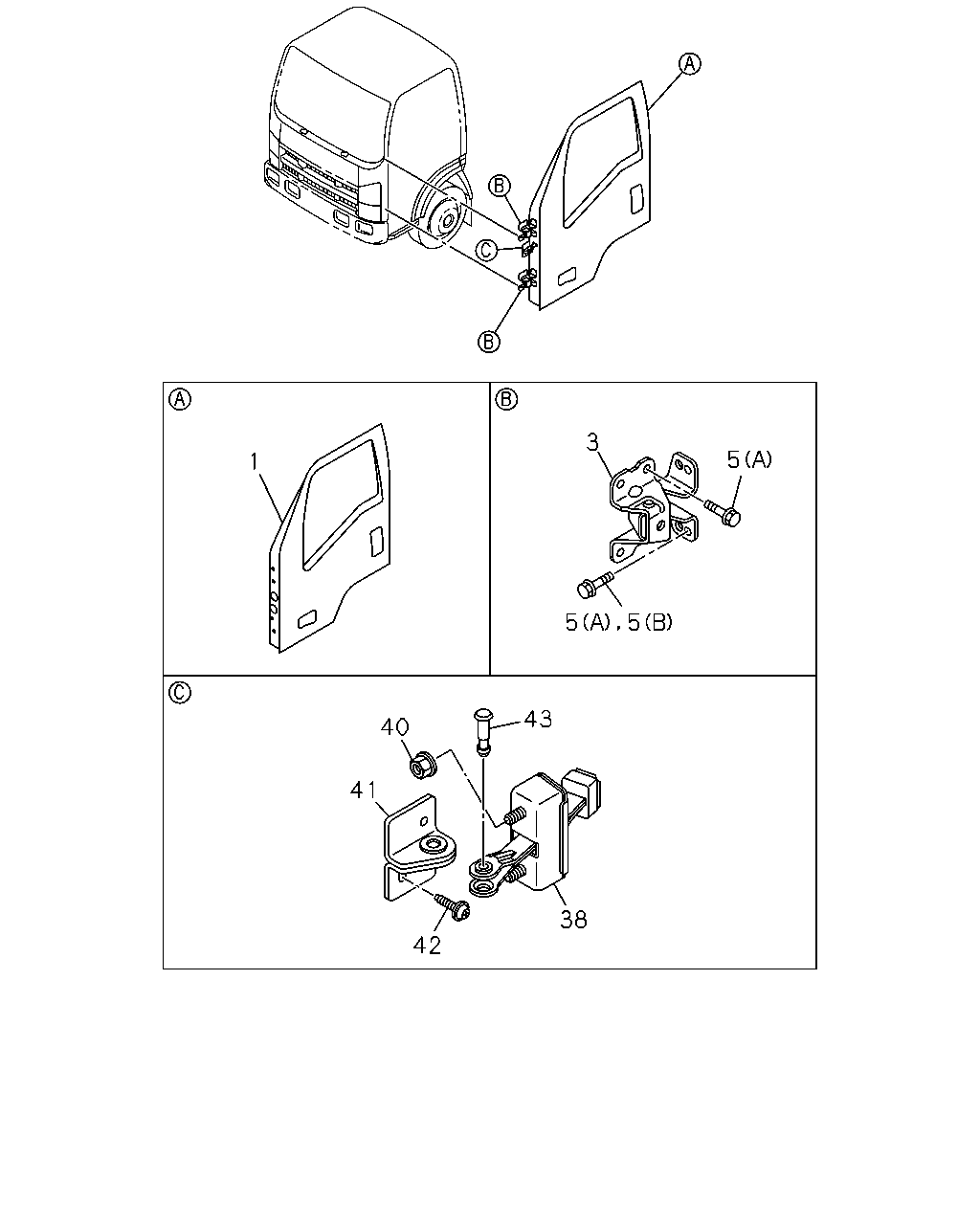

6-30 — FRONT DOOR AND HINGE
(#130737) — 14 parça
3
5
5
5
43
40
41
42
38
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
16.150 DOOR ASM; FRT,WO/TRIM
EGY
8-98171-227-0
01
1
1308-1411
1
16.150 DOOR ASM; FRT,WO/TRIM
EGY
8-98260-605-0
01
1
1412-
1
16.150 DOOR ASM; FRT,WO/TRIM
EGY
8-98171-236-0
01
1
1308-1411
1
16.150 DOOR ASM; FRT,WO/TRIM
EGY
8-98260-606-0
01
1
1412-
3
16.320 HINGE; DOOR FRT
EGY
8-98191-302-0
04
1
1308-
5
16.320 BOLT; HINGE
(B) M8X23 FLANGE EGY
8-98029-440-0
08
1
1308-1408
5
16.320 BOLT; HINGE
(A) M8X20 FLANGE EGY
8-98049-756-0
08
1
1308-
5
16.320 BOLT; HINGE
(A) M8X20 FLANGE EGY
8-98049-756-0
12
1
1308-
38
16.320 CHECKER ASM; DOOR
EGY
8-98031-730-6
02
1
1308-1508
38
16.320 CHECKER ASM; DOOR
EGY
8-98296-602-0
02
1
1509-
40
16.320 NUT; CHECKER
01.840 M8 W/DISHED WASHER EGY
8-97329-625-0
04
1
1308-
41
16.320 BRACKET; CHECKER
EGY
8-98029-290-3
02
1
1308-
42
16.320 BOLT; BRKT
M6X20 W/PL WASHER EGY
8-98032-159-2
04
1
1308-
43
16.320 PIN
EGY
8-98037-152-2
02
1
1308-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
