Isuzu WW
▶
TRUCKS
▶
NPR
▶
51495 - NPR(GM EGYPT)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

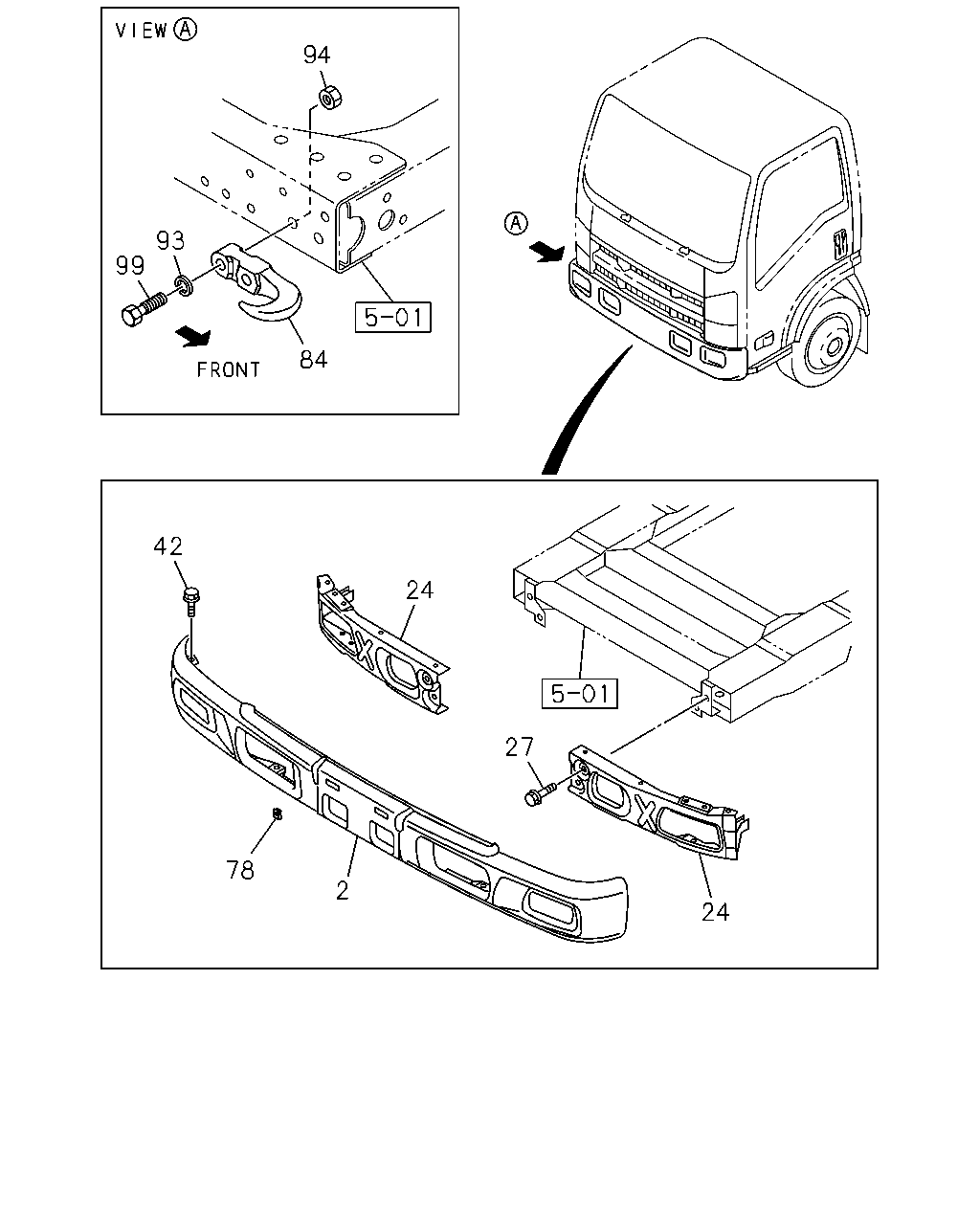

6-01 - FRONT BUMPER
▶
6-01 — FRONT BUMPER
(#130731) — 13 parça
84
24
42
27
24
2
78
93
99
94
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
07.831 BUMPER; FRT,CENTER
FOG LAMP<T96> FRT BUMPER DARK GRAY<EQ9> DARK GRAY
8-97405-627-5
01
1
1308-
2
07.831 BUMPER; FRT,CENTER
FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> WHITE
8-97405-628-5
01
1
1308-
2
07.831 BUMPER; FRT,CENTER
FRT BUMPER DARK GRAY<EQ9> EXC. FOG LAMP<T96> DARK GRAY EGY
8-97405-634-5
01
1
1308-
2
07.831 BUMPER; FRT,CENTER
EXC. FRT BUMPER DARK GRAY<EQ9>,FOG LAMP<T96> WHITE EGY
8-97405-635-5
01
1
1308-
24
07.869 BAR; FRT BUMPER
EGY
8-98025-184-5
01
1
1308-
24
07.869 BAR; FRT BUMPER
EGY
8-98025-185-5
01
1
1308-
27
07.833 BOLT; BUMPER TO BACK BAR
M10X30 W/TORQUES EGY
8-98092-250-0
04
1
1308-
42
07.874 BOLT; BUMPER
08.143 M6X16 W/LK&PL WASHER EGY
0-52010-616-0
10
1
1308-
78
07.874 NUT; SPIRE
M6 EGY
8-98029-416-0
02
1
1308-
84
07.068 HOOK
EGY
8-97387-665-0
01
1
1308-
93
07.068 WASHER; LK,HOOK
06.174 ID=14.2 EGY
0-91510-814-0
02
1
1308-
94
07.068 NUT; HOOK
07.833 M14 EGY
0-91110-514-0
01
1
1308-
99
07.039 BOLT; HOOK
M14X55 EGY
8-97301-262-0
02
1
1308-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
