5 - Frame, Cab Mounting
▶
5-10 - CAB MOUNTING; FRAME SIDE
▶
5-10 — CAB MOUNTING; FRAME SIDE
(#130727) — 24 parça
◀

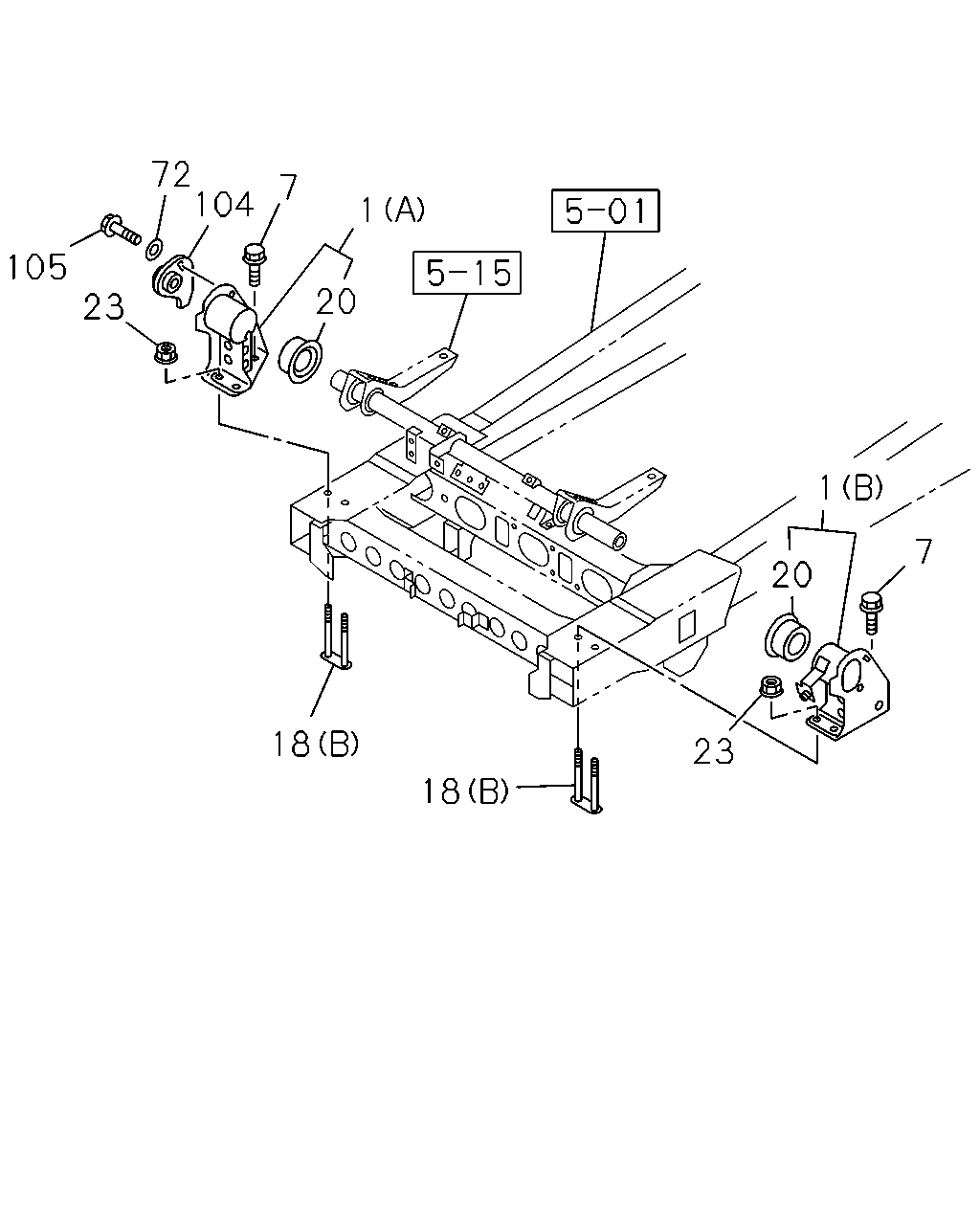

[510A] CAB MTG BRKT FRONT (11 parça)

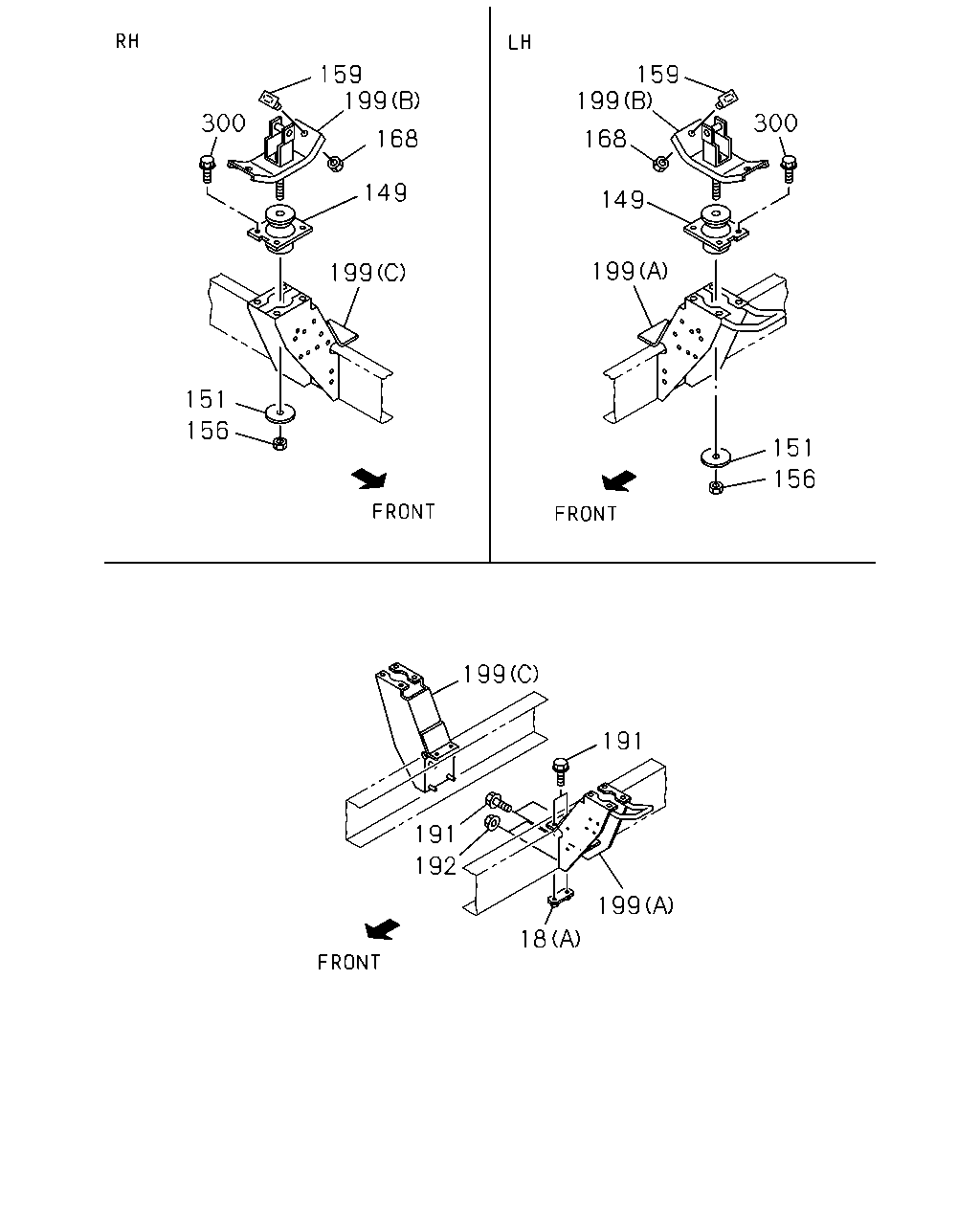

[510A] CAB MTG BRKT REAR (13 parça)
▶
7
20
1
23
18
18
105
23
72
104
7
1
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
09.003 BRACKET; CAB MTG
16.545 (A) EGY
8-98074-799-2
01
1
1308-
1
09.003 BRACKET; CAB MTG
16.545 (B) EGY
8-98074-800-2
01
1
1308-
7
09.003 BOLT; BRKT,CAB TILT
M14X40 FLANGE EGY
0-28661-440-0
02
1
1308-
18
09.003 PLATE; MTG BRKT FIX
(A)
8-97034-139-2
02
1
1308-
18
09.003 PLATE; MTG BRKT FIX
(B) EGY
8-98029-285-1
02
1
1308-
20
09.003 RUBBER; MTG,CAB BRKT
EGY
8-98007-037-1
01
1
1308-
20
09.003 RUBBER; MTG,CAB BRKT
EGY
8-98007-037-1
01
1
1308-
23
09.003 NUT; MTG BRKT
M14 EGY
8-98039-989-0
04
1
1308-
72
09.003 WASHER; PL,BRKT TO FRAME
ID=15 OD=36 EGY
0-91614-714-0
01
1
1308-
104
09.003 BRACKET; CAB FRAME,CAB FRT MTG
EGY
8-98006-455-1
01
1
1308-
105
09.023 BOLT; BRKT TO CAB FRAME
M14X35 FLANGE EGY
0-28661-435-0
01
1
1308-
151
156
199
149
168
199
159
300
159
199
168
149
199
151
156
300
199
191
199
18
191
192
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
18
09.003 PLATE; MTG BRKT FIX
(A)
8-97034-139-2
02
1
1308-
18
09.003 PLATE; MTG BRKT FIX
(B) EGY
8-98029-285-1
02
1
1308-
149
09.023 RUBBER; MTG,CAB,UPR RR
H=62 EGY
8-98021-561-1
02
1
1308-
151
09.011 WASHER; CAB MTG,RR UPR
ID=17 OD=62 EGY
8-97359-042-1
02
1
1308-
156
07.529 NUT; CAB MTG RR
00.785 M16 EGY
0-91111-516-0
02
1
1308-
159
09.023 RUBBER; CUSHION,CAB MTG
EGY
8-97113-340-0
04
1
1308-
168
09.011 NUT; CUSHION RUBBER,BODY MTG
01.062 M8 FLANGE EGY
0-91180-108-0
04
1
1308-
191
09.003 BOLT; BRKT FIX
M12X40 FLANGE
0-28651-240-0
08
1
1308-
192
09.003 NUT; BRKT FIX
02.042 M12 FLANGE
0-91180-112-0
08
1
1308-
199
09.003 BRACKET; CAB RR MTG
(B) EGY
8-98036-883-0
02
1
1308-
199
09.003 BRACKET; CAB RR MTG
(C) EGY
8-98178-617-1
01
1
1308-
199
09.003 BRACKET; CAB RR MTG
(A) EGY
8-98178-618-1
01
1
1308-
300
09.003 BOLT; MTG RUBBER
02.343 M10X20 FLANGE EGY
0-28651-020-0
08
1
1308-
