4-60 — REAR SUSPENSION
(#130722) — 29 parça
◀

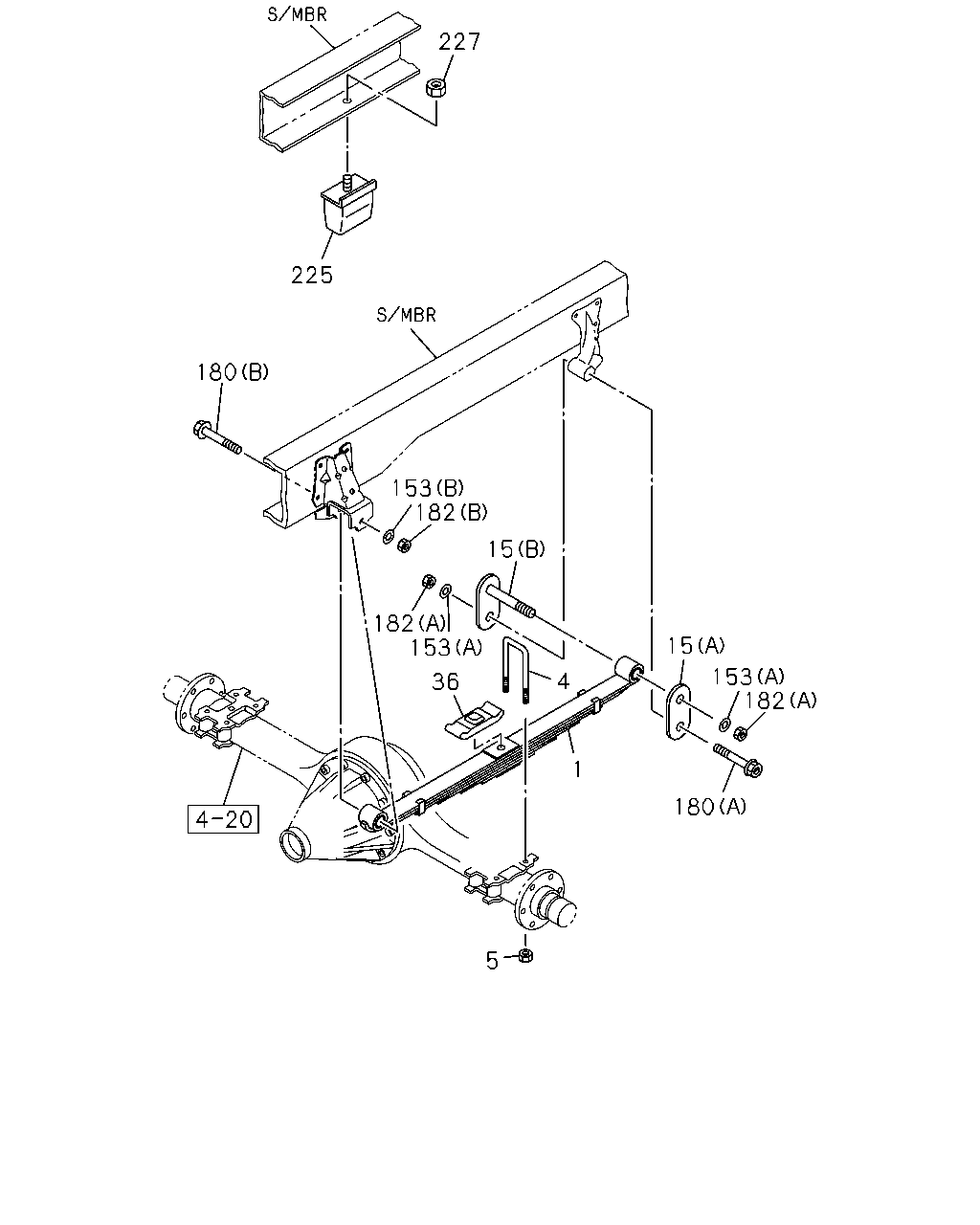

[460A] FIXING;LEAF SPRING (14 parça)

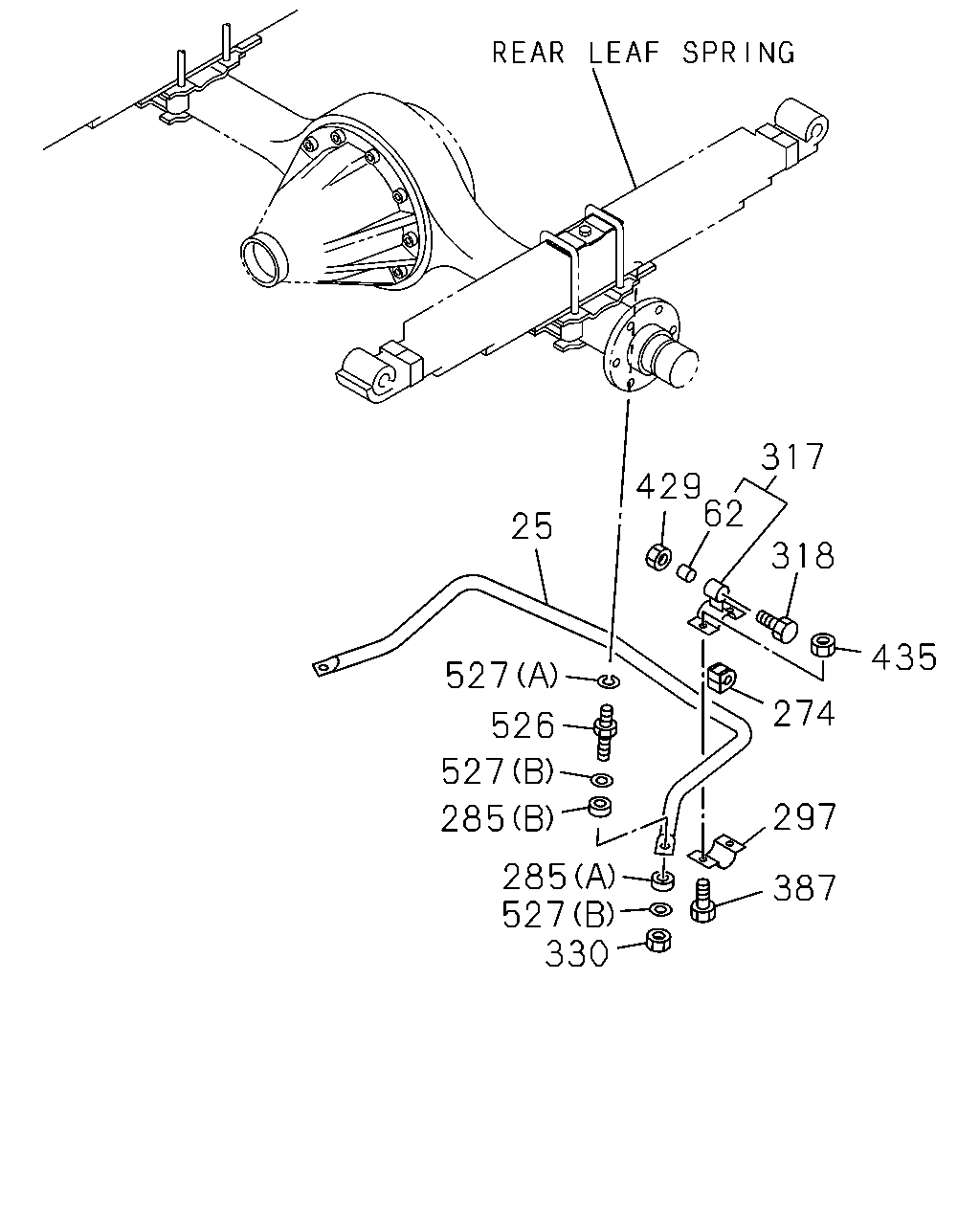

[460A] REAR STABILIZER (15 parça)
▶
227
225
180
153
182
153
36
4
1
180
15
153
182
5
15
182
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 9-LEAF
8-98190-548-0
02
1
1308-
4
07.516 U-BOLT; RR SPR
L=315
1-51371-194-2
04
1
1308-
5
07.529 NUT; U-BOLT,RR SPR
M18 FLANGE
1-09440-039-1
08
1
1308-
15
07.523 SHACKLE; RR SPR
(A)
8-94118-511-3
02
1
1308-
15
07.523 SHACKLE; RR SPR
(B)
8-97360-011-0
02
1
1308-
36
07.529 SEAT; HELPER RUBBER,RR SPR
07.518
1-51372-059-0
02
1
1308-
153
07.529 WASHER; PL,SPRING PIN
(B) ID=19
8-97360-119-0
02
1
1308-
153
07.529 WASHER; PL,SPRING PIN
07.427 (A) ID=16.5
8-98011-489-0
04
1
1308-
180
07.529 PIN; RR SPR
07.427 (A) M16X122
8-98011-487-0
02
1
1308-
180
07.529 PIN; RR SPR
(B) M18X130
8-98011-488-0
02
1
1308-
182
07.529 NUT; PIN,RR SPR
06.509 (A) M16
0-91110-516-0
04
1
1308-
182
07.529 NUT; PIN,RR SPR
(B) M18
0-91110-518-0
02
1
1308-
225
07.535 RUBBER; CUSHION,RR SPR
8-98187-342-0
02
1
1308-
227
07.535 NUT; CUSHION RUBBER
02.042 M12 FLANGE
0-91180-112-0
02
1
1308-
317
318
62
429
527
526
527
285
285
527
330
387
274
297
435
25
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
25
07.241 BAR ASM; STAB,RR SUSP
8-98067-239-0
01
1
1308-
62
07.243 BUSHING; LINK ROD
8-97239-911-0
02
1
1308-
274
07.243 BUSHING; RR STAB BAR TO LINK
8-94440-793-0
02
1
1308-
285
07.243 BUSHING; STAB BAR TO RR AXLE
(A) L=18
8-97089-556-0
02
1
1308-
285
07.243 BUSHING; STAB BAR TO RR AXLE
(B) L=29
8-97089-557-0
02
1
1308-
297
07.242 CAP; STAB BAR
8-94178-430-2
02
1
1308-
317
07.240 ROD LINK ASM; STABILIZER,RR
8-97239-907-0
02
1
1308-
318
07.242 BOLT; LINK ROD
M14X70 FLANGE
0-28851-470-0
02
1
1308-
330
07.242 NUT; STAB
M12 LOCK NUT
0-91370-012-0
02
1
1308-
387
07.242 BOLT; CAP FIX,STAB BAR
00.029 M10X25 FLANGE
0-28651-025-0
04
1
1308-
429
07.242 NUT; LINK
06.174 M14 FLANGE
8-97360-124-0
02
1
1308-
435
07.242 NUT; CAP
03.162 M10 FLANGE EGY
0-91180-110-0
04
1
1308-
526
07.535 STUD; STABILIZER
07.242
8-97360-120-0
02
1
1308-
527
07.242 WASHER; STABILIZER
05.605 (A) ID=14.2
0-91510-514-0
02
1
1308-
527
07.242 WASHER; STABILIZER
(B) ID=12.5
8-97360-055-0
04
1
1308-
