◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51495 - NPR(GM EGYPT) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-55 - FRONT LEAF SPRING ▶
4-55 — FRONT LEAF SPRING (#130721) — 23 parça

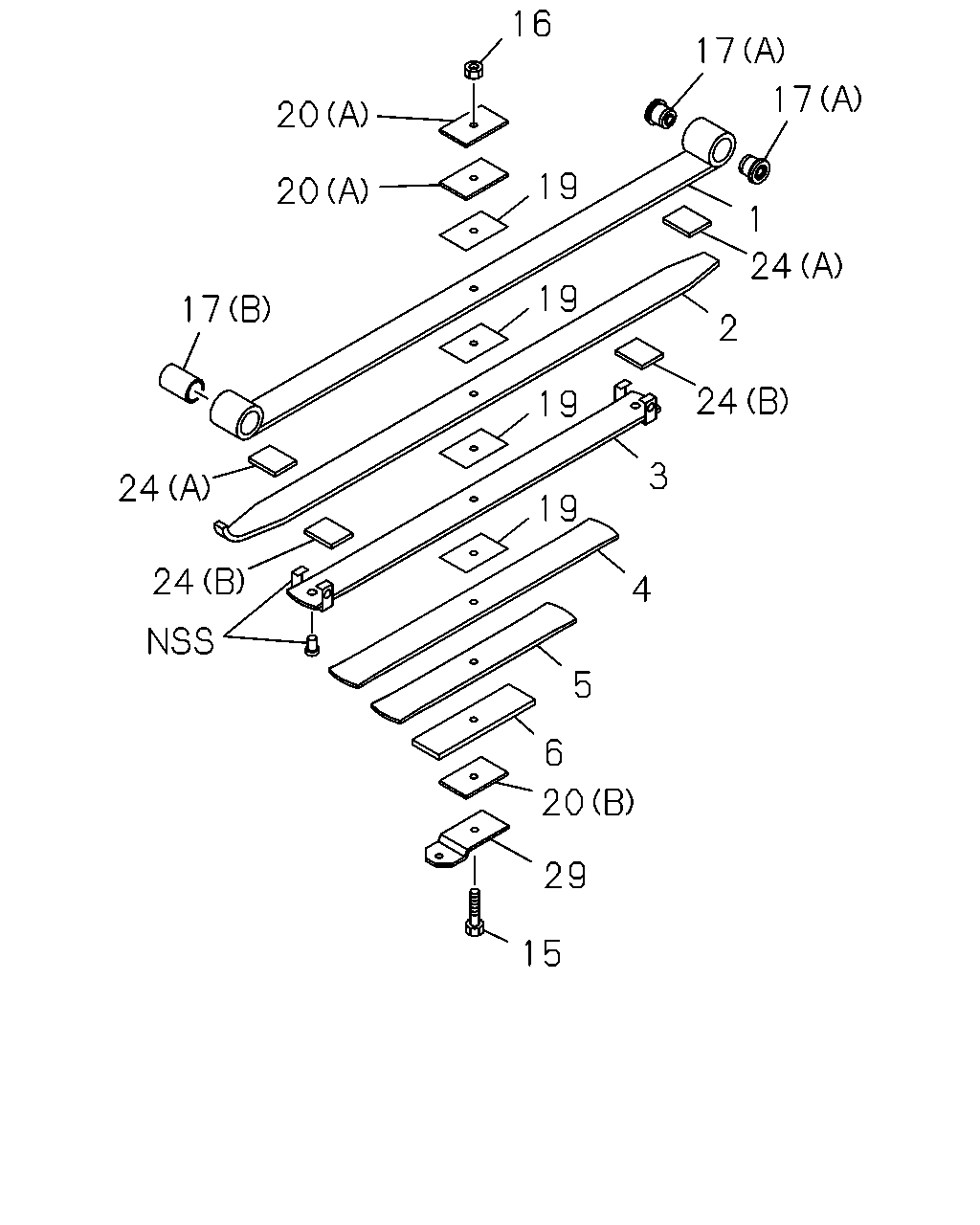

çizim 385625
5 4 3 24 19 2 24 1 19 19 16 17 17 6 20 29 15 24 24 17 20 20 19
BalonParca AdiParca NoAdetTipApplied Date
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: B = 8-98190-546-1, 98190546 		8-98193-072-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: A = 8-98190-545-1, 98190545 		8-98193-128-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: B = 8-98190-546-1, 98190546 		8-98193-073-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: A = 8-98190-545-1, 98190545 		8-98193-129-0 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: B = 8-98190-546-1, 98190546 		8-98193-074-1 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: A = 8-98190-545-1, 98190545 		8-98193-130-1 01 1 -
4 07.415 SPRING; LEAF,NO 4,FRT
ASM PART: B = 8-98190-546-1, 98190546 		8-98193-075-0 01 1 -
4 07.415 SPRING; LEAF,NO 4,FRT
ASM PART: A = 8-98190-545-1, 98190545 		8-98193-131-0 01 1 -
5 07.415 SPRING; LEAF,NO 5,FRT
ASM PART: B = 8-98190-546-1, 98190546 		8-98193-076-0 01 1 -
5 07.415 SPRING; LEAF,NO 5,FRT
ASM PART: A = 8-98190-545-1, 98190545 		8-98193-132-0 01 1 -
6 07.415 SPRING; LEAF,NO 6,FRT
ASM PART: B = 8-98190-546-1, 98190546 		8-98193-077-0 01 1 -
6 07.415 SPRING; LEAF,NO 6,FRT
ASM PART: A = 8-98190-545-1, 98190545 		8-98193-133-0 01 1 -
15 07.428 BOLT; CENTER,LEAF SPR,FRT
L=115 ASM PART: A = 8-98190-545-1, 98190545, B = 8-98190-546-1, 98190546 		8-98152-295-0 01 1 -
16 07.506 NUT; CENTER BOLT,LEAF SPR,FRT
M10 ASM PART: A = 8-98190-545-1, 98190545, B = 8-98190-546-1, 98190546 		1-09400-055-0 01 1 -
17 07.413 BUSHING; LEAF SPR,FRT
07.524, (A) ASM PART: A = 8-98190-545-1, 98190545, B = 8-98190-546-1, 98190546 		8-94118-588-1 02 1 -
17 07.413 BUSHING; LEAF SPR,FRT
07.105, (B) ASM PART: A = 8-98190-545-1, 98190545, B = 8-98190-546-1, 98190546 		8-94130-354-0 01 1 -
19 07.425 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 8-98190-545-1, 98190545, B = 8-98190-546-1, 98190546 		8-97084-845-0 04 1 -
20 07.425 SEAT; LEAF SPR,FRT
(B) ASM PART: A = 8-98190-545-1, 98190545, B = 8-98190-546-1, 98190546 		8-98041-368-0 01 1 -
20 07.425 SEAT; LEAF SPR,FRT
(A) ASM PART: A = 8-98190-545-1, 98190545, B = 8-98190-546-1, 98190546 		8-98094-959-0 02 1 -
24 07.436 LINER; LEAF SPR,FWD FRT
(A) ASM PART: A = 8-98190-545-1, 98190545, B = 8-98190-546-1, 98190546 		8-97084-848-0 02 1 -
24 07.436 LINER; LEAF SPR,FWD FRT
(B) ASM PART: A = 8-98190-545-1, 98190545, B = 8-98190-546-1, 98190546 		8-98193-187-0 02 1 -1505
24 07.436 LINER; LEAF SPR,FWD FRT
07.506, (B) ASM PART: A = 8-98190-545-1, 98190545, B = 8-98190-546-1, 98190546 		8-98193-188-0 02 1 1506-
29 07.425 SUPPORTER; LEAF SPR,FRT
ASM PART: A = 8-98190-545-1, 98190545, B = 8-98190-546-1, 98190546 		8-98152-826-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
