Isuzu WW
▶
TRUCKS
▶
NPR
▶
51495 - NPR(GM EGYPT)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-50 - FRONT SUSPENSION
▶

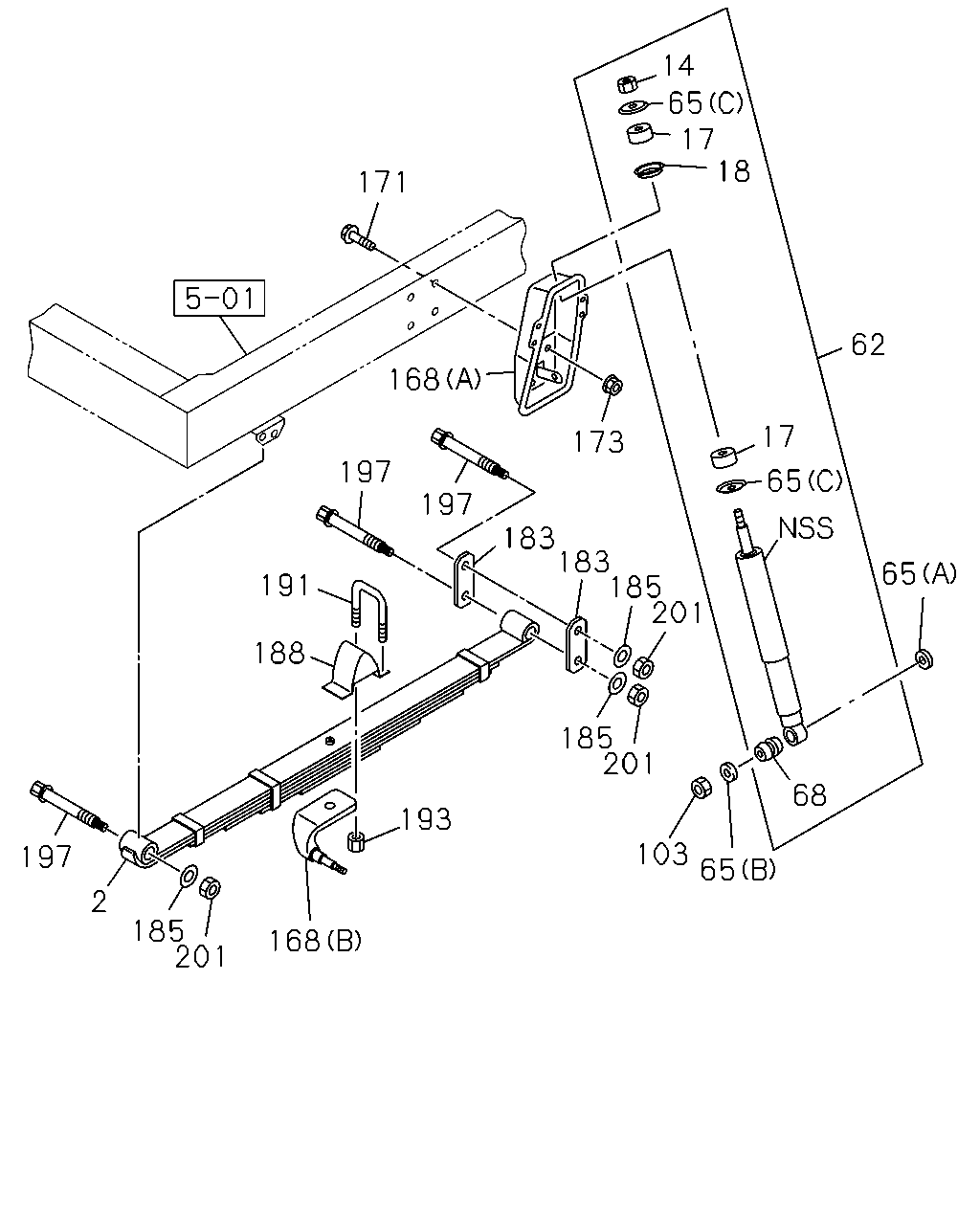

4-50 — FRONT SUSPENSION
(#130720) — 24 parça
171
168
173
197
183
191
188
193
168
201
185
2
197
185
201
103
65
68
201
185
183
197
17
62
65
65
18
17
65
14
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF
8-98190-545-1
01
1
1308-
2
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF
8-98190-546-1
01
1
1308-
14
07.389 NUT; S/ABS,UPR
M10 T=8
9-09640-020-0
02
1
1308-
17
07.388 BUSHING; RUBBER,S/ABS
TOKICO
9-51631-603-0
04
1
1308-
18
07.347 WASHER; CENTERING,S/ABS
TOKICO
8-94412-791-0
02
1
1308-
62
07.345 ABSORBER ASM; SHOCK,FRT
8-98154-636-0
02
1
1308-
65
07.347 WASHER; S/ABS
(A) ID=21 OD=40
0-91614-620-0
02
1
1308-
65
07.347 WASHER; S/ABS
(B) ID=15
8-97360-056-0
02
1
1308-
65
07.347 WASHER; S/ABS
(C) OD=40
9-51631-614-0
04
1
1308-
68
07.388 BUSHING; S/ABS
TOKICO
8-94382-149-0
02
1
1308-
103
07.347 NUT; S/ABS TO LWR LINK
07.833 M14 EGY
0-91110-514-0
02
1
1308-
168
07.380 BRACKET; S/ABS,FRT SUSP
(B)
8-98139-556-0
01
1
1308-
168
07.380 BRACKET; S/ABS,FRT SUSP
(B)
8-98139-557-0
01
1
1308-
168
07.380 BRACKET; S/ABS,FRT SUSP
(A)
8-98150-406-1
01
1
1308-
168
07.380 BRACKET; S/ABS,FRT SUSP
(A)
8-98150-407-1
01
1
1308-
171
07.395 BOLT; S/ABS BRKT
09.003 M12X35 FLANGE
0-28651-235-0
08
1
1308-
173
07.395 NUT; S/ABS
M12
8-97360-126-0
08
1
1308-
183
07.436 SHACKLE; FRT SUSP
8-94110-399-3
04
1
1308-
185
07.427 WASHER; LK,PIN
ID=16.5
8-98011-489-0
06
1
1308-
188
07.436 RUBBER; CLAMP,U-BOLT,FRT SPR
8-98033-516-0
02
1
1308-
191
07.417 U-BOLT; FRT SPR
L=165
9-51171-075-1
04
1
1308-
193
07.417 NUT; U BOLT
M16
8-97360-121-0
08
1
1308-
197
07.427 PIN; FRT SPR,FRT
M16X122
8-98011-487-0
06
1
1308-
201
07.427 NUT; PIN LK
06.509 M16
0-91110-516-0
06
1
1308-
