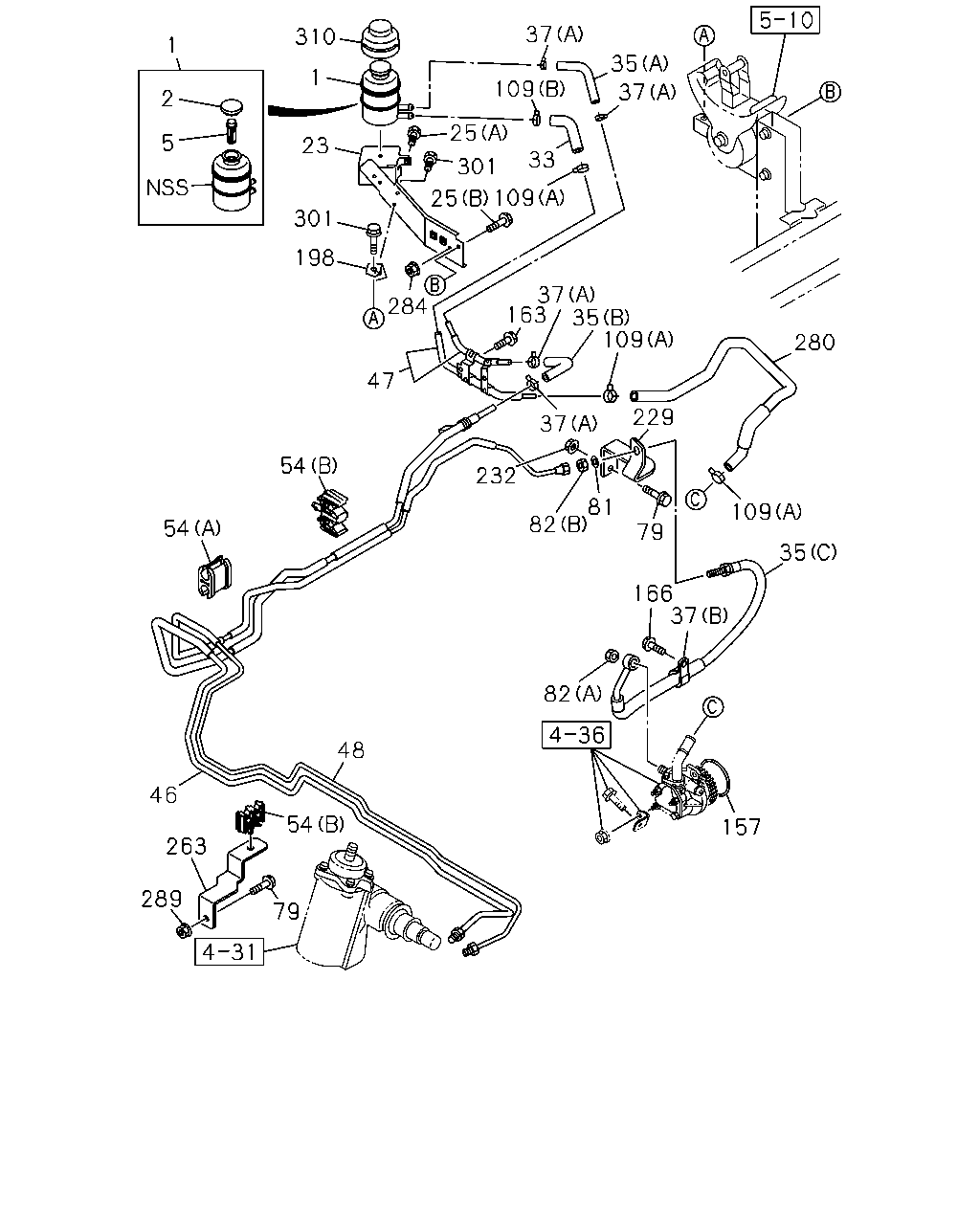

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#130716) — 37 parça

1 2 5 310 1 23 301 37 109 25 301 25 109 284 198 33 35 37 47 37 163 35 109 280 37 229 232 54 54 82 81 79 109 35 166 37 82 48 46 263 289 54 79 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	1308-
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	1308-
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	1308-
23	06.672 BRACKET; OIL TANK,P/S	8-98077-631-0	01	1	1308-
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	1308-
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE EGY	0-28650-825-0	02	1	1308-
33	06.672 HOSE; RUBBER,POWER STRG	8-97389-811-0	01	1	1308-
35	06.671 HOSE; RETURN,P/S TANK (C)	8-97389-832-2	01	1	1308-
35	06.671 HOSE; RETURN,P/S TANK (A)	8-97389-842-1	01	1	1308-
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98000-701-1	01	1	1308-
37	01.762 CLIP; HOSE,P/S (B) ID=26 L=26	1-09701-236-0	01	1	1308-
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	04	1	1308-
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK L=2610	8-98135-831-0	01	1	1308-
47	06.671 PIPE; RETURN EGY	8-98083-166-1	01	1	1308-
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT L=2809	8-98135-829-0	01	1	1308-
54	06.672 CLIP; OIL PIPE (A) ID=10X2 H=22	8-94252-455-2	01	1	1308-
54	06.672 CLIP; OIL PIPE 04.930 (B) ID=10X2 H=37.5	8-97018-546-0	02	1	1308-
54	06.672 CLIP; OIL PIPE 04.930 (B) ID=10X2 H=37.5	8-97018-546-0	02	1	1308-
79	06.672 BOLT; BRKT 06.216 M8X25 FLANGE EGY	0-28650-825-0	01	1	1308-
81	06.672 WASHER; LK,FLEX HOSE ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	1308-
82	06.672 NUT; FLEX HOSE,P/S 06.897 (B) M16	8-94370-339-0	01	1	1308-
82	06.672 NUT; FLEX HOSE,P/S 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	1308-
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1308-
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	01	1	1308-
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	02	1	1308-
157	06.673 GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	8-97101-875-2	01	1	1308-
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE EGY	0-28650-825-0	02	1	1308-
166	06.672 BOLT; CLIP 06.216 M8X25 FLANGE EGY	0-28650-825-0	01	1	1308-
198	06.672 STAY; OIL TANK,POWER STEERING	8-97081-778-2	01	1	1308-
229	06.606 BRACKET; HOSE,POWER STRG	8-98079-341-0	01	1	1308-
232	06.672 NUT; BRKT 03.162 M10 FLANGE EGY	0-91180-110-0	01	1	1308-
263	06.672 BRACKET; P/S PIPE	8-98034-113-0	01	1	1308-
280	06.672 HOSE; P/S OIL PUMP,INL	8-98082-973-0	01	1	1308-
284	06.670 NUT; PIPE 01.062 M8 FLANGE EGY	0-91180-108-0	01	1	1308-
289	06.673 NUT; BRKT,POWER STRG 01.062 M8 FLANGE EGY	0-91180-108-0	01	1	1308-
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE EGY	0-28650-825-0	02	1	1308-
310	06.672 COVER; OIL TANK	8-97103-394-0	01	1	1308-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
