Isuzu WW
▶
TRUCKS
▶
NPR
▶
51495 - NPR(GM EGYPT)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-31 - STEERING COLUMN AND SHAFT
▶
4-31 — STEERING COLUMN AND SHAFT
(#130714) — 27 parça
◀

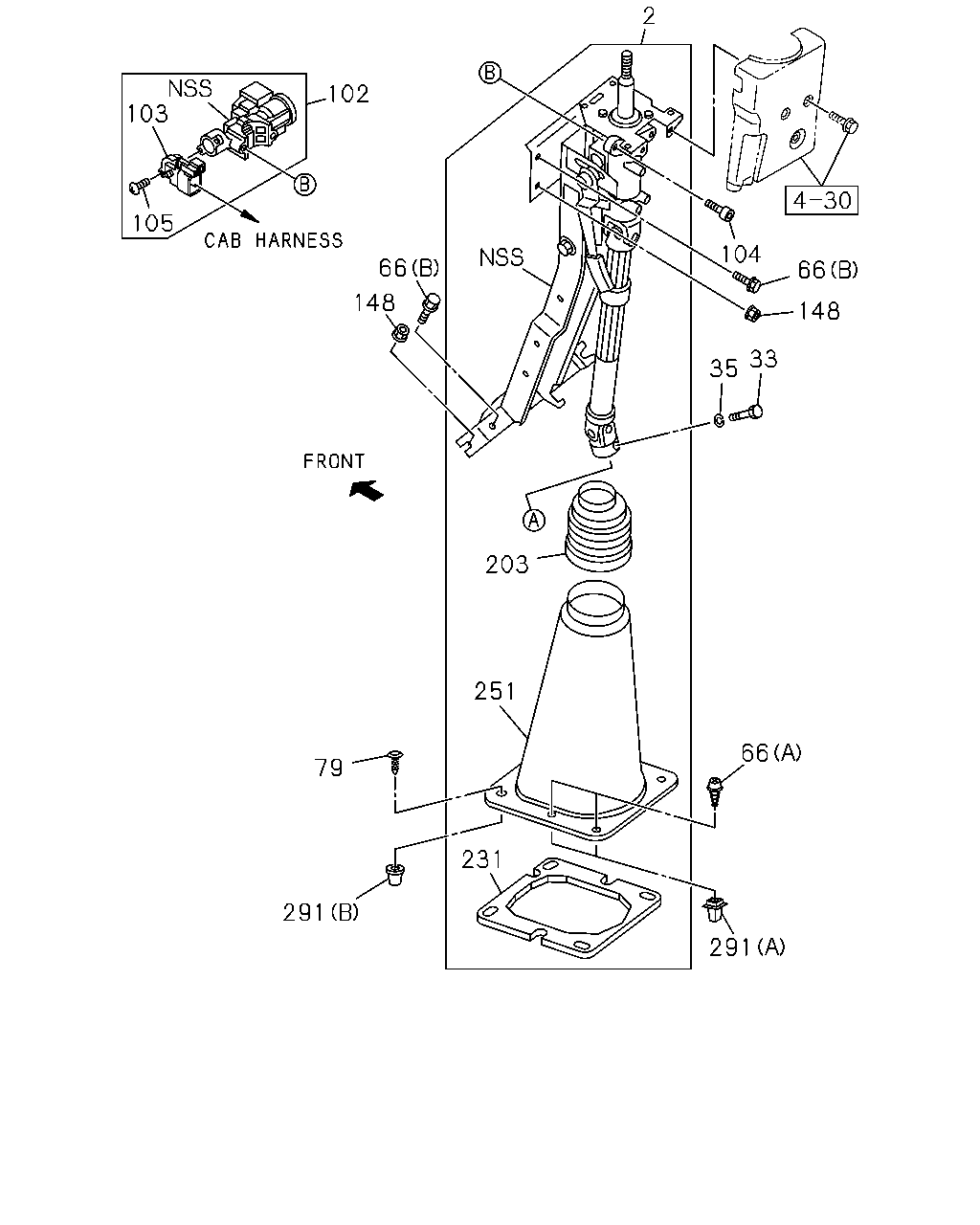

[431A] FIXING;STEERING SHAFT (17 parça)
[431A] FIXING;STEERING UNIT (10 parça)
▶
2
66
104
33
148
35
203
251
79
291
231
66
291
148
102
103
105
66
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
06.518 SHAFT ASM; STRG
BLACK
8-97418-802-2
01
1
1308-
33
06.525 BOLT; STRG SHAFT TO UNIT
M8X30
8-97359-615-0
01
1
1308-
35
06.525 WASHER; LK,STRG SHAFT
02.559 ID=8.2
0-91510-808-0
01
1
1308-
66
06.514 BOLT; STRG COLUMN
01.531 (B) M8X20 FLANGE EGY
0-28650-820-0
02
1
1308-
66
06.514 BOLT; STRG COLUMN
(A) M5X18 TAPPING
0-72180-518-0
04
1
1308-
66
06.514 BOLT; STRG COLUMN
(B) M8X24.5 W/LK&PL WASHER
8-98051-939-0
02
1
1308-
79
06.760 CLIP; STRG COLUMN COVER
16.800 L=19 BLACK
8-94363-776-0
02
1
1308-
102
06.500 LOCK ASM; STRG
8-98006-150-0
01
1
1308-
103
02.188 SWITCH; IGNITION
8-98045-349-0
01
1
1308-
104
06.500 BOLT; STRG LOCK TO COLUMN
M8X20 TORQUE SHEAR BOLT
8-97321-385-0
02
1
1308-
105
06.500 SCREW; IGN SW
8-98045-346-0
02
1
1308-
148
06.514 NUT; COLUMN TO BRKT
01.840 M8 W/DISHED WASHER EGY
8-97329-625-0
03
1
1308-
203
06.525 BOOT; STRG COLUMN LWR
8-98137-331-0
01
1
1308-
231
06.525 SEAL; RUBBER,STRG COLUMN
8-98137-329-0
01
1
1308-
251
06.518 COVER; LWR
BLACK
8-97418-804-0
01
1
1308-
291
06.518 GROMMET; STRG SHAFT COVER
04.931 (A) H=15 EGY
8-94463-268-1
04
1
1308-
291
06.518 GROMMET; STRG SHAFT COVER
(B)
8-98029-442-1
02
1
1308-
348
172
348
1
95
321
172
350
321
107
172
96
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT.
8-98110-220-5
01
1
1308-
95
06.509 BOLT; STRG UNIT
M12X47 FLANGE
8-98055-055-0
03
1
1308-
96
06.509 NUT; STRG UNIT
M12 FLANGE
8-97359-618-0
01
1
1308-
107
06.514 NUT; BRKT
06.509 M12 FLANGE
8-97359-618-0
03
1
1308-
172
06.509 BRACKET; STRG
(B)
8-98055-259-0
01
1
1308-
172
06.509 BRACKET; STRG
(A)
8-98073-917-0
01
1
1308-
172
06.509 BRACKET; STRG
(C)
8-98196-128-0
01
1
1308-
321
06.514 BOLT; BRKT,STRG
06.509 M12X47 FLANGE
8-98055-055-0
06
1
1308-
348
06.525 CLIP; BRKT,STRG
ID=5-12 L=22
1-09709-288-0
02
1
1308-
350
06.509 STUD; BRACKET
8-98196-098-0
01
1
1308-
