Isuzu WW
▶
TRUCKS
▶
NPR
▶
51495 - NPR(GM EGYPT)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-01 - PROPELLER SHAFT
▶

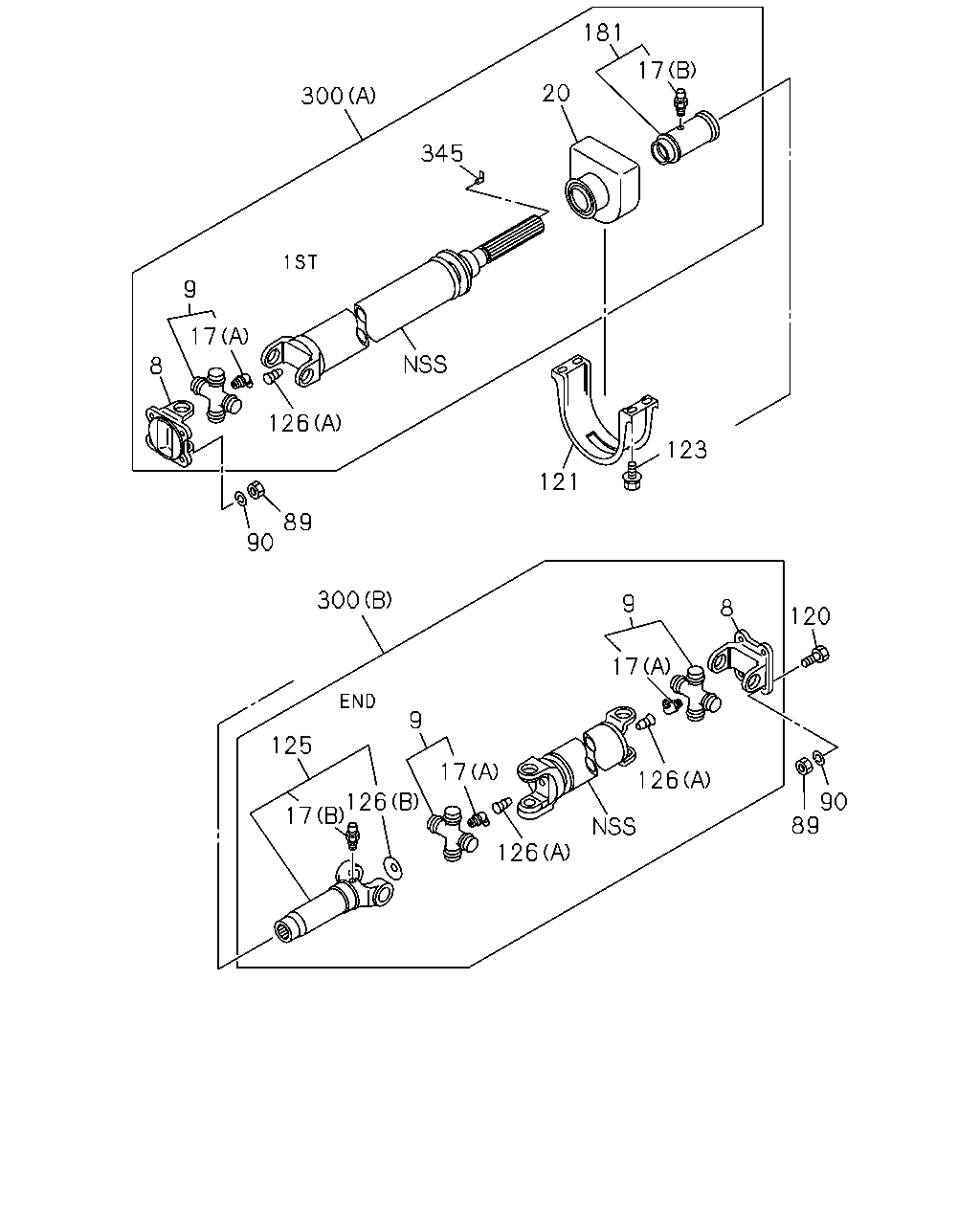

4-01 — PROPELLER SHAFT
(#130708) — 21 parça
300
345
20
181
9
17
17
8
126
121
123
300
89
90
9
8
120
90
126
17
9
89
17
126
126
125
17
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
05.544 YOKE; FLANGE,PROP SHAFT
D=80
8-97322-663-0
01
1
1308-
8
05.544 YOKE; FLANGE,PROP SHAFT
D=80
8-97322-663-0
01
1
1308-
9
05.548 JOURNAL ASM; PROP SHAFT
8-98033-605-1
01
1
1308-
9
05.548 JOURNAL ASM; PROP SHAFT
8-98033-605-1
02
1
1308-
17
05.601 NIPPLE; GREASE,PROP SHAFT
(B) M6 STRAIGHT
0-90301-406-0
02
1
1308-
17
05.601 NIPPLE; GREASE,PROP SHAFT
08.984 (A) PT1/8 ELBOW
0-90301-610-0
01
1
1308-
17
05.601 NIPPLE; GREASE,PROP SHAFT
08.984 (A) PT1/8 ELBOW
0-90301-610-0
02
1
1308-
20
05.600 BEARING ASM; CTR,PROP SHAFT
8-98033-936-0
01
1
1308-
89
05.586 NUT; YOKE TO RR AXLE
M12
8-97365-450-1
08
1
1308-
90
05.586 WASHER; LK,YOKE TO RR AXLE
07.347 ID=12.2
0-91510-812-0
08
1
1308-
120
05.586 BOLT; YOKE TO RR AXLE
M12X35
8-97365-451-1
04
1
1308-
121
05.598 RETAINER; CUSHION RUBBER
8-97035-623-1
01
1
1308-
123
05.601 BOLT; RET
M10X25 W/LK&PL WASHER
0-50641-025-0
04
1
1308-
125
05.545 YOKE ASM; SPLINED,PROP SHAFT
L=183
8-98033-647-2
01
1
1308-
126
05.556 PLUG; SPLINED YOKE
(A)
1-09600-023-0
01
1
1308-
126
05.556 PLUG; SPLINED YOKE
(A)
1-09600-023-0
02
1
1308-
126
05.556 PLUG; SPLINED YOKE
(B)
8-94366-900-0
01
1
1308-
181
05.586 COVER; BRG,PROP SHAFT
8-98046-526-0
01
1
1308-
300
05.544 SHAFT ASM; PROP,RR
(A) L=1240
8-98107-138-1
01
1
1308-
300
05.544 SHAFT ASM; PROP,RR
(B) L=1036
8-98107-140-2
01
1
1308-
345
05.600 PLUG; PROP SHAFT
8-98042-692-0
01
1
1308-
