3-60 — BRAKE PIPING; VACUUM (#130707) — 84 parça

162 39 184 165 39 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1308-
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1308-
39	04.681 CLIP; HOSE,VAC 01.097 (C) ID=16	8-97329-628-0	02	1	1308-
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1308-
162	04.931 HOSE; VAC EXC. POWER ASSIST CLUTCH(S2T)	8-98034-154-2	01	1	1308-
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE EGY	0-28650-616-0	01	1	1308-
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1308-
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (C)	8-98183-468-1	01	1	1308-
184	04.685 BRACKET; UNION FIX (D)	8-98156-526-0	01	1	1308-
184	04.685 BRACKET; UNION FIX (A)	8-98211-373-0	01	1	1308-
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T) (B)	8-98183-469-1	01	1	1308-

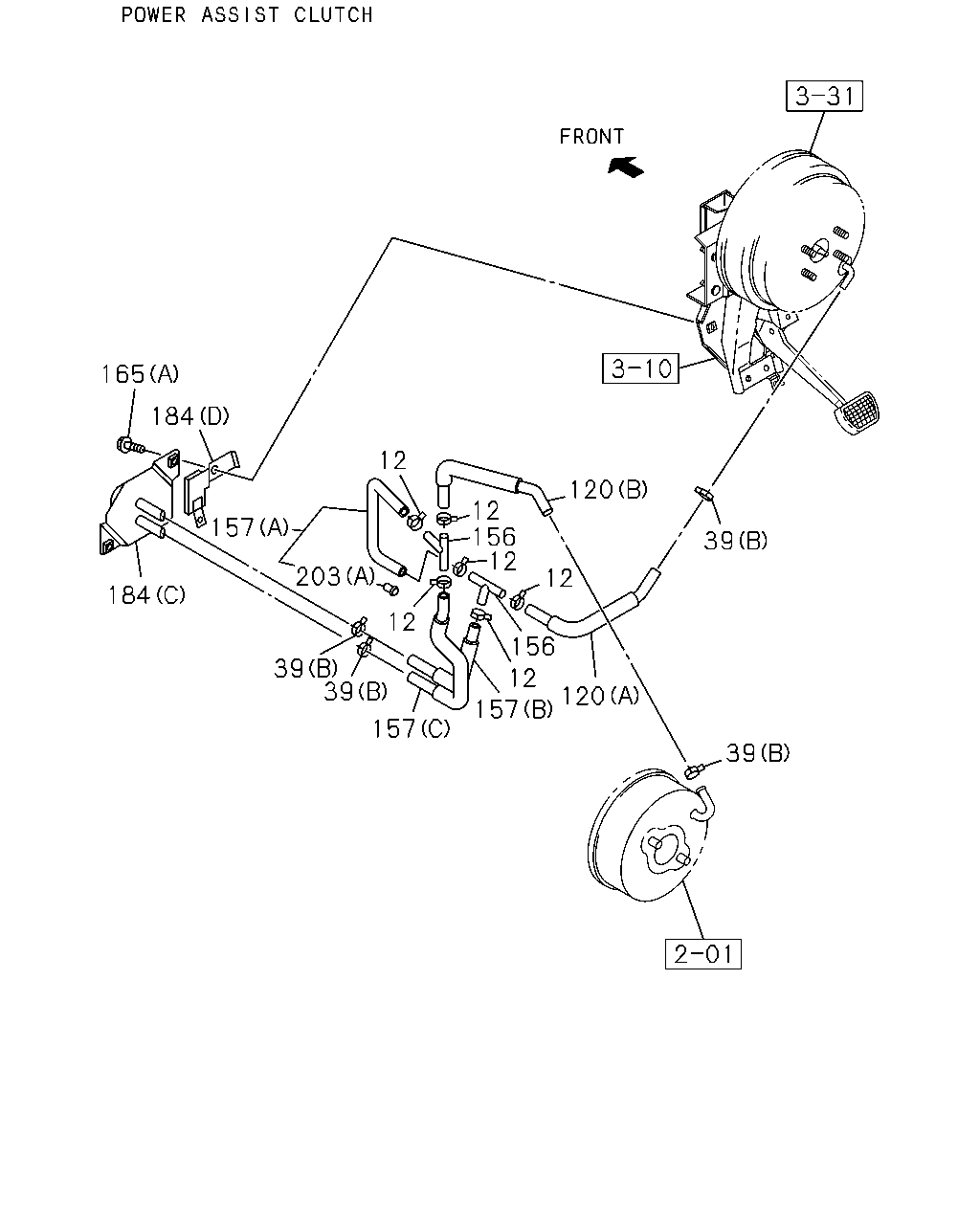

39 39 120 156 12 157 157 39 39 184 157 203 12 12 120 12 12 12 156 184 165

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	06	1	1308-
12	04.681 CLIP; HOSE 04.930 ID=15.5	8-98008-097-0	02	1	1308-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1308-
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1308-
39	04.681 CLIP; HOSE,VAC 01.097 (C) ID=16	8-97329-628-0	02	1	1308-
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1308-
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (A)	8-98060-856-2	01	1	1308-
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98060-857-3	01	1	1308-
156	04.931 JOINT; 3 WAY POWER ASSIST CLUTCH(S2T) 04.681	8-98035-106-0	02	1	1308-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (A)	8-98060-858-1	01	1	1308-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (B)	8-98060-859-2	01	1	1308-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98060-860-2	01	1	1308-
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE EGY	0-28650-616-0	01	1	1308-
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1308-
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (C)	8-98183-468-1	01	1	1308-
184	04.685 BRACKET; UNION FIX (D)	8-98156-526-0	01	1	1308-
184	04.685 BRACKET; UNION FIX (A)	8-98211-373-0	01	1	1308-
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T) (B)	8-98183-469-1	01	1	1308-
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	1308-
203	04.690 VALVE; CHECK (A)	8-94386-540-0	01	1	1308-

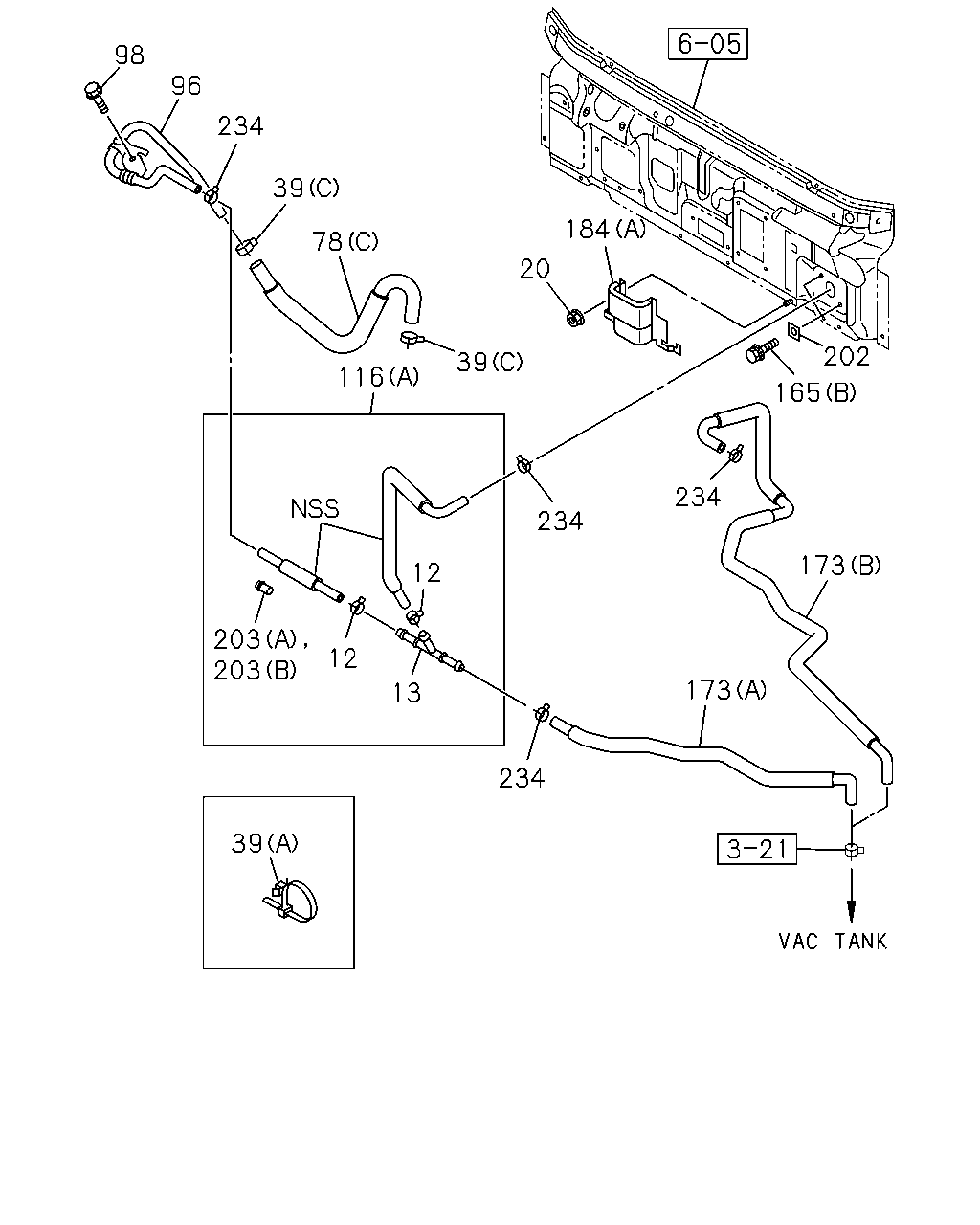

234 234 12 12 13 234 203 203 39 234 96 98 116 78 39 39 173 173 165 202 184 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	06	1	1308-
12	04.681 CLIP; HOSE 04.930 ID=15.5	8-98008-097-0	02	1	1308-
13	04.681 JOINT; HOSE,VAC	8-98035-106-0	01	1	1308-
20	04.686 NUT; BRKT 01.062 M6 FLANGE EGY	0-91180-106-0	01	1	1308-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1308-
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1308-
39	04.681 CLIP; HOSE,VAC 01.097 (C) ID=16	8-97329-628-0	02	1	1308-
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1308-
78	04.931 HOSE; VAC,PIPE TO PIPE (C)	8-98081-681-2	01	1	1308-
78	04.931 HOSE; VAC,PIPE TO PIPE (B)	8-98133-654-1	01	1	1308-
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-98189-106-0	01	1	1308-
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP EGY	8-98082-322-0	01	1	1308-
98	04.931 BOLT; VAC PIPE FIX 03.162 M6X12 FLANGE EGY	0-28050-612-0	01	1	1308-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98113-000-1	01	1	1308-
116	04.931 HOSE; VAC,M/VAC (C)	8-98189-220-0	01	1	1308-
116	04.931 HOSE; VAC,M/VAC (B) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1308-
116	04.931 HOSE; VAC,M/VAC (B) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1308-
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98113-001-0	01	1	1308-
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE EGY	0-28650-616-0	01	1	1308-
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1308-
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (B)	8-98047-184-2	01	1	1308-
173	04.931 HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98031-774-1	01	1	1308-
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (C)	8-98183-468-1	01	1	1308-
184	04.685 BRACKET; UNION FIX (D)	8-98156-526-0	01	1	1308-
184	04.685 BRACKET; UNION FIX (A)	8-98211-373-0	01	1	1308-
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T) (B)	8-98183-469-1	01	1	1308-
202	04.686 SEAL 08.845 EGY	8-97856-616-0	02	1	1308-
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	1308-
203	04.690 VALVE; CHECK (A)	8-94386-540-0	01	1	1308-
234	04.685 CLAMP; PIPE POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	04	1	1308-
234	04.685 CLAMP; PIPE EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	03	1	1308-

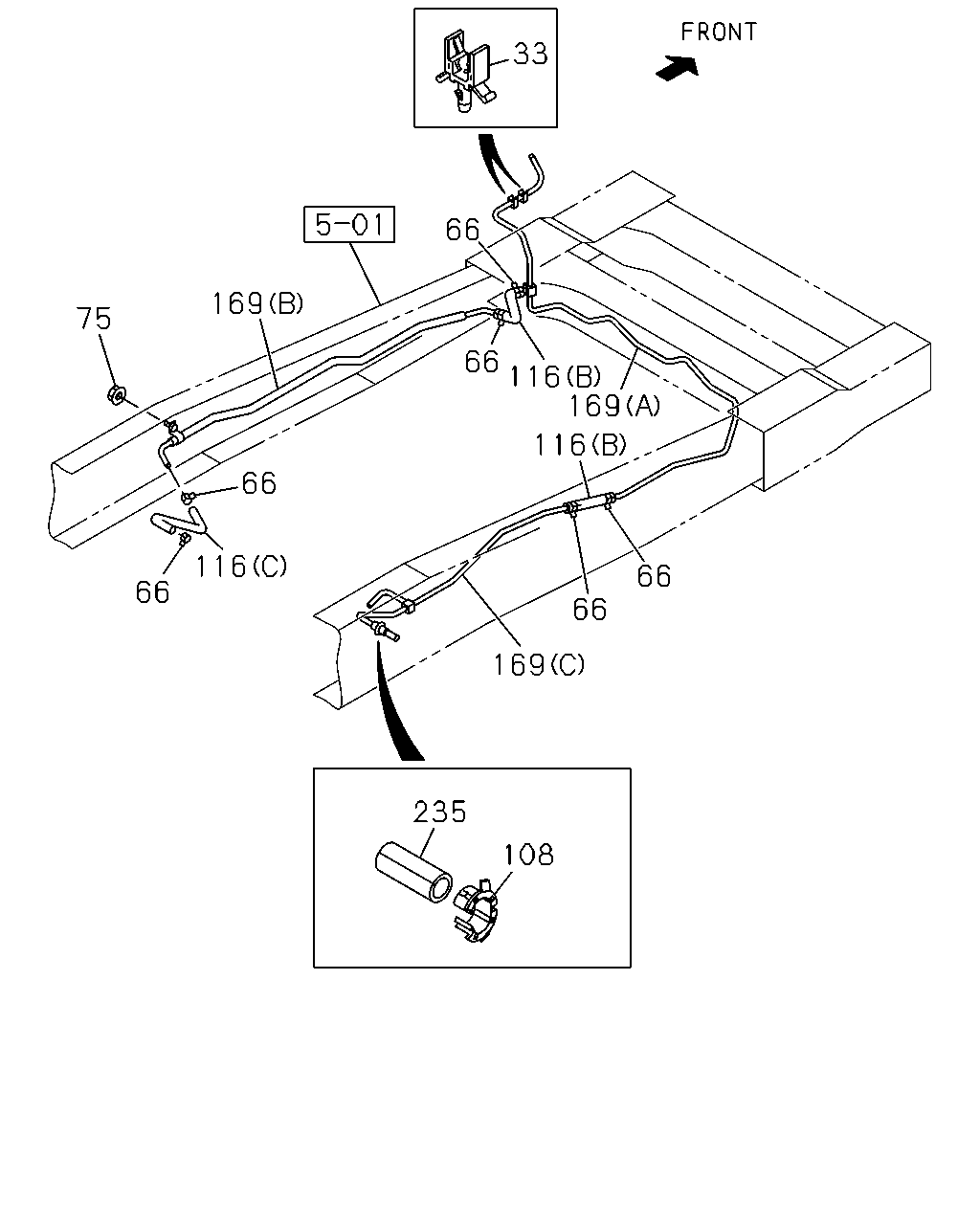

66 116 66 169 108 235 116 66 75 169 66 33 66 169 116 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	04.930 CLIP; VAC PIPE ID=10 H=40	8-94462-219-0	02	1	1308-
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	1308-
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	04	1	1308-
75	04.930 NUT; CLIP,VAC HOSE 01.062 M8 FLANGE EGY	0-91180-108-0	01	1	1308-
108	04.931 GROMMET; PIPE 02.343 ID=17	8-94128-319-2	01	1	1308-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98113-000-1	01	1	1308-
116	04.931 HOSE; VAC,M/VAC (C)	8-98189-220-0	01	1	1308-
116	04.931 HOSE; VAC,M/VAC (B) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1308-
116	04.931 HOSE; VAC,M/VAC (B) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1308-
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98113-001-0	01	1	1308-
169	04.930 PIPE; VAC,BOOSTER SIDE (B) EGY	8-98100-234-2	01	1	1308-
169	04.930 PIPE; VAC,BOOSTER SIDE (A) EGY	8-98122-739-1	01	1	1308-
169	04.930 PIPE; VAC,BOOSTER SIDE (C)	8-98132-683-1	01	1	1308-
235	04.931 RUBBER; SUPPORT,PIPE 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1308-

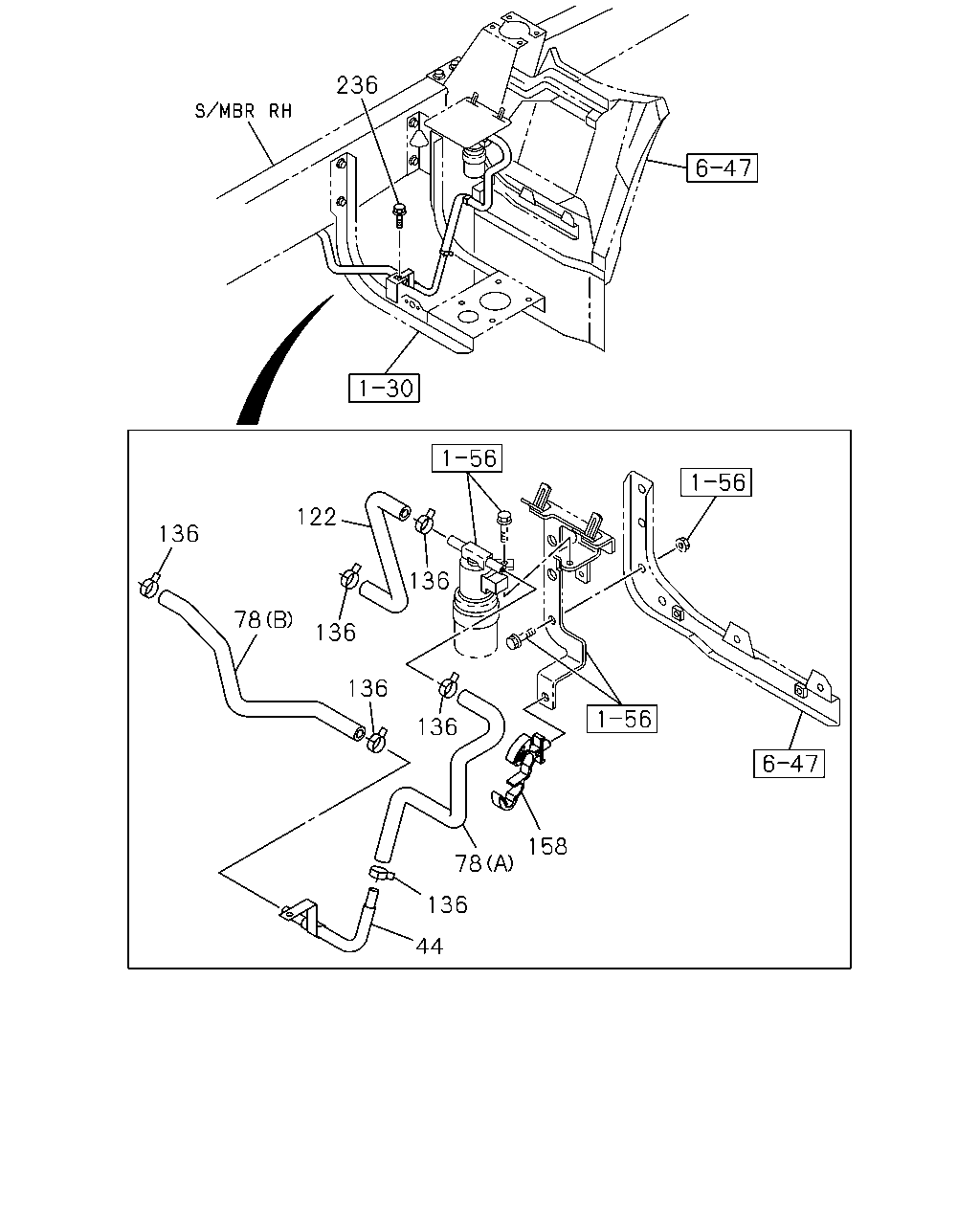

122 136 78 136 136 136 136 78 236 158 136 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	04.930 PIPE; VAC,MAG VLV	8-98034-281-1	01	1	1308-
78	04.931 HOSE; VAC,PIPE TO PIPE (C)	8-98081-681-2	01	1	1308-
78	04.931 HOSE; VAC,PIPE TO PIPE (B)	8-98133-654-1	01	1	1308-
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-98189-106-0	01	1	1308-
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE	8-98189-104-0	01	1	1308-
136	04.681 CLIP; VAC HOSE 03.162 ID=16	8-98008-098-0	06	1	1308-
158	04.681 CLIP; HOSE 02.559 ID=14-20	8-97061-603-0	01	1	1308-
236	04.930 BOLT; PIPE 06.216 M8X25 FLANGE EGY	0-28650-825-0	01	1	1308-
