Isuzu WW
▶
TRUCKS
▶
NPR
▶
51495 - NPR(GM EGYPT)
▶
3 - Brakes, Brake System
▶
3-50 - BRAKE PIPING; OIL,MASTER CYLINDER
▶
3-50 — BRAKE PIPING; OIL,MASTER CYLINDER
(#130703) — 20 parça
◀

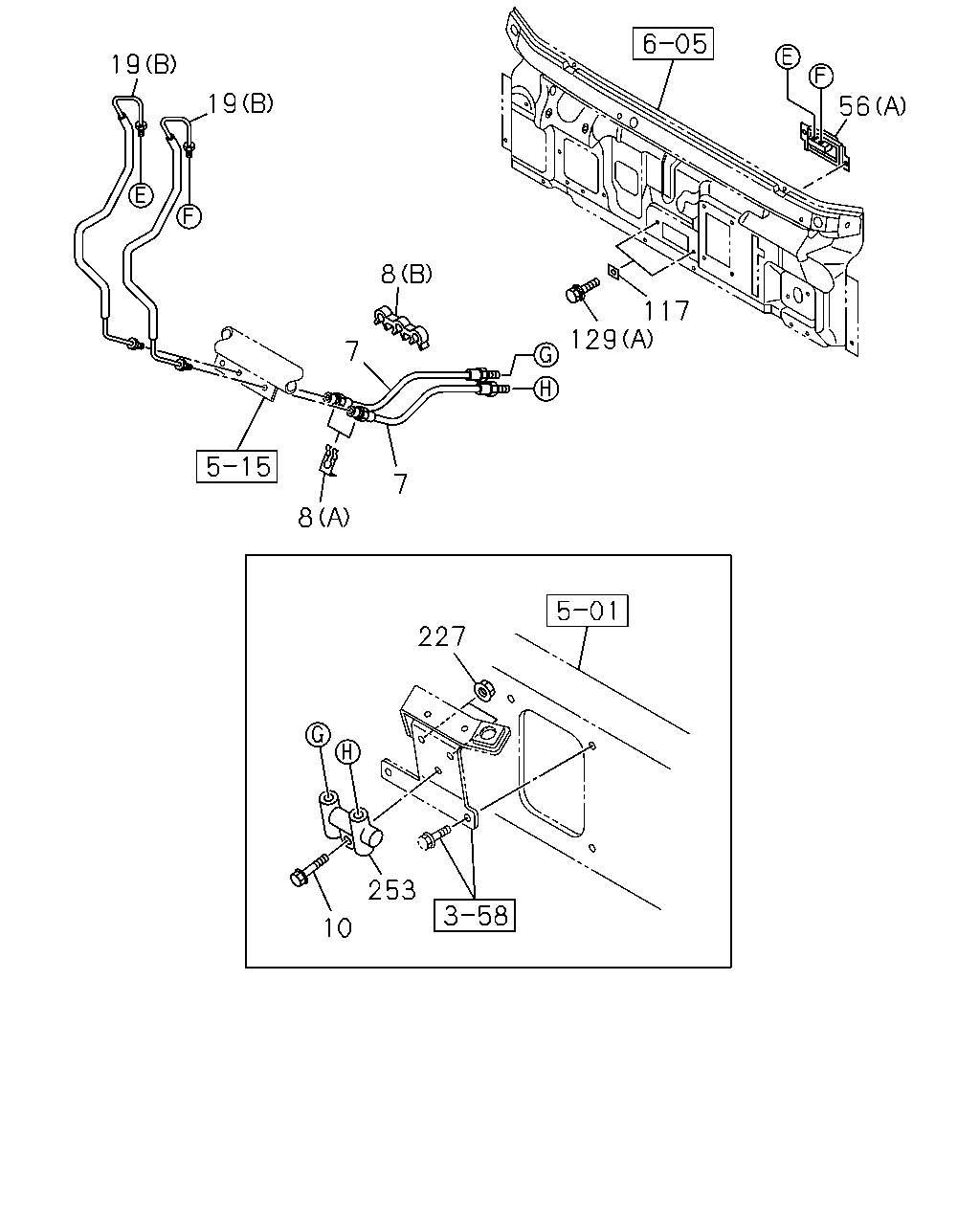

[350A] CAB OUTSIDE (13 parça)

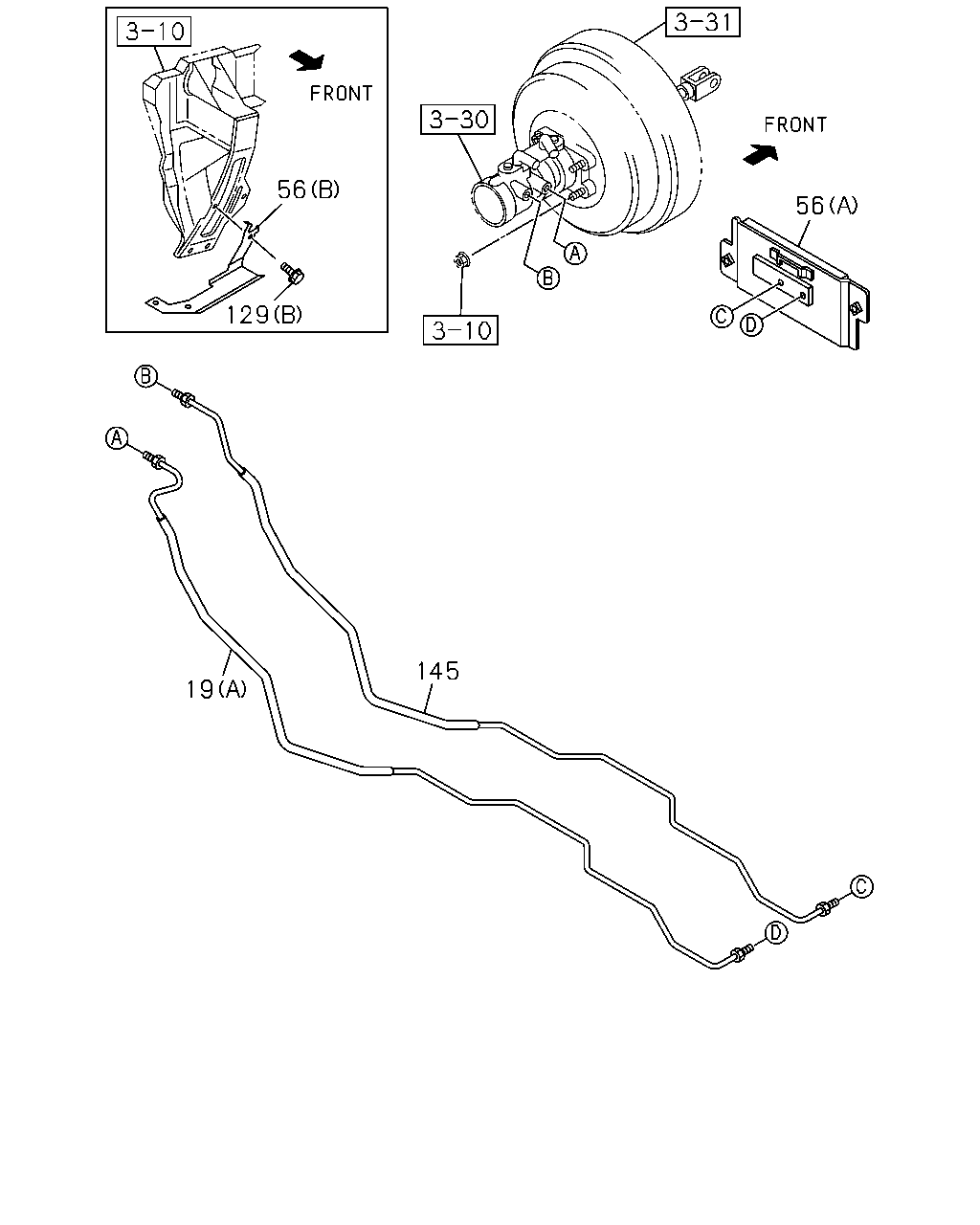

[350A] CAB INSIDE (7 parça)
▶
7
117
7
8
19
19
253
10
227
129
8
56
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
7
04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT
EGY
8-98029-865-0
02
1
1308-
8
04.681 CLIP; FLEX HOSE,CABLE SIDE
04.686 (B)
8-97076-471-0
01
1
1308-
8
04.681 CLIP; FLEX HOSE,CABLE SIDE
(A)
8-97365-304-0
02
1
1308-
10
04.686 BOLT; JOINT
00.685 M6X40 FLANGE
0-28650-640-0
01
1
1308-
19
04.685 PIPE; BRK,M/CYL TO UNION
(B) EGY
8-98056-155-1
02
1
1308-
19
04.685 PIPE; BRK,M/CYL TO UNION
(A) EGY
8-98097-183-1
01
1
1308-
56
04.686 BRACKET; UNION,BRK
(B) EGY
8-98097-178-1
01
1
1308-
56
04.686 BRACKET; UNION,BRK
(A)
8-98154-268-1
01
1
1308-
117
04.686 SEAL; UNION,BRK PIPE JOINT
08.845 EGY
8-97856-616-0
02
1
1308-
129
04.710 BOLT; BRKT
02.343 (B) M6X16 FLANGE EGY
0-28650-616-0
01
1
1308-
129
04.710 BOLT; BRKT
08.857 (A) M6X20 W/LK&PL WASHER EGY
8-98081-030-0
02
1
1308-
227
04.685 NUT; JOINT
01.062 M8 FLANGE EGY
0-91180-108-0
02
1
1308-
253
04.840 JOINT
04.686
5-47456-009-1
01
1
1308-
145
19
56
129
56
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
19
04.685 PIPE; BRK,M/CYL TO UNION
(B) EGY
8-98056-155-1
02
1
1308-
19
04.685 PIPE; BRK,M/CYL TO UNION
(A) EGY
8-98097-183-1
01
1
1308-
56
04.686 BRACKET; UNION,BRK
(B) EGY
8-98097-178-1
01
1
1308-
56
04.686 BRACKET; UNION,BRK
(A)
8-98154-268-1
01
1
1308-
129
04.710 BOLT; BRKT
02.343 (B) M6X16 FLANGE EGY
0-28650-616-0
01
1
1308-
129
04.710 BOLT; BRKT
08.857 (A) M6X20 W/LK&PL WASHER EGY
8-98081-030-0
02
1
1308-
145
04.685 PIPE; BRK,METERING VLV TO UNION
EGY
8-98097-179-1
01
1
1308-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
